Transporto priemonė: LP 913; VIN numerio dalis: 318059

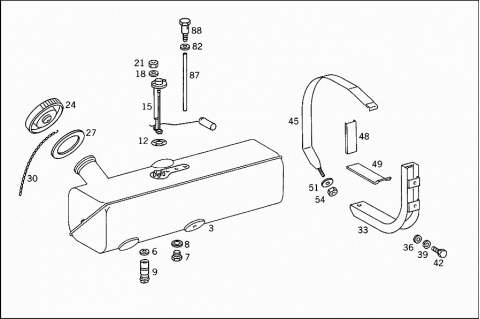

Grupė: 47 FUEL SYSTEM

#	Kodas	Pavadinimas
003	A 3524701001	FUEL TANK
	Repalced by: A 3184700201
003	A 3184700201	FUEL TANK
		105 L.
006	A 0029977245	SEAL RING
		FUEL STRAINER SCREEN TO FUEL TANK
007	N 007604014106	SCREW PLUG
	Repalced by: N 007604014110
007	N 007604014110	SCREW PLUG
		AT TANK
008	N 007603014405	SEAL RING
		AT TANK
009	A 3074700106	FUEL STRAINER
009	A 3094700006	FUEL STRAINER
012	A 4044710080	GASKET
		FUEL GAUGE SENDER UNIT TO FUEL TANK
015	A 0015422017	SENDER UNIT
		FUEL GAUGE
015	A 0045427917	SENDER UNIT
		FUEL GAUGE
018	A 0669970640	SEAL RING
		FUEL GAUGE SENDER UNIT TO FUEL TANK
021	N 304032005002	NUT
	Repalced by: N 304032005005
021	N 304032005005	NUT
		FUEL GAUGE SENDER UNIT TO FUEL TANK
024	A 3094700005	FILLER CAP
024	A 0004700305	FILLER CAP
024	A 0004700105	FILLER CAP
	Repalced by: A 0004700305
027	A 3049970340	SEAL RING
		FILLER CAP
030	A 3034700031	CHAIN
		FILLER CAP
033	A 3524700042	SUPPORT
		FUEL TANK
036	N 007349013003	WASHER
	Repalced by: N 007349013005
036	N 007349013005	WASHER
		CONSOLE TO SIDE MEMBER
039	N 912004012100	LOCK WASHER
		CONSOLE TO SIDE MEMBER
042	N 000961012097	SCREW
	Repalced by: N 308676012026
042	N 308676012026	SCREW
		CONSOLE TO SIDE MEMBER
		M 12X35
042	N 000961012122	SCREW
		CONSOLE TO SIDE MEMBER
		M 12X40
045	A 3524700040	STRAP
		FUEL TANK TO CONSOLE
048	A 6174750020	PAD
		FUEL TANK TO CONSOLE
049	A 3144750020	PAD
		FUEL TANK TO CONSOLE
051	A 3609970126	WASHER
		FUEL TANK TO CONSOLE
054	N 000934012022	NUT
		FUEL TANK TO CONSOLE
057	A 0089975482	HOSE
		FEED LINE AND RETURN LINE
058	A 0089979082	HOSE
		FEED LINE AND RETURN LINE
060	A 0089976082	HOSE
	Repalced by: A 0009872627
060	A 0009872627	PLASTIC PIPE
		LEAK LINE
	N 040621025200	INSULATING HOSE
066	N 915052008019	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/16 MM
066	N 915052008019	BANJO UNION
		RISING PIPE TO FUEL TANK
		4/16 MM
066	N 915052008019	BANJO UNION
		FROM RETURN LINE TO FUEL TANK
		4/16 MM
066	N 915052008016	BANJO UNION
		HOSE WIDTH, / I.D.,
		8/16 MM
066	N 915052008016	BANJO UNION
		RISING PIPE TO FUEL TANK
		8/16 MM
066	N 915052008016	BANJO UNION
		HOSE WIDTH, / I.D.,
		8/16 MM
069	N 915052004019	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/16 MM
069	N 915052004019	BANJO UNION
		LEAK LINE TO TANK
		4/16 MM
070	A 0009909688	BANJO UNION
		LEAK RETURN LINE TO RETURN LINE
	A 0004760524	ELBOW FITTING
		FOR LINES
071	A 0019977672	FITTING
		RETURN
072	N 915017008201	UNION NUT
		RETURN
073	N 915062004000	SLEEVE
		LEAK LINE
076	N 073379006203	HOSE
		LEAK LINE
077	N 073379008200	HOSE
		FEED LINE AND RETURN LINE
078	N 900288010001	CLAMP
		LEAK LINE
079	N 000000000665	CLAMP
		FUEL LINE TO SENDER UNIT
080	A 0019978490	LOOM TIE
		FUEL LINE
		376 MM
080	A 0019978390	LOOM TIE
		FUEL LINE
		280 MM
082	N 915035000014	SEAL RING
		RISING PIPE
083	A 0009971548	SEAL RING
		LEAK LINE
087	A 0089975482	HOSE
		RISING PIPE
		342 MM
088	A 3609900263	HOLLOW SCREW
		RISING PIPE
089	N 915036012203	HOLLOW SCREW
		RISING PIPE
	A 3609950701	CLAMP
	Repalced by: N 916016018202
	N 916016018202	CLAMP
		LINES UNDER CROSS MEMBER
	A 3164290040	BRACKET
		AT ENGINE
096	A 3184280240	BRACKET
		AT SIDE MEMBER
097	N 000933008147	SCREW
	Repalced by: N 304017008021
097	N 304017008021	SCREW
		BRACKET TO SIDE MEMBER
		8X20
097	N 000933008152	SCREW
	Repalced by: N 304017008027
097	N 304017008027	SCREW
		BRACKET TO SIDE MEMBER
		8X30
098	N 913004008004	NUT
	Repalced by: N 913004008001
098	N 913004008001	NUT
		BRACKET TO SIDE MEMBER
	A 3179950832	CLAMP
100	N 007603014106	SEAL RING
		CONNECTION OF FUEL LINES
102	N 915036010204	HOLLOW SCREW
	Repalced by: N 915036010108
102	N 915036010108	HOLLOW SCREW
		CONNECTION OF FUEL LINES
104	N 915047010202	HOLLOW SCREW
		RETURN LINE TO FUEL FILTER
106	N 007603014405	SEAL RING
		RETURN LINE TO FUEL FILTER
