Transporto priemonė: LP 913; VIN numerio dalis: 318059

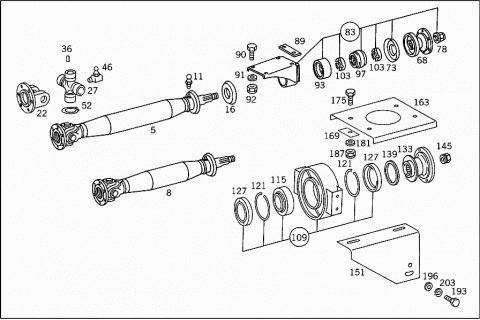

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3184100301 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 882 MM | ||
| 005 | A 3184100301 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 882 MM | ||
| 005 | A 3524100901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1531 MM | ||
| 005 | A 3414100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1215 MM | ||
| 005 | A 3184100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 878 MM | ||
| 008 | A 0004103205 | INTERMEDIATE SHAFT |
| WHEELBASE: | ||
| 4740 MM | ||
| 008 | A 0004103105 | INTERMEDIATE SHAFT |
| FROM INTERMEDIATE SHAFT BEARING I TO BEARING II; 5260-MM WHEELBASE | ||
| 011 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 011 | N 071412008102 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 016 | A 3124131361 | PROTECTIVE CAP |
| PROPELLER SHAFT BEARING | ||
| 022 | A 3524110011 | DRIVE FLANGE |
| 027 | A 3024100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100231 | ||
| 027 | A 3854100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 036 | A 0009815087 | NEEDLE |
| Repalced by: A 3189810287 | ||
| 036 | A 3189810287 | NEEDLE |
| SET = 132 PIECES | ||
| 046 | N 071412008302 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 052 | A 3129941135 | SNAP RING |
| AS REQUIRED | ||
| 2.50 MM | ||
| 052 | A 3129941635 | SNAP RING |
| AS REQUIRED | ||
| 2.55 MM | ||
| 052 | A 3129941335 | SNAP RING |
| AS REQUIRED | ||
| 2.60 MM | ||
| 052 | A 3129941435 | SNAP RING |
| AS REQUIRED | ||
| 2.65 MM | ||
| 052 | A 3129941535 | SNAP RING |
| AS REQUIRED | ||
| 2.70 MM | ||
| 052 | A 3129941735 | SNAP RING |
| AS REQUIRED | ||
| 2.75 MM | ||
| A 3814130261 | PROTECTIVE CAP | |
| A 3814130461 | PROTECTIVE CAP | |
| 068 | A 3524100030 | CENTERING FLANGE |
| 068 | A 3524100030 | CENTERING FLANGE |
| 073 | A 3124131361 | PROTECTIVE CAP |
| 073 | A 3124131361 | PROTECTIVE CAP |
| 078 | A 3224110072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 078 | A 3224110072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 083 | A 3524100010 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| 083 | A 3524100010 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| 089 | A 3524130011 | REINFORCEMENT |
| INTERMEDIATE SHAFT BEARING TO CROSS MEMBER | ||
| 089 | A 3524130011 | REINFORCEMENT |
| INTERMEDIATE SHAFT BEARING TO CROSS MEMBER | ||
| 090 | N 000961010010 | SCREW |
| INTERMEDIATE SHAFT BEARING TO CROSS MEMBER | ||
| 091 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 091 | N 007349010007 | WASHER |
| INTERMEDIATE SHAFT BEARING TO CROSS MEMBER | ||
| 092 | N 913002010010 | NUT |
| INTERMEDIATE SHAFT BEARING TO CROSS MEMBER | ||
| 093 | A 3124131112 | RUBBER MOUNTING |
| INTERMEDIATE SHAFT BEARING | ||
| 093 | A 3124131112 | RUBBER MOUNTING |
| INTERMEDIATE SHAFT BEARING | ||
| 097 | A 3524100051 | BALL BEARING |
| INTERMEDIATE SHAFT BEARING | ||
| 097 | A 3524100051 | BALL BEARING |
| INTERMEDIATE SHAFT BEARING | ||
| 103 | A 3124131231 | BEARING RING |
| INTERMEDIATE SHAFT BEARING | ||
| 103 | A 3124131231 | BEARING RING |
| INTERMEDIATE SHAFT BEARING | ||
| 109 | A 3814101222 | INTERMEDIATE BEARING |
| Repalced by: A 3814101522 | ||
| 109 | A 3814101522 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 115 | A 0019818625 | BALL BEARING |
| PROPELLER SHAFT BEARING | ||
| 121 | A 0019948141 | LOCK |
| PROPELLER SHAFT BEARING | ||
| 127 | A 3814130161 | PROTECTIVE CAP |
| PROPELLER SHAFT BEARING | ||
| 133 | A 3814100030 | CENTERING FLANGE |
| 139 | A 3814130261 | PROTECTIVE CAP |
| 139 | A 3814130461 | PROTECTIVE CAP |
| 145 | A 3529900150 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 151 | A 3184130142 | BRACKET |
| LEFT | ||
| 151 | A 3184130242 | BRACKET |
| RIGHT | ||
| 163 | A 3184130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 169 | A 3854130111 | REINFORCEMENT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 175 | N 000960010006 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 181 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 181 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 187 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 193 | N 000931010282 | SCREW |
| PROPELLER SHAFT TO BRACKET | ||
| M 10X40 | ||
| 193 | N 000931010105 | SCREW |
| Repalced by: N 000933010347 | ||
| 193 | N 000933010347 | SCREW |
| PROPELLER SHAFT TO BRACKET | ||
| M 10X25 | ||
| 196 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 196 | N 007349010007 | WASHER |
| PROPELLER SHAFT TO BRACKET | ||
| 203 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO BRACKET | ||
| 209 | A 3184100702 | PROPELLER SHAFT |
| Repalced by: A 6744101802 | ||
| 209 | A 6744101802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1720 MM | ||
| 209 | A 6744101802 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1720 MM | ||
| 209 | A 3524103102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1513 MM | ||
| 209 | A 3184100202 | PROPELLER SHAFT |
| Repalced by: A 6744101402 | ||
| 209 | A 6744101402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1419 MM | ||
| 209 | A 3184100002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1413 MM | ||
| 209 | A 3524103002 | PROPELLER SHAFT |
| Repalced by: A 6744102602 | ||
| 209 | A 6744102602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1365 MM | ||
| 215 | A 3524100008 | UNIVERSAL JOINT YOKE |
| 221 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 221 | N 071412008102 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 233 | A 3524110011 | DRIVE FLANGE |
| 239 | A 3024100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100231 | ||
| 239 | A 3854100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 245 | A 0009815087 | NEEDLE |
| Repalced by: A 3189810287 | ||
| 245 | A 3189810287 | NEEDLE |
| SET = 132 PIECES | ||
| 251 | N 071412008302 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 257 | A 3129941135 | SNAP RING |
| AS REQUIRED | ||
| 2.50 MM | ||
| 257 | A 3129941635 | SNAP RING |
| AS REQUIRED | ||
| 2.55 MM | ||
| 257 | A 3129941335 | SNAP RING |
| AS REQUIRED | ||
| 2.60 MM | ||
| 257 | A 3129941435 | SNAP RING |
| AS REQUIRED | ||
| 2.65 MM | ||
| 257 | A 3129941535 | SNAP RING |
| AS REQUIRED | ||
| 2.70 MM | ||
| 257 | A 3129941735 | SNAP RING |
| AS REQUIRED | ||
| 2.75 MM | ||
| 263 | A 3374130080 | SEAL RING |
| SLIP JOINT | ||
| 269 | A 3214110158 | SEAL HOLDER |
| SLIP JOINT | ||
| 275 | A 3524110011 | DRIVE FLANGE |
| 275 | A 3814110811 | DRIVE FLANGE |
| 281 | A 3024100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100231 | ||
| 281 | A 3854100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 281 | A 6174100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 287 | A 0009815087 | NEEDLE |
| Repalced by: A 3189810287 | ||
| 287 | A 3189810287 | NEEDLE |
| SET = 132 PIECES | ||
| 293 | N 071412008302 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 299 | A 3129941135 | SNAP RING |
| AS REQUIRED | ||
| 2.50 MM | ||
| 299 | A 3129941635 | SNAP RING |
| AS REQUIRED | ||
| 2.55 MM | ||
| 299 | A 3129941335 | SNAP RING |
| AS REQUIRED | ||
| 2.60 MM | ||
| 299 | A 3129941435 | SNAP RING |
| AS REQUIRED | ||
| 2.65 MM | ||
| 299 | A 3129941535 | SNAP RING |
| AS REQUIRED | ||
| 2.70 MM | ||
| 299 | A 3129941735 | SNAP RING |
| AS REQUIRED | ||
| 2.75 MM | ||
| 299 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 299 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 299 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 305 | A 3524100080 | BOOT |
| SLIP JOINT | ||
| 311 | A 3214110053 | WIRE RING |
| SLIP JOINT | ||
| 317 | N 916002078100 | CLAMP |
| SLIP JOINT | ||
| 323 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 323 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 323 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 329 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 335 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
