Transporto priemonė: LP 913; VIN numerio dalis: 318059
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3185000202 | RADIATOR |
| Repalced by: A 3185000802 | ||
| 004 | A 3185000902 | RADIATOR |
| Repalced by: A 3185000802 | ||
| 004 | A 3185000802 | RADIATOR |
| BEHR | ||
| 006 | A 3185001902 | RADIATOR |
| BEHR | ||
| 008 | N 007603014405 | SEAL RING |
| 010 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 010 | N 007604014110 | SCREW PLUG |
| 012 | A 0009940013 | LOCK |
| 014 | A 0005010025 | BREATHER PIPE |
| 016 | A 0005010171 | SCREW |
| 018 | A 3185000127 | SUPPORT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 018 | A 3185000227 | SUPPORT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 020 | A 3185001227 | SUPPORT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 020 | A 3185001327 | SUPPORT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 022 | A 3185040040 | BRACKET |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 024 | N 000933010145 | SCREW |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 026 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 026 | N 000125010532 | WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 028 | N 000934010014 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 030 | A 3225040112 | RUBBER MOUNTING |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 030 | A 3225040112 | RUBBER MOUNTING |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 032 | A 0019875340 | RUBBER BUFFER |
| 034 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 034 | N 910113010000 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 034 | N 910113010000 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 036 | A 3185000527 | SUPPORT |
| LEFT | ||
| 036 | A 3185000627 | SUPPORT |
| RIGHT | ||
| 038 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 038 | N 304017008034 | SCREW |
| 040 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 040 | N 000125008443 | WASHER |
| 042 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 042 | N 913004008001 | NUT |
| A 3185000055 | FAN SHROUD | |
| Repalced by: A 3185051155 | ||
| A 3185000555 | FAN SHROUD | |
| Repalced by: A 3185001155 | ||
| A 3185000455 | FAN SHROUD | |
| Repalced by: A 3185051155 | ||
| 044 | A 3185051155 | FAN SHROUD |
| 046 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 046 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 046 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 048 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 048 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 050 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 050 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 050 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 052 | A 3185000155 | FAN SHROUD |
| FAN SHROUD TO RADIATOR | ||
| 054 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 054 | N 304017008034 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 056 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 056 | N 913004008001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 058 | A 3185050086 | BOOT |
| FAN SHROUD | ||
| 060 | N 000931010282 | SCREW |
| RADIATOR TO SUPPORT | ||
| 060 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 060 | N 304017010028 | SCREW |
| RADIATOR TO SUPPORT | ||
| 060 | N 304017010028 | SCREW |
| RADIATOR TO SUPPORT | ||
| 060 | N 304017010027 | SCREW |
| RADIATOR TO SUPPORT | ||
| 062 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 062 | N 000125010532 | WASHER |
| RADIATOR TO SUPPORT | ||
| 064 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 064 | N 009021010209 | WASHER |
| RADIATOR TO SUPPORT | ||
| 066 | A 3185040230 | RADIATOR STRUT |
| 068 | N 000934010014 | NUT |
| RADIATOR TO SUPPORT | ||
| 070 | A 3275045082 | RUBBER RING |
| RADIATOR TO SUPPORT | ||
| 072 | A 3199910540 | SPACER TUBE |
| RADIATOR TO SUPPORT | ||
| 074 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 074 | N 009021010209 | WASHER |
| RADIATOR TO SUPPORT | ||
| 076 | N 000934010014 | NUT |
| RADIATOR STRUT TO FRONT CROSS MEMBER | ||
| 078 | A 3185030001 | PROTECTIVE GRILL |
| 080 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 080 | N 304017010002 | SCREW |
| RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE | ||
| 080 | N 000933010128 | SCREW |
| RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE | ||
| 082 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 082 | N 910113010000 | NUT |
| RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE | ||
| 082 | N 000934010014 | NUT |
| RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE | ||
| 084 | A 0019978490 | LOOM TIE |
| 086 | A 3185000049 | TANK |
| EXPANSION TANK TO SEAT BOX | ||
| 086 | A 3185000149 | TANK |
| EXPANSION TANK TO SEAT BOX | ||
| 088 | A 0005013515 | RADIATOR CAP |
| 090 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 092 | A 3185000449 | TANK |
| EXPANSION TANK TO SEAT BOX | ||
| 092 | A 3185000449 | TANK |
| EXPANSION TANK TO SEAT BOX | ||
| 092 | A 3185000449 | TANK |
| EXPANSION TANK TO SEAT BOX | ||
| 094 | A 3815000849 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| A 3815000249 | TANK | |
| Repalced by: A 3815001649 | ||
| 094 | A 3815001649 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 096 | A 0005013515 | RADIATOR CAP |
| 096 | A 0005013515 | RADIATOR CAP |
| 096 | A 0005013515 | RADIATOR CAP |
| 098 | A 0005014215 | RADIATOR CAP |
| 098 | A 0005014215 | RADIATOR CAP |
| 098 | A 0005014215 | RADIATOR CAP |
| 098 | A 0005014215 | RADIATOR CAP |
| 100 | A 0005014515 | RADIATOR CAP |
| 102 | A 0005014615 | RADIATOR CAP |
| 102 | A 0005017215 | RADIATOR CAP |
| 104 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM,TO 000 501 35 15 | ||
| 106 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 106 | N 304017008021 | SCREW |
| EXPANSION TANK TO SEAT BOX | ||
| 106 | N 304017008021 | SCREW |
| EXPANSION TANK TO SEAT BOX | ||
| 106 | N 304017008021 | SCREW |
| EXPANSION TANK TO SEAT BOX | ||
| 108 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 108 | N 009021008213 | WASHER |
| EXPANSION TANK TO SEAT BOX | ||
| 108 | N 009021008213 | WASHER |
| EXPANSION TANK TO SEAT BOX | ||
| 108 | N 009021008213 | WASHER |
| EXPANSION TANK TO SEAT BOX | ||
| 110 | N 912004008102 | LOCK WASHER |
| EXPANSION TANK TO SEAT BOX | ||
| 112 | A 3185010053 | SPACER TUBE |
| EXPANSION TANK TO SEAT BOX | ||
| 112 | A 3185010053 | SPACER TUBE |
| EXPANSION TANK TO SEAT BOX | ||
| 112 | A 3185010053 | SPACER TUBE |
| EXPANSION TANK TO SEAT BOX | ||
| 114 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 114 | N 913004008001 | NUT |
| EXPANSION TANK TO SEAT BOX | ||
| 114 | N 913004008001 | NUT |
| EXPANSION TANK TO SEAT BOX | ||
| 114 | N 913004008001 | NUT |
| EXPANSION TANK TO SEAT BOX | ||
| 116 | A 3185010220 | BRACKET |
| FROM RADIATOR TO WATER PUMP | ||
| 118 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 118 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 118 | N 000000000460 | SHEET METAL SCREW |
| FROM RADIATOR TO WATER PUMP | ||
| 4.8X13 | ||
| 120 | A 3149870044 | EXPANSION PLUG |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 122 | A 3185010195 | SHIM |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 124 | A 3185000231 | BRACKET |
| EXPANSION TANK TO CAB REAR PANEL | ||
| A 3815010295 | SHIM | |
| Repalced by: A 3815010495 | ||
| 126 | A 3815010495 | SHIM |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 128 | N 000938010024 | STUD |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 132 | A 1109870441 | RUBBER RING |
| TO PLUG THE BORES | ||
| 132 | A 1109870441 | RUBBER RING |
| TO PLUG THE BORES | ||
| 134 | N 007985010126 | SCREW |
| TO PLUG THE BORES | ||
| 134 | N 007985010126 | SCREW |
| TO PLUG THE BORES | ||
| 136 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 136 | N 000125010532 | WASHER |
| TO PLUG THE BORES | ||
| 136 | N 000125010532 | WASHER |
| TO PLUG THE BORES | ||
| A 3185010382 | HOSE | |
| Repalced by: N 073379006203 | ||
| 138 | N 073379006203 | HOSE |
| OVERFLOW | ||
| 400 MM | ||
| 138 | N 073379006203 | HOSE |
| OVERFLOW | ||
| 400 MM | ||
| 140 | N 900271020029 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| A 3185010282 | HOSE | |
| Repalced by: A 3185011282 | ||
| 142 | A 3185011282 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 142 | A 3185011282 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 142 | A 3185011182 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 144 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 144 | N 000000000668 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 144 | N 000000000668 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 144 | N 000000000668 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| A 3144290140 | BRACKET | |
| Repalced by: A 3184291540 | ||
| 146 | A 3184291540 | BRACKET |
| COOLING WATER LINE | ||
| 148 | A 3185000572 | LINE |
| FILLER NECK | ||
| 148 | A 3185000572 | LINE |
| FILLER NECK | ||
| A 3185060240 | BRACKET | |
| Repalced by: A 3185060640 | ||
| 150 | A 3185060640 | BRACKET |
| COOLING WATER LINE | ||
| 152 | N 000933010105 | SCREW |
| COOLING WATER PIPE TO WATER PUMP SUPPORT | ||
| 152 | N 000933010128 | SCREW |
| COOLING WATER PIPE TO WATER PUMP SUPPORT | ||
| 154 | N 912004010102 | LOCK WASHER |
| COOLING WATER PIPE TO WATER PUMP SUPPORT | ||
| 156 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 156 | N 000125010532 | WASHER |
| COOLING WATER PIPE TO WATER PUMP SUPPORT | ||
| 158 | A 3609950901 | CLAMP |
| LINE MOUNTING | ||
| 160 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 160 | N 304017006018 | SCREW |
| LINES TO ENGINE | ||
| 162 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 162 | N 913002006009 | NUT |
| LINES TO ENGINE | ||
| 164 | A 3185010082 | HOSE |
| DE-AERATION | ||
| A 3185010682 | HOSE | |
| DE-AERATION | ||
| 164 | A 3185011382 | HOSE |
| DE-AERATION | ||
| 166 | N 900271038026 | HOSE |
| COOLING WATER PIPE TO RADIATOR | ||
| 168 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 168 | N 000000000671 | CLAMP |
| COOLING WATER PIPE TO RADIATOR | ||
| 170 | N 007603012114 | SEAL RING |
| COOLING WATER PIPE | ||
| 172 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 172 | N 000908012009 | SCREW PLUG |
| COOLING WATER PIPE | ||
| A 3185000072 | LINE | |
| Repalced by: A 3185011682 | ||
| A 3185010182 | HOSE | |
| Repalced by: A 3185011682 | ||
| 174 | A 3185011682 | HOSE |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 176 | A 3185011882 | HOSE |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 178 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 178 | N 000000000671 | CLAMP |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| A 3185000272 | LINE | |
| Repalced by: A 3185011982 | ||
| A 3185010182 | HOSE | |
| Repalced by: A 3185011982 | ||
| A 3185011582 | HOSE | |
| Repalced by: A 3185011982 | ||

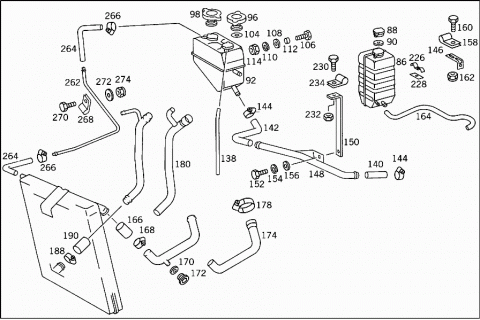

| 180 | A 3185011982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 180 | A 3185011982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 180 | A 3185011982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 180 | A 3185012682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 182 | A 3185012282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 182 | A 3185012582 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 184 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 184 | N 000000000667 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 186 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 186 | N 000000000668 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 188 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 188 | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 190 | N 900271038026 | HOSE |
| COOLING WATER PIPE TO RADIATOR | ||

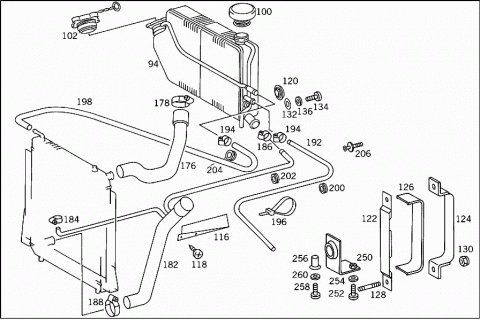

| 192 | A 3185011124 | COOLING WATER PIPE |
| ENGINE BREATHING | ||
| 192 | A 3185011424 | COOLING WATER PIPE |
| ENGINE BREATHING | ||
| 194 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 194 | N 000000000666 | CLAMP |
| DE-AERATION | ||
| 196 | A 0019978390 | LOOM TIE |
| DE-AERATION | ||
| 198 | A 3185011224 | COOLING WATER PIPE |
| DE-AERATION | ||
| 200 | A 1169970181 | GROMMET |
| DE-AERATION LINE THRU CAB REAR PANEL | ||
| 202 | A 3229971381 | GROMMET |
| Repalced by: A 4429970081 | ||
| 202 | A 4429970081 | GROMMET |
| DE-AERATION LINE THRU CAB REAR PANEL | ||
| 204 | A 0009973781 | GROMMET |
| DE-AERATION LINE THRU CAB REAR PANEL | ||
| 206 | A 3819900192 | RIVET |
| 206 | A 3819900192 | RIVET |
| 208 | N 900271012018 | HOSE |
| 12 X 21 X 550 | ||
| 210 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 210 | N 000000000666 | CLAMP |

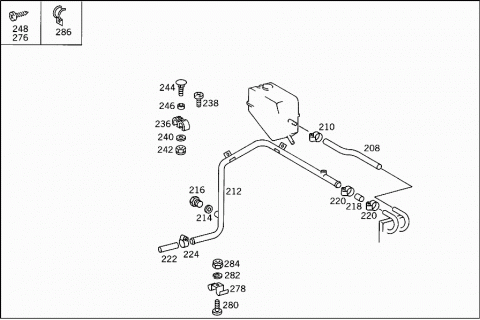

| 212 | A 3185000172 | LINE |
| HEATING WATER LINE | ||
| A 3185000672 | LINE | |
| Repalced by: A 3185060360 | ||
| 212 | A 3185060360 | PIPE |
| HEATING WATER PIPE TO ENGINE | ||
| 212 | A 3185060660 | PIPE |
| HEATING WATER PIPE TO ENGINE | ||
| 214 | N 007603008112 | SEAL RING |
| HEATING WATER LINE | ||
| 216 | N 007604008101 | SCREW PLUG |
| HEATING WATER LINE | ||
| 218 | N 900271015037 | HOSE |
| HEATING WATER PIPE TO ENGINE | ||
| 218 | N 900271018038 | HOSE |
| HEATING WATER PIPE TO ENGINE | ||
| 220 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 220 | N 000000000667 | CLAMP |
| HEATING WATER PIPE TO ENGINE | ||
| 222 | N 900271015098 | HOSE |
| FROM PIPE TO HEATER UNIT | ||
| 222 | A 3185060260 | PIPE |
| FROM PIPE TO HEATER UNIT | ||
| 222 | A 3185060035 | HOSE |
| FROM PIPE TO HEATER UNIT | ||
| 224 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 224 | N 000000000667 | CLAMP |
| FROM PIPE TO HEATER UNIT | ||
| 224 | N 000000000667 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 226 | A 3219950332 | CLAMP |
| HEATING WATER LINE | ||
| 228 | A 3142030084 | SHIM |
| HEATING WATER LINE | ||
| 230 | N 000933006102 | SCREW |
| HEATING WATER LINE | ||
| 232 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 232 | N 913004006001 | NUT |
| HEATING WATER LINE | ||
| 234 | A 3609950801 | CLAMP |
| Repalced by: N 916016016201 | ||
| 234 | N 916016016201 | CLAMP |
| HEATING WATER LINE | ||
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 234 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 234 | A 6739950001 | CLAMP |
| HEATING WATER LINE | ||
| 234 | A 3609950601 | CLAMP |
| HEATING WATER LINE | ||
| 236 | A 3185060140 | BRACKET |
| HEATING WATER LINE | ||
| 236 | A 3185060540 | BRACKET |
| HEATING WATER LINE | ||
| 238 | N 007985006160 | SCREW |
| Repalced by: N 007985006590 | ||
| 238 | N 007985006590 | SCREW |
| Repalced by: N 000000001481 | ||
| 238 | N 000000001481 | SCREW |
| BRACKET TO CAB | ||
| 240 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 242 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 242 | N 913004006001 | NUT |
| BRACKET TO CAB | ||
| 244 | N 000603006060 | SCREW |
| BRACKET TO CAB | ||
| 244 | N 000603006063 | SCREW |
| BRACKET TO CAB | ||
| 246 | A 3609902440 | WASHER |
| Repalced by: A 3609902340 | ||
| 246 | A 3609902340 | WASHER |
| BRACKET TO CAB | ||
| 246 | A 3609902340 | WASHER |
| BRACKET TO CAB | ||
| 248 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 248 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 248 | N 000000000459 | SCREW |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| A 3146160514 | BRACKET | |
| Repalced by: A 3185000331 | ||
| 250 | A 3185000331 | BRACKET |
| 250 | A 3185000331 | BRACKET |
| 250 | A 3185000331 | BRACKET |
| 252 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 252 | N 007985006580 | SCREW |
| BRACKET TO SIDE PANEL | ||
| 252 | N 007985006580 | SCREW |
| BRACKET TO SIDE PANEL | ||
| 254 | N 000125006421 | WASHER |
| BRACKET TO SIDE PANEL | ||
| 254 | N 000125006421 | WASHER |
| BRACKET TO SIDE PANEL | ||
| 256 | N 913010006107 | RIVETED NUT |
| SEAT FRAMEWORK TO FLOOR | ||
| 258 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 258 | N 000000001146 | SCREW |
| SEAT FRAMEWORK TO FLOOR | ||
| 260 | N 000125006421 | WASHER |
| SEAT FRAMEWORK TO FLOOR | ||
| 262 | A 3185010824 | COOLING WATER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 262 | A 3185010824 | COOLING WATER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 262 | A 3185010924 | COOLING WATER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 264 | N 900271008043 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 264 | N 900271008043 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 264 | N 900271008043 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 266 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 266 | N 000000000665 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 266 | N 000000000665 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 266 | N 000000000665 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 268 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 268 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 268 | N 916016008200 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 268 | N 916016008200 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 268 | N 916016008200 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 270 | N 000933006102 | SCREW |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 270 | N 000933006102 | SCREW |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 270 | N 000933006102 | SCREW |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 272 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 272 | N 009021006208 | WASHER |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 272 | N 009021006208 | WASHER |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 272 | N 009021006208 | WASHER |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 274 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 274 | N 913004006001 | NUT |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 274 | N 913004006001 | NUT |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 274 | N 913004006001 | NUT |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 276 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 276 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 276 | N 000000000459 | SCREW |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 278 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 278 | A 6739950001 | CLAMP |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 280 | N 007985008142 | SCREW |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 282 | N 912004008102 | LOCK WASHER |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 284 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 284 | N 913004008001 | NUT |
| HEATING WATER LINE TO SIDE MEMBER | ||
| 286 | A 1369950135 | CLAMP |
| HEATING WATER LINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
