Transporto priemonė: LP 913; VIN numerio dalis: 318059
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

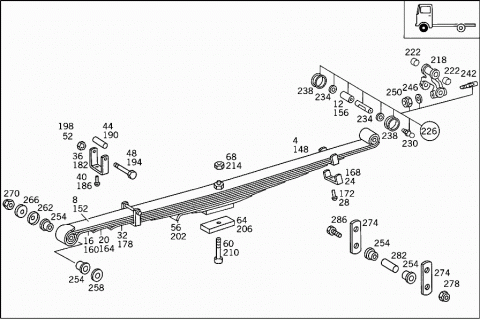

| 004 | A 3163200702 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3163201102 | FRONT SPRING |
| 8-LEAF | ||
| 008 | A 3163200794 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3163201994 | SPRING LEAF |
| Repalced by: A 3183201394 | ||
| 008 | A 3183201394 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3143210050 | BUSHING |
| 012 | A 3183220150 | BUSHING |
| 016 | A 3163210612 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3163210912 | SPRING LEAF |
| Repalced by: A 3183211212 | ||
| 016 | A 3183211212 | SPRING LEAF |
| NO.2 | ||
| 020 | A 3163200894 | SPRING LEAF |
| Repalced by: A 3183200394 | ||
| 020 | A 3163202094 | SPRING LEAF |
| Repalced by: A 3183200394 | ||
| 020 | A 3183200394 | SPRING LEAF |
| NO.3 | ||
| 024 | A 3143210233 | SPRING CLAMP |
| Repalced by: A 0013219633 | ||
| 024 | A 0013219633 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 024 | A 3123240633 | SPRING CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 028 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 032 | A 3163202194 | SPRING LEAF |
| Repalced by: A 3163200994 | ||
| 032 | A 3163200994 | SPRING LEAF |
| NO.4 | ||
| 032 | A 3163200994 | SPRING LEAF |
| NO.4 | ||
| 036 | A 0033212733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 036 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 036 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 040 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 044 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 044 | A 0003213253 | SPACER TUBE |
| SPRING CLAMP | ||
| 048 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 048 | N 304014008009 | SCREW |
| SPRING CLAMP | ||
| 052 | N 304032008006 | NUT |
| SPRING CLAMP | ||
| 056 | A 3163210617 | SPRING LEAF |
| NO.7 | ||
| 056 | A 3163211017 | SPRING LEAF |
| NO.7 | ||
| 060 | N 004626012144 | SPRING BOLT |
| M 12X95 | ||
| 060 | N 004626012106 | SPRING BOLT |
| M 12X105 | ||
| 064 | A 3183240035 | SPACER |
| 064 | A 3183220184 | SHIM |
| 068 | N 000934012010 | NUT |

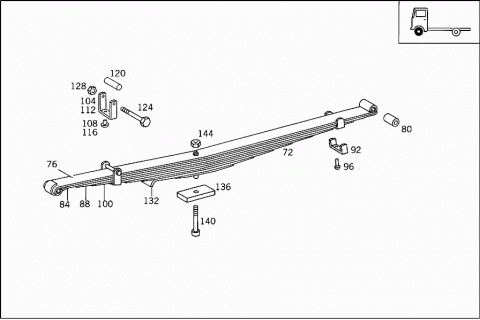

| 072 | A 3183200002 | FRONT SPRING |
| 9-LEAF | ||
| 072 | A 3183200202 | FRONT SPRING |
| 8-LEAF | ||
| 072 | A 3183200502 | FRONT SPRING |
| 8-LEAF | ||
| 076 | A 3183200094 | SPRING LEAF |
| NO.1 | ||
| 076 | A 3183200294 | SPRING LEAF |
| NO.1 | ||
| 076 | A 3183200794 | SPRING LEAF |
| NO.1 | ||
| 080 | A 3143210050 | BUSHING |
| 084 | A 3183210012 | SPRING LEAF |
| NO.2 | ||
| 084 | A 3183210212 | SPRING LEAF |
| NO.2 | ||
| 084 | A 3183210512 | SPRING LEAF |
| NO.2 | ||
| 088 | A 3183200194 | SPRING LEAF |
| NO.3 | ||
| 088 | A 3183200394 | SPRING LEAF |
| NO.3 | ||
| 088 | A 3183200894 | SPRING LEAF |
| NO.3 | ||
| 092 | A 3143210233 | SPRING CLAMP |
| Repalced by: A 0013219633 | ||
| 092 | A 0013219633 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 092 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 096 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 100 | A 3183210014 | SPRING LEAF |
| NO.4 | ||
| 100 | A 3183200494 | SPRING LEAF |
| NO.4 | ||
| 100 | A 3183200994 | SPRING LEAF |
| Repalced by: A 3163200994 | ||
| 100 | A 3163200994 | SPRING LEAF |
| NO.4 | ||
| 104 | A 0033212733 | SPRING CLAMP |
| Repalced by: A 3123313333 | ||
| 104 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 104 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 108 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 112 | A 0013211733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 112 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 112 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 116 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.5 | ||
| 120 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| SPRING CLAMP | ||
| 124 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 124 | N 304014008009 | SCREW |
| SPRING CLAMP | ||
| 128 | N 304032008006 | NUT |
| SPRING CLAMP | ||
| 132 | A 3183210517 | SPRING LEAF |
| NO.7 | ||
| 136 | A 3183240035 | SPACER |
| 140 | N 004626012151 | SPRING BOLT |
| M12X90 | ||
| 140 | N 004626012144 | SPRING BOLT |
| M12X95 | ||
| 144 | N 000934012010 | NUT |
| 148 | A 3163200902 | FRONT SPRING |
| 8-LEAF | ||
| 148 | A 3163201002 | FRONT SPRING |
| 8-LEAF | ||
| 152 | A 3163201294 | SPRING LEAF |
| Repalced by: A 3163200094 | ||
| 152 | A 3163200094 | SPRING LEAF |
| NO.1 | ||
| 152 | A 3163201694 | SPRING LEAF |
| Repalced by: A 3143203094 | ||
| 152 | A 3143203094 | SPRING LEAF |
| NO.1 | ||
| 156 | A 3143210050 | BUSHING |
| 156 | A 3183220150 | BUSHING |
| 160 | A 3163210712 | SPRING LEAF |
| Repalced by: A 3163210212 | ||
| 160 | A 3163210212 | SPRING LEAF |
| NO.2 | ||
| 160 | A 3163210812 | SPRING LEAF |
| Repalced by: A 3143212312 | ||
| 160 | A 3143212312 | SPRING LEAF |
| NO.2 | ||
| 164 | A 3163201394 | SPRING LEAF |
| Repalced by: A 3163200194 | ||
| 164 | A 3163200194 | SPRING LEAF |
| NO.3 | ||
| 164 | A 3163201794 | SPRING LEAF |
| NO.3 | ||
| 168 | A 3143210233 | SPRING CLAMP |
| Repalced by: A 0013219633 | ||
| 168 | A 0013219633 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 168 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 172 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 178 | A 3163201594 | SPRING LEAF |
| NO.4 | ||
| 178 | A 3163201894 | SPRING LEAF |
| NO.4 | ||
| 182 | A 0033213033 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 182 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 182 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 186 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 190 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| SPRING CLAMP | ||
| 194 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 194 | N 304014008009 | SCREW |
| SPRING CLAMP | ||
| 198 | N 304032008006 | NUT |
| SPRING CLAMP | ||
| 202 | A 3163210917 | SPRING LEAF |
| Repalced by: A 3163210817 | ||
| 202 | A 3163210817 | SPRING LEAF |
| NO.7 | ||
| 206 | A 3183240035 | SPACER |
| 206 | A 3143221284 | SHIM |
| 210 | N 004626012151 | SPRING BOLT |
| M 12X90 | ||
| 210 | N 004626012106 | SPRING BOLT |
| M 12X105 | ||
| 214 | N 000934012010 | NUT |
| 218 | A 3143200062 | SHACKLE |
| FRONT SPRING | ||
| 222 | A 3123221050 | BUSHING |
| Repalced by: A 3183220050 | ||
| 222 | A 3183220050 | BUSHING |
| SHACKLE | ||
| 226 | A 3143220230 | SHACKLE PIN |
| Repalced by: A 3145860432 | ||
| 226 | A 3145860132 | REPAIR KIT |
| Repalced by: A 3145860432 | ||
| 226 | A 3145860432 | REPAIR KIT |
| Repalced by: A 3143200365 | ||
| 226 | A 3143200365 | SHACKLE PIN |
| PARTS KIT | ||
| 230 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 234 | A 3143220176 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 234 | A 3143220276 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 234 | A 3143220376 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 238 | A 0029972940 | SEAL RING |
| SHACKLE PIN TO SPRING BRACKET | ||
| 242 | A 3529900337 | BOLT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 246 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 246 | N 000433010510 | WASHER |
| SHACKLE PIN TO SPRING BRACKET | ||
| 250 | N 913002010001 | NUT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 254 | A 3183220250 | BUSHING |
| Repalced by: A 6673220350 | ||
| 254 | A 6673220350 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 258 | A 3093250042 | SUPPORTING SHELL |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 262 | A 3093250142 | SUPPORTING SHELL |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 266 | A 3183250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 270 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 270 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 274 | A 3183220120 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 278 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 278 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 282 | A 3183220130 | SHACKLE PIN |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 286 | N 000960016175 | SCREW |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 290 | A 3183310027 | SPACER |
| Repalced by: A 3183310227 | ||
| 290 | A 3183310227 | SPACER |
| LEFT AND RIGHT | ||
| 294 | A 3183250331 | PLATE |
| LEFT AND RIGHT | ||

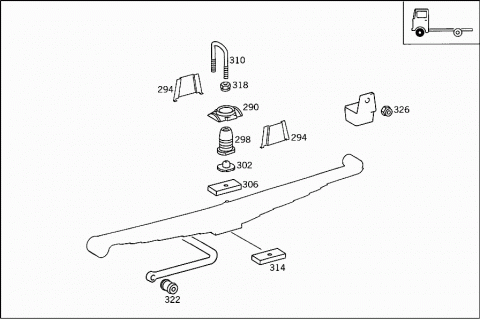

| 298 | A 3163240008 | HELPER SPRING |
| Repalced by: A 3183240008 | ||
| 298 | A 3183240008 | HELPER SPRING |
| LEFT AND RIGHT FRONT SPRINGS | ||
| 302 | A 3163240035 | SPACER |
| FRONT SPRING | ||
| 306 | A 3183310093 | SHIM |
| INTERMEDIATE PLATE TO FRONT AXLE | ||
| 310 | A 3273310225 | U-BOLT |
| Repalced by: A 3143510525 | ||
| 310 | A 6703510225 | U-BOLT |
| Repalced by: A 3143510525 | ||
| 310 | A 3143510525 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 190 MM | ||
| 310 | A 3143510525 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 190 MM | ||
| 310 | A 3143510425 | U-BOLT |
| Repalced by: A 6703510125 | ||
| 310 | A 6703510125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 MM | ||
| 310 | A 6703510125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 MM | ||
| 310 | A 3143310025 | U-BOLT |
| Repalced by: A 3123513025 | ||
| 310 | A 3123513025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 MM | ||
| 310 | A 3123513025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 MM | ||
| 314 | A 3163220084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 318 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 318 | N 910113016002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3183200044 | RUBBER BUFFER | |
| AT FRAME | ||
| 322 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 326 | N 913002010001 | NUT |
| BUFFER TO FRAME | ||

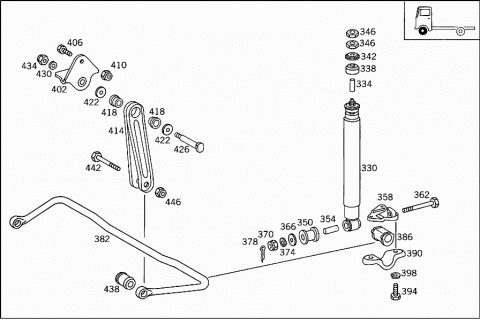

| 330 | A 3143230300 | SHOCK ABSORBER |
| Repalced by: A 3143230600 | ||
| 330 | A 3143230600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 3143230500 | SHOCK ABSORBER |
| Repalced by: A 3143230700 | ||
| 330 | A 3143230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 3143230800 | SHOCK ABSORBER |
| Repalced by: A 3183230300 | ||
| 330 | A 3183230300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 330 | A 3143230900 | SHOCK ABSORBER |
| Repalced by: A 3183230400 | ||
| 330 | A 3183230400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 334 | A 0003261050 | BUSHING |
| Repalced by: A 0003231253 | ||
| 334 | A 0003231253 | SPACER TUBE |
| TO 314 323 03 00,314 323 06 00 | ||
| 334 | A 0003232950 | BUSHING |
| TO 314 323 05 00,314 323 07 00 | ||
| 338 | A 0003232785 | RUBBER MOUNTING |
| TO 314 323 03 00,314 323 06 00 | ||
| 338 | A 0003232744 | RUBBER BUFFER |
| TO 314 323 05 00,314 323 07 00 | ||
| 342 | A 0003230267 | RETAINER |
| TO 314 323 03 00,314 323 06 00 | ||
| 342 | A 0003230667 | RETAINER |
| TO 314 323 05 00,314 323 07 00 | ||
| 346 | A 0003260372 | NUT |
| Repalced by: N 000936010010 | ||
| 346 | N 000936010010 | NUT |
| TO 314 323 03 00,314 323 05 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 314 323 07 00 | ||
| 346 | N 000936010010 | NUT |
| TO 314 323 06 00 | ||
| 346 | A 0003260472 | NUT |
| Repalced by: N 000934010015 | ||
| 346 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 346 | N 308673010000 | NUT |
| TO 314 323 06 00 | ||
| 350 | A 0003232544 | RUBBER BUFFER |
| Repalced by: A 0003230185 | ||
| 350 | A 0003230185 | RUBBER MOUNTING |
| TO 314 323 03 00,314 323 05 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 314 323 07 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 314 323 09 00,318 323 04 00 | ||
| 350 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 08 00,318 323 03 00 | ||
| 350 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 06 00 | ||
| 354 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 354 | A 0003232750 | BUSHING |
| 358 | A 3183230063 | BEARING BRACKET |
| Repalced by: A 3183230263 | ||
| 358 | A 3183230263 | BEARING BRACKET |
| LEFT | ||
| 358 | A 3183230163 | BEARING BRACKET |
| Repalced by: A 3183230363 | ||
| 358 | A 3183230363 | BEARING BRACKET |
| RIGHT | ||
| 362 | A 3143230074 | PIN |
| Repalced by: N 000960014205 | ||
| 362 | N 000960014205 | SCREW |
| Repalced by: N 308765014006 | ||
| 362 | N 308765014006 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 14X90 | ||
| 362 | N 308765014006 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 14X90 | ||
| 362 | N 308765014006 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 14X90 | ||
| 362 | N 000960014061 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M14X80 | ||
| 362 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 362 | N 308676014013 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M14X65 | ||
| 362 | N 308676014013 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M14X65 | ||
| 366 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 366 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 366 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 366 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 370 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 370 | N 910113014000 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 370 | N 910113014000 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 370 | N 910113014000 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 374 | N 912004014100 | LOCK WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 378 | N 000094003226 | COTTER PIN |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 382 | A 3183230065 | TORSION BAR |
| Repalced by: A 3183230265 | ||
| 382 | A 3183230265 | TORSION BAR |
| FRONT AXLE | ||
| 386 | A 3183210085 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 390 | A 3183210040 | BRACKET |
| TORSION BAR TO BEARING BRACKET | ||
| 394 | N 000933010128 | SCREW |
| TORSION BAR TO BEARING BRACKET | ||
| 398 | N 912004010102 | LOCK WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 402 | A 3183200078 | CONSOLE |
| Repalced by: A 3183200378 | ||
| 402 | A 3183200378 | CONSOLE |
| Repalced by: A 3183201978 | ||
| 402 | A 3183201978 | CONSOLE |
| TORSION BAR | ||
| 406 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 406 | N 304017010002 | SCREW |
| TORSION BAR TO FRAME | ||
| 410 | N 913002010001 | NUT |
| TORSION BAR TO FRAME | ||
| 414 | A 3183200062 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 418 | A 3143260181 | RUBBER MOUNTING |
| SHACKLE TO CONSOLE | ||
| 422 | A 3183230076 | WASHER |
| Repalced by: N 009021017201 | ||
| 422 | N 009021017201 | WASHER |
| SHACKLE TO CONSOLE | ||
| 426 | A 3183230074 | PIN |
| SHACKLE TO CONSOLE | ||
| 426 | A 3183230274 | PIN |
| SHACKLE TO CONSOLE | ||
| 430 | N 000125013008 | WASHER |
| 434 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 434 | N 910113012003 | NUT |
| SHACKLE TO CONSOLE | ||
| 438 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 438 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 438 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 442 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 12X60 | ||
| 442 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 442 | N 000961012205 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 12X50 | ||
| 446 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 446 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||

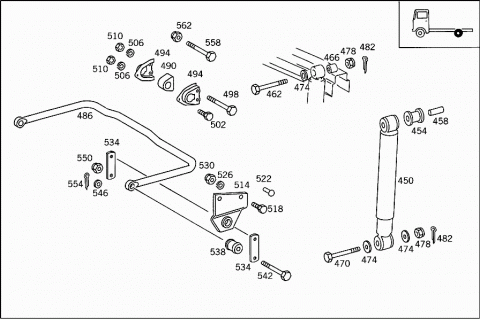

| 450 | A 3183260000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 450 | A 3183260200 | SHOCK ABSORBER |
| REAR AXLE | ||
| 454 | A 0003230185 | RUBBER MOUNTING |
| 458 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 458 | A 0003232750 | BUSHING |
| 462 | A 3129901314 | SCREW |
| Repalced by: N 000960014077 | ||
| 462 | N 000960014263 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M14X120 | ||
| 462 | N 000960014219 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M14X75 | ||
| 462 | N 000960014180 | SCREW |
| Repalced by: N 308765014009 | ||
| 462 | N 308765014009 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| M14X110 | ||
| 466 | A 3143120150 | BUSHING |
| Repalced by: A 6673210153 | ||
| 466 | A 6673210153 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 470 | A 3143260071 | SCREW |
| Repalced by: N 000960014071 | ||
| 470 | N 000960014248 | SCREW |
| Repalced by: N 308765014008 | ||
| 470 | N 308765014008 | SCREW |
| SHOCK ABSORBER TO REAR AXLE | ||
| 474 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 474 | A 3193260076 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 474 | A 3193260076 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 478 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 478 | N 910113014000 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 482 | N 000094003226 | COTTER PIN |
| SHOCK ABSORBER MOUNTING | ||
| 486 | A 3163260065 | TORSION BAR |
| REAR | ||
| 486 | A 3163260065 | TORSION BAR |
| REAR | ||
| 486 | A 3183260565 | TORSION BAR |
| REAR | ||
| 490 | A 3163260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 490 | A 3163260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 490 | A 3183260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 494 | A 3163260040 | BRACKET |
| TORSION BAR | ||
| 498 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 498 | N 304017008053 | SCREW |
| BRACKET TO CONSOLE | ||
| M 8X60 | ||
| 502 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 502 | N 304017008021 | SCREW |
| BRACKET TO CONSOLE | ||
| M 8X20 | ||
| 506 | N 912004008102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 510 | N 304032008006 | NUT |
| BRACKET TO CONSOLE | ||
| 514 | A 3143200478 | CONSOLE |
| LEFT | ||
| 514 | A 3183201078 | CONSOLE |
| LEFT | ||
| 514 | A 3143200578 | CONSOLE |
| RIGHT | ||
| 514 | A 3183201178 | CONSOLE |
| RIGHT | ||
| 518 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X25 | ||
| 518 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 518 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 522 | N 910005014056 | RIVET |
| CONSOLE TO FRAME | ||
| 14X45 MM | ||
| 526 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 530 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 530 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 530 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 534 | A 3143200063 | SHACKLE |
| Repalced by: A 3143260247 | ||
| 534 | A 3143260247 | SHACKLE |
| TORSION BAR | ||
| 538 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 538 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 538 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 542 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 542 | N 000961012184 | SCREW |
| Repalced by: N 308676012018 | ||
| 542 | N 308676012018 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 12X65 | ||
| 542 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M 12X60 | ||
| 546 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 546 | N 000433013010 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 550 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 550 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 554 | N 000094003219 | COTTER PIN |
| SHACKLE TO TORSION BAR | ||
| 558 | N 000931010271 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 562 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 562 | N 910113010000 | NUT |
| TORSION BAR TO REAR AXLE | ||

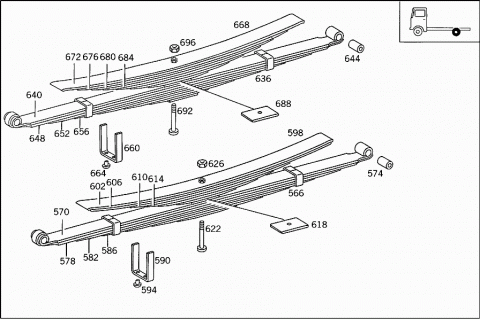

| 566 | A 3183200108 | REAR SPRING |
| 7-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 566 | A 3183200006 | REAR SPRING |
| Repalced by: A 3183200108 | ||
| 570 | A 3183200093 | SPRING LEAF |
| NO.1 | ||
| 574 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 574 | A 3163240250 | BUSHING |
| Repalced by: A 3163240350 | ||
| 574 | A 3163240350 | BUSHING |
| 574 | A 3163240450 | BUSHING |
| 578 | A 3183240112 | SPRING LEAF |
| NO.2 | ||
| 582 | A 3183240113 | SPRING LEAF |
| NO.3 | ||
| 586 | A 3183200193 | SPRING LEAF |
| Repalced by: A 3163200593 | ||
| 586 | A 3163200593 | SPRING LEAF |
| NO.4 | ||
| 590 | A 3403240333 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 590 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 590 | A 6173210333 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 594 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 598 | A 3183200010 | HELPER SPRING |
| 6-LEAF | ||
| 602 | A 3183240140 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 602 | A 3143241940 | SPRING LEAF |
| NO.1 | ||
| 606 | A 3183240141 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 606 | A 3143241941 | SPRING LEAF |
| NO.2 | ||
| 610 | A 3183240142 | SPRING LEAF |
| Repalced by: A 3143240542 | ||
| 610 | A 3143240542 | SPRING LEAF |
| NO.3 | ||
| 614 | A 3183240143 | SPRING LEAF |
| Repalced by: A 3143240543 | ||
| 614 | A 3143240543 | SPRING LEAF |
| NO.4 | ||
| 618 | A 3213240035 | SPACER |
| 622 | N 004626012111 | SPRING BOLT |
| M 12X155 | ||
| 626 | N 000934012021 | NUT |

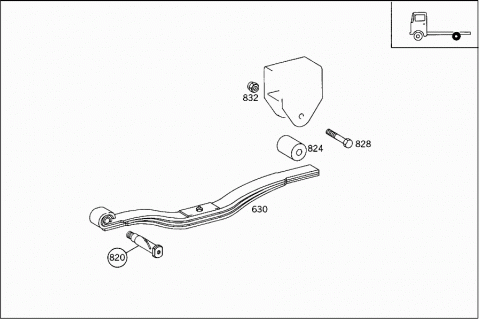

| 630 | A 0003200006 | REAR SPRING |
| 636 | A 3183200008 | REAR SPRING |
| 8-LEAF;WITH 7-LEAF HELPER SPRING | ||
| 636 | A 3183200106 | REAR SPRING |
| Repalced by: A 3183200008 | ||
| 640 | A 3183200293 | SPRING LEAF |
| NO.1 | ||
| 644 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 644 | A 3163240250 | BUSHING |
| Repalced by: A 3163240350 | ||
| 644 | A 3163240350 | BUSHING |
| 644 | A 3163240450 | BUSHING |
| 648 | A 3183240012 | SPRING LEAF |
| NO.2 | ||
| 652 | A 3183240013 | SPRING LEAF |
| NO.3 | ||
| 656 | A 3183200393 | SPRING LEAF |
| NO.4 | ||
| 660 | A 3403240333 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 660 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 660 | A 6173210333 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 664 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 668 | A 3183200110 | HELPER SPRING |
| 7-LEAF | ||
| 672 | A 3183240040 | SPRING LEAF |
| NO.1 | ||
| 676 | A 3183240041 | SPRING LEAF |
| NO.2 | ||
| 680 | A 3183240042 | SPRING LEAF |
| NO.3 | ||
| 684 | A 3183240043 | SPRING LEAF |
| NO.4 | ||
| 688 | A 3213240035 | SPACER |
| 692 | N 004626012113 | SPRING BOLT |
| M 12X180 | ||
| 696 | N 000934012010 | NUT |
| 700 | A 3163200506 | REAR SPRING |
| 10-LEAF | ||
| 700 | A 3163200506 | REAR SPRING |
| 10-LEAF | ||
| 700 | A 3183200406 | REAR SPRING |
| 10-LEAF | ||
| 704 | A 3163200293 | SPRING LEAF |
| NO.1 | ||
| 704 | A 3163200293 | SPRING LEAF |
| NO.1 | ||
| 704 | A 3183200693 | SPRING LEAF |
| NO.1 | ||
| 708 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 708 | A 3163240250 | BUSHING |
| Repalced by: A 3163240350 | ||
| 708 | A 3163240350 | BUSHING |
| 708 | A 3163240450 | BUSHING |
| 712 | A 3163240412 | SPRING LEAF |
| NO.2 | ||
| 712 | A 3163240412 | SPRING LEAF |
| NO.2 | ||
| 712 | A 3183240512 | SPRING LEAF |
| NO.2 | ||
| 716 | A 3163240413 | SPRING LEAF |
| NO.3 | ||
| 716 | A 3163240413 | SPRING LEAF |
| NO.3 | ||
| 716 | A 3183240513 | SPRING LEAF |
| NO.3 | ||
| 720 | A 3163240414 | SPRING LEAF |
| NO.4 | ||
| 720 | A 3163240414 | SPRING LEAF |
| NO.4 | ||
| 720 | A 3183240414 | SPRING LEAF |
| NO.4 | ||
| 724 | A 3163240416 | SPRING LEAF |
| NO.6 | ||
| 728 | A 3183240218 | SPRING LEAF |
| NO.8 | ||
| 732 | A 0013216933 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 732 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 732 | A 6173210333 | SPRING CLAMP |
| 736 | N 000660008026 | RIVET |
| 740 | A 0003213053 | SPACER TUBE |
| Repalced by: A 3140720253 | ||
| 740 | A 3140720253 | SPACER TUBE |
| 744 | N 000601010027 | SCREW |
| 748 | N 000934010014 | NUT |
| 752 | N 004626012169 | SPRING BOLT |
| M 12X130 | ||
| 752 | N 004626012169 | SPRING BOLT |
| M 12X130 | ||
| 752 | N 004626012109 | SPRING BOLT |
| M 12X125 | ||
| 756 | N 000934012021 | NUT |
| 760 | A 3183200206 | REAR SPRING |
| 10-LEAF | ||
| 764 | A 3183200493 | SPRING LEAF |
| Repalced by: A 3143202793 | ||
| 764 | A 3143202793 | SPRING LEAF |
| NO.1 | ||
| 768 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 768 | A 3163240250 | BUSHING |
| Repalced by: A 3163240350 | ||
| 768 | A 3163240350 | BUSHING |
| 768 | A 3163240450 | BUSHING |
| 772 | A 3183240212 | SPRING LEAF |
| Repalced by: A 3143242312 | ||
| 772 | A 3143242312 | SPRING LEAF |
| NO.2 | ||
| 776 | A 3183240213 | SPRING LEAF |
| NO.3 | ||
| 780 | A 0013214233 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 780 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 780 | A 6173210333 | SPRING CLAMP |
| 784 | A 0003213053 | SPACER TUBE |
| Repalced by: A 3140720253 | ||
| 784 | A 3140720253 | SPACER TUBE |
| 788 | N 000601010027 | SCREW |
| 792 | N 000934010014 | NUT |
| 796 | N 000660008026 | RIVET |
| 800 | N 004626012100 | SPRING BOLT |
| Repalced by: N 004626012272 | ||
| 800 | N 004626012272 | SPRING BOLT |
| 804 | N 910005014056 | RIVET |
| 808 | A 3143200563 | SHACKLE |
| REAR SPRING | ||
| 812 | A 3123251050 | BUSHING |
| Repalced by: A 3183250050 | ||
| 812 | A 3183250050 | BUSHING |
| 816 | A 3143250030 | SHACKLE PIN |
| Repalced by: A 3145860532 | ||
| 816 | A 3145860232 | REPAIR KIT |
| Repalced by: A 3145860532 | ||
| 816 | A 3145860532 | REPAIR KIT |
| Repalced by: A 3143200065 | ||
| 816 | A 3143200065 | SHACKLE PIN |
| PARTS KIT | ||
| 820 | A 0003250030 | SHACKLE PIN |
| 824 | A 0003200077 | RUBBER SPRING |
| 828 | N 000931016077 | SCREW |
| 832 | N 913002016003 | NUT |
| 836 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 840 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 840 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 840 | A 3522330576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 844 | A 0029973140 | SEAL RING |
| REAR SPRING TO SPRING BRACKET | ||
| 848 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING BRACKET | ||
| 852 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 852 | N 000433010510 | WASHER |
| REAR SPRING TO SPRING BRACKET | ||
| 856 | N 913002010001 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| 860 | A 3213250931 | PLATE |
| Repalced by: A 3183250931 | ||
| 860 | A 3183250931 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 864 | A 3183510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 320 MM | ||
| 864 | A 3143510325 | U-BOLT |
| Repalced by: A 3163510025 | ||
| 864 | A 3163510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 240 MM | ||
| 864 | A 3163510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 240 MM | ||
| 864 | A 3183510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 340 MM | ||
| 864 | A 3183510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 300 MM | ||
| 868 | A 3123251070 | SPHERICAL WASHER |
| REAR SPRING TO REAR AXLE | ||
| 872 | N 913002016002 | NUT |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
