Transporto priemonė: LP 913; VIN numerio dalis: 318059
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

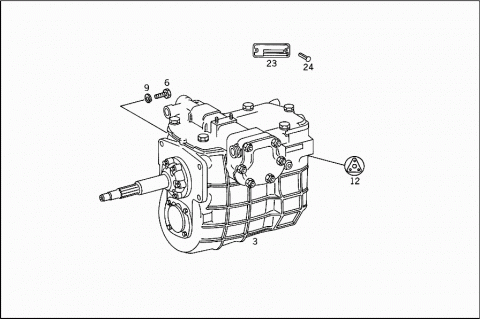

| 003 | A 3162600000 | TRANSMISSION |
| G 32/5/7.5 | ||
| 003 | A 3182600000 | TRANSMISSION |
| G 32/5/7.5 | ||
| 006 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 14 X 40 | ||
| 009 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| A 0005861126 | REPAIR KIT | |
| Repalced by: A 0002600400 | ||
| 012 | A 0002600400 | GASKET KIT |
| Repalced by: A 0002606800 | ||
| 012 | A 0002606800 | GASKET KIT |
| (GASKET KIT) | ||

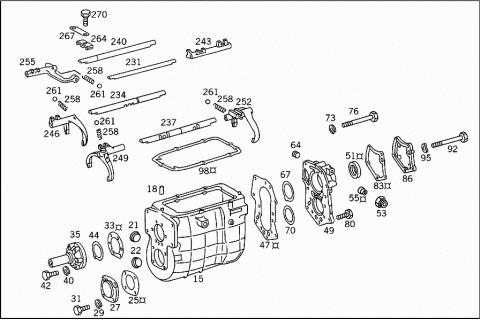

| A 3022600311 | TRANSMISSION CASE | |
| Repalced by: A 3022600611 | ||
| 015 | A 3022600611 | TRANSMISSION CASE |
| 018 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 018 | N 000007010102 | CYLINDRICAL PIN |
| A 1869970032 | SCREW PLUG | |
| Repalced by: A 3529970032 | ||
| 021 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| A 0009971332 | SCREW PLUG | |
| Repalced by: A 0009972632 | ||
| 022 | A 0009973432 | SCREW PLUG |
| OIL DRAIN | ||
| 022 | A 0009972632 | SCREW PLUG |
| OIL DRAIN | ||
| A 3215841024 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3855845824 | ||
| A 3855841824 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3855845824 | ||
| A 3855845824 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 6755840024 | ||
| 023 | A 6755840024 | UNIT IDENTIFICATION PLATE |
| 024 | N 001476003007 | GROOVED NAIL |
| A 3212610779 | GASKET | |
| Repalced by: A 3522611280 | ||
| 025 | A 3522611280 | GASKET |
| Repalced by: A 3522611880 | ||
| 025 | A 3522611880 | GASKET |
| FRONT BOTTOM | ||
| 027 | A 3212610133 | COVER |
| FRONT BOTTOM | ||
| 029 | N 912004008102 | LOCK WASHER |
| END COVER TO TRANSMISSION CASE | ||
| 031 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 031 | N 304017008021 | SCREW |
| END COVER TO TRANSMISSION CASE | ||
| 033 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 033 | A 3122611180 | GASKET |
| FRONT TOP | ||
| A 3212610318 | TRANSMISSION CASE COVER | |
| Repalced by: A 3212610418 | ||
| 035 | A 3212610418 | TRANSMISSION CASE COVER |
| FRONT TOP | ||
| 040 | N 912004008102 | LOCK WASHER |
| END COVER TO TRANSMISSION CASE | ||
| 042 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 042 | N 304017008028 | SCREW |
| END COVER TO TRANSMISSION CASE | ||
| A 3122625362 | SEAL RING | |
| AS REQUIRED | ||
| 2.85 MM | ||
| A 3122625462 | SEAL RING | |
| AS REQUIRED | ||
| 2.9 MM | ||
| 044 | A 3122625562 | SEAL RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 3122623462 | SEAL RING | |
| AS REQUIRED | ||
| 3.0 MM | ||
| A 3122624362 | SEAL RING | |
| AS REQUIRED | ||
| 3.05 MM | ||
| 044 | A 3122624462 | SEAL RING |
| AS REQUIRED | ||
| 3.1 MM | ||
| 044 | A 3122623562 | SEAL RING |
| AS REQUIRED | ||
| 3.15 MM | ||
| A 3122623662 | SEAL RING | |
| AS REQUIRED | ||
| 3.2 MM | ||
| 044 | A 3122623762 | SEAL RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 3212611379 | GASKET | |
| Repalced by: A 3812610480 | ||
| 047 | A 3812610480 | GASKET |
| Repalced by: A 3812610780 | ||
| 047 | A 3812610780 | GASKET |
| TRANSMISSION CASE REAR COVER TO TRANSMISSION CASE | ||
| A 3372610120 | TRANSMISSION CASE COVER | |
| Repalced by: A 3372610220 | ||
| 049 | A 3372610220 | TRANSMISSION CASE COVER |
| REAR | ||
| N 006503058200 | SEAL RING | |
| Repalced by: A 0089971146 | ||
| 051 | A 0089971146 | SEAL RING |
| TRANSMISSION CASE REAR COVER | ||
| 053 | A 3212610031 | THREADED BUSHING |
| SPEEDOMETER DRIVE | ||
| A 0119976647 | SEAL RING | |
| Repalced by: A 1152740060 | ||
| A 1152740060 | SEAL RING | |
| Repalced by: A 0119976447 | ||
| 055 | A 0119976447 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 064 | N 915015024000 | PLUG |
| LATERAL | ||
| 067 | A 3212620962 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 067 | A 3212621162 | SEAL RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 067 | A 3212621262 | SEAL RING |
| AS REQUIRED | ||
| 3.30 MM | ||
| 067 | A 3212621362 | SEAL RING |
| AS REQUIRED | ||
| 3.40 MM | ||
| 067 | A 3212621562 | SEAL RING |
| AS REQUIRED | ||
| 3.60 MM | ||
| 070 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.050 MM | ||
| 070 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 070 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 070 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 070 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 073 | N 912004008102 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 076 | N 000931008123 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 080 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 080 | N 304017008027 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 080 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 080 | N 304017008043 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| A 3212611479 | GASKET | |
| Repalced by: A 3522611180 | ||
| 083 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 083 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 083 | A 3522611980 | GASKET |
| REAR TOP | ||
| 086 | A 3212610333 | COVER |
| REAR TOP | ||
| 092 | N 000931008266 | SCREW |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 095 | N 000137008204 | SPRING WASHER |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 098 | A 3212611279 | GASKET |
| Repalced by: A 3812610880 | ||
| 098 | A 3812610880 | GASKET |
| TOP | ||

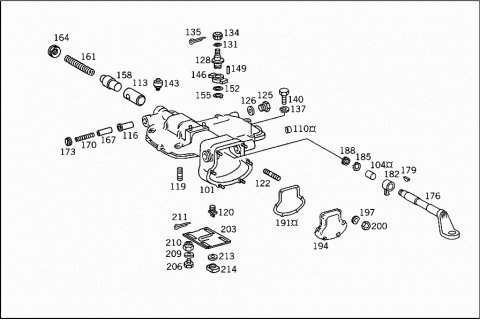

| A 3372600014 | TRANSMISSION CASE COVER | |
| Repalced by: A 3372601514 | ||
| A 3372601114 | TRANSMISSION CASE COVER | |
| Repalced by: A 3372601514 | ||
| 101 | A 3372601514 | TRANSMISSION CASE COVER |
| SHIFT CASE | ||
| A 3372600114 | TRANSMISSION CASE COVER | |
| Repalced by: A 3182600714 | ||
| 101 | A 3372601214 | TRANSMISSION CASE COVER |
| Repalced by: A 3182600714 | ||
| 101 | A 3182600714 | TRANSMISSION CASE COVER |
| SHIFT CASE | ||
| 104 | A 3212610050 | BUSHING |
| SHIFTING ROD | ||
| 104 | A 3212610050 | BUSHING |
| SHIFTING ROD | ||
| 107 | A 3212610150 | BUSHING |
| SHIFTING ROD | ||
| 110 | N 000443020000 | EXPANSION PLUG |
| 113 | A 3212650250 | BUSHING |
| LATERAL RIGHT | ||
| 116 | A 3212650150 | BUSHING |
| FRONT | ||
| 116 | A 3372610050 | BUSHING |
| 119 | N 000835008007 | STUD |
| Repalced by: N 000835008077 | ||
| 119 | N 000835008077 | STUD |
| SHIFT CASE | ||
| A 1362650247 | INTERLOCK PLUG | |
| Repalced by: A 3142650044 | ||
| 120 | A 3142650044 | GUIDE PIN |
| SHIFT CASE | ||
| 122 | N 000835006008 | STUD |
| SHIFT CASE | ||
| 125 | A 1369970830 | SCREW PLUG |
| SHIFT CASE | ||
| 126 | A 0089971046 | SEAL RING |
| 128 | A 3212650474 | PIN |
| 131 | N 000125013008 | WASHER |
| 134 | N 000937012001 | NUT |
| TOP AND LATERAL RIGHT | ||
| 135 | N 000094003219 | COTTER PIN |
| TOP AND LATERAL RIGHT | ||
| 137 | N 912004008102 | LOCK WASHER |
| SHIFT CASE TO TRANSMISSION | ||
| 140 | N 000931008266 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M 80X40 | ||
| 140 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 140 | N 304017008028 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M 8X50 | ||
| 143 | A 1112600058 | BREATHER |
| TRANSMISSION CASE TOP COVER | ||
| 146 | A 3372650007 | LEVER |
| SHIFTING DOG | ||
| 149 | N 005402302104 | CYLINDRICAL ROLLER |
| TRANSMISSION CASE TOP COVER | ||
| 152 | N 000433017004 | WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 155 | N 900055017300 | LOCK RING |
| TRANSMISSION CASE TOP COVER | ||
| A 3212650416 | THRUST PIECE | |
| Repalced by: A 3802650016 | ||
| 158 | A 3802650016 | THRUST PIECE |
| TRANSMISSION CASE TOP COVER | ||
| 161 | A 3219931701 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 164 | A 3219970103 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 167 | A 3212650248 | INTERLOCK PIN |
| TRANSMISSION CASE TOP COVER | ||
| 170 | A 3219930601 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 173 | N 071022024000 | SLOTTED PLUG |
| TRANSMISSION CASE TOP COVER | ||
| A 3162680029 | SHIFTING ROD | |
| Repalced by: A 3162601833 | ||
| 176 | A 3162601833 | SHIFTING ROD |
| WITH LEVER | ||
| 179 | N 006888005006 | WOODRUFF KEY |
| SHIFTING ROD | ||
| 182 | A 3172680333 | SHIFTING FINGER |
| SHIFTING ROD | ||
| 185 | N 070952020101 | LOCK PLATE |
| SHIFTING FINGER TO SHIFTING ROD | ||
| 188 | A 3219900160 | NUT |
| SHIFTING FINGER TO SHIFTING ROD | ||
| A 3172611079 | GASKET | |
| Repalced by: A 3172610180 | ||
| 191 | A 3172610180 | GASKET |
| LATERAL | ||
| A 3172610605 | TRANSMISSION CASE COVER | |
| Repalced by: A 3172611205 | ||
| 194 | A 3172611205 | TRANSMISSION CASE COVER |
| LATERAL | ||
| 197 | N 000137006204 | SPRING WASHER |
| COVER TO SHIFT CASE | ||
| 200 | N 000934006007 | NUT |
| COVER TO SHIFT CASE | ||
| 203 | A 3212600846 | PLATE |
| SHIFT CASE | ||
| 203 | A 3852600046 | PLATE |
| SHIFT CASE | ||
| 206 | A 3212650350 | BUSHING |
| SHIFT CASE | ||
| 209 | N 900055008002 | SPRING WASHER |
| SHIFT CASE | ||
| 210 | N 000979008000 | NUT |
| SHIFT CASE | ||
| 211 | N 000094002034 | COTTER PIN |
| SHIFT CASE | ||
| 213 | A 1369908240 | WASHER |
| SHIFT CASE | ||
| 214 | A 1362650272 | NUT |
| SHIFT CASE | ||
| A 3212681029 | SHIFTING ROD | |
| Repalced by: A 3215860026 | ||
| A 3212601633 | SHIFTING ROD | |
| Repalced by: A 3215860026 | ||
| A 3215860026 | REPAIR KIT | |
| Repalced by: A 3212601933 | ||
| 216 | A 3212601933 | REPAIR KIT |
| Repalced by: A 3212602033 | ||
| 216 | A 3212602033 | SHIFTING ROD |
| PARTS KIT | ||
| 217 | N 007993024100 | SNAP RING |
| SHIFTING ROD | ||
| 218 | A 0002680497 | BOOT |
| SHIFTING ROD | ||
| 219 | N 009045028001 | SNAP RING |
| BOOT | ||
| 220 | N 009045038001 | SNAP RING |
| BOOT | ||
| 221 | N 006888005006 | WOODRUFF KEY |
| 2ND AND 3RD SPEED | ||
| 222 | A 3162650030 | SELECTOR LEVER |
| 2ND AND 3RD SPEED | ||
| 225 | N 070952020102 | LOCK PLATE |
| SHIFTING ROD | ||
| 228 | A 3219900160 | NUT |
| SHIFTING ROD | ||
| 231 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 234 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 237 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 240 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 243 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 246 | A 3212651202 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| 249 | A 3212650802 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 252 | A 3212651301 | SHIFTING FORK |
| 1ST SPEED | ||
| 255 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 258 | A 3129931001 | SPRING |
| REVERSE SPEED | ||
| 261 | N 005401311000 | BALL |
| REVERSE SPEED | ||
| 264 | A 3122651236 | BRACKET |
| REVERSE SPEED | ||
| 267 | A 3129940332 | LOCK |
| REVERSE SPEED | ||
| 270 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 270 | N 304017008034 | SCREW |
| REVERSE SPEED | ||

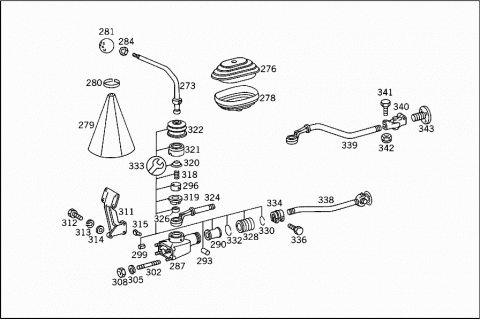

| A 3162600239 | SHIFT LEVER | |
| Repalced by: A 3182601639 | ||
| 273 | A 3182601639 | SHIFT LEVER |
| A 3182600039 | SHIFT LEVER | |
| Repalced by: A 3182601939 | ||
| 273 | A 3182601939 | SHIFT LEVER |
| 276 | A 3142680496 | BOOT |
| SHIFT LEVER | ||
| 276 | A 3142680896 | BOOT |
| SHIFT LEVER UPPER PART | ||
| 278 | A 3182680596 | BOOT |
| SHIFT LEVER LOWER PART | ||
| A 3182680057 | COVER | |
| Repalced by: A 3182600165 | ||
| 279 | A 3182600165 | COVER |
| CAB SEALING | ||
| 280 | N 900262005100 | LOOM TIE |
| BOOT TO CAB | ||
| 280 | N 900263005000 | STRAP |
| BOOT TO CAB | ||
| 930 MM | ||
| 281 | A 3222600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 284 | N 000439010211 | NUT |
| GEARSHIFT LEVER KNOB | ||
| A 3162600172 | SHIFT CASE | |
| Repalced by: A 3182600772 | ||
| A 3162600072 | SHIFT CASE | |
| Repalced by: A 3182600772 | ||
| 287 | A 3182600772 | SHIFT CASE |
| 290 | A 3522680050 | BUSHING |
| 293 | A 3522680250 | BUSHING |
| 296 | A 3522680335 | BEARING |
| 296 | A 3182680235 | BEARING |
| 299 | N 001473005010 | GROOVED PIN |
| 302 | N 000835008008 | STUD |
| 305 | N 912004008102 | LOCK WASHER |
| SHIFT CASE TO BRACKET | ||
| 308 | N 304032008006 | NUT |
| SHIFT CASE TO BRACKET | ||
| 311 | A 3162680240 | BRACKET |
| SHIFT CASE | ||
| 311 | A 3182680040 | BRACKET |
| SHIFT CASE | ||
| 312 | N 000931010331 | SCREW |
| BRACKET TO CRANKCASE | ||
| M 10X65 | ||
| 312 | N 000931010271 | SCREW |
| BRACKET TO CRANKCASE | ||
| M 10X60 | ||
| 313 | N 912004010102 | LOCK WASHER |
| BRACKET TO CRANKCASE | ||
| 314 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 314 | N 000125010532 | WASHER |
| BRACKET TO CRANKCASE | ||
| 315 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 318 | A 3169930001 | SPRING |
| SHIFT CASE | ||
| 318 | A 3189930101 | SPRING |
| SHIFT CASE | ||
| A 3182680135 | BEARING | |
| Repalced by: A 3182680335 | ||
| 319 | A 3182680335 | BEARING |
| SHIFT CASE,TOP | ||
| 320 | A 3182680085 | SPRING RETAINER |
| SHIFT CASE,TOP | ||
| 321 | A 3162680005 | COVER |
| SHIFT CASE,TOP | ||
| 321 | A 3182680105 | COVER |
| SHIFT CASE,TOP | ||
| A 3372670096 | BOOT | |
| Repalced by: A 3522670196 | ||
| 322 | A 3522670196 | BOOT |
| 324 | A 3162600233 | SHIFTING ROD |
| FRONT | ||
| 326 | A 3522680450 | BUSHING |
| SHIFT CASE | ||
| 328 | A 3522680097 | BOOT |
| SHIFT CASE | ||
| 330 | N 009045028001 | SNAP RING |
| SHIFT CASE | ||
| 332 | N 009045055000 | SNAP RING |
| SHIFT CASE | ||
| 333 | A 3182600195 | REPAIR KIT |
| SHIFTING PARTS | ||
| 333 | A 3182600295 | REPAIR KIT |
| SHIFTING PARTS | ||
| 334 | A 3142680388 | CLAMPING PIECE |
| SHIFTING PARTS | ||
| 336 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 336 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 338 | A 3162600333 | SHIFTING ROD |
| REAR | ||
| 338 | A 3182600033 | SHIFTING ROD |
| REAR | ||
| 339 | A 3182602133 | SHIFTING ROD |
| FROM SHIFT CASE TO TRANSMISSION | ||
| 339 | A 3182602233 | SHIFTING ROD |
| FROM SHIFT CASE TO TRANSMISSION | ||
| 340 | A 3142680289 | JOINT |
| REAR | ||
| 341 | N 000931010282 | SCREW |
| JOINT TO CONNECTOR | ||
| 342 | N 913004010011 | NUT |
| JOINT TO CONNECTOR | ||
| 343 | A 3182602333 | SHIFTING ROD |
| (CONNECTOR) | ||
| 344 | A 3179900301 | SCREW |
| JOINT TO CONNECTOR | ||
| 346 | N 912004008102 | LOCK WASHER |
| JOINT TO CONNECTOR | ||
| 348 | N 304032008006 | NUT |
| JOINT TO CONNECTOR | ||
| A 3402620202 | DRIVE SHAFT | |
| Repalced by: A 3402620502 | ||
| A 3402620402 | DRIVE SHAFT | |
| Repalced by: A 3402620502 | ||

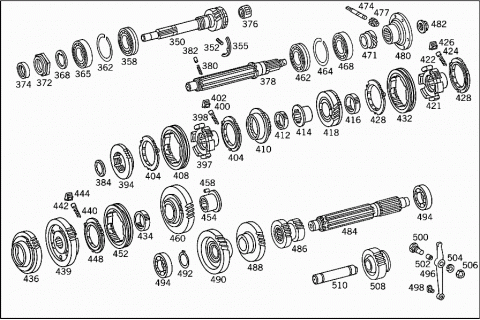

| 350 | A 3402620502 | DRIVE SHAFT |
| 352 | A 3219931201 | SPRING |
| DRIVE SHAFT | ||
| 355 | A 3212620073 | LOCK |
| DRIVE SHAFT | ||
| 358 | A 0019813101 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 85.00 MM | ||
| 362 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 362 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 362 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| 365 | A 0009812827 | ANGULAR CONTACT BEARING |
| DRIVE SHAFT | ||
| 365 | A 0009814327 | ANGULAR CONTACT BEARING |
| DRIVE SHAFT | ||
| 365 | A 0019811627 | ANGULAR CONTACT BEARING |
| DRIVE SHAFT | ||
| 368 | A 3122623162 | SEAL RING |
| DRIVE SHAFT | ||
| 372 | A 3122621172 | NUT |
| DRIVE SHAFT | ||
| A 0029971346 | SEAL RING | |
| Repalced by: A 0089970146 | ||
| A 0089970146 | SEAL RING | |
| Repalced by: A 0159977747 | ||
| 374 | A 0159977747 | SEAL RING |
| DRIVE SHAFT | ||
| 374 | A 0159977647 | SEAL RING |
| DRIVE SHAFT | ||
| 374 | A 0179971447 | SEAL RING |
| DRIVE SHAFT | ||
| 376 | A 0009819512 | ROLLER ASSEMBLY |
| DRIVE SHAFT | ||
| 376 | A 0009819612 | ROLLER ASSEMBLY |
| DRIVE SHAFT | ||
| A 3222620505 | MAIN SHAFT | |
| Repalced by: A 3222620705 | ||
| 378 | A 3222620705 | MAIN SHAFT |
| 380 | A 3129931701 | SPRING |
| MAIN SHAFT,FRONT | ||
| A 3212620374 | PIN | |
| Repalced by: A 3852621074 | ||
| 382 | A 3852621074 | PIN |
| MAIN SHAFT,FRONT | ||
| A 3212622162 | SEAL RING | |
| Repalced by: A 3212623862 | ||
| 384 | A 3212623862 | SEAL RING |
| AS REQUIRED | ||
| 6.90 MM | ||
| A 3212621962 | SEAL RING | |
| Repalced by: A 3212623662 | ||
| 384 | A 3212623662 | SEAL RING |
| AS REQUIRED | ||
| 7.10 MM | ||
| A 3212621762 | SEAL RING | |
| Repalced by: A 3212623462 | ||
| 384 | A 3212623462 | SEAL RING |
| AS REQUIRED | ||
| 7.3 MM | ||
| A 3212622862 | SEAL RING | |
| Repalced by: A 3212624662 | ||
| 384 | A 3212624662 | SEAL RING |
| AS REQUIRED | ||
| 7.45 MM | ||
| A 3212622962 | SEAL RING | |
| Repalced by: A 3212624762 | ||
| 384 | A 3212624762 | SEAL RING |
| AS REQUIRED | ||
| 7.55 MM | ||
| A 3212620662 | SEAL RING | |
| Repalced by: A 3212624162 | ||
| 384 | A 3212624162 | SEAL RING |
| AS REQUIRED | ||
| 7.6 MM | ||
| A 3212620762 | SEAL RING | |
| Repalced by: A 3212624262 | ||
| 384 | A 3212624262 | SEAL RING |
| AS REQUIRED | ||
| 7.70 MM | ||
| A 3212622662 | SEAL RING | |
| Repalced by: A 3212624462 | ||
| 384 | A 3212624462 | SEAL RING |
| AS REQUIRED | ||
| 7.90 MM | ||
| A 3212622762 | SEAL RING | |
| Repalced by: A 3212624562 | ||
| 384 | A 3212624562 | SEAL RING |
| AS REQUIRED | ||
| 8.00 MM | ||
| A 3402620034 | SYNCHRONIZER RING | |
| Repalced by: A 3402620134 | ||
| 394 | A 3402620134 | SYNCHRONIZER RING |
| 4TH AND 5TH SPEED | ||
| A 3222600645 | SYNCHRONIZER BODY | |
| 4TH AND 5TH SPEED | ||
| A 3222600845 | SYNCHRONIZER BODY | |
| 4TH AND 5TH SPEED | ||
| 397 | A 3222620735 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 398 | A 3219930701 | SPRING |
| SYNCHRONIZER BODY | ||
| 400 | A 3212620774 | PIN |
| 4TH AND 5TH SPEED | ||
| 402 | A 3212621040 | FOLLOWER |
| 4TH AND 5TH SPEED | ||
| 404 | A 3222620137 | SYNCHRONIZER CONE |
| 4TH AND 5TH SPEED | ||
| A 3212600469 | SPRING | |
| 4TH AND 5TH SPEED | ||
| A 3212620823 | SLIDING COLLAR | |
| Repalced by: A 3212621223 | ||
| 408 | A 3212621223 | SLIDING COLLAR |
| 4TH AND 5TH SPEED | ||
| A 3222600244 | GEAR | |
| Repalced by: A 3222602044 | ||
| 410 | A 3222602044 | GEAR |
| 4TH SPEED | ||
| A 3229810612 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810012 | ||
| A 3229810812 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810012 | ||
| 412 | A 3529810012 | ROLLER ASSEMBLY |
| 4TH SPEED | ||
| A 3222624050 | BUSHING | |
| Repalced by: A 3222626550 | ||
| 414 | A 3222626550 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 414 | A 3222626650 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| A 3222624150 | BUSHING | |
| Repalced by: A 3222626650 | ||
| A 3229810512 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3229810712 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| 416 | A 3529810112 | ROLLER ASSEMBLY |
| 3RD SPEED | ||
| A 3222600644 | GEAR | |
| Repalced by: A 3222602444 | ||
| A 3222601944 | GEAR | |
| Repalced by: A 3222602444 | ||
| 418 | A 3222602444 | GEAR |
| 3RD SPEED | ||
| A 3222600545 | SYNCHRONIZER BODY | |
| 2ND AND 3RD SPEED | ||
| A 3222600745 | SYNCHRONIZER BODY | |
| 2ND AND 3RD SPEED | ||
| 421 | A 3222620635 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 422 | A 3219930701 | SPRING |
| 2ND AND 3RD SPEED | ||
| 424 | A 3212620774 | PIN |
| 2ND AND 3RD SPEED | ||
| 426 | A 3212621040 | FOLLOWER |
| 2ND AND 3RD SPEED | ||
| 428 | A 3222620137 | SYNCHRONIZER CONE |
| 2ND AND 3RD SPEED | ||
| A 3212600469 | SPRING | |
| 2ND AND 3RD SPEED | ||
| A 3212620823 | SLIDING COLLAR | |
| Repalced by: A 3212621223 | ||
| 432 | A 3212621223 | SLIDING COLLAR |
| 2ND AND 3RD SPEED | ||
| A 3229810512 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3229810712 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| 434 | A 3529810112 | ROLLER ASSEMBLY |
| 2ND SPEED | ||
| A 3222620112 | GEAR | |
| Repalced by: A 3222620412 | ||
| 436 | A 3222620412 | GEAR |
| 2ND SPEED | ||
| A 3222600625 | GEAR | |
| REVERSE SPEED | ||
| A 3222600925 | GEAR | |
| REVERSE SPEED | ||
| 439 | A 3222630433 | REVERSE IDLER GEAR |
| MAIN SHAFT | ||
| 440 | A 3219930701 | SPRING |
| 1ST SPEED | ||
| 442 | A 3212620674 | PIN |
| 1ST SPEED | ||
| 444 | A 3212620940 | FOLLOWER |
| 1ST SPEED | ||
| A 3212620376 | BALL SOCKET | |
| Repalced by: A 3142620076 | ||
| A 3142620076 | BALL SOCKET | |
| 448 | A 3222620137 | SYNCHRONIZER CONE |
| 1ST SPEED | ||
| A 3212600469 | SPRING | |
| A 3212620723 | SLIDING COLLAR | |
| Repalced by: A 3212621123 | ||
| 452 | A 3212621123 | SLIDING COLLAR |
| 1ST SPEED | ||
| A 3222621450 | BUSHING | |
| Repalced by: A 3222625950 | ||
| 454 | A 3222625950 | BUSHING |
| AS REQUIRED | ||
| 44.5 MM | ||
| A 3222621550 | BUSHING | |
| Repalced by: A 3222626050 | ||
| 454 | A 3222626050 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 458 | N 005402004203 | CYLINDRICAL ROLLER |
| 1ST SPEED | ||
| A 3222620211 | GEAR | |
| Repalced by: A 3222620511 | ||
| 460 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 462 | A 0009811201 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 100 MM | ||
| 464 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 464 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| A 0009810627 | ANGULAR CONTACT BEARING | |
| Repalced by: A 0009812927 | ||
| 468 | A 0009812927 | ANGULAR CONTACT BEARING |
| DRIVE GEAR | ||
| 468 | A 0009814227 | ANGULAR CONTACT BEARING |
| DRIVE GEAR | ||
| 468 | A 0019811527 | ANGULAR CONTACT BEARING |
| DRIVE GEAR | ||
| A 3212640630 | DRIVE GEAR | |
| Repalced by: A 3522640130 | ||
| 471 | A 3522640130 | DRIVE GEAR |
| SPEEDOMETER | ||
| A 3212640532 | SHAFT | |
| Repalced by: A 3142640032 | ||
| A 3142640032 | SHAFT | |
| Repalced by: A 3142640332 | ||
| 474 | A 3142640332 | SHAFT |
| SPEEDOMETER | ||
| A 3212640631 | DRIVE GEAR | |
| Repalced by: A 3812640031 | ||
| 477 | A 3812640031 | DRIVE GEAR |
| SPEEDOMETER | ||
| 480 | A 3522620045 | FLANGE |
| (COUPLING FLANGE) | ||
| 482 | A 3222620072 | NUT |
| FLANGE TO MAIN SHAFT | ||
| A 3222630202 | COUNTERSHAFT | |
| Repalced by: A 3222630302 | ||
| 484 | A 3222630302 | COUNTERSHAFT |
| A 3222630313 | GEAR | |
| Repalced by: A 3222630513 | ||
| 486 | A 3222630513 | GEAR |
| 2ND AND 3RD SPEED | ||
| A 3222630314 | GEAR | |
| Repalced by: A 3222630614 | ||
| A 3222630514 | GEAR | |
| Repalced by: A 3222630614 | ||
| 488 | A 3222630614 | GEAR |
| 4TH SPEED | ||
| A 3402630010 | GEAR | |
| Repalced by: A 3402630110 | ||
| 490 | A 3402630110 | GEAR |
| CONSTANT | ||
| 492 | N 900055052300 | LOCK RING |
| COUNTERSHAFT | ||
| 494 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 494 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 494 | A 0069814305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 494 | A 0069815305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 496 | A 3212650208 | LEVER |
| REVERSE SPEED | ||
| 498 | A 3142650349 | SLIDE |
| REVERSE SPEED | ||
| 500 | A 3212650074 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 500 | A 3022650074 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 502 | A 3212650050 | BUSHING |
| LEVER TO TRANSMISSION CASE | ||
| 504 | N 912004010102 | LOCK WASHER |
| LEVER TO PIN | ||
| 506 | N 000934010014 | NUT |
| LEVER TO TRANSMISSION CASE | ||
| A 3222600325 | GEAR | |
| Repalced by: A 3222600825 | ||
| 508 | A 3222600825 | GEAR |
| REVERSE SPEED | ||
| A 3222630430 | REVERSE IDLER SHAFT | |
| Repalced by: A 3212630530 | ||
| A 3212630530 | REVERSE IDLER SHAFT | |
| Repalced by: A 3212630630 | ||
| 510 | A 3212630630 | REVERSE IDLER SHAFT |
| X XXXXXXXXXXXX | PART NAME MISSING | |

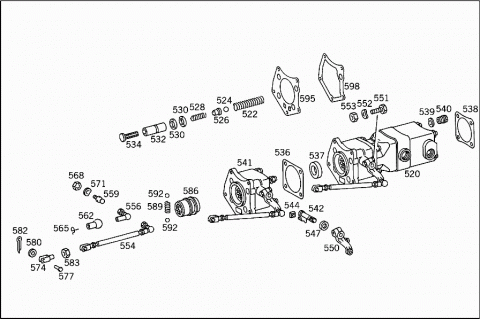

| DUMPER PUMP | ||
| 520 | A 0002363005 | HYDRAULIC PUMP |
| WITH CONTROL MECHANISM AND WITH LINKAGE | ||
| 520 | A 0002367105 | HYDRAULIC PUMP |
| WITH CONTROL MECHANISM AND WITH LINKAGE | ||
| 522 | A 0049936101 | SPRING |
| REAR | ||
| 524 | N 005401310000 | BALL |
| HOUSING,TOP | ||
| 10 MM | ||
| 526 | A 0002360835 | VALVE |
| REAR | ||
| 528 | A 0049936201 | SPRING |
| FRONT | ||
| 530 | A 0002361060 | SEAL RING |
| VALVE | ||
| 532 | A 0002360717 | PISTON |
| DUMPER PUMP | ||
| 534 | A 0002360635 | VALVE |
| FRONT | ||
| 536 | A 0002360380 | GASKET |
| DUMPER PUMP | ||
| 537 | A 0079977446 | SEAL RING |
| DUMPER PUMP | ||
| 538 | A 0002640479 | GASKET |
| DUMPER PUMP | ||
| 539 | N 007603022102 | SEAL RING |
| DUMPER PUMP | ||
| A 0009974430 | SCREW PLUG | |
| Repalced by: A 0019974430 | ||
| 540 | A 0019974430 | SCREW PLUG |
| DUMPER PUMP | ||
| 541 | A 0002300045 | FLANGE |
| 542 | A 0002300220 | LEVER |
| DUMPER PUMP | ||
| 544 | A 0002360016 | FOLLOWER |
| DUMPER PUMP | ||
| 547 | A 0019978346 | SEAL RING |
| DUMPER PUMP | ||
| 550 | A 0002300020 | LEVER |
| DUMPER PUMP | ||
| 551 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 551 | N 304017008018 | SCREW |
| DUMPER PUMP | ||
| 552 | N 912004008102 | LOCK WASHER |
| DUMPER PUMP | ||
| 553 | N 304032008006 | NUT |
| DUMPER PUMP | ||
| 554 | A 0002300021 | ROD |
| DUMPER PUMP | ||
| 556 | N 071802013203 | ANGLE JOINT |
| DUMPER PUMP | ||
| 559 | N 071803013102 | BALL PIVOT |
| DUMPER PUMP | ||
| 562 | N 071805013203 | BALL SOCKET |
| DUMPER PUMP | ||
| 565 | N 071805013402 | SECURING CLIP |
| DUMPER PUMP | ||
| 568 | N 304032008006 | NUT |
| DUMPER PUMP | ||
| 571 | N 000137008204 | SPRING WASHER |
| DUMPER PUMP | ||
| 574 | N 071752008002 | YOKE |
| DUMPER PUMP | ||
| 577 | A 0009910305 | PIN |
| DUMPER PUMP | ||
| 580 | N 000433008406 | WASHER |
| DUMPER PUMP | ||
| 582 | N 000094002059 | COTTER PIN |
| DUMPER PUMP | ||
| 583 | N 304032008006 | NUT |
| DUMPER PUMP | ||
| 586 | A 0002300023 | DRIVE |
| DUMPER PUMP | ||
| 589 | A 0029932701 | SPRING |
| DUMPER PUMP | ||
| 592 | N 005401308000 | BALL |
| DUMPER PUMP | ||
| 595 | A 0002640279 | GASKET |
| DUMPER PUMP | ||
| A 3212611479 | GASKET | |
| Repalced by: A 3522611180 | ||
| 598 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 598 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 598 | A 3522611980 | GASKET |
| DUMPER PUMP | ||

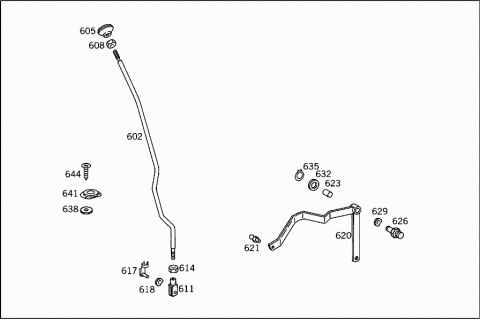

| 602 | A 3182601833 | SHIFTING ROD |
| DUMPER PUMP | ||
| 602 | A 3182601933 | SHIFTING ROD |
| DUMPER PUMP | ||
| 605 | A 3372600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 608 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 611 | N 071752008002 | YOKE |
| SHIFT LEVER LOWER PART | ||
| 614 | N 304032008006 | NUT |
| YOKE TO SHIFT LEVER | ||
| 617 | N 918001008000 | PIN |
| YOKE TO LEVER | ||
| 618 | N 900055008002 | SPRING WASHER |
| SHIFT LEVER | ||
| 620 | A 3162600137 | LEVER |
| SHIFTING SHAFT | ||
| 620 | A 3182601937 | LEVER |
| SHIFTING SHAFT | ||
| 620 | A 3182602737 | LEVER |
| SHIFTING SHAFT | ||
| 621 | N 071803013207 | BALL PIVOT |
| SHIFTING SHAFT | ||
| 623 | A 0019920101 | BUSHING |
| 626 | A 3212640074 | PIN |
| (PIVOT PIN) | ||
| 629 | A 3129900148 | WASHER |
| LEVER TO PIN | ||
| 632 | N 000433015005 | WASHER |
| LEVER TO PIN | ||
| 635 | N 000471015000 | LOCK RING |
| LEVER TO PIN | ||
| 638 | A 3142680276 | WASHER |
| LEVER TO PIN | ||
| 641 | A 3372640057 | LOCKING CAP |
| DUMPER PUMP | ||
| 644 | N 007981004274 | SHEET METAL SCREW |
| DUMPER PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
