Transporto priemonė: LP/LPK 1314 MBSA-RSA; VIN numerio dalis: 397305

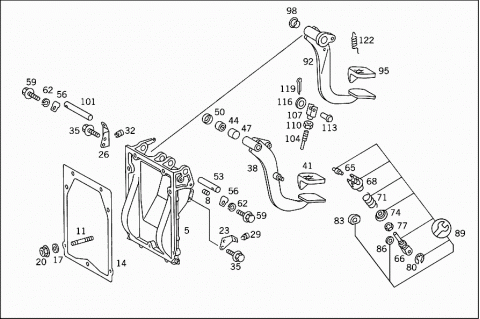

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732903219 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 008 | N 900421008002 | THREADED INSERT |
| 011 | A 6732940270 | STUD |
| BEARING BRACKET TO CAB | ||
| 014 | A 6732940180 | GASKET |
| BEARING BRACKET TO CAB | ||
| 017 | N 007349008003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 020 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 020 | A 0009906350 | NUT |
| BEARING BRACKET TO CAB | ||
| 023 | A 6732910130 | STOP |
| CLUTCH PEDAL | ||
| 026 | A 6732920030 | STOP |
| BRAKE PEDAL | ||
| 029 | A 6732910286 | STOP |
| CLUTCH PEDAL | ||
| 032 | A 1232910286 | STOP |
| BRAKE PEDAL | ||
| 035 | N 000933006103 | SCREW |
| Repalced by: A 0019901204 | ||
| 035 | A 0019901204 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X16 | ||
| 038 | A 6732901016 | PEDAL |
| CLUTCH | ||
| 041 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 041 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 044 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 044 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 047 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 050 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 053 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | A 6732920073 | LOCK |
| CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS | ||
| 059 | N 000933006183 | SCREW |
| Repalced by: A 0019901404 | ||
| 059 | A 0019901404 | SCREW |
| CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS | ||
| M 6X20 | ||
| 062 | N 912004006102 | LOCK WASHER |
| CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS | ||
| 065 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 066 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 071 | A 6739930601 | SPRING |
| CLUTCH PEDAL RESET | ||
| 074 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 077 | N 913021010001 | NUT |
| CLUTCH PEDAL RESET | ||
| 080 | N 006799007007 | LOCK PLATE |
| CLUTCH PEDAL RESET | ||
| 083 | A 6732910186 | STOP |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010518 | WASHER |
| CLUTCH PEDAL RESET | ||
| 089 | A 6742900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 092 | A 6732900318 | PEDAL |
| BRAKE | ||
| 095 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 095 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 098 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 098 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 101 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 104 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 107 | A 6209960001 | YOKE |
| BRAKE ACTUATION | ||
| 110 | N 000439008211 | NUT |
| BRAKE ACTUATION | ||
| 113 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 116 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 119 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 122 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
