Transporto priemonė: LP/LPK 1314 MBSA-RSA; VIN numerio dalis: 397305

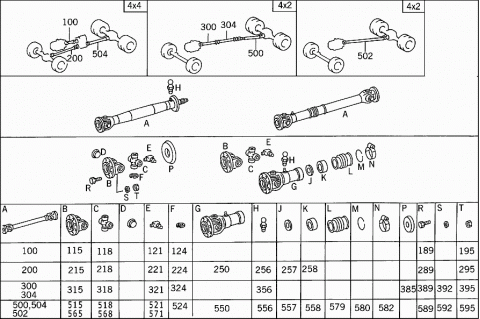

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 100 | A 3974102907 | PROPELLER SHAFT |
| Repalced by: A 6824103606 | ||
| 100 | A 6824103606 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 100 | A 3974103007 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 115 | A 3524110011 | DRIVE FLANGE |
| 115 | A 3544110011 | DRIVE FLANGE |
| 115 | A 3364110011 | DRIVE FLANGE |
| 118 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 118 | A 3854100131 | UNIVERSAL JOINT CROSS |
| 118 | A 3314100031 | UNIVERSAL JOINT CROSS |
| 121 | N 071412008100 | GREASE NIPPLE |
| 121 | N 071412008300 | GREASE NIPPLE |
| 121 | A 3459977288 | GREASE NIPPLE |
| 124 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 124 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 124 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 124 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 124 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 124 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 124 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 124 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 124 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 124 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 124 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 124 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 124 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 124 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 124 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 124 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 124 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 124 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 124 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 124 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 124 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 124 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 124 | A 3379945035 | SNAP RING |
| 124 | A 3379945135 | SNAP RING |
| 124 | A 3379945235 | SNAP RING |
| 124 | A 3379945335 | SNAP RING |
| 124 | A 3379945435 | SNAP RING |
| 124 | A 3354111173 | LOCK |
| 124 | A 3354111273 | LOCK |
| 124 | A 3354111373 | LOCK |
| 124 | A 3354111473 | LOCK |
| 124 | A 3354111573 | LOCK |
| 124 | A 3454110073 | LOCK |
| 189 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 10X1 | ||
| 189 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 12 | ||
| 195 | N 000934010042 | NUT |
| Repalced by: N 308673010001 | ||
| 195 | N 308673010001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 10X1 | ||
| 195 | N 000934012042 | NUT |
| Repalced by: N 308673012003 | ||
| 195 | N 308673012003 | NUT |
| Repalced by: A 3829900151 | ||
| 195 | A 3829900151 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 12X1.25 | ||
| 200 | A 3764100302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1324 MM | ||
| 215 | A 3524110011 | DRIVE FLANGE |
| 218 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 221 | N 071412008300 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 221 | A 3459977288 | GREASE NIPPLE |
| 224 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 224 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 224 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 224 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 224 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 224 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 224 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 224 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 224 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 224 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 224 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 224 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 224 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 224 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 224 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 224 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 224 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 250 | A 3444100008 | UNIVERSAL JOINT YOKE |
| 256 | N 071412008100 | GREASE NIPPLE |
| 257 | A 3374130080 | SEAL RING |
| 258 | A 3214110158 | SEAL HOLDER |
| 289 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 295 | N 000934010042 | NUT |
| Repalced by: N 308673010001 | ||
| 295 | N 308673010001 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| M 10X1 | ||
| 300 | A 3844100804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 830 MM | ||
| 300 | A 3844100804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 830 MM | ||
| 300 | A 3764102904 | PROPELLER SHAFT |
| Repalced by: A 3864104307 | ||
| 300 | A 3864104307 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1695 MM | ||
| 300 | A 3614101401 | PROPELLER SHAFT |
| Repalced by: A 3844103407 | ||
| 300 | A 3844103407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 730 MM | ||
| 300 | A 3844103407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 730 MM | ||
| 300 | A 3454103401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1694 MM | ||
| 304 | A 3844100104 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 972 MM | ||
| 304 | A 3844100104 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 972 MM | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| CENTRAL PROPELLER SHAFT | ||
| 315 | A 3544110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| 315 | A 3364110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| 315 | A 3364110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| FRONT PROPELLER SHAFT | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| FRONT PROPELLER SHAFT | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| FRONT PROPELLER SHAFT | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| CENTRAL PROPELLER SHAFT | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| CENTRAL PROPELLER SHAFT | ||
| 318 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 318 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 318 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| CENTRAL PROPELLER SHAFT | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| CENTRAL PROPELLER SHAFT | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| CENTRAL PROPELLER SHAFT | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| CENTRAL PROPELLER SHAFT | ||
| 324 | A 3449947135 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3449947135 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3449947135 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3449947135 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3129941135 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3129941135 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3129941135 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3129941135 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.500 MM | ||
| 324 | A 3449947235 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.525 MM | ||
| 324 | A 3449947235 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.525 MM | ||
| 324 | A 3449947235 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.525 MM | ||
| 324 | A 3449947235 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.525 MM | ||
| 324 | A 3449947335 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3449947335 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3449947335 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3449947335 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3129941635 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3129941635 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3129941635 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3129941635 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.550 MM | ||
| 324 | A 3449947435 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.575 MM | ||
| 324 | A 3449947435 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.575 MM | ||
| 324 | A 3449947435 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.575 MM | ||
| 324 | A 3449947435 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.575 MM | ||
| 324 | A 3449947535 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3449947535 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3449947535 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3449947535 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3129941335 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3129941335 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3129941335 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3129941335 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.600 MM | ||
| 324 | A 3449947635 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.625 MM | ||
| 324 | A 3449947635 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.625 MM | ||
| 324 | A 3449947635 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.625 MM | ||
| 324 | A 3449947635 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.625 MM | ||
| 324 | A 3449947735 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3449947735 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3449947735 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3449947735 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3129941435 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3129941435 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3129941435 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3129941435 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.650 MM | ||
| 324 | A 3449947835 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.675 MM | ||
| 324 | A 3449947835 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.675 MM | ||
| 324 | A 3449947835 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.675 MM | ||
| 324 | A 3449947835 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.675 MM | ||
| 324 | A 3449947935 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3449947935 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3449947935 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3449947935 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3129941535 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3129941535 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3129941535 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3129941535 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.700 MM | ||
| 324 | A 3449948035 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.725 MM | ||
| 324 | A 3449948035 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.725 MM | ||
| 324 | A 3449948035 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.725 MM | ||
| 324 | A 3449948035 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.725 MM | ||
| 324 | A 3449948135 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3449948135 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3449948135 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3449948135 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3129941735 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3129941735 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3129941735 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3129941735 | SNAP RING |
| CENTRAL PROPELLER SHAFT | ||
| 2.750 MM | ||
| 324 | A 3379945035 | SNAP RING |
| FRONT PROPELLER SHAFT | ||
| 324 | A 3379945135 | SNAP RING |
| 324 | A 3379945235 | SNAP RING |
| 324 | A 3379945335 | SNAP RING |
| 324 | A 3379945435 | SNAP RING |
| 324 | A 3354111173 | LOCK |
| 324 | A 3354111173 | LOCK |
| 324 | A 3354111273 | LOCK |
| 324 | A 3354111273 | LOCK |
| 324 | A 3354111373 | LOCK |
| 324 | A 3354111373 | LOCK |
| 324 | A 3354111473 | LOCK |
| 324 | A 3354111473 | LOCK |
| 324 | A 3354111573 | LOCK |
| 324 | A 3354111573 | LOCK |
| 324 | A 3454110073 | LOCK |
| 324 | A 3454110073 | LOCK |
| 356 | N 071412008100 | GREASE NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 356 | N 071412008100 | LUBRICATING NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 356 | N 071412008100 | LUBRICATING NIPPLE |
| CENTRAL PROPELLER SHAFT | ||
| 356 | N 071412008100 | LUBRICATING NIPPLE |
| CENTRAL PROPELLER SHAFT | ||
| 356 | N 071412010100 | GREASE NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 356 | N 071412010100 | LUBRICATING NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 356 | N 071412010100 | LUBRICATING NIPPLE |
| FRONT PROPELLER SHAFT | ||
| 385 | A 3524130061 | PROTECTIVE CAP |
| FRONT PROPELLER SHAFT | ||
| 385 | A 3524130061 | PROTECTIVE CAP |
| FRONT PROPELLER SHAFT | ||
| 385 | A 3524130061 | PROTECTIVE CAP |
| CENTRAL PROPELLER SHAFT | ||
| 385 | A 3524130061 | PROTECTIVE CAP |
| CENTRAL PROPELLER SHAFT | ||
| 385 | A 3354130061 | PROTECTIVE CAP |
| FRONT PROPELLER SHAFT | ||
| 385 | A 3354130061 | PROTECTIVE CAP |
| FRONT PROPELLER SHAFT | ||
| 385 | A 3354130061 | PROTECTIVE CAP |
| FRONT PROPELLER SHAFT | ||
| 389 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 389 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 389 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 389 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 389 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 389 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 389 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 389 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 389 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 389 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 389 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 392 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 392 | N 000127010202 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 392 | N 000127010202 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 392 | N 000127010202 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 392 | N 000127010202 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 392 | N 000127012201 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 392 | N 000127012201 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 395 | N 000934010042 | NUT |
| Repalced by: N 308673010001 | ||
| 395 | N 308673010001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 10X1 | ||
| 395 | N 308673010001 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 10X1 | ||
| 395 | N 308673010001 | HEXAGON NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M 10X1 | ||
| 395 | N 308673010001 | HEXAGON NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M 10X1 | ||
| 395 | N 000934012042 | NUT |
| Repalced by: N 308673012003 | ||
| 395 | N 308673012003 | NUT |
| Repalced by: A 3829900151 | ||
| 395 | A 3829900151 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M 12X1,25 | ||
| 395 | A 3829900151 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M 12X1,25 | ||
| 395 | A 3829900151 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 12X1,25 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PROPELLER SHAFT BEARING I | ||
| 400 | A 3524130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| 400 | A 3524130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| 400 | A 3384130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| 400 | A 3384130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| 403 | A 3524100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3524100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3454100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3454100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3544100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3544100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3544100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 403 | A 3844100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 406 | A 3124131231 | BEARING RING |
| INTERMEDIATE BEARING | ||
| 406 | A 3124131231 | BEARING RING |
| INTERMEDIATE BEARING | ||
| 406 | A 3374130131 | BEARING RING |
| INTERMEDIATE BEARING | ||
| 406 | A 3374130131 | BEARING RING |
| INTERMEDIATE BEARING | ||
| 409 | A 3764100740 | BRACKET |
| INTERMEDIATE BEARING | ||
| 409 | A 3764100740 | BRACKET |
| INTERMEDIATE BEARING | ||
| 409 | A 3764100940 | BRACKET |
| INTERMEDIATE BEARING | ||
| 409 | A 3444107040 | BRACKET |
| INTERMEDIATE BEARING | ||
| 409 | A 3444107040 | BRACKET |
| INTERMEDIATE BEARING | ||
| 416 | A 3524100130 | CENTERING FLANGE |
| INTERMEDIATE BEARING | ||
| 416 | A 3524100130 | CENTERING FLANGE |
| INTERMEDIATE BEARING | ||
| 416 | A 3364100030 | CENTERING FLANGE |
| INTERMEDIATE BEARING | ||
| 416 | A 3364100030 | CENTERING FLANGE |
| INTERMEDIATE BEARING | ||
| 417 | A 3524130061 | PROTECTIVE CAP |
| TO 352 410 01 30 | ||
| 417 | A 3524130061 | PROTECTIVE CAP |
| TO 352 410 01 30 | ||
| 417 | A 3354130061 | PROTECTIVE CAP |
| TO 336 410 00 30 | ||
| 417 | A 3354130061 | PROTECTIVE CAP |
| TO 336 410 00 30 | ||
| 418 | A 3449907050 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3449907050 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3273530172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3273530172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 420 | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 420 | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 421 | N 000961010039 | SCREW |
| Repalced by: A 0029901904 | ||
| 421 | A 0029901904 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 10X1X35 | ||
| 421 | A 0029901904 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 10X1X35 | ||
| 421 | A 0029901904 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 10X1X35 | ||
| 422 | N 000961010042 | SCREW |
| Repalced by: A 0029902004 | ||
| 422 | A 0029902004 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X1X40 | ||
| 422 | A 0029902004 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X1X40 | ||
| 424 | N 000961010038 | SCREW |
| Repalced by: A 0029901804 | ||
| 424 | A 0029901804 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 10X1X30 | ||
| 424 | N 000961010039 | SCREW |
| Repalced by: A 0029901904 | ||
| 424 | A 0029901904 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 10X1X35 | ||
| 425 | N 009021010102 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 425 | N 009021010102 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 425 | N 009021010102 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 425 | N 009021010102 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 426 | N 913002010002 | NUT |
| Repalced by: A 0009906650 | ||
| 426 | A 0009906650 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 426 | A 0009906650 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 427 | N 913004010010 | NUT |
| Repalced by: A 0009906650 | ||
| 427 | A 0009906650 | NUT |
| BRACKET TO CROSS MEMBER | ||
| M 10X1 | ||
| 427 | A 0009906650 | NUT |
| BRACKET TO CROSS MEMBER | ||
| M 10X1 | ||
| 428 | N 913004010010 | NUT |
| Repalced by: A 0009906650 | ||
| 428 | A 0009906650 | NUT |
| REBOUND STRAP TO SUPPORT | ||
| M 10X1 | ||
| 430 | A 6824107040 | BRACKET |
| TO INTERMEDIATE SHAFT BEARING | ||
| A 3864107540 | BRACKET | |
| TO INTERMEDIATE SHAFT BEARING | ||
| 433 | A 3864137114 | SUPPORT |
| Repalced by: A 3864130314 | ||
| 433 | A 3864130314 | SUPPORT |
| LEFT | ||
| 434 | A 3864137214 | SUPPORT |
| Repalced by: A 3864130414 | ||
| 434 | A 3864130414 | SUPPORT |
| RIGHT | ||
| 436 | A 3844137046 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 436 | A 3974130046 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 439 | A 3524130011 | REINFORCEMENT |
| REBOUND STRAP TO SUPPORT | ||
| 500 | A 3444101602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1808 MM | ||
| 500 | A 3444101602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1808 MM | ||
| 500 | A 3844100002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1548 MM | ||
| 500 | A 3454107907 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1800 MM | ||
| 500 | A 3454109802 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1444 MM | ||
| 500 | A 3454109802 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1444 MM | ||
| 500 | A 3454108302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 502 | A 3974104407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 504 | A 3454109602 | PROPELLER SHAFT |
| Repalced by: A 6824103206 | ||
| 504 | A 6824103206 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| ALBARUS | ||
| 515 | A 3524110011 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 515 | A 3524110011 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 515 | A 3364110011 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 515 | A 3364110011 | DRIVE FLANGE |
| KRUPP | ||
| 515 | A 0004110445 | FLANGE |
| ALBARUS TO 6824103206 | ||
| 515 | A 3974110511 | DRIVE FLANGE |
| "A" | ||
| 515 | A 3974110111 | DRIVE FLANGE |
| "B" | ||
| 518 | A 3454107031 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| 518 | A 3454107031 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| 518 | A 3454107031 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| 518 | A 3314100031 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| 518 | A 3314100031 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| ALBARUS TO6824103206 | ||
| 518 | A 0004100531 | UNIVERSAL JOINT CROSS |
| 521 | N 071412008300 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| KRUPP | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| KRUPP | ||
| 521 | A 3459977288 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| KRUPP | ||
| 521 | A 0009974788 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| ALBARUS | ||
| 524 | A 3449947135 | SNAP RING |
| 2.50 MM | ||
| 524 | A 3449947135 | SNAP RING |
| 2.50 MM | ||
| 524 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 524 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 524 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 524 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 524 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 524 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 524 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 524 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 524 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 524 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 524 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 524 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 524 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 524 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 524 | A 3354111173 | LOCK |
| 524 | A 3354111173 | LOCK |
| 524 | A 3354111273 | LOCK |
| 524 | A 3354111273 | LOCK |
| 524 | A 3354111373 | LOCK |
| 524 | A 3354111373 | LOCK |
| 524 | A 3354111473 | LOCK |
| 524 | A 3354111473 | LOCK |
| 524 | A 3354111573 | LOCK |
| 524 | A 3354111573 | LOCK |
| 524 | A 3454110073 | LOCK |
| 524 | A 3454110073 | LOCK |
| 524 | A 3354111673 | LOCK |
| 550 | A 3444100008 | UNIVERSAL JOINT YOKE |
| REAR PROPELLER SHAFT | ||
| 550 | A 3444100008 | UNIVERSAL JOINT YOKE |
| REAR PROPELLER SHAFT | ||
| 550 | A 3444100008 | UNIVERSAL JOINT YOKE |
| FRONT PROPELLER SHAFT | ||
| 550 | A 3354100308 | UNIVERSAL JOINT YOKE |
| REAR PROPELLER SHAFT | ||
| 550 | A 3354100308 | UNIVERSAL JOINT YOKE |
| REAR PROPELLER SHAFT | ||
| 550 | A 0004100033 | SLIDE |
| REAR PROPELLER SHAFT | ||
| ALBARUS TO A6824103206 | ||
| 556 | N 071412008100 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 556 | A 0009974888 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| ALBARUS | ||
| 557 | A 3374130080 | SEAL RING |
| REAR PROPELLER SHAFT | ||
| 557 | A 3374130080 | SEAL RING |
| REAR PROPELLER SHAFT | ||
| 557 | A 3354110180 | GASKET |
| REAR PROPELLER SHAFT | ||
| 557 | A 3354110180 | GASKET |
| REAR PROPELLER SHAFT | ||
| 558 | A 3214110158 | SEAL HOLDER |
| REAR PROPELLER SHAFT | ||
| 558 | A 3214110158 | SEAL HOLDER |
| FRONT PROPELLER SHAFT | ||
| 558 | A 3214110158 | SEAL HOLDER |
| FRONT PROPELLER SHAFT | ||
| 558 | A 3354110058 | SEAL HOLDER |
| REAR PROPELLER SHAFT | ||
| 558 | A 3354110058 | SEAL HOLDER |
| REAR PROPELLER SHAFT | ||
| 565 | A 0004110445 | FLANGE |
| REAR PROPELLER SHAFT | ||
| ALBARUS TO 6824103206 | ||
| 568 | A 0004102731 | UNIVERSAL JOINT CROSS |
| REAR PROPELLER SHAFT | ||
| ALBARUS TO6824103206 | ||
| 571 | A 0009974788 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| ALBARUS | ||
| 579 | A 3454107280 | BOOT |
| REAR PROPELLER SHAFT | ||
| 579 | A 3454107280 | BOOT |
| FRONT PROPELLER SHAFT | ||
| 579 | A 3454107280 | BOOT |
| REAR PROPELLER SHAFT | ||
| 579 | A 3524100080 | BOOT |
| REAR PROPELLER SHAFT | ||
| 579 | A 3524100080 | BOOT |
| FRONT PROPELLER SHAFT | ||
| 579 | A 3524100080 | BOOT |
| REAR PROPELLER SHAFT | ||
| 579 | A 3454107180 | BOOT |
| REAR PROPELLER SHAFT | ||
| 579 | A 3454107180 | BOOT |
| REAR PROPELLER SHAFT | ||
| 579 | A 3454107180 | BOOT |
| FRONT PROPELLER SHAFT | ||
| 580 | A 3214110053 | WIRE RING |
| BOOT TO PROPELLER SHAFT | ||
| 580 | A 3214110053 | SPACER TUBE |
| FRONT PROPELLER SHAFT | ||
| 580 | A 3214110053 | SPACER TUBE |
| FRONT PROPELLER SHAFT | ||
| 580 | A 3454117092 | CLAMPING RING |
| BOOT TO PROPELLER SHAFT | ||
| 580 | A 3454117092 | CLAMPING RING |
| BOOT TO PROPELLER SHAFT | ||
| 580 | A 3454117092 | CLAMPING RING |
| FRONT PROPELLER SHAFT | ||
| 582 | N 916018070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 582 | N 000000000674 | CLAMP |
| BOOT TO PROPELLER SHAFT | ||
| 70-90X13 MM | ||
| 582 | N 000000000674 | SCREW |
| FRONT PROPELLER SHAFT | ||
| 70-90X13 MM | ||
| 582 | N 000000000674 | SCREW |
| FRONT PROPELLER SHAFT | ||
| 70-90X13 MM | ||
| 582 | A 3449979890 | CLAMP |
| BOOT TO PROPELLER SHAFT | ||
| 582 | A 3449979890 | CLAMP |
| FRONT PROPELLER SHAFT | ||
| 582 | N 916017090000 | CLAMP |
| BOOT TO PROPELLER SHAFT | ||
| 582 | N 916017090000 | CLAMP |
| FRONT PROPELLER SHAFT | ||
| 589 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 589 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 589 | A 3609903001 | SCREW |
| Repalced by: A 0079901101 | ||
| 589 | A 0079901101 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 589 | A 3609903101 | SCREW |
| Repalced by: A 0079901301 | ||
| 589 | A 0079901301 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 592 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 592 | N 000127010202 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 592 | N 000127012201 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 592 | N 000127012201 | SPRING LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 595 | N 000934010042 | NUT |
| Repalced by: N 308673010001 | ||
| 595 | N 308673010001 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M 10X1 | ||
| 595 | N 308673010001 | HEXAGON NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M 10X1 | ||
| 595 | N 000934012042 | NUT |
| Repalced by: N 308673012003 | ||
| 595 | N 308673012003 | NUT |
| Repalced by: A 3829900151 | ||
| 595 | A 3829900151 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M 12X1,25 | ||
| 595 | A 3829900151 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M 12X1,25 | ||
| 595 | A 3829900151 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M 12X1,25 | ||
| 595 | A 3829900151 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 12X1,25 | ||
| 595 | A 3829900151 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| M 12X1,25 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
