Transporto priemonė: LP/LPK 1314 MBSA-RSA; VIN numerio dalis: 397305
Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
| # | Kodas | Pavadinimas |
|---|---|---|

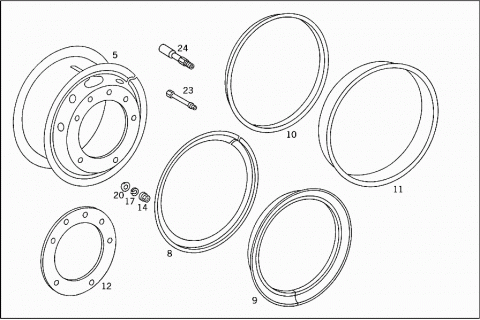

| 005 | A 3454008402 | DISC WHEEL |
| LEMMERZ 7.0X20 | ||
| 005 | A 3454008702 | DISC WHEEL |
| FNV 7.0X20 | ||
| 005 | A 3454008202 | DISC WHEEL |
| FNV, 7.0X20 | ||
| 005 | A 3454007202 | DISC WHEEL |
| LEMMERZ 7.0X20 | ||
| 005 | A 3974007702 | DISC WHEEL |
| 005 | A 3974007102 | DISC WHEEL |
| 005 | A 3454008502 | DISC WHEEL |
| LEMMERZ, 7.5X20 | ||
| 005 | A 3454008802 | DISC WHEEL |
| FNV, 7.5X20 | ||
| 005 | A 3454008302 | DISC WHEEL |
| FNV, 7.5X20 | ||
| 005 | A 3454007102 | DISC WHEEL |
| LEMMERZ 7.5X20 | ||
| 005 | A 3974007802 | DISC WHEEL |
| 005 | A 3974007202 | DISC WHEEL |
| 005 | A 3454007602 | DISC WHEEL |
| FNV 8,0 X 20 | ||
| 005 | A 3644007102 | DISC WHEEL |
| LEMMERZ 8,0 X 20 | ||
| 005 | A 3974007902 | DISC WHEEL |
| 005 | A 3974000002 | DISC WHEEL |
| 005 | A 3974000002 | DISC WHEEL |
| 8,0X20 | ||
| 005 | A 3974007002 | DISC WHEEL |
| Repalced by: A 3974008102 | ||
| 005 | A 3974008102 | DISC WHEEL |
| 005 | A 0034010101 | DISC WHEEL |
| Repalced by: A 0004011905 | ||
| 005 | A 0004011905 | RIM |
| 005 | A 3974007102 | DISC WHEEL |
| 7,0X20 | ||
| 008 | A 3444017406 | SIDE RING |
| TO 345 400 84 02,LEMMERZ | ||
| 008 | A 3454017506 | SIDE RING |
| TO 345 400 87 02,FNV | ||
| 009 | A 3454010006 | SIDE RING |
| TO 345 400 85 02,7102, LEMMERZ | ||
| 009 | A 3454017606 | SIDE RING |
| TO 345 400 88 02,83 02, FNV | ||
| 010 | A 3454017406 | SIDE RING |
| TO 345 400 76 02,FNV | ||
| 010 | A 3644017006 | SIDE RING |
| TO 364 400 71 02,LEMMERZ | ||
| A 0004015206 | SIDE RING | |
| 011 | A 3454017107 | COVER RING |
| TO 345 400 76 02,FNV | ||
| 011 | A 3644017007 | COVER RING |
| TO 364 400 71 02,LEMMERZ | ||
| 012 | A 3874020307 | RING |
| Repalced by: A 6154020007 | ||
| 012 | A 6154020007 | RING |
| 014 | A 3454007124 | WHEEL NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 014 | A 3454007024 | WHEEL NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 014 | A 3854000124 | WHEEL NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 014 | N 074361022205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 014 | N 074361022205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 017 | N 074361022352 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 017 | N 074361022352 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 020 | A 3174020175 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 020 | A 3174020175 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 023 | A 3104010113 | VALVE |
| EXTENSION | ||
| 023 | A 3214010013 | VALVE |
| EXTENSION | ||
| 023 | A 3454017013 | VALVE |
| EXTENSION | ||
| 023 | A 3854010013 | VALVE |
| EXTENSION | ||
| 023 | A 3854010113 | VALVE |
| EXTENSION | ||
| 024 | A 3104010213 | VALVE |
| EXTENSION | ||
| 024 | A 3104010513 | VALVE |
| EXTENSION | ||

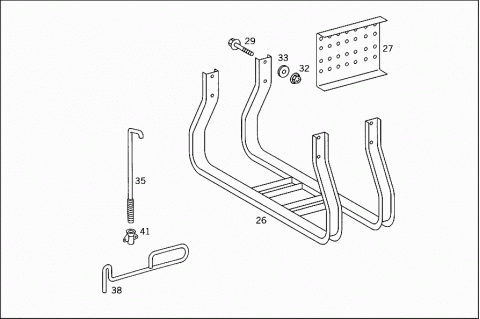

| 026 | A 3844007339 | BRACKET |
| SPARE WHEEL TO BODY | ||
| 026 | A 3844007339 | BRACKET |
| SPARE WHEEL TO BODY | ||
| 027 | A 3844038008 | REINFORCEMENT |
| SPARE WHEEL MOUNTING | ||
| 027 | A 3844038008 | REINFORCEMENT |
| SPARE WHEEL MOUNTING | ||
| 029 | N 000961014088 | SCREW |
| Repalced by: A 0029909404 | ||
| 029 | A 0029909404 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| M 14X1.5X40 | ||
| 029 | A 0029909404 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| M 14X1.5X40 | ||
| 029 | N 000961014105 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 029 | N 000961014105 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 029 | N 000961014101 | SCREW |
| Repalced by: A 0029909704 | ||
| 029 | A 0029909704 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| M 14X1.5X50 | ||
| 029 | A 0029909704 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| M 14X1.5X50 | ||
| 029 | N 000961012120 | SCREW |
| Repalced by: A 0029903104 | ||
| 029 | A 0029903104 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| M 12X1,5X45 | ||
| 029 | A 0029903104 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| M 12X1,5X45 | ||
| 029 | N 000960012354 | SCREW |
| Repalced by: A 0029904704 | ||
| 029 | A 0029904704 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| M 12X1.5X125 | ||
| 032 | N 913004014005 | NUT |
| Repalced by: A 0009906950 | ||
| 032 | A 0009906950 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 032 | A 0009906950 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 032 | A 0009906950 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 032 | N 913004012009 | NUT |
| Repalced by: A 0009906750 | ||
| 032 | A 0009906750 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| M 12X1,5 | ||
| 032 | A 0009906750 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| M 12X1,5 | ||
| 033 | N 009021013101 | WASHER |
| SPARE WHEEL TO CROSS MEMBER | ||
| 033 | N 009021013101 | WASHER |
| SPARE WHEEL TO CROSS MEMBER | ||
| 033 | A 3829907140 | WASHER |
| SPARE WHEEL TO CROSS MEMBER | ||
| 033 | A 3449900140 | WASHER |
| SPARE WHEEL TO CROSS MEMBER | ||
| 035 | A 3524030429 | HOOK BOLT |
| SPARE WHEEL CARRIER | ||
| 035 | A 3524030429 | HOOK BOLT |
| SPARE WHEEL CARRIER | ||
| 038 | A 3524030073 | LOCK |
| SPARE WHEEL CARRIER | ||
| 038 | A 3524030073 | LOCK |
| SPARE WHEEL CARRIER | ||
| 041 | A 3449907162 | NUT |
| SPARE WHEEL CARRIER | ||
| 041 | A 3449907162 | NUT |
| SPARE WHEEL CARRIER | ||
| 041 | A 3454037030 | NUT |
| SPARE WHEEL CARRIER | ||
| 041 | A 3454037030 | NUT |
| SPARE WHEEL CARRIER | ||
| 044 | A 3864007039 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 044 | A 3864007039 | BRACKET |
| SPARE WHEEL CARRIER | ||

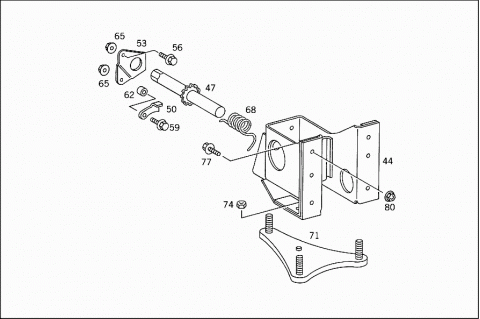

| 047 | A 3524000117 | SHAFT |
| 047 | A 3524000117 | SHAFT |
| 050 | A 3524030084 | PAWL |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 050 | A 3524030084 | PAWL |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 053 | A 3524030294 | PLATE |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 053 | A 3524030294 | PLATE |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 056 | N 000933010269 | SCREW |
| Repalced by: A 0019908604 | ||
| 056 | A 0019908604 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10X40 | ||
| 056 | N 000933010269 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 059 | N 000933010174 | SCREW |
| Repalced by: A 0019908304 | ||
| 059 | A 0019908304 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10X30 | ||
| 059 | N 000933010174 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 062 | A 3524030150 | BUSHING |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 062 | A 3524030150 | BUSHING |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 065 | N 913004010011 | NUT |
| Repalced by: A 0009906550 | ||
| 065 | A 0009906550 | NUT |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10 | ||
| 065 | N 913004010011 | NUT |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 068 | A 3454037036 | CABLE |
| SPARE WHEEL CARRIER | ||
| 068 | A 3454037036 | CABLE |
| SPARE WHEEL CARRIER | ||
| 071 | A 3864007139 | BRACKET |
| (10-HOLE RIM) | ||
| 071 | A 3864007139 | BRACKET |
| (10-HOLE RIM) | ||
| 074 | N 000934018012 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 074 | N 000934018012 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 077 | N 000961014101 | SCREW |
| Repalced by: A 0029909704 | ||
| 077 | A 0029909704 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 14X1.5X50 | ||
| 077 | A 0039900004 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 14X1.5X65 | ||
| 080 | N 913004014005 | NUT |
| Repalced by: A 0009906950 | ||
| 080 | A 0009906950 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
