Transporto priemonė: LS 1112; VIN numerio dalis: 341021
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

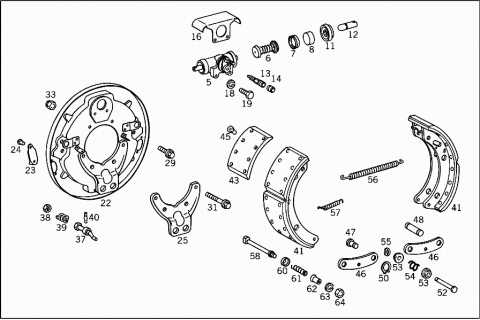

| A 0024201818 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0024207618 | ||
| 005 | A 0024207618 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034207718 | ||
| 005 | A 0034207718 | WHEEL BRAKE CYLINDER |
| A 0004212190 | SPRING | |
| 006 | A 0004212590 | SPRING |
| 007 | A 0004211286 | CUP |
| 008 | A 0004212783 | PISTON |
| A 0004232287 | PROTECTIVE CAP | |
| Repalced by: A 0004213187 | ||
| A 0004213187 | PROTECTIVE CAP | |
| Repalced by: A 3164210087 | ||
| A 3164210087 | PROTECTIVE CAP | |
| A 0009948141 | LOCK | |
| 011 | A 0004232187 | PROTECTIVE CAP |
| 012 | A 0004231088 | THRUST PIN |
| TO 002 420 18 18,76 18 | ||
| 013 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 013 | A 3454317165 | VALVE |
| 014 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 014 | A 3454317287 | PROTECTIVE CAP |
| A 0005865042 | REPAIR KIT | |
| A 3414210020 | PROTECTIVE PLATE | |
| Repalced by: A 3024210020 | ||
| 016 | A 3024210020 | PROTECTIVE PLATE |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 018 | N 000127010205 | LOCK WASHER |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 019 | N 000933010026 | SCREW |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| N 000933010011 | SCREW | |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 022 | A 3414200416 | BRAKE ANCHOR PLATE |
| LEFT | ||
| A 3414200516 | BRAKE ANCHOR PLATE | |
| RIGHT | ||
| 023 | A 3124211068 | INSPECTION HOLE COVER |
| 024 | A 3219900096 | RIVET |
| 025 | A 3024210006 | BRAKE ANCHOR |
| A 3419940025 | LOCK | |
| A 3229940125 | LOCK | |
| 029 | A 3419900004 | SCREW |
| Repalced by: A 3029900804 | ||
| 029 | A 3029900804 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| N 000961012043 | SCREW | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 031 | A 3419900104 | SCREW |
| Repalced by: A 3029900204 | ||
| 031 | A 3029900204 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| N 000960012043 | SCREW | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 033 | N 000935012003 | NUT |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| N 000961016024 | SCREW | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| N 000094003230 | COTTER PIN | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 037 | A 3124201338 | ADJUSTER |
| 038 | N 000934014003 | NUT |
| 039 | A 3129934901 | SPRING |
| 040 | N 001475004002 | GROOVED PIN |
| 041 | A 3414200320 | BRAKE SHOE |
| STANDARD | ||
| 15.3 MM | ||
| A 3414200420 | BRAKE SHOE | |
| REPAIR SIZE I | ||
| 16.3 MM | ||
| A 3414200520 | BRAKE SHOE | |
| REPAIR SIZE II | ||
| 17.3 MM | ||
| A 3414200119 | BRAKE SHOE | |
| LESS LINING | ||
| A 3414207719 | BRAKE SHOE | |
| LESS LINING | ||
| A 3414232210 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE 0 | ||
| 14.8 MM,JURID | ||
| 043 | A 3414230010 | BRAKE LINING |
| Repalced by: A 3414232310 | ||
| 043 | A 3414232310 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.3 MM,JURID | ||
| A 3414230110 | BRAKE LINING | |
| Repalced by: A 3414232410 | ||
| A 3414232410 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.3 MM,JURID | ||
| A 3414230210 | BRAKE LINING | |
| Repalced by: A 3414232510 | ||
| A 3414232510 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.3 MMM,JURID | ||
| 045 | N 007338008305 | RIVET |
| 046 | A 3024210013 | SHACKLE |
| A 3024210074 | PIN | |
| Repalced by: A 3024210174 | ||
| 047 | A 3024210174 | PIN |
| SHACKLE TO BRAKE SHOE | ||
| A 3024210018 | PIVOT PIN | |
| Repalced by: A 3024210118 | ||
| 048 | A 3024210118 | PIVOT PIN |
| SHACKLE TO BRAKE SHOE | ||
| 050 | N 900055025301 | LOCK RING |
| N 900055022301 | LOCK RING | |
| 052 | A 3124231174 | PIN |
| 053 | A 3024210052 | SPACER WASHER |
| A 3404210052 | SPACER WASHER | |
| 054 | A 3029930201 | SPRING |
| 055 | A 3124211073 | LOCK |
| A 3224210392 | SPRING | |
| Repalced by: A 3524210192 | ||
| 056 | A 3414210092 | SPRING |
| Repalced by: A 3524210192 | ||
| 056 | A 3524210192 | SPRING |
| LONG | ||
| A 3124211192 | SPRING | |
| Repalced by: A 3029930310 | ||
| 057 | A 3029930310 | SPRING |
| SHORT | ||
| 058 | A 3124231274 | PIN |
| 060 | A 3124231089 | FILLER |
| 061 | A 3129933801 | SPRING |
| 062 | A 3124231189 | FILLER |
| 063 | N 912004008104 | LOCK WASHER |
| 064 | N 000934008000 | NUT |

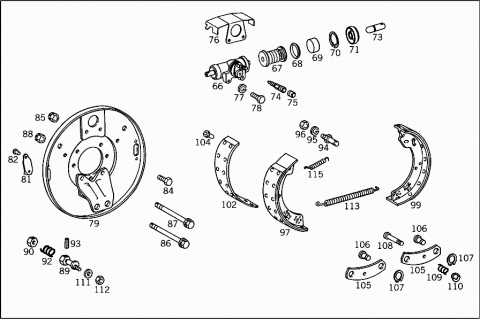

| 066 | A 0014209418 | WHEEL BRAKE CYLINDER |
| 067 | A 0004300289 | SPRING RETAINER |
| 068 | A 0004230186 | CUP |
| 069 | A 0004213883 | PISTON |
| 070 | A 0009948241 | LOCK |
| 071 | A 0004230187 | PROTECTIVE CAP |
| 073 | A 0004230888 | THRUST PIN |
| 074 | A 0004200055 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 074 | A 3454317165 | VALVE |
| 075 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 075 | A 3454317287 | PROTECTIVE CAP |
| 076 | A 3214230020 | PROTECTIVE PLATE |
| 077 | N 000127010205 | LOCK WASHER |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 078 | N 000933010011 | SCREW |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 079 | A 3124201116 | BRAKE ANCHOR PLATE |
| 081 | A 3124211068 | INSPECTION HOLE COVER |
| 082 | A 3129900096 | RIVET |
| 084 | N 000961012067 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 085 | N 000935012003 | NUT |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| N 000094003217 | COTTER PIN | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 086 | A 3129901314 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 087 | A 3289900013 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 088 | N 000935014001 | NUT |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| N 000094003221 | COTTER PIN | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 089 | A 3124201038 | ADJUSTER |
| 090 | A 3124211172 | NUT |
| 092 | A 3124211190 | SPRING |
| 093 | N 001481004023 | CLAMPING SLEEVE |
| 094 | A 3124211374 | PIN |
| 095 | N 912004008104 | LOCK WASHER |
| 096 | N 000934008000 | NUT |
| 097 | A 3214200320 | BRAKE SHOE |
| STANDARD | ||
| 6.3 MM | ||
| A 3214200420 | BRAKE SHOE | |
| REPAIR SIZE I | ||
| 7.0 MM | ||
| A 3214200520 | BRAKE SHOE | |
| REPAIR SIZE II | ||
| 8.0 MM | ||
| 099 | A 3214200620 | BRAKE SHOE |
| STANDARD | ||
| 6.3 MM | ||
| A 3214200720 | BRAKE SHOE | |
| REPAIR SIZE I | ||
| 7.0 MM | ||
| A 3214200820 | BRAKE SHOE | |
| REPAIR SIZE II | ||
| 8.0 MM | ||
| A 3124201319 | BRAKE SHOE | |
| LESS LINING | ||
| 102 | A 3214210610 | BRAKE LINING |
| STANDARD | ||
| 6.6 MM | ||
| A 3214210710 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 7.3 MM | ||
| A 3214210810 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 8.3 MM | ||
| 104 | A 3129900195 | RIVET |
| 105 | A 3124231094 | BRACKET |
| A 3124211218 | PIVOT PIN | |
| Repalced by: A 3124211318 | ||
| 106 | A 3124211318 | PIVOT PIN |
| SHACKLE TO BRAKE SHOE | ||
| 107 | N 900055022301 | LOCK RING |
| SHACKLE TO BRAKE SHOE | ||
| 108 | A 3124211274 | PIN |
| 109 | A 3124211090 | SPRING |
| 110 | A 3124211073 | LOCK |
| 111 | A 3129901040 | WASHER |
| 112 | N 000935010000 | NUT |
| N 000094002072 | COTTER PIN | |
| 113 | A 3234230092 | SPRING |
| LONG | ||
| A 3124211192 | SPRING | |
| Repalced by: A 3029930310 | ||
| 115 | A 3029930310 | SPRING |
| SHORT | ||
| A 0014208418 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0024207718 | ||
| A 0024201918 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0024207718 | ||

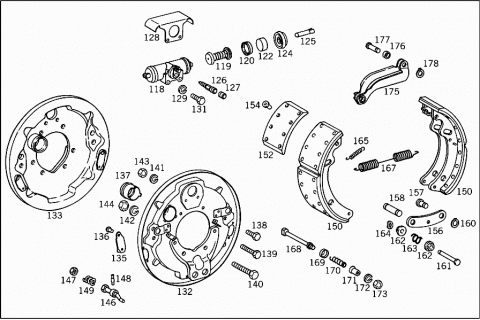

| 118 | A 0024207718 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034207818 | ||
| 118 | A 0034207818 | WHEEL BRAKE CYLINDER |
| A 0004232093 | SPRING | |
| Repalced by: A 0004232493 | ||
| 119 | A 0004232493 | SPRING |
| 120 | A 0004230886 | CUP |
| 122 | A 0004232083 | PISTON |
| N 000472045000 | LOCK RING | |
| A 0004231687 | PROTECTIVE CAP | |
| Repalced by: A 0004232187 | ||
| 124 | A 0004232187 | PROTECTIVE CAP |
| 125 | A 0004231088 | THRUST PIN |
| TO 002 420 19 18,77 18 | ||
| 126 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 126 | A 3454317165 | VALVE |
| 127 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 127 | A 3454317287 | PROTECTIVE CAP |
| A 0005863142 | REPAIR KIT | |
| TO 002 420 19 18,77 18,003 420 78 18 | ||
| A 3414210020 | PROTECTIVE PLATE | |
| Repalced by: A 3024210020 | ||
| 128 | A 3024210020 | PROTECTIVE PLATE |
| 129 | N 000127010205 | LOCK WASHER |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 131 | N 000933010026 | SCREW |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| A 0414200017 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3414200417 | ||
| 132 | A 3414200417 | BRAKE ANCHOR PLATE |
| LEFT | ||
| A 0414200117 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3414200517 | ||
| 133 | A 3414200517 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 135 | A 3124211068 | INSPECTION HOLE COVER |
| 136 | A 3129900096 | RIVET |
| 137 | A 3414270054 | PIPE SOCKET |
| 138 | N 000961012164 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 139 | N 000961012029 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 140 | N 000961016040 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 141 | N 000127012203 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 142 | N 000127016202 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 143 | N 000934012004 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 144 | N 000934016002 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 146 | A 3124201338 | ADJUSTER |
| 147 | N 000934014003 | NUT |
| 148 | N 001475004002 | GROOVED PIN |
| 149 | A 3129934901 | SPRING |
| 150 | A 3414200320 | BRAKE SHOE |
| STANDARD | ||
| 15.3 MM | ||
| A 3414200420 | BRAKE SHOE | |
| REPAIR SIZE I | ||
| 16.3 MM | ||
| A 3414200520 | BRAKE SHOE | |
| REPAIR SIZE II | ||
| 17.3 MM | ||
| A 3414200119 | BRAKE SHOE | |
| LESS LINING | ||
| A 3414207719 | BRAKE SHOE | |
| LESS LINING | ||
| A 3414232210 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE 0 | ||
| 14.8 MM,JURID | ||
| 152 | A 3414230010 | BRAKE LINING |
| Repalced by: A 3414232310 | ||
| 152 | A 3414232310 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.3 MM,JURID | ||
| A 3414230110 | BRAKE LINING | |
| Repalced by: A 3414232410 | ||
| A 3414232410 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.3 MM,JURID | ||
| A 3414230210 | BRAKE LINING | |
| Repalced by: A 3414232510 | ||
| A 3414232510 | BRAKE LINING | |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.3 MM,JURID | ||
| 154 | N 007338008305 | RIVET |
| 156 | A 3024210013 | SHACKLE |
| 157 | A 3024210074 | PIN |
| Repalced by: A 3024210174 | ||
| 157 | A 3024210174 | PIN |
| SHACKLE TO BRAKE SHOE | ||
| A 3024210018 | PIVOT PIN | |
| Repalced by: A 3024210118 | ||
| 158 | A 3024210118 | PIVOT PIN |
| BRAKE SHOE | ||
| A 0419900040 | WASHER | |
| A 0419900040 | WASHER | |
| 160 | N 000471025000 | LOCK RING |
| SHACKLE TO BRAKE SHOE | ||
| 161 | A 3124231174 | PIN |
| 162 | A 3024210052 | SPACER WASHER |
| A 3029930001 | SPRING | |
| Repalced by: A 3029930201 | ||
| 163 | A 3029930201 | SPRING |
| 164 | A 3124211073 | LOCK |
| A 3124211192 | SPRING | |
| Repalced by: A 3029930310 | ||
| 165 | A 3029930310 | SPRING |
| SHORT | ||
| A 3414230092 | SPRING | |
| Repalced by: A 3029930610 | ||
| 167 | A 3029930610 | SPRING |
| LONG | ||
| 168 | A 3414210174 | PIN |
| 169 | A 3124231089 | FILLER |
| 170 | A 3129933801 | SPRING |
| 171 | A 3124231189 | FILLER |
| 172 | N 912004008104 | LOCK WASHER |
| 173 | N 000934008000 | NUT |
| 175 | A 3414200219 | THRUST SHACKLE |
| 176 | A 3414230053 | SPACER TUBE |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 177 | A 3414230018 | PIVOT PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 178 | N 000471018000 | LOCK RING |
| THRUST SHACKLE TO BRAKE SHOE | ||

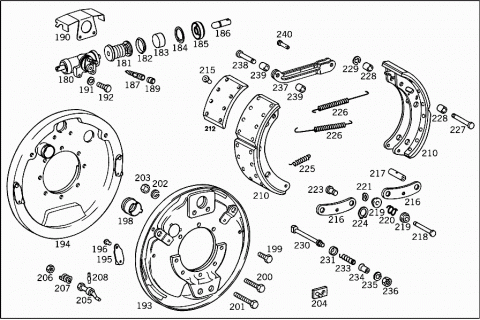

| 180 | A 0014208518 | WHEEL BRAKE CYLINDER |
| 181 | A 0004231793 | SPRING |
| 182 | A 0004230886 | CUP |
| 183 | A 0004232083 | PISTON |
| 184 | N 000472045000 | LOCK RING |
| 185 | A 0004232187 | PROTECTIVE CAP |
| 186 | A 0004230888 | THRUST PIN |
| 187 | A 0004200055 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 187 | A 3454317165 | VALVE |
| 189 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 189 | A 3454317287 | PROTECTIVE CAP |
| 190 | A 3214230020 | PROTECTIVE PLATE |
| 191 | N 000127010205 | LOCK WASHER |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 192 | N 000933010034 | SCREW |
| BRAKE CYLINDER TO BRAKE ANCHOR PLATE | ||
| 193 | A 3214200217 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 194 | A 3214200317 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 195 | A 3124211068 | INSPECTION HOLE COVER |
| 196 | A 3129900096 | RIVET |
| 198 | A 3274270054 | PIPE SOCKET |
| 199 | N 000961012164 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 200 | N 000961012179 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 201 | N 000961012029 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 202 | N 000127012203 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 203 | N 000934012004 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 204 | A 3124201070 | STUD |
| 205 | A 3124201338 | ADJUSTER |
| 206 | N 000934014003 | NUT |
| 207 | A 3129934901 | SPRING |
| 208 | N 001475004002 | GROOVED PIN |
| 210 | A 3214200920 | BRAKE SHOE |
| STANDARD | ||
| 10 MM | ||
| A 3214201020 | BRAKE SHOE | |
| REPAIR SIZE I | ||
| 11 MM | ||
| A 3214201120 | BRAKE SHOE | |
| REPAIR SIZE II | ||
| 12 MM | ||
| 212 | A 3214230010 | BRAKE LINING |
| STANDARD | ||
| 10.3 MM | ||
| A 3214230110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 11.3 MM | ||
| A 3214230210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 12.3 MM | ||
| A 3129900395 | RIVET | |
| Repalced by: N 007338008310 | ||
| 215 | N 007338008310 | RIVET |
| 216 | A 3124231594 | BRACKET |
| A 3124231718 | PIVOT PIN | |
| Repalced by: A 3124231918 | ||
| 217 | A 3124231918 | PIVOT PIN |
| SHACKLE TO BRAKE SHOE | ||
| N 900055022301 | LOCK RING | |
| SHACKLE TO BRAKE SHOE | ||
| 218 | A 3124231174 | PIN |
| 219 | A 3124231052 | SPACER WASHER |
| 220 | A 3129933901 | SPRING |
| 221 | A 3124211073 | LOCK |
| A 3124231418 | PIVOT PIN | |
| Repalced by: A 3124231818 | ||
| 223 | A 3124231818 | PIVOT PIN |
| 224 | N 900055022301 | LOCK RING |
| A 3124211192 | SPRING | |
| Repalced by: A 3029930310 | ||
| 225 | A 3029930310 | SPRING |
| SHORT | ||
| 226 | A 3124232192 | SPRING |
| LONG | ||
| 227 | A 3124231318 | PIVOT PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 228 | A 3124231453 | SPACER TUBE |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 229 | N 006799009003 | LOCK PLATE |
| 230 | A 3124231274 | PIN |
| 231 | A 3124231089 | FILLER |
| BOTTOM | ||
| 233 | A 3129933801 | SPRING |
| 234 | A 3124231189 | FILLER |
| TOP | ||
| 235 | N 912004008104 | LOCK WASHER |
| 236 | N 000934008000 | NUT |
| 237 | A 3124201727 | THRUST SHACKLE |
| 238 | A 3124231318 | PIVOT PIN |
| THRUST SHACKLE TO SHAFT | ||
| 239 | A 3124231453 | SPACER TUBE |
| 240 | N 001434014001 | PIN |
| N 000094004041 | COTTER PIN | |

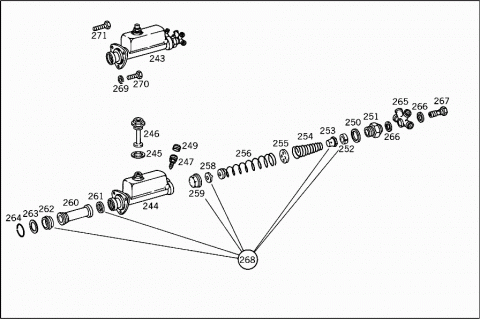

| 243 | A 0004305501 | BRAKE MASTER CYLINDER |
| 244 | A 0004310503 | HOUSING |
| 245 | A 0004310260 | SEAL RING |
| 246 | A 0004311356 | SCREW PLUG |
| Repalced by: A 0004311756 | ||
| 246 | A 0004311756 | SCREW PLUG |
| 247 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 247 | A 3454317165 | VALVE |
| 249 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 249 | A 3454317287 | PROTECTIVE CAP |
| 250 | N 007603035101 | SEAL RING |
| 251 | A 0004310975 | THREADED UNION |
| 252 | A 0004310760 | SEAL RING |
| 253 | A 0004300081 | VALVE |
| 254 | A 0009930605 | SPRING |
| 255 | A 0004311876 | WASHER |
| 256 | A 0004313793 | SPRING |
| 258 | A 0004310089 | SPRING RETAINER |
| 259 | A 0004310186 | CUP |
| 260 | A 0004312683 | PISTON |
| 261 | A 0004310685 | FILLER RING |
| 262 | A 0004310086 | CUP |
| A 0004311976 | WASHER | |
| Repalced by: A 0004312176 | ||
| 263 | A 0004312176 | WASHER |
| 264 | A 0009940135 | SNAP RING |
| 265 | A 0004280124 | DISTRIBUTOR |
| 266 | N 007603014102 | SEAL RING |
| 267 | A 0004280026 | HOLLOW SCREW |
| A 0415860043 | REPAIR KIT | |
| Repalced by: A 3415867242 | ||
| 268 | A 3415867242 | REPAIR KIT |
| 269 | N 000127010205 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE VALVE | ||
| 270 | N 000933010129 | SCREW |
| MASTER CYLINDER TO BRAKE VALVE | ||
| 271 | N 000933010056 | SCREW |
| MASTER CYLINDER TO BRAKE VALVE | ||
| A 3214200128 | LINE | |
| Repalced by: A 3224209728 | ||
| 273 | A 3224209728 | LINE |

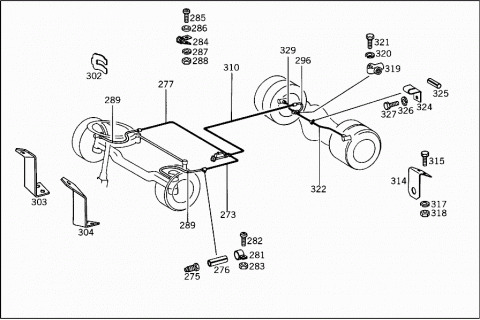

| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| A 3214200129 | LINE | |
| Repalced by: A 3224209928 | ||
| A 3224209928 | LINE | |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| H 993414200029 | LINE | |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 275 | A 0004280072 | UNION SCREW |
| 276 | A 3129970582 | HOSE |
| A 3214200129 | LINE | |
| Repalced by: A 3224209928 | ||
| 277 | A 3224209928 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| A 3214200128 | LINE | |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| H 993414200129 | LINE | |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| A 0004280072 | UNION SCREW | |
| A 3129970582 | HOSE | |
| 281 | A 3129950935 | CLAMP |
| LINE TO HOSE | ||
| 282 | N 000084004102 | SCREW |
| LINE TO HOSE | ||
| 283 | N 000934004000 | NUT |
| LINE TO HOSE | ||
| 284 | A 3129951401 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 285 | N 000084006110 | SCREW |
| BRAKE LINE MOUNTING | ||
| 286 | N 000433006400 | WASHER |
| BRAKE LINE MOUNTING | ||
| 287 | N 000127006206 | LOCK WASHER |
| BRAKE LINE MOUNTING | ||
| 288 | N 000934006007 | NUT |
| BRAKE LINE MOUNTING | ||
| 289 | A 0004284735 | BRAKE HOSE |
| A 0124280335 | BRAKE HOSE | |
| Repalced by: A 0004289935 | ||
| A 0004289935 | BRAKE HOSE | |
| A 3414287335 | BRAKE HOSE | |
| A 0004280135 | BRAKE HOSE | |
| 450 MM | ||
| A 0124280135 | BRAKE HOSE | |
| Repalced by: A 0004289735 | ||
| A 0004289735 | BRAKE HOSE | |
| 450 MM | ||
| A 3414287135 | BRAKE HOSE | |
| 450 MM | ||
| A 0414280135 | BRAKE HOSE | |
| 450 MM | ||
| 450 MM | ||
| 296 | A 0004280235 | BRAKE HOSE |
| A 0124280335 | BRAKE HOSE | |
| Repalced by: A 0004289835 | ||
| A 0004289835 | BRAKE HOSE | |
| BRAKE LINE TOWARDS DISTRIBUTOR | ||
| A 0414280035 | BRAKE HOSE | |
| Repalced by: A 0004283335 | ||
| A 0004283335 | BRAKE HOSE | |
| BRAKE LINE TOWARDS DISTRIBUTOR | ||
| A 3414287635 | BRAKE HOSE | |
| BRAKE LINE TOWARDS DISTRIBUTOR | ||
| 302 | A 0004280073 | LOCK |
| Repalced by: A 0004280473 | ||
| 302 | A 0004280473 | BRACKET |
| 303 | A 3404280243 | ANGLE |
| Repalced by: A 3414280040 | ||
| 304 | A 3404280343 | ANGLE |
| Repalced by: A 3414280040 | ||
| 304 | A 3414280040 | BRACKET |
| Repalced by: A 3524282040 | ||
| 304 | A 3524282040 | BRACKET |
| A 3124281143 | ANGLE | |
| BRAKE HOSE | ||
| H 993414280140 | BRACKET | |
| Repalced by: A 3414280040 | ||
| A 3414280040 | BRACKET | |
| BRAKE HOSE | ||
| A 0419900240 | WASHER | |
| N 000933008025 | SCREW | |
| BRACKET TO CONSOLE | ||
| N 912004008104 | LOCK WASHER | |
| BRACKET TO CONSOLE | ||
| N 000934008000 | NUT | |
| BRACKET TO CONSOLE | ||
| 310 | A 3414200028 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| A 3414200128 | LINE | |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| A 3414200228 | LINE | |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| A 3414200328 | LINE | |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| A 0004280072 | UNION SCREW | |
| 314 | A 3124281040 | BRACKET |
| 315 | N 000933008025 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 000963008014 | SCREW | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 007988008105 | SCREW | |
| BRACKET TO FRAME SIDE MEMBER | ||
| 317 | N 912004008104 | LOCK WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 318 | N 000934008000 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 319 | A 0004290437 | DISTRIBUTOR |
| Repalced by: A 3414297037 | ||
| 319 | A 3414297037 | DISTRIBUTOR |
| REAR AXLE | ||
| 319 | A 3454297037 | DISTRIBUTOR |
| REAR AXLE | ||
| 320 | N 912004008104 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 321 | N 000933008071 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 322 | A 3124201430 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| A 3234200028 | LINE | |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| A 0004280072 | UNION SCREW | |
| 324 | A 3129951020 | CLAMP |
| 325 | A 3129973482 | HOSE |
| 326 | N 912004008104 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 327 | N 000933008014 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 329 | A 3124201431 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| A 3234200128 | LINE | |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| A 0004280072 | UNION SCREW | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR AIR COMPRESSOR,SEE ENGINE SPARE PARTS LIST | ||

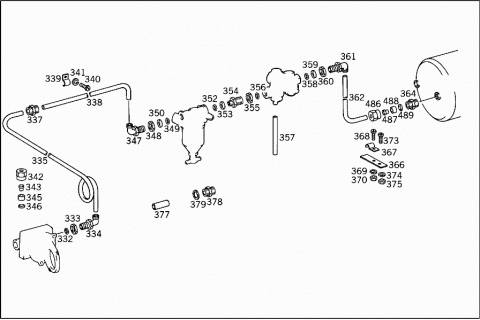

| 332 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 333 | N 074305022202 | NUT |
| AT AIR COMPRESSOR | ||
| 334 | N 074301026202 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| A 3224296201 | LINE | |
| Repalced by: A 3224297403 | ||
| 335 | A 3224297403 | LINE |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| A 3414290901 | LINE | |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| H 993414290701 | LINE | |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| 337 | N 074298026201 | DOUBLE FITTING |
| Repalced by: A 3414290901 | ||
| 337 | A 3414290901 | LINE |
| 338 | A 3224296101 | LINE |
| FROM DOUBLE FITTING TO TIRE INFLATOR CYLINDER | ||
| 339 | A 3129952320 | CLAMP |
| Repalced by: A 3049950120 | ||
| 339 | A 3049950120 | CLAMP |
| 340 | N 000084006110 | SCREW |
| 341 | N 000127006206 | LOCK WASHER |
| 342 | N 915018018000 | UNION NUT |
| 343 | N 003861018003 | GLAND |
| 345 | N 074297018302 | THRUST RING |
| 346 | N 915045011500 | SEAL RING |
| 347 | N 074301026202 | ELBOW FITTING |
| 348 | N 074305022202 | NUT |
| A 0009974140 | SEAL RING | |
| Repalced by: A 0009870446 | ||
| 349 | A 0009870446 | SEALING CORD |
| 350 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 350 | A 0009940203 | THRUST RING |
| A 0009974140 | SEAL RING | |
| Repalced by: A 0009870446 | ||
| 352 | A 0009870446 | SEALING CORD |
| BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR | ||
| 353 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 353 | A 0009940203 | THRUST RING |
| BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR | ||
| 354 | N 074299022301 | DOUBLE FITTING |
| BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR | ||
| 355 | N 074305022202 | NUT |
| BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR | ||
| A 0009974140 | SEAL RING | |
| Repalced by: A 0009870446 | ||
| 356 | A 0009870446 | SEALING CORD |
| BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR | ||
| A 0004290227 | THRUST RING | |
| Repalced by: A 0009940203 | ||
| A 0009940203 | THRUST RING | |
| BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR | ||
| 357 | A 0059970982 | HOSE |
| A 0009974140 | SEAL RING | |
| Repalced by: A 0009870446 | ||
| 358 | A 0009870446 | SEALING CORD |
| 359 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 359 | A 0009940203 | THRUST RING |
| 360 | N 074305022202 | NUT |
| 361 | N 074301022201 | ELBOW FITTING |
| 362 | A 3214297402 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| A 3414291001 | LINE | |
| Repalced by: A 3414201026 | ||
| A 3414201026 | LINE | |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 364 | N 074298022201 | DOUBLE FITTING |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| A 3214291002 | LINE | |
| Repalced by: A 0414290202 | ||
| A 0414290202 | LINE | |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 366 | A 3124291640 | BRACKET |
| 367 | A 3129952420 | CLAMP |
| 368 | N 000084006110 | SCREW |
| CLAMP TO BRACKET | ||
| 369 | N 000127006206 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 370 | N 000934006007 | NUT |
| CLAMP TO BRACKET | ||
| 373 | N 000084006107 | SCREW |
| BRACKET TO CAB CROSS MEMBER | ||
| 374 | N 000127006206 | LOCK WASHER |
| BRACKET TO CAB CROSS MEMBER | ||
| 375 | N 000934006007 | NUT |
| BRACKET TO CAB CROSS MEMBER | ||
| 377 | A 3129974282 | HOSE |
| 378 | N 074298022201 | DOUBLE FITTING |
| 379 | N 007603022102 | SEAL RING |
| A 3214300205 | RESERVOIR | |
| Repalced by: A 3274300005 | ||

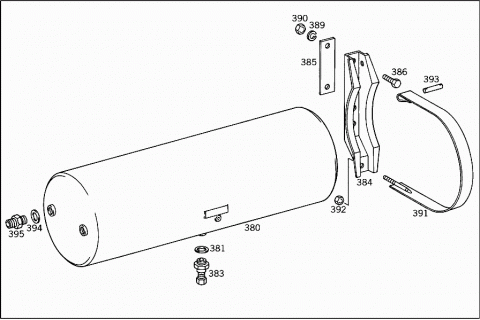

| 380 | A 3274300005 | RESERVOIR |
| 60 L | ||
| 381 | N 007603022102 | SEAL RING |
| A 0414320106 | SCREW | |
| Repalced by: H 993414320006 | ||
| 383 | H 993414320006 | SCREW |
| Repalced by: A 0004320106 | ||
| 383 | A 0004320106 | SCREW |
| 384 | A 3214320015 | CONSOLE |
| RESERVOIR | ||
| 385 | A 3214750084 | SHIM |
| RESERVOIR | ||
| 386 | N 000961012020 | SCREW |
| RESERVOIR | ||
| N 000961012027 | SCREW | |
| RESERVOIR | ||
| A 3229901740 | WASHER | |
| RESERVOIR | ||
| 389 | N 000127012203 | LOCK WASHER |
| RESERVOIR | ||
| 390 | N 000934012004 | NUT |
| RESERVOIR | ||
| 391 | A 3214300240 | STRAP |
| RESERVOIR | ||
| 392 | N 000934010000 | NUT |
| RESERVOIR | ||
| 393 | N 001434010024 | PIN |
| RESERVOIR | ||
| N 000094003026 | COTTER PIN | |
| RESERVOIR | ||
| 394 | N 007603022102 | SEAL RING |
| 395 | N 074298022201 | DOUBLE FITTING |
| A 3224296802 | LINE | |
| Repalced by: A 0414290402 | ||

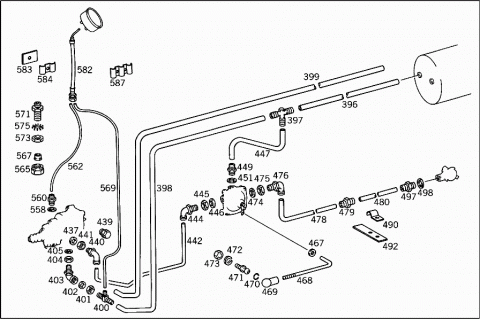

| 396 | A 0414290402 | LINE |
| FROM AIR RESERVOIR TO T-FITTING | ||
| 397 | N 074302022103 | T-FITTING |
| 398 | A 3224296302 | LINE |
| FROM T-FITTING TO T-FITTING | ||
| 399 | A 0414290302 | LINE |
| Repalced by: A 3214291202 | ||
| 399 | A 3214291202 | LINE |
| 400 | N 074302022304 | T-FITTING |
| 401 | N 074305022202 | NUT |
| 402 | N 007603022102 | SEAL RING |
| 403 | N 074301022302 | ELBOW FITTING |
| A 3414297638 | ELBOW FITTING | |
| 404 | N 074305022202 | NUT |
| 405 | A 0009974140 | SEAL RING |

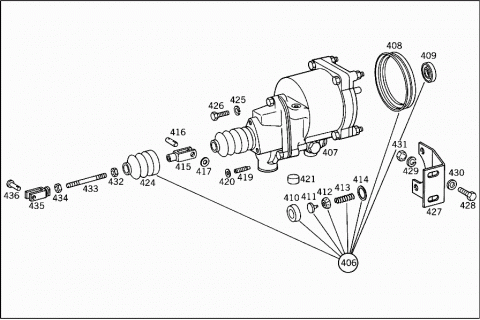

| 406 | A 3415867043 | REPAIR KIT |
| BRAKE BOOSTER | ||
| 407 | A 0004312405 | BRAKE BOOSTER |
| 408 | A 0004312786 | CUP |
| 409 | A 0004312886 | SEAL RING |
| 410 | A 0004312986 | CUP |
| 411 | A 0004350390 | VALVE DISC |
| 412 | A 0004350391 | VALVE DISC |
| 413 | A 0009933201 | SPRING |
| 414 | N 007603030100 | SEAL RING |
| 415 | N 071752012000 | YOKE |
| 416 | N 001433012015 | PIN |
| 417 | A 0004290176 | WASHER |
| N 000094004040 | COTTER PIN | |
| 419 | N 000417008002 | HEADLESS SETSCREW |
| 420 | A 0004310594 | WASHER |
| N 000934008000 | NUT | |
| 421 | A 0004290695 | AIR CLEANER |
| N 000094003234 | COTTER PIN | |
| 424 | A 0004311087 | PROTECTIVE CAP |
| 425 | N 000127010205 | LOCK WASHER |
| BRAKE BOOSTER TO PEDAL BEARING BRACKET | ||
| 426 | N 000933010129 | SCREW |
| BRAKE BOOSTER TO PEDAL BEARING BRACKET | ||
| 427 | A 3124294840 | BRACKET |
| 428 | N 000933010129 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 429 | N 000127010205 | LOCK WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 430 | N 000125010518 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 431 | N 000934010000 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 432 | N 000936012000 | NUT |
| 433 | A 3124312092 | ROD |
| 434 | N 000936012002 | NUT |
| 435 | A 3124311097 | YOKE |
| 436 | N 001434010009 | PIN |
| N 000094003211 | COTTER PIN | |
| 437 | A 0009974140 | SEAL RING |
| 439 | N 007604022100 | SCREW PLUG |
| Repalced by: A 3469970230 | ||
| 439 | A 3469970230 | SCREW PLUG |
| 440 | N 074301022201 | ELBOW FITTING |
| 441 | N 074305022202 | NUT |
| 442 | A 3214296202 | LINE |
| 444 | N 074301022201 | ELBOW FITTING |
| 445 | N 074305022202 | NUT |
| 446 | A 0009974140 | SEAL RING |
| 447 | A 3224296402 | LINE |
| 449 | N 074298022201 | DOUBLE FITTING |
| 451 | A 0009974140 | SEAL RING |

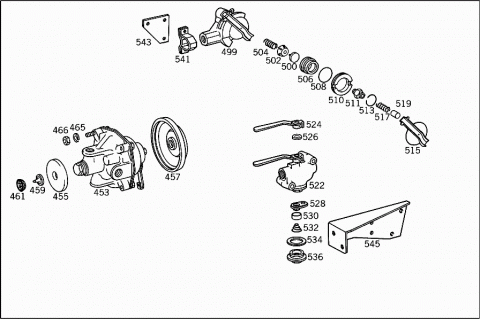

| 453 | A 0004312505 | BRAKE VALVE |
| 455 | A 0004313086 | CUP |
| 457 | A 0004313186 | CUP |
| 459 | A 0004350390 | VALVE DISC |
| 461 | A 0004350391 | VALVE DISC |
| N 000931010040 | SCREW | |
| N 000933010069 | SCREW | |
| N 000127010205 | LOCK WASHER | |
| 465 | N 000127010205 | LOCK WASHER |
| TRAILER BRAKE VALVE TO BRACKET | ||
| 466 | N 000934010000 | NUT |
| TRAILER BRAKE VALVE TO BRACKET | ||
| N 000094003026 | COTTER PIN | |
| PULL ROD TO TRAILER BRAKE VALVE | ||
| 467 | N 000125008413 | WASHER |
| PULL ROD TO TRAILER BRAKE VALVE | ||
| 468 | A 3219961025 | ROD |
| N 000934008000 | NUT | |
| 469 | N 071805013100 | BALL SOCKET |
| 470 | N 071805013300 | SNAP RING |
| 471 | N 071803013100 | BALL PIVOT |
| INTERMEDIATE LEVER | ||
| 472 | N 912004008104 | LOCK WASHER |
| 473 | N 000934008000 | NUT |
| 474 | A 0009974140 | SEAL RING |
| 475 | N 074305022202 | NUT |
| 476 | N 074301022201 | ELBOW FITTING |
| 478 | A 3214296004 | LINE |
| FROM TRUCK-TRACTOR BRAKE VALVE TO DOUBLE FITTING | ||
| 479 | N 074298022201 | DOUBLE FITTING |
| 480 | A 3214296204 | LINE |
| FROM DOUBLE FITTING TO BRAKE LINE COUPLING | ||
| A 3214296304 | LINE | |
| FROM DOUBLE FITTING TO BRAKE LINE COUPLING | ||
| A 3214296404 | LINE | |
| FROM DOUBLE FITTING TO BRAKE LINE COUPLING | ||
| A 3224298002 | LINE | |
| FROM DOUBLE FITTING TO BRAKE LINE COUPLING | ||
| N 074301022201 | ELBOW FITTING | |
| N 074305022202 | NUT | |
| N 007603022102 | SEAL RING | |
| 486 | N 915018015000 | UNION NUT |
| 487 | N 003861015004 | GLAND |
| 488 | N 915065015101 | THRUST RING |
| 489 | N 915045012100 | SEAL RING |
| 490 | A 3129952420 | CLAMP |
| 492 | A 3124291640 | BRACKET |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| A 3124281740 | BRACKET | |
| Repalced by: A 0414280040 | ||
| A 0414280040 | BRACKET | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000084006110 | SCREW | |
| N 000084006112 | SCREW | |
| N 000127006206 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 497 | N 074298026201 | DOUBLE FITTING |
| Repalced by: A 3414290901 | ||
| 497 | A 3414290901 | LINE |
| 498 | N 007603022102 | SEAL RING |
| 499 | A 0004291630 | BRAKE LINE COUPLING |
| 500 | A 0004350390 | VALVE DISC |
| 502 | A 0004350391 | VALVE DISC |
| 504 | A 0009933201 | SPRING |
| 506 | A 0004350236 | VALVE PART |
| 508 | A 0004350780 | GASKET |
| 510 | A 0004350172 | NUT |
| 511 | A 0004350291 | VALVE TAPPET |
| 513 | N 009045026000 | SNAP RING |
| 515 | A 0004350014 | COVER |
| N 000094005031 | COTTER PIN | |
| 517 | A 0009938901 | SPRING |
| 519 | A 0004350053 | SPRING CAPSULE |
| A 0004292130 | BRAKE LINE COUPLING | |
| 522 | A 0004290631 | SHUT-OFF COCK |
| 524 | A 0004290278 | HANDLE |
| N 001473004003 | GROOVED PIN | |
| 526 | A 0004290162 | THRUST WASHER |
| 528 | A 0004290284 | SEAL RING |
| 530 | A 0004290085 | SEAL HOLDER |
| 532 | A 0004290393 | SPRING |
| 534 | N 007603038100 | SEAL RING |
| 536 | A 0005910156 | SCREW PLUG |
| N 007603022102 | SEAL RING | |
| A 0004290141 | FITTING | |
| A 0004290181 | GROMMET | |
| 541 | A 0004290140 | BRACKET |
| 543 | A 3213150040 | BRACKET |
| 545 | A 3224290640 | BRACKET |
| N 000933008036 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000933008153 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 000933008153 | SCREW | |
| CLAMP TO CROSS MEMBER | ||
| N 912004008104 | LOCK WASHER | |
| N 000934008000 | NUT | |
| N 000933010026 | SCREW | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 000127010205 | LOCK WASHER | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 000934010000 | NUT | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 000063008224 | SCREW | |
| N 912004008104 | LOCK WASHER | |
| N 000934008000 | NUT | |
| 558 | N 007603012100 | SEAL RING |
| 560 | N 074298012201 | DOUBLE FITTING |
| A 0415420043 | PIPE LINE | |
| Repalced by: A 3415420043 | ||
| 562 | A 3415420043 | PIPE LINE |
| FROM DOUBLE FITTING TO AIR PRESSURE GAUGE | ||
| A 3215421243 | PIPE LINE | |
| N 074298012201 | DOUBLE FITTING | |
| N 074298012201 | DOUBLE FITTING | |
| 565 | N 915017006100 | UNION NUT |
| 567 | N 003861006007 | GLAND |
| A 3225423143 | PIPE LINE | |
| Repalced by: A 3415420243 | ||
| 569 | A 3415420243 | PIPE LINE |
| A 3215421643 | PIPE LINE | |
| 571 | A 3379970072 | FITTING |
| 573 | N 000936012002 | NUT |
| 575 | N 006797012153 | TOOTHED WASHER |
| A 0415420143 | PIPE LINE | |
| A 3215421443 | PIPE LINE | |
| A 3225422943 | PIPE LINE | |
| Repalced by: A 3415420143 | ||
| A 3415420143 | PIPE LINE | |
| A 3225423343 | PIPE LINE | |
| Repalced by: A 3415420343 | ||
| A 3415420343 | PIPE LINE | |
| 200 MM | ||
| 582 | A 3215420035 | HOSE |
| PRESSURE GAUGE | ||
| 583 | A 3125421039 | PLATE |
| A 3125424940 | BRACKET | |
| 584 | A 3129950332 | CLAMP |
| A 3215420640 | BRACKET | |
| 587 | A 3129950033 | CLAMP |
| N 000084004106 | SCREW | |
| PRESSURE GAUGE LINE | ||
| N 000127004206 | LOCK WASHER | |
| PRESSURE GAUGE LINE | ||
| N 000934004000 | NUT | |
| PRESSURE GAUGE LINE | ||
| N 000084005104 | SCREW | |
| PRESSURE GAUGE LINE | ||
| N 000084005106 | SCREW | |
| PRESSURE GAUGE LINE | ||
| N 912004005101 | LOCK WASHER | |
| PRESSURE GAUGE LINE | ||
| N 000934005000 | NUT | |
| PRESSURE GAUGE LINE | ||

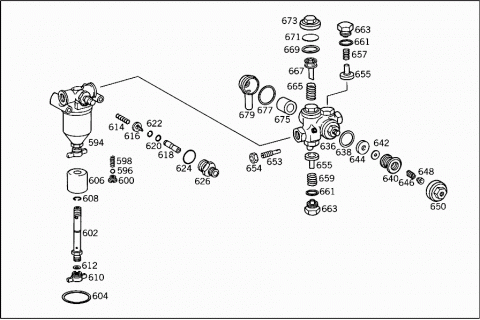

| 594 | A 0005910202 | TIRE INFLATOR CYLINDER |
| 596 | N 005401308000 | BALL |
| 598 | A 0009938601 | SPRING |
| 600 | A 0005910256 | SCREW PLUG |
| 602 | A 0005910168 | GUIDE SLEEVE |
| 604 | A 0005910060 | SEAL RING |
| 606 | A 0005910220 | FILTER ELEMENT |
| 608 | N 009045016000 | SNAP RING |
| 610 | A 0005910356 | SCREW PLUG |
| 612 | A 0005910360 | SEAL RING |
| 614 | A 0029931601 | SPRING |
| 616 | A 0005910190 | VALVE DISC |
| 618 | A 0005910074 | PIN |
| 620 | A 0005910260 | SEAL RING |
| 622 | N 009045010000 | SNAP RING |
| 624 | N 007603026300 | SEAL RING |
| 626 | A 0005910456 | SCREW PLUG |
| N 000931008116 | SCREW | |
| TIRE INFLATOR CYLINDER TO FIRE WALL | ||
| N 912004008104 | LOCK WASHER | |
| TIRE INFLATOR CYLINDER TO FIRE WALL | ||
| A 3125901040 | BRACKET | |
| N 000933008014 | SCREW | |
| BRACKET TO FIRE WALL | ||
| N 912004008104 | LOCK WASHER | |
| BRACKET TO FIRE WALL | ||
| N 000934008000 | NUT | |
| BRACKET TO FIRE WALL | ||
| N 000931008120 | SCREW | |
| TIRE INFLATOR CYLINDER TO BRACKET | ||
| N 912004008104 | LOCK WASHER | |
| TIRE INFLATOR CYLINDER TO BRACKET | ||
| N 000934008000 | NUT | |
| TIRE INFLATOR CYLINDER TO BRACKET | ||
| 636 | A 0004311006 | PRESSURE REGULATOR |
| 638 | A 0004311060 | SEAL RING |
| 640 | A 0004310212 | COMPENSATOR |
| 642 | A 0004311560 | SEAL RING |
| 644 | A 0004311081 | VALVE DISC |
| N 000084004165 | SCREW | |
| N 000127004206 | LOCK WASHER | |
| 646 | A 0004312193 | SPRING |
| 648 | A 0004311089 | BUSHING |
| 650 | A 0004310856 | SCREW PLUG |
| N 912004008104 | LOCK WASHER | |
| N 000934008000 | NUT | |
| N 000933008153 | SCREW | |
| 653 | A 0004310070 | STUD |
| 654 | N 000934005000 | NUT |
| 655 | A 0004310681 | VALVE DISC |
| 657 | A 0004312393 | SPRING |
| 659 | A 0004312293 | SPRING |
| 661 | N 007603026100 | SEAL RING |
| 663 | A 0004310956 | SCREW PLUG |
| 665 | A 0004312493 | SPRING |
| 667 | A 0004312383 | PISTON |
| 669 | N 007603035100 | SEAL RING |
| 671 | A 0004311476 | WASHER |
| 673 | A 0004311056 | SCREW PLUG |
| 675 | A 0004310934 | STRAINER |
| 677 | A 0004311160 | SEAL RING |
| 679 | A 0004310073 | BREATHER PIPE |
| N 000063010122 | SCREW | |

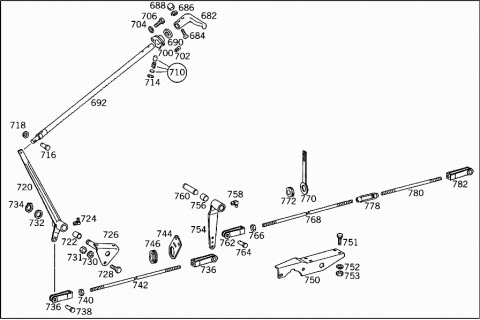

| 682 | A 3124271220 | HANDLE |
| TO 353 420 00 88 | ||
| 682 | A 3094270020 | HANDLE |
| TO 341 420 00 88 | ||
| 684 | N 000091006220 | SCREW |
| TO 353 420 00 88 | ||
| 684 | N 007995010120 | WOOD SCREW |
| TO 341 420 00 88 | ||
| 686 | N 000127006206 | LOCK WASHER |
| TO 353 420 00 88 | ||
| 688 | N 001587006001 | CAP NUT |
| TO 353 420 00 88 | ||
| 690 | A 3124271086 | DAMPING RING |
| A 3214200974 | ROD | |
| Repalced by: A 3534200088 | ||
| 692 | A 3534200088 | RATCHET ROD |
| Repalced by: A 3414200088 | ||
| 692 | A 3414200088 | RATCHET ROD |
| A 3214200474 | ROD | |
| Repalced by: A 3424200088 | ||
| A 3424200088 | RATCHET ROD | |
| A 3534270095 | PROTECTIVE CAP | |
| A 3124271151 | SPACER RING | |
| N 001473004021 | GROOVED PIN | |
| N 001473004018 | GROOVED PIN | |
| 700 | A 3124201578 | BEARING BRACKET |
| 702 | N 001473004023 | GROOVED PIN |
| 704 | N 912004008104 | LOCK WASHER |
| 706 | N 000933008025 | SCREW |
| 710 | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 710 | A 3144200092 | REPAIR KIT |
| 714 | N 000472015000 | LOCK RING |
| 716 | N 001434008006 | PIN |
| ROD TO HAND BRAKE LEVER | ||
| 718 | N 000433008400 | WASHER |
| ROD TO HAND BRAKE LEVER | ||
| N 000094002058 | COTTER PIN | |
| ROD TO HAND BRAKE LEVER | ||
| 720 | A 3224201712 | BRAKE LEVER |
| Repalced by: A 3414200212 | ||
| 720 | A 3414200212 | BRAKE LEVER |
| A 3414200012 | BRAKE LEVER | |
| 722 | A 3124271550 | BUSHING |
| 724 | N 071412010300 | GREASE NIPPLE |
| 726 | A 3214200778 | BEARING BRACKET |
| A 3124201278 | BEARING BRACKET | |
| 728 | N 000933010044 | SCREW |
| HAND BRAKE LEVER TO FRAME | ||
| N 000933010129 | SCREW | |
| HAND BRAKE LEVER TO FRAME | ||
| N 000933010056 | SCREW | |
| HAND BRAKE LEVER TO FRAME | ||
| 730 | N 000127010205 | LOCK WASHER |
| HAND BRAKE LEVER TO FRAME | ||
| 731 | N 000934010000 | NUT |
| HAND BRAKE LEVER TO FRAME | ||
| 732 | A 3129901540 | WASHER |
| 734 | N 000471022000 | LOCK RING |
| 736 | A 3214200176 | END PIECE |
| 90 MM | ||
| 738 | N 001434010006 | PIN |
| Repalced by: N 001434010009 | ||
| 738 | N 001434010009 | PIN |
| N 000094003026 | COTTER PIN | |
| 740 | N 000934010000 | NUT |
| 742 | N 900331010043 | PULL ROD |
| N 900331010270 | PULL ROD | |
| 744 | A 3224270741 | BRACKET |
| 746 | A 3229970481 | GROMMET |
| N 000933008048 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 912004008104 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000125008413 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| 750 | A 3224203578 | BEARING BRACKET |
| Repalced by: A 3414207078 | ||
| 750 | A 3414207078 | BEARING BRACKET |
| A 3224203678 | BEARING BRACKET | |
| 751 | N 000933010016 | SCREW |
| BRACKET TO CAB CROSS MEMBER | ||
| 752 | N 000127010205 | LOCK WASHER |
| BRACKET TO CAB CROSS MEMBER | ||
| 753 | N 000934010000 | NUT |
| BRACKET TO CAB CROSS MEMBER | ||
| 754 | A 3224201281 | LEVER |
| A 3414200280 | BRAKE INTERMEDIATE SHAFT | |
| 756 | A 3124271550 | BUSHING |
| 758 | N 071412010300 | GREASE NIPPLE |
| 760 | A 3124261574 | PIN |
| N 000471022000 | LOCK RING | |
| 762 | A 3214200176 | END PIECE |
| 764 | N 001434010006 | PIN |
| Repalced by: N 001434010009 | ||
| 764 | N 001434010009 | PIN |
| N 000094003026 | COTTER PIN | |
| 766 | N 000934010000 | NUT |
| N 900331010034 | PULL ROD | |
| 768 | N 900331010045 | PULL ROD |
| N 900331010049 | PULL ROD | |
| 770 | A 3214200286 | BRACKET |
| 770 | A 3524200086 | BRACKET |
| A 3274205386 | BRACKET | |
| 772 | A 0009973481 | GROMMET |
| N 000933008036 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 000125008413 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 912004008104 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| N 000934010000 | NUT | |
| 778 | N 001480010200 | TURNBUCKLE |
| N 000934010035 | NUT | |
| 780 | A 3129962441 | ROD |
| 782 | A 3214200176 | END PIECE |
| N 000934010000 | NUT | |
| N 001434010006 | PIN | |
| Repalced by: N 001434010009 | ||
| N 001434010009 | PIN | |
| N 000094003026 | COTTER PIN | |
| A 3414200180 | BRAKE INTERMEDIATE SHAFT | |
| Repalced by: A 3224201480 | ||

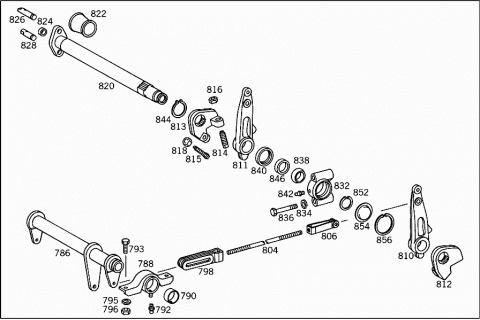

| 786 | A 3224201480 | BRAKE INTERMEDIATE SHAFT |
| 788 | A 3224200778 | BEARING BRACKET |
| A 3214201078 | BEARING BRACKET | |
| A 3214200578 | BEARING BRACKET | |
| 790 | A 3124272350 | BUSHING |
| A 0414270150 | BUSHING | |
| 792 | N 071412010100 | GREASE NIPPLE |
| 793 | N 000933010026 | SCREW |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000933010000 | SCREW | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 795 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 796 | N 000934010000 | NUT |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| A 3214200076 | END PIECE | |
| Repalced by: A 3224200347 | ||
| 798 | A 3224200347 | YOKE |
| N 001434010090 | PIN | |
| YOKE TO BRAKE INTERMEDIATE SHAFT | ||
| N 900055010003 | SPRING WASHER | |
| YOKE TO BRAKE INTERMEDIATE SHAFT | ||
| N 000433010500 | WASHER | |
| YOKE TO BRAKE INTERMEDIATE SHAFT | ||
| N 000094003026 | COTTER PIN | |
| YOKE TO BRAKE INTERMEDIATE SHAFT | ||
| 804 | A 3129961541 | ROD |
| 806 | A 3224200076 | END PIECE |
| N 000934010000 | NUT | |
| N 001434010018 | PIN | |
| YOKE TO BRAKE LEVER | ||
| N 000433010500 | WASHER | |
| YOKE TO BRAKE LEVER | ||
| N 000094003026 | COTTER PIN | |
| YOKE TO BRAKE LEVER | ||
| 810 | A 3414260410 | LEVER |
| LEFT | ||
| A 3124261912 | LEVER | |
| LEFT | ||
| 811 | A 3414260510 | LEVER |
| RIGHT | ||
| A 3124261812 | LEVER | |
| RIGHT | ||
| A 3384230037 | ADJUSTING LEVER | |
| Repalced by: A 3024230037 | ||
| 812 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| A 3384230137 | ADJUSTING LEVER | |
| Repalced by: A 3024230137 | ||
| 813 | A 3024230137 | ADJUSTING LEVER |
| RIGHT | ||
| A 3024230070 | STUD | |
| Repalced by: A 3024230170 | ||
| 814 | A 3024230170 | STUD |
| A 3414230071 | SCREW | |
| Repalced by: A 3544230171 | ||
| A 3544230071 | SCREW | |
| Repalced by: A 3544230171 | ||
| 815 | A 3544230171 | SCREW |
| 816 | N 000936018000 | NUT |
| 818 | N 000936012002 | NUT |
| 820 | A 3414200842 | BRAKE SHAFT |
| REAR AXLE | ||
| A 3124201642 | BRAKE LEVER | |
| REAR AXLE | ||
| N 000443025000 | EXPANSION PLUG | |
| 822 | A 3414230186 | CUP |
| A 3124271196 | CUP | |
| 824 | A 3414230153 | SPACER TUBE |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 826 | A 3414230118 | PIVOT PIN |
| N 000094004060 | COTTER PIN | |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 828 | A 3024230174 | PIN |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| A 3029940109 | LOCK | |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| N 912004008104 | LOCK WASHER | |
| BRAKE LEVER ON BRAKE SHAFT | ||
| N 000933008005 | SCREW | |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 832 | A 3414230333 | BEARING BRACKET |
| 834 | N 000127012203 | LOCK WASHER |
| 836 | N 000960012090 | SCREW |
| A 3274260383 | SPHERICAL PIECE | |
| Repalced by: A 3024260083 | ||
| 838 | A 3024260083 | SPHERICAL PIECE |
| 840 | N 003760045300 | RADIAL SEAL RING |
| 842 | N 071412010100 | GREASE NIPPLE |
| 844 | N 000471045000 | LOCK RING |
| 846 | A 3024230153 | SPACER TUBE |
| AS REQUIRED | ||
| 11 MM | ||
| A 3024230253 | SPACER TUBE | |
| AS REQUIRED | ||
| 11.5 MM | ||
| A 3024230353 | SPACER TUBE | |
| AS REQUIRED | ||
| 12 MM | ||
| A 3024230453 | SPACER TUBE | |
| AS REQUIRED | ||
| 12.5 MM | ||
| A 3024230553 | SPACER TUBE | |
| AS REQUIRED | ||
| 13 MM | ||
| A 3024230653 | SPACER TUBE | |
| AS REQUIRED | ||
| 13.5 MM | ||
| 852 | N 000471035000 | LOCK RING |
| 854 | A 3029970020 | EXPANSION PLUG |
| 856 | N 000472062000 | LOCK RING |
| A 3124231051 | SPACER RING | |
| A 3124231552 | SPACER WASHER | |
| A 3124231652 | SPACER WASHER | |
| A 3124231187 | PROTECTIVE CAP | |
| A 3224260183 | SPHERICAL PIECE | |
| A 3124261550 | BUSHING | |
| N 070952035101 | LOCK PLATE | |
| N 070852035000 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
