Transporto priemonė: LS 1112; VIN numerio dalis: 341021

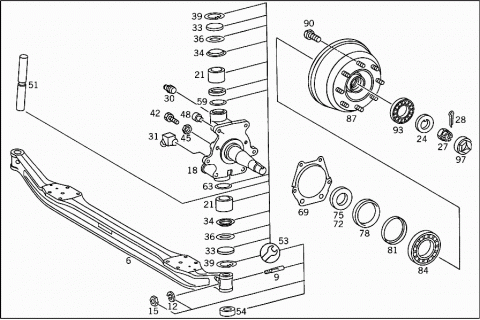

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3413300100 | FRONT AXLE | |
| Repalced by: A 3413300600 | ||
| 003 | A 3413300600 | FRONT AXLE |
| Repalced by: A 3413307000 | ||
| 003 | A 3413307000 | FRONT AXLE |
| A 3413300900 | FRONT AXLE | |
| Repalced by: A 3413301900 | ||
| 003 | A 3413301900 | FRONT AXLE |
| 003 | A 3413301000 | FRONT AXLE |
| A 3223310601 | FRONT AXLE BEAM | |
| Repalced by: A 3413310001 | ||
| 006 | A 3413310001 | FRONT AXLE BEAM |
| Repalced by: A 3413310201 | ||
| 006 | A 3413310201 | FRONT AXLE BEAM |
| 006 | A 3123311601 | FRONT AXLE BEAM |
| 006 | A 3413310101 | FRONT AXLE BEAM |
| 009 | A 3279900137 | BOLT |
| STEERING KNUCKLE TO FRONT AXLE BEAM | ||
| 009 | A 3129900137 | BOLT |
| STEERING KNUCKLE TO FRONT AXLE BEAM | ||
| 012 | N 912004008104 | LOCK WASHER |
| STEERING KNUCKLE TO FRONT AXLE BEAM | ||
| 015 | N 000934008000 | NUT |
| STEERING KNUCKLE TO FRONT AXLE BEAM | ||
| A 3273300520 | STEERING KNUCKLE | |
| Repalced by: A 3273300320 | ||
| 018 | A 3273300320 | STEERING KNUCKLE |
| 018 | A 3123301820 | STEERING KNUCKLE |
| A 3213320249 | BUSHING | |
| Repalced by: A 3213320048 | ||
| 021 | A 3213320048 | BUSHING |
| A 3123321749 | BUSHING | |
| Repalced by: A 3533320048 | ||
| 021 | A 3533320048 | BUSHING |
| 024 | A 3273321662 | THRUST WASHER |
| 024 | A 3123321862 | THRUST WASHER |
| 027 | N 000937032000 | NUT |
| 027 | N 000935024000 | NUT |
| 028 | N 000094006315 | COTTER PIN |
| 028 | N 000094005036 | COTTER PIN |
| 030 | N 071412010100 | GREASE NIPPLE |
| 031 | N 071412010300 | GREASE NIPPLE |
| 031 | N 071412010200 | GREASE NIPPLE |
| A 3273320029 | SEALING CAP | |
| Repalced by: A 3413320129 | ||
| 033 | A 3413320129 | SEALING CAP |
| OUTSIDE | ||
| 034 | A 3413320029 | SEALING CAP |
| INSIDE | ||
| 034 | A 3129971125 | EXPANSION PLUG |
| A 3279970145 | SEAL RING | |
| Repalced by: A 0099978245 | ||
| 036 | A 0099978245 | SEAL RING |
| 039 | N 000472042001 | LOCK RING |
| 042 | N 000960012062 | SCREW |
| 042 | A 3129902801 | SCREW |
| 042 | A 3129902901 | SCREW |
| 045 | N 000934012004 | NUT |
| 048 | N 915042011000 | PLUG |
| 051 | A 3273320006 | KINGPIN |
| STANDARD | ||
| A 3123321906 | KINGPIN | |
| Repalced by: A 3283320006 | ||
| 051 | A 3283320006 | KINGPIN |
| STANDARD | ||
| 051 | A 3273320106 | KINGPIN |
| STANDARD SIZE I | ||
| 051 | A 3123322006 | KINGPIN |
| STANDARD SIZE I | ||
| 051 | A 3283320106 | KINGPIN |
| STANDARD SIZE I | ||
| 051 | A 3273320206 | KINGPIN |
| REPAIR SIZE I | ||
| A 3123322106 | KINGPIN | |
| Repalced by: A 3283320206 | ||
| 051 | A 3283320206 | KINGPIN |
| REPAIR SIZE I | ||
| 051 | A 3273320306 | KINGPIN |
| REPAIR SIZE II | ||
| 051 | A 3123322306 | KINGPIN |
| REPAIR SIZE II | ||
| 053 | A 3413300119 | KING PIN |
| PARTS KIT | ||
| A 0009814505 | TAPERED ROLLER BEARING | |
| Repalced by: A 0009811918 | ||
| A 0009811918 | ROLLER BEARING | |
| Repalced by: A 0019816618 | ||
| A 0009812818 | ROLLER BEARING | |
| Repalced by: A 0019816618 | ||
| A 0009813118 | ROLLER BEARING | |
| Repalced by: A 0019816618 | ||
| 054 | A 0019816618 | ROLLER BEARING |
| STANDARD | ||
| 054 | A 0019817305 | TAPERED ROLLER BEARING |
| REPAIR SIZE | ||
| 059 | A 3213321162 | THRUST WASHER |
| STANDARD SIZE I | ||
| 059 | A 3213320762 | THRUST WASHER |
| REPAIR SIZE I | ||
| 059 | A 3213320862 | THRUST WASHER |
| REPAIR SIZE II | ||
| 059 | A 3213321262 | THRUST WASHER |
| STANDARD SIZE I | ||
| 059 | A 3213320962 | THRUST WASHER |
| REPAIR SIZE I | ||
| 059 | A 3213321062 | THRUST WASHER |
| REPAIR SIZE II | ||
| 059 | A 3123322862 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123324162 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123322962 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123323062 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123323162 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123323262 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123323362 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123323462 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123324262 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123324362 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123324462 | THRUST WASHER |
| STANDARD AND STANDARD SIZE I | ||
| 059 | A 3123323562 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123323662 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123323762 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123323862 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123323962 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123324062 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123324562 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123324662 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123324762 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123324862 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123324962 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123326562 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| 059 | A 3123326662 | THRUST WASHER |
| REPAIR SIZES I & II | ||
| A 3283320062 | THRUST WASHER | |
| A 3143320062 | THRUST WASHER | |
| 063 | A 3273320752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 063 | A 3273320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.1 MM | ||
| 063 | A 3273320352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.2 MM | ||
| 063 | A 3273320452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.3 MM | ||
| 063 | A 3273320552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.4 MM | ||
| 063 | A 3273320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 063 | A 3273320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.6 MM | ||
| 063 | A 3273321052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 063 | A 3143321652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.7 MM | ||
| 063 | A 3143321752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.8 MM | ||
| 063 | A 3143320352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.9 MM | ||
| 063 | A 3143320452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 063 | A 3143320552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.1 MM | ||
| 063 | A 3143320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.2 MM | ||
| 063 | A 3143320752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.3 MM | ||
| 063 | A 3143320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.4 MM | ||
| 063 | A 3143320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 063 | A 3143321052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.6 MM | ||
| 063 | A 3143321152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 063 | A 3143321252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.8 MM | ||
| 063 | A 3143321352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 3413340082 | OIL COLLECTOR | |
| Repalced by: A 3023340082 | ||
| A 0413340082 | OIL COLLECTOR | |
| Repalced by: A 3023340082 | ||
| 069 | A 3023340082 | OIL COLLECTOR |
| 069 | A 3123341082 | OIL COLLECTOR |
| 072 | A 3213340115 | RING |
| LEFT | ||
| 072 | A 3123341315 | RING |
| LEFT | ||
| 075 | A 3213340215 | RING |
| RIGHT | ||
| 075 | A 3123341615 | RING |
| RIGHT | ||
| 078 | A 0009973446 | SEAL RING |
| 078 | A 0009976347 | SEAL RING |
| A 3123341058 | SEAL HOLDER | |
| 081 | A 3213340051 | SPACER RING |
| 081 | A 3123341251 | SPACER RING |
| 084 | A 0009818905 | TAPERED ROLLER BEARING |
| 084 | A 0029810205 | TAPERED ROLLER BEARING |
| 084 | A 0019819705 | TAPERED ROLLER BEARING |
| 084 | A 0019818405 | TAPERED ROLLER BEARING |
| 084 | A 0019818605 | TAPERED ROLLER BEARING |
| 084 | A 0029812405 | TAPERED ROLLER BEARING |
| 084 | A 0009819005 | TAPERED ROLLER BEARING |
| 087 | A 3413300237 | DRUM HUB |
| 087 | A 3123302837 | DRUM HUB |
| 090 | A 3124021071 | WHEEL MOUNTING BOLT |
| 090 | A 3274010071 | WHEEL MOUNTING BOLT |
| 093 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| A 0039816405 | TAPERED ROLLER BEARING | |
| Repalced by: A 0049813405 | ||
| 093 | A 0049813405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| A 0019815605 | TAPERED ROLLER BEARING | |
| Repalced by: A 0049813805 | ||
| A 0069810705 | TAPERED ROLLER BEARING | |
| Repalced by: A 0049813805 | ||
| 093 | A 0049813805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 093 | A 0019818305 | TAPERED ROLLER BEARING |
| 093 | A 0019818705 | TAPERED ROLLER BEARING |
| 093 | A 0019819505 | TAPERED ROLLER BEARING |
| A 3213340125 | HUB CAP | |
| Repalced by: A 3213340225 | ||
| 097 | A 3213340225 | HUB CAP |
| 097 | A 3123341025 | HUB CAP |
| A 3273381908 | STEERING ARM | |
| Repalced by: A 3443380107 | ||
| 100 | A 3443380107 | STEERING ARM |
| LEFT | ||
| 100 | A 3413380007 | STEERING ARM |
| LEFT | ||
| A 3413380107 | STEERING ARM | |
| Repalced by: A 3283380308 | ||
| 100 | A 3283380308 | STEERING ARM |
| LEFT | ||
| A 3273381708 | STEERING ARM | |
| Repalced by: A 3443380106 | ||
| A 3523380108 | STEERING ARM | |
| Repalced by: A 3443380106 | ||
| 103 | A 3443380106 | STEERING ARM |
| RIGHT | ||
| A 3123382708 | STEERING ARM | |
| Repalced by: A 3283380106 | ||
| 103 | A 3283380106 | STEERING ARM |
| RIGHT | ||

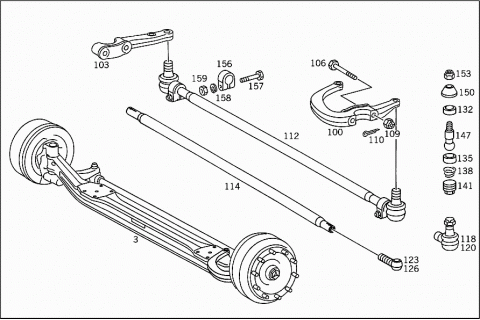

| 106 | A 3413320071 | SCREW |
| 106 | A 3129901314 | SCREW |
| 109 | N 000935016002 | NUT |
| 109 | N 000935014001 | NUT |
| 110 | N 000094004060 | COTTER PIN |
| 110 | N 000094003221 | COTTER PIN |
| A 3273300403 | TIE ROD | |
| Repalced by: A 3583300003 | ||
| 112 | A 3583300003 | TIE ROD |
| 112 | A 3413300103 | TIE ROD |
| 112 | A 3533300303 | TIE ROD |
| 114 | A 0003384515 | TIE ROD |
| A 0003386715 | TIE ROD | |
| A 0003383915 | TIE ROD | |
| 118 | A 0003301235 | JOINT |
| LEFT | ||
| 118 | A 0003300635 | JOINT |
| LEFT | ||
| 120 | A 0003301335 | JOINT |
| RIGHT | ||
| 120 | A 0003300735 | JOINT |
| L.H. THREAD | ||
| 123 | A 0003385830 | BALL SOCKET HOUSING |
| LEFT | ||
| 123 | A 0003385330 | BALL SOCKET HOUSING |
| LEFT | ||
| 126 | A 0003385930 | BALL SOCKET HOUSING |
| RIGHT | ||
| 126 | A 0003385230 | BALL SOCKET HOUSING |
| RIGHT | ||
| 132 | A 0003380782 | RUBBER RING |
| TOP | ||
| 132 | A 0003380282 | RUBBER RING |
| TOP | ||
| 135 | A 0003380682 | RUBBER RING |
| BOTTOM | ||
| A 0003380330 | BALL SOCKET HOUSING | |
| Repalced by: A 0003380382 | ||
| 135 | A 0003380382 | RUBBER RING |
| BOTTOM | ||
| 138 | A 0003381293 | SPRING |
| 138 | A 0003381093 | SPRING |
| 141 | A 0003381231 | LOCKING CAP |
| 141 | A 0003381031 | LOCKING CAP |
| 147 | A 0003380225 | BALL PIN |
| 147 | A 0003380025 | BALL PIN |
| 150 | A 0003300285 | BOOT |
| A 0003300085 | BOOT | |
| Repalced by: A 0004631896 | ||
| 150 | A 0004631896 | BOOT |
| 153 | N 000937018004 | NUT |
| 156 | A 0009953644 | CLAMP |
| Repalced by: A 0009950544 | ||
| 156 | A 0009950544 | CLAMP |
| 157 | N 000960010008 | SCREW |
| 158 | N 000127010205 | LOCK WASHER |
| 159 | N 000934010004 | NUT |
| A 3223304397 | FRONT AXLE | |
| Repalced by: A 3413301600 | ||
| A 0413300097 | FRONT AXLE | |
| Repalced by: A 3413301600 | ||

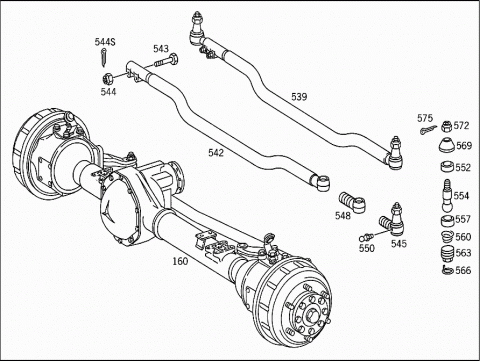

| 160 | A 3413301600 | FRONT AXLE |
| 6:41 | ||
| A 3403300605 | FRONT AXLE HOUSING | |
| Repalced by: A 3403301305 | ||

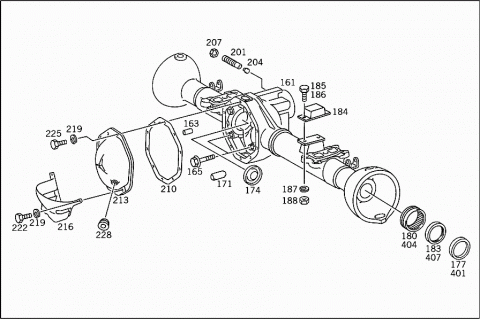

| 161 | A 3403301305 | FRONT AXLE HOUSING |
| 163 | N 000007006221 | CYLINDRICAL PIN |
| 165 | A 3129902201 | SCREW |
| Repalced by: N 914126016004 | ||
| 165 | N 914126016004 | SCREW |
| 165 | A 3419907004 | SCREW |
| A 3403310050 | BUSHING | |
| Repalced by: A 3403310250 | ||
| 168 | A 3403310250 | BUSHING |
| A 3123511174 | PIN | |
| Repalced by: A 3523510174 | ||
| 171 | A 3523510174 | PIN |
| 174 | A 3123571082 | OIL COLLECTOR |
| Repalced by: A 3853570082 | ||
| 174 | A 3853570082 | OIL COLLECTOR |
| Repalced by: A 3023570282 | ||
| 174 | A 3023570282 | OIL COLLECTOR |
| 177 | A 3223310351 | SPACER RING |
| 180 | A 0009815312 | ROLLER ASSEMBLY |
| Repalced by: A 0059816310 | ||
| 180 | A 0059816310 | NEEDLE BEARING |
| 183 | A 0039972546 | SEAL RING |
| 184 | A 3403300075 | RUBBER MOUNTING |
| 185 | N 000933010011 | SCREW |
| 186 | N 000933010034 | SCREW |
| 187 | N 000127010205 | LOCK WASHER |
| 188 | N 000934010000 | NUT |
| 189 | A 3123531125 | SCREW COLLAR |
| Repalced by: A 3403350025 | ||
| 189 | A 3403350025 | ADJUSTING NUT |
| 192 | A 3123531173 | LOCK |
| 195 | N 006797008121 | TOOTHED WASHER |
| 198 | N 000933008014 | SCREW |
| 201 | A 3123531076 | SET SCREW |
| 204 | A 3123531049 | SLIDE |
| 207 | N 000936022000 | NUT |
| 210 | A 3123511080 | GASKET |
| 213 | A 3123501621 | COVER |
| Repalced by: A 3813300021 | ||
| 213 | A 3813300021 | COVER |
| Repalced by: A 3813300321 | ||
| 213 | A 3813300321 | COVER |
| 213 | A 3813310508 | COVER |
| 216 | A 3123301283 | PROTECTIVE PLATE |
| Repalced by: A 3603300083 | ||
| 216 | A 3603300083 | PROTECTIVE PLATE |
| 219 | N 000127010205 | LOCK WASHER |
| COVER TO TRANSMISSION CASE | ||
| 222 | N 000933010026 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| 225 | N 000933010011 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| 228 | A 1869970032 | SCREW PLUG |

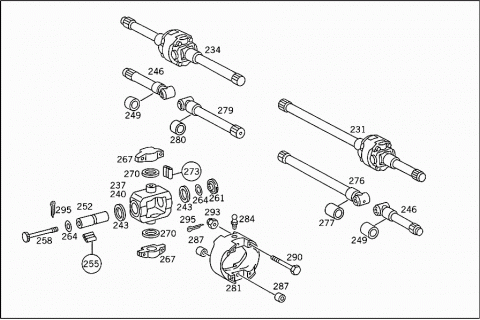

| 231 | A 3403301601 | DRIVE SHAFT |
| LEFT | ||
| 234 | A 3403301701 | DRIVE SHAFT |
| RIGHT | ||
| A 3223300435 | JOINT | |
| Repalced by: A 3813300035 | ||
| 237 | A 3813300035 | JOINT |
| LEFT | ||
| A 3223300535 | JOINT | |
| Repalced by: A 3813300135 | ||
| 240 | A 3813300135 | JOINT |
| RIGHT | ||
| 243 | A 3223370380 | GASKET |
| Repalced by: A 3819970046 | ||
| 243 | A 3819970046 | SEAL RING |
| 246 | A 3223302901 | DRIVE SHAFT |
| Repalced by: A 3813300601 | ||
| 246 | A 3813300601 | DRIVE SHAFT |
| OUTSIDE | ||
| 249 | A 3229810181 | INNER RING |
| Repalced by: A 3819810081 | ||
| 249 | A 3819810081 | INNER RING |
| INSIDE | ||
| 252 | A 3223370074 | PIN |
| Repalced by: A 3813370074 | ||
| 252 | A 3813370074 | PIN |
| 255 | A 0009812687 | NEEDLE |
| 258 | A 3229900801 | SCREW |
| 261 | A 3223370030 | COVER |
| 264 | A 3223370062 | THRUST WASHER |
| 267 | A 3223370118 | BEARING BRACKET |
| 270 | A 3323370180 | GASKET |
| 273 | A 0009812587 | NEEDLE |
| 276 | A 3403300001 | DRIVE SHAFT |
| Repalced by: A 3413300201 | ||
| 276 | A 3413300201 | DRIVE SHAFT |
| LEFT | ||
| A 3229810181 | INNER RING | |
| Repalced by: A 3819810081 | ||
| 277 | A 3819810081 | INNER RING |
| INSIDE | ||
| 279 | A 3403300101 | DRIVE SHAFT |
| Repalced by: A 3413300301 | ||
| 279 | A 3413300301 | DRIVE SHAFT |
| RIGHT | ||
| A 3229810181 | INNER RING | |
| Repalced by: A 3819810081 | ||
| 280 | A 3819810081 | INNER RING |
| INSIDE | ||
| 281 | A 3223370217 | FOLLOWER |
| 284 | A 0009971888 | GREASE NIPPLE |
| Repalced by: N 071412008100 | ||
| 284 | N 071412008100 | GREASE NIPPLE |
| 287 | A 3223370280 | GASKET |
| 290 | A 3229900102 | SCREW |
| Repalced by: N 914125010900 | ||
| 290 | N 914125010900 | SCREW |
| 293 | A 3229900055 | NUT |
| Repalced by: N 000935010007 | ||
| 293 | N 000935010007 | NUT |
| 295 | N 000094002072 | COTTER PIN |

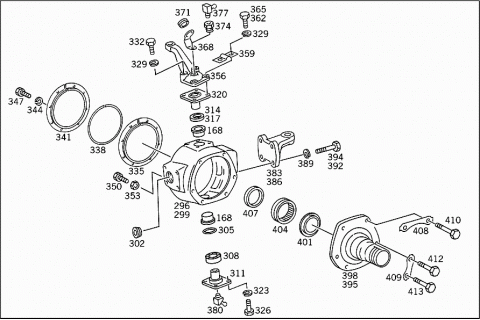

| 296 | A 3223370606 | HOUSING |
| LEFT | ||
| 299 | A 3223370706 | HOUSING |
| RIGHT | ||
| 302 | N 000906042002 | SCREW PLUG |
| 305 | A 3123320059 | SEAL RING |
| Repalced by: A 0109979847 | ||
| 305 | A 0109979847 | SEAL RING |
| LEFT AND RIGHT | ||
| 308 | A 0009810518 | ROLLER BEARING |
| A 3403320106 | KINGPIN | |
| Repalced by: A 3403321306 | ||
| 311 | A 3403321306 | KINGPIN |
| 314 | A 3403320262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.7 MM | ||
| 314 | A 3403320362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.8 MM | ||
| 314 | A 3403320462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.9 MM | ||
| 314 | A 3403320562 | THRUST WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 314 | A 3403320662 | THRUST WASHER |
| AS REQUIRED | ||
| 4.1 MM | ||
| 314 | A 3403320762 | THRUST WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 314 | A 3403320862 | THRUST WASHER |
| AS REQUIRED | ||
| 4.3 MM | ||
| 314 | A 3403320962 | THRUST WASHER |
| AS REQUIRED | ||
| 4.4 MM | ||
| 314 | A 3403321062 | THRUST WASHER |
| AS REQUIRED | ||
| 4.5 MM | ||
| 314 | A 3403321162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.6 MM | ||
| 314 | A 3403321262 | THRUST WASHER |
| AS REQUIRED | ||
| 4.7 MM | ||
| 314 | A 3403321362 | THRUST WASHER |
| AS REQUIRED | ||
| 4.8 MM | ||
| 314 | A 3403321462 | THRUST WASHER |
| AS REQUIRED | ||
| 4.9 MM | ||
| 314 | A 3403321562 | THRUST WASHER |
| AS REQUIRED | ||
| 5.0 MM | ||
| 317 | A 3403320062 | THRUST WASHER |
| A 3403320006 | KINGPIN | |
| Repalced by: A 3403321206 | ||
| 320 | A 3403321206 | KINGPIN |
| 323 | N 000127012203 | LOCK WASHER |
| 326 | N 000961012164 | SCREW |
| 329 | N 000127014203 | LOCK WASHER |
| 332 | N 000961014113 | SCREW |
| 335 | A 3223310009 | SEAL HOLDER |
| 338 | A 3223310080 | GASKET |
| 341 | A 3223310109 | SEAL HOLDER |
| 344 | N 912004008104 | LOCK WASHER |
| 347 | N 000933008014 | SCREW |
| 350 | A 3403370071 | SCREW |
| 353 | N 000936010000 | NUT |
| 356 | A 3403380001 | STEERING ARM |
| Repalced by: A 3453380501 | ||
| 356 | A 3453380501 | STEERING ARM |
| 359 | A 3229940130 | LOCK |
| LEFT | ||
| TO 340 338 00 01 | ||
| 359 | A 3229940230 | LOCK |
| RIGHT | ||
| TO 340 338 00 01 | ||
| 362 | N 000961014101 | SCREW |
| STEERING ARM AND KING PIN TO HOUSING | ||
| TO 340 338 00 01 | ||
| 362 | N 914112014308 | SCREW |
| STEERING ARM AND KING PIN TO HOUSING | ||
| TO 345 338 05 01 | ||
| 365 | N 000960014061 | SCREW |
| TO 340 338 00 01 | ||
| 365 | N 914112014302 | SCREW |
| STEERING ARM AND KING PIN TO HOUSING | ||
| TO 345 338 05 01 | ||
| 368 | A 3404280240 | BRACKET |
| 371 | A 3129970581 | GROMMET |
| 374 | A 3124281026 | HOLLOW SCREW |
| 377 | N 071412010300 | GREASE NIPPLE |
| TOP | ||
| 380 | N 071412010200 | GREASE NIPPLE |
| BOTTOM | ||
| 383 | A 3123381005 | STEERING ARM |
| Repalced by: A 3453380205 | ||
| 383 | A 3453380205 | STEERING ARM |
| LEFT | ||
| 386 | A 3123381006 | STEERING ARM |
| Repalced by: A 3453380306 | ||
| 386 | A 3453380306 | STEERING ARM |
| RIGHT | ||
| 389 | N 000127012203 | LOCK WASHER |
| STEERING ARM TO JOINT HOUSING | ||
| TO 312 338 10 05,10 06 | ||
| 392 | N 000961012027 | SCREW |
| STEERING ARM TO JOINT HOUSING | ||
| TO 312 338 10 05,10 06 | ||
| 394 | N 914112012006 | SCREW |
| STEERING ARM TO JOINT HOUSING | ||
| TO 345 338 02 05,03 06 | ||
| 394 | N 914114012002 | SCREW |
| STEERING ARM TO JOINT HOUSING | ||
| TO 345 338 02 05,03 06 | ||
| 395 | A 3223320816 | SUPPORTING SLEEVE |
| LEFT | ||
| 398 | A 3223320916 | SUPPORTING SLEEVE |
| Repalced by: A 3223321016 | ||
| 398 | A 3223321016 | SUPPORTING SLEEVE |
| RIGHT | ||
| 401 | A 3223310351 | SPACER RING |
| 404 | A 0009815312 | ROLLER ASSEMBLY |
| Repalced by: A 0059816310 | ||
| 404 | A 0059816310 | NEEDLE BEARING |
| 407 | A 0039972546 | SEAL RING |
| A 3229940025 | LOCK | |
| Repalced by: A 3419940025 | ||
| 408 | A 3419940025 | LOCK |
| 409 | A 3229940125 | LOCK |
| 410 | N 000960012043 | SCREW |
| 412 | N 000961012043 | SCREW |
| 413 | N 000961016024 | SCREW |

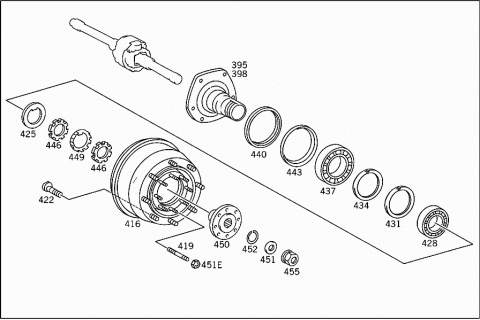

| 416 | A 3413300137 | DRUM HUB |
| A 3413340104 | DRUM HUB | |
| 419 | A 3129901705 | STUD |
| 422 | A 3274010071 | WHEEL MOUNTING BOLT |
| 425 | A 3123311052 | SPACER WASHER |
| 428 | A 3129810301 | CYLINDR. ROLLER BEARING |
| 428 | A 0019815205 | TAPERED ROLLER BEARING |
| 431 | A 3123311073 | LOCK |
| 5 MM | ||
| A 3403340273 | LOCK | |
| Repalced by: A 3523340015 | ||
| 434 | A 3523340015 | RING |
| 5 MM | ||
| 437 | A 3849817505 | TAPERED ROLLER BEARING |
| 437 | A 0009816105 | TAPERED ROLLER BEARING |
| 437 | A 0019811405 | TAPERED ROLLER BEARING |
| 437 | A 0019819605 | TAPERED ROLLER BEARING |
| 440 | A 3403340051 | SPACER RING |
| 443 | A 0029976446 | SEAL RING |
| Repalced by: A 0039972247 | ||
| 443 | A 0039972247 | SEAL RING |
| A 3023340082 | OIL COLLECTOR | |
| Repalced by: A 3533340282 | ||
| A 3533340282 | OIL COLLECTOR | |
| 446 | A 3123560126 | GROOVED NUT |
| 449 | A 3123321073 | LOCK |
| 450 | A 3223370417 | FOLLOWER |
| 451 | A 3223370051 | SPACER RING |
| 451E | N 913004012009 | NUT |
| 452 | A 3229940034 | SNAP RING |
| 455 | A 3273530272 | NUT |
| Repalced by: A 3853510272 | ||
| 455 | A 3853510272 | NUT |

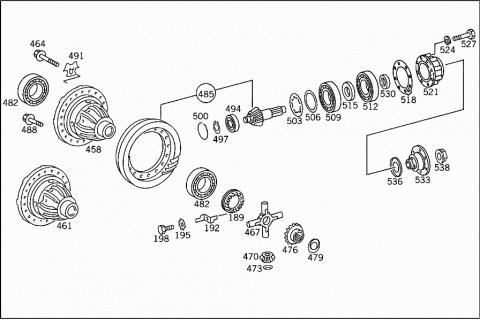

| 458 | A 3233500423 | DIFFERENTIAL GEAR |
| Repalced by: A 3803500623 | ||
| 458 | A 3803500623 | DIFFERENTIAL GEAR |
| 461 | A 3233300027 | DIFFERENTIAL CASE |
| Repalced by: A 3803300027 | ||
| 461 | A 3803300027 | DIFFERENTIAL CASE |
| 464 | N 900170014004 | SCREW |
| 467 | A 3213530220 | DIFFERENTIAL SPIDER |
| 470 | A 3223530614 | DIFFERENTIAL PINION |
| Repalced by: A 3213530214 | ||
| 470 | A 3213530214 | DIFFERENTIAL PINION |
| 473 | A 3123531224 | SPHERICAL WASHER |
| 476 | A 3123531515 | SIDE GEAR |
| Repalced by: A 3123531415 | ||
| 476 | A 3123531415 | SIDE GEAR |
| 479 | A 3123531062 | THRUST WASHER |
| 2.00 MM | ||
| 482 | A 0019812405 | TAPERED ROLLER BEARING |
| 482 | A 0019818205 | TAPERED ROLLER BEARING |
| 482 | A 0019817905 | TAPERED ROLLER BEARING |
| 482 | A 0029812305 | TAPERED ROLLER BEARING |
| 485 | A 3233500439 | RING GEAR AND PINION |
| Repalced by: A 3233501139 | ||
| 485 | A 3233501139 | RING GEAR AND PINION |
| Repalced by: A 3833300439 | ||
| 485 | A 3833300439 | RING GEAR AND PINION |
| 6:41 | ||
| 488 | A 3239900101 | SCREW |
| 491 | A 3223530273 | LOCK |
| 494 | A 3129810601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0009819001 | ||
| 494 | A 0009819001 | CYLINDR. ROLLER BEARING |
| 494 | A 0009818701 | CYLINDR. ROLLER BEARING |
| 497 | N 000471025000 | LOCK RING |
| 500 | A 3129940141 | LOCK |
| 503 | A 3123533052 | SPACER WASHER |
| 506 | A 3123531352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 506 | A 3123531452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.25 MM | ||
| 506 | A 3123533252 | SPACER WASHER |
| 0.50 MM | ||
| 509 | N 005412100309 | CYLINDR. ROLLER BEARING |
| 512 | A 0009810027 | ANGULAR CONTACT BEARING |
| 515 | A 3123531951 | SPACER RING |
| 518 | A 3123532852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 518 | A 3123532952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.25 MM | ||
| 518 | A 3123533152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| A 3123511515 | FLANGE | |
| Repalced by: A 3123511915 | ||
| 521 | A 3123511915 | FLANGE |
| 524 | N 000127010205 | LOCK WASHER |
| 527 | N 000931010080 | SCREW |
| 530 | A 0009976647 | SEAL RING |
| Repalced by: A 0019973247 | ||
| A 0019975047 | SEAL RING | |
| Repalced by: A 0019973247 | ||
| 530 | A 0019973247 | SEAL RING |
| A 3123301044 | COUPLING FLANGE | |
| Repalced by: A 3583300044 | ||
| 533 | A 3583300044 | COUPLING FLANGE |
| 536 | A 3122621063 | PROTECTIVE PLATE |
| 538 | A 3243530072 | NUT |
| 538 | A 3853510372 | NUT |
| 539 | A 3403300003 | TIE ROD |
| 542 | A 0003381815 | TIE ROD |
| 542 | A 0003381915 | TIE ROD |
| 543 | N 000960010006 | SCREW |
| 544 | N 000935010001 | NUT |
| 544S | N 000094002071 | COTTER PIN |
| 545 | A 0003383629 | BALL SOCKET HEAD |
| Repalced by: A 0003301435 | ||
| 545 | A 0003382829 | BALL SOCKET HEAD |
| Repalced by: A 0003301435 | ||
| 545 | A 0003301435 | JOINT |
| 548 | A 0004630030 | HOUSING |
| 548 | A 0003383230 | BALL SOCKET HOUSING |
| 550 | N 071412010100 | GREASE NIPPLE |
| 550 | N 071412008100 | GREASE NIPPLE |
| 552 | A 0003380027 | BALL SOCKET |
| 552 | A 0003380727 | BALL SOCKET |
| 554 | N 071831030000 | BALL PIVOT |
| 557 | A 0003380026 | BALL SOCKET |
| 557 | A 0003380126 | BALL SOCKET |
| 560 | A 0003380493 | SPRING |
| 560 | A 0003380593 | SPRING |
| 563 | A 0003380331 | LOCKING CAP |
| 563 | A 0003380431 | LOCKING CAP |
| 566 | A 0009940037 | SNAP RING |
| 566 | A 0009940537 | SNAP RING |
| 569 | A 0003381656 | DUST CAP |
| 569 | A 0003382256 | DUST CAP |
| 572 | N 000937018004 | NUT |
| 575 | N 000094004060 | COTTER PIN |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
