Transporto priemonė: LS 1112; VIN numerio dalis: 341021

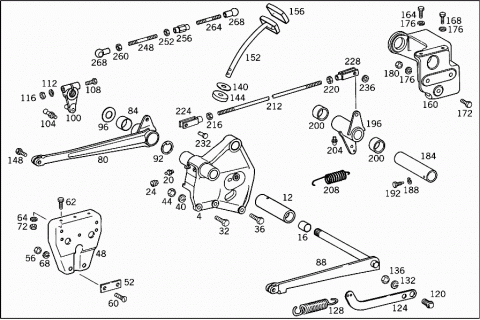

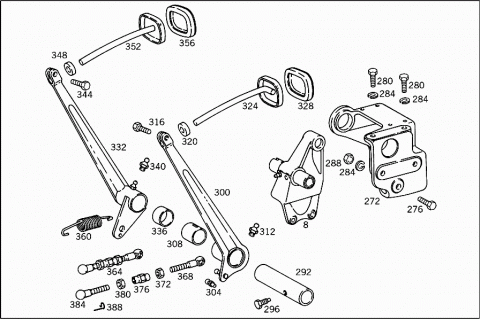

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3222900519 | BEARING BRACKET | |
| Repalced by: A 3452900119 | ||
| A 3282900519 | BEARING BRACKET | |
| Repalced by: A 3452900119 | ||
| A 3522900519 | BEARING BRACKET | |
| Repalced by: A 3452900119 | ||
| A 3222901219 | BEARING BRACKET | |
| Repalced by: A 3452900119 | ||
| A 3282900519 | BEARING BRACKET | |
| Repalced by: A 3452900119 | ||
| 004 | A 3452900119 | BEARING BRACKET |
| A 3522901819 | BEARING BRACKET | |
| Repalced by: A 3412907119 | ||
| A 3412907119 | BEARING BRACKET | |
| A 3222901119 | BEARING BRACKET | |
| Repalced by: A 3512900019 | ||
| A 3412900019 | BEARING BRACKET | |
| Repalced by: A 3512900019 | ||
| 008 | A 3522900919 | BEARING BRACKET |
| Repalced by: A 3512900019 | ||
| 008 | A 3512900019 | BEARING BRACKET |
| A 3222940204 | BEARING TUBE | |
| Repalced by: A 3522900336 | ||
| 012 | A 3522900336 | BEARING TUBE |
| Repalced by: A 3442907036 | ||
| 012 | A 3442907036 | BEARING TUBE |
| A 3122941250 | BUSHING | |
| Repalced by: A 3442940150 | ||
| A 3282940050 | BUSHING | |
| Repalced by: A 3442940150 | ||
| A 3402940050 | BUSHING | |
| Repalced by: A 3442940150 | ||
| 016 | A 3529920901 | BUSHING |
| Repalced by: A 3442940150 | ||
| A 3529922001 | BUSHING | |
| Repalced by: A 3442940150 | ||
| A 3442940150 | BUSHING | |
| 020 | N 071412010100 | GREASE NIPPLE |
| N 000417012000 | HEADLESS SETSCREW | |
| Repalced by: A 3529900080 | ||
| 024 | A 3529900080 | SCREW |
| A 3273230074 | PIN | |
| 032 | N 000933010056 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 036 | N 000933010129 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 040 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 044 | N 000934010000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 048 | H 993413230395 | REINFORCEMENT |
| Repalced by: A 3413230095 | ||
| 048 | A 3413230095 | REINFORCEMENT |
| 052 | A 3523110084 | SHIM |
| REINFORCEMENT | ||
| 056 | N 000934012010 | NUT |
| REINFORCEMENT | ||
| 060 | N 000963012004 | SCREW |
| REINFORCEMENT | ||
| N 000963012002 | SCREW | |
| REINFORCEMENT | ||
| 062 | N 000933010034 | SCREW |
| 064 | N 000127010205 | LOCK WASHER |
| REINFORCEMENT | ||
| 068 | N 000127012203 | LOCK WASHER |
| REINFORCEMENT | ||
| 072 | N 000934010008 | NUT |
| REINFORCEMENT | ||
| A 3212940305 | SHAFT | |
| Repalced by: A 3412940005 | ||
| A 3412940005 | SHAFT | |
| 080 | A 3212901318 | PEDAL |
| BRAKE | ||
| 084 | A 3122911250 | BUSHING |
| A 3272900116 | PEDAL | |
| CLUTCH | ||
| A 3412900016 | PEDAL | |
| CLUTCH | ||
| 088 | A 3522902216 | PEDAL |
| CLUTCH | ||
| 092 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 3202940151 | SPACER RING | |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 3202940251 | SPACER RING | |
| AS REQUIRED | ||
| 3.50 MM | ||
| 096 | A 3039910345 | RING |
| 3.00 MM | ||
| 100 | A 3222900134 | LEVER |
| Repalced by: A 3512907834 | ||
| 100 | A 3512907834 | LEVER |
| 104 | N 071803016202 | BALL PIVOT |
| TO 322 290 01 34 | ||
| A 3419917215 | BALL PIVOT | |
| TO 351 290 78 34 | ||
| N 000934012040 | NUT | |
| TO 351 290 78 34 | ||
| 108 | N 000931010080 | SCREW |
| PEDAL TO BEARING TUBE | ||
| 112 | N 000127010205 | LOCK WASHER |
| PEDAL TO BEARING TUBE | ||
| 116 | N 000934010000 | NUT |
| PEDAL TO BEARING TUBE | ||
| 120 | A 3522910474 | PIN |
| Repalced by: A 3412917074 | ||
| 120 | A 3412917074 | PIN |
| A 3522910432 | LEVER | |
| Repalced by: A 3522910732 | ||
| 124 | A 3522910732 | LEVER |
| Repalced by: A 3412917032 | ||
| 124 | A 3412917032 | LEVER |
| A 3379930210 | SPRING | |
| Repalced by: A 3529931310 | ||
| 128 | A 3529931310 | SPRING |
| 132 | N 000127014203 | LOCK WASHER |
| 136 | N 000934014003 | NUT |
| 140 | A 3222930077 | WASHER |
| 144 | A 3122911197 | SEAL WASHER |
| 148 | N 000933010034 | SCREW |
| 152 | A 3212900024 | PEDAL PLATE |
| 156 | A 3202925082 | PAD |
| A 3122943001 | BEARING BRACKET | |
| Repalced by: A 3412940201 | ||
| 160 | A 3412940201 | BEARING BRACKET |
| 164 | N 000933010016 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 168 | N 000933010026 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 172 | N 000933010056 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 176 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 180 | N 000934010000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 184 | A 3122941704 | BEARING TUBE |
| 188 | N 000127012203 | LOCK WASHER |
| 192 | A 3129900017 | SCREW |
| 196 | A 3222900828 | LEVER |
| 200 | A 3122911550 | BUSHING |
| 204 | N 071412010100 | GREASE NIPPLE |
| 208 | A 3129931510 | SPRING |
| (RELEASE SPRING) | ||
| 208 | A 3129931510 | SPRING |
| (RELEASE SPRING) | ||
| A 3419937310 | SPRING | |
| (RELEASE SPRING) | ||
| 212 | N 900331010266 | PULL ROD |
| 216 | N 000934010000 | NUT |
| 220 | N 000934010035 | NUT |
| 224 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 224 | A 0009961501 | YOKE |
| 228 | A 3419960001 | YOKE |
| Repalced by: A 3419967001 | ||
| 228 | A 3419967001 | YOKE |
| 232 | N 001434010009 | PIN |
| 236 | N 000433010500 | WASHER |
| N 000094003026 | COTTER PIN | |
| A 3212900739 | ROD | |
| 248 | A 3219961425 | ROD |
| 252 | N 000934010035 | NUT |
| 256 | N 001479010000 | TURNBUCKLE |
| 260 | N 000934010000 | NUT |
| 264 | A 3219961525 | ROD |
| N 071805016101 | BALL SOCKET | |
| 268 | N 071805019000 | BALL SOCKET |
| 272 | A 3122943001 | BEARING BRACKET |
| 276 | N 000933010129 | SCREW |
| 280 | N 000933010034 | SCREW |
| 284 | N 000127010205 | LOCK WASHER |
| 288 | N 000934010000 | NUT |
| 292 | A 3122941704 | BEARING TUBE |
| 296 | A 3129900017 | SCREW |
| 300 | A 3412900116 | PEDAL |
| 304 | N 071803016202 | BALL PIVOT |
| 308 | A 3122911250 | BUSHING |
| 312 | N 071412010100 | GREASE NIPPLE |
| 316 | N 000933010026 | SCREW |
| 320 | A 3122911097 | SEAL WASHER |
| A 3122901724 | PEDAL PLATE | |
| Repalced by: A 3212900024 | ||
| 324 | A 3212900024 | PEDAL PLATE |
| 328 | A 3202925082 | PAD |
| 332 | A 3122905118 | PEDAL |
| Repalced by: A 3122906218 | ||
| 332 | A 3122906218 | PEDAL |
| 336 | A 3122911550 | BUSHING |
| 340 | N 071412010100 | GREASE NIPPLE |
| 344 | N 000933010026 | SCREW |
| 348 | A 3122911097 | SEAL WASHER |
| 352 | A 3212900524 | PEDAL PLATE |
| 356 | A 3202925082 | PAD |
| 360 | A 3129931510 | SPRING |
| 364 | A 3422900239 | ROD |
| 368 | A 3422930023 | BALL SOCKET |
| 372 | N 000934010035 | NUT |
| 376 | N 001479010000 | TURNBUCKLE |
| 380 | N 000934010000 | NUT |
| 384 | A 3422930123 | BALL SOCKET |
| 388 | N 071805016402 | SECURING CLIP |
