Transporto priemonė: LS 1112; VIN numerio dalis: 341021
Grupė: 41 PROPELLER SHAFT

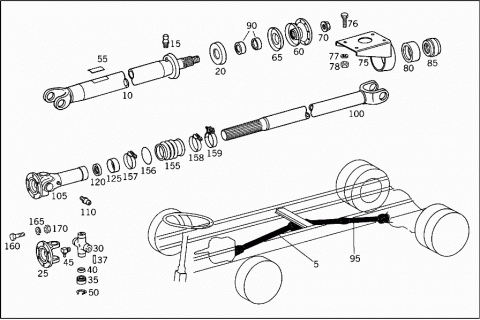

41306

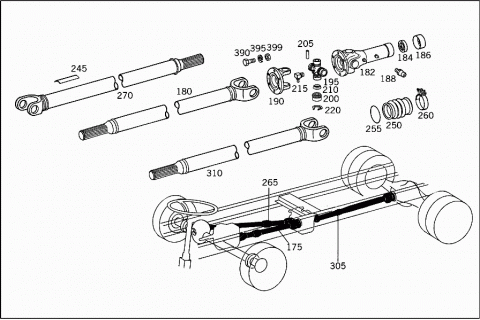

41307
# Kodas Pavadinimas
A 3224104001 PROPELLER SHAFT
005 A 3414101501 PROPELLER SHAFT
L=931 MM
A 3224102901 PROPELLER SHAFT
A 3414101401 PROPELLER SHAFT
Repalced by: A 3414102201
A 3414102201 PROPELLER SHAFT
L=1531 MM
A 3224104101 PROPELLER SHAFT
A 3414101601 PROPELLER SHAFT
L=2041 MM
A 3124102527 PROPELLER SHAFT TUBE
Repalced by: A 3414100927
A 3414100927 PROPELLER SHAFT TUBE
010 A 3414106027 PROPELLER SHAFT TUBE
A 3244100227 PROPELLER SHAFT TUBE
Repalced by: A 3414101127
A 3414101127 PROPELLER SHAFT TUBE
A 3414105927 PROPELLER SHAFT TUBE
A 3124102627 PROPELLER SHAFT TUBE
Repalced by: A 3414101227
A 3414101227 PROPELLER SHAFT TUBE
A 3414106127 PROPELLER SHAFT TUBE
N 071412010100 GREASE NIPPLE
015 N 071412008100 GREASE NIPPLE
020 A 3124131361 PROTECTIVE CAP
A 3124111111 DRIVE FLANGE
025 A 3024110011 DRIVE FLANGE
A 3124111331 UNIVERSAL JOINT CROSS
Repalced by: A 0414100031
A 0414100031 UNIVERSAL JOINT CROSS
A 3854100231 UNIVERSAL JOINT CROSS
030 A 3024100031 UNIVERSAL JOINT CROSS
A 3124101142 BEARING BUSHING
A 3224100242 BEARING BUSHING
Repalced by: A 3224100542
035 A 3224100542 BEARING BUSHING
A 0009811187 NEEDLE
037 A 0009815087 NEEDLE
040 A 3124111233 EXPANSION PLUG
N 071412010300 GREASE NIPPLE
045 N 071412008300 GREASE NIPPLE
050 A 3129941135 SNAP RING
AS REQUIRED
2.5 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.6 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.7 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3224110094 BALANCING PLATE
AS REQUIRED
20 MM
A 3124111894 BALANCING PLATE
AS REQUIRED
60 MM
055 A 3124111094 BALANCING PLATE
AS REQUIRED
95 MM
A 3124111194 BALANCING PLATE
AS REQUIRED
160 MM
A 3124111294 BALANCING PLATE
AS REQUIRED
190 MM
060 A 3124101430 CENTERING FLANGE
065 A 3124131361 PROTECTIVE CAP
070 A 3224110072 NUT
A 3284100140 BRACKET
Repalced by: A 3224100540
075 A 3224100540 BRACKET
N 000933010056 SCREW
BRACKET TO CROSS MEMBER
TO 321 413 00 14
076 N 000933010016 SCREW
BRACKET TO CROSS MEMBER
077 N 000127010205 LOCK WASHER
BRACKET TO CROSS MEMBER
078 N 000934010000 NUT
BRACKET TO CROSS MEMBER
080 A 3124131112 RUBBER MOUNTING
A 3124101251 BALL BEARING
Repalced by: A 3524100051
A 3224100051 BALL BEARING
Repalced by: A 3524100051
085 A 3524100051 BALL BEARING
A 3454100051 BALL BEARING
090 A 3124131231 BEARING RING
A 3414100802 PROPELLER SHAFT
Repalced by: A 0414100002
A 0414100002 PROPELLER SHAFT
A 0414100102 PROPELLER SHAFT
Repalced by: A 3414103302
095 A 3414103302 PROPELLER SHAFT
Repalced by: A 3414107102
095 A 3414107102 PROPELLER SHAFT
L=1673 MM
A 3414100202 PROPELLER SHAFT
A 3414103402 PROPELLER SHAFT
L=1790 MM
A 3124105927 PROPELLER SHAFT TUBE
Repalced by: A 0414100027
A 0414100027 PROPELLER SHAFT TUBE
100 A 0414100127 PROPELLER SHAFT TUBE
Repalced by: A 3414104227
100 A 3414104227 PROPELLER SHAFT TUBE
Repalced by: A 3414107227
100 A 3414107227 PROPELLER SHAFT TUBE
A 3124104227 PROPELLER SHAFT TUBE
Repalced by: A 3414101927
A 3414101927 PROPELLER SHAFT TUBE
A 3414104327 PROPELLER SHAFT TUBE
A 3024110402 END PIECE
A 3414100008 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
A 3414107008 UNIVERSAL JOINT YOKE
A 3414100508 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
105 H 993414100008 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
105 A 3414107008 UNIVERSAL JOINT YOKE
A 3444110005 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3414110105 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3024110405 UNIVERSAL JOINT YOKE
N 071412010100 GREASE NIPPLE
110 N 071412008100 GREASE NIPPLE
A 3124111111 DRIVE FLANGE
A 3024110011 DRIVE FLANGE
A 3124111331 UNIVERSAL JOINT CROSS
Repalced by: A 0414100031
A 0414100031 UNIVERSAL JOINT CROSS
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3124101142 BEARING BUSHING
A 3224100242 BEARING BUSHING
Repalced by: A 3224100542
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412010300 GREASE NIPPLE
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.5 MM
A 3129941635 SNAP RING
2.55 MM
A 3129941335 SNAP RING
2.6 MM
A 3129941435 SNAP RING
2.65 MM
A 3129941535 SNAP RING
2.7 MM
A 3129941735 SNAP RING
2.75 MM
A 3124131180 SEAL RING
120 A 3374130080 SEAL RING
A 3124131258 SEAL HOLDER
125 A 3214110158 SEAL HOLDER
A 3124111111 DRIVE FLANGE
A 3024110011 DRIVE FLANGE
A 3124111331 UNIVERSAL JOINT CROSS
Repalced by: A 0414100031
A 0414100031 UNIVERSAL JOINT CROSS
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3124101142 BEARING BUSHING
A 3224100242 BEARING BUSHING
Repalced by: A 3224100542
A 3224100542 BEARING BUSHING
A 0009811187 NEEDLE
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412010300 GREASE NIPPLE
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.5 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.6 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.7 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3224110094 BALANCING PLATE
AS REQUIRED
20 MM
A 3124111894 BALANCING PLATE
AS REQUIRED
60 MM
A 3124111094 BALANCING PLATE
AS REQUIRED
95 MM
A 3124111194 BALANCING PLATE
AS REQUIRED
160 MM
A 3124111294 BALANCING PLATE
AS REQUIRED
190 MM
A 3284100080 BOOT
Repalced by: A 3414100080
A 3214100180 BOOT
Repalced by: A 3414100080
155 A 3524100080 BOOT
Repalced by: A 3414100080
155 A 3414100080 BOOT
156 A 3214110053 WIRE RING
157 N 900264009509 LOOM TIE
158 N 900264009508 LOOM TIE
159 N 916002078100 CLAMP
160 A 3219901501 SCREW
165 N 000127010205 LOCK WASHER
170 N 000934010042 NUT
175 A 3414103802 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
180 A 3414104727 PROPELLER SHAFT TUBE
REAR
A 3024110402 END PIECE
A 3414100508 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
H 993414100008 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
A 3414107008 UNIVERSAL JOINT YOKE
182 A 3444110005 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3414110105 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
182 A 3024110405 UNIVERSAL JOINT YOKE
184 A 3374130080 SEAL RING
186 A 3214110158 SEAL HOLDER
188 N 071412008100 GREASE NIPPLE
190 A 3024110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
195 A 3024100031 UNIVERSAL JOINT CROSS
200 A 3224100542 BEARING BUSHING
205 A 0009815087 NEEDLE
210 A 3124111233 EXPANSION PLUG
215 N 071412008300 GREASE NIPPLE
220 A 3129941135 SNAP RING
AS REQUIRED
2.5 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.6 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.7 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3024110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3224110094 BALANCING PLATE
AS REQUIRED
20 MM
A 3124111894 BALANCING PLATE
AS REQUIRED
60 MM
245 A 3124111094 BALANCING PLATE
AS REQUIRED
95 MM
A 3124111194 BALANCING PLATE
AS REQUIRED
160 MM
A 3124111294 BALANCING PLATE
AS REQUIRED
190 MM
A 3214100180 BOOT
Repalced by: A 3414100080
250 A 3524100080 BOOT
Repalced by: A 3414100080
250 A 3414100080 BOOT
255 A 3214110053 WIRE RING
260 N 916002078100 CLAMP
265 A 3414103302 PROPELLER SHAFT
Repalced by: A 3414107102
265 A 3414107102 PROPELLER SHAFT
L=1672
270 A 3414104227 PROPELLER SHAFT TUBE
Repalced by: A 3414107227
270 A 3414107227 PROPELLER SHAFT TUBE
A 3024110402 END PIECE
A 3414100508 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
H 993414100008 UNIVERSAL JOINT YOKE
Repalced by: A 3414107008
A 3414107008 UNIVERSAL JOINT YOKE
A 3444110005 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3414110105 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3024110405 UNIVERSAL JOINT YOKE
N 071412008100 GREASE NIPPLE
A 3024110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3374130080 SEAL RING
A 3214110158 SEAL HOLDER
A 3024110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.7 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3224110094 BALANCING PLATE
AS REQUIRED
20 MM
A 3124111894 BALANCING PLATE
AS REQUIRED
60 MM
A 3124111094 BALANCING PLATE
AS REQUIRED
95 MM
A 3124111194 BALANCING PLATE
AS REQUIRED
160 MM
A 3124111294 BALANCING PLATE
AS REQUIRED
190 MM
A 3214100180 BOOT
Repalced by: A 3524100080
A 3524100080 BOOT
Repalced by: A 3414100080
A 3414100080 BOOT
A 3214110053 WIRE RING
N 900264009509 LOOM TIE
305 A 3414105102 PROPELLER SHAFT
Repalced by: A 3414103802
305 A 3414103802 PROPELLER SHAFT
L=1380 MM
310 A 3414104727 PROPELLER SHAFT TUBE
A 3024110402 END PIECE
A 3414100608 UNIVERSAL JOINT YOKE
A 3444110005 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3414110105 UNIVERSAL JOINT YOKE
Repalced by: A 3024110405
A 3024110405 UNIVERSAL JOINT YOKE
A 3374130080 SEAL RING
A 3214110158 SEAL HOLDER
N 071412008100 GREASE NIPPLE
A 3414110111 DRIVE FLANGE
Repalced by: A 3024110011
A 3024110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3414110111 DRIVE FLANGE
Repalced by: A 3024110011
A 3024110011 DRIVE FLANGE
A 3854100231 UNIVERSAL JOINT CROSS
A 3024100031 UNIVERSAL JOINT CROSS
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
A 3124111233 EXPANSION PLUG
N 071412008300 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3224110094 BALANCING PLATE
AS REQUIRED
20 MM
A 3124111894 BALANCING PLATE
AS REQUIRED
60 MM
A 3124111094 BALANCING PLATE
AS REQUIRED
95 MM
A 3124111194 BALANCING PLATE
AS REQUIRED
160 MM
A 3124111294 BALANCING PLATE
AS REQUIRED
190 MM
A 3214100180 BOOT
Repalced by: A 3414100080
A 3524100080 BOOT
Repalced by: A 3414100080
A 3414100080 BOOT
A 3214110053 WIRE RING
N 916002078100 CLAMP
390 A 3219901501 SCREW
PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
395 N 000127010205 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
399 N 000934010042 NUT
PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
