Transporto priemonė: LS 1113; VIN numerio dalis: 344040

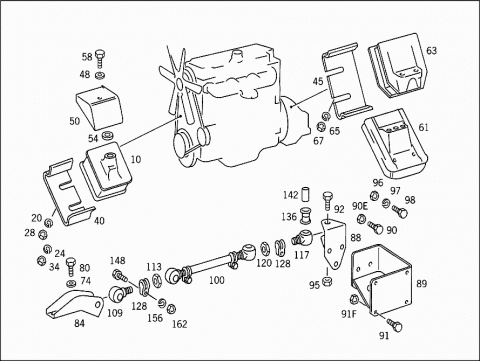

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0442200017 | RUBBER MOUNTING |
| Repalced by: A 3452400217 | ||
| 010 | A 3122201717 | RUBBER MOUNTING |
| Repalced by: A 3452400217 | ||
| 010 | A 3452400217 | RUBBER MOUNTING |
| Repalced by: A 3442407017 | ||
| 010 | A 3442407017 | RUBBER MOUNTING |
| FRONT | ||
| 010 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 010 | A 3452400317 | RUBBER MOUNTING |
| FRONT | ||
| 020 | N 000127010202 | LOCK WASHER |
| ENGINE MOUNTING TO FRONT CROSS MEMBER | ||
| 024 | N 000127012201 | LOCK WASHER |
| ENGINE MOUNTING TO FRONT CROSS MEMBER | ||
| 028 | N 000934010004 | NUT |
| ENGINE MOUNTING TO FRONT CROSS MEMBER | ||
| 034 | N 000934012004 | NUT |
| ENGINE MOUNTING TO FRONT CROSS MEMBER | ||
| 040 | A 3522420509 | ENGINE STAY |
| 045 | A 3522420409 | ENGINE STAY |
| 045 | A 3522420409 | ENGINE STAY |
| 045 | A 3522420409 | ENGINE STAY |
| 045 | A 3522420409 | ENGINE STAY |
| 048 | N 009021013101 | WASHER |
| Repalced by: A 3829907140 | ||
| 048 | A 3829907140 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 050 | A 3122400145 | PROTECTIVE PLATE |
| 054 | A 3529901040 | WASHER |
| Repalced by: A 3459907340 | ||
| 054 | A 3459907340 | WASHER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 360 990 18 40 | ||
| A 3459907440 | WASHER | |
| Repalced by: A 3529902440 | ||
| A 3529902440 | WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 058 | N 000961014103 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| N 000960016036 | SCREW | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 061 | A 0442200017 | RUBBER MOUNTING |
| Repalced by: A 3452400217 | ||
| 061 | A 3452400217 | RUBBER MOUNTING |
| Repalced by: A 3442407017 | ||
| 061 | A 3442407017 | RUBBER MOUNTING |
| 061 | A 3442407017 | RUBBER MOUNTING |
| 063 | A 3452400018 | RUBBER MOUNTING |
| 063 | A 3452400018 | RUBBER MOUNTING |
| 063 | A 3452400018 | RUBBER MOUNTING |
| 063 | A 3452400018 | RUBBER MOUNTING |
| 063 | A 3522400318 | RUBBER MOUNTING |
| 063 | A 3522400318 | RUBBER MOUNTING |
| 063 | A 3522400318 | RUBBER MOUNTING |
| 063 | A 3522400318 | RUBBER MOUNTING |
| 065 | N 000127010202 | LOCK WASHER |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 065 | N 000127010202 | LOCK WASHER |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000127012201 | LOCK WASHER | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000127012201 | LOCK WASHER | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000127012201 | LOCK WASHER | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000127012201 | LOCK WASHER | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 067 | N 000934010004 | NUT |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 067 | N 000934010004 | NUT |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000934012004 | NUT | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000934012004 | NUT | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000934012004 | NUT | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| N 000934012004 | NUT | |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| A 3129940132 | LOCK | |
| Repalced by: A 3449947032 | ||
| A 3449947032 | LOCK | |
| Repalced by: A 3529940032 | ||
| A 3529940032 | LOCK | |
| 074 | A 3459907240 | WASHER |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 080 | N 000961012171 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 080 | N 000961012171 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014106 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014106 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014106 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014107 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014107 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014107 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014101 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| A 3609901840 | WASHER | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 084 | A 3442410035 | BEARING BRACKET |
| 084 | A 3442410035 | BEARING BRACKET |
| 084 | A 3442410035 | BEARING BRACKET |
| A 3442427007 | BEARING BRACKET | |
| 088 | A 3452400035 | BEARING BRACKET |
| 088 | A 3452400035 | BEARING BRACKET |
| 088 | A 3452400035 | BEARING BRACKET |
| 088 | A 3452400035 | BEARING BRACKET |
| 088 | A 3452400135 | BEARING BRACKET |
| 089 | A 3452407040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 089 | A 3452407040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 090 | N 000933012122 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 090 | N 000933012122 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 090E | N 913004012012 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 090E | N 913004012012 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 091 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 091 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| N 000933010269 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| 091F | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 091F | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 092 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 092 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 092 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 092 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 092 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 095 | N 000979016000 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| 095 | N 000979016000 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| 095 | N 000979016000 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| 095 | N 000979016000 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| N 000094004056 | COTTER PIN | |
| ROD TO FRONT AND REAR BRACKETS | ||
| 096 | N 000934012004 | NUT |
| BRACKET TO BRAKE BOOSTER BRACKET | ||
| 097 | N 000127012201 | LOCK WASHER |
| BRACKET TO BRAKE BOOSTER BRACKET | ||
| 098 | N 000961012020 | SCREW |
| BRACKET TO BRAKE BOOSTER BRACKET | ||
| 098 | N 000933012124 | SCREW |
| BRACKET TO BRAKE BOOSTER BRACKET | ||
| 100 | A 3522400125 | ROD |
| Repalced by: A 3452407225 | ||
| 100 | A 3452407225 | ROD |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 240 02 25 | ||
| 100 | A 3452407125 | ROD |
| 100 | A 3452407125 | ROD |
| 100 | A 3452407125 | ROD |
| 100 | A 3452407125 | ROD |
| A 3522420037 | ROD | |
| 109 | A 0009961540 | ROD END |
| Repalced by: A 3459967140 | ||
| 109 | A 3459967140 | ROD END |
| 109 | A 3459967140 | ROD END |
| 109 | A 3459967140 | ROD END |
| 109 | A 3459967140 | ROD END |
| 109 | A 3459967140 | ROD END |
| 113 | N 000934016026 | NUT |
| 117 | A 0009961740 | ROD END |
| Repalced by: A 3459967040 | ||
| 117 | A 3459967040 | ROD END |
| 117 | A 3459967040 | ROD END |
| 117 | A 3459967040 | ROD END |
| 117 | A 3459967040 | ROD END |
| 117 | A 3459967040 | ROD END |
| 120 | N 000934016014 | NUT |
| 128 | A 3459957044 | CLAMP |
| 128 | A 3459957044 | CLAMP |
| 128 | A 3459957044 | CLAMP |
| 128 | A 3459957044 | CLAMP |
| 128 | A 3459957044 | CLAMP |
| 128 | A 3459957044 | CLAMP |
| 136 | A 3452427013 | RUBBER MOUNTING |
| 136 | A 3452427013 | RUBBER MOUNTING |
| 136 | A 3452427013 | RUBBER MOUNTING |
| 136 | A 3452427013 | RUBBER MOUNTING |
| 142 | A 3452427050 | BUSHING |
| 142 | A 3452427050 | BUSHING |
| 142 | A 3452427050 | BUSHING |
| 142 | A 3452427050 | BUSHING |
| 148 | N 000960008002 | SCREW |
| CLAMP TO ROD END | ||
| 148 | N 000960008002 | SCREW |
| CLAMP TO ROD END | ||
| 148 | N 000960008002 | SCREW |
| CLAMP TO ROD END | ||
| 148 | N 000960008002 | SCREW |
| CLAMP TO ROD END | ||
| 148 | N 000960008002 | SCREW |
| CLAMP TO ROD END | ||
| 156 | N 000127008203 | LOCK WASHER |
| CLAMP TO ROD END | ||
| 156 | N 000127008203 | LOCK WASHER |
| CLAMP TO ROD END | ||
| 156 | N 000127008203 | LOCK WASHER |
| CLAMP TO ROD END | ||
| 156 | N 000127008203 | LOCK WASHER |
| CLAMP TO ROD END | ||
| 156 | N 000127008203 | LOCK WASHER |
| CLAMP TO ROD END | ||
| 162 | N 000934008007 | NUT |
| CLAMP TO ROD END | ||
| 162 | N 000934008007 | NUT |
| CLAMP TO ROD END | ||
| 162 | N 000934008007 | NUT |
| CLAMP TO ROD END | ||
| 162 | N 000934008007 | NUT |
| CLAMP TO ROD END | ||
