Transporto priemonė: LS 1113; VIN numerio dalis: 344040
Grupė: 46 STEERING

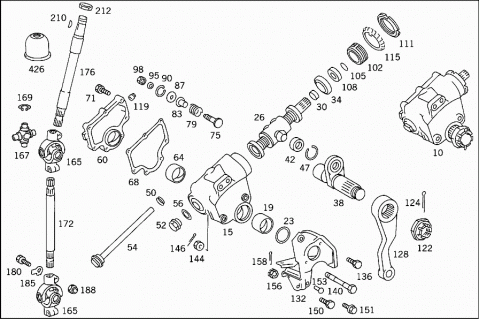

52888

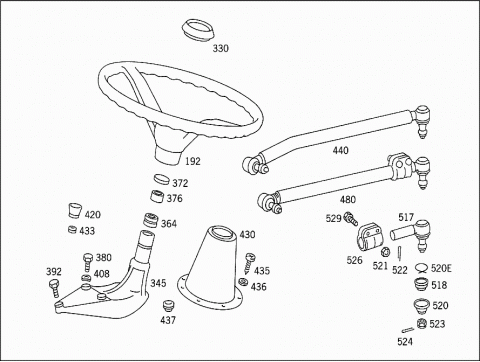

52889

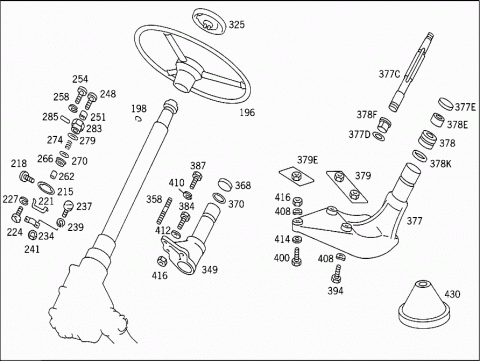

52890

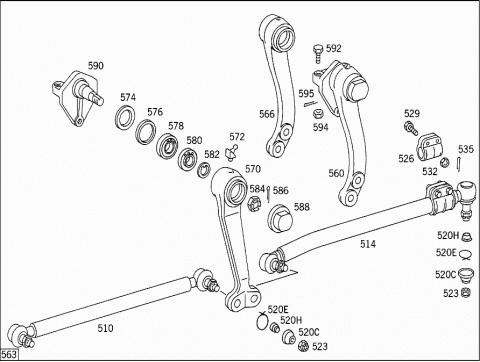

52891

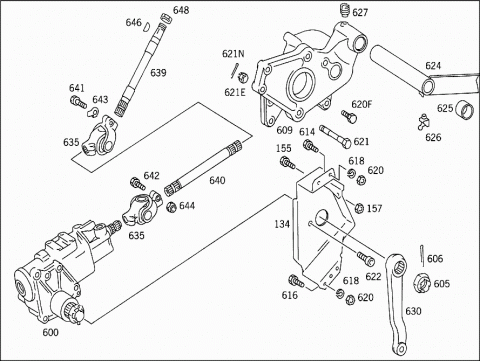

52892

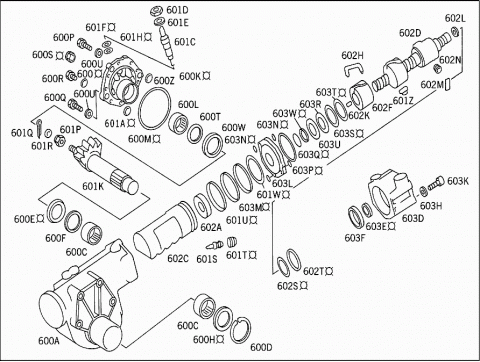

52893

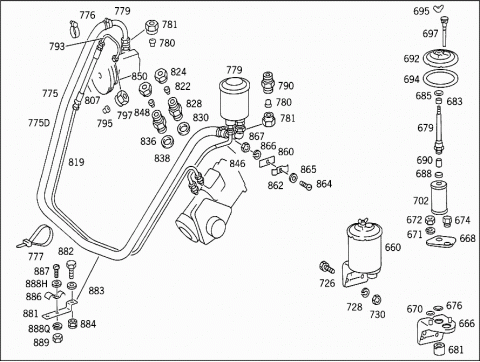

52894

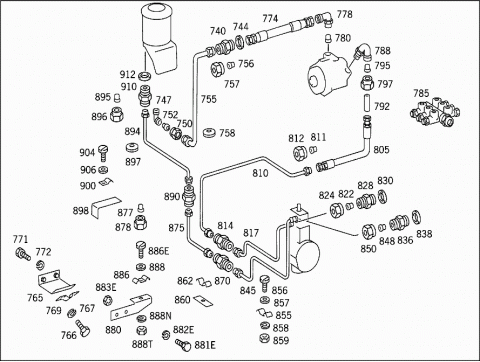

52895

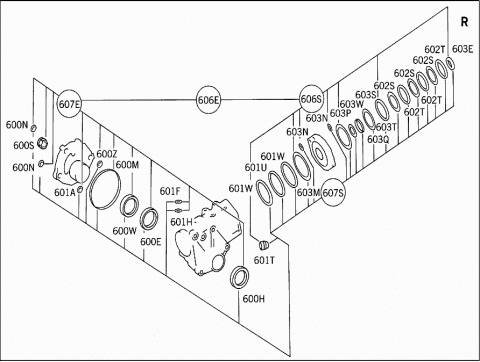

52896
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR STEERING,SEE UNIT STANDARD VERSION, MODEL:
762.004
010 A 0444602901 STEERING BOX ASSEMBLY
Repalced by: A 0454600101
010 A 0454600101 STEERING BOX ASSEMBLY
Repalced by: A 3444601201
010 A 3444601201 STEERING BOX ASSEMBLY
010 A 3444601201 STEERING BOX ASSEMBLY
010 A 3444607801 STEERING BOX ASSEMBLY
010 A 0454600401 STEERING BOX ASSEMBLY
Repalced by: A 3444601101
010 A 3444601101 STEERING BOX ASSEMBLY
015 A 3214601302 STEERING BOX
Repalced by: A 3444600002
015 A 3444600002 STEERING BOX
Repalced by: A 3214601402
015 A 3214601402 STEERING BOX
Repalced by: A 3444607002
015 A 3214601402 STEERING BOX
A 3444607002 STEERING BOX
A 3444607002 STEERING BOX
015 A 3084600002 STEERING BOX
019 A 3214610350 BUSHING
STEERING SHAFT BEARING
023 A 0459970145 SEAL RING
Repalced by: A 3459970045
023 A 3459970045 SEAL RING
Repalced by: A 3449970345
023 A 3449970345 SEAL RING
STEERING WORM SECTOR SHAFT SEALING
A 4064600218 STEERING NUT
WITH STEERING WORM
A 4064600218 STEERING NUT
WITH STEERING WORM
A 3094601018 STEERING NUT
WITH STEERING WORM
026 A 0444600308 STEERING WORM
Repalced by: A 3444600118
026 H 983454600008 STEERING WORM
Repalced by: A 3444600118
026 A 3444600118 STEERING NUT
WITH STEERING WORM
026 A 3444600118 STEERING NUT
WITH STEERING WORM
026 H 983454600108 STEERING WORM
Repalced by: A 3084600018
026 A 3084600018 STEERING NUT
026 A 3084600018 STEERING NUT
030 A 3219970740 SEAL RING
034 A 0009810806 BARREL-TYPE BEARING
Repalced by: A 0009811306
034 A 0009811306 BARREL-TYPE BEARING
Repalced by: A 3459817006
034 A 3459817006 BARREL-TYPE BEARING
STEERING WORM
038 A 3214601111 STEERG. WORM SECTOR SHAFT
WITH SET SCREW
042 A 3214620537 BALL CUP
STEERING SHAFT BEARING IN COVER
047 N 009045038001 SNAP RING
STEERING SHAFT BEARING IN COVER
050 A 3219970640 SEAL RING
052 N 007604030100 SCREW PLUG
054 A 0444600015 OIL LEVEL CHECK PIPE
Repalced by: A 3444603524
054 A 3444603524 LINE
056 N 007603030400 SEAL RING
060 A 3274600214 STEERING BOX COVER
Repalced by: A 3214600414
060 A 3214600414 STEERING BOX COVER
STEERING BOX
060 A 3214600414 STEERING BOX COVER
STEERING BOX
060 A 3214600514 STEERING BOX COVER
STEERING BOX
064 A 3214620250 BUSHING
STEERING SHAFT BEARING IN COVER
068 A 3214610880 GASKET
Repalced by: A 3524610180
068 A 3524610180 GASKET
COVER TO STEERING BOX
T YYYYYYYYYYYY PART NAME MISSING
CONTAINING ASBESTOS
A 3524610180 GASKET
COVER TO STEERING BOX
T YYYYYYYYYYYY PART NAME MISSING
ASBESTOS-FREE
071 A 0019909101 SCREW
Repalced by: N 000931008049
071 N 000931008049 SCREW
COVER TO STEERING BOX
075 A 3214620171 SCREW
STEERING SHAFT BEARING IN COVER
079 A 3219932201 SPRING
STEERING SHAFT BEARING IN COVER
083 A 0444620085 THRUST PIECE
Repalced by: A 3444620085
083 A 3444620085 THRUST PIECE
Repalced by: A 3444620185
083 A 3444620185 THRUST PIECE
STEERING SHAFT BEARING IN COVER
087 A 3214610162 THRUST WASHER
STEERING SHAFT BEARING IN COVER
090 A 0009946041 LOCK
STEERING SHAFT BEARING IN COVER
095 A 0019976140 SEAL RING
Repalced by: A 0029900251
098 A 3219900050 NUT
Repalced by: A 0029900251
098 A 0029900251 NUT
STEERING SHAFT BEARING IN COVER
102 A 3224620151 RING
105 A 0459970045 SEAL RING
Repalced by: A 3449970445
105 A 3449970445 SEAL RING
OUTSIDE
108 A 0029974346 SEAL RING
INSIDE
108 H 980009970246 SEAL RING
Repalced by: A 3449977146
108 A 3449977146 SEAL RING
INSIDE
108 A 3459979246 SEAL RING
INSIDE
111 N 070852060000 NUT
Repalced by: A 6743560226
111 A 6743560226 GROOVED NUT
STEERING NUT BEARING
115 A 3229940115 LOCK
Repalced by: A 6889940015
115 A 6889940015 LOCK
STEERING NUT BEARING
119 A 3029970035 PLUG
Repalced by: N 000906016000
119 N 000906016000 SCREW PLUG
OIL FILLING
122 A 0009902555 NUT
PITMAN ARM TO STEERING BOX ASSEMBLY
124 N 000094006013 COTTER PIN
PITMAN ARM TO STEERING BOX ASSEMBLY
128 A 3414630001 PITMAN ARM
128 A 3414630001 PITMAN ARM
128 A 3524631301 PITMAN ARM
128 A 0444630901 PITMAN ARM
Repalced by: A 3444637001
128 A 3444637001 PITMAN ARM
128 H 983444630101 PITMAN ARM
Repalced by: A 3444630401
128 A 3444630401 PITMAN ARM
132 A 3224600235 BRACKET
132 A 3224600235 BRACKET
132 A 3224601235 BRACKET
134 H 983444600129 STEERING BRACKET
Repalced by: A 3444600029
134 A 3444600029 STEERING BRACKET
136 A 3279900114 SCREW
STEERING TO STEERING BRACKET
136 A 3449907214 SCREW
140 A 3229900914 SCREW
STEERING TO STEERING BRACKET
140 A 3449907314 SCREW
144 A 3279900050 NUT
STEERING TO STEERING BRACKET
144 N 913004012006 NUT
146 N 000094003217 COTTER PIN
STEERING TO STEERING BRACKET
150 A 0009900401 SCREW
Repalced by: A 3449907002
150 A 3449907002 SCREW
STEERING TO FRAME
150 A 3449907002 SCREW
STEERING TO FRAME
150 A 3029900804 SCREW
STEERING TO FRAME
150 A 3029900804 SCREW
STEERING TO FRAME
151 N 900170012001 SCREW
153 A 0009900996 RIVET
Repalced by: N 910005012017
153 N 910005012017 RIVET
BRACKET TO CHASSIS
155 N 000961012106 SCREW
BRACKET TO CHASSIS
155 N 000961012020 SCREW
BRACKET TO CHASSIS
156 N 000935012003 NUT
BRACKET TO CHASSIS
157 N 913004012003 NUT
BRACKET TO CHASSIS
158 N 000094003217 COTTER PIN
BRACKET TO CHASSIS
165 A 3274600157 UNIVERSAL JOINT
Repalced by: A 3164600157
165 A 3524600057 UNIVERSAL JOINT
Repalced by: A 3164600057
165 A 3164600157 UNIVERSAL JOINT
Repalced by: A 3444607057
165 A 3164600057 UNIVERSAL JOINT
Repalced by: A 3444607057
165 A 4214600457 UNIVERSAL JOINT
Repalced by: A 3444607057
165 A 3444607057 UNIVERSAL JOINT
165 A 3444607157 UNIVERSAL JOINT
165 A 3444607257 UNIVERSAL JOINT
167 A 3274600131 UNIVERSAL JOINT CROSS
169 A 1889940034 SNAP RING
1.50 MM
169 A 1889940134 SNAP RING
1.55 MM
169 A 1889940234 SNAP RING
1.60 MM
169 A 1889940334 SNAP RING
1.65 MM
169 A 1889940434 SNAP RING
1.70 MM
169 A 1889940534 SNAP RING
1.75 MM
172 A 3224620501 STEERING SHAFT
BOTTOM
172 H 983444620401 STEERING SHAFT
Repalced by: A 3454620401
172 A 3454620401 STEERING SHAFT
BOTTOM
172 H 983444620501 STEERING SHAFT
Repalced by: A 3444620601
172 A 3444620601 STEERING SHAFT
BOTTOM
172 H 983454620501 STEERING SHAFT
Repalced by: A 3454620401
172 A 3454620401 STEERING SHAFT
BOTTOM
176 A 3224620401 STEERING SHAFT
TOP
176 A 3524620001 STEERING SHAFT
TOP
176 A 3454627301 STEERING SHAFT
180 A 3219900401 SCREW
180 A 3169900114 SCREW
UNIVERSAL JOINT TO STEERING COLUMN TUBE
185 N 000463010502 LOCK PLATE
188 H 980019900051 NUT
Repalced by: N 913004008005
188 A 3459900351 NUT
Repalced by: N 913004008005
188 N 913004008005 NUT
2.15 MM
192 A 3454600303 STEERING WHEEL
Repalced by: A 3454607003
192 A 3454600203 STEERING WHEEL
Repalced by: A 3454607003
192 A 3454607003 STEERING WHEEL
192 A 0004641101 STEERING WHEEL
196 A 3224600203 STEERING WHEEL
198 A 3204640092 ORNAMENTAL RING
210 N 006888005006 WOODRUFF KEY
STEERING WHEEL TO STEERING COLUMN
Y YYYYYYYYYYYY PART NAME MISSING
GROUP 46/4,FIG.-NO.212=FIG.-NO.196
212 N 000439022203 NUT
STEERING WHEEL TO STEERING COLUMN
215 A 0004640417 CONTACT PLATE
218 A 0444640071 SCREW
221 A 3224640034 BRACKET
224 N 007985004181 SCREW
227 N 912004004102 LOCK WASHER
234 N 072573001006 CLAMP
237 N 007985004182 SCREW
239 N 912004004102 LOCK WASHER
241 N 000934004014 NUT
248 N 007985004198 SCREW
251 A 3204640053 SPACER TUBE
254 N 007985004193 SCREW
258 N 912004004102 LOCK WASHER
262 A 3224640050 BUSHING
266 A 0444640086 SPRING WASHER
270 A 0004640023 INSULATING PLATE
274 A 3209930201 SPRING
279 A 1814640028 CONTACT RING
283 A 3204640072 NUT
285 A 3209910055 PIN
A 0444600040 SIGNAL RING
A 0444640039 LEVER
A 0004640290 SPRING
A 3214640062 THRUST WASHER
A 3204640182 RING
325 A 0444600047 SIGNAL PLATE
325 A 0444600247 SIGNAL PLATE
330 A 0004640431 CAP
Repalced by: A 0004641231
330 A 0004641231 CAP
Repalced by: A 3454647131
330 A 3454647131 CAP
TO 345 460 02 03
330 A 3454647131 CAP
"MERCEDES",TO 345 460 70 03
330 A 0004642631 CAP
TO 000 464 26 31
A 3444600044 BADGE
A 1839970540 SEAL RING
345 A 3434600031 STEERING COLUMN BRACKET
Repalced by: A 3504600037
345 A 3504600037 BEARING
345 A 3354600131 STEERING COLUMN BRACKET
Repalced by: A 3444607037
345 A 3354600137 BEARING
Repalced by: A 3444607037
345 A 3444607037 BEARING
349 A 0444600630 BRACKET
349 A 0444600530 BRACKET
358 N 000835008005 STUD
364 A 3214620165 RING
368 A 0444620023 COVER
370 A 3424620075 WASHER
372 A 3224620023 COVER
376 A 3124621150 BUSHING
377 A 3454607437 BEARING
377 A 3454607237 BEARING
377 A 3444607237 BEARING
377C A 3454627201 STEERING SHAFT
377D A 3764620075 WASHER
377D A 3764620075 WASHER
377E A 3454627023 COVER
378 A 3454627065 RING
378E A 3454627050 BUSHING
378F A 3524620251 RING
378K A 3454627028 BEARING RING
379 A 3454607089 BRACKET
379E A 3454607189 BRACKET
380 N 000931010102 SCREW
STEERING COLUMN BRACKET TO CAB
384 N 000931010080 SCREW
STEERING COLUMN BRACKET TO CAB
387 N 000931010009 SCREW
STEERING COLUMN BRACKET TO CAB
392 N 000933010129 SCREW
STEERING COLUMN BRACKET TO CAB
392 N 000933010129 SCREW
STEERING COLUMN BRACKET TO CAB
N 000088010107 SCREW
STEERING COLUMN BRACKET TO CAB
394 N 000933010269 SCREW
STEERING COLUMN BRACKET TO CAB
394 N 000933010269 SCREW
STEERING COLUMN BRACKET TO CAB
400 N 000931010273 SCREW
STEERING COLUMN BRACKET TO CAB
400 N 000931010273 SCREW
STEERING COLUMN BRACKET TO CAB
400 N 000931010273 SCREW
STEERING COLUMN BRACKET TO CAB
408 N 000137010103 SPRING WASHER
STEERING COLUMN BRACKET TO CAB
410 N 000127010202 LOCK WASHER
STEERING COLUMN BRACKET TO CAB
412 N 009021010102 WASHER
STEERING COLUMN BRACKET TO CAB
414 N 000125010517 WASHER
STEERING COLUMN BRACKET TO CAB
414 N 000125010517 WASHER
STEERING COLUMN BRACKET TO CAB
416 N 000934010000 NUT
STEERING COLUMN BRACKET TO CAB
416 N 000934010000 NUT
STEERING COLUMN BRACKET TO CAB
420 A 3354620096 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
420 A 3354620096 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
A 0214620086 GROMMET
STEERING COLUMN TUBE THRU CAB FLOOR
426 A 3524620296 BOOT
Repalced by: A 3604620596
426 A 3604620596 BOOT
UNIVERSAL JOINT,TOP
430 A 3524620196 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
430 A 3524620196 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
430 A 0454620096 BOOT
Repalced by: A 3444620196
430 A 3444620196 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
430 A 3444620196 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
430 A 3454620096 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
433 A 3214620060 SEAL RING
STEERING COLUMN TUBE THRU CAB FLOOR
435 N 007981004226 SHEET METAL SCREW
BOOT
436 N 000125006420 WASHER
BOOT
437 A 1869970481 GROMMET
440 H 983444602205 DRAG LINK
Repalced by: H 983444601905
440 H 983444601905 DRAG LINK
Repalced by: A 3444608005
440 A 3214601605 DRAG LINK
440 A 3444608005 DRAG LINK
"NAKATA"
440 A 3444608005 DRAG LINK
"NAKATA"
440 A 3444608105 DRAG LINK
"THOMSON"
440 A 3444608105 DRAG LINK
"THOMSON"
440 A 3444608505 DRAG LINK
"NAKATA"
440 A 3444600405 DRAG LINK
Repalced by: A 3444609105
440 A 3444609105 DRAG LINK
FRONT
440 H 983444600205 DRAG LINK
FRONT
480 A 0444600905 DRAG LINK
Repalced by: A 3444608605
480 H 983444600105 DRAG LINK
Repalced by: A 3444608605
480 A 3444608605 DRAG LINK
480 H 983444603005 DRAG LINK
Repalced by: A 3444608405
480 A 3444608405 DRAG LINK
510 H 983444602605 DRAG LINK
Repalced by: A 3444608205
510 A 3444608205 DRAG LINK
FRONT
510 A 3444609305 DRAG LINK
FRONT
510 A 3444609505 DRAG LINK
FRONT
NAKATA
510 A 3454609005 DRAG LINK
FRONT
GEMMER THOMPSON
514 H 983444601705 DRAG LINK
Repalced by: A 3444608305
514 A 3444608305 DRAG LINK
REAR
514 A 3444609405 DRAG LINK
REAR
514 A 3444609605 DRAG LINK
REAR
NAKATA
514 A 3454608905 DRAG LINK
REAR
GEMMER THOMPSON
514 A 3454607905 DRAG LINK
REAR
514 A 3454608005 DRAG LINK
NAKATA
517 H 983443300935 JOINT
Repalced by: A 3443307135
517 A 3443307135 JOINT
TO 344 460 91 05,98 344 460 02 05
517 A 3443307135 JOINT
TO 344 460 86 05,344 460 84 05
517 A 0004600148 DRAG LINK END
TO 344 460 94 05
517 A 0003303235 JOINT
TO 345 460 79 05
517 A 3503307035 JOINT
TO 345 460 80 05,344 460 96 05
517 A 3453307135 JOINT
TO 345 460 89 05
518 A 3443387197 BOOT
TO 344 460 85 05
520 H 983443380297 BOOT
Repalced by: A 3443387056
520 A 3443387056 DUST CAP
TO 344 460 91 05,98 344 460 02 05
520 A 3443387056 DUST CAP
TO 344 460 86 05,344 460 84 05
520 A 3503387056 DUST CAP
TO 344 460 95 05,345 460 80 05
520 A 3503387056 DUST CAP
TO 344 460 94 05,344 460 96 05
520C A 0003300385 BOOT
Repalced by: A 3643307085
520C A 3354600096 BOOT
Repalced by: A 3503387056
520C A 3643307085 BOOT
TO 345 460 90 05,345 460 89 05
520C A 3643307085 BOOT
TO 344 460 93 05,344 460 94 05
520C A 3453307485 BOOT
TO 345 460 89 05
A 3503387053 SPACER TUBE
TO 345 460 95 05,345 460 96 05
520E A 3443387063 CLAMPING RING
TO 344 460 85 05
520E A 3443387163 CLAMPING RING
TO 344 460 85 05
520E A 3443387263 CLAMPING RING
TO 344 338 72 63
520E A 3503387063 CLAMPING RING
TO 345 460 80 05,344 460 96 05
520H A 3643387082 RUBBER RING
Repalced by: A 0003381463
520H A 0003381463 CLAMPING RING
TO 345 460 90 05,345 460 89 05
521 N 000934010034 NUT
522 N 000094004065 COTTER PIN
523 N 000937018004 NUT
523 N 000937020000 NUT
TO 344 460 95 05,345 460 80 05
523 N 000937020000 NUT
TO 345 460 90 05,344 460 89 05
523 N 000937020000 NUT
TO 344 460 96 05,344 460 94 05
524 N 000094004065 COTTER PIN
526 A 3443387045 CLAMP
Repalced by: A 3443387145
526 A 3443387145 CLAMP
526 A 3443387145 CLAMP
TO 344 460 04 05,334 460 86 05
526 A 3443387645 CLAMP
TO 344 460 91 05
526 A 0003381445 CLAMP
TO 344 460 94 05
526 A 0003382045 CLAMP
Repalced by: A 3453387245
526 A 3453387245 CLAMP
TO 345 460 80 05, 345 460 79 05
526 A 3503387045 CLAMP
TO 344 460 96 05
526 A 3453387745 CLAMP
TO 345 460 89 05
529 N 000960010032 SCREW
M 10X50
529 N 000960012075 SCREW
M 12X60,TO 344 460 80 05;79 05
529 N 000960012075 SCREW
TO 344 460 94 05,96 05,345 460 89 05
532 N 913004012003 NUT
TO 344 460 94 05,96 05,345 460 89 05
532 N 913004012003 NUT
TO 345 460 80 05
532 N 000935012003 NUT
TO 345 460 79 05
535 N 000094003237 COTTER PIN
TO 345 460 79 05
560 A 0444600119 INTERMEDIATE LEVER
H 983444600019 INTERMEDIATE LEVER
Repalced by: A 3444600119
A 3444600119 INTERMEDIATE LEVER
566 A 0444630110 STEERING INTERMEDIATE ARM
570 A 3524630010 STEERING INTERMEDIATE ARM
570 A 3554630110 STEERING INTERMEDIATE ARM
572 N 071412010200 GREASE NIPPLE
574 N 006504042100 RADIAL SEAL RING
Repalced by: A 0079976446
574 A 0079976446 SEAL RING
574 A 3449978246 SEAL RING
576 A 3174630052 SPACER WASHER
578 N 000720030206 TAPERED ROLLER BEARING
580 N 000720030205 TAPERED ROLLER BEARING
582 A 3174630062 THRUST WASHER
INTERMEDIATE LEVER TO BEARING BRACKET
584 N 000937020000 NUT
INTERMEDIATE LEVER TO BEARING BRACKET
586 N 000094004065 COTTER PIN
INTERMEDIATE LEVER TO BEARING BRACKET
588 A 3214630033 CAP
INTERMEDIATE LEVER TO BEARING BRACKET
590 A 3224630011 TRUNNION BEARING
592 A 0219900101 SCREW
Repalced by: A 3449900202
592 A 3449900202 SCREW
INTERMEDIATE LEVER TO SIDE MEMBER
592 N 000961012155 SCREW
INTERMEDIATE LEVER TO SIDE MEMBER
M 12X1,5X45
592 N 000961012058 SCREW
INTERMEDIATE LEVER TO SIDE MEMBER
M 12X1,5X40
594 N 000935012003 NUT
INTERMEDIATE LEVER TO SIDE MEMBER
594 N 913004012006 NUT
INTERMEDIATE LEVER TO SIDE MEMBER
595 N 000094003217 COTTER PIN
INTERMEDIATE LEVER TO SIDE MEMBER
600 A 0444601801 STEERING BOX ASSEMBLY
600 A 3604601901 STEERING BOX ASSEMBLY
Repalced by: A 3444607501
600 A 3444607501 STEERING BOX ASSEMBLY
600A A 0004616601 BOX
600A A 0004615701 BOX
Repalced by: A 0004617101
600A A 0004617101 BOX
600C A 0019816010 NEEDLE BEARING
600C A 0149819310 NEEDLE BEARING
600D N 000472060000 LOCK RING
600E A 0004621865 RING
600F A 0004622475 WASHER
600H A 0019970640 SEAL RING
600H A 0049976940 SEAL RING
600K A 0004612605 COVER
600K A 0004612505 COVER
TO 000 461 57 01
A 0004614205 COVER
TO 000 461 71 01
600L A 0019816110 NEEDLE BEARING
600L A 0149819210 NEEDLE BEARING
600M A 0089971648 SEAL RING
Repalced by: A 0099978748
600M A 0099978748 SEAL RING
600N N 007603012111 SEAL RING
600P N 000961008014 SCREW
600Q N 000961008012 SCREW
600R N 007604012102 SCREW PLUG
600S A 0004620372 NUT
600T A 0004622975 WASHER
600U A 0004629952 SPACER WASHER
600W A 0004622765 RING
600Z A 0089971748 SEAL RING
601A A 0079979348 SEAL RING
Repalced by: A 0049978548
601A A 0049978548 SEAL RING
601C A 0004611582 VALVE
Repalced by: A 0004611982
601C A 0004611982 VALVE
Repalced by: A 0004612182
601C A 0004612182 VALVE
Repalced by: A 0004612582
601C A 0004612582 VALVE
601D A 0029903751 NUT
Repalced by: A 0029909251
601D A 0029909251 NUT
601E N 000125015012 WASHER
601F A 0089970045 SEAL RING
Repalced by: A 0169979148
601F A 0169979148 SEAL RING
601H A 0079979945 SEAL RING
Repalced by: A 0169978948
601H A 0169978948 SEAL RING
601K A 0004624912 STEERG. WORM SECTOR SHAFT
Repalced by: A 0004625212
601K A 0004625212 STEERG. WORM SECTOR SHAFT
A 0034620452 SPACER WASHER
AS REQUIRED
2.950 MM
A 0034620552 SPACER WASHER
AS REQUIRED
2.975 MM
A 0034620652 SPACER WASHER
AS REQUIRED
3.000 MM
A 0034620752 SPACER WASHER
AS REQUIRED
3.025 MM
A 0034624952 SPACER WASHER
AS REQUIRED
3.050 MM
A 0034625052 SPACER WASHER
AS REQUIRED
3.075 MM
A 0034625152 SPACER WASHER
AS REQUIRED
3.100 MM
A 0034625252 SPACER WASHER
AS REQUIRED
3.125 MM
A 0034625352 SPACER WASHER
AS REQUIRED
3.150 MM
A 0034625452 SPACER WASHER
AS REQUIRED
3.175 MM
A 0034625552 SPACER WASHER
AS REQUIRED
3.200 MM
A 0034625652 SPACER WASHER
AS REQUIRED
3.225 MM
A 0034625752 SPACER WASHER
AS REQUIRED
3.250 MM
A 0034625852 SPACER WASHER
AS REQUIRED
3.275 MM
A 0004621471 SCREW
A 0039943041 LOCK
601P A 0009903355 NUT
Repalced by: N 000937035000
601P N 000937035000 NUT
601Q N 000094006317 COTTER PIN
601R A 0014622752 SPACER WASHER
601S A 0009900315 SCREW
601T A 0004620196 BOOT
601U A 0004621665 RING
601W A 0004621565 RING
601Z A 0004620974 PIN
602A A 0004620134 SCREW COLLAR
602C A 0004622283 PISTON
602D A 0004605608 STEERING WORM
Repalced by: A 0004607308
602D A 0004607308 STEERING WORM
602D A 0004605708 STEERING WORM
Repalced by: A 0004607408
602D A 0004607408 STEERING WORM
A 0019816185 BALL
AS REQUIRED
7.990 MM
A 0019815285 BALL
AS REQUIRED
7.991 MM
A 0019815385 BALL
AS REQUIRED
7.992 MM
A 0019816285 BALL
AS REQUIRED
7.993 MM
A 0019816385 BALL
AS REQUIRED
7.994 MM
A 0019815485 BALL
AS REQUIRED
7.995 MM
A 0019816485 BALL
AS REQUIRED
7.996 MM
A 0019816585 BALL
AS REQUIRED
7.997 MM
A 0019815585 BALL
AS REQUIRED
7.998 MM
A 0019816685 BALL
AS REQUIRED
7.999 MM
A 0019815685 BALL
AS REQUIRED
8.000 MM
A 0019816785 BALL
AS REQUIRED
8.001 MM
A 0019815785 BALL
AS REQUIRED
8.002 MM
A 0019816885 BALL
AS REQUIRED
8.003 MM
A 0019816985 BALL
AS REQUIRED
8.004 MM
A 0019815885 BALL
AS REQUIRED
8.005 MM
A 0019817085 BALL
AS REQUIRED
8.006 MM
A 0019817185 BALL
AS REQUIRED
8.007 MM
A 0019815985 BALL
AS REQUIRED
8.008 MM
A 0019817285 BALL
AS REQUIRED
8.009 MM
A 0019816085 BALL
AS REQUIRED
8.010 MM
A 0019817385 BALL
AS REQUIRED
8.011 MM
A 0019817485 BALL
AS REQUIRED
8.012 MM
A 0019817585 BALL
AS REQUIRED
8.013 MM
A 0019817685 BALL
AS REQUIRED
8.014 MM
A 0019817785 BALL
AS REQUIRED
8.015 MM
602F A 0004620106 STEERING NUT
602F A 0004620206 STEERING NUT
602H A 0004622027 BALL RACE
A 0004622127 BALL RACE
602K N 001481004025 CLAMPING SLEEVE
602L A 0079979945 SEAL RING
Repalced by: A 0169978948
602L A 0169978948 SEAL RING
602M A 0004621183 PISTON
602N A 0004622850 BUSHING
A 0004621573 LOCK
A 0004621673 LOCK
N 000933005097 SCREW
602S A 0019871346 SEALING CORD
602T A 0004621265 RING
A 0004620438 BALL CAGE
A 0004610482 VALVE
A 0019811610 NEEDLE BEARING
A 0019811810 NEEDLE BEARING
A 0019811810 NEEDLE BEARING
A 0019811910 NEEDLE BEARING
A 0039814810 NEEDLE BEARING
A 0009817481 INNER RING
38.000 MM
A 0009817581 INNER RING
38.015 MM
A 0004610274 PIN
AS REQUIRED
6.04 MM
A 0004610374 PIN
AS REQUIRED
6.05 MM
A 0004610474 PIN
AS REQUIRED
6.06 MM
603D A 0004610204 BOX
603D A 0004611304 BOX
603E A 0059973747 SEAL RING
Repalced by: A 0089979447
603E A 0089979447 SEAL RING
603E A 0159975147 SEAL RING
603F A 0009816180 OUTER RACE
603H A 0014622752 SPACER WASHER
603K N 000912012065 SCREW
M12X1.5X100
603L A 0004613505 COVER
603M A 0079972048 SEAL RING
Repalced by: A 0129975948
603M A 0129975948 SEAL RING
Repalced by: A 0149976948
603M A 0149976948 SEAL RING
603N A 0089971848 SEAL RING
Repalced by: A 0129976048
603N A 0129976048 SEAL RING
Repalced by: A 0079979748
603N A 0019871046 SEALING CORD
Repalced by: A 0079979748
603N A 0079979748 SEAL RING
603P A 0079972148 SEAL RING
Repalced by: A 0129976148
603P A 0129976148 SEAL RING
Repalced by: A 0149976848
603P A 0149976848 SEAL RING
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
009 997 14 48
603Q A 0089976447 SEAL RING
603R A 0019812010 NEEDLE BEARING
603S A 0019871246 SEALING CORD
603T A 0004620965 RING
603T A 0004625965 RING
603T A 0004626065 RING
603U A 0024625052 SPACER WASHER
AS REQUIRED
2.19 MM
603U A 0024625152 SPACER WASHER
AS REQUIRED
2.92 MM
603U A 0024625252 SPACER WASHER
AS REQUIRED
2.93 MM
603U A 0024625352 SPACER WASHER
AS REQUIRED
2.94 MM
603U A 0014620752 SPACER WASHER
AS REQUIRED
2.95 MM
603U A 0024625452 SPACER WASHER
AS REQUIRED
2.96 MM
603U A 0024625552 SPACER WASHER
AS REQUIRED
2.97 MM
603U A 0024625652 SPACER WASHER
AS REQUIRED
2.98 MM
603U A 0024625752 SPACER WASHER
AS REQUIRED
2.99 MM
603U A 0014620952 SPACER WASHER
AS REQUIRED
3.00 MM
603U A 0024625852 SPACER WASHER
AS REQUIRED
3.01 MM
603U A 0024625952 SPACER WASHER
AS REQUIRED
3.02 MM
603U A 0024626052 SPACER WASHER
AS REQUIRED
3.03 MM
603U A 0024626152 SPACER WASHER
AS REQUIRED
3.04 MM
603U A 0014621152 SPACER WASHER
AS REQUIRED
3.05 MM
603U A 0024626252 SPACER WASHER
AS REQUIRED
3.06 MM
603U A 0024626352 SPACER WASHER
AS REQUIRED
3.07 MM
603U A 0024626452 SPACER WASHER
AS REQUIRED
3.08 MM
603U A 0024626552 SPACER WASHER
AS REQUIRED
3.09 MM
603U A 0014621352 SPACER WASHER
AS REQUIRED
3.10 MM
603U A 0024626652 SPACER WASHER
AS REQUIRED
3.11 MM
603U A 0024626752 SPACER WASHER
AS REQUIRED
3.12 MM
603U A 0024626852 SPACER WASHER
AS REQUIRED
3.13 MM
603U A 0024626952 SPACER WASHER
AS REQUIRED
3.14 MM
603U A 0014621552 SPACER WASHER
AS REQUIRED
3.15 MM
603U A 0024627052 SPACER WASHER
AS REQUIRED
3.16 MM
603U A 0024627152 SPACER WASHER
AS REQUIRED
3.17 MM
603U A 0024627252 SPACER WASHER
AS REQUIRED
3.18 MM
603U A 0024627352 SPACER WASHER
AS REQUIRED
3.19 MM
603U A 0014621752 SPACER WASHER
AS REQUIRED
3.20 MM
603U A 0024627452 SPACER WASHER
AS REQUIRED
3.21 MM
603U A 0024627552 SPACER WASHER
AS REQUIRED
3.22 MM
603U A 0024627652 SPACER WASHER
AS REQUIRED
3.23 MM
603U A 0024627752 SPACER WASHER
AS REQUIRED
3.24 MM
603U A 0014621952 SPACER WASHER
AS REQUIRED
3.25 MM
603U A 0024627852 SPACER WASHER
AS REQUIRED
3.26 MM
603U A 0024627952 SPACER WASHER
AS REQUIRED
3.27 MM
603U A 0024628052 SPACER WASHER
AS REQUIRED
3.28 MM
603U A 0024628152 SPACER WASHER
AS REQUIRED
3.29 MM
603U A 0014622152 SPACER WASHER
AS REQUIRED
3.30 MM
603U A 0024628252 SPACER WASHER
AS REQUIRED
3.31 MM
603U A 0024628352 SPACER WASHER
AS REQUIRED
3.32 MM
603U A 0024628452 SPACER WASHER
AS REQUIRED
3.33 MM
603U A 0024628552 SPACER WASHER
AS REQUIRED
3.34 MM
603U A 0014622352 SPACER WASHER
AS REQUIRED
3.35 MM
603U A 0024628652 SPACER WASHER
AS REQUIRED
3.36 MM
603U A 0024628752 SPACER WASHER
AS REQUIRED
3.37 MM
603U A 0024628852 SPACER WASHER
AS REQUIRED
3.38 MM
603U A 0024628952 SPACER WASHER
AS REQUIRED
3.39 MM
603U A 0014622552 SPACER WASHER
AS REQUIRED
3.40 MM
603W A 0004610760 SEAL RING
AS REQUIRED
2.5 MM
603W A 0004610860 SEAL RING
AS REQUIRED
2.6 MM
603W A 0004610960 SEAL RING
AS REQUIRED
2.7 MM
603W A 0004611060 SEAL RING
AS REQUIRED
2.8 MM
605 N 000937035000 NUT
606 N 000094006317 COTTER PIN
606E H 983455860046 REPAIR KIT
Repalced by: A 3455867046
606E A 3455867046 REPAIR KIT
Repalced by: A 0004602161
606E A 0004602161 GASKET KIT
606S H 983455860146 REPAIR KIT
Repalced by: A 3455867146
606S A 3455867146 REPAIR KIT
Repalced by: A 0004602261
606S A 0004602261 GASKET KIT
607E H 983455860246 REPAIR KIT
Repalced by: A 3455867246
607E A 3455867246 REPAIR KIT
Repalced by: A 0004602361
607E A 0004602361 GASKET KIT
607S A 0005869446 REPAIR KIT
609 A 3444610140 STEERING SUPPORT
609 A 0444600029 STEERING BRACKET
609 H 983444600229 STEERING BRACKET
Repalced by: A 3444600229
609 A 3444600229 STEERING BRACKET
614 N 000961012171 SCREW
BRACKET TO CHASSIS
614 N 000931010040 SCREW
BRACKET TO CHASSIS
614 N 000961012106 SCREW
BRACKET TO CHASSIS
614 N 000961012155 SCREW
BRACKET TO CHASSIS
614 N 000931010063 SCREW
BRACKET TO CHASSIS
616 N 000961012020 SCREW
BRACKET TO CHASSIS
616 N 000961012032 SCREW
BRACKET TO CHASSIS
618 N 000127010202 LOCK WASHER
BRACKET TO CHASSIS
618 N 000127012201 LOCK WASHER
BRACKET TO CHASSIS
620 N 000934012013 NUT
BRACKET TO CHASSIS
M12 X 1,5 MM
620 N 000934010000 NUT
BRACKET TO CHASSIS
620 N 000934012004 NUT
BRACKET TO CHASSIS
620F A 3529900902 SCREW
620F A 0449900202 SCREW
STEERING TO STEERING BRACKET
620F A 3229900014 SCREW
STEERING TO STEERING BRACKET
621 A 3229900414 SCREW
STEERING TO STEERING BRACKET
621 A 3229900314 SCREW
STEERING TO STEERING BRACKET
621E A 3279900250 NUT
STEERING TO STEERING BRACKET
621N N 000094003024 COTTER PIN
STEERING TO STEERING BRACKET
622 A 3529900012 SCREW
STEERING TO STEERING BRACKET
624 A 3442900220 BEARING
625 A 3122941250 BUSHING
625 A 3402940050 BUSHING
626 N 071412010200 GREASE NIPPLE
627 N 000417012000 HEADLESS SETSCREW
Repalced by: A 3529900080
627 A 3529900080 SCREW
630 A 0444630301 PITMAN ARM
630 A 0444630801 PITMAN ARM
630 A 3454630001 PITMAN ARM
630 A 3454630401 PITMAN ARM
630 A 3454630601 PITMAN ARM
A 0444340040 BRACKET
A 0449900202 SCREW
635 A 3524600057 UNIVERSAL JOINT
Repalced by: A 3164600057
635 A 3164600057 UNIVERSAL JOINT
Repalced by: A 3444607057
635 A 3164600157 UNIVERSAL JOINT
Repalced by: A 3444607057
635 A 4214600457 UNIVERSAL JOINT
Repalced by: A 3444607057
635 A 3444607057 UNIVERSAL JOINT
635 A 3444607157 UNIVERSAL JOINT
635 A 3444607257 UNIVERSAL JOINT
639 A 3444620101 STEERING SHAFT
639 A 0444620001 STEERING SHAFT
Repalced by: A 3444627201
639 A 3444627201 STEERING SHAFT
639 H 983444620301 STEERING SHAFT
Repalced by: A 3444627101
639 A 3444627101 STEERING SHAFT
639 A 3524620001 STEERING SHAFT
TOP
639 A 3454627301 STEERING SHAFT
640 H 983454620101 STEERING SHAFT
Repalced by: A 3454620001
640 A 3454620001 STEERING SHAFT
BOTTOM
641 A 3219900401 SCREW
642 A 3169900114 SCREW
UNIVERSAL JOINT TO STEERING COLUMN TUBE
643 N 000463010502 LOCK PLATE
644 H 980019900051 NUT
Repalced by: N 913004008005
644 A 3459900351 NUT
Repalced by: N 913004008005
644 N 913004008005 NUT
UNIVERSAL JOINT TO STEERING COLUMN TUBE
646 N 006888005006 WOODRUFF KEY
648 N 000936022004 NUT
660 A 0004662002 TANK
660 A 0004662402 TANK
Repalced by: A 3454667002
660 A 3454667002 TANK
A 0004660103 HOUSING
666 A 0004660040 BRACKET
Repalced by: A 0004660640
666 A 0004660640 BRACKET
668 A 0004660037 REINFORCEMENT
Repalced by: A 0004660095
668 A 0004660095 STRUT
670 A 0029973345 SEAL RING
Repalced by: A 0099970145
670 A 0099970145 SEAL RING
671 N 000127008205 LOCK WASHER
672 N 000934008035 NUT
674 A 0009976872 FITTING
Repalced by: A 0004660571
674 A 0004660571 FITTING
676 A 0029973245 SEAL RING
Repalced by: A 0059970848
676 A 0059970848 SEAL RING
679 A 0014664465 FILTER CARRIER
Repalced by: A 0004610065
679 A 0004610065 FILTER SUPPORT
681 A 0009977672 FITTING
681 A 3454667072 NUT
Repalced by: A 0004660458
681 H 983454660072 NUT
Repalced by: A 0004660458
681 A 0004660458 CONNECTOR
681 A 0004660272 CONNECTOR
681 A 0004660358 CONNECTOR
683 A 0004660153 SPACER TUBE
685 A 0004660275 WASHER
688 A 0004660675 CENTERING RING
690 A 0009870643 RUBBER SLEEVE
692 A 0004661305 COVER
Repalced by: A 0004664405
692 A 0004664405 COVER
694 A 0004660260 SEAL RING
695 A 0009901562 NUT
Repalced by: A 0009901462
695 A 0009901462 NUT
Repalced by: A 0009901562
695 A 0009901562 NUT
Repalced by: A 0009901662
695 A 0009901662 NUT
697 A 0004660067 OIL DIPSTICK
702 A 0004660604 FILTER
Repalced by: A 0004660204
702 A 0004660204 FILTER
Repalced by: A 0001842225
702 A 0001842225 FILTER ELEMENT
726 N 000933010294 SCREW
OIL TANK TO BRACKET
726 N 000933010294 SCREW
OIL TANK TO BRACKET
728 N 000127010202 LOCK WASHER
OIL TANK TO BRACKET
730 N 000934010000 NUT
OIL TANK TO BRACKET
740 N 003901022006 SCREW-IN FITTING
744 N 007603026104 SEAL RING
747 A 0009900171 ELBOW FITTING
Repalced by: H 983459900871
747 H 983459900871 ELBOW FITTING
750 N 915017022100 UNION NUT
752 N 003861022004 GLAND
755 A 0444602924 LINE
756 N 003861022004 GLAND
757 N 915017022100 UNION NUT
758 A 3459977381 GROMMET
765 A 0444600135 BRACKET
766 N 000933008228 SCREW
767 N 000127008206 LOCK WASHER
769 A 0269950231 CLAMP
771 N 000933008228 SCREW
772 N 000127008206 LOCK WASHER
774 A 0029979082 HOSE
775 A 3609970982 HOSE
FROM OIL TANK TO PUMP
775 A 3459977982 HOSE
FROM OIL TANK TO PUMP
775 A 3449978582 HOSE
Repalced by: A 3649977682
775 A 3649977682 HOSE
FROM OIL TANK TO PUMP
775D A 3644609024 LINE
FROM OIL TANK TO PUMP
775D A 3644669065 LINE
FROM OIL TANK TO PUMP
776 A 0009971390 LOOM TIE
Repalced by: N 916017025000
776 N 916017025000 CLAMP
Repalced by: A 3509978990
776 A 3509978990 CLAMP
777 A 3449977690 LOOM TIE
777 A 3509978190 LOOM TIE
778 A 0009900271 ELBOW FITTING
Repalced by: G 983449900171
778 H 983449900171 ELBOW FITTING
779 H 983444662365 LINE
Repalced by: A 3444660064
779 A 3444660064 PIPE
FROM HOSE TO OIL PUMP
780 N 003861022004 GLAND
781 N 915017022100 UNION NUT
785 A 0009900072 DISTRIBUTOR
788 A 0009900071 ELBOW FITTING
Repalced by: G 983449900071
788 H 983449900071 ELBOW FITTING
790 N 003901012005 SCREW-IN FITTING
790 A 0029971572 FITTING
792 A 0444602624 LINE
793 A 3444607524 LINE
FROM PUMP TO STEERING
795 N 003861012007 GLAND
797 N 915017012100 UNION NUT
805 H 983459971182 HOSE
Repalced by: A 3459970182
805 A 3459970182 HOSE
807 A 0109971682 HOSE
Repalced by: A 0019972652
807 A 0019972652 HOSE
807 A 3459977382 HOSE
810 A 0444602724 LINE
811 N 003861012007 GLAND
812 N 915017012100 UNION NUT
814 N 003902012000 CONNECTION FITTING
817 A 0444602824 LINE
817 A 0444604724 LINE
819 A 3444607424 LINE
FROM STEERING TO HOSE
819 A 3444609224 LINE
FROM STEERING TO HOSE
822 N 003861012007 GLAND
824 N 915017012100 UNION NUT
828 N 003901012005 SCREW-IN FITTING
828 A 0029971572 FITTING
830 N 007603016105 SEAL RING
836 A 3459977171 FITTING
838 N 007603018101 SEAL RING
845 A 0444602324 LINE
845 A 0444604624 LINE
846 H 983444602424 LINE
Repalced by: A 3444609124
846 A 3444609124 LINE
FROM STEERING TO OIL TANK
848 N 003861015004 GLAND
850 N 915017015100 UNION NUT
855 A 3049950532 CLAMP
856 N 007985006502 SCREW
857 N 000125006420 WASHER
858 N 000127006203 LOCK WASHER
859 N 000934006006 NUT
860 A 0314291540 BRACKET
Repalced by: A 3444660240
860 A 3444660240 BRACKET
OIL LINES
862 A 3049950532 CLAMP
OIL LINES
864 N 007985005183 SCREW
CLAMP TO BRACKET
865 N 000125005313 WASHER
CLAMP TO BRACKET
865 N 000125005315 WASHER
CLAMP TO BRACKET
866 N 912004005100 LOCK WASHER
CLAMP TO BRACKET
866 N 000127005001 LOCK WASHER
CLAMP TO BRACKET
867 N 000934005008 NUT
CLAMP TO BRACKET
870 N 003902015000 CONNECTION FITTING
875 A 0444602424 LINE
877 N 003861015004 GLAND
878 N 915017015100 UNION NUT
880 A 0444660640 BRACKET
881 H 983444660140 BRACKET
Repalced by: A 3454290040
881 A 3454290040 BRACKET
881E N 007985006502 SCREW
BRACKET MOUNTING
882 N 000933008282 SCREW
BRACKET MOUNTING
882E N 000127006203 LOCK WASHER
BRACKET MOUNTING
883 N 000125008417 WASHER
BRACKET MOUNTING
883E N 000934006006 NUT
BRACKET MOUNTING
884 N 913004008001 NUT
Repalced by: N 913004008001
884 N 913004008001 NUT
BRACKET MOUNTING
886 A 3049950532 CLAMP
886E N 007985006515 SCREW
CLAMP MOUNTING
887 N 007985005183 SCREW
CLAMP MOUNTING
888 N 000125006420 WASHER
CLAMP MOUNTING
888H N 000125005315 WASHER
CLAMP MOUNTING
888N N 000127006203 LOCK WASHER
CLAMP MOUNTING
888Q N 000127005001 LOCK WASHER
CLAMP MOUNTING
888T N 000934006006 NUT
CLAMP MOUNTING
889 N 000934005008 NUT
CLAMP MOUNTING
890 N 003902015000 CONNECTION FITTING
894 A 0444602524 LINE
895 N 003861015004 GLAND
896 N 915017015100 UNION NUT
897 A 8339970081 GROMMET
898 A 0444600235 BRACKET
900 A 3049950220 CLAMP
904 N 007985006515 SCREW
906 N 000127006203 LOCK WASHER
910 N 003901015000 SCREW-IN FITTING
912 N 007603018101 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
