Transporto priemonė: LS 1113 B; VIN numerio dalis: 358014

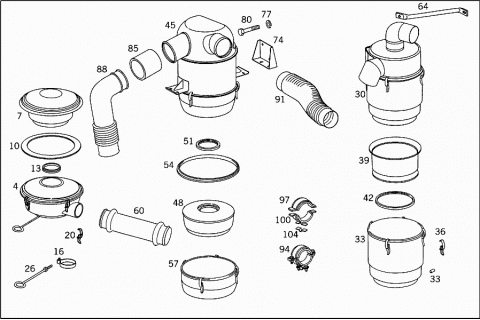

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0020945202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 007 | A 0000946104 | FILTER ELEMENT |
| 010 | A 0000947280 | GASKET |
| OUTSIDE | ||
| 013 | A 0000945880 | GASKET |
| INSIDE | ||
| A 0000943042 | CLAMP | |
| Repalced by: A 0000944442 | ||
| 016 | A 0000944442 | CLAMP |
| A 0009900938 | SCREW | |
| Repalced by: A 0009901238 | ||
| A 3529900201 | SCREW | |
| Repalced by: A 0009901238 | ||
| N 000557008003 | NUT | |
| A 0000940155 | FASTENER | |
| Repalced by: A 0000941255 | ||
| 020 | A 0000941255 | FASTENER |
| 026 | A 0009901238 | SCREW |
| Repalced by: A 0000941571 | ||
| 026 | A 0000941571 | SCREW |
| 030 | A 0030945202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 033 | A 0000944703 | FILTER BOWL |
| A 0000940155 | FASTENER | |
| Repalced by: A 0000947180 | ||
| 036 | A 0000941255 | FASTENER |
| 039 | A 0000949104 | FILTER ELEMENT |
| 042 | A 0000947480 | GASKET |
| 045 | A 0060944702 | AIR CLEANER |
| MANN & HUMMEL | ||
| 048 | A 0000944206 | ELEMENT |
| 051 | A 0000944180 | GASKET |
| INSIDE | ||
| 054 | A 0000944080 | GASKET |
| OUTSIDE | ||
| 057 | A 0000944306 | FILTER BOWL |
| A 0019947535 | SNAP RING | |
| DIA., | ||
| 120 MM | ||
| 060 | A 3220941808 | INTAKE PIPE |
| AIR INTAKE PIPE TO AIR BAFFLE | ||
| N 916017080000 | CLAMP | |
| Repalced by: N 000000000675 | ||
| N 000000000675 | CLAMP | |
| Repalced by: A 0059972990 | ||
| A 0059972990 | CLAMP | |
| INTAKE PIPE TO AIR CLEANER | ||
| 064 | A 3520940043 | STRUT |
| BRACKET TO SIDE MEMBER | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000933008145 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000127008102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 074 | A 3525282440 | BRACKET |
| OIL BATH AIR CLEANER MOUNTING | ||
| 077 | N 912004008102 | LOCK WASHER |
| OIL BATH AIR CLEANER MOUNTING | ||
| 080 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 080 | N 304017008018 | SCREW |
| OIL BATH AIR CLEANER MOUNTING | ||
| 080 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 080 | N 304017010028 | HEXAGON HEAD BOLT |
| OIL BATH AIR CLEANER MOUNTING | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| OIL BATH AIR CLEANER MOUNTING | ||
| N 912004010102 | LOCK WASHER | |
| OIL BATH AIR CLEANER MOUNTING | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| OIL BATH AIR CLEANER MOUNTING | ||
| 085 | N 900271100002 | HOSE |
| HOSE TO OIL BATH AIR CLEANER | ||
| 088 | A 0000941709 | INTAKE PIPE |
| TO OIL BATH AIR CLEANER | ||
| A 0000943082 | HOSE | |
| FROM OIL BATH AIR CLEANER TO EXHAUST GAS TURBINE | ||
| A 0000948782 | HOSE | |
| FROM OIL BATH AIR CLEANER TO EXHAUST GAS TURBINE | ||
| 091 | A 0000947482 | HOSE |
| Repalced by: A 0000947682 | ||
| 091 | A 0000947682 | HOSE |
| FROM OIL BATH AIR CLEANER TO EXHAUST GAS TURBINE | ||
| 094 | A 3220900142 | CLAMP |
| 097 | A 3220900042 | CLAMP |
| 100 | A 3220900242 | CLAMP |
| 104 | A 3220900310 | VALVE |
| N 000933006102 | SCREW | |
| M 6 X 15 | ||
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 916017090000 | CLAMP | |
| N 916017110001 | CLAMP | |
| Repalced by: A 0059971490 | ||
| A 0059971490 | HOSE CLAMP | |
| Repalced by: A 0019951910 | ||
| A 0019951910 | CLAMP | |
| N 916017080000 | CLAMP | |
| Repalced by: N 000000000675 | ||
| N 000000000675 | CLAMP | |
| Repalced by: A 0059972990 | ||
| A 0059972990 | CLAMP | |
