Transporto priemonė: LS 1113 B; VIN numerio dalis: 358014

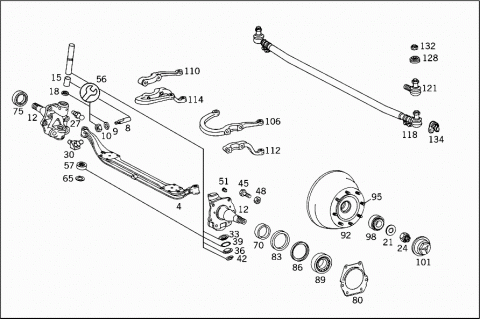

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3583305300 | FRONT AXLE | |
| A 3583305400 | FRONT AXLE | |
| A 3583305700 | FRONT AXLE | |
| A 3583305800 | FRONT AXLE | |
| A 3523307400 | FRONT AXLE | |
| A 3523307500 | FRONT AXLE | |
| 004 | A 3583310001 | FRONT AXLE BEAM |
| 004 | A 3583310101 | FRONT AXLE BEAM |
| 004 | A 3403310001 | FRONT AXLE BEAM |
| A 3603311201 | FRONT AXLE BEAM | |
| Repalced by: A 3603310101 | ||
| 004 | A 3603310101 | FRONT AXLE BEAM |
| 008 | A 3279900137 | BOLT |
| 009 | N 912004008102 | LOCK WASHER |
| 010 | N 304032008006 | NUT |
| 012 | A 3273320401 | STEERING KNUCKLE |
| A 3023300320 | STEERING KNUCKLE | |
| Repalced by: A 3023320501 | ||
| 012 | A 3023320501 | STEERING KNUCKLE |
| 012 | A 3023320601 | STEERING KNUCKLE |
| A 3213320048 | BUSHING | |
| 015 | A 3403320048 | BUSHING |
| 018 | A 0089977646 | SEAL RING |
| 021 | A 3273321662 | THRUST WASHER |
| 024 | N 000937032000 | NUT |
| N 000094006013 | COTTER PIN | |
| 027 | N 071412010100 | GREASE NIPPLE |
| 030 | N 071412010200 | GREASE NIPPLE |
| 033 | A 3273320029 | SEALING CAP |
| 033 | A 3603320029 | SEALING CAP |
| 036 | A 3603320129 | SEALING CAP |
| A 3279970145 | SEAL RING | |
| 039 | A 3409970145 | SEAL RING |
| N 000472042001 | LOCK RING | |
| 042 | N 000472045000 | LOCK RING |
| 045 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 045 | N 000960012384 | SCREW |
| 045 | A 3873320171 | SCREW |
| Repalced by: A 3873320271 | ||
| 045 | A 3873320271 | SCREW |
| AS REQUIRED | ||
| M 16X40 | ||
| 048 | A 3403370072 | NUT |
| 048 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 048 | N 308673016001 | NUT |
| 051 | N 915042011000 | PLUG |
| 051 | N 900083015000 | PLUG |
| 056 | A 3273300019 | KING PIN |
| STANDARD | ||
| 35 MM | ||
| 056 | A 3603300719 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| 056 | A 3273300119 | KING PIN |
| STANDARD SIZE I | ||
| 35.3 MM | ||
| 056 | A 3603300819 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| 056 | A 3273300219 | KING PIN |
| REPAIR SIZE I | ||
| 35.6 MM | ||
| 056 | A 3603300919 | KING PIN |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| 056 | A 3273300319 | KING PIN |
| Repalced by: A 3273320306 | ||
| 056 | A 3273320306 | KINGPIN |
| REPAIR SIZE II | ||
| 35.9 MM | ||
| 056 | A 3603320606 | KINGPIN |
| REPAIR SIZE II | ||
| 37.55 MM | ||
| 057 | A 0009812818 | ROLLER BEARING |
| Repalced by: A 0009811918 | ||
| 057 | A 0009811918 | ROLLER BEARING |
| STANDARD | ||
| 35 MM | ||
| 057 | A 0019814118 | ROLLER BEARING |
| STANDARD SIZE | ||
| 35.3 MM | ||
| 057 | A 0019814218 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 35.6 MM | ||
| 057 | A 0019814318 | ROLLER BEARING |
| REPAIR SIZE II | ||
| 35.9 MM | ||
| 057 | A 0009815418 | ROLLER BEARING |
| STANDARD | ||
| 36.652 MM | ||
| 057 | A 0009818618 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| 057 | A 0009818718 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 37.25 MM | ||
| 065 | A 3403320352 | SPACER WASHER |
| Repalced by: A 3403320452 | ||
| 065 | A 3403320552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.4 MM | ||
| 065 | A 3403320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 065 | A 3403320752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.6 MM | ||
| 065 | A 3403320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 065 | A 3403320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.8 MM | ||
| 065 | A 3403321052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 065 | A 3403320352 | SPACER WASHER |
| Repalced by: A 3403320452 | ||
| 065 | A 3403320452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.3 MM | ||
| 065 | A 3403320552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.4 MM | ||
| 065 | A 3403320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 065 | A 3403320752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.6 MM | ||
| 065 | A 3403320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 065 | A 3403320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.8 MM | ||
| 065 | A 3403321052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 070 | A 3213340115 | RING |
| LEFT | ||
| 070 | A 3603340115 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 070 | A 3213340215 | RING |
| RIGHT | ||
| 075 | A 3603340215 | RING |
| FRONT WHEEL HUB,INSIDE,RIGHT | ||
| 080 | A 3553340082 | OIL COLLECTOR |
| 083 | A 0009973446 | SEAL RING |
| 083 | A 0079973646 | SEAL RING |
| 083 | A 0119977147 | SEAL RING |
| 086 | A 3213340051 | SPACER RING |
| 086 | A 3523340151 | SPACER RING |
| A 0009818905 | TAPERED ROLLER BEARING | |
| INSIDE | ||
| 089 | A 0029810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 089 | A 0019819705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 089 | A 0039817105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 089 | A 0039817305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 089 | A 0019801002 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 3583340004 | DRUM HUB |
| 092 | A 3583340404 | DRUM HUB |
| A 3213340501 | WHEEL HUB | |
| A 3523340201 | WHEEL HUB | |
| 095 | A 3524020171 | WHEEL MOUNTING BOLT |
| Repalced by: A 0004015271 | ||
| 095 | A 0004015271 | WHEEL MOUNTING BOLT |
| A 3414230001 | BRAKE DRUM | |
| 098 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 098 | A 0049813805 | TAPERED ROLLER BEARING |
| 098 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 098 | A 0049813405 | TAPERED ROLLER BEARING |
| 098 | A 0039816405 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 098 | A 0049813405 | TAPERED ROLLER BEARING |
| 098 | A 0069810705 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 098 | A 0049813805 | TAPERED ROLLER BEARING |
| 101 | A 3213340225 | HUB CAP |
| 101 | A 3213340225 | HUB CAP |
| 106 | A 3523380007 | STEERING ARM |
| Repalced by: A 3603380507 | ||
| 106 | A 3603380007 | STEERING ARM |
| Repalced by: A 3603380507 | ||
| 106 | A 3603380507 | STEERING ARM |
| LEFT | ||
| 110 | A 3523380108 | STEERING ARM |
| Repalced by: A 3603380706 | ||
| 110 | A 3603380006 | STEERING ARM |
| Repalced by: A 3603380706 | ||
| 110 | A 3603380706 | STEERING ARM |
| RIGHT | ||
| 112 | A 3223380605 | STEERING ARM |
| Repalced by: A 3603380805 | ||
| 112 | A 3603380505 | STEERING ARM |
| Repalced by: A 3603380805 | ||
| 112 | A 3603380805 | STEERING ARM |
| LEFT | ||
| 114 | A 3523380008 | STEERING ARM |
| Repalced by: A 3603380508 | ||
| A 3603320571 | SCREW | |
| 114 | A 3603380008 | STEERING ARM |
| Repalced by: A 3603380508 | ||
| 114 | A 3603380508 | STEERING ARM |
| RIGHT | ||
| 118 | A 3523300203 | TIE ROD |
| Repalced by: A 3583300003 | ||
| 118 | A 3583300003 | TIE ROD |
| Repalced by: A 3583300703 | ||
| 118 | A 3583300703 | TIE ROD |
| LEMFOERDER | ||
| 118 | A 3583300103 | TIE ROD |
| Repalced by: A 3583300503 | ||
| 118 | A 3583300503 | TIE ROD |
| 121 | A 0003301235 | JOINT |
| Repalced by: A 0003309735 | ||
| 121 | A 0003309735 | JOINT |
| Repalced by: A 0023301335 | ||
| 121 | A 0023301335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 121 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 121 | A 0003301335 | JOINT |
| Repalced by: A 0003309835 | ||
| 121 | A 0003309835 | JOINT |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 121 | A 0003303335 | JOINT |
| Repalced by: A 0003309435 | ||
| 121 | A 0003309435 | JOINT |
| AS REQUIRED | ||
| LEMFOERDER | ||
| 128 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 128 | A 0003300885 | BOOT |
| 132 | N 000937018003 | NUT |
| N 000094004065 | COTTER PIN | |
| 134 | A 0009953644 | CLAMP |
| Repalced by: A 0009950544 | ||
| 134 | A 0009950544 | CLAMP |
| Repalced by: A 0009957044 | ||
| 134 | A 0009957044 | CLAMP |
| A 0003381045 | CLAMP | |
