Transporto priemonė: LS 1113 B; VIN numerio dalis: 358014

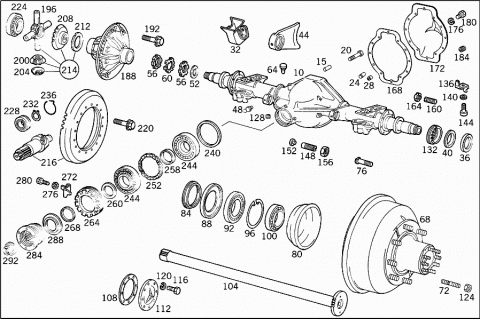

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3583501400 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 7:43 | ||
| A 3583508400 | REAR AXLE | |
| Repalced by: A 3533501200 | ||
| A 3533501200 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 7:43 | ||
| A 3583502500 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 7:48 | ||
| A 3583502600 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 7:40 | ||
| A 3583507300 | REAR AXLE | |
| WITH BRAKES;RATIO: | ||
| 7:40 | ||
| 010 | A 3583500020 | AXLE HOUSING |
| 010 | A 3583500020 | AXLE HOUSING |
| 010 | A 3583500420 | AXLE HOUSING |
| 015 | N 000007006205 | CYLINDRICAL PIN |
| 020 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 024 | A 3523510174 | PIN |
| 028 | A 3129971002 | PLUG |
| 032 | A 3523201043 | BRACKET |
| SHOCK ABSORBERS | ||
| 036 | A 3223560015 | THRUST RING |
| LEFT | ||
| 036 | A 3223560015 | THRUST RING |
| LEFT | ||
| 036 | A 3523560415 | THRUST RING |
| LEFT | ||
| 036 | A 3223560115 | THRUST RING |
| RIGHT | ||
| 036 | A 3223560115 | THRUST RING |
| RIGHT | ||
| A 3223561215 | THRUST RING | |
| Repalced by: A 3523560415 | ||
| 036 | A 3523560415 | THRUST RING |
| RIGHT | ||
| 040 | A 3213570082 | OIL COLLECTOR |
| 044 | A 3534260008 | BEARING BRACKET |
| TO BRAKE SHAFT | ||
| 048 | N 071412010100 | GREASE NIPPLE |
| 052 | A 3213560152 | SPACER WASHER |
| 052 | A 3213560152 | SPACER WASHER |
| 052 | A 3223560152 | SPACER WASHER |
| Repalced by: A 3523560052 | ||
| 052 | A 3523560052 | SPACER WASHER |
| 056 | A 3213560126 | GROOVED NUT |
| 056 | A 3213560126 | GROOVED NUT |
| 056 | A 3223560126 | GROOVED NUT |
| 060 | A 3213560173 | LOCK PLATE |
| 060 | A 3213560173 | LOCK PLATE |
| 060 | A 3223560173 | LOCK PLATE |
| 064 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 064 | A 3833510065 | FITTING |
| 068 | A 3583560102 | DRUM HUB |
| 068 | A 3583560202 | DRUM HUB |
| 068 | A 3583560202 | DRUM HUB |
| A 3523560401 | WHEEL HUB | |
| 072 | A 3129901605 | STUD |
| 072 | A 3129902105 | STUD |
| 072 | A 3129902105 | STUD |
| 076 | A 3524020171 | WHEEL MOUNTING BOLT |
| Repalced by: A 0004015271 | ||
| 076 | A 0004015271 | WHEEL MOUNTING BOLT |
| 076 | A 0004015271 | WHEEL MOUNTING BOLT |
| 076 | A 3524020071 | WHEEL MOUNTING BOLT |
| 076 | A 3024020071 | WHEEL MOUNTING BOLT |
| 080 | A 3213560082 | OIL COLLECTOR |
| 080 | A 3213560082 | OIL COLLECTOR |
| 080 | A 3223560282 | OIL COLLECTOR |
| A 3024230001 | BRAKE DRUM | |
| 084 | A 0009977446 | SEAL RING |
| Repalced by: A 3813500068 | ||
| 084 | A 3813500068 | REPAIR KIT |
| 084 | A 3813500068 | REPAIR KIT |
| 084 | A 0049977745 | SEAL RING |
| Repalced by: A 3833500068 | ||
| 084 | A 3833500068 | REPAIR KIT |
| 088 | A 3213560051 | SPACER RING |
| 088 | A 3223560051 | SPACER RING |
| 092 | A 0009817205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0009817205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0009819405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0009819405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0069810605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0069810605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0029811805 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 092 | A 0029811705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 096 | N 000472120000 | LOCK RING |
| 096 | N 000472120000 | LOCK RING |
| 096 | N 000472125000 | LOCK RING |
| 100 | A 0009814605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 100 | A 0009814605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 100 | A 0009814105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 100 | A 0009814105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 100 | A 0029815605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 100 | A 0029815505 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 104 | A 3223572601 | REAR AXLE SHAFT |
| 104 | A 3223572601 | REAR AXLE SHAFT |
| 104 | A 3523570401 | REAR AXLE SHAFT |
| Repalced by: A 3833570601 | ||
| 104 | A 3833570601 | REAR AXLE SHAFT |
| 108 | A 3223560179 | GASKET |
| 112 | A 3223560020 | HUB CAP |
| Repalced by: A 3003560020 | ||
| 112 | A 3003560020 | HUB CAP |
| 116 | N 000933008145 | SCREW |
| 120 | N 912004008102 | LOCK WASHER |
| 124 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 124 | N 308673012002 | HEXAGON NUT |
| 124 | A 3223530072 | NUT |
| 124 | A 3223530072 | NUT |
| 128 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 128 | A 3529970032 | SCREW PLUG |
| 132 | A 3213530025 | SCREW COLLAR |
| 136 | A 3123531173 | LOCK |
| 140 | N 006797008120 | TOOTHED WASHER |
| 144 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 144 | N 304017008021 | SCREW |
| 148 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 148 | A 6743530076 | SET SCREW |
| 152 | A 3853530149 | SLIDE |
| 156 | A 3159900051 | NUT |
| 160 | A 3223510171 | SCREW |
| Repalced by: A 3853370171 | ||
| 160 | A 3853370171 | SCREW |
| 164 | N 080705014002 | NUT |
| 168 | A 3223510180 | GASKET |
| Repalced by: A 6503510080 | ||
| 168 | A 6503510080 | GASKET |
| 168 | A 3023510180 | GASKET |
| Repalced by: A 6503510180 | ||
| 168 | A 6503510180 | GASKET |
| 172 | A 3223500421 | COVER |
| 172 | A 3023500221 | COVER |
| 176 | N 912004010102 | LOCK WASHER |
| 180 | N 000933010006 | SCREW |
| 184 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 184 | A 3529970032 | SCREW PLUG |
| 188 | A 3833502323 | DIFFERENTIAL GEAR |
| 188 | A 3833502323 | DIFFERENTIAL GEAR |
| A 3833502123 | DIFFERENTIAL GEAR | |
| Repalced by: A 6763501923 | ||
| A 6763501923 | DIFFERENTIAL GEAR | |
| 192 | A 3229903001 | SCREW |
| 196 | A 3833530120 | DIFFERENTIAL SPIDER |
| 200 | A 3023530014 | DIFFERENTIAL PINION |
| 204 | A 3523530024 | SPHERICAL WASHER |
| 208 | A 3583530015 | SIDE GEAR |
| 208 | A 3023530015 | SIDE GEAR |
| 212 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 212 | A 6743530362 | THRUST WASHER |
| 2.00 MM | ||
| 214 | A 3585860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 214 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 216 | A 3833500339 | RING GEAR AND PINION |
| Repalced by: A 3013500739 | ||
| 216 | A 3013500739 | RING GEAR AND PINION |
| RATIO: | ||
| 7:43 | ||
| 216 | A 3223501839 | RING GEAR AND PINION |
| Repalced by: A 3833500039 | ||
| 216 | A 3833500039 | RING GEAR AND PINION |
| Repalced by: A 6163500139 | ||
| 216 | A 6163500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:48 | ||
| 216 | A 3223502139 | RING GEAR AND PINION |
| Repalced by: A 3833500139 | ||
| 216 | A 3833500139 | RING GEAR AND PINION |
| RATIO: | ||
| 7:40 | ||
| 220 | A 3229902901 | SCREW |
| 224 | A 0029811605 | TAPERED ROLLER BEARING |
| 224 | A 0009815705 | TAPERED ROLLER BEARING |
| 224 | A 0029812605 | TAPERED ROLLER BEARING |
| 228 | A 0009818601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029817901 | ||
| 228 | A 0029817901 | CYLINDR. ROLLER BEARING |
| 228 | A 0029819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029819501 | ||
| 228 | A 0029819501 | CYLINDR. ROLLER BEARING |
| 228 | A 0009819601 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0029818201 | ||
| 228 | A 0029818201 | CYLINDR. ROLLER BEARING |
| 232 | N 000471035000 | LOCK RING |
| 236 | A 3229940137 | SNAP RING |
| 240 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 240 | A 6703530852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 240 | A 3273532262 | THRUST WASHER |
| Repalced by: A 6703530752 | ||
| 240 | A 6703530752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 240 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| 240 | A 6703530652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 240 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| 240 | A 6703530552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 240 | A 3273532362 | THRUST WASHER |
| Repalced by: A 6703533752 | ||
| 240 | A 6703533752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 244 | A 0009814005 | TAPERED ROLLER BEARING |
| 244 | A 0029811105 | TAPERED ROLLER BEARING |
| 244 | A 0019819805 | TAPERED ROLLER BEARING |
| 252 | A 6163530152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.10 MM | ||
| 252 | A 6163530352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.14 MM | ||
| 252 | A 6163530552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.18 MM | ||
| 252 | A 6163530752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.22 MM | ||
| 252 | A 6163530952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.26 MM | ||
| 252 | A 6163531152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.30 MM | ||
| 252 | A 6163531352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.34 MM | ||
| 252 | A 6163531552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.38 MM | ||
| 252 | A 6163531752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.42 MM | ||
| 252 | A 6163531952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.46 MM | ||
| 252 | A 6163532152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.50 MM | ||
| 258 | A 3223530051 | SPACER RING |
| 15.50 MM | ||
| 260 | A 3213530762 | THRUST WASHER |
| AS REQUIRED | ||
| 7 MM | ||
| 264 | A 3273531025 | SCREW COLLAR |
| 268 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 268 | A 0169976847 | SEAL RING |
| 272 | A 3223530073 | LOCK |
| 276 | N 006797008120 | TOOTHED WASHER |
| 280 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 280 | N 304017008039 | SCREW |
| 284 | A 3273500245 | FLANGE |
| Repalced by: A 3583500045 | ||
| 284 | A 3583500045 | FLANGE |
| 288 | A 3273530291 | PROTECTIVE PLATE |
| 292 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 292 | A 3853510172 | NUT |
