Transporto priemonė: LS 1313; VIN numerio dalis: 352015
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

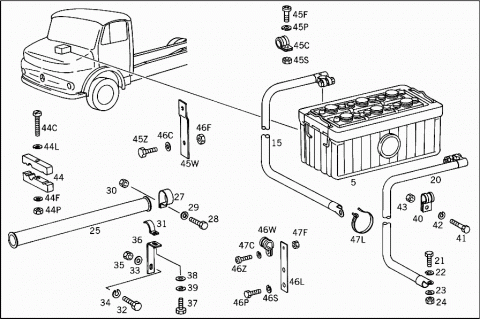

70675

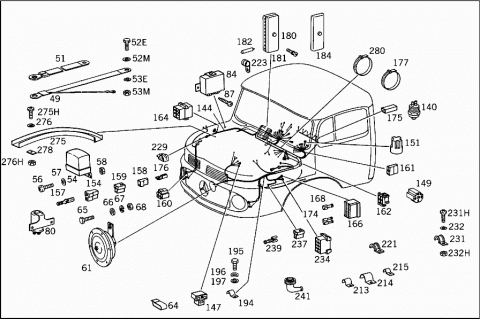

70676

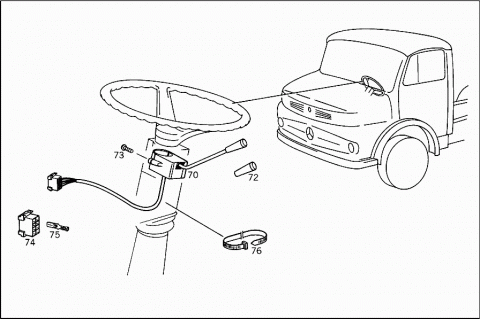

70677

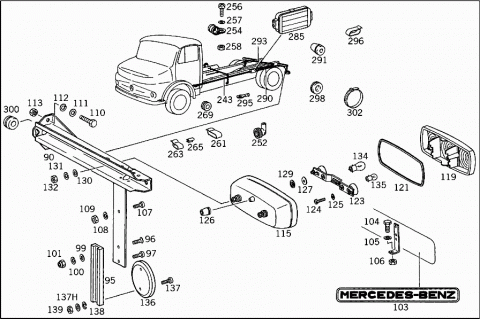

70678

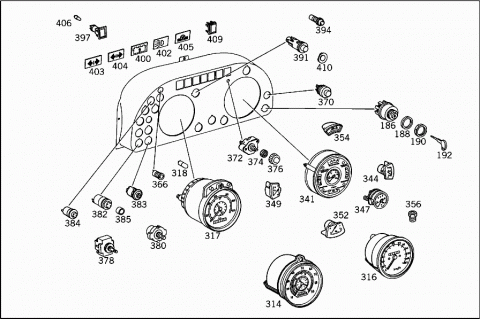

70679

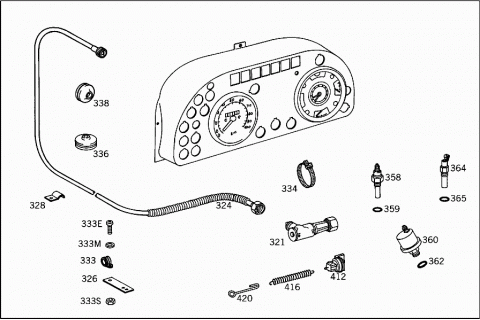

70680

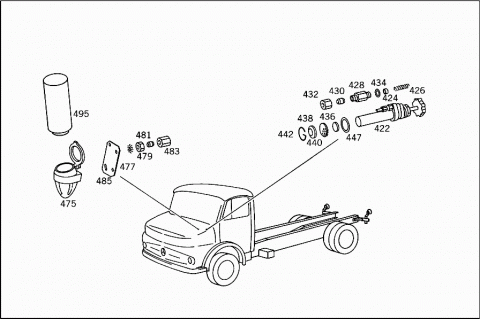

70681
# Kodas Pavadinimas
005 A 0005417801 BATTERY
Repalced by: A 3875400901
005 A 3875400901 BATTERY
Repalced by: A 0035410201
005 A 0035410201 BATTERY
Repalced by: A 0015419701
005 A 0015419701 BATTERY
Repalced by: A 0025411701
005 A 0025411701 BATTERY
143 AH
005 A 0005418001 BATTERY
Repalced by: A 3875400801
005 A 3875400801 BATTERY
Repalced by: A 0035410101
005 A 0035410101 BATTERY
Repalced by: A 0035411801
005 A 0035411801 BATTERY
Repalced by: A 0025412301
005 A 0025412301 BATTERY
12 V/135 AH
005 A 0025412301 BATTERY
12 V/135 AH
A 3148900063 FRAME
BATTERY MOUNTING
A 3148950371 SCREW
Repalced by: A 3098950371
A 3098950371 SCREW
BATTERY MOUNTING
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
BATTERY MOUNTING
N 000315006001 NUT
BATTERY MOUNTING
A 3525410025 ANGLE
BATTERY MOUNTING
N 000931008266 SCREW
BATTERY MOUNTING
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BATTERY MOUNTING
N 912004008102 LOCK WASHER
BATTERY MOUNTING
N 304032008006 NUT
BATTERY MOUNTING
A 3275400130 POSITIVE CABLE
Repalced by: N 072551095880
A 3225403130 POSITIVE CABLE
Repalced by: N 072551095880
015 A 3605400330 POSITIVE CABLE
Repalced by: N 072551095880
015 A 3605400430 POSITIVE CABLE
Repalced by: N 072551095880
015 A 3605403730 POSITIVE CABLE
Repalced by: N 072551095880
015 A 3185400030 POSITIVE CABLE
Repalced by: N 072551095880
N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
N 922002095000 ELECTRIC CABLE
FROM BATTERY TO STARTING MOTOR
N 922002095000 ELECTRIC CABLE
FROM BATTERY TO STARTING MOTOR
N 072332015100 SOLDERING TERMINAL
POS. POLE
N 046234010006 CABLE SHOE
STARTING MOTOR
015 A 3225400430 POSITIVE CABLE
Repalced by: N 072551095880
N 912004010102 LOCK WASHER
CABLE TO STARTING MOTOR,TERMINAL 30
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
CABLE TO STARTING MOTOR,TERMINAL 30
A 3525400531 NEG. CABLE
FROM BATTERY TO CAB CROSS MEMBER
A 3525403031 NEG. CABLE
Repalced by: N 072551095880
A 3185400131 NEG. CABLE
Repalced by: N 072551095880
020 A 3525401931 NEG. CABLE
Repalced by: N 072551095880
020 A 3215402631 NEG. CABLE
Repalced by: N 072551095880
N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
N 922002095000 ELECTRIC CABLE
FROM BATTERY TO CAB CROSS MEMBER
N 072332015200 SOLDERING TERMINAL
NEG.POLE
N 046234010006 CABLE SHOE
NEG. CABLE
021 N 000933010129 SCREW
Repalced by: N 304017010002
021 N 304017010002 SCREW
NEG. CABLE TO CAB CROSS MEMBER
022 N 912004010102 LOCK WASHER
NEG. CABLE TO CAB CROSS MEMBER
023 N 009021010202 WASHER
Repalced by: N 009021010209
023 N 009021010209 WASHER
NEG. CABLE TO CAB CROSS MEMBER
024 N 000934010014 NUT
Repalced by: N 304032010003
024 N 304032010003 NUT
NEG. CABLE TO CAB CROSS MEMBER
025 A 3525460085 PROTECTIVE TUBE
027 A 3529950201 CLAMP
Repalced by: A 6739950101
027 A 6739950101 CLAMP
CABLE CONDUIT TO CAB FLOOR
028 N 000933008147 SCREW
Repalced by: N 304017008021
028 N 304017008021 SCREW
CLAMP MOUNTING
029 N 912004008102 LOCK WASHER
CLAMP MOUNTING
030 N 304032008006 NUT
CLAMP MOUNTING
031 A 6219950120 CLAMP
CABLE CONDUIT TO BRACKET
032 N 000933006102 SCREW
CLAMP MOUNTING
033 N 009021006205 WASHER
Repalced by: N 009021006208
033 N 009021006208 WASHER
CLAMP MOUNTING
034 N 912004006102 LOCK WASHER
CLAMP MOUNTING
035 N 000934006007 NUT
CLAMP MOUNTING
036 A 3275465482 BRACKET
CABLE CONDUIT
037 N 000933008212 SCREW
Repalced by: N 304017008016
037 N 304017008016 SCREW
BRACKET MOUNTING
038 N 009021008205 WASHER
Repalced by: N 009021008213
038 N 009021008213 WASHER
BRACKET MOUNTING
039 N 912004008102 LOCK WASHER
BRACKET MOUNTING
040 N 916016022206 CLAMP
BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER
041 N 000933006121 SCREW
Repalced by: N 304017006020
041 N 304017006020 SCREW
CLAMP MOUNTING
042 N 912004006102 LOCK WASHER
CLAMP MOUNTING
043 N 000934006007 NUT
CLAMP MOUNTING
A 3525460044 CLAMPING PIECE
BATTERY CABLE THRU CAB FLOOR
N 000931006115 SCREW
Repalced by: N 000933006151
N 000933006151 SCREW
BATTERY CABLE THRU CAB FLOOR
N 912004006102 LOCK WASHER
BATTERY CABLE THRU CAB FLOOR
N 000934006007 NUT
BATTERY CABLE THRU CAB FLOOR
044 A 3525460744 CLAMPING PIECE
Repalced by: A 3185460044
044 A 3185460044 CLAMPING PIECE
BATTERY CABLE THRU CAB CROSS MEMBER
044C N 000084006125 SCREW
BATTERY CABLE THRU CAB CROSS MEMBER
044F N 009021006205 WASHER
Repalced by: N 009021006208
044F N 009021006208 WASHER
BATTERY CABLE THRU CAB CROSS MEMBER
044L N 912004006102 LOCK WASHER
BATTERY CABLE THRU CAB CROSS MEMBER
044P N 000934006007 NUT
BATTERY CABLE THRU CAB CROSS MEMBER
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BATTERY CABLE THRU CAB CROSS MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BATTERY CABLE THRU CAB CROSS MEMBER
N 912004008102 LOCK WASHER
BATTERY CABLE THRU CAB CROSS MEMBER
045C N 916016019200 CLAMP
BATTERY CABLE TO CAB CROSS MEMBER
045F N 007985008119 SCREW
BATTERY CABLE TO CAB CROSS MEMBER
N 007985008142 SCREW
BATTERY CABLE TO CAB CROSS MEMBER
045P N 912004008102 LOCK WASHER
BATTERY CABLE TO CAB CROSS MEMBER
045S N 304032008006 NUT
BATTERY CABLE TO CAB CROSS MEMBER
045W A 3605460043 BRACKET
BATTERY CABLE TO CAB CROSS MEMBER
045Z N 000933008212 SCREW
Repalced by: N 304017008016
045Z N 304017008016 SCREW
BATTERY CABLE TO CAB CROSS MEMBER
046C N 912004008102 LOCK WASHER
BATTERY CABLE TO CAB CROSS MEMBER
046F N 304032008006 NUT
BATTERY CABLE TO CAB CROSS MEMBER
046L A 3525462243 BRACKET
Repalced by: A 3184923441
046L A 3184923441 BRACKET
BATTERY CABLE TO STARTING MOTOR
046P N 304017010027 SCREW
BRACKET MOUNTING
046S N 912004010102 LOCK WASHER
BRACKET MOUNTING
046W N 916016018201 CLAMP
CLAMP TO BRACKET
046Z N 007985005149 SCREW
CLAMP TO BRACKET
047C N 912004005103 LOCK WASHER
CLAMP TO BRACKET
047F N 304032005002 NUT
Repalced by: N 304032005005
047F N 304032005005 NUT
CLAMP TO BRACKET
047C A 0019974290 LOOM TIE
Repalced by: A 0019974390
047L A 0019974390 LOOM TIE
BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
A 3285400081 PLUG SOCKET
WITH ELECTRIC CABLES
N 072593035100 PLUG SOCKET
N 922002050000 ELECTRIC CABLE
Repalced by: A 6735460011
A 6735460011 ELECTRIC CABLE
N 046234010008 CABLE SHOE
A 3285401330 POSITIVE CABLE
A 3285401331 NEG. CABLE
A 0005450050 BUSHING
A 3045400243 CABLE CONNECTOR
Repalced by: A 3045460141
A 3045460141 CABLE CONNECTOR
N 000084010108 SCREW
N 000439010209 NUT
A 3045460168 PART NAME MISSING
049 A 3521500032 GROUND CABLE
FROM ALTERNATOR TO FRAME SIDE MEMBER
051 A 3525400141 GROUND STRAP
Repalced by: A 3525400041
051 A 3525400041 GROUND STRAP
FROM CAB CROSS MEMBER TO BELL HOUSING
052E N 000933010105 SCREW
GROUND STRAP TO FRAME SIDE MEMBER
052M N 009021010202 WASHER
Repalced by: N 009021010209
052M N 009021010209 WASHER
GROUND STRAP TO FRAME SIDE MEMBER
053E N 912004010102 LOCK WASHER
GROUND STRAP TO FRAME SIDE MEMBER
053M N 000934010014 NUT
Repalced by: N 304032010003
053M N 304032010003 NUT
GROUND STRAP TO FRAME SIDE MEMBER
A 0005460620 GROUND STRAP
Repalced by: A 0005460720
A 0005460720 GROUND STRAP
FROM ENGINE BLOCK TO RADIATOR
054 A 0011548406 REGULATOR AND CUT-OUT
Repalced by: A 0021543606
054 A 0021543606 REGULATOR AND CUT-OUT
Repalced by: A 0021547406
054 A 0021547406 REGULATOR AND CUT-OUT
A 0011548506 REGULATOR AND CUT-OUT
Repalced by: A 0021542806
A 0021542806 REGULATOR AND CUT-OUT
Repalced by: A 0021543606
A 0021543606 REGULATOR AND CUT-OUT
Repalced by: A 0021547406
A 0021547406 REGULATOR AND CUT-OUT
SHIELDED
056 N 007985006157 SCREW
Repalced by: N 000000001145
056 N 000000001145 SCREW
REGULATOR MOUNTING
057 N 912004006102 LOCK WASHER
REGULATOR MOUNTING
058 N 000934006007 NUT
REGULATOR MOUNTING
A 0015452518 RESISTOR
CHARGE CONTROL
N 000933005038 SCREW
RESISTOR TO WINDSHIELD WIPER MOUNTING PLATE
5X10 MM
N 913004005001 NUT
RESISTOR TO WINDSHIELD WIPER MOUNTING PLATE
A 0001567801 CONDENSER
Repalced by: A 0001569601
A 0001569601 CONDENSER
Repalced by: A 0011566701
A 0011566701 CONDENSER
FOR ALTERNATOR INTERFERENCE SUPPRESSION, TERMINAL B+
A 0001568201 CONDENSER
FOR WINDSHIELD WIPER MOTOR INTERFERENCE SUPPRESSION
061 A 0015428020 HORN
Repalced by: A 0035423220
061 A 0015427920 HORN
Repalced by: A 0035423220
A 0025426220 HORN
Repalced by: A 0035423220
A 0035423220 HORN
Repalced by: A 6315420120
A 6315420120 HORN
Repalced by: A 0035422720
A 0035422720 HORN
A 0015428320 HORN
Repalced by: A 0025426420
A 0025425320 HORN
Repalced by: A 0025426420
A 0025426420 HORN
Repalced by: A 6315420120
A 6315420120 HORN
Repalced by: A 0035422720
A 0035422720 HORN
N 912004004102 LOCK WASHER
ELECTRIC CABLE TO HORN
N 007985004123 SCREW
ELECTRIC CABLE TO HORN
064 A 3219950040 CLAMP
Repalced by: A 0005460875
064 A 0005460875 CLAMP
ELECTRIC CABLE TO RADIATOR FRAME
065 N 000933010129 SCREW
Repalced by: N 304017010002
065 N 304017010002 SCREW
HORN TO ENGINE CROSS MEMBER
066 N 000125010518 WASHER
Repalced by: N 000125010532
066 N 000125010532 WASHER
HORN TO ENGINE CROSS MEMBER
067 N 912004010102 LOCK WASHER
HORN TO ENGINE CROSS MEMBER
068 N 000934010014 NUT
Repalced by: N 304032010003
068 N 304032010003 NUT
HORN TO ENGINE CROSS MEMBER
070 A 0025453524 SWITCH,AUTOMATIC
Repalced by: A 0035458324
070 A 0035458124 SWITCH,AUTOMATIC
Repalced by: A 0035458324
070 A 0035458324 SWITCH,AUTOMATIC
WITH BRIGHT LIGHT/DIMMED LIGHT AND HORN CONTACT
072 A 0005452637 BUTTON
073 N 000966005027 SCREW
074 A 0015458228 PLUG HOUSING
8-POLE
075 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
076 A 0019978490 LOOM TIE
CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET
376 MM
080 A 0005449932 SENDER UNIT
HAZARD WARNING LIGHT
A 0015441232 SENDER UNIT
Repalced by: A 0015447532
A 0015447532 SENDER UNIT
HAZARD WARNING LIGHT
084 A 0015445032 SENDER UNIT
Repalced by: A 0025447732
084 A 0025440732 SENDER UNIT
Repalced by: A 0025447732
084 A 0025447732 SENDER UNIT
HAZARD WARNING LIGHT
A 0015448032 SENDER UNIT
HAZARD WARNING LIGHT
A 0025440932 SENDER UNIT
Repalced by: A 0025447332
A 0015447932 SENDER UNIT
Repalced by: A 0025447332
A 0025447332 SENDER UNIT
HAZARD WARNING LIGHT
A 0025448532 SENDER UNIT
HAZARD WARNING LIGHT
A 0035440032 SENDER UNIT
HAZARD WARNING LIGHT
A 0015445232 SENDER UNIT
Repalced by: A 0025447632
A 0025440832 SENDER UNIT
Repalced by: A 0025447632
A 0025447632 SENDER UNIT
HAZARD WARNING LIGHT
A 0025441032 SENDER UNIT
Repalced by: A 0025447232
A 0025447232 SENDER UNIT
HAZARD WARNING LIGHT
A 0025448732 SENDER UNIT
HAZARD WARNING LIGHT
087 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
087 N 000000000460 SHEET METAL SCREW
BLINKER SENDER UNIT MOUNTING
A 3525400273 BRACKET
Repalced by: A 3525405773
A 3525405373 BRACKET
Repalced by: A 3525405773
A 3525405773 BRACKET
LEFT
090 A 3525405173 BRACKET
LEFT
A 3525400373 BRACKET
Repalced by: A 3525405873
A 3525405473 BRACKET
Repalced by: A 3525405873
A 3525405873 BRACKET
RIGHT
A 3525405273 BRACKET
RIGHT
095 A 3525440538 BRACKET
REFLECTOR
096 N 000963006005 SCREW
REFLECTOR BRACKET TO TAIL LAMP BRACKET
097 N 000084006137 SCREW
REFLECTOR BRACKET TO TAIL LAMP BRACKET
099 N 000125006421 WASHER
REFLECTOR BRACKET TO TAIL LAMP BRACKET
100 N 912004006102 LOCK WASHER
REFLECTOR BRACKET TO TAIL LAMP BRACKET
101 N 913002006005 NUT
Repalced by: N 913002006009
101 N 913002006009 NUT
REFLECTOR BRACKET TO TAIL LAMP BRACKET
103 A 3605840025 NAME PLATE
A 3605840051 SUPPORT
Repalced by: A 3875840051
A 3875840051 SUPPORT
N 000660004008 RIVET
104 N 000933008145 SCREW
NAME PLATE TO BRACKET
105 N 912004008102 LOCK WASHER
NAME PLATE TO BRACKET
106 N 304032008006 NUT
NAME PLATE TO BRACKET
107 N 000084006426 SCREW
LICENSE PLATE TO BRACKET
108 N 912004006102 LOCK WASHER
LICENSE PLATE TO BRACKET
109 N 000934006007 NUT
LICENSE PLATE TO BRACKET
110 N 000933010164 SCREW
TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME
N 000933010157 SCREW
TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME
111 N 000125010518 WASHER
Repalced by: N 000125010532
111 N 000125010532 WASHER
TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME
112 N 912004010102 LOCK WASHER
TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME
113 N 913004010008 NUT
Repalced by: N 910113010000
113 N 910113010000 NUT
TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME
115 A 0005447803 TAIL LAMP
Repalced by: A 0015444003
115 A 0015440003 TAIL LAMP
Repalced by: A 0015444003
115 A 0015444003 TAIL LAMP
LEFT
HELLA
115 A 0005447003 TAIL LAMP
Repalced by: A 0015444503
115 A 0015440403 TAIL LAMP
Repalced by: A 0015444503
115 A 0015444503 TAIL LAMP
LEFT
R & S
115 A 0015449603 TAIL LAMP
Repalced by: A 0015444003
115 A 0015444003 TAIL LAMP
LEFT
ZIZALA
115 A 0005447703 TAIL LAMP
Repalced by: A 0015444103
115 A 0005449903 TAIL LAMP
Repalced by: A 0015444103
115 A 0015444103 TAIL LAMP
RIGHT
HELLA
115 A 0005447103 TAIL LAMP
Repalced by: A 0015444603
115 A 0015440503 TAIL LAMP
Repalced by: A 0015444603
115 A 0015444603 TAIL LAMP
RIGHT
R & S
115 A 0015449703 TAIL LAMP
RIGHT
ZIZALA
115 A 0015444203 TAIL LAMP
RIGHT
HELLA
115 A 0005447303 TAIL LAMP
Repalced by: A 0015444803
115 A 0015441803 TAIL LAMP
Repalced by: A 0015444803
115 A 0015444803 TAIL LAMP
RIGHT
R & S
115 A 0015449903 TAIL LAMP
RIGHT
ZIZALA
115 A 0015444303 TAIL LAMP
Repalced by: A 0015445903
115 A 0015445903 TAIL LAMP
LEFT
HELLA
115 A 0015441703 TAIL LAMP
Repalced by: A 0015444903
115 A 0015444903 TAIL LAMP
Repalced by: A 0005447403
115 A 0005447403 TAIL LAMP
Repalced by: A 0015446103
115 A 0015446103 TAIL LAMP
LEFT
R & S
115 A 0025440003 TAIL LAMP
LEFT
ZIZALA
119 A 0015444890 LENS
Repalced by: A 0015445590
119 A 0015445590 LENS
HELLA
119 A 0015444590 LENS
Repalced by: A 0015445990
119 A 0015446290 LENS
Repalced by: A 0015445990
119 A 0015445990 LENS
R & S
119 A 0015447190 LENS
R & S
119 A 0015447290 LENS
Repalced by: A 0015445990
119 A 0015445990 LENS
R & S
119 A 0015449890 LENS
LEFT
ZIZALA
119 A 0015449990 LENS
RIGHT
ZIZALA
A 0005447880 GASKET
Repalced by: A 0005448480
A 0005448080 GASKET
Repalced by: A 0005448480
A 0005448480 GASKET
HELLA
121 A 0005447580 GASKET
750 MM
R & S
N 007985006238 SCREW
TO R & S
A 0005444393 LAMP SOCKET
HELLA
A 0005445293 LAMP SOCKET
HELLA
A 0005444293 LAMP SOCKET
R & S
123 A 0005444893 LAMP SOCKET
R & S
A 0005445193 LAMP SOCKET
R & S
N 000085004101 SCREW
HELLA
124 N 000084004137 SCREW
Repalced by: N 007985004149
124 N 007985004149 SCREW
Repalced by: N 000000001933
124 N 000000001933 SCREW
TO R & S
125 N 006797004132 TOOTHED WASHER
TO R & S
A 0009978081 GROMMET
HELLA
126 A 0019971581 GROMMET
R & S
A 6019972181 GROMMET
ZIZALA
A 0019904040 WASHER
TO MOUNT TAIL LAMPS
HELLA
127 A 0005440376 WASHER
Repalced by: A 0005440476
129 A 0005440476 WASHER
TO MOUNT TAIL LAMPS
R & S
N 009021008205 WASHER
Repalced by: N 009021008213
N 009021008213 WASHER
TO MOUNT TAIL LAMPS
130 A 0019901940 WASHER
TO MOUNT TAIL LAMPS
R & S
131 N 912004008102 LOCK WASHER
TO MOUNT TAIL LAMPS
132 N 304032008006 NUT
TO MOUNT TAIL LAMPS
N 072601012160 BULB
12 V 18 W
134 N 072601012190 BULB
12 V 21 W
135 N 072601012702 BULB
12 V 10 W
136 A 0005441605 REFLECTOR
Repalced by: A 0005443305
136 A 0005443305 REFLECTOR
137 N 007985005146 SCREW
REFLECTOR TO BRACKET
137H N 000125005317 WASHER
Repalced by: N 000433005304
137H N 000433005304 WASHER
REFLECTOR TO BRACKET
138 N 912004005103 LOCK WASHER
REFLECTOR TO BRACKET
139 N 913004005001 NUT
REFLECTOR TO BRACKET
A 0005452209 SWITCH
Repalced by: A 0005456109
A 0005456109 SWITCH
Repalced by: A 0015450809
A 0015450809 SWITCH
IN BRAKE MASTER CYLINDER
A 0015450809 SWITCH
IN DUMPER VALVE
140 A 0005454709 SWITCH
Repalced by: A 0005455909
140 A 0005455009 SWITCH
Repalced by: A 0005455909
140 A 0005455909 SWITCH
IN BRAKE MASTER CYLINDER
140 A 0005455909 SWITCH
IN DUMPER VALVE
A 3525403505 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525407205 CABLE HARNESS
Repalced by: A 3525409805
144 A 3525409805 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525400506 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525401806 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525401706 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525403605 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525407305 CABLE HARNESS
Repalced by: A 3525409705
144 A 3525409705 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525400606 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525401906 CABLE HARNESS
CAB MAIN CABLE HARNESS
144 A 3525402206 CABLE HARNESS
CAB MAIN CABLE HARNESS
147 A 0025459528 PIN BUSHING HOUSING
3-POLE
149 A 0025451728 PIN BUSHING HOUSING
151 A 0045451428 PLUG
HAZARD WARNING LIGHT SWITCH
A 6115450128 PIN BUSHING HOUSING
HAZARD WARNING LIGHT SWITCH
154 A 0015457928 PLUG HOUSING
BIPOLAR
157 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
157 A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
158 A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
159 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
160 A 0015458528 PIN BUSHING HOUSING
3-POLE
A 0055456428 PIN BUSHING HOUSING
3-POLE
161 A 0015458428 PIN BUSHING HOUSING
4-POLE
162 A 0015454128 PIN BUSHING HOUSING
4-POLE; BUZZER
164 A 0015458128 PIN BUSHING HOUSING
6-POLE
166 A 0015458328 PIN BUSHING HOUSING
8-POLE
A 0065451428 PIN BUSHING HOUSING
RELAY
A 0005454526 PIN BUSHING
Repalced by: A 0005453726
A 0005453726 PIN BUSHING
Repalced by: A 0075458426
A 0075458426 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
2.5 MM2
168 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
168 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 0005453826 PIN BUSHING
Repalced by: A 0075458226
A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
A 0005454626 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
4-6 MM2
A 0025454026 FLAT PIN BUSHING
Repalced by: A 0035455326
A 0035455326 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
4-6 MM2
174 A 0005453626 PIN BUSHING
Repalced by: A 0075457426
174 A 0075457426 PIN BUSHING
A 0005451645 BOOT
175 A 0005451745 BOOT
A 0019978390 LOOM TIE
A 0025451528 PLUG CONNECTOR
176 A 0005463440 CABLE SHOE
177 A 0019978390 LOOM TIE
CABLE HARNESS MOUNTING
280 MM
A 3145450001 FUSE BOX
10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED
180 A 3355450001 FUSE BOX
12-POLE; TERMINALS 1-2;3-4;5-6;8-12 SHUNTED
181 N 914028014100 COMBINATION BOLT
CABLE TO FUSE BOX
182 A 0005458234 FUSE
Repalced by: N 072581008101
182 N 072581008101 FUSE
8 A
A 0005450903 CAP
FUSE BOX
184 A 0005451203 CAP
FUSE BOX
N 007981004258 SHEET METAL SCREW
FUSE BOX
186 A 0005453013 SWITCH
(IGNITION AND LIGHT SWITH)
188 A 0005450176 WASHER
Repalced by: A 0005450376
188 A 0005450376 WASHER
IGNITION SWITCH TO INSTRUMENT PANEL
190 A 0005450672 NUT
Repalced by: A 0005451072
190 A 0005451072 NUT
IGNITION SWITCH TO INSTRUMENT PANEL
192 A 0005451235 KEY
IGNITION AND LIGHT SWITCH
A 0005830296 RING
IGNITION AND LIGHT SWITCH
194 N 916016012200 CLAMP
MAIN CABLE HARNESS TO ALTERNATOR
15 MM
195 N 000933005059 SCREW
CLAMP MOUNTING
196 N 000137005103 SPRING WASHER
CLAMP MOUNTING
197 N 009021005202 WASHER
Repalced by: N 009021005205
197 N 009021005205 WASHER
CLAMP MOUNTING
N 912004005103 LOCK WASHER
CLAMP TO ALTERNATOR
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
CLAMP TO ALTERNATOR
N 000934006007 NUT
CABLE TO ALTERNATOR
N 304032008006 NUT
CABLE TO ALTERNATOR
N 000137006204 SPRING WASHER
CABLE TO ALTERNATOR
N 000137008107 SPRING WASHER
Repalced by: N 000137008204
N 000137008204 SPRING WASHER
Repalced by: N 000137008212
N 000137008212 SPRING WASHER
CABLE TO ALTERNATOR
N 916016012201 CLAMP
MAIN CABLE HARNESS TO ALTERNATOR
20 MM
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
CLAMP MOUNTING
N 912004008102 LOCK WASHER
CLAMP MOUNTING
N 304032008006 NUT
CLAMP MOUNTING
N 916016012200 CLAMP
MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER
15 MM
N 916016012200 CLAMP
ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET
15 MM
N 000933006102 SCREW
MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER
6X15 MM
N 000933006102 SCREW
ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET
6X15 MM
N 912004006102 LOCK WASHER
MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER
N 912004006102 LOCK WASHER
ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET
N 000934006007 NUT
MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER
N 000934006007 NUT
ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET
N 007985006157 SCREW
Repalced by: N 000000001145
N 000000001145 SCREW
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
N 912004006102 LOCK WASHER
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
213 A 1369950135 CLAMP
MAIN CABLE HARNESS TO LEFT SIDE PART
26 MM
214 A 1369950137 CLAMP
MAIN CABLE HARNESS TO LEFT SIDE PART
31 MM
215 A 1869950037 CLAMP
MAIN CABLE HARNESS TO LEFT SIDE PART
16 MM
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
CLAMP MOUNTING
A 0009941845 LOCK
CABLE HARNESS MOUNTING
221 A 1869950037 CLAMP
MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT
N 007985005504 SCREW
CLAMP MOUNTING
N 912004005103 LOCK WASHER
CLAMP MOUNTING
221 A 1869950037 CLAMP
CABLE HARNESS MOUNTING
16 MM
A 1369950137 CLAMP
CABLE HARNESS MOUNTING
A 0019978390 LOOM TIE
CABLE HARNESS MOUNTING
280 MM
223 N 916016025201 CLAMP
MAIN CABLE HARNESS TO CAB WINDOW SILL
N 007985005174 SCREW
CLAMP MOUNTING
N 912004005103 LOCK WASHER
CLAMP MOUNTING
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
CLAMP MOUNTING
229 A 0009883478 CLIP
MAIN CABLE HARNESS TO RIGHT SIDE PART
231 N 916016018201 CLAMP
MAIN CABLE HARNESS BEHIND INSTRUMENT PANEL,LEFT
31 MM
231 N 916016018201 CLAMP
MAIN CABLE HARNESS TO CAB WINDOW SILL
31 MM
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
CLAMP MOUNTING
231H N 007985005174 SCREW
CLAMP MOUNTING
232 N 912004005103 LOCK WASHER
CLAMP MOUNTING
232H N 304032005002 NUT
Repalced by: N 304032005005
232H N 304032005005 NUT
CLAMP MOUNTING
A 3605402237 ELECTRIC CABLE
FROM PLUG CONNECT.TO COOLG.-WATER TEMPER. SWITCH & TEMPER.GAUGE SENDER UNIT
A 3605408437 ELECTRIC CABLE
FROM BIPOLAR PLUG CONNECTION TO TEMPERATURE SWITCH WITH WARNING CONTACT
A 0015458728 PIN BUSHING HOUSING
BIPOLAR
A 0005453726 PIN BUSHING
Repalced by: A 0075458426
A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 0009951159 SHACKLE
Repalced by: A 0019978390
A 0019978390 LOOM TIE
TO MOUNT MAIN CABLE HARNESS
A 0019978490 LOOM TIE
TO MOUNT MAIN CABLE HARNESS
376 MM
N 000084006132 SCREW
CABLE TO STARTING MOTOR,TERMINAL 50
N 912004006102 LOCK WASHER
CABLE TO STARTING MOTOR,TERMINAL 50
A 3525405237 ELECTRIC CABLE
FROM HAZD.WARNG.LIGHT SWITCH TO BLINKER SENDER UNIT,BLINKER/DIMMER SWITCH
A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 0015458128 PIN BUSHING HOUSING
6-POLE
A 0045451428 PLUG
8-POLE
A 0005453726 PIN BUSHING
Repalced by: A 0075458426
A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 0005454026 PIN BUSHING
4-6 MM2
A 0015456028 PLUG HOUSING
6-POLE
234 A 0015458228 PLUG HOUSING
8-POLE
A 3525406627 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO RATCHET TYPE BRAKE SWITCH
A 3525400638 ELECTRIC CABLE
Repalced by: A 3525409738
A 3525409738 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO RATCHET TYPE BRAKE SWITCH
A 3525408837 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO RATCHET TYPE BRAKE SWITCH
237 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
A 0015457928 PLUG HOUSING
BIPOLAR
239 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
239 A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 3605403927 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO SPRINGLOAD ACCUMULATOR BRAKE SWITCH
A 3605404927 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO SPRINGLOAD ACCUMULATOR BRAKE SWITCH
241 A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
241 A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
241 A 3805402181 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 24X1
A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 3805460335 BOOT
SPRING-LOADED BRAKE SWITCH
TO M 24X1
A 6015460335 BOOT
SPRING-LOADED BRAKE SWITCH
TO M 24X1
A 0009902054 NUT
SPRING-LOADED BRAKE SWITCH
M 24X1
A 0009906840 WASHER
SPRING-LOADED BRAKE SWITCH
TO M 24X1
A 3805450026 PLUG SOCKET
SPRING-LOADED BRAKE SWITCH
TO M 24X1
A 0015454826 ROUND PIN BUSHING
SPRING-LOADED BRAKE SWITCH
TO M 24X1
A 0009883378 CLIP
CABLE FOR RATCHET-TYPE BRAKE TO RIGHT FRONT SIDE PART
A 3529950040 CLAMP
Repalced by: A 3099950140
A 3099950140 CLAMP
A 3605400337 ELECTRIC CABLE
FROM FRONT PLUG CONNECT. TO OIL-PRESS. SWITCH & GROUND AT FRAME CROSS MEMBER
A 0005400581 PLUG SOCKET
Repalced by: A 3805400281
A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
A 3805402281 PLUG SOCKET
REPAIR SIZE
M 27X1
243 A 3525406227 ELECTRIC CABLE
Repalced by: A 3585401427
243 A 3525406327 ELECTRIC CABLE
Repalced by: A 3585401427
243 A 3525406427 ELECTRIC CABLE
Repalced by: A 3585401427
243 A 3525406527 ELECTRIC CABLE
Repalced by: A 3585401427
243 A 3585401427 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3605403227 ELECTRIC CABLE
Repalced by: A 3605404327
243 A 3605403327 ELECTRIC CABLE
Repalced by: A 3605404327
243 A 3605403427 ELECTRIC CABLE
Repalced by: A 3605404327
243 A 3605404427 ELECTRIC CABLE
Repalced by: A 3605404327
243 A 3605404327 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3535406127 ELECTRIC CABLE
Repalced by: A 3535406227
243 A 3535406227 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3535407027 ELECTRIC CABLE
Repalced by: A 3535407127
243 A 3535407127 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3605408727 ELECTRIC CABLE
Repalced by: A 3605408827
243 A 3605408827 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3525406927 ELECTRIC CABLE
Repalced by: A 3585401827
243 A 3525407027 ELECTRIC CABLE
Repalced by: A 3585401827
243 A 3525407127 ELECTRIC CABLE
Repalced by: A 3585401827
243 A 3525407227 ELECTRIC CABLE
Repalced by: A 3585401827
243 A 3585401827 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3605404027 ELECTRIC CABLE
Repalced by: A 3605404127
243 A 3605403627 ELECTRIC CABLE
Repalced by: A 3605404127
243 A 3605403727 ELECTRIC CABLE
Repalced by: A 3605404127
243 A 3605403827 ELECTRIC CABLE
Repalced by: A 3605404127
243 A 3605404627 ELECTRIC CABLE
Repalced by: A 3605404127
243 A 3605404127 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3535406427 ELECTRIC CABLE
Repalced by: A 3535406527
243 A 3535406527 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3535407327 ELECTRIC CABLE
Repalced by: A 3535407427
243 A 3535407427 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
243 A 3605409627 ELECTRIC CABLE
Repalced by: A 3605409027
243 A 3605409027 ELECTRIC CABLE
FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
A 0015458228 PLUG HOUSING
8-POLE
A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
252 A 0005400581 PLUG SOCKET
Repalced by: A 3805400281
252 A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
252 A 3805402281 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
254 N 916016018201 CLAMP
CABLE HARNESS MOUNTING
18 MM
256 N 007985006170 SCREW
CLAMP MOUNTING
257 N 912004006102 LOCK WASHER
CLAMP MOUNTING
258 N 000934006007 NUT
CLAMP MOUNTING
261 A 3529950040 CLAMP
Repalced by: A 3099950140
261 A 3099950140 CLAMP
ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER
263 A 3219950040 CLAMP
Repalced by: A 0005460875
263 A 0005460875 CLAMP
ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER
265 A 0009881678 CLIP
TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH
M 6X16
N 912004006102 LOCK WASHER
TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH
N 000934006007 NUT
TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH
269 A 3129970481 GROMMET
CABLE TO REAR CABLE CONNECTOR AND TO STARTING MOTOR TO BRACKET ON CAB
N 072571001012 CLAMP
N 007985005175 SCREW
CLAMP MOUNTING
N 912004005103 LOCK WASHER
CLAMP MOUNTING
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
CLAMP MOUNTING
275 A 3605460080 CABLE GUIDE
275H N 007985005504 SCREW
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
N 007985005151 SCREW
Repalced by: N 007985005532
N 007985005532 SCREW
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
276 N 912004005103 LOCK WASHER
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
276H N 304032005002 NUT
Repalced by: N 304032005005
276H N 304032005005 NUT
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
278 A 3605460243 BRACKET
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
280 A 0019974290 LOOM TIE
Repalced by: A 0019974390
280 A 0019974390 LOOM TIE
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
A 0019978490 LOOM TIE
CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB
376 MM
285 A 0005466141 CABLE CONNECTOR
6-POLE
A 0005460781 COVERING
WITH GASKET
A 3145460043 BRACKET
CABLE CONNECTOR
N 007985004168 SCREW
CABLE CONNECTOR TO BRACKET
A 0009973481 GROMMET
ELECTRIC CABLE THRU REAR CROSS MEMBER
N 007985004130 SCREW
CABLE CONNECTOR
N 007985004160 SCREW
CABLE CONNECTOR
N 007985004159 SCREW
CABLE CONNECTOR
N 007985004180 SCREW
CABLE CONNECTOR
A 3275425038 SHIM
CABLE CONNECTOR
N 000125004311 WASHER
Repalced by: N 000125004319
N 000125004319 WASHER
CABLE CONNECTOR
N 912004004102 LOCK WASHER
CABLE CONNECTOR
N 000934004006 NUT
CABLE CONNECTOR
A 3525400007 CABLE HARNESS
Repalced by: A 3145400007
A 3145400007 CABLE HARNESS
Repalced by: A 3525400507
A 3525400507 CABLE HARNESS
FROM CABLE CONNECTOR TO LEFT TAIL LAMP
290 A 3605400307 CABLE HARNESS
Repalced by: A 3145400607
290 A 3145400607 CABLE HARNESS
FROM CABLE CONNECTOR TO LEFT TAIL LAMP
291 A 0019971581 GROMMET
A 3525400107 CABLE HARNESS
Repalced by: A 3145400007
A 3145400007 CABLE HARNESS
Repalced by: A 3525400507
A 3525400507 CABLE HARNESS
FROM CABLE CONNECTOR TO RIGHT TAIL LAMP
293 A 3605400807 CABLE HARNESS
Repalced by: A 3145400607
293 A 3145400607 CABLE HARNESS
FROM CABLE CONNECTOR TO RIGHT TAIL LAMP
A 0019971581 GROMMET
295 N 046225010101 CABLE SHOE
FROM REAR CABLE CONNECTOR TO TAIL LAMP
296 A 3529950040 CLAMP
Repalced by: A 3099950140
296 A 3099950140 CLAMP
FROM REAR CABLE CONNECTOR TO TAIL LAMP
298 A 3559970081 GROMMET
TAIL LAMP CABLES THRU FRAME SIDE MEMBERS
A 3529970281 GROMMET
TAIL LAMP CABLES THRU REAR CROSS MEMBER
300 A 8339970281 GROMMET
Repalced by: A 0009973381
300 A 0009973381 GROMMET
TAIL LAMP CABLES THRU REAR CROSS MEMBER
302 A 0019978490 LOOM TIE
TAIL LAMP CABLE,LEFT AND RIGHT
376 MM
A 3525400207 CABLE HARNESS
TRAILER PLUG SOCKET
N 000091005225 SCREW
TRAILER PLUG SOCKET TO SUPPORT
N 912004005103 LOCK WASHER
TRAILER PLUG SOCKET TO SUPPORT
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
TRAILER PLUG SOCKET TO SUPPORT
A 3555403527 ELECTRIC CABLE
FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP
A 0005400181 PLUG SOCKET
Repalced by: A 3805400181
A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
A 3805402181 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 24X1
A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 0005454526 PIN BUSHING
Repalced by: A 0005453726
A 0005453726 PIN BUSHING
Repalced by: A 0075458426
A 0075458426 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
2.5 MM2
A 0029970981 GROMMET
ELECTRIC CABLE TO BRACKET,BOTTOM
A 3529950040 CLAMP
Repalced by: A 3099950140
A 3099950140 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
A 0005460543 BRACKET
Repalced by: A 0039971490
A 0039971490 LOOM TIE
ELECTRIC CABLE TO COMPRESSED AIR LINE
A 3129970481 GROMMET
ELECTRIC CABLE THRU REAR CROSS MEMBER
314 A 0055424410 TACHOGRAPH
ONE-DAY REGISTRATION; READING IN KILOMETERS; MEASURING RANGE,100KM/H
316 A 0075421906 SPEEDOMETER
Repalced by: A 0075429410
317 A 0075429410 TACHOGRAPH
Repalced by: A 0085422710
317 A 0085422710 TACHOGRAPH
Repalced by: A 0085425310
317 A 0085425310 TACHOGRAPH
ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H
A 0005421347 COUPLER
A 0005423394 DIAGRAM PAPER
TO 007 542 94 10,008 542 27 10, 005 542 74 10,005 542 44 10
318 N 072601012800 BULB
12 V 2 W
318 A 0015442594 BULB
Repalced by: A 0005453419
318 A 0005453419 SOCKET LAMP
12V /1,2W
A 3285841040 DECALCOMANIA
MEASURING RANGE,90 KM/H 0R 60 MPH; W/REAR AXLE RATIO 43:7 & 9.00-20 TIRES
A 3525843940 DECALCOMANIA
MEASURING RANGE,100 KM/H,OR 60 MPH; W/REAR AXLE RATIO 43:7 & 9.00-20 TIRES
A 3285840440 DECALCOMANIA
MEASURING RANGE,90 KM/H 0R 60 MPH; W/REAR AXLE RATIO 48:7 & 9.00-20 TIRES
A 3525843740 DECALCOMANIA
MEASURING RANGE,100KM/H,OR 60M.P.H.; W/REAR AXLE RATIO 48:7 & 9.00-20 TIRES
A 3285840940 DECALCOMANIA
MEASURING RANGE,90 KM/H 0R 60 MPH; W/REAR AXLE RATIO 40:7 & 9-00.20 TIRES
A 3525844340 DECALCOMANIA
MEASURING RANGE,100 KM/H,OR 60 MPH; W/REAR AXLE RATIO 40:7 & 9.00-20 TIRES
321 A 0005422930 ANGLE DRIVE
FOR USE WITH REAR AXLE RATIO 7:43 AND WITH 9,00-20 TIRES
321 A 0015423330 ANGLE DRIVE
Repalced by: A 0005422830
321 A 0005422830 ANGLE DRIVE
USED WITH REAR AXLE RATIO 48:7 AND WITH 9.00-20 TIRES
A 0005423430 ANGLE DRIVE
Repalced by: A 0025427030
A 0025427030 ANGLE DRIVE
USED WITH REAR AXLE RATIO 40:7 AND WITH 9.00-20 TIRES
A 0015424630 REDUCTION GEARING
USED WITH REAR AXLE RATIO 45:8 AND WITH 9.00-20 TIRES
A 0025423730 REDUCTION GEARING
USED WITH REAR AXLE RATIO 45:8 AND WITH 9.00-20 TIRES
A 3375425140 BRACKET
ANGLE DRIVE OR REDUCTION GEARING, RESPECTIVELY
N 000933005073 SCREW
BRACKET MOUNTING
N 000125005317 WASHER
Repalced by: N 000433005304
N 000433005304 WASHER
BRACKET MOUNTING
N 912004005103 LOCK WASHER
BRACKET MOUNTING
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
BRACKET MOUNTING
324 A 0015427507 FLEXIBLE SHAFT
Repalced by: A 0055425007
324 A 0055425007 FLEXIBLE SHAFT
A 0015428707 FLEXIBLE SHAFT
Repalced by: A 0045420507
A 0045420507 FLEXIBLE SHAFT
326 A 3124292440 BRACKET
Repalced by: A 3124761535
326 A 3124761535 BRACKET
FLEXIBLE SHAFT
328 A 3129952020 CLAMP
FLEXIBLE SHAFT TO BRACKET
A 3129952420 CLAMP
Repalced by: A 1109950401
332 A 1109950401 CLAMP
FLEXIBLE SHAFT TO BRACKET
333 N 916016012201 CLAMP
FLEXIBLE SHAFT TO BRACKET
333 N 916016012200 CLAMP
FLEXIBLE SHAFT TO BRACKET
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
CLAMP MOUNTING
333E N 007985005175 SCREW
CLAMP MOUNTING
333M N 912004005103 LOCK WASHER
CLAMP MOUNTING
333S N 304032005002 NUT
Repalced by: N 304032005005
333S N 304032005005 NUT
CLAMP MOUNTING
334 A 0005460443 STRAP
Repalced by: A 0019974390
334 A 0019974390 LOOM TIE
FLEXIBLE SHAFT TO CAB
A 3635460175 CLAMP
FLEXIBLE SHAFT TO FRAME SIDE MEMBER
336 A 3229971681 GROMMET
Repalced by: A 3359970081
336 A 3219970081 GROMMET
Repalced by: A 3359970081
336 A 3359970081 GROMMET
FLEXIBLE SHAFT THRU TOEBOARD
336 A 3359970081 GROMMET
FLEXIBLE SHAFT THRU TOEBOARD
A 3529971381 GROMMET
FLEXIBLE SHAFT THRU TOEBOARD
338 A 3529970881 GROMMET
Repalced by: A 3529970681
338 A 3529970681 GROMMET
FLEXIBLE SHAFT AND STARTER PILOT THRU WINDOW LEVEL GIRDER
A 0015407747 INSTRUMENT CLUSTER
Repalced by: A 0015407347
A 0015407347 INSTRUMENT CLUSTER
A 0015407347 INSTRUMENT CLUSTER
341 A 0025402047 INSTRUMENT CLUSTER
A 0025426705 TEMPERATURE GAUGE
Repalced by: A 0025426005
A 0025426005 TEMPERATURE GAUGE
A 0025427305 TEMPERATURE GAUGE
Repalced by: A 0025426005
A 0025426005 TEMPERATURE GAUGE
344 A 0035421005 TEMPERATURE GAUGE
347 A 0005427508 AIR PRESSURE GAUGE
Repalced by: A 0005429108
347 A 0005429108 AIR PRESSURE GAUGE
347 A 0005429108 AIR PRESSURE GAUGE
349 A 0015424102 OIL PRESSURE GAUGE
352 A 0005428503 FUEL GAUGE DASH UNIT
354 A 0005420332 TELL-TALE LAMP
BRAKE PRESSURE
N 007603014405 SEAL RING
AT UPPER COOLING WATER LINE
356 A 0005420392 CONNECTOR
AT UPPER COOLING WATER LINE
A 0009972881 GROMMET
TEMPERATURE GAUGE CAPILLARY TUBE THRU WINDOW LEVEL GIRDER
358 A 0015422317 SENDER UNIT
TEMPERATURE GAUGE
A 0075420917 SENDER UNIT
Repalced by: A 0025427317
A 0025427317 SENDER UNIT
WITH SWITCH
359 N 007603014400 SEAL RING
TEMPERATURE GAUGE
360 A 0015424917 SENDER UNIT
Repalced by: A 0045428917
360 A 0045428917 SENDER UNIT
OIL PRESSURE GAUGE
362 N 007603014104 SEAL RING
OIL PRESSURE GAUGE
364 A 0025457824 SWITCH,AUTOMATIC
Repalced by: A 0045455524
364 A 0045455524 SWITCH,AUTOMATIC
AT UPPER COOLING WATER LINE
365 N 007603014403 SEAL RING
AT UPPER COOLING WATER LINE
366 A 0005453526 PLUG SOCKET
Repalced by: A 0015458526
A 0005453926 PLUG SOCKET
Repalced by: A 0015458526
A 0005454426 PLUG SOCKET
Repalced by: A 0015458526
A 0015458526 PLUG SOCKET
370 A 0005453914 SWITCH
Repalced by: A 0005456314
370 A 0005456314 SWITCH
Repalced by: A 0015450214
370 A 0015450214 SWITCH
Repalced by: A 0015454914
370 A 0015454914 SWITCH
STARTING MOTOR CONTROL
A 0005420825 POTENTIOMETER
FOR INSTRUMENT LIGHTING
372 A 0005421425 POTENTIOMETER
Repalced by: A 3015420025
372 A 3015420025 POTENTIOMETER
INSTRUMENT LIGHTING
A 6155420125 POTENTIOMETER
INSTRUMENT LIGHTING
12V
A 0005421325 POTENTIOMETER
HOT AIR BLOWER
A 0005450272 NUT
INSTRUMENT LIGHTING SWITCH
374 A 0005450372 NUT
INSTRUMENT LIGHTING SWITCH
374 A 0005450372 NUT
HOT AIR BLOWER
374 A 0029906251 NUT
INSTRUMENT LIGHTING SWITCH
376 A 0005421189 KNOB
Repalced by: A 0005421889
376 A 0005421889 KNOB
INSTRUMENT LIGHTING SWITCH
A 0005421289 KNOB
Repalced by: A 3095420189
A 3095420189 KNOB
HOT AIR BLOWER
378 A 0005457711 SWITCH
PANE WIPER
380 A 0005457611 SWITCH
CAB LAMP AND HEATER BLOWER
382 A 0005459311 SWITCH
PANE WIPER
383 A 0005459211 SWITCH
WINDSHIELD WIPER,"SLOW-FAST"
384 A 0005459111 SWITCH
CAB LAMP
384 A 0005459111 SWITCH
HOT AIR BLOWER
385 A 0005451483 CAP
WINDSHIELD WIPER O F F O N
A 0005451583 CAP
WINDSHIELD WIPER,"SLOW-FAST"
A 0005451883 CAP
CAB LAMP
A 0005451783 CAP
HOT AIR BLOWER
A 0005450272 NUT
SWITCH
A 0005450537 BUTTON
Repalced by: A 0005450837
A 0005450837 BUTTON
SWITCH
391 A 0035453924 SWITCH,AUTOMATIC
Repalced by: A 0025457124
A 0025457124 SWITCH,AUTOMATIC
HAZARD WARNING LIGHT
A 0055459324 HAZARD WARNG.LIGHT SWITCH
N 072601012230 BULB
A 0005453637 BUTTON
HAZARD WARNING LIGHT; RED
N 072601012110 BULB
HAZARD WARNING LIGHT SWITCH
12 V 2 W
A 6115400066 ADAPTER FRAME
HAZARD WARNING LIGHT SWITCH
394 A 0005458415 TELL-TALE LAMP
Repalced by: A 0015451115
394 A 0015451115 TELL-TALE LAMP
TO HAND BRAKE
N 072601012800 BULB
12 V 2 W
397 A 0015450615 TELL-TALE LAMP
Repalced by: A 0005451630
397 A 0005451630 SHELL
LESS LENS
A 0005452319 SOCKET
A 0005452319 SOCKET
A 0005452319 SOCKET
400 A 0005450190 LENS
CHARGE CONTROL
A 0005450790 LENS
DUMPER PLATFORM SUBSTRUCTURE
402 A 0005451190 LENS
HIGH BEAM
403 A 0005451290 LENS
TRUCK-TRACTOR BLINKER
404 A 0005451390 LENS
TRAILER BLINKER
405 A 0005451790 LENS
PARKING BRAKE
406 N 072601012800 BULB
12 V 2 W
A 3199970281 GROMMET
TO PLUG THE FREE BORES IN INSTRUMENT PANEL
A 3099970144 SEAL RING
409 A 0009973535 PLUG
TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
410 A 0009970425 EXPANSION PLUG
PUSHBUTTON SWITCH
A 0009970525 EXPANSION PLUG
PUSH BUTTON SWITCH
412 A 0005452009 SWITCH
Repalced by: A 0015453709
412 A 0015453709 SWITCH
TRAILER BRAKE AT CYLINDER CRANKCASE
N 000933006103 SCREW
Repalced by: N 304017006018
N 304017006018 SCREW
SWITCH
N 912004006102 LOCK WASHER
SWITCH
N 000934006007 NUT
SWITCH
416 A 1869932610 SPRING
420 A 3215450078 EXTENSION
422 A 0005500083 PUMP
Repalced by: A 0005500883
A 0005500883 PUMP
Repalced by: A 0005501083
424 A 0009815685 BALL
426 A 0029930201 SPRING
Repalced by: A 0005500955
N 007603008112 SEAL RING
8X11.5 MM
428 A 0009977972 FITTING
430 A 0009903767 SEAL CONE
Repalced by: A 0009909454
432 A 0009903454 NUT
Repalced by: A 0009909454
432 A 0009909454 NUT
REPAIR KIT
434 A 0049979145 SEAL RING
Repalced by: A 0005500955
434 A 0005500955 VALVE
REPAIR KIT
436 A 0049979245 SEAL RING
438 A 0005550076 WASHER
440 A 0005550018 STRAINER
442 A 0009944335 SNAP RING
A 0005501083 PUMP
Repalced by: A 0005502383
A 0005502383 PUMP
STARTER PILOT
A 0005502383 PUMP
STARTER PILOT
A 0005550240 HANDLE
Repalced by: A 0005550440
A 0005550440 HANDLE
A 0005550072 NUT
Repalced by: A 0005550372
A 0005550372 NUT
A 0009908867 SEAL CONE
Repalced by: A 0005550618
A 0005550618 SEAL CONE
REPAIR KIT
A 0019970578 SCREW CONNECTION
447 A 0019900040 WASHER
Repalced by: A 3359900240
447 A 3359900240 WASHER
447 A 3359900240 WASHER
A 3226890030 CAP
A 3359971282 HOSE
Repalced by: A 3359972282
A 3359972282 HOSE
4X1 MM
A 3359972282 HOSE
4X1 MM
A 0005500604 CAPSULE BORER
Repalced by: A 0005501104
A 0079976445 SEAL RING
A 0009931120 SPRING
A 0009911561 DOWEL PIN
A 0005550093 SPRING
A 0009900332 SCREW
A 0005550080 GASKET
Repalced by: A 0005500180
A 0005550008 PRIMER CAPSULE
Repalced by: A 0005500180
A 0009902330 SCREW
Repalced by: A 0005500180
A 0005550212 NOZZLE
Repalced by: A 0005500180
A 0005500180 OIL TANK
Repalced by: A 0005500280
A 0005500280 OIL TANK
REPAIR KIT
A 0005550105 CAPSULE BORER
A 0009903620 SCREW
A 0005550118 STRAINER
A 0009941537 SNAP RING
A 0005550059 PIPE
A 0029976240 SEAL RING
A 0009815685 BALL
A 0029930201 SPRING
Repalced by: A 0005500955
A 0005500955 VALVE
REPAIR KIT
A 0005550030 CONNECTOR
A 0005550130 CONNECTOR
N 006798008101 SERRATED WASHER
N 000934008021 NUT
A 0009903767 SEAL CONE
Repalced by: A 0009909454
A 0009903454 NUT
Repalced by: A 0009909454
A 0009909454 NUT
REPAIR KIT
475 A 0005501104 CAPSULE BORER
Repalced by: A 0005501404
475 A 0005501404 PRIMER CAPSULE
475 A 0005501404 PRIMER CAPSULE
477 N 006798008101 SERRATED WASHER
479 N 000934008021 NUT
481 A 0009903767 SEAL CONE
Repalced by: A 0009909454
483 A 0009903454 NUT
Repalced by: A 0009909454
483 A 0009909454 NUT
REPAIR KIT
485 A 3365450340 BRACKET
N 000933006102 SCREW
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
N 912004006102 LOCK WASHER
N 000934006007 NUT
A 0005550004 CAPSULE
CONTAINING 5 PIECES
495 A 0005550010 FILLING CYLINDER
STARTER PILOT
495 A 0005550010 FILLING CYLINDER
STARTER PILOT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
