Transporto priemonė: LS 1313; VIN numerio dalis: 352015

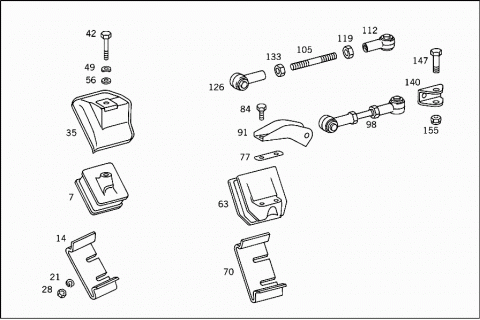

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3022400417 | RUBBER MOUNTING |
| Repalced by: A 3522400417 | ||
| 007 | A 3522400217 | RUBBER MOUNTING |
| Repalced by: A 3522400417 | ||
| 007 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 014 | A 3522420509 | ENGINE STAY |
| ENGINE FRONT CROSS MEMBER | ||
| 021 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 028 | N 000934012022 | NUT |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 035 | A 3022400045 | PROTECTIVE PLATE |
| ENGINE FRONT SUSPENSION | ||
| 042 | N 000960014237 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 049 | N 000137014201 | SPRING WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 056 | A 3529901040 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 056 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| N 000961016097 | SCREW | |
| Repalced by: N 308676016005 | ||
| N 308676016005 | SCREW | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| N 000960016237 | SCREW | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 063 | A 3522400318 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 070 | A 3522420409 | ENGINE STAY |
| ENGINE REAR SUSPENSION | ||
| N 912004012100 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934012022 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 077 | A 3529940032 | LOCK |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000961014088 | SCREW | |
| Repalced by: N 308676014008 | ||
| N 308676014008 | SCREW | |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 084 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 084 | A 9429901304 | SCREW |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| N 912004014100 | LOCK WASHER | |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 091 | A 3522420207 | BEARING BRACKET |
| FRONT | ||
| A 3522420307 | BEARING BRACKET | |
| FRONT | ||
| 098 | A 3522400225 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 105 | A 3522420237 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 112 | A 0009961540 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 119 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 119 | N 308673016001 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 126 | A 0009961740 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 133 | N 000934016014 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 140 | A 3522420407 | BEARING BRACKET |
| REAR | ||
| 147 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 155 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 155 | N 000979016007 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| N 000094004023 | COTTER PIN | |
| PULL ROD TO BEARING BRACKET | ||
| N 000931012008 | SCREW | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
