Transporto priemonė: LS 1313; VIN numerio dalis: 352015

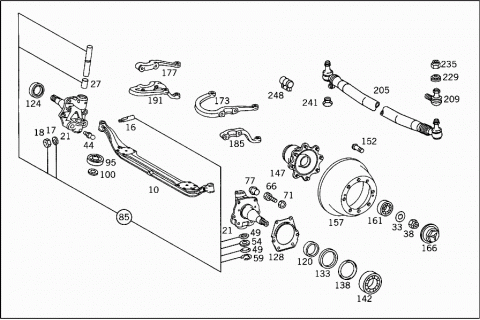

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3523307600 | FRONT AXLE | |
| A 3523307700 | FRONT AXLE | |
| 010 | A 3403310001 | FRONT AXLE BEAM |
| 010 | A 3603310101 | FRONT AXLE BEAM |
| 016 | A 3279900137 | BOLT |
| 017 | N 912004008102 | LOCK WASHER |
| 018 | N 304032008006 | NUT |
| 021 | A 3273320401 | STEERING KNUCKLE |
| 021 | A 3273320401 | STEERING KNUCKLE |
| 021 | A 3023320501 | STEERING KNUCKLE |
| 021 | A 3023320501 | STEERING KNUCKLE |
| 021 | A 3023320601 | STEERING KNUCKLE |
| 021 | A 3023320601 | STEERING KNUCKLE |
| 021 | A 3403320001 | STEERING KNUCKLE |
| 027 | A 3213320048 | BUSHING |
| 027 | A 3213320048 | BUSHING |
| 027 | A 3403320048 | BUSHING |
| A 0089977646 | SEAL RING | |
| 033 | A 3273321662 | THRUST WASHER |
| 038 | N 000937032000 | NUT |
| N 000094006317 | COTTER PIN | |
| 044 | N 071412010100 | GREASE NIPPLE |
| N 071412010200 | GREASE NIPPLE | |
| 049 | A 3273320029 | SEALING CAP |
| 049 | A 3273320029 | SEALING CAP |
| 049 | A 3603320029 | SEALING CAP |
| OUTSIDE | ||
| 049 | A 3603320029 | SEALING CAP |
| OUTSIDE | ||
| 049 | A 3603320129 | SEALING CAP |
| INSIDE | ||
| 049 | A 3603320129 | SEALING CAP |
| INSIDE | ||
| 054 | A 3279970145 | SEAL RING |
| 054 | A 3279970145 | SEAL RING |
| A 3409970145 | SEAL RING | |
| A 3409970145 | SEAL RING | |
| 059 | N 000472042001 | LOCK RING |
| 059 | N 000472042001 | LOCK RING |
| 059 | N 000472045000 | LOCK RING |
| 066 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 066 | N 000960012384 | SCREW |
| A 3873320171 | SCREW | |
| Repalced by: A 3873320271 | ||
| 066 | A 3873320271 | SCREW |
| M 16X40 | ||
| 071 | A 3403370072 | NUT |
| 071 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 071 | N 308673016001 | NUT |
| 077 | N 915042011000 | PLUG |
| 085 | A 3275860033 | REPAIR KIT |
| Repalced by: A 3273300019 | ||
| 085 | A 3273300019 | KING PIN |
| STANDARD | ||
| 35 MM | ||
| 085 | A 3273300019 | KING PIN |
| STANDARD | ||
| 35 MM | ||
| A 3025860033 | REPAIR KIT | |
| Repalced by: A 3023300619 | ||
| 085 | A 3023300619 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| A 3605860233 | REPAIR KIT | |
| Repalced by: A 3603300719 | ||
| 085 | A 3603300719 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| 085 | A 3603300719 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| 085 | A 3275860133 | REPAIR KIT |
| Repalced by: A 3273300119 | ||
| 085 | A 3273300119 | KING PIN |
| STANDARD SIZE I | ||
| 35,3 MM | ||
| 085 | A 3273300119 | KING PIN |
| STANDARD SIZE I | ||
| 35,3 MM | ||
| A 3025860133 | REPAIR KIT | |
| Repalced by: A 3023300719 | ||
| 085 | A 3023300719 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| A 3605860333 | REPAIR KIT | |
| Repalced by: A 3603300819 | ||
| 085 | A 3603300819 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| 085 | A 3603300819 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| 085 | A 3275860233 | REPAIR KIT |
| Repalced by: A 3273300219 | ||
| 085 | A 3273300219 | KING PIN |
| REPAIR SIZE I | ||
| 35.6 MM | ||
| 085 | A 3273300219 | KING PIN |
| REPAIR SIZE I | ||
| 35.6 MM | ||
| A 3025860233 | REPAIR KIT | |
| Repalced by: A 3023300819 | ||
| 085 | A 3023300819 | KING PIN |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| A 3605860433 | REPAIR KIT | |
| Repalced by: A 3603300919 | ||
| 085 | A 3603300919 | KING PIN |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| 085 | A 3603300919 | KING PIN |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| 085 | A 3275860333 | REPAIR KIT |
| Repalced by: A 3273300319 | ||
| 085 | A 3273300319 | KING PIN |
| Repalced by: A 3273320306 | ||
| 085 | A 3273320306 | KINGPIN |
| REPAIR SIZE II | ||
| 35.9 MM | ||
| 085 | A 3273320306 | KINGPIN |
| REPAIR SIZE II | ||
| 35.9 MM | ||
| 095 | A 0009812818 | ROLLER BEARING |
| Repalced by: A 0009811918 | ||
| 095 | A 0009811918 | ROLLER BEARING |
| STANDARD | ||
| 35 MM | ||
| 095 | A 0009811918 | ROLLER BEARING |
| STANDARD | ||
| 35 MM | ||
| 095 | A 0019814118 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 35,30 MM | ||
| 095 | A 0019814118 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 35,30 MM | ||
| 095 | A 0019814218 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 35,60 MM | ||
| 095 | A 0019814218 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 35,60 MM | ||
| 095 | A 0019814318 | ROLLER BEARING |
| REPAIR SIZE II | ||
| 35,9 MM | ||
| 095 | A 0019814318 | ROLLER BEARING |
| REPAIR SIZE II | ||
| 35,9 MM | ||
| 095 | A 0009815418 | ROLLER BEARING |
| STANDARD | ||
| 36,652 MM | ||
| 095 | A 0009815418 | ROLLER BEARING |
| STANDARD | ||
| 36,652 MM | ||
| 095 | A 0009818618 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 36,95 MM | ||
| 095 | A 0009818618 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 36,95 MM | ||
| 095 | A 0009818718 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 37,25 MM | ||
| 095 | A 0009818718 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 37,25 MM | ||
| 100 | A 3403320452 | SPACER WASHER |
| AS REQUIRED | ||
| 1,3 MM | ||
| 100 | A 3403320552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.4 MM | ||
| 100 | A 3403320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 100 | A 3403320752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.6 MM | ||
| 100 | A 3403320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 100 | A 3403320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.8 MM | ||
| 100 | A 3403321052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 120 | A 3213340115 | RING |
| LEFT | ||
| 120 | A 3213340115 | RING |
| LEFT | ||
| 120 | A 3403340015 | RING |
| LEFT | ||
| 120 | A 3603340115 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 120 | A 3603340115 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 124 | A 3213340215 | RING |
| RIGHT | ||
| 124 | A 3213340215 | RING |
| RIGHT | ||
| 124 | A 3403340115 | RING |
| RIGHT | ||
| 124 | A 3603340215 | RING |
| FRONT WHEEL HUB,INSIDE,RIGHT | ||
| 124 | A 3603340215 | RING |
| FRONT WHEEL HUB,INSIDE,RIGHT | ||
| 128 | A 3553340082 | OIL COLLECTOR |
| 133 | A 0009973446 | SEAL RING |
| 133 | A 0009973446 | SEAL RING |
| 133 | A 0079973646 | SEAL RING |
| 133 | A 0079973646 | SEAL RING |
| 133 | A 0119977147 | SEAL RING |
| 133 | A 0119977147 | SEAL RING |
| 133 | A 0039974546 | SEAL RING |
| 138 | A 3213340051 | SPACER RING |
| 142 | A 0009818905 | TAPERED ROLLER BEARING |
| 142 | A 0009818905 | TAPERED ROLLER BEARING |
| 142 | A 0029810205 | TAPERED ROLLER BEARING |
| 142 | A 0029810205 | TAPERED ROLLER BEARING |
| 142 | A 0019819705 | TAPERED ROLLER BEARING |
| 142 | A 0019819705 | TAPERED ROLLER BEARING |
| 142 | A 0039817105 | TAPERED ROLLER BEARING |
| 142 | A 0039817105 | TAPERED ROLLER BEARING |
| 142 | A 0039817305 | TAPERED ROLLER BEARING |
| 142 | A 0039817305 | TAPERED ROLLER BEARING |
| 142 | A 0019801002 | TAPERED ROLLER BEARING |
| 142 | A 0019801002 | TAPERED ROLLER BEARING |
| 142 | A 0019815505 | TAPERED ROLLER BEARING |
| 142 | A 0019816605 | TAPERED ROLLER BEARING |
| 142 | A 0019816705 | TAPERED ROLLER BEARING |
| 147 | A 3273340501 | WHEEL HUB |
| 147 | A 3523340101 | WHEEL HUB |
| STEEL | ||
| 147 | A 3523340601 | WHEEL HUB |
| CASTING | ||
| 152 | A 3524020171 | WHEEL MOUNTING BOLT |
| 157 | A 3524210001 | BRAKE DRUM |
| 161 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 161 | A 0049813805 | TAPERED ROLLER BEARING |
| 161 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 161 | A 0049813405 | TAPERED ROLLER BEARING |
| 161 | A 0039816405 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 161 | A 0049813405 | TAPERED ROLLER BEARING |
| 161 | A 0069810705 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 161 | A 0049813805 | TAPERED ROLLER BEARING |
| 166 | A 3213340225 | HUB CAP |
| 166 | A 3213340225 | HUB CAP |
| 166 | A 3523300057 | HUB CAP |
| 173 | A 3603380507 | STEERING ARM |
| LEFT | ||
| 177 | A 3603380706 | STEERING ARM |
| RIGHT | ||
| 185 | A 3603380805 | STEERING ARM |
| LEFT | ||
| 191 | A 3603380508 | STEERING ARM |
| RIGHT | ||
| 205 | A 3523301703 | TIE ROD |
| Repalced by: A 3523302503 | ||
| 205 | A 3523302503 | TIE ROD |
| LEMFOERDER | ||
| A 3523301803 | TIE ROD | |
| Repalced by: A 3523302603 | ||
| 205 | A 3523302603 | TIE ROD |
| LEMFOERDER | ||
| A 0003384615 | TIE ROD | |
| 209 | A 0003301435 | JOINT |
| Repalced by: A 0003309335 | ||
| 209 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 209 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 229 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 229 | A 0003300885 | BOOT |
| 235 | N 000937018003 | NUT |
| N 000094004065 | COTTER PIN | |
| 241 | N 900087008000 | PLUG |
| 248 | A 0003381045 | CLAMP |
| 248 | A 0003381545 | CLAMP |
| 248 | A 0003382445 | CLAMP |
| TO 352 330 17 03,352 330 18 03 | ||
