Transporto priemonė: LS 1316; VIN numerio dalis: 345025
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 732.7 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

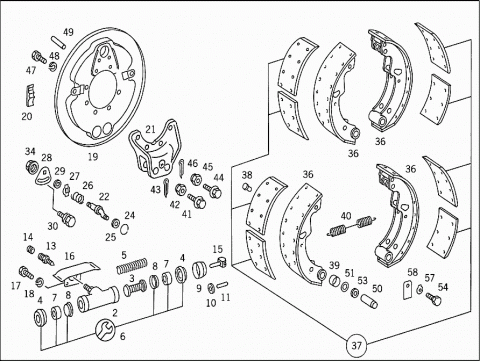

| FRONT WHEEL BRAKE | ||
| 002 | A 0454200118 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3454207418 | ||
| 002 | A 0024209118 | WHEEL BRAKE CYLINDER |
| Repalced by: A 3454207418 | ||
| 002 | A 3454207418 | WHEEL BRAKE CYLINDER |
| 46.83 MM,"VARGA" | ||
| 002 | A 3454207118 | WHEEL BRAKE CYLINDER |
| 46.83 MM "VARGA" | ||
| 002 | A 0084203118 | WHEEL BRAKE CYLINDER |
| 46.83 MM"KUGELFISCHER" | ||
| 003 | A 0004231893 | SPRING |
| Repalced by: A 3444217090 | ||
| 003 | A 3444217090 | SPRING |
| TO 345 420 74 18 | ||
| 004 | A 0004232187 | PROTECTIVE CAP |
| Repalced by: A 3454237087 | ||
| 004 | A 3454237087 | PROTECTIVE CAP |
| TO 345 420 74 18 | ||
| 004 | A 0004215087 | PROTECTIVE CAP |
| TO 008 420 31 18 | ||
| 004 | A 0004215387 | PROTECTIVE CAP |
| TO 008 420 31 18 | ||
| 005 | A 0084200390 | SPRING |
| TO 045 420 01 18,345 420 71 18 | ||
| H 983455860042 | REPAIR KIT | |
| Repalced by: A 0005862842 | ||
| A 0005862842 | REPAIR KIT | |
| TO 003 420 79 18 | ||
| 006 | A 0085861442 | REPAIR KIT |
| TO 045 420 01 18,345 420 71 18 | ||
| 006 | A 0025863443 | REPAIR KIT |
| TO 008 420 31 18 | ||
| 007 | A 0004232183 | PISTON |
| Repalced by: A 3454237083 | ||
| 007 | A 3454237083 | PISTON |
| 007 | A 0084230483 | PISTON |
| Repalced by: A 3454237083 | ||
| 007 | A 3454237083 | PISTON |
| TO 045 420 01 18,345 420 71 18 | ||
| 008 | A 0004231686 | CUP |
| Repalced by: A 3454237086 | ||
| 008 | A 3454237086 | CUP |
| TO 045 420 01 18 | ||
| 008 | A 0004214386 | CUP |
| TO 345 420 71 18 | ||
| 009 | A 0084230020 | PROTECTIVE PLATE |
| Repalced by: A 3454237020 | ||
| 009 | A 0004213087 | PROTECTIVE CAP |
| Repalced by: A 3454237020 | ||
| 009 | A 3454237020 | PROTECTIVE PLATE |
| TO 345 420 71 18 | ||
| 009 | A 0004210920 | PROTECTIVE PLATE |
| TO 345 420 71 18 | ||
| 010 | A 0004210660 | SEAL RING |
| TO 345 420 71 18 | ||
| 011 | A 0004231388 | THRUST PIN |
| TO 045 420 01 18,002 420 91 18 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 015 | ||
| 013 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 013 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 013 | A 0004212065 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 013 | A 3454317165 | VALVE |
| 013 | A 3454217065 | BLEEDER VALVE |
| 014 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 014 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 014 | A 0004214987 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 014 | A 3454317287 | PROTECTIVE CAP |
| 014 | A 3454317187 | PROTECTIVE CAP |
| 015 | A 3024210088 | THRUST PIN |
| TO 345 420 71 18 | ||
| 016 | A 3024210020 | PROTECTIVE PLATE |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 017 | N 000933010174 | SCREW |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 018 | N 000127010202 | LOCK WASHER |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 019 | A 3024200916 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024201116 | ||
| 019 | A 3024201116 | BRAKE ANCHOR PLATE |
| 020 | A 3094210211 | PLUG |
| 021 | A 3024210506 | BRAKE ANCHOR |
| 021 | A 3024210606 | BRAKE ANCHOR |
| 022 | A 3024230419 | ADJUSTING PIN |
| 024 | A 3124211073 | LOCK |
| 025 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 026 | A 3029930501 | SPRING |
| 027 | A 3024210176 | WASHER |
| 028 | A 3024200386 | BRACKET |
| Repalced by: A 3454200086 | ||
| 028 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| 028 | A 3024210473 | LOCK |
| 029 | A 3024210076 | WASHER |
| 030 | N 914001010002 | COMBINATION BOLT |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| 034 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 034 | N 000936012005 | NUT |
| 034 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 034 | A 3029900250 | NUT |
| A 3604203320 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604204420 | BRAKE SHOE | |
| Repalced by: A 3454207620 | ||
| A 3454207620 | BRAKE SHOE | |
| WITH LINING | ||
| "LONAFLEX" | ||
| 036 | A 3024201619 | BRAKE SHOE |
| Repalced by: A 3024202219 | ||
| 036 | A 3024202219 | BRAKE SHOE |
| LESS LINING | ||
| A 3604210610 | BRAKE LINING | |
| Repalced by: A 3454217010 | ||
| A 3454217010 | BRAKE LINING | |
| STANDARD | ||
| 15.5 MM,LONAFLEX | ||
| A 3454217310 | BRAKE LINING | |
| STANDARD | ||
| 15.7 MM,FRAS-LE | ||
| A 3604210710 | BRAKE LINING | |
| Repalced by: A 3454217110 | ||
| A 3454217110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.5 MM,LONAFLEX | ||
| A 3454217410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.7 MM,FRAS-LE | ||
| A 3604210810 | BRAKE LINING | |
| Repalced by: A 3454217210 | ||
| A 3454217210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.5 MM,LONAFLEX | ||
| A 3454217510 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.7 MM,FRAS-LE | ||
| 037 | A 3455867842 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 037 | A 3455867942 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 037 | A 3644210610 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.5 MM | ||
| 037 | A 3455868642 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 037 | A 3455868842 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 037 | A 3644210710 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.5 MM | ||
| 037 | A 3455868742 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 037 | A 3455868942 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 037 | A 3644210810 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.5 MM | ||
| 038 | A 3079900197 | RIVET |
| 038 | A 3459907197 | RIVET |
| 039 | A 3024210050 | BUSHING |
| 039 | A 3024210150 | BUSHING |
| 040 | A 3414210092 | SPRING |
| Repalced by: A 3524210192 | ||
| 040 | A 3524210192 | SPRING |
| BRAKE SHOE | ||
| 041 | A 3603320171 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 042 | N 000935018001 | NUT |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 043 | N 000094004065 | COTTER PIN |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 044 | A 3029900204 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 044 | A 3559900004 | SCREW |
| Repalced by: A 3029900804 | ||
| 044 | A 3029900804 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 045 | N 000935012003 | NUT |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 046 | N 000094003024 | COTTER PIN |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 047 | N 000933010270 | SCREW |
| BRAKE ANCHOR PLATE TO BRAKE ANCHOR | ||
| 048 | N 000127010202 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO BRAKE ANCHOR | ||
| 049 | A 3024210974 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 050 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 050 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 050 | A 3454217074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 051 | A 3029970145 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 051 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 053 | A 3024211252 | SPACER WASHER |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 054 | N 000933010294 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 054 | N 000933010270 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 057 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 057 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 057 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 057 | A 3029940009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 058 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 058 | A 3649947009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

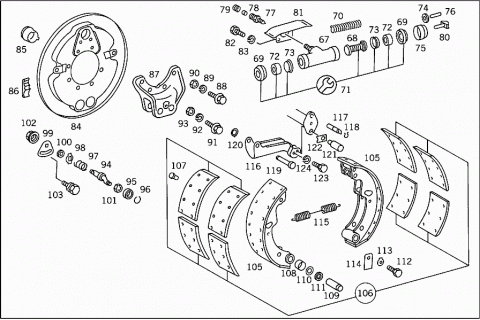

| REAR WHEEL BRAKE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR WHEEL BRAKE, SEE PARTS LIST: | ||
| 743.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR WHEEL BRAKE, SEE PARTS LIST: | ||
| 745.0 | ||
| 067 | A 0454200018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034208018 | ||
| 067 | A 0024209218 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034208018 | ||
| 067 | A 0034208018 | WHEEL BRAKE CYLINDER |
| TEVES, 50.80 MM | ||
| 067 | A 0094204118 | WHEEL BRAKE CYLINDER |
| TEVES, 50.80 MM | ||
| 067 | A 0094204118 | WHEEL BRAKE CYLINDER |
| TEVES, 50.80 MM | ||
| 067 | A 3454207218 | WHEEL BRAKE CYLINDER |
| VARGA,50.80 MM | ||
| 067 | A 3454207218 | WHEEL BRAKE CYLINDER |
| VARGA,50.80 MM | ||
| 068 | A 0004231993 | SPRING |
| Repalced by: A 3454237093 | ||
| 068 | A 3454237093 | SPRING |
| TO 003 420 80 18 | ||
| 068 | A 3444217090 | SPRING |
| TO 345 420 72 18 | ||
| 069 | A 0004232587 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 070 | A 0084200290 | GUIDE |
| Repalced by: A 3454237093 | ||
| 070 | A 3454237093 | SPRING |
| VARGA,TO 045 420 00 18 | ||
| 071 | A 0005862342 | REPAIR KIT |
| TO 003 420 80 18 | ||
| 071 | H 983455860142 | REPAIR KIT |
| Repalced by: A 0085861342 | ||
| 071 | A 0085861342 | REPAIR KIT |
| 071 | A 0085861342 | REPAIR KIT |
| TO 045 420 00 18,345 420 72 18 | ||
| 072 | A 0004232583 | PISTON |
| ATE | ||
| 072 | A 0084230583 | PISTON |
| TO 045 420 00 18,345 420 72 18 | ||
| 073 | A 0004210386 | CUP |
| TO 003 420 80 18 | ||
| 073 | A 0004214486 | CUP |
| TO 345 420 72 18 | ||
| 074 | A 0004210560 | SEAL RING |
| TO 345 420 72 18 | ||
| 075 | A 0084230120 | PROTECTIVE PLATE |
| Repalced by: A 0004232787 | ||
| 075 | A 0004232787 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 075 | A 0004210820 | PROTECTIVE PLATE |
| TO 345 420 72 18 | ||
| 076 | A 0004231388 | THRUST PIN |
| TO 045 420 00 18,002 420 92 18 | ||
| 076 | A 0004231388 | THRUST PIN |
| SEE FIG. NO.: | ||
| 080 | ||
| 077 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 077 | A 3454317165 | VALVE |
| 077 | A 0004212065 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 077 | A 3454317165 | VALVE |
| TO 345 420 72 18 | ||
| 078 | A 0084210389 | FILLER |
| TO 345 420 72 18 | ||
| 079 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 079 | A 3454317287 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 079 | A 0004214987 | PROTECTIVE CAP |
| TO 345 420 72 18 | ||
| 080 | A 3024210088 | THRUST PIN |
| 080 | A 3024210088 | THRUST PIN |
| 081 | A 3024210020 | PROTECTIVE PLATE |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 081 | A 3024210020 | PROTECTIVE PLATE |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 082 | N 000933010174 | SCREW |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 082 | N 000933010174 | SCREW |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 083 | N 000127010202 | LOCK WASHER |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 083 | N 000127010202 | LOCK WASHER |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 084 | A 3454207017 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203017 | ||
| 084 | A 3024203017 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 084 | A 3024203017 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 084 | A 3024203017 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 084 | A 3024203017 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 084 | A 3454207117 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203117 | ||
| 084 | A 3024203117 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 084 | A 3024203117 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 084 | A 3024203117 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 084 | A 3024203117 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 084 | A 3024203217 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 084 | A 3024203217 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 084 | A 3024203317 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 084 | A 3024203317 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 085 | A 3024270054 | PIPE SOCKET |
| 086 | A 3094210211 | PLUG |
| 087 | A 3024230706 | BRAKE ANCHOR |
| 087 | A 3024230806 | BRAKE ANCHOR |
| 087 | A 3024230806 | BRAKE ANCHOR |
| 088 | N 000961012106 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 088 | N 000961012106 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 089 | N 000127012201 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 089 | N 000127012201 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 090 | N 000934012013 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| 090 | N 000934012013 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| 091 | A 3029900504 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 091 | A 3029900504 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 092 | N 912004016101 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 092 | N 912004016101 | LOCK WASHER |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 093 | N 000934016003 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 093 | N 000934016003 | NUT |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 094 | A 3024230319 | ADJUSTING PIN |
| 094 | A 3024230319 | ADJUSTING PIN |
| 094 | A 3024230319 | ADJUSTING PIN |
| 094 | A 3024230319 | ADJUSTING PIN |
| 094 | A 3024230419 | ADJUSTING PIN |
| 094 | A 3024230419 | ADJUSTING PIN |
| 095 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 095 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 096 | A 3124211073 | LOCK |
| 096 | A 3124211073 | LOCK |
| 097 | A 3029930701 | SPRING |
| 097 | A 3029930701 | SPRING |
| 097 | A 3029930701 | SPRING |
| 097 | A 3029930701 | SPRING |
| 097 | A 3029930501 | SPRING |
| 097 | A 3029930501 | SPRING |
| 098 | A 3024210176 | WASHER |
| 098 | A 3024210176 | WASHER |
| 099 | H 983454200086 | BRACKET |
| Repalced by: A 3454200086 | ||
| 099 | A 3024200386 | BRACKET |
| Repalced by: A 3454200086 | ||
| 099 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| 099 | A 3024210473 | LOCK |
| 100 | A 3024210076 | WASHER |
| 101 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 101 | N 000936012005 | NUT |
| 102 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 102 | A 3029900250 | NUT |
| 102 | A 3029900250 | NUT |
| 103 | N 914001010002 | COMBINATION BOLT |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| 103 | N 914001010002 | COMBINATION BOLT |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| A 3604202920 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604204520 | BRAKE SHOE | |
| Repalced by: A 3604209120 | ||
| A 3454207020 | BRAKE SHOE | |
| WITH LINING | ||
| A 3454207020 | BRAKE SHOE | |
| WITH LINING | ||
| A 3454207020 | BRAKE SHOE | |
| WITH LINING | ||
| A 3454207020 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604209120 | BRAKE SHOE | |
| WITH LINING | ||
| "JURID" | ||
| A 3604209120 | BRAKE SHOE | |
| WITH LINING | ||
| "JURID" | ||
| A 3604209120 | BRAKE SHOE | |
| WITH LINING | ||
| "JURID" | ||
| A 3604209120 | BRAKE SHOE | |
| WITH LINING | ||
| "JURID" | ||
| A 3604203320 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604204420 | BRAKE SHOE | |
| Repalced by: A 3454207320 | ||
| A 3454207320 | BRAKE SHOE | |
| WITH LINING | ||
| "LONAFLEX" | ||
| A 3454207320 | BRAKE SHOE | |
| WITH LINING | ||
| "LONAFLEX" | ||
| 105 | A 3024201619 | BRAKE SHOE |
| Repalced by: A 3024202019 | ||
| 105 | A 3024202019 | BRAKE SHOE |
| LESS LINING | ||
| 105 | A 3024202019 | BRAKE SHOE |
| LESS LINING | ||
| 105 | A 3024201719 | BRAKE SHOE |
| Repalced by: A 3024202119 | ||
| 105 | A 3024202119 | BRAKE SHOE |
| LESS LINING | ||
| 105 | A 3024202119 | BRAKE SHOE |
| LESS LINING | ||
| 105 | A 3024202119 | BRAKE SHOE |
| LESS LINING | ||
| A 3604210610 | BRAKE LINING | |
| Repalced by: A 3454217010 | ||
| A 3454217010 | BRAKE LINING | |
| STANDARD | ||
| 15,5 MM,LONAFLEX | ||
| A 3454217310 | BRAKE LINING | |
| STANDARD | ||
| 15.7 MM,FRAS-LE | ||
| A 3604230010 | BRAKE LINING | |
| STANDARD | ||
| 15.5 MM,JURID | ||
| A 3604231310 | BRAKE LINING | |
| Repalced by: A 3454237010 | ||
| A 3454237010 | BRAKE LINING | |
| STANDARD | ||
| 15.5 MM,LONAFLEX | ||
| A 3604210710 | BRAKE LINING | |
| Repalced by: A 3454217110 | ||
| A 3454217110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16,5 MM,LONAFLEX | ||
| A 3454217410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.7 MM,FRAS-LE | ||
| A 3604230110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.5 MM,JURID | ||
| A 3454237110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.5 MM,LONAFLEX | ||
| A 3604210810 | BRAKE LINING | |
| Repalced by: A 3454217210 | ||
| A 3454217210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17,5 MM,LONAFLEX | ||
| A 3454217510 | BRAKE LINING | |
| 17.7 MM,FRAS-LE | ||
| A 3604230210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.5 MM,JURID | ||
| A 3454237210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.5 MM,LONAFLEX | ||
| 106 | A 3455867842 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 106 | A 3455867942 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 106 | A 3644210610 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.5 MM | ||
| 106 | A 3455868042 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 106 | A 3455868142 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 106 | A 3455868242 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 106 | A 3644230310 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.7 MM | ||
| 106 | A 3644230310 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.7 MM | ||
| 106 | A 3455868642 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 106 | A 3455868842 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 106 | A 3644210710 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.5 MM | ||
| 106 | A 3455869342 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 106 | A 3455869542 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 106 | A 3455867843 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 106 | A 3644230410 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.7 MM | ||
| 106 | A 3644230410 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.7 MM | ||
| 106 | A 3455868742 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 106 | A 3455868942 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 106 | A 3644210810 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.5 MM | ||
| 106 | A 3455869442 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 106 | A 3455869642 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 106 | A 3455867943 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 106 | A 3644230510 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.7 MM | ||
| 106 | A 3644230510 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.7 MM | ||
| 107 | A 3079900197 | RIVET |
| 107 | A 3459907197 | RIVET |
| 108 | A 3024210050 | BUSHING |
| 108 | A 3024210150 | BUSHING |
| 109 | A 3024210974 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 109 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 109 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 109 | A 3454217074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 109 | A 3454217074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 110 | A 3029970145 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 110 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 110 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 111 | A 3024211252 | SPACER WASHER |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 112 | N 000933010294 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 112 | N 000933010270 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 112 | N 000933010270 | SCREW |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 113 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 113 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 113 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 113 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 113 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 113 | A 3029940009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 114 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 114 | A 3649947009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 114 | A 3649947009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR PLATE | ||
| 115 | A 3029930610 | SPRING |
| BRAKE SHOE | ||
| 115 | A 3029930610 | SPRING |
| BRAKE SHOE | ||
| 116 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3024203419 | ||
| 116 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3024203519 | ||
| 116 | A 3024203419 | THRUST SHACKLE |
| LEFT | ||
| 116 | A 3024203419 | THRUST SHACKLE |
| LEFT | ||
| 116 | A 3024203519 | THRUST SHACKLE |
| RIGHT | ||
| 116 | A 3024203519 | THRUST SHACKLE |
| RIGHT | ||
| 117 | A 3024230118 | PIVOT PIN |
| Repalced by: A 3024230618 | ||
| 117 | A 3024230618 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 117 | A 3024230618 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 118 | A 3459947035 | SNAP RING |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 118 | A 3459947035 | SNAP RING |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 119 | A 3024230074 | PIN |
| Repalced by: A 3024230774 | ||
| 119 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 119 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 120 | N 000471018000 | LOCK RING |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 120 | N 000471018000 | LOCK RING |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 121 | A 3024230374 | PIN |
| Repalced by: A 3024230874 | ||
| 121 | A 3024230474 | PIN |
| Repalced by: A 3024230874 | ||
| 121 | A 3024230874 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 121 | A 3024230874 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 122 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 122 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 123 | N 000933008005 | SCREW |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 123 | N 000933008005 | SCREW |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 124 | N 912004008100 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 124 | N 912004008100 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 124 | N 912004008100 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||

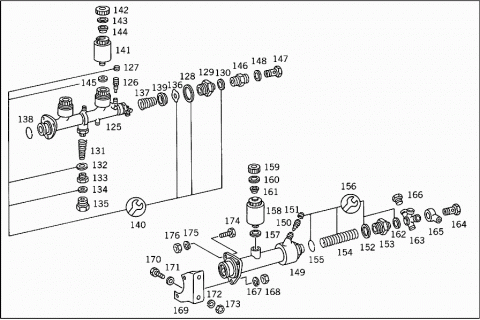

| 125 | A 0024306201 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307801 | ||
| 125 | A 3454307801 | BRAKE MASTER CYLINDER |
| "VARGA" | ||
| 126 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 126 | A 3454317165 | VALVE |
| 127 | A 3454317287 | PROTECTIVE CAP |
| N 007603050100 | SEAL RING | |
| TO 002 430 62 01 | ||
| 128 | N 007603050101 | SEAL RING |
| TO 345 430 78 01 | ||
| 129 | A 0084310575 | THREADED UNION |
| Repalced by: A 3454237284 | ||
| 129 | A 3454237284 | FITTING |
| TO 002 430 62 01,345 430 78 01 | ||
| 130 | N 007603014102 | SEAL RING |
| A 0084280024 | DISTRIBUTOR | |
| Repalced by: A 3454287024 | ||
| A 3454287024 | DISTRIBUTOR | |
| A 0084280026 | HOLLOW SCREW | |
| Repalced by: A 3454287226 | ||
| A 3454287226 | HOLLOW SCREW | |
| Repalced by: A 3454287126 | ||
| A 3454287126 | HOLLOW SCREW | |
| 131 | A 0084310893 | SPRING |
| Repalced by: A 3454317093 | ||
| 131 | A 3454317093 | SPRING |
| TO 002 430 62 01,345 430 78 01 | ||
| A 0084300081 | VALVE | |
| Repalced by: A 3454307081 | ||
| A 3454307081 | VALVE | |
| TO 002 430 62 01 | ||
| 132 | N 007603032101 | SEAL RING |
| 133 | A 0084310275 | THREADED UNION |
| Repalced by: A 3454237184 | ||
| 133 | A 3454237184 | FITTING |
| TO 002 430 62 01,345 430 78 01 | ||
| 134 | N 007603014102 | SEAL RING |
| TO 002 430 62 01 | ||
| 135 | A 0084230084 | FITTING |
| A 0084300081 | VALVE | |
| Repalced by: A 3454307081 | ||
| A 3454307081 | VALVE | |
| TO 002 430 62 01 | ||
| A 0084310893 | SPRING | |
| Repalced by: A 3454317093 | ||
| A 3454317093 | SPRING | |
| TO 002 430 62 01,345 430 78 01 | ||
| 136 | A 0084310376 | WASHER |
| Repalced by: A 3454317176 | ||
| 136 | A 3454317176 | WASHER |
| TO 002 430 62 01,345 430 78 01 | ||
| A 0084311493 | SPRING | |
| Repalced by: A 3454317293 | ||
| A 3454317293 | SPRING | |
| TO 002 430 62 01,345 430 78 01 | ||
| A 0084310883 | PISTON | |
| Repalced by: A 3454317083 | ||
| A 3454317083 | PISTON | |
| TO 002 430 62 01 | ||
| A 0084310686 | CUP | |
| Repalced by: A 3454317186 | ||
| A 3454317186 | CUP | |
| TO 002 430 62 01 | ||
| 137 | H 983454310093 | SPRING |
| Repalced by: A 3454317193 | ||
| 137 | A 3454317193 | SPRING |
| TO 002 430 62 01,345 430 78 01 | ||
| A 0084310983 | PISTON | |
| Repalced by: A 3454317183 | ||
| A 3454317183 | PISTON | |
| TO 002 430 62 01 | ||
| A 0084310686 | CUP | |
| Repalced by: A 3454317186 | ||
| A 3454317186 | CUP | |
| TO 002 430 62 01 | ||
| A 0004310376 | WASHER | |
| Repalced by: A 3454317076 | ||
| A 3454317076 | WASHER | |
| TO 002 430 62 01 | ||
| 138 | A 3403320752 | SPACER WASHER |
| Repalced by: A 3454317194 | ||
| 138 | A 3454317194 | LOCK |
| TO 002 430 62 01,345 430 78 01 | ||
| 138 | A 3454317094 | LOCK |
| TO 345 430 78 01 | ||
| 139 | A 0084310689 | SPRING RETAINER |
| Repalced by: A 3454317089 | ||
| 139 | A 3454317089 | SPRING RETAINER |
| TO 002 430 62 01,345 430 78 01 | ||
| 140 | A 0455860342 | REPAIR KIT |
| Repalced by: A 3455867242 | ||
| 140 | A 3455867242 | REPAIR KIT |
| MINOR | ||
| TO 002 430 62 01 | ||
| 140 | A 3455867442 | REPAIR KIT |
| MINOR | ||
| TO 345 430 78 01 | ||
| 140 | A 0455860242 | REPAIR KIT |
| Repalced by: A 3455867342 | ||
| 140 | A 3455867142 | REPAIR KIT |
| Repalced by: A 3455867342 | ||
| 140 | A 3455867342 | REPAIR KIT |
| MAJOR | ||
| TO 002 430 62 01,345 430 78 01 | ||
| 141 | A 0084310402 | RESERVOIR |
| TO 002 430 62 01 | ||
| 141 | A 3454317002 | RESERVOIR |
| TO 345 430 7801 | ||
| 142 | A 0084310233 | FILLER CAP |
| TO 008 431 04 02,345 431 70 02 | ||
| 142 | A 0004313533 | FILLER CAP |
| TO 000 431 16 02 | ||
| 143 | A 0089970240 | SEAL RING |
| TO 008 431 04 02 | ||
| 143 | A 0009972940 | SEAL RING |
| TO 000 431 16 02 | ||
| 144 | A 0084310334 | STRAINER |
| Repalced by: A 3084317034 | ||
| 144 | A 3084317034 | STRAINER |
| TO 008 431 04 02,345 431 70 02 | ||
| 144 | A 0004310034 | STRAINER |
| TO 000 431 16 02 | ||
| 145 | N 007603022102 | SEAL RING |
| 146 | A 3454237084 | FITTING |
| TO 345 430 78 01 | ||
| 147 | A 3454287126 | HOLLOW SCREW |
| TO 345 430 78 01 | ||
| A 3454287624 | DISTRIBUTOR | |
| TO 345 430 78 01 | ||
| 148 | N 007603014106 | SEAL RING |
| 149 | A 0454300001 | BRAKE MASTER CYLINDER |
| Repalced by: A 0454300201 | ||
| 149 | A 0454300201 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307401 | ||
| 149 | A 3454307401 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307701 | ||
| 149 | A 3454307701 | BRAKE MASTER CYLINDER |
| VARGA | ||
| 150 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 150 | A 3454317165 | VALVE |
| 151 | A 3454317287 | PROTECTIVE CAP |
| 152 | N 007603040102 | SEAL RING |
| TO 345 430 77 01,345 430 74 01 | ||
| N 007603042300 | SEAL RING | |
| TO 045 430 02 01 | ||
| A 0004311075 | THREADED UNION | |
| TO 002 430 27 01 | ||
| 153 | A 0084310675 | THREADED UNION |
| TO 045 430 02 01,345 430 77 01 | ||
| 153 | A 0084310675 | THREADED UNION |
| TO 345 430 74 01 | ||
| A 0004310760 | SEAL RING | |
| TO 002 430 27 01 | ||
| A 0004300381 | VALVE | |
| TO 002 430 27 01 | ||
| A 0009930605 | SPRING | |
| TO 002 430 27 01 | ||
| A 0004311776 | WASHER | |
| TO 002 430 27 01 | ||
| A 0009941835 | SNAP RING | |
| TO 002 430 27 01 | ||
| 154 | A 0004314293 | SPRING |
| Repalced by: A 3454317393 | ||
| 154 | A 0084311793 | SPRING |
| Repalced by: A 3454317393 | ||
| 154 | A 3454317393 | SPRING |
| TO 345 430 77 01,345 430 74 01 | ||
| A 0004315386 | CUP | |
| Repalced by: A 3454317286 | ||
| A 0084310886 | CUP | |
| Repalced by: A 3454317286 | ||
| A 3454317286 | CUP | |
| TO 045 430 02 01 | ||
| A 0004311785 | FILLER RING | |
| Repalced by: A 3454317376 | ||
| A 3454317376 | WASHER | |
| TO 045 430 02 01 | ||
| A 0084310576 | WASHER | |
| Repalced by: A 3454317376 | ||
| A 0004316083 | PISTON | |
| TO 002 430 27 01 | ||
| A 0084311083 | PISTON | |
| TO 045 430 02 01 | ||
| A 0039975246 | SEAL RING | |
| TO 002 430 27 01 | ||
| A 0084310786 | CUP | |
| TO 045 430 02 01 | ||
| A 0004310376 | WASHER | |
| Repalced by: A 3454317076 | ||
| A 0084310476 | WASHER | |
| Repalced by: A 3454317076 | ||
| A 3454317076 | WASHER | |
| TO 045 430 02 01, 002 430 27 01 | ||
| A 0004310194 | LOCK | |
| TO 002 430 27 01 | ||
| 155 | A 0084310394 | LOCK |
| Repalced by: A 3454317194 | ||
| 155 | A 3454317194 | LOCK |
| TO 345 430 77 01,345 430 74 01 | ||
| 156 | H 983455860342 | REPAIR KIT |
| Repalced by: A 0455860542 | ||
| 156 | A 0455860542 | REPAIR KIT |
| MINOR | ||
| 156 | H 983455860442 | REPAIR KIT |
| Repalced by: A 0455860442 | ||
| 156 | A 0455860442 | REPAIR KIT |
| MAJOR | ||
| TO 045 430 02 01,345 430 77 01 | ||
| A 0005861743 | REPAIR KIT | |
| TO 002 430 27 01 | ||
| 157 | N 007603022102 | SEAL RING |
| 158 | A 0084310602 | RESERVOIR |
| TO 045 430 02 01,345 430 74 01 | ||
| A 0004312102 | RESERVOIR | |
| TO 002 430 27 01 | ||
| 158 | A 3454317102 | RESERVOIR |
| TO 345 430 77 01 | ||
| 159 | A 0004310933 | FILLER CAP |
| 159 | A 0084310233 | FILLER CAP |
| TO 345 431 71 02 | ||
| 159 | A 0094310233 | FILLER CAP |
| TO 345 430 74 01 | ||
| 160 | A 0009972940 | SEAL RING |
| 160 | A 0089970240 | SEAL RING |
| TO 345 430 74 01 | ||
| 161 | A 0004310034 | STRAINER |
| Repalced by: A 0084310034 | ||
| 161 | A 0084310034 | STRAINER |
| 161 | A 3084317034 | STRAINER |
| TO 345 431 71 02,345 430 74 01 | ||
| 162 | N 007603014102 | SEAL RING |
| 163 | A 0454310075 | THREADED UNION |
| A 0084280324 | DISTRIBUTOR | |
| TO 002 430 27 01 | ||
| 163 | A 3454287324 | DISTRIBUTOR |
| TO 345 430 77 01 | ||
| 164 | A 0004280026 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| A 3454287126 | HOLLOW SCREW | |
| TO 002 430 27 01 | ||
| 164 | A 3454287126 | HOLLOW SCREW |
| TO 345 430 77 01 | ||
| 164 | A 3454287226 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 164 | A 3454287126 | HOLLOW SCREW |
| TO 345 430 74 01 | ||
| A 3454287424 | DISTRIBUTOR | |
| TO 002 430 27 01 | ||
| 165 | A 3454317030 | BANJO UNION |
| TO 345 430 77 01,345 430 74 01 | ||
| 166 | A 0004280032 | SCREW PLUG |
| 167 | N 000127010202 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 168 | N 000934010000 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 169 | A 3454310140 | BRACKET |
| LEFT | ||
| 169 | A 3524310940 | BRACKET |
| RIGHT | ||
| 170 | N 000933010129 | SCREW |
| BRACKET TO CHASSIS | ||
| 170 | N 000933010269 | SCREW |
| BRACKET TO CHASSIS | ||
| 171 | N 000125010517 | WASHER |
| BRACKET TO CHASSIS | ||
| 172 | N 000127010202 | LOCK WASHER |
| BRACKET TO CHASSIS | ||
| 173 | N 000934010000 | NUT |
| BRACKET TO CHASSIS | ||
| 174 | N 000933010129 | SCREW |
| MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER | ||
| 175 | N 000127010202 | LOCK WASHER |
| MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER | ||
| 176 | N 000934010000 | NUT |
| MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER | ||
| 177 | A 0454200028 | LINE |
| Repalced by: A 3454207928 | ||
| 177 | A 3454207928 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 6X0.7 MM | ||

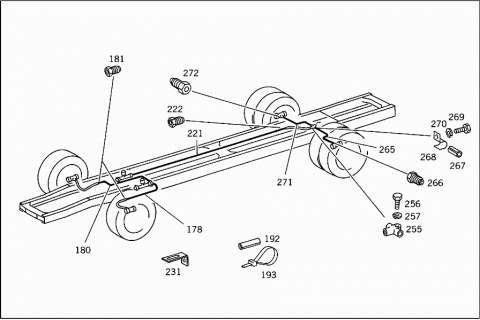

| 178 | A 3454200028 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 6X0.7 MM | ||
| 179 | A 0454200128 | LINE |
| Repalced by: A 3454208028 | ||
| 179 | A 3454208028 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| 6X0.7 MM | ||
| 180 | A 3454200128 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| 6X0.7 MM | ||

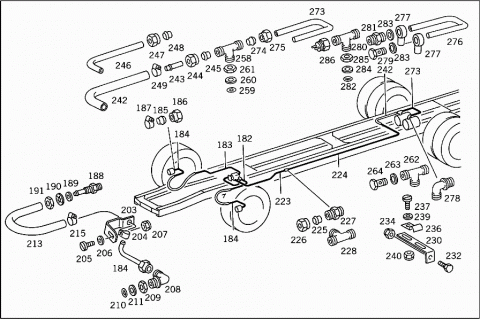

| 181 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 181 | A 0004280072 | UNION SCREW |
| 182 | A 3454208832 | LINE |
| FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING | ||
| 12X1 MM | ||
| 183 | A 3444207229 | LINE |
| FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING | ||
| 12X1 MM | ||
| 184 | A 3454208632 | LINE |
| FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER | ||
| 12X1 MM | ||
| 185 | N 003861012007 | GLAND |
| 186 | N 915017012100 | UNION NUT |
| 187 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 187 | A 3459978890 | LOOM TIE |
| BRAKE HOSE TO COMPRESSED AIR LINE | ||
| 188 | A 3454307379 | CONNECTOR |
| 189 | N 000125017010 | WASHER |
| HOSE FITTING TO FRONT AXLE SIDE MEMBER | ||
| 190 | N 006797016152 | TOOTHED WASHER |
| HOSE FITTING TO FRONT AXLE SIDE MEMBER | ||
| 191 | N 000936016003 | NUT |
| HOSE FITTING TO FRONT AXLE SIDE MEMBER | ||
| 192 | A 3129970582 | HOSE |
| Repalced by: A 3449978082 | ||
| 192 | A 3449978082 | HOSE |
| HOSE TO BRAKE LINE | ||
| 193 | A 3129950935 | CLAMP |
| Repalced by: A 3459977290 | ||
| 193 | A 3459977290 | LOOM TIE |
| HOSE TO BRAKE LINE | ||
| 194 | A 3524281640 | BRACKET |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 195 | N 000933008050 | SCREW |
| BRACKET TO FRAME | ||
| 196 | N 912004008100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 197 | N 000934008000 | NUT |
| BRACKET TO FRAME | ||
| 198 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 198 | N 916016006201 | CLAMP |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 198 | A 3459957801 | CLAMP |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 198 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINES TO CROSS MEMBER | ||
| 198 | A 3459957901 | CLAMP |
| COMPRESSED AIR LINES TO CROSS MEMBER | ||
| 199 | N 007985006515 | SCREW |
| LINE TO CROSS AND SIDE MEMBERS | ||
| M 6X20 | ||
| 199 | N 000084006137 | SCREW |
| COMPRESSED AIR LINES TO CROSS MEMBER | ||
| 200 | N 000127006203 | LOCK WASHER |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 201 | N 009021006103 | WASHER |
| COMPRESSED AIR LINES TO CROSS MEMBER | ||
| 202 | N 913004006001 | NUT |
| LINE TO CROSS AND SIDE MEMBERS | ||
| 202 | N 913004006001 | NUT |
| COMPRESSED AIR LINES TO CROSS MEMBER | ||
| 203 | A 3454287840 | BRACKET |
| RIGHT | ||
| 203 | A 3454288240 | BRACKET |
| LEFT | ||
| 203 | A 3454299840 | BRACKET |
| 204 | N 916016012200 | CLAMP |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| 204 | A 3459957901 | CLAMP |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| 205 | N 007985006515 | SCREW |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| M 6X16 | ||
| 206 | N 000125006420 | WASHER |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| 207 | N 913004006001 | NUT |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| 208 | A 3089907171 | ELBOW FITTING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 209 | N 000936016003 | NUT |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 210 | A 0009971548 | SEAL RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 211 | A 0004290927 | THRUST RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 212 | A 0004289135 | BRAKE HOSE |
| FRONT | ||
| 212 | A 0014283235 | BRAKE HOSE |
| FRONT | ||
| 213 | N 916027011005 | HOSE |
| FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS | ||
| 11X530 MM | ||
| 214 | A 0004280473 | BRACKET |
| 215 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 215 | A 3459978890 | LOOM TIE |
| BRAKE HOSE TO FITTING | ||
| 216 | A 3524282040 | BRACKET |
| FRONT | ||
| 217 | N 000933008317 | SCREW |
| BRACKET TO CAB | ||
| 218 | N 912004008100 | LOCK WASHER |
| BRACKET TO CAB | ||
| 219 | N 000934008000 | NUT |
| BRACKET TO CAB | ||

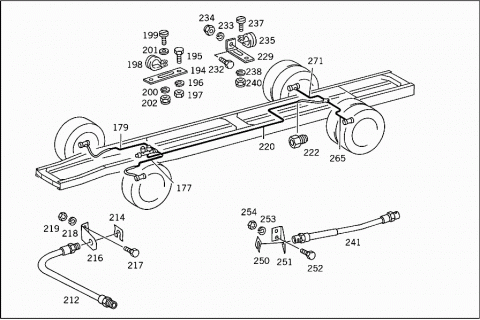

| 220 | A 3454207032 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 220 | A 0454200228 | LINE |
| Repalced by: A 3454208428 | ||
| 220 | A 3454208428 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 220 | A 0454200328 | LINE |
| Repalced by: A 3454208528 | ||
| 220 | A 3454208528 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 221 | A 0454200428 | LINE |
| Repalced by: A 3454208628 | ||
| 221 | A 3454208628 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 221 | A 0454200528 | LINE |
| Repalced by: A 3454208728 | ||
| 221 | A 3454208728 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 221 | A 0454200628 | LINE |
| Repalced by: A 3454208828 | ||
| 221 | A 3454208828 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 221 | A 0454200728 | LINE |
| Repalced by: A 3454208928 | ||
| 221 | A 3454208928 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.6 MM | ||
| 221 | A 0454200828 | LINE |
| Repalced by: A 3454209028 | ||
| 221 | A 3454209028 | LINE |
| FROM BRAKE MASTER CYLINDER TO REAR AXLE | ||
| 6X0.7 MM | ||
| 222 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 222 | A 0004280072 | UNION SCREW |
| 223 | A 3454209032 | LINE |
| FROM SERVICE BRAKE VALVE TO FITTING | ||
| 12X1 MM | ||
| 223 | A 3454209032 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "21" TO T-FITTING | ||
| 12X1 MM | ||
| 224 | A 3454207832 | LINE |
| FROM FITTING TO BRAKE HOSE | ||
| 12X1 MM | ||
| 224 | A 3454207832 | LINE |
| FROM T-FITTING TO BRAKE HOSE | ||
| 12X1 MM | ||
| 224 | A 3454208132 | LINE |
| FROM FITTING TO BRAKE HOSE | ||
| 12X1 MM | ||
| 224 | A 3454208032 | LINE |
| FROM FITTING TO BRAKE HOSE | ||
| 12X1 MM | ||
| 224 | A 3454207932 | LINE |
| FROM FITTING TO BRAKE HOSE | ||
| 12X1 MM | ||
| 225 | N 003861012007 | GLAND |
| 226 | N 915017012100 | UNION NUT |
| 227 | N 003910012001 | BULKHEAD FITTING |
| 227 | A 0029971672 | FITTING |
| 228 | N 074317012300 | FITTING |
| Repalced by: A 0019901970 | ||
| 228 | A 0019901970 | T-FITTING |
| 229 | A 3524281740 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 230 | A 3454288540 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 231 | A 3454287040 | BRACKET |
| 232 | N 000933008050 | SCREW |
| LINE TO SIDE MEMBER | ||
| 232 | N 000933008288 | SCREW |
| LINE TO SIDE MEMBER | ||
| 233 | N 912004008100 | LOCK WASHER |
| LINE TO SIDE MEMBER | ||
| 234 | N 913004008001 | NUT |
| LINE TO SIDE MEMBER | ||
| 234 | N 913004008001 | NUT |
| LINE TO SIDE MEMBER | ||
| 235 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 235 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 235 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 236 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 236 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 237 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 237 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 238 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 239 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 240 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 240 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 241 | A 0004284335 | BRAKE HOSE |
| REAR | ||
| 241 | A 0014283135 | BRAKE HOSE |
| REAR | ||
| 242 | N 916027011008 | HOSE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11",11X630 MM | ||
| 242 | N 916027011008 | HOSE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11",11X630 MM | ||
| 242 | N 916027011009 | HOSE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11",11X750 MM | ||
| 243 | A 0004290541 | FITTING |
| Repalced by: A 3454297041 | ||
| 243 | A 3454297041 | FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11" | ||
| 244 | N 915017012100 | UNION NUT |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11" | ||
| 245 | N 003861012007 | GLAND |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11" | ||
| 246 | A 3504208935 | LINE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11" | ||
| 247 | N 915017012100 | UNION NUT |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11" | ||
| 248 | N 003861012007 | GLAND |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11" | ||
| 249 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 249 | A 3459978890 | LOOM TIE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 249 | A 3459978890 | LOOM TIE |
| BRAKE HOSE TO COMPRESSED AIR LINE | ||
| "11,12" | ||
| 249 | A 3459977390 | LOOM TIE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" - 195 MM | ||
| 249 | A 0019978290 | LOOM TIE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 250 | A 0004280473 | BRACKET |
| BRAKE HOSE,REAR | ||
| 251 | A 3124281040 | BRACKET |
| BRAKE HOSE,REAR | ||
| 251 | A 3404280243 | ANGLE |
| BRAKE HOSE,REAR | ||
| 252 | N 000933008050 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 253 | N 912004008100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 254 | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 255 | A 0004290437 | DISTRIBUTOR |
| 255 | A 3454297037 | DISTRIBUTOR |
| 256 | N 000933008273 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M8X30 | ||
| 257 | N 912004008100 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 258 | A 0009904270 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 258 | A 0009904270 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 259 | A 0009971548 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 260 | A 0004290927 | THRUST RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 261 | N 000936016003 | NUT |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 262 | A 0019905370 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 263 | N 007603016103 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 264 | N 915036012200 | HOLLOW SCREW |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 265 | A 3274205030 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 265 | H 983454200130 | LINE |
| Repalced by: A 3454204228 | ||
| 265 | A 3454204228 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 266 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 266 | A 0004280072 | UNION SCREW |
| 267 | A 3129973482 | HOSE |
| 268 | A 3129951020 | CLAMP |
| 269 | N 000933008228 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 270 | N 912004008100 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 271 | A 3274205130 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 271 | H 983454200030 | LINE |
| Repalced by: A 3454204328 | ||
| 271 | A 3454204328 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 272 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 272 | A 0004280072 | UNION SCREW |
| 273 | A 3454203749 | LINE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11",12X1 MM | ||
| 273 | A 3454203749 | LINE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11",12X1 MM | ||
| 273 | A 3504208735 | LINE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11",12X1 MM | ||
| 273 | A 3504208735 | LINE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11",12X1 MM | ||
| 274 | N 003861012007 | GLAND |
| 274 | N 003861012007 | GLAND |
| 275 | N 915017012100 | UNION NUT |
| 275 | N 915017012100 | UNION NUT |
| 276 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 276 | A 0009872827 | PLASTIC PIPE |
| Repalced by: A 0009875027 | ||
| 276 | A 0009875027 | PLASTIC PIPE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| 12 X 1.5 MM | ||
| 277 | N 915052009000 | BANJO UNION |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11" | ||
| 278 | A 3089907171 | ELBOW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11" | ||
| 278 | A 3089907171 | ELBOW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11" | ||
| 279 | N 915036012200 | HOLLOW SCREW |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11" | ||
| 280 | A 0009904770 | T-FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "12" | ||
| 280 | A 0009904770 | T-FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "12" | ||
| 281 | N 915039012200 | HOLLOW SCREW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "12" | ||
| 282 | A 0009971548 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 282 | A 0009971548 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 283 | N 007603016103 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 284 | A 0004290927 | THRUST RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 284 | A 0004290927 | THRUST RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 285 | N 000936016003 | NUT |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 285 | N 000936016003 | NUT |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 286 | A 0005455414 | SWITCH |
| 286 | A 3445457214 | SWITCH |
| 287 | A 0029971272 | FITTING |
| Repalced by: N 003901018004 | ||
| 287 | N 003901018006 | SCREW-IN FITTING |
| AT AIR COMPRESSOR | ||
| 287 | A 3454298336 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| 288 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 289 | A 3524206337 | LINE |
| FROM AIR COMPRESSOR TO ELBOW FITTING | ||
| 18X1.5 MM | ||
| 289 | H 983454200037 | LINE |
| Repalced by: A 3454207749 | ||
| 289 | A 3454207749 | LINE |
| FROM AIR COMPRESSOR TO ELBOW FITTING | ||
| 18X1.5 MM | ||
| 290 | N 915017018100 | UNION NUT |
| 291 | N 003861018003 | GLAND |
| 292 | A 3454207033 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 15X1.5 MM | ||
| 292 | A 3444207630 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 15X1.5 MM | ||
| 293 | N 003861015004 | GLAND |
| 294 | N 915017015100 | UNION NUT |
| 295 | N 915065018101 | THRUST RING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 296 | A 0004291584 | SEAL RING |
| Repalced by: N 915045015100 | ||
| 296 | N 915045015100 | SEAL RING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 297 | A 3454290140 | BRACKET |
| Repalced by: A 3454297840 | ||
| 297 | A 3454297840 | BRACKET |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| 297 | A 3464295840 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 298 | A 3454288140 | BRACKET |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 299 | A 3444297040 | BRACKET |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 300 | N 000933008288 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 301 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 302 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 303 | A 3509957033 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 303E | N 000084006137 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X20 | ||
| 303E | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X16 | ||
| 303K | N 000125006420 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 303P | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 304 | N 000933008317 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 305 | N 000127008206 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 306 | A 3049950120 | CLAMP |
| Repalced by: A 3049950220 | ||
| 306 | A 3049950220 | CLAMP |
| LINE TO BRACKET | ||
| 306 | A 3049950220 | CLAMP |
| LINE TO BRACKET | ||
| 307 | N 007985006515 | SCREW |
| LINE TO BRACKET | ||
| 307 | N 000084006137 | SCREW |
| LINE TO BRACKET | ||
| M 6X20 | ||
| 308 | N 000125006420 | WASHER |
| LINE TO BRACKET | ||
| 309 | N 000127006203 | LOCK WASHER |
| LINE TO BRACKET | ||
| 310 | N 913004006001 | NUT |
| LINE TO BRACKET | ||
| 311 | A 0009903371 | ELBOW FITTING |
| Repalced by: N 003911018100 | ||
| 311 | N 003911018100 | FITTING |
| 312 | N 003902015001 | CONNECTION FITTING |
| 312 | N 003902015001 | CONNECTION FITTING |
| 313 | N 074305026202 | NUT |
| ELBOW FITTING TO SIDE MEMBER | ||
| 314 | A 3454200226 | LINE |
| FROM ELBOW FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 | ||
| 314 | A 0454200826 | LINE |
| Repalced by: A 3454207849 | ||
| 314 | H 983454200537 | LINE |
| Repalced by: A 3454207849 | ||
| 314 | A 3454207849 | LINE |
| FROM ELBOW FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 314 | A 3454307364 | LINE |
| FROM ELBOW FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 315 | N 915017018100 | UNION NUT |
| 316 | N 003861018003 | GLAND |
| 317 | A 3454207632 | LINE |
| FROM FITTING TO FITTING | ||
| 15X1.5 MM | ||
| 317 | A 3454208135 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 15X1.5 MM | ||
| 318 | N 003861015004 | GLAND |
| 319 | N 915017015100 | UNION NUT |
| 320 | N 915065018101 | THRUST RING |
| COMPRESSED AIR LINE TO ELBOW FITTING | ||
| 321 | N 915045015100 | SEAL RING |
| COMPRESSED AIR LINE TO ELBOW FITTING | ||
| 322 | N 007603022102 | SEAL RING |
| 323 | A 0029971272 | FITTING |
| Repalced by: N 003901018004 | ||
| 323 | N 003901018006 | SCREW-IN FITTING |
| AT PRESSURE REGULATOR | ||
| 324 | A 0005910002 | TIRE INFLATOR CYLINDER |
| Repalced by: A 3445910019 | ||
| 324 | H 983455910002 | TIRE INFLATOR CYLINDER |
| Repalced by: A 3445910019 | ||
| 324 | A 3445910019 | TIRE INFLATOR CYLINDER |
| 325 | A 0005910097 | REPAIR KIT |
| 326 | N 007603022102 | SEAL RING |
| 327 | N 074313016401 | FITTING |
| 327 | A 0019972372 | FITTING |
| 328 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 328 | A 0009940203 | THRUST RING |
| 329 | A 0009870446 | O-RING |
| 330 | N 074305022202 | NUT |
| 331 | A 0004312706 | PRESSURE REGULATOR |
| 332 | A 3454317206 | PRESSURE REGULATOR |
| Repalced by: A 0014312206 | ||
| 332 | A 0014312206 | PRESSURE REGULATOR |
| "WABCO" | ||
| 332 | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 0014319906 | ||
| 332 | A 0014319906 | PRESSURE REGULATOR |
| "KNORR" | ||
| 332 | A 0014319806 | PRESSURE REGULATOR |
| "KNORR" | ||
| 332 | A 0014310006 | PRESSURE REGULATOR |
| "WESTINGHOUSE" | ||
| 333 | H 983455860743 | REPAIR KIT |
| 334 | A 0015868543 | REPAIR KIT |
| TO 001 431 41 06 | ||
| 334 | A 0025866743 | REPAIR KIT |
| Repalced by: A 0004201371 | ||
| 334 | A 0004201371 | REPAIR KIT |
| TO 001 431 98 06,001 431 99 06 | ||
| 334 | A 3455868243 | REPAIR KIT |
| Repalced by: A 0015864343 | ||
| 334 | A 0015864343 | REPAIR KIT |
| TO 001 431 00 06,001 431 22 06 | ||
| 335 | A 0004310212 | COMPENSATOR |
| 336 | A 0004310856 | SCREW PLUG |
| 337 | A 0004310070 | STUD |
| 338 | N 000934005008 | NUT |
| 339 | A 0004310956 | SCREW PLUG |
| 340 | A 0004312493 | SPRING |
| 341 | A 0004312383 | PISTON |
| 342 | A 0004311476 | WASHER |
| 343 | A 0004311056 | SCREW PLUG |
| 344 | A 0004310073 | BREATHER PIPE |
| 345 | N 000933008288 | SCREW |
| 346 | N 000934008000 | NUT |
| 347 | N 000063010122 | SCREW |
| 348 | A 0009870446 | O-RING |
| AT PRESSURE REGULATOR | ||
| 348 | A 0009870446 | O-RING |
| AT PRESSURE REGULATOR | ||
| 349 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 349 | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 349 | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 350 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 350 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 351 | N 074315000200 | FITTING |
| 351 | A 0009905871 | ELBOW FITTING |
| 352 | N 003901018006 | SCREW-IN FITTING |
| AT PRESSURE REGULATOR | ||
| 352 | A 3454298336 | CONNECTOR |
| AT PRESSURE REGULATOR | ||
| 353 | N 074313016201 | FITTING |
| AT PRESSURE REGULATOR | ||
| 353 | A 0019972172 | FITTING |
| AT PRESSURE REGULATOR | ||
| 353 | N 074313016401 | FITTING |
| 353 | A 0019972372 | FITTING |
| 354 | N 007603022102 | SEAL RING |
| AT PRESSURE REGULATOR | ||
| 355 | A 3524315340 | BRACKET |
| PRESSURE REGULATOR | ||
| 356 | A 3454318240 | BRACKET |
| PRESSURE REGULATOR | ||
| 356 | A 3454318640 | BRACKET |
| PRESSURE REGULATOR | ||
| 357 | N 000961012106 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 358 | N 000933008222 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 359 | N 000931008321 | SCREW |
| BRACKET OF THE AIR CLEANER WITH TIRE INFLATION CYLINDER CONNECTION | ||
| 360 | N 912004008100 | LOCK WASHER |
| BRACKET OF THE AIR CLEANER WITH TIRE INFLATION CYLINDER CONNECTION | ||
| 361 | N 913004008001 | NUT |
| BRACKET OF THE AIR CLEANER WITH TIRE INFLATION CYLINDER CONNECTION | ||
| 361 | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 362 | N 000933008268 | SCREW |
| PRESSURE REGULATOR TO ELBOW FITTING | ||
| 363 | N 912004008100 | LOCK WASHER |
| PRESSURE REGULATOR TO ELBOW FITTING | ||
| 364 | N 000931008207 | SCREW |
| 364 | N 000931008321 | SCREW |
| 364 | N 000931008370 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 365 | N 000125008417 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 365 | A 3449900040 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 366 | N 912004008100 | LOCK WASHER |
| 367 | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 368 | A 0024310106 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| "KNORR" | ||
| 368 | A 0014318906 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 369 | A 0004301068 | REPAIR KIT |
| Repalced by: A 0004201571 | ||
| 369 | A 0004201571 | REPAIR KIT |
| TO 002 431 01 06 | ||
| 369 | A 0035860943 | REPAIR KIT |
| TO 001 431 89 06 | ||
| 370 | A 3089907171 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21" | ||
| 371 | N 003901012005 | SCREW-IN FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 371 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 372 | N 074313006101 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 372 | A 0029978172 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 373 | N 074317012200 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 373 | A 0009904970 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 373 | A 3454297532 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 374 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21,23" | ||
| 375 | N 007603016102 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22,24" | ||
| 376 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21,23" | ||
| 377 | N 000936016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21,23" | ||
| 378 | A 0004290444 | VALVE |
| (CHECK VALVE) | ||
| 378 | A 0034292844 | VALVE |
| (CHECK VALVE) | ||
| 379 | A 0005865942 | REPAIR KIT |
| TO 000 429 04 44 | ||
| 380 | A 3454297432 | T-FITTING |
| CHECK VALVE | ||
| 381 | N 074305022202 | NUT |
| CHECK VALVE | ||
| 382 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 382 | A 0009940203 | THRUST RING |
| CHECK VALVE | ||
| 383 | A 0009870446 | O-RING |
| CHECK VALVE | ||
| 384 | A 3454200026 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| A 0454201326 | LINE | |
| Repalced by: A 3454208926 | ||
| H 983454202926 | LINE | |
| Repalced by: A 3454208926 | ||
| 384 | A 3454208926 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 384 | A 0454201426 | LINE |
| Repalced by: A 3454208049 | ||
| 384 | H 983454204226 | LINE |
| Repalced by: A 3454208049 | ||
| 384 | A 3454208049 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 384 | A 3454307564 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 385 | N 915018015000 | UNION NUT |
| 385 | N 074297022102 | UNION NUT |
| 386 | N 003861015004 | GLAND |
| 387 | A 3454209832 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| "I",12X1 MM | ||
| 388 | A 3454209932 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| "II",12X1 MM | ||
| 389 | N 003861012007 | GLAND |
| 390 | N 915017012100 | UNION NUT |
| 391 | N 074297015202 | SLIP RING |
| 392 | N 915065015101 | THRUST RING |
| 393 | N 915045012100 | SEAL RING |
| 394 | N 074315000200 | FITTING |
| 394 | A 0009905871 | ELBOW FITTING |
| 395 | N 074305022202 | NUT |
| 396 | A 0009870446 | O-RING |
| 397 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 397 | A 0009940203 | THRUST RING |
| 398 | A 3214300205 | RESERVOIR |
| Repalced by: A 3454308205 | ||
| 398 | A 3454308205 | RESERVOIR |
| OUTSIDE | ||
| 399 | N 007603022102 | SEAL RING |
| 400 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 400 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 400 | H 983454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 400 | A 3454300181 | VALVE |
| Repalced by: A 3454300281 | ||
| 400 | A 3454300281 | VALVE |
| Repalced by: A 0004320807 | ||
| 400 | A 0004320807 | VALVE |
| 400 | A 3644327107 | VALVE |
| A 0454300081 | VALVE | |
| Repalced by: A 3454300281 | ||
| 401 | A 3454200626 | LINE |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 15X1.5 MM | ||
| 401 | A 0454200636 | LINE |
| Repalced by: A 3454208149 | ||
| 401 | A 3454208149 | LINE |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 15X1.5 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 401 | ||
| 402 | N 915018015000 | UNION NUT |
| 403 | N 003861015004 | GLAND |
| 404 | N 915065015101 | THRUST RING |
| 404 | N 915065015101 | THRUST RING |
| 405 | N 915045012100 | SEAL RING |
| 405 | N 915045012100 | SEAL RING |
| 406 | N 074315000200 | FITTING |
| 406 | A 0009905871 | ELBOW FITTING |
| 407 | N 074305022202 | NUT |
| 407 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 408 | N 074313016201 | FITTING |
| AT OVERFLOW VALVE | ||
| 408 | A 0019972172 | FITTING |
| AT OVERFLOW VALVE | ||
| 409 | N 074315012101 | FITTING |
| AT AIR RESERVOIR | ||
| 409 | A 0009907771 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 410 | N 007603022102 | SEAL RING |
| AT OVERFLOW VALVE | ||
| 411 | A 0009870446 | O-RING |
| AT AIR RESERVOIR | ||
| 411 | A 0009870446 | O-RING |
| AT AIR RESERVOIR | ||
| 412 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 412 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR | ||
| 412 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR | ||
| 413 | A 0004315406 | VALVE |
| Repalced by: A 0034290344 | ||
| 413 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| "WESTINGHOUSE" | ||
| 414 | A 0004290145 | DIAPHRAGM |
| TO 000 431 54 06 | ||
| 414 | A 0004290945 | DIAPHRAGM |
| TO 003 429 03 44 | ||
| 415 | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 416 | A 0004290389 | SPRING RETAINER |
| 000 429 60 44 | ||
| 417 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 418 | N 074313016401 | FITTING |
| 418 | A 0019972372 | FITTING |
| 419 | N 074315000200 | FITTING |
| 419 | A 0009905871 | ELBOW FITTING |
| 420 | N 074317000100 | FITTING |
| 420 | A 0009902470 | T-FITTING |
| 421 | N 074315000300 | FITTING |
| 421 | A 0009909171 | ELBOW FITTING |
| 422 | N 074313012100 | FITTING |
| AT AIR RESERVOIR | ||
| 422 | A 0029971172 | FITTING |
| Repalced by: A 3454307879 | ||
| 422 | A 3454307879 | CONNECTOR |
| AT AIR RESERVOIR | ||
| 423 | A 3454307079 | CONNECTOR |
| AT AIR RESERVOIR | ||
| 424 | N 074315012101 | FITTING |
| AT AIR RESERVOIR | ||
| 424 | A 0009907771 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 425 | A 3444297338 | ELBOW FITTING |
| Repalced by: A 3454307779 | ||
| 425 | A 3454307779 | CONNECTOR |
| 426 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIR | ||
| 427 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 427 | A 0009940203 | THRUST RING |
| AT OVERFLOW VALVE | ||
| 427 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR | ||
| 428 | A 0009870446 | O-RING |
| AT OVERFLOW VALVE | ||
| 428 | A 0009870446 | O-RING |
| AT AIR RESERVOIR | ||
| 429 | N 074305022202 | NUT |
| AT OVERFLOW VALVE | ||
| 429 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 430 | A 3214300205 | RESERVOIR |
| Repalced by: A 3454308205 | ||
| 430 | A 3454308205 | RESERVOIR |
| INSIDE | ||
| 431 | N 007603022102 | SEAL RING |
| 432 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 432 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 432 | H 983454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 432 | A 0454300081 | VALVE |
| Repalced by: A 3454300281 | ||
| 432 | A 3454300181 | VALVE |
| Repalced by: A 3454300281 | ||
| 432 | A 3454300281 | VALVE |
| Repalced by: A 0004320807 | ||
| 432 | A 0004320807 | VALVE |
| 432 | A 3644327107 | VALVE |
| 433 | A 3604301311 | CONSOLE |
| AIR RESERVOIR | ||
| 433 | A 3454307911 | CONSOLE |
| AIR RESERVOIR | ||
| 434 | A 3354320218 | BASE |
| AIR RESERVOIR | ||
| 435 | A 3214750084 | SHIM |
| 436 | N 000961012171 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 436 | N 000960012259 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 436 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 437 | N 000963012011 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 437 | N 000961012171 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 437 | N 000961012209 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 438 | A 3529900640 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 438 | A 3459907240 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 438 | N 000125013012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 439 | A 3454320076 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 440 | A 3454320126 | PLATE |
| 441 | H 983454320026 | PLATE |
| Repalced by: A 3454320026 | ||
| 441 | A 3454320026 | PLATE |
| CONSOLE TO SIDE MEMBER | ||
| 442 | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 443 | N 913004012012 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 444 | N 913004012006 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 444 | N 913004012006 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 444 | N 913004012006 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 445 | A 3604300040 | STRAP |
| AIR RESERVOIR | ||
| 446 | N 913004010004 | NUT |
| STRAP AND AIR RESERVOIR TO CONSOLE | ||
| 447 | N 074317000100 | FITTING |
| 447 | A 0009902470 | T-FITTING |
| 448 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 448 | A 0009940203 | THRUST RING |
| 449 | A 0009870446 | O-RING |
| 450 | N 074305022202 | NUT |
| 451 | A 3454200426 | LINE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 15X1.5 MM | ||
| 451 | H 983454207826 | LINE |
| Repalced by: A 3454208249 | ||
| 451 | A 3454208249 | LINE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 15X1.5 MM | ||
| 451 | A 0454201626 | LINE |
| Repalced by: A 3454208349 | ||
| 451 | A 3454208349 | LINE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 15X1.5 MM | ||
| 452 | N 915018015000 | UNION NUT |
| 453 | N 003861015004 | GLAND |
| 454 | A 3454209132 | LINE |
| FROM AIR RESERVOIR I TO SERVICE BRAKE VALVE,CONNECTION: | ||
| "12",12X1 MM | ||
| 455 | A 3454209232 | LINE |
| FROM AIR RESERVOIR II TO SERVICE BRAKE VALVE,CONNECTION: | ||
| "11",12X1 MM | ||
| 456 | N 003861012007 | GLAND |
| 457 | N 915017012100 | UNION NUT |
| 458 | N 915045012100 | SEAL RING |
| COMPRESSED AIR LINE TO AIR RESERVOIR AND TO BRAKE BOSTER | ||
| 459 | N 915065015101 | THRUST RING |
| COMPRESSED AIR LINE TO AIR RESERVOIR AND TO BRAKE BOSTER | ||
| 460 | A 0454290240 | BRACKET |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 460 | A 0314290840 | BRACKET |
| Repalced by: A 3454298640 | ||
| 460 | A 3454298640 | BRACKET |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 461 | A 0319950133 | CLAMP |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 461 | A 3459950033 | CLAMP |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 462 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 463 | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 464 | N 000934005008 | NUT |
| COMPRESSED AIR LINE TO BATTERY CASE | ||
| 465 | A 0004295032 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 466 | A 0009905871 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 466 | N 074315000200 | FITTING |
| AT BRAKE BOOSTER | ||
| 467 | A 0009870446 | O-RING |
| AT BRAKE BOOSTER | ||
| 468 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 468 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 469 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 470 | N 007603012106 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 471 | A 3454298136 | CONNECTOR |
| AT BRAKE BOOSTER | ||
| 472 | N 000908022001 | SCREW PLUG |
| AT BRAKE BOOSTER | ||
| 473 | N 007603022102 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 474 | A 3454310040 | BRACKET |
| Repalced by: A 3454317340 | ||
| 474 | A 3454317340 | BRACKET |
| BRAKE BOOSTER | ||
| 475 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 475 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 476 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 477 | A 0004312405 | BRAKE BOOSTER |
| Repalced by: A 3444317014 | ||
| 477 | A 3444317014 | BRAKE BOOSTER |
| POWER BRAKE | ||
| 479 | H 983455860243 | REPAIR KIT |
| MINOR | ||
| 479 | H 983455860343 | REPAIR KIT |
| Repalced by: A 3455867043 | ||
| 479 | A 3455867043 | REPAIR KIT |
| MAJOR | ||
| 480 | H 983454310192 | ROD |
| 481 | A 0004312786 | CUP |
| Repalced by: A 3459978846 | ||
| 481 | A 3459978846 | SEAL RING |
| 482 | H 983454310222 | COVER |
| Repalced by: A 0004311822 | ||
| 482 | A 0004311822 | COVER |
| A 0004311087 | PROTECTIVE CAP | |
| 483 | H 983454310122 | COVER |
| 484 | H 983454310293 | SPRING |
| Repalced by: A 0004314093 | ||
| 484 | A 0004314093 | SPRING |
| 485 | N 000931010100 | SCREW |
| 485 | N 000933010261 | SCREW |
| 486 | N 000934010000 | NUT |
| 487 | N 000127010202 | LOCK WASHER |
| 488 | H 983454310393 | SPRING |
| 488 | H 983454310793 | SPRING |
| 489 | H 983454310152 | SPACER WASHER |
| 490 | A 0084310356 | SCREW PLUG |
| 491 | H 983454310493 | SPRING |
| Repalced by: H 983454310793 | ||
| 491 | H 983454310793 | SPRING |
| 492 | H 983454310024 | SLIDE |
| 493 | N 071752012000 | YOKE |
| 494 | N 000417008002 | HEADLESS SETSCREW |
| 495 | N 000934008000 | NUT |
| 496 | A 0004290695 | AIR CLEANER |
| 497 | H 983459970030 | SCREW PLUG |
| 498 | A 3444307092 | ROD |
| Repalced by: A 3454307192 | ||
| 498 | A 3454307192 | ROD |
| BRAKE BOOSTER | ||
| 499 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 499 | N 000936012005 | NUT |
| BRAKE BOOSTER | ||
| TO 344 430 70 92 | ||
| 500 | A 3124311097 | YOKE |
| BRAKE BOOSTER | ||
| 501 | N 000936012010 | NUT |
| BRAKE BOOSTER | ||
| 502 | N 000933010129 | SCREW |
| BRAKE BOOSTER TO BRACKET | ||
| 503 | N 000127010202 | LOCK WASHER |
| BRAKE VALVE TO BRACKET | ||
| 504 | A 3454300023 | LEVER |
| Repalced by: A 3444300023 | ||
| 504 | A 3444300023 | LEVER |
| 505 | A 0459920301 | BUSHING |
| Repalced by: A 3449920201 | ||
| 505 | A 3449920201 | BUSHING |
| 506 | A 3454310074 | PIN |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| 507 | N 071412010100 | GREASE NIPPLE |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| 508 | A 3459940005 | LOCK |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| 509 | N 000933008005 | SCREW |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| 510 | N 912004008100 | LOCK WASHER |
| DOUBLE LEVER TO BRAKE VALVE BRACKET | ||
| 511 | A 3529910007 | PIN |
| DOUBLE LEVER TO PUSH ROD | ||
| 512 | N 000094003027 | COTTER PIN |
| DOUBLE LEVER TO PUSH ROD | ||
| 513 | A 0459930010 | SPRING |
| Repalced by: A 3459937010 | ||
| 513 | A 3459937010 | SPRING |
| DOUBLE LEVER | ||
| 514 | A 0024312705 | BRAKE VALVE |
| Repalced by: A 3454317005 | ||
| 514 | A 3454317005 | BRAKE VALVE |
| SERVICE BRAKE | ||
| KNORR | ||
| 514 | A 0014318305 | BRAKE VALVE |
| Repalced by: A 3454317105 | ||
| 514 | A 3454317105 | BRAKE VALVE |
| SERVICE BRAKE | ||
| WABCO | ||
| 515 | A 0004312185 | FILLER RING |
| TO 001 431 83 05 | ||
| 516 | A 0004310273 | BREATHER PIPE |
| TO 001 431 83 05 | ||
| 517 | A 0004318383 | PISTON |
| TO 001 431 83 05 | ||
| A 0014317393 | SPRING | |
| TO 001 431 83 05 | ||
| 518 | A 0014317193 | SPRING |
| TO 002 431 27 05,345 431 70 05 | ||
| 518 | A 0014317293 | SPRING |
| TO 002 431 27 05,345 431 70 05 | ||
| 518 | A 0014317493 | SPRING |
| TO 001 431 83 05,345 431 71 05 | ||
| 519 | A 0004318683 | PISTON |
| TO 001 431 83 05,345 431 71 05 | ||
| 519 | A 0004319483 | PISTON |
| TO 002 431 27 05, 345 431 70 05 | ||
| 519 | A 0004318783 | PISTON |
| 519 | A 0004318883 | PISTON |
| 520 | A 0049949941 | LOCK |
| TO 345 431 70 05, 002 431 27 05 | ||
| 520 | N 000984038000 | LOCK RING |
| TO 345 431 71 05,001 431 83 05 | ||
| 520 | N 000472045000 | LOCK RING |
| TO 345 431 71 05,001 431 83 05 | ||
| 520 | N 000472047001 | LOCK RING |
| TO 345 431 71 05,001 431 83 05 | ||
| 520 | N 000472060000 | LOCK RING |
| TO 345 431 71 05,001 431 83 05 | ||
| 521 | A 0004301160 | REPAIR KIT |
| Repalced by: A 0004306260 | ||
| 521 | A 0004307160 | REPAIR KIT |
| Repalced by: A 0004304206 | ||
| 521 | A 0004304206 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 002 431 27 05, 345 431 70 05 | ||
| 521 | A 0004306260 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 001 431 83 05,345 431 71 05 | ||
| 521 | A 0014301160 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 001 431 83 05,345 431 71 05 | ||
| 521 | A 0014301260 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 002 431 27 05,345 431 70 05 | ||
| 522 | N 003901012005 | SCREW-IN FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,21" | ||
| 522 | A 0029971572 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,21" | ||
| 523 | A 3459907471 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 524 | A 3089907171 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12" | ||
| 525 | A 3459907571 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 526 | A 0019903570 | T-FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 527 | N 007603016103 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,21" | ||
| 527 | N 007603016103 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 528 | A 0009971548 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 528 | A 0009971548 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 529 | A 0004290927 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 529 | A 0004290927 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 530 | N 000936016003 | NUT |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 530 | N 000936016003 | NUT |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 531 | A 3459978282 | HOSE |
| BREATHER LINE | ||
| TO 002 431 27 05,001 431 83 05 | ||
| 532 | N 000908016001 | SCREW PLUG |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 532 | N 000908016001 | SCREW PLUG |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 533 | N 913004008001 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 534 | A 3454200526 | LINE |
| FROM BRAKE BOOSTER TO BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 534 | H 983454200226 | LINE |
| Repalced by: A 3454207037 | ||
| 534 | A 3454207037 | LINE |
| FROM BRAKE BOOSTER TO BRAKE CYLINDER | ||
| 15X1.5 MM | ||
| 535 | N 915018015000 | UNION NUT |
| 536 | N 003861015004 | GLAND |
| 537 | N 915065015101 | THRUST RING |
| 538 | N 915045012100 | SEAL RING |
| 539 | N 074313016201 | FITTING |
| 539 | A 0019972172 | FITTING |
| 540 | N 007603022102 | SEAL RING |
| 541 | A 0004313414 | BRAKE CYLINDER |
| Repalced by: A 3644317014 | ||
| 541 | A 3644317014 | BRAKE CYLINDER |
| "WESTINGHOUSE" | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 522 | ||
| H 983454310092 | ROD | |
| Repalced by: A 0004312892 | ||
| H 983454310022 | COVER | |
| Repalced by: A 0004312892 | ||
| A 0004312892 | ROD | |
| TO 001 430 99 01 | ||
| H 983454290095 | AIR CLEANER | |
| Repalced by: A 0004313934 | ||
| A 0004313934 | STRAINER | |
| TO 001 430 99 01 | ||
| H 983454310293 | SPRING | |
| Repalced by: A 0014316493 | ||
| A 0014314093 | SPRING | |
| Repalced by: A 0014316493 | ||
| A 0014316493 | SPRING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 431 40 93 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 529 | ||
| H 983454310086 | CUP | |
| Repalced by: A 0004318083 | ||
| A 0004318083 | PISTON | |
| TO 001 430 99 01 | ||
| H 983454310052 | SPACER WASHER | |
| Repalced by: A 0049978045 | ||
| H 983454310060 | SEAL RING | |
| Repalced by: A 0049978045 | ||
| A 0049978045 | SEAL RING | |
| TO 001 430 99 01 | ||
| A 0009882735 | CAP | |
| 542 | H 983455860643 | REPAIR KIT |
| Repalced by: A 0015869143 | ||
| 542 | A 0015869143 | REPAIR KIT |
| Repalced by: A 0004301608 | ||
| 542 | A 0004301608 | REPAIR KIT |
| TO 000 431 34 14,364 431 70 14 | ||
| H 983454310186 | CUP | |
| TO 000 431 34 14 | ||
| H 983454310292 | ROD | |
| TO 000 431 34 14 | ||
| H 983454310893 | SPRING | |
| TO 000 431 34 14 | ||
| H 983454350087 | CUP | |
| TO 000 431 34 14 | ||
| 543 | A 0455400561 | ELECTRIC CABLE |
| Repalced by: A 3455401261 | ||
| 543 | A 3525401261 | ELECTRIC CABLE |
| Repalced by: A 3445407461 | ||
| 543 | A 3445407461 | ELECTRIC CABLE |
| FROM BRAKE BOOSTER TO FRONT PANEL | ||
| 6X0.7 MM | ||
| 544 | A 0455400661 | ELECTRIC CABLE |
| Repalced by: A 3525401661 | ||
| 544 | A 3525401661 | ELECTRIC CABLE |
| Repalced by: A 3445407561 | ||
| 544 | A 3445407561 | ELECTRIC CABLE |
| FROM BRAKE BOOSTER TO DOUBLE FITTING | ||
| 6X0.7X2150 MM | ||
| 544 | H 983455400261 | ELECTRIC CABLE |
| Repalced by: A 3455407561 | ||
| 544 | A 3455407561 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE | ||
| 6X0.7 MM | ||
| 545 | A 3445407961 | ELECTRIC CABLE |
| FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION: | ||
| "11,"6X0.7 MM | ||
| 546 | A 3445408061 | ELECTRIC CABLE |
| FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION: | ||
| "12",6X0.7 MM | ||
| 547 | N 915017006100 | UNION NUT |
| 548 | N 003861006007 | GLAND |
| 549 | A 0459970072 | FITTING |
| 550 | A 3525401861 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE | ||
| 6X0.7 MM | ||
| 550 | A 3525401461 | ELECTRIC CABLE |
| PRESSURE GAUGE LINE | ||
| 6X0.7 MM | ||
| 551 | N 915017006100 | UNION NUT |
| 552 | N 003861006007 | GLAND |
| 553 | H 983455400361 | ELECTRIC CABLE |
| TO PRESSURE GAUGE | ||
| 553 | A 0455400161 | ELECTRIC CABLE |
| Repalced by: A 3445401361 | ||
| 553 | A 3445401361 | ELECTRIC CABLE |
| TO PRESSURE GAUGE | ||
| 554 | N 915017006100 | UNION NUT |
| 555 | N 003861006007 | GLAND |
| 556 | A 0459970072 | FITTING |
| A 3525407461 | ELECTRIC CABLE | |
| TO PRESSURE GAUGE | ||
| 557 | A 0089975982 | HOSE |
| Repalced by: A 0089976082 | ||
| 557 | A 0089976082 | HOSE |
| TO PRESSURE GAUGE | ||
| 558 | N 040621012200 | INSULATING HOSE |
| 559 | A 0019975072 | FITTING |
| 560 | N 915017006200 | UNION NUT |
| 561 | A 0019973772 | FITTING |
| Repalced by: A 3454297139 | ||
| 561 | A 3454297139 | CONNECTOR |
| 562 | A 3049951520 | CLAMP |
| PRESSURE GAUGE LINE TO FIRE WALL | ||
| Repalced by: A 1009950420 | ||
| 562 | A 1009950420 | CLAMP |
| PRESSURE GAUGE LINE TO FIRE WALL | ||
| 563 | N 000125005315 | WASHER |
| PRESSURE GAUGE LINE TO FIRE WALL | ||
| 563 | N 000125013012 | WASHER |
| HOSE TO FRONT PANEL | ||
| 564 | N 006797012153 | TOOTHED WASHER |
| HOSE TO FRONT PANEL | ||
| 565 | N 000936012016 | NUT |
| HOSE TO FRONT PANEL | ||
| 566 | A 3125421739 | PLATE |
| Repalced by: A 3455427040 | ||
| 566 | A 3455427040 | BRACKET |
| HOSE TO PRESSURE GAUGE | ||
| 567 | A 3215422340 | BRACKET |
| HOSE TO PRESSURE GAUGE | ||
| 567 | A 3215422340 | BRACKET |
| PRESSURE GAUGE LINE | ||
| 568 | A 3129950332 | CLAMP |
| HOSE TO PRESSURE GAUGE | ||
| 568 | A 3129950332 | CLAMP |
| PRESSURE GAUGE LINE | ||
| 568 | A 3129952020 | CLAMP |
| HOSE TO PRESSURE GAUGE | ||
| 569 | N 007985005183 | SCREW |
| HOSE TO PRESSURE GAUGE | ||
| 569 | N 007985005171 | SCREW |
| PRESSURE GAUGE LINE | ||
| AM 5X16 | ||
| 570 | N 000127005001 | LOCK WASHER |
| HOSE TO PRESSURE GAUGE | ||
| 570 | N 000127005001 | LOCK WASHER |
| PRESSURE GAUGE LINE | ||
| 571 | N 000934005008 | NUT |
| HOSE TO PRESSURE GAUGE | ||
| 571 | N 000934005008 | NUT |
| PRESSURE GAUGE LINE | ||
| A 3044290840 | BRACKET | |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 572 | A 3129950332 | CLAMP |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 573 | N 007981004252 | SHEET METAL SCREW |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 574 | N 007985005171 | SCREW |
| 574 | N 000084005104 | SCREW |
| BRACKET TO FRONT PANEL,AND CLAMP TO BRACKET | ||
| 575 | N 912004005100 | LOCK WASHER |
| BRACKET TO FRONT PANEL,AND CLAMP TO BRACKET | ||
| 576 | N 000934005008 | NUT |
| BRACKET TO FRONT PANEL,AND CLAMP TO BRACKET | ||
| 577 | A 3454207184 | PARKING BRAKE |
| 578 | H 983454200088 | RATCHET ROD |
| 578 | H 983454200088 | RATCHET ROD |
| 578 | A 3454207188 | RATCHET ROD |
| 578 | A 3454207188 | RATCHET ROD |
| 579 | A 3124271151 | SPACER RING |
| 580 | N 001473004021 | GROOVED PIN |
| 581 | A 3534270095 | PROTECTIVE CAP |
| 582 | A 3124201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 583 | N 001473004023 | GROOVED PIN |
| 584 | A 3124271215 | PAWL |
| Repalced by: A 3145860142 | ||
| 584 | A 1539930701 | SPRING |
| Repalced by: A 3145860142 | ||
| 584 | A 3129900043 | PLATE |
| Repalced by: A 3145860142 | ||
| 584 | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 584 | A 3144200092 | REPAIR KIT |
| 585 | N 000472015000 | LOCK RING |
| 586 | A 3124271086 | DAMPING RING |
| 587 | A 3124271220 | HANDLE |
| 588 | A 3094270020 | HANDLE |
| 589 | H 983219900121 | SCREW |
| 590 | N 000127006203 | LOCK WASHER |
| 591 | N 001917006005 | PART NAME MISSING |
| 592 | N 007985010132 | SCREW |
| HANDLE TO RATCHET ROD | ||
| 593 | H 983444270028 | DETENT |
| 594 | N 000933008068 | SCREW |
| 595 | N 000934008000 | NUT |
| 596 | N 000933008317 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 597 | N 912004008100 | LOCK WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 598 | A 3529910407 | PIN |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 599 | N 000433008403 | WASHER |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 600 | N 000094002033 | COTTER PIN |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 601 | A 0454200012 | BRAKE LEVER |
| Repalced by: A 3454207212 | ||
| 601 | A 3454207212 | BRAKE LEVER |
| 601 | H 983454200012 | BRAKE LEVER |
| Repalced by: A 3454207012 | ||
| 601 | A 3454207012 | BRAKE LEVER |
| 602 | A 0459920501 | BUSHING |
| Repalced by: A 3449920301 | ||
| 602 | A 3449920301 | BUSHING |
| 603 | N 071412010300 | GREASE NIPPLE |
| 604 | A 3444200178 | BEARING BRACKET |
| BRAKE LEVER | ||
| 605 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| 606 | N 000471022000 | LOCK RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 607 | N 000931010018 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 608 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 609 | N 000934010000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 610 | A 3214200176 | END PIECE |
| 611 | A 3124261644 | CONNECTOR |
| 612 | A 3529910007 | PIN |
| 613 | N 000094003026 | COTTER PIN |
| 614 | N 000934010000 | NUT |
| 615 | N 000125010517 | WASHER |
| 620 | N 900331010244 | PULL ROD |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 621 | A 3604200286 | BRACKET |
| HAND BRAKE LINKAGE | ||
| 622 | N 000933008317 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 623 | N 912004008100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 624 | N 000934008000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 625 | A 3604300110 | BRACKET |
| BRACKET TO CROSS MEMBER | ||
| 626 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 627 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 628 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 629 | A 0454200081 | LEVER |
| Repalced by: A 3454207381 | ||
| 629 | A 3454207381 | LEVER |
| TOP | ||
| 630 | A 0459920101 | BUSHING |
| Repalced by: A 3459927101 | ||
| 630 | A 3459927101 | BUSHING |
| 631 | N 071412010100 | GREASE NIPPLE |
| 632 | N 001444014212 | PIN |
| UPPER LEVER TO BRACKET | ||
| 633 | N 000125015012 | WASHER |
| UPPER LEVER TO BRACKET | ||
| 634 | N 000094004050 | COTTER PIN |
| UPPER LEVER TO BRACKET | ||
| 635 | A 0454200181 | LEVER |
| Repalced by: A 3454207481 | ||
| 635 | A 3454207481 | LEVER |
| BOTTOM | ||
| 636 | A 0459920101 | BUSHING |
| Repalced by: A 3459927101 | ||
| 636 | A 3459927101 | BUSHING |
| 637 | N 071412010300 | GREASE NIPPLE |
| 645 | A 3604200089 | SHACKLE |
| 646 | N 001434012078 | PIN |
| 647 | N 000125013012 | WASHER |
| 648 | N 000094004050 | COTTER PIN |
| 649 | N 001444014211 | PIN |
| 650 | N 000125015012 | WASHER |
| 651 | N 000094004050 | COTTER PIN |
| 652 | N 900331010509 | PULL ROD |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 652 | N 900331010036 | PULL ROD |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 652 | N 900331010422 | PULL ROD |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 652 | N 900331010507 | PULL ROD |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 653 | A 3124261644 | CONNECTOR |
| PULL ROD TO LEVER | ||
| 654 | N 000934010000 | NUT |
| YOKE TO PULL ROD | ||
| 656 | A 3529910007 | PIN |
| PULL ROD TO LEVER | ||
| 657 | N 000125010517 | WASHER |
| PULL ROD TO LEVER | ||
| 658 | N 000094003026 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 659 | A 3604200080 | BRAKE INTERMEDIATE SHAFT |
| 659 | A 3604200880 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: G 983454200380 | ||
| 659 | H 983454200380 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3454207080 | ||
| 659 | A 3454207080 | BRAKE INTERMEDIATE SHAFT |
| 659 | A 3454200080 | BRAKE INTERMEDIATE SHAFT |
| 659 | A 3454200080 | BRAKE INTERMEDIATE SHAFT |
| 660 | A 3274270058 | SEAL HOLDER |
| BRACKET AND BRAKE INTERMEDIATE SHAFT TO CHASSIS | ||
| 661 | A 3279970040 | SEAL RING |
| BRACKET AND BRAKE INTERMEDIATE SHAFT TO CHASSIS | ||
| 662 | A 3584201078 | BEARING BRACKET |
| Repalced by: A 3454207278 | ||
| 662 | A 3454207278 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 662 | A 3584200278 | BEARING BRACKET |
| Repalced by: A 3454207178 | ||
| 662 | A 3454207178 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 662 | A 3454207178 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 663 | A 3024260083 | SPHERICAL PIECE |
| 664 | N 000470052000 | EXPANSION PLUG |
| 665 | N 000961012020 | SCREW |
| BRACKET AND BRAKE INTERMEDIATE SHAFT TO CHASSIS | ||
| 666 | N 000127012201 | LOCK WASHER |
| BRACKET AND BRAKE INTERMEDIATE SHAFT TO CHASSIS | ||
| 667 | N 000934012004 | NUT |
| BRACKET AND BRAKE INTERMEDIATE SHAFT TO CHASSIS | ||
| 668 | A 0454200174 | ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 668 | A 3604200974 | ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 669 | A 3604200474 | ROD |
| FRONT | ||
| 670 | N 001480012200 | TURNBUCKLE |
| 671 | N 000934012020 | NUT |
| LEFT | ||
| 672 | N 000934012010 | NUT |
| 673 | A 3604200774 | ROD |
| REAR | ||
| 674 | A 3529910207 | PIN |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 675 | N 000125013012 | WASHER |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 676 | N 000137012203 | PART NAME MISSING |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 677 | N 000094004050 | COTTER PIN |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 678 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 679 | N 000125013012 | WASHER |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 680 | N 000094004050 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 681 | A 0454200086 | BRACKET |
| Repalced by: A 3444207086 | ||
| 681 | A 3444207086 | BRACKET |
| HAND BRAKE LINKAGE | ||
| 682 | A 0009973481 | GROMMET |
| 683 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 684 | N 000125008417 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 685 | N 912004008100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 686 | N 000934008000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 687 | A 3604260611 | LEVER |
| LEFT | ||
| 687 | A 3604261411 | LEVER |
| LEFT | ||
| 687 | A 3604261411 | LEVER |
| LEFT | ||
| 688 | A 3604270225 | LEVER |
| LEFT | ||
| 689 | N 000610012003 | FITTED SCREW |
| 690 | N 000127012201 | LOCK WASHER |
| 691 | N 000934012010 | NUT |
| 692 | A 3604260711 | LEVER |
| RIGHT | ||
| 692 | A 3604261511 | LEVER |
| RIGHT | ||
| 692 | A 3604261511 | LEVER |
| RIGHT | ||
| 692 | A 3604270325 | LEVER |
| RIGHT | ||
| 693 | N 000610012003 | FITTED SCREW |
| 694 | N 000127012201 | LOCK WASHER |
| 695 | N 000934012000 | NUT |
| 696 | N 000931010399 | SCREW |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 696 | N 000931010399 | SCREW |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 697 | N 000127010202 | LOCK WASHER |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 697 | N 000127010202 | LOCK WASHER |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 698 | A 3024230636 | BRAKE CAMSHAFT |
| 698 | A 3604231136 | BRAKE CAMSHAFT |
| 698 | A 3604231136 | BRAKE CAMSHAFT |
| 699 | A 3414230186 | CUP |
| 699 | A 3414230186 | CUP |
| 700 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| 700 | A 3024230137 | ADJUSTING LEVER |
| RIGHT | ||
| 701 | A 3024230170 | STUD |
| 702 | N 000439018202 | NUT |
| 703 | A 3544230171 | SCREW |
| 704 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 704 | N 000936012005 | NUT |
| 705 | A 3024260105 | BEARING |
| 705 | A 3024260405 | BEARING |
| 705 | A 3024260405 | BEARING |
| 706 | A 3024260083 | SPHERICAL PIECE |
| 707 | A 0009814331 | JOINT BEARING |
| 707 | A 0009814331 | JOINT BEARING |
| 707 | A 0019811031 | JOINT BEARING |
| 707 | A 0019811031 | JOINT BEARING |
| 708 | A 3449970146 | SEAL RING |
| 709 | A 0119975546 | SEAL RING |
| 709 | A 0119975546 | SEAL RING |
| 709 | A 3459977846 | SEAL RING |
| 709 | A 3459977846 | SEAL RING |
| 710 | A 3024230153 | SPACER TUBE |
| AS REQUIRED | ||
| 11.0 MM | ||
| 710 | A 3024230253 | SPACER TUBE |
| AS REQUIRED | ||
| 11.5 MM | ||
| 710 | A 3024230353 | SPACER TUBE |
| AS REQUIRED | ||
| 12.0 MM | ||
| 710 | A 3024230453 | SPACER TUBE |
| AS REQUIRED | ||
| 12.5 MM | ||
| 710 | A 3024230553 | SPACER TUBE |
| AS REQUIRED | ||
| 13.0 MM | ||
| 710 | A 3024230653 | SPACER TUBE |
| AS REQUIRED | ||
| 13.5 MM | ||
| 711 | N 071412010100 | GREASE NIPPLE |
| 711 | N 071412008100 | GREASE NIPPLE |
| 711 | N 071412008100 | GREASE NIPPLE |
| 712 | N 000960016052 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 712 | N 000960016052 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 713 | N 000127016201 | LOCK WASHER |
| BEARING BRACKET TO REAR AXLE | ||
| 713 | N 000127016201 | LOCK WASHER |
| BEARING BRACKET TO REAR AXLE | ||
| 714 | N 000471045000 | LOCK RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 714 | N 000471035002 | LOCK RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 715 | A 3029970020 | EXPANSION PLUG |
| Repalced by: A 3609970020 | ||
| 715 | A 3609970020 | EXPANSION PLUG |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 715 | A 3609970020 | EXPANSION PLUG |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 716 | A 0019972848 | SEAL RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 716 | A 0019972848 | SEAL RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 717 | A 3604230057 | STOP WASHER |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 717 | A 3604230057 | STOP WASHER |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 718 | N 000471032000 | LOCK RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 718 | N 000471032000 | LOCK RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 719 | N 000472062000 | LOCK RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 719 | N 000472062000 | LOCK RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 438 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 443 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 442 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 440 | ||
| 720 | A 3454200441 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| 720 | A 3454200441 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| 721 | A 3604204136 | LINE |
| FROM AIR RESERVOIR II TO HAND BRAKE VALVE | ||
| 15X1.5 MM | ||
| 721 | A 0454200736 | LINE |
| Repalced by: A 3454208449 | ||
| 721 | H 983454207926 | LINE |
| Repalced by: A 3454208449 | ||
| 721 | A 3454208449 | LINE |
| FROM AIR RESERVOIR II TO HAND BRAKE VALVE | ||
| 15X1.5 MM | ||
| 721 | A 0454200836 | LINE |
| Repalced by: A 3454208549 | ||
| 721 | A 3454208549 | LINE |
| FROM AIR RESERVOIR II TO HAND BRAKE VALVE | ||
| 15X1.5 MM | ||
| 722 | N 915018015000 | UNION NUT |
| 723 | N 003861015004 | GLAND |
| 724 | A 3454209532 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING | ||
| 8X0.7 MM | ||
| 724 | A 3444202237 | LINE |
| FROM PRESSURE REGULATOR TO PROTECTIVE VALVE | ||
| 724 | A 3454203145 | LINE |
| FROM CHECK VALVE TO T-FITTING | ||
| 8X0.7 MM | ||
| 725 | A 3504207526 | LINE |
| FROM T-FITTING TO COMPRESSED AIR HOSE | ||
| 8X0.7 MM | ||
| 726 | A 3454204426 | LINE |
| FROM COMPRESSED AIR HOSE TO HAND BRAKE VALVE,CONNECTION "1" | ||
| 8X0.7 MM | ||
| 727 | N 003861008005 | GLAND |
| 728 | N 915017008100 | UNION NUT |
| 729 | A 3524290035 | BRAKE HOSE |
| 730 | A 3454297132 | T-FITTING |
| 730 | A 0009901070 | T-FITTING |
| M14X1,5 / M14X1,5 / M12X1,5 | ||
| 731 | A 0005455414 | SWITCH |
| 731 | A 3445457214 | SWITCH |
| 732 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 732 | N 000000000665 | CLAMP |
| COMPRESSED AIR HOSE TO COMPRESSED AIR LINE | ||
| 733 | N 915065015101 | THRUST RING |
| 734 | N 915045012100 | SEAL RING |
| 735 | N 007603022102 | SEAL RING |
| AT HAND BRAKE VALVE | ||
| 736 | N 074313016201 | FITTING |
| AT HAND BRAKE VALVE | ||
| 736 | A 0019972172 | FITTING |
| AT HAND BRAKE VALVE | ||
| 737 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 737 | A 0039979972 | FITTING |
| AT HAND BRAKE VALVE | ||
| 738 | N 915036010200 | HOLLOW SCREW |
| AT HAND BRAKE VALVE | ||
| 739 | N 007603014102 | SEAL RING |
| AT HAND BRAKE VALVE | ||
| 740 | N 000933008282 | SCREW |
| TO 350 430 70 09 | ||
| 741 | N 912004008100 | LOCK WASHER |
| HAND BRAKE VALVE TO FIRE WALL | ||
| 742 | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 742 | A 0009874927 | PLASTIC PIPE |
| FROM BULKHEAD FITTING TO HAND BRAKE VALVE | ||
| 8X6 MM | ||
| 743 | N 915052006001 | BANJO UNION |
| 744 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 744 | N 915062006000 | SLEEVE |
| 745 | N 003861008005 | GLAND |
| 746 | N 915017008100 | UNION NUT |
| 747 | A 0004310616 | VALVE |
| Repalced by: A 3454317016 | ||
| 747 | A 3454317016 | VALVE |
| HAND BRAKE VALVE | ||
| 748 | A 0004304781 | VALVE |
| Repalced by: A 3454307381 | ||
| 748 | A 3454307381 | VALVE |
| HAND BRAKE VALVE | ||
| "WESTINGHOUSE" | ||
| 748 | A 3504307009 | VALVE |
| (HAND BRAKE VALVE) | ||
| 749 | A 0009973277 | HANDLE |
| TO 345 430 73 81 | ||
| 750 | H 983454310016 | VALVE |
| TO 345 431 70 16 | ||
| 750 | A 0004350390 | VALVE DISC |
| TO 345 431 70 16 | ||
| 751 | N 007603030100 | SEAL RING |
| TO 345 431 70 16 | ||
| 752 | N 000471020000 | LOCK RING |
| TO 345 431 70 16 | ||
| 753 | A 0004317386 | CUP |
| TO 345 431 70 16 | ||
| 754 | N 000094003007 | COTTER PIN |
| TO 345 431 70 16 | ||
| 755 | A 0004290695 | AIR CLEANER |
| TO 345 431 70 16 | ||
| 756 | H 983454310793 | SPRING |
| TO 345 431 70 16 | ||
| 757 | A 0084310356 | SCREW PLUG |
| Repalced by: A 0019972530 | ||
| 757 | A 0019972530 | SCREW PLUG |
| TO 345 431 70 16 | ||
| 758 | N 001433012015 | PIN |
| TO 345 431 70 16 | ||
| 759 | N 000094004024 | COTTER PIN |
| TO 345 431 70 16 | ||
| 760 | N 000933008273 | SCREW |
| TO 345 431 70 16 | ||
| 761 | N 000127008206 | LOCK WASHER |
| TO 345 431 70 16 | ||
| 762 | A 0004317087 | PROTECTIVE CAP |
| TO 345 431 70 16 | ||
| A 0004305760 | REPAIR KIT | |
| HAND BRAKE VALVE | ||
| TO 000 430 55 81 | ||
| 763 | H 983455861043 | REPAIR KIT |
| Repalced by: A 0034301181 | ||
| 763 | A 0034301181 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 430 73 81 | ||
| 763 | A 0005868043 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 430 73 81 | ||
| 764 | H 983455860443 | REPAIR KIT |
| TO 345 431 70 16 | ||
| A 0025867843 | REPAIR KIT | |
| TO 000 430 47 81 | ||
| 764 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 764 | A 0034303181 | REPAIR KIT |
| TO 350 430 70 09 | ||
| 764 | A 0024302360 | REPAIR KIT |
| Repalced by: A 0004304006 | ||
| 764 | A 0004304006 | REPAIR KIT |
| TO 345 430 73 09 | ||
| 765 | A 0009870446 | O-RING |
| AT HAND BRAKE VALVE | ||
| 766 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 766 | A 0009940203 | THRUST RING |
| AT HAND BRAKE VALVE | ||
| 767 | N 074305022202 | NUT |
| AT HAND BRAKE VALVE | ||
| 768 | N 007603022102 | SEAL RING |
| AT HAND BRAKE VALVE | ||
| 769 | N 074313016202 | FITTING |
| AT HAND BRAKE VALVE | ||
| 769 | A 0029971272 | FITTING |
| AT HAND BRAKE VALVE | ||
| 770 | A 0004295032 | T-FITTING |
| AT HAND BRAKE VALVE | ||
| 771 | N 000908022001 | SCREW PLUG |
| AT HAND BRAKE VALVE | ||
| 772 | N 074313008101 | FITTING |
| AT HAND BRAKE VALVE | ||
| 772 | A 0009970171 | FITTING |
| AT HAND BRAKE VALVE | ||
| 773 | A 0005455414 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 773 | A 3445457214 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 774 | N 000933010174 | SCREW |
| VALVE TO CROSS MEMBER | ||
| 774 | N 000931010127 | SCREW |
| VALVE TO BRACKET | ||
| 775 | N 000127010202 | LOCK WASHER |
| VALVE TO CROSS MEMBER | ||
| 775 | N 000127010202 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 776 | N 000934010000 | NUT |
| VALVE TO CROSS MEMBER | ||
| 776 | N 000934010000 | NUT |
| VALVE TO BRACKET | ||
| 777 | A 3454317184 | SHIM |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 778 | N 000966006034 | SCREW |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 779 | N 913004006001 | NUT |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 780 | A 3509978482 | HOSE |
| HAND BRAKE VALVE | ||
| 781 | A 3604204936 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454200536 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 781 | H 983454207326 | LINE |
| Repalced by: A 3454208949 | ||
| 781 | A 3454208949 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3604205136 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 781 | H 983454200236 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454200236 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454207026 | LINE |
| Repalced by: A 3454208649 | ||
| 781 | A 3454208649 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3454208649 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3454208649 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3454208645 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3604205336 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454200336 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454200336 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454207126 | LINE |
| Repalced by: A 3454208749 | ||
| 781 | A 3454208749 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 781 | A 3454208749 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 781 | A 3454208749 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 781 | A 3454208745 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3604205536 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454200436 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | H 983454207226 | LINE |
| Repalced by: A 3454208849 | ||
| 781 | A 3454208849 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3454208849 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 781 | A 3454208845 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| 782 | N 915018015000 | UNION NUT |
| 783 | N 003861015004 | GLAND |
| 784 | A 3454202926 | LINE |
| FROM HAND BRAKE VALVE TO COMPRESSED AIR HOSE | ||
| 785 | A 3454208235 | LINE |
| FROM COMPRESSED AIR HOSE TO FITTING | ||
| 8X0.7 MM | ||
| 785 | A 3454208235 | LINE |
| FROM COMPRESSED AIR HOSE TO T-FITTING | ||
| 8X0.7 MM | ||
| 785 | A 3444202137 | LINE |
| FROM COMPRESSED AIR HOSE TO FITTING | ||
| 786 | A 3454209432 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 786 | A 3454209432 | LINE |
| FROM T-FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 786 | A 3454208335 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 786 | A 3454208435 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 786 | A 3454208535 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 787 | N 003861008005 | GLAND |
| 788 | N 915017008100 | UNION NUT |
| 789 | A 3524290035 | BRAKE HOSE |
| 790 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 790 | N 000000000665 | CLAMP |
| COMPRESSED AIR HOSE TO COMPRESSED AIR LINE | ||
| 791 | N 003910008001 | BULKHEAD FITTING |
| 791 | A 0019972772 | FITTING |
| 792 | N 003908008001 | T-FITTING |
| 792 | A 0009902670 | T-FITTING |
| 793 | N 915065015101 | THRUST RING |
| 794 | N 915045012100 | SEAL RING |
| 795 | N 007603016102 | SEAL RING |
| 796 | A 3459977272 | FITTING |
| 797 | A 3524281740 | BRACKET |
| 798 | N 000933008050 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 799 | N 912004008100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 800 | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 801 | A 3049950220 | CLAMP |
| LINE TO BRACKET | ||
| 802 | N 007985006515 | SCREW |
| LINE TO BRACKET | ||
| 803 | N 000127006203 | LOCK WASHER |
| LINE TO BRACKET | ||
| 804 | N 000934006006 | NUT |
| LINE TO BRACKET | ||
| 805 | A 0004312114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| KNORR | ||
| 805 | H 983454310214 | BRAKE CYLINDER |
| Repalced by: A 3454317214 | ||
| 805 | A 3454317214 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| WABCO | ||
| 806 | H 983455860043 | REPAIR KIT |
| TO 000 431 21 14 | ||
| A 0004319186 | CUP | |
| TO 000 431 21 14 | ||
| 806 | H 983454310087 | PROTECTIVE CAP |
| Repalced by: A 0004301808 | ||
| 806 | A 0004301808 | REPAIR KIT |
| TO 345 431 72 14,98 345 431 02 14 | ||
| 807 | A 0004310649 | SLIDE |
| TO 000 431 21 14 | ||
| 808 | A 0004318186 | CUP |
| TO 000 431 21 14 | ||
| A 0004310736 | FILTER BOTTOM | |
| TO 000 431 21 14 | ||
| 809 | H 983455860143 | REPAIR KIT |
| TO 000 431 21 14 | ||
| 809 | H 983455860543 | REPAIR KIT |
| Repalced by: A 0004301708 | ||
| 809 | A 0004301708 | REPAIR KIT |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 810 | A 0084311093 | SPRING |
| TO 000 431 21 14 | ||
| 810 | A 0084310993 | SPRING |
| TO 000 431 21 14 | ||
| 810 | H 983454310693 | SPRING |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 811 | H 983454310036 | FILTER BOTTOM |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 812 | H 983454310083 | PISTON |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 813 | H 983454310089 | SPRING RETAINER |
| Repalced by: A 3454317189 | ||
| 813 | A 3454317189 | SPRING RETAINER |
| AS REQUIRED | ||
| TO 98 345 431 02 14,345 431 72 14 | ||
| 814 | N 000934014020 | NUT |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 814 | N 000934014020 | NUT |
| TO 000 431 21 14 | ||
| 815 | N 000127014201 | LOCK WASHER |
| TO 98 345 431 02 14 | ||
| 816 | N 000933006221 | SCREW |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 816 | N 000933006221 | SCREW |
| TO 000 431 21 14 | ||
| 817 | N 000127006203 | LOCK WASHER |
| TO 98 345 431 02 14 | ||
| 818 | N 000934006006 | NUT |
| TO 98 345 431 02 14,345 431 72 14 | ||
| 818 | N 000934006006 | NUT |
| TO 000 431 21 14 | ||
| A 3604300811 | CONSOLE | |
| A 3604300811 | CONSOLE | |
| 819 | A 3604302311 | CONSOLE |
| Repalced by: A 3604302411 | ||
| 819 | A 3604302411 | CONSOLE |
| 819 | A 3604302411 | CONSOLE |
| 819 | A 3604302411 | CONSOLE |
| 820 | A 3459977072 | FITTING |
| AT BRAKE CYLINDER | ||
| 820 | A 3454297238 | ELBOW FITTING |
| AT BRAKE CYLINDER | ||
| 821 | A 0029971640 | SEAL RING |
| AT BRAKE CYLINDER | ||
| 822 | A 3084297027 | THRUST RING |
| AT BRAKE CYLINDER | ||
| 823 | N 000936016003 | NUT |
| AT BRAKE CYLINDER | ||
| 824 | N 000933010129 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 825 | N 000127010202 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 826 | N 000934010000 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 827 | N 000933010129 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 828 | A 3609900040 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 828 | N 000125010517 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 829 | N 000127010202 | LOCK WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 830 | N 000934010000 | NUT |
| CONSOLE TO CROSS MEMBER | ||
| 831 | A 3454208232 | LINE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION: | ||
| "1",12X1 MM | ||
| 831 | A 3454202145 | LINE |
| FROM CHECK VALVE TO RELAY VALVE | ||
| 12X1 MM | ||
| 831 | A 3454208432 | LINE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION: | ||
| "1",12X1 MM | ||
| 831 | A 3454208332 | LINE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION: | ||
| "1",12X1 MM | ||
| 831 | A 3454208532 | LINE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION: | ||
| "1",12X1 MM | ||
| 832 | N 003861012007 | GLAND |
| 833 | N 915017012100 | UNION NUT |
| 834 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| "WESTINGHOUSE" | ||
| 834 | A 0034293044 | VALVE |
| (RELAY VALVE) | ||
| "KNORR" | ||
| 835 | H 983455860842 | REPAIR KIT |
| Repalced by: A 0004205555 | ||
| 835 | A 0004205555 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 001 429 68 44 | ||
| 835 | A 0005865742 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 001 429 68 44 | ||
| 835 | A 0004305360 | REPAIR KIT |
| Repalced by: A 0004201471 | ||
| 835 | A 0004201471 | REPAIR KIT |
| TO 003 429 30 44 | ||
| 836 | N 074313012100 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 836 | A 0029971172 | FITTING |
| Repalced by: A 3454307879 | ||
| 836 | A 3454307879 | CONNECTOR |
| RELAY VALVE,CONNECTION "1" | ||
| 837 | N 007603022102 | SEAL RING |
| RELAY VALVE,CONNECTION "1" | ||
| 838 | N 074313008102 | FITTING |
| RELAY VALVE,CONNECTION "4" | ||
| 838 | A 0029979572 | FITTING |
| RELAY VALVE,CONNECTION "4" | ||
| 839 | N 003901012005 | SCREW-IN FITTING |
| RELAY VALVE,CONNECTION "2" | ||
| 839 | A 0029971572 | FITTING |
| RELAY VALVE,CONNECTION "2" | ||
| 840 | N 000908016001 | SCREW PLUG |
| RELAY VALVE,CONNECTION "2" | ||
| 841 | N 007603016103 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "2,4" | ||
| 842 | A 3504311240 | BRACKET |
| RELAY VALVE | ||
| 843 | N 000125008417 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 844 | N 913004008001 | NUT |
| RELAY VALVE TO BRACKET | ||
| 845 | N 000933010129 | SCREW |
| RELAY VALVE BRACKET TO SIDE MEMBER | ||
| 846 | N 913004010004 | NUT |
| RELAY VALVE BRACKET TO SIDE MEMBER | ||
| 847 | A 3454209332 | LINE |
| FROM RELAY VALVE,"Z" CONNECTION,TO BRAKE HOSE | ||
| 12X1 MM | ||
| 848 | A 3454203749 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12",12X1 MM | ||
| 848 | A 3454203749 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12",12X1 MM | ||
| 848 | A 3504208635 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12"; 12X1 MM | ||
| 848 | A 3504208635 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12"; 12X1 MM | ||
| 849 | N 003861012007 | GLAND |
| 849 | N 003861012007 | GLAND |
| 850 | N 915017012100 | UNION NUT |
| 850 | N 915017012100 | UNION NUT |
| 851 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 851 | A 0009872827 | PLASTIC PIPE |
| Repalced by: A 0009875027 | ||
| 851 | A 0009875027 | PLASTIC PIPE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| 12 X 1.5 MM | ||
| 852 | N 915052009000 | BANJO UNION |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12" | ||
| 853 | N 916027011008 | HOSE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "12" | ||
| 854 | A 0004290541 | FITTING |
| Repalced by: A 3454297041 | ||
| 854 | A 3454297041 | FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "12" | ||
| 855 | N 915017012100 | UNION NUT |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "12" | ||
| 856 | N 003861012007 | GLAND |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "12" | ||
| 857 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 857 | A 3459978890 | LOOM TIE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "12" | ||
| 858 | A 3464295940 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 858 | A 3454287740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 858 | A 3454288540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 859 | A 3454288040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 859 | A 3444297040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 860 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 860 | N 000933010174 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 861 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 861 | N 913004010004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 862 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 862 | A 3459957901 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 862 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 862 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 863 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 863 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 864 | A 3444290240 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 864 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 864 | A 3449950132 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 864 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 864 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 864 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 864 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 864 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 865 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X16 | ||
| 865 | N 007985006502 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X20 | ||
| 866 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 867 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 868 | A 3226840075 | BLOCK |
| COMPRESSED AIR LINE MOUNTING | ||
| 869 | A 3226840096 | PAD |
| COMPRESSED AIR LINE MOUNTING | ||
| 870 | N 000931006200 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| M 6X60 | ||
| 871 | N 007985006228 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| BM 6X35 | ||
| 872 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 873 | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 874 | A 3509977672 | FITTING |
| LINE CONNECTION TO FIRE WALL | ||
| 875 | N 000125015012 | WASHER |
| LINE CONNECTION TO FIRE WALL | ||
| 876 | N 006797014150 | TOOTHED WASHER |
| LINE CONNECTION TO FIRE WALL | ||
| 877 | N 080705014001 | NUT |
| LINE CONNECTION TO FIRE WALL | ||
| 878 | A 0009972181 | GROMMET |
| Repalced by: A 0009972281 | ||
| 878 | A 0009972281 | GROMMET |
| LINE CONNECTION TO FIRE WALL | ||
| 879 | A 3444202037 | LINE |
| FROM FITTING TO BRAKE HOSE | ||
| 880 | N 003861008005 | GLAND |
| 881 | N 915017008100 | UNION NUT |
| 882 | A 3449950132 | CLAMP |
| LINE MOUNTING | ||
| 883 | N 000125005316 | WASHER |
| LINE MOUNTING | ||
| 884 | A 3524281740 | BRACKET |
| LINE MOUNTING | ||
| 885 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 885 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 885 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 885 | A 3449950132 | CLAMP |
| LINE MOUNTING | ||
| 886 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 887 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 888 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 889 | H 980004290038 | ELBOW FITTING |
| Repalced by: A 3454297538 | ||
| 889 | A 3454297538 | ELBOW FITTING |
| 889 | A 3459907371 | ELBOW FITTING |
| 889A | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 889A | A 0009874927 | PLASTIC PIPE |
| BULKHEAD FITTING | ||
| 8X6 MM | ||
| 889B | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 889B | N 915062006000 | SLEEVE |
| BULKHEAD FITTING | ||
| 889C | N 003861008005 | GLAND |
| BULKHEAD FITTING | ||
| 889D | N 915017008100 | UNION NUT |
| BULKHEAD FITTING | ||
| 889E | A 3816820086 | BRACKET |
| PLASTIC LINE TO CAB | ||
| 889F | N 000933006221 | SCREW |
| LINE TO CROSS MEMBER | ||
| 889H | N 913004006001 | NUT |
| LINE TO CROSS MEMBER | ||
| 889K | A 0009951205 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 889K | A 0009951205 | CLAMP |
| PLASTIC LINES TO FRAME | ||
| 889M | A 3179950148 | CLAMPING PIECE |
| COMPRESSED AIR LINES | ||
| 889N | A 1119950032 | CLAMP |
| COMPRESSED AIR LINES | ||
| 889P | N 007985006515 | SCREW |
| COMPRESSED AIR LINES | ||
| 889Q | N 913004006001 | NUT |
| COMPRESSED AIR LINES | ||
| 889R | A 0019978590 | LOOM TIE |
| 889R | A 3459977690 | LOOM TIE |
| 889R | A 0019978290 | LOOM TIE |
| 889R | A 3459977390 | LOOM TIE |
| 195 MM | ||
| 889S | A 3609902340 | WASHER |
| 890 | A 3454209235 | LINE |
| FROM SERVICE BRAKE VALVE TO TWO-WAY VALVE,CONNECTION: | ||
| "V",8X0.7 MM | ||
| 891 | N 003861008005 | GLAND |
| 892 | N 915017008100 | UNION NUT |
| 893 | A 0014298744 | VALVE |
| TWO-WAY | ||
| 894 | A 0024299544 | VALVE |
| TWO-WAY | ||
| "WABCO" | ||
| 894 | A 0024299944 | VALVE |
| TWO-WAY | ||
| 895 | A 0004291182 | VALVE BODY |
| TO 002 429 95 44 | ||
| 896 | A 0014302960 | REPAIR KIT |
| TO 001 429 87 44 | ||
| 897 | A 3454297436 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 898 | A 3454297136 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| A 3454297536 | CONNECTOR | |
| 899 | A 3454297056 | SCREW PLUG |
| AT TWO-WAY VALVE | ||
| 900 | N 074313008102 | FITTING |
| AT TWO-WAY VALVE | ||
| 900 | A 0029979572 | FITTING |
| AT TWO-WAY VALVE | ||
| 901 | N 007603016103 | SEAL RING |
| AT TWO-WAY VALVE | ||
| 902 | A 3524290740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 902A | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 902B | N 913004008001 | NUT |
| Repalced by: N 913004008001 | ||
| 902B | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 902C | A 3509957033 | CLAMP |
| BRACKET TO SIDE MEMBER | ||
| 902D | N 000084005019 | SCREW |
| CLAMP TO BRACKET | ||
| 902F | N 000125005315 | WASHER |
| CLAMP TO BRACKET | ||
| 902H | N 000127005001 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 902K | N 000934005008 | NUT |
| CLAMP TO BRACKET | ||
| 902L | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 902M | A 3199950132 | CLAMP |
| Repalced by: A 3379950332 | ||
| 902M | A 3379950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 902N | N 007985006515 | SCREW |
| CLAMP TO BRACKET | ||
| 902P | N 000125006420 | WASHER |
| CLAMP TO BRACKET | ||
| 902Q | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 902R | A 3199950132 | CLAMP |
| Repalced by: A 3379950332 | ||
| 902R | A 3379950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 902S | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 902S | A 3124761236 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 902T | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 902U | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 903 | H 983454204326 | LINE |
| Repalced by: A 3454307466 | ||
| 903 | A 3454307466 | LINE |
| FROM TWO-WAY VALVE TO CONNECTOR | ||
| 8X0.7 MM | ||
| 904 | N 003902008001 | CONNECTION FITTING |
| 905 | H 983454201826 | LINE |
| Repalced by: A 3454307366 | ||
| 905 | A 3454307366 | LINE |
| FROM CONNECTION FITTING TO BULKHEAD FITTING | ||
| 8X0.7 MM | ||
| 906 | N 003910008001 | BULKHEAD FITTING |
| LINE CONNECTION TO FIRE WALL | ||
| 906 | A 0019972772 | FITTING |
| LINE CONNECTION TO FIRE WALL | ||
| 907 | N 000127014201 | LOCK WASHER |
| 908 | N 080705014001 | NUT |
| 909 | H 983454201526 | LINE |
| Repalced by: A 3454309466 | ||
| 909 | A 3454309466 | LINE |
| FROM BULKHEAD FITTING TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| 910 | A 0004303481 | VALVE |
| Repalced by: A 3454307481 | ||
| 910 | A 3454307481 | VALVE |
| Repalced by: A 3454307581 | ||
| 910 | A 0014302381 | VALVE |
| Repalced by: A 3454307581 | ||
| 910 | A 3454307581 | VALVE |
| HAND BRAKE VALVE | ||
| "WABCO" | ||
| A 0009974977 | HANDLE | |
| TO 345 430 75 81 | ||
| A 0009911055 | PIN | |
| TO 345 430 75 81 | ||
| 913 | H 980005860043 | REPAIR KIT |
| Repalced by: A 0034301081 | ||
| 913 | A 0034301081 | REPAIR KIT |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 586 23 43 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 430 34 81,345 430 74 81 | ||
| 913 | A 0034301481 | REPAIR KIT |
| TO 345 430 75 81 | ||
| 914 | N 003901008001 | SCREW-IN FITTING |
| AT HAND BRAKE VALVE | ||
| 914 | A 0019972572 | FITTING |
| AT HAND BRAKE VALVE | ||
| 915 | N 007603012112 | SEAL RING |
| AT HAND BRAKE VALVE | ||
| 916 | A 3364311040 | BRACKET |
| HAND BRAKE VALVE | ||
| 917 | N 000933008282 | SCREW |
| BRACKET TO BRACKET | ||
| 918 | N 912004008100 | LOCK WASHER |
| BRACKET TO BRACKET | ||
| 919 | N 000933008273 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 919 | N 000931008058 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 920 | N 912004008100 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 921 | N 913004008001 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 922 | H 983454201626 | LINE |
| Repalced by: A 3454309566 | ||
| 922 | A 3454309566 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 923 | A 0009972181 | GROMMET |
| Repalced by: A 0009972281 | ||
| 923 | A 0009972281 | GROMMET |
| BREATHER LINE THRU FIRE WALL | ||
| 924 | H 983454201726 | LINE |
| Repalced by: A 3454307766 | ||
| 924 | A 3454307766 | LINE |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 8X0.7 MM | ||
| 925 | N 003910008001 | BULKHEAD FITTING |
| 925 | A 0019972772 | FITTING |
| LINE CONNECTION TO FIRE WALL | ||
| 926 | N 000127014201 | LOCK WASHER |
| FITTING TO FIRE WALL | ||
| 927 | N 080705014001 | NUT |
| FITTING TO FIRE WALL | ||
| 928 | H 983454202026 | LINE |
| Repalced by: A 3454307566 | ||
| 928 | A 3454307566 | LINE |
| FROM BULKHEAD FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 929 | N 003902008001 | CONNECTION FITTING |
| 930 | H 983454202126 | LINE |
| Repalced by: A 3454201326 | ||
| 930 | A 3454201326 | LINE |
| FROM FITTING TO T-FITTING | ||
| 8X0.7 MM | ||
| 931 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 931 | A 3124761236 | BRACKET |
| 931E | A 3449950132 | CLAMP |
| 931K | N 007985006502 | SCREW |
| 931N | N 000127006203 | LOCK WASHER |
| 931P | N 000934006006 | NUT |
| 932 | A 3454209936 | LINE |
| FROM TWO-WAY VALVE TO CONTROL VALVE | ||
| 8X0.7 MM | ||
| 933 | A 3454204245 | LINE |
| FROM TWO-WAY VALVE TO CONTROL VALVE, CONNECTION: | ||
| "42",8X0.7 MM | ||
| 934 | N 915017008100 | UNION NUT |
| 935 | N 003861008005 | GLAND |
| 936 | H 983454208026 | LINE |
| Repalced by: A 3454307866 | ||
| 936 | A 3454307866 | LINE |
| FROM AIR RESERVOIR TO T-FITTING | ||
| 15X1.5 MM | ||
| 936C | N 915018015000 | UNION NUT |
| 936D | N 003861015004 | GLAND |
| 936E | A 3454297032 | T-FITTING |
| 936K | N 915045012100 | SEAL RING |
| 936N | A 3229970071 | FITTING |
| A 0319900440 | WASHER | |
| 936P | N 074305022202 | NUT |
| 936R | N 915065015101 | THRUST RING |
| 936S | N 915045012100 | SEAL RING |
| 937 | A 3454208726 | LINE |
| FROM OVERFLOW VALVE TO CONTROL VALVE | ||
| 15X1.5 MM | ||
| 938 | H 983454205126 | LINE |
| Repalced by: A 3454307966 | ||
| 938 | A 3454307966 | LINE |
| FROM T-FITTING TO OVERFLOW VALVE | ||
| 15X1.5 MM | ||
| 938E | N 915018015000 | UNION NUT |
| 938K | N 003861015004 | GLAND |
| 939 | A 0455400661 | ELECTRIC CABLE |
| Repalced by: A 3525401661 | ||
| 939 | A 3525401661 | ELECTRIC CABLE |
| FROM BRAKE BOOSTER TO FRONT PANEL | ||
| 6X0.7 MM | ||
| 939 | A 3445407561 | ELECTRIC CABLE |
| 6.0.7 MM | ||
| 939E | N 915017006100 | UNION NUT |
| 939K | N 003861006007 | GLAND |
| 939P | A 3229970071 | FITTING |
| CONTROL VALVE | ||
| 939R | N 915045012100 | SEAL RING |
| CONTROL VALVE | ||
| 940 | H 983454202626 | LINE |
| Repalced by: A 3454200726 | ||
| 940 | A 3454200726 | LINE |
| FROM T-FITTING TO CONTROL VALVE | ||
| 8X0.7 MM | ||
| 940E | N 915017008100 | UNION NUT |
| 940K | N 003861008005 | GLAND |
| 941 | H 983454206926 | LINE |
| Repalced by: A 3454307365 | ||
| 941 | A 3454307365 | LINE |
| FROM AIR RESERVOIR TO OVERFLOW VALVE | ||
| 15X1.5 MM | ||
| 941E | N 003861015004 | GLAND |
| 941K | N 915018015000 | UNION NUT |
| 941P | N 074313016201 | FITTING |
| 941P | A 0019972172 | FITTING |
| 941Q | N 007603022102 | SEAL RING |
| 941R | N 915065015101 | THRUST RING |
| 941T | N 915045012100 | SEAL RING |
| 942 | A 0004296344 | VALVE |
| (OVERFLOW VALVE) | ||
| WESTINGHOUSE | ||
| 942B | A 0004290088 | VALVE SEAT RING |
| TO 000 429 63 44 | ||
| 942D | A 0004310328 | DIAPHRAGM |
| TO 000 429 63 44 | ||
| 942F | A 0019932301 | SPRING |
| TO 000 429 63 44 | ||
| 942K | A 0004290389 | SPRING RETAINER |
| TO 000 429 63 44 | ||
| 942M | A 0005863642 | REPAIR KIT |
| TO 000 429 63 44 | ||
| A 0004303260 | REPAIR KIT | |
| TO 003 429 02 44 | ||
| 943 | A 3454208826 | LINE |
| FROM OVERFLOW VALVE TO CONTROL VALVE | ||
| 15X1.5 MM | ||
| 943B | N 003861015004 | GLAND |
| 943C | N 915018015000 | UNION NUT |
| 943D | A 3255460343 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 944 | A 3129952420 | CLAMP |
| Repalced by: A 3049950220 | ||
| 944 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 944B | N 007985005171 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 944C | N 000125005315 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 944D | N 000127005001 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 944E | N 000934005008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 944K | N 007985005171 | SCREW |
| CLAMP TO BRACKET | ||
| 944L | N 000127005001 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 944M | N 000934005008 | NUT |
| CLAMP TO BRACKET | ||
| 944S | N 003908012000 | T-FITTING |
| 944S | A 0009905270 | T-FITTING |
| 945 | A 3454203245 | LINE |
| FROM COMBINATION CYLINDER T-FITTING TO CONTROL VALVE,CONNECTION: | ||
| "41",8X0.7 MM | ||
| 945 | A 3454203345 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "22",TO ELBOW FITTING | ||
| 945B | A 3454202745 | LINE |
| FROM RELAY VALVE T-FITTING TO CONTROL VALVE,CONNECTION: | ||
| "43",8X0.7 MM | ||
| 945D | A 3454202545 | LINE |
| FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "23",TO CROSS FITTING | ||
| 12X1 MM | ||
| 945E | A 3454201745 | LINE |
| FROM T-FITTING TO CONTROL VALVE | ||
| 12X1 MM | ||
| 945F | N 003861008005 | GLAND |
| 945H | N 003861012007 | GLAND |
| 945K | N 915017008100 | UNION NUT |
| 945M | N 915017012100 | UNION NUT |
| 945P | A 0019903171 | ELBOW FITTING |
| 945Q | A 3509900087 | CROSS FITTING |
| 946 | A 0004311613 | VALVE |
| Repalced by: A 0014315605 | ||
| 946 | A 0014315605 | BRAKE VALVE |
| CONTROL VALVE | ||
| 946B | A 0025863843 | REPAIR KIT |
| TO 001 431 56 05 | ||
| 946D | A 0014313705 | BRAKE VALVE |
| CONTROL VALVE | ||
| WESTINGHOUSE | ||
| 946E | A 0024304781 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 37 05 | ||
| A 0004302960 | REPAIR KIT | |
| TO 002 431 16 05 | ||
| 946E | A 0015866043 | REPAIR KIT |
| Repalced by: A 0024306581 | ||
| 946E | A 0024306581 | REPAIR KIT |
| TO 001 431 37 05 | ||
| 947 | N 074317000100 | FITTING |
| CONTROL VALVE | ||
| 947 | A 0009902470 | T-FITTING |
| CONTROL VALVE | ||
| 948 | N 074315000200 | FITTING |
| CONTROL VALVE | ||
| 948 | A 0009905871 | ELBOW FITTING |
| CONTROL VALVE | ||
| 949 | N 074305022202 | NUT |
| CONTROL VALVE | ||
| 951 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 951 | A 0009940203 | THRUST RING |
| CONTROL VALVE | ||
| 952 | A 0009870446 | O-RING |
| CONTROL VALVE | ||
| 953 | N 074313008101 | FITTING |
| CONTROL VALVE | ||
| 954 | N 007603022102 | SEAL RING |
| CONTROL VALVE | ||
| 955 | A 3454297332 | T-FITTING |
| CONTROL VALVE,CONNECTION "1" | ||
| 955A | N 000936016003 | NUT |
| CONTROL VALVE,CONNECTION "1" | ||
| 955B | A 3084297027 | THRUST RING |
| CONTROL VALVE,CONNECTION "1" | ||
| 955C | A 0029971640 | SEAL RING |
| CONTROL VALVE,CONNECTION "1" | ||
| 955D | N 074313008102 | FITTING |
| CONTROL VALVE,CONNECTION: | ||
| 41,43 | ||
| 955D | A 0029979572 | FITTING |
| CONTROL VALVE,CONNECTION: | ||
| 41,43 | ||
| 955F | N 007603016102 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| 41,43 | ||
| 955H | A 3454297238 | ELBOW FITTING |
| CONTROL VALVE,CONNECTION "2" | ||
| 955K | N 000936016003 | NUT |
| CONTROL VALVE,CONNECTION "2" | ||
| 955L | A 3084297027 | THRUST RING |
| CONTROL VALVE,CONNECTION "2" | ||
| 955M | A 0029971640 | SEAL RING |
| CONTROL VALVE,CONNECTION "2" | ||
| 955N | N 000908016001 | SCREW PLUG |
| CONTROL VALVE,CONNECTION: | ||
| 42 | ||
| 955P | N 007603016102 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| 42 | ||
| 955Q | N 003901012005 | SCREW-IN FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "1" | ||
| 955Q | A 0029971572 | FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "1" | ||
| 955R | N 074313008102 | FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "41","42","43" | ||
| 955R | A 0029979572 | FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "41","42","43" | ||
| 955S | A 3089907171 | ELBOW FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "2" | ||
| 955T | N 007603016103 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| "1","41","42","43" | ||
| 955U | A 0004290927 | THRUST RING |
| CONTROL VALVE,CONNECTION: | ||
| "2" | ||
| 955W | A 0009971548 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| "2" | ||
| 955X | N 000936016003 | NUT |
| CONTROL VALVE,CONNECTION: | ||
| "2" | ||
| 956 | A 3454327040 | BRACKET |
| Repalced by: A 3454318440 | ||
| 956 | A 3504311240 | BRACKET |
| Repalced by: A 3454318440 | ||
| 956 | A 3454318440 | BRACKET |
| CONTROL VALVE | ||
| 957 | N 000933010129 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 957B | N 000125010517 | WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 957D | N 000125008417 | WASHER |
| 957E | N 913004010004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 957H | N 913004008001 | NUT |
| CONTROL VALVE TO BRACKET | ||
| 957H | N 913004008001 | NUT |
| CONTROL VALVE TO BRACKET | ||
| 957K | N 000933010269 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 957L | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 957M | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 959 | A 3454209836 | LINE |
| FROM CONTROL VALVE,"M" CONNECTION,TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| 959 | A 3454206945 | LINE |
| FROM CROSS FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 959B | A 3454206745 | LINE |
| FROM FITTING TO FIRE WALL | ||
| 8X0.7 MM | ||
| 960 | A 3454206645 | LINE |
| FROM FIRE WALL TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 960B | A 3454206845 | LINE |
| FROM FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 960D | N 915017008100 | UNION NUT |
| 960E | N 003861008005 | GLAND |
| 960H | N 003902008001 | CONNECTION FITTING |
| 960H | A 0019972672 | FITTING |
| 961 | A 3459978272 | FITTING |
| LINE CONNECTION TO FIRE WALL | ||
| 961B | N 000125015012 | WASHER |
| LINE CONNECTION TO FIRE WALL | ||
| 961C | N 006797014150 | TOOTHED WASHER |
| LINE CONNECTION TO FIRE WALL | ||
| 961D | N 080705014001 | NUT |
| LINE CONNECTION TO FIRE WALL | ||
| 962 | A 3454298314 | LINE |
| FROM FIRE WALL TO HAND BRAKE VALVE | ||
| 963 | A 3454298414 | LINE |
| FROM FIRE WALL TO HAND BRAKE VALVE | ||
| 964 | A 3454298514 | LINE |
| FROM FIRE WALL TO HAND BRAKE VALVE | ||
| 965 | N 003861008005 | GLAND |
| LINE TO HAND BRAKE VALVE | ||
| 965B | N 915017008100 | UNION NUT |
| LINE TO HAND BRAKE VALVE | ||
| 965C | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 965C | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 965C | N 915062006000 | SLEEVE |
| LINE TO HAND BRAKE VALVE | ||
| 965D | N 040621016201 | INSULATING HOSE |
| LINE TO HAND BRAKE VALVE | ||
| 966 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 966 | A 3124761236 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 966B | A 3449950132 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 966C | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 966C | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 966C | N 000084005114 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 966D | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 966E | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 966E | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 966E | N 000934005008 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 968 | H 983454206726 | LINE |
| Repalced by: A 3454201126 | ||
| 968 | A 3454201126 | LINE |
| FROM CONTROL-VALVE T-FITTING TO SHUT-OFF COCK | ||
| 15X1.5 MM | ||
| 969 | N 915018015000 | UNION NUT |
| 970 | N 003861015004 | GLAND |
| 971 | N 915065015101 | THRUST RING |
| COMPRESSED AIR LINE TO T-FITTING AND TO SHUT-OFF COCK | ||
| 972 | N 915045012100 | SEAL RING |
| COMPRESSED AIR LINE TO T-FITTING AND TO SHUT-OFF COCK | ||
| 973 | A 3454297031 | SHUT-OFF COCK |
| 973 | A 3454297031 | SHUT-OFF COCK |
| 974 | A 3454297131 | SHUT-OFF COCK |
| 974 | A 3454297131 | SHUT-OFF COCK |
| 975 | A 3454297036 | CONNECTOR |
| 975 | A 3444297436 | CONNECTOR |
| 976 | A 0454290740 | BRACKET |
| Repalced by: A 3454298240 | ||
| 976 | A 3454298240 | BRACKET |
| RIGHT | ||
| 976 | A 0454290640 | BRACKET |
| Repalced by: A 3454298140 | ||
| 976 | A 3454298140 | BRACKET |
| LEFT | ||
| 977 | N 006797023201 | TOOTHED WASHER |
| BRACKET TO CONNECTOR | ||
| 978 | N 074305022202 | NUT |
| BRACKET TO CONNECTOR | ||
| 979 | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| 980 | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 980D | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 980D | N 000934010004 | NUT |
| BRACKET TO FRAME | ||
| 981 | H 983454206426 | LINE |
| Repalced by: A 3454201226 | ||
| 981 | A 3454201226 | LINE |
| FROM CONTROL VALVE TO SHUT-OFF COCK | ||
| 15X1.5 MM | ||
| 981B | N 003861015004 | GLAND |
| 981C | N 915018015000 | UNION NUT |
| 981D | N 915065015101 | THRUST RING |
| COMPRESSED AIR LINE TO CONTROL VALVE AND TO SHUT-OFF COCK | ||
| 981E | N 915045012100 | SEAL RING |
| COMPRESSED AIR LINE TO CONTROL VALVE AND TO SHUT-OFF COCK | ||
| 982 | A 3454202645 | LINE |
| FROM CONTROL VALVE CONNECTION "2" TO ELBOW FITTING | ||
| 12X1 MM | ||
| 982D | A 3454203945 | LINE |
| FROM ELBOW FITTING TO BRAKE LINE COUPLING | ||
| 12X1 MM | ||
| 982F | A 3454204145 | LINE |
| FROM CONTROL VALVE CROSS FITTING TO BRAKE LINE COUPLING | ||
| 12X1 MM | ||
| 982H | N 003861012007 | GLAND |
| 982K | N 915017012100 | UNION NUT |
| 982L | N 003905012000 | FITTING |
| 982L | A 0019902971 | ELBOW FITTING |
| 983 | A 0004298730 | BRAKE LINE COUPLING |
| LEFT | ||
| 983 | A 0004298630 | BRAKE LINE COUPLING |
| RIGHT | ||
| A 0004291290 | COVER | |
| TO 000 429 80 30 | ||
| A 0004291690 | COVER | |
| TO 000 429 81 30 | ||
| 983C | A 0004309660 | REPAIR KIT |
| TO 000 429 86 30,000 429 87 30 | ||
| A 0025863842 | REPAIR KIT | |
| TO 000 429 80 30,000 429 81 30 | ||
| 983E | A 3454298840 | BRACKET |
| LEFT | ||
| 983E | A 3454298940 | BRACKET |
| RIGHT | ||
| 983H | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| 983K | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 983L | N 074313012304 | FITTING |
| BRAKE LINE COUPLING TO BRACKET | ||
| 983M | N 007603016103 | SEAL RING |
| BRAKE LINE COUPLING TO BRACKET | ||
| 983P | N 080705018002 | NUT |
| BRAKE LINE COUPLING TO BRACKET | ||
| 983Q | N 006797019101 | TOOTHED WASHER |
| BRAKE LINE COUPLING TO BRACKET | ||
| 984 | A 3179950148 | CLAMPING PIECE |
| Repalced by: A 3444290340 | ||
| 984 | A 3444290340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 985 | A 3219950332 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 985B | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 985C | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 985D | N 000934006006 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 986 | A 3454297440 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 987 | A 3454288140 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 988 | A 3454288040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 989 | A 3454288440 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 990 | N 000933010174 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 990B | N 913004010004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 990C | A 3459957033 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 991 | A 1159950032 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 991 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 992 | A 3449950132 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 992 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 992 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 993 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 993 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 994 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 994 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 995 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 995 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 996 | A 3084299401 | LINE |
| 6 X 0.7 MM | ||
| 996 | A 3084299501 | LINE |
| 8 X 0.7 MM | ||
| 996 | A 0004295101 | LINE |
| 15 X 1.5 MM | ||
| 996 | A 0004295201 | LINE |
| 15 X 1.5 MM | ||
| 996 | A 0004293701 | LINE |
| 18 X 1.5 MM | ||
| 996 | A 0004294201 | LINE |
| 18 X 1.5 MM | ||
| 996 | A 0004293501 | LINE |
| 12X1 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
