Transporto priemonė: LS 1316; VIN numerio dalis: 345025

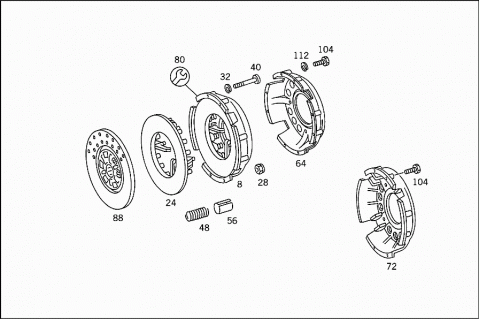

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0012500304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509504 | ||
| 008 | A 0022509404 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509504 | ||
| 008 | A 0022509504 | CLUTCH PRESSURE PLATE |
| 008 | A 3442500104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 3442507104 | ||
| 008 | A 3442507104 | CLUTCH PRESSURE PLATE |
| 024 | H 983452500004 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002524312 | ||
| 024 | A 0002522512 | PRESSURE PLATE |
| TO 001 250 03 04 | ||
| 024 | A 0002524312 | PRESSURE PLATE |
| TO 002 250 94 04,002 250 95 04, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 250 01 04 | ||
| A 0002521616 | SPINDLE | |
| FOR LEVER | ||
| A 0002521716 | SPINDLE | |
| FOR YOKE | ||
| A 0002520318 | ROLLER | |
| A 0002520827 | SPRING | |
| N 006799007003 | LOCK PLATE | |
| A 0002523713 | RELEASE LEVER | |
| A 0002522314 | BRACKET | |
| 028 | A 0002522772 | NUT |
| TO 001 250 03 04 | ||
| A 0002522472 | NUT | |
| Repalced by: A 0002523372 | ||
| A 0002523372 | NUT | |
| TO 002 250 94 04,002 252 95 04, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 344 250 01 04 | ||
| A 0082520173 | LOCK | |
| Repalced by: A 0002520473 | ||
| A 0002520473 | LOCK | |
| 032 | N 000127005001 | LOCK WASHER |
| 040 | A 0002522971 | SCREW |
| M 5X10 | ||
| 040 | A 0002522971 | SCREW |
| A 0002520619 | LEAF SPRING | |
| 048 | A 0002525020 | PRESSURE SPRING |
| TO 001 250 03 04,002 250 94 04 | ||
| 048 | A 0002525120 | PRESSURE SPRING |
| TO 002 250 95 04,344 250 01 04 | ||
| 056 | A 0002520253 | SPACER TUBE |
| 064 | A 0002522332 | HOUSING |
| TO 001 250 03 04 | ||
| 064 | A 0002524332 | HOUSING |
| TO 002 250 94 04,002 250 95 04 | ||
| 072 | A 0002524432 | HOUSING |
| 080 | A 0455860025 | REPAIR KIT |
| Repalced by: G 983455860025 | ||
| 080 | H 983455860025 | REPAIR KIT |
| 088 | A 3452507003 | CLUTCH DISC |
| Repalced by: A 3452507403 | ||
| 088 | A 0022503403 | CLUTCH DISC |
| Repalced by: A 3452507403 | ||
| 088 | A 3452507303 | CLUTCH DISC |
| Repalced by: A 3452507403 | ||
| 088 | A 3452507403 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 82 03 | ||
| 088 | A 3442507103 | CLUTCH DISC |
| Repalced by: A 3452507503 | ||
| 088 | A 3452507503 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 83 03 | ||
| 088 | A 3452507503 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 83 03 | ||
| A 0082520210 | CLUTCH LINING | |
| TO 002 250 34 03 | ||
| A 0002525210 | CLUTCH LINING | |
| Repalced by: A 3452527010 | ||
| A 3452527010 | CLUTCH LINING | |
| Repalced by: A 0002529010 | ||
| A 0002529010 | CLUTCH LINING | |
| TO 345 250 70 03,002 250 34 03 | ||
| A 0082520575 | RIVET | |
| Repalced by: A 3452527075 | ||
| A 0002520375 | RIVET | |
| Repalced by: A 3452527075 | ||
| A 3452527075 | RIVET | |
| TO 345 250 70 03,344 250 71 03 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 250 73 03,002 250 34 03 | ||
| A 3455867025 | REPAIR KIT | |
| TO 345 250 75 03 | ||
| 104 | A 0452520171 | SCREW |
| Repalced by: A 3452520071 | ||
| 104 | A 3452520071 | SCREW |
| 104 | N 000933008275 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X35 | ||
| 112 | N 912004008100 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 120 | A 3522500305 | HOUSING |
| Repalced by: A 3452507005 | ||
| 120 | A 3452507005 | HOUSING |
| Repalced by: A 3452510301 | ||
| 120 | A 3452510301 | BELL HOUSING |
| 120 | A 3452510501 | BELL HOUSING |
| Repalced by: A 3452511401 | ||
| 120 | A 3452511401 | BELL HOUSING |
| A 3522500505 | HOUSING | |
| Repalced by: A 3522511901 | ||
| A 3522511901 | BELL HOUSING | |
| Repalced by: A 3452510501 | ||
| 144 | A 0009902605 | STUD |
| Repalced by: A 0009904805 | ||
| 144 | A 0009904805 | STUD |
| 144 | N 000939010116 | STUD BOLT |
| M 10X60 | ||
| 160 | N 000931012277 | SCREW |
| HOUSING TO CYLINDER CRANKCASE | ||
| M 12X135 | ||
| 168 | N 900170012005 | SCREW |
| HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 176 | N 000127012201 | LOCK WASHER |
| HOUSING TO CYLINDER CRANKCASE | ||
| 184 | A 3602510004 | END COVER |
| TOP | ||
| 192 | N 000933006223 | SCREW |
| END COVER TO BELL HOUSING | ||
| 200 | N 000127006203 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 208 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 208 | A 3522510106 | PROTECTIVE PLATE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 250 00 55 | ||
| 216 | N 000933006223 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| M 6X12 | ||
| 224 | N 000137006203 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 232 | A 3522510002 | BELL HOUSING |
| Repalced by: A 3812510102 | ||
| 232 | A 3812510102 | BELL HOUSING |
| BOTTOM | ||
| 248 | N 000933006223 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| M 6X12 | ||
| 256 | N 000137006203 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 264 | A 3522510004 | END COVER |
| 272 | N 000933008282 | SCREW |
| COVER TO BELL HOUSING | ||
| M 8X20 | ||
| 280 | N 000125008417 | WASHER |
| COVER TO BELL HOUSING | ||
| 288 | N 912004008100 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 296 | A 3522540040 | BRACKET |
| INSIDE | ||
| 304 | A 3522540135 | BEARING |
| 312 | A 3522500113 | RELEASE LEVER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 293 03 11 | ||
| 312 | A 3272501213 | RELEASE LEVER |
| 312 | A 3402500013 | RELEASE LEVER |
| 320 | A 3522500213 | RELEASE LEVER |
| 328 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 328 | A 3029910015 | BALL PIVOT |
| 336 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 344 | A 3212500515 | RELEASE BEARING |
| WITH BEARING | ||
| 344 | A 3402500215 | RELEASE BEARING |
| 344 | A 3402500215 | RELEASE BEARING |
| 352 | A 0002540020 | RELEASE BEARING |
| 352 | A 0002540120 | RELEASE BEARING |
| 352 | A 3452547020 | RELEASE BEARING |
| 368 | A 3129870110 | STRIP |
| 368 | A 3409830010 | STRIP |
| 368 | A 3409830010 | STRIP |
| 448 | A 3522500243 | BRACKET |
| Repalced by: A 3452500043 | ||
| 448 | A 3452500043 | BRACKET |
| OUTSIDE | ||
| 456 | N 000933008282 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X20 | ||
| 464 | N 912004008100 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 472 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 472 | A 3142540197 | BOOT |
