Transporto priemonė: LS 1316; VIN numerio dalis: 345025

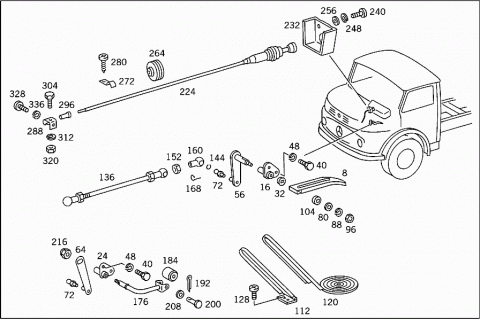

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3523000802 | PLATE |
| A 0213010282 | PAD | |
| 016 | A 3223000021 | BEARING TUBE |
| Repalced by: A 3453000021 | ||
| 016 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 024 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 032 | A 3223010054 | GUARD PLATE |
| 040 | N 000933008317 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| M 8X18 | ||
| 048 | N 000127008104 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 056 | A 3213001425 | LEVER |
| 056 | A 3453007025 | LEVER |
| 064 | A 3453008525 | LEVER |
| 072 | A 0449910115 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 072 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 072 | N 071803010209 | BALL PIVOT |
| 080 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 088 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 096 | N 000934008010 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 104 | A 3523010088 | COVERING |
| 112 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 120 | A 3443010082 | PAD |
| ACCELERATOR PEDAL CONTROL | ||
| 128 | N 007985006137 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 136 | A 3604301892 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE SHAFT | ||
| 136 | A 3453008515 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE SHAFT | ||
| A 3604303092 | ROD | |
| A 3609960125 | ROD | |
| 144 | N 071805010302 | SNAP RING |
| 152 | N 000934006006 | NUT |
| 160 | A 0009910522 | BALL SOCKET |
| Repalced by: A 0009912422 | ||
| 160 | A 0009912422 | BALL SOCKET |
| 168 | N 071805010402 | CIRCLIP |
| 176 | A 3503007225 | LEVER |
| 184 | A 3443000006 | ROLLER |
| 192 | N 000094001609 | COTTER PIN |
| ROLLER TO LEVER | ||
| 200 | N 001444006224 | PIN |
| ROLLER TO LEVER | ||
| 208 | N 000125006420 | WASHER |
| ROLLER TO LEVER | ||
| 216 | N 913004008001 | NUT |
| LEVER TO SHAFT | ||
| 224 | A 3523000407 | KNOB |
| WITH SPINDLE | ||
| 224 | A 3453007407 | KNOB |
| WITH SPINDLE | ||
| 224 | A 3453008007 | KNOB |
| WITH SPINDLE | ||
| 224 | A 3453008307 | KNOB |
| Repalced by: A 3453009007 | ||
| 224 | A 3453009007 | KNOB |
| WITH SPINDLE | ||
| 224 | A 3453008407 | KNOB |
| Repalced by: A 3453009607 | ||
| 224 | A 3453009607 | KNOB |
| WITH SPINDLE | ||
| A 0019900040 | WASHER | |
| A 3129901151 | NUT | |
| A 3523020308 | GUIDE | |
| A 3129902140 | WASHER | |
| A 3523020201 | KNOB | |
| 232 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 240 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL | ||
| M 6X12 | ||
| 248 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 256 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL | ||
| 264 | A 3459977581 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 272 | N 072571001024 | CLAMP |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 272 | N 072571001024 | CLAMP |
| KNOB WITH SPINDLE TO COVER PLATE | ||
| 280 | N 007981004240 | SHEET METAL SCREW |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 4.2X9.5 | ||
| 288 | A 3523020020 | CLAMP |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 296 | A 3523020091 | GROMMET |
| Repalced by: A 3453027091 | ||
| 296 | A 3453027191 | GROMMET |
| Repalced by: A 3453027091 | ||
| 296 | A 3453027091 | GROMMET |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 304 | N 000933006223 | SCREW |
| WIRE CABLE TO MOUNTING CLAMP | ||
| M 6X10 | ||
| 312 | N 000127006203 | LOCK WASHER |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 320 | N 000934006006 | NUT |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 328 | N 007985006512 | SCREW |
| MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR | ||
| M 6X12 | ||
| 336 | N 000127006203 | LOCK WASHER |
| MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR | ||
