Transporto priemonė: LS 1316; VIN numerio dalis: 345025

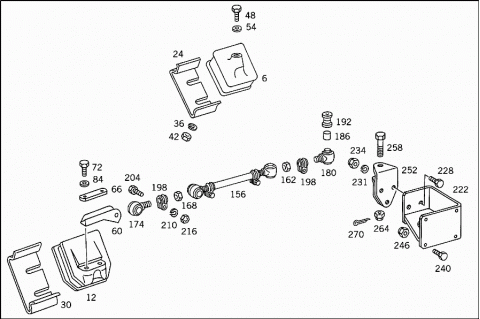

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 006 | A 3452400317 | RUBBER MOUNTING |
| FRONT | ||
| 012 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 012 | A 3452400018 | RUBBER MOUNTING |
| REAR | ||
| 024 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 030 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 036 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 042 | N 000934012004 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 048 | N 000960016036 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X16 | ||
| 054 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 060 | A 0452420007 | BEARING BRACKET |
| Repalced by: A 3442410035 | ||
| 060 | A 3442410035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 066 | A 3529940032 | LOCK |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 072 | N 000961014106 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 14X35 | ||
| 072 | N 000961014107 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 14X40 | ||
| 072 | N 000961014069 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 14X45 | ||
| 084 | A 3609901840 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 156 | A 3522400225 | ROD |
| Repalced by: A 3452407125 | ||
| 156 | A 3452407125 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 240 02 25 | ||
| A 3522420237 | ROD | |
| TO 352 240 02 25 | ||
| 162 | N 000934016026 | NUT |
| TO 352 240 02 25 | ||
| 168 | N 000934016014 | NUT |
| LEFT | ||
| TO 352 240 20 25 | ||
| 174 | A 0009961540 | ROD END |
| TO 352 240 02 25 | ||
| 174 | A 3459967140 | ROD END |
| TO 345 240 71 25 | ||
| 180 | A 0009961740 | ROD END |
| LEFT | ||
| TO 352 240 02 25 | ||
| 180 | A 3459967040 | ROD END |
| LEFT | ||
| TO 345 240 71 25 | ||
| 186 | A 3452427050 | BUSHING |
| TO 345 240 71 25 | ||
| 192 | A 3452427013 | RUBBER MOUNTING |
| TO 345 240 71 25 | ||
| 198 | A 3459957044 | CLAMP |
| TO 345 240 71 25 | ||
| 204 | N 000960008002 | SCREW |
| M 8X40,TO 345 240 71 25 | ||
| 210 | N 000127008203 | LOCK WASHER |
| TO 345 240 71 25 | ||
| 216 | N 000934008007 | NUT |
| TO 345 240 71 25 | ||
| 222 | A 3452407040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 228 | N 000933012122 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| M 12X30 | ||
| 228 | N 000961012020 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| M 12X30 | ||
| 228 | N 000933012124 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| M 12X25 | ||
| 231 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 234 | N 913004012012 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 234 | N 000934012004 | NUT |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 240 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X12 | ||
| 246 | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 252 | A 3452400035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 258 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 264 | N 000979016000 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| 270 | N 000094004056 | COTTER PIN |
| PULL ROD TO BEARING BRACKET | ||
| 4X28 MM | ||
