Transporto priemonė: LS 1316; VIN numerio dalis: 345025

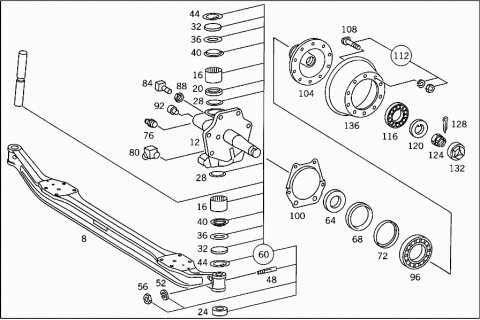

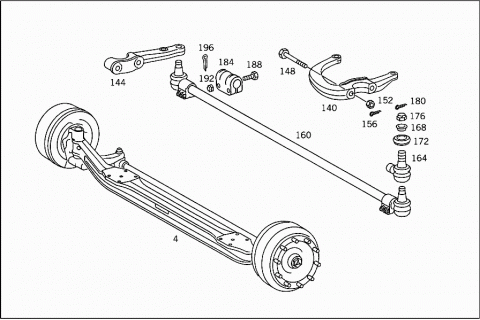

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT AXLE, SEE PARTS LIST: | ||
| 732.7 | ||
| 004 | A 3453307200 | FRONT AXLE |
| 008 | A 0453310101 | FRONT AXLE BEAM |
| Repalced by: A 3453317101 | ||
| 008 | A 3453317101 | FRONT AXLE BEAM |
| STANDARD | ||
| A 3453317301 | FRONT AXLE BEAM | |
| REPAIR SIZE I | ||
| A 3443300020 | STEERING KNUCKLE | |
| Repalced by: A 3023300920 | ||
| 012 | A 3023300920 | STEERING KNUCKLE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NOS.: | ||
| 302 332 05 01,340 332 00 48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 008 997 76 46 | ||
| 016 | A 3403320049 | BUSHING |
| Repalced by: A 3403320048 | ||
| 016 | A 3403320048 | BUSHING |
| 020 | A 0029979945 | SEAL RING |
| Repalced by: A 0089977646 | ||
| 020 | A 0089977646 | SEAL RING |
| A 3603320306 | KINGPIN | |
| 36.6 MM | ||
| A 3603320406 | KINGPIN | |
| AS REQUIRED | ||
| 36.9 MM | ||
| A 3603320506 | KINGPIN | |
| AS REQUIRED | ||
| 37.2 MM | ||
| A 3603320606 | KINGPIN | |
| 37.5 MM | ||
| 024 | A 0009811818 | ROLLER BEARING |
| Repalced by: A 0009815418 | ||
| 024 | A 0009812718 | ROLLER BEARING |
| Repalced by: A 0009815418 | ||
| 024 | A 0009813218 | ROLLER BEARING |
| Repalced by: A 0009815418 | ||
| 024 | A 0009815418 | ROLLER BEARING |
| 36.6 MM | ||
| A 0019815805 | TAPERED ROLLER BEARING | |
| 37.5 MM | ||
| A 3403320152 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 3403320252 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.1 MM | ||
| 028 | A 3403320352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.2 MM | ||
| 028 | A 3403320452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.3 MM | ||
| 028 | A 3403320552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.4 MM | ||
| 028 | A 3403320652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 028 | A 3403320752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.6 MM | ||
| 028 | A 3403320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 028 | A 3403320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.8 MM | ||
| 028 | A 3403321052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 028 | A 3403321152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.0 MM | ||
| 028 | A 3403321252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.1 MM | ||
| 032 | A 3603320029 | SEALING CAP |
| OUTSIDE | ||
| 036 | A 3409970145 | SEAL RING |
| 040 | A 3603320129 | SEALING CAP |
| INSIDE | ||
| 044 | N 000472045000 | LOCK RING |
| 048 | A 3279900137 | BOLT |
| 052 | N 912004008100 | LOCK WASHER |
| 056 | N 000934008000 | NUT |
| 060 | A 0455860033 | REPAIR KIT |
| Repalced by: A 3455867033 | ||
| 060 | A 3455867033 | REPAIR KIT |
| Repalced by: A 3763300019 | ||
| 060 | A 3763300019 | KING PIN |
| PARTS KIT,STANDARD | ||
| 36.6 MM | ||
| 060 | A 0455860133 | REPAIR KIT |
| Repalced by: A 3455867133 | ||
| 060 | A 3455867133 | REPAIR KIT |
| Repalced by: A 3763300119 | ||
| 060 | A 3763300119 | KING PIN |
| PARTS KIT,STANDARD SIZE I | ||
| 36.9 MM | ||
| 060 | A 0455860233 | REPAIR KIT |
| Repalced by: A 3455867233 | ||
| 060 | A 3455867233 | REPAIR KIT |
| Repalced by: A 3763300219 | ||
| 060 | A 3763300219 | KING PIN |
| PARTS KIT,REPAIR SIZE I | ||
| 37.2 MM | ||
| A 0455860333 | REPAIR KIT | |
| 37.5 MM | ||
| A 3403340015 | RING | |
| LEFT | ||
| 064 | A 3603340115 | RING |
| Repalced by: A 3453340015 | ||
| 064 | A 3403340115 | RING |
| RIGHT | ||
| 064 | A 3603340215 | RING |
| Repalced by: A 3453340015 | ||
| 064 | A 3453340015 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 068 | A 0039974546 | SEAL RING |
| 068 | A 0069979846 | SEAL RING |
| 072 | A 3403340151 | SPACER RING |
| 072 | A 3523340051 | SPACER RING |
| 076 | N 071412010100 | GREASE NIPPLE |
| 080 | N 071412010200 | GREASE NIPPLE |
| 084 | A 3409900601 | SCREW |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 084 | A 3873320071 | SCREW |
| STEERING KNUCKLE STOP | ||
| TO 302 330 09 20 | ||
| 084 | A 3873320071 | SCREW |
| 088 | A 3403370072 | NUT |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 088 | N 000934016003 | NUT |
| TO 302 330 09 20 | ||
| 092 | N 915042011000 | PLUG |
| STEERING KNUCKLE STOP | ||
| TO 344 330 00 20 | ||
| 092 | N 915042015000 | PLUG |
| STEERING KNUCKLE STOP | ||
| TO 302 330 09 20 | ||
| 096 | A 0019815505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 096 | A 0039816005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 096 | A 0009808802 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 096 | A 0039816205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 100 | A 3553340082 | OIL COLLECTOR |
| 100 | A 3533340282 | OIL COLLECTOR |
| 104 | A 0453340001 | WHEEL HUB |
| Repalced by: A 3453340001 | ||
| 104 | A 3453340001 | WHEEL HUB |
| 108 | A 3174010571 | WHEEL MOUNTING BOLT |
| Repalced by: A 3174010471 | ||
| 108 | A 3174010471 | WHEEL MOUNTING BOLT |
| 112 | A 3764000074 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 30 MM | ||
| 112 | A 3764000574 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 27 MM | ||
| 116 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 116 | A 0049813805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 116 | A 0049813405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 116 | A 0039816405 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 116 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 120 | A 3273321662 | THRUST WASHER |
| 124 | N 000937032000 | NUT |
| 128 | N 000094006317 | COTTER PIN |
| 132 | A 0453340025 | HUB CAP |
| Repalced by: A 3443347025 | ||
| 132 | A 3213340225 | HUB CAP |
| Repalced by: A 3443347025 | ||
| 132 | A 3443347025 | HUB CAP |
| 136 | A 3544210101 | BRAKE DRUM |
| Repalced by: A 3544210301 | ||
| 136 | A 3544210301 | BRAKE DRUM |
| STANDARD | ||
| 136 | A 3454217301 | BRAKE DRUM |
| REPAIR SIZE I | ||
| 140 | A 3453380107 | STEERING ARM |
| Repalced by: A 3453380207 | ||
| 140 | A 3453380207 | STEERING ARM |
| LEFT | ||
| 144 | A 3603380006 | STEERING ARM |
| Repalced by: A 3603380706 | ||
| 144 | A 3603380706 | STEERING ARM |
| RIGHT | ||
| 148 | A 3603320171 | SCREW |
| 152 | N 000935018001 | NUT |
| 156 | N 000094004026 | COTTER PIN |
| 160 | A 3523300503 | TIE ROD |
| 160 | A 3453307003 | TIE ROD |
| "COFAP" | ||
| 160 | H 983453300203 | TIE ROD |
| Repalced by: A 3453307203 | ||
| 160 | A 3453307203 | TIE ROD |
| "NAKATA" | ||
| 160 | A 3523300703 | TIE ROD |
| "LEMFOERDER" | ||
| 164 | A 0003301535 | JOINT |
| Repalced by: A 0003301435 | ||
| 164 | A 0003301435 | JOINT |
| RIGHT | ||
| TO 352 330 05 03 | ||
| 164 | A 0003381545 | CLAMP |
| Repalced by: A 3453387145 | ||
| 164 | A 3453307048 | TIE ROD END |
| Repalced by: A 0003301435 | ||
| 164 | A 0003301435 | JOINT |
| LEFT | ||
| TO 345 330 70 03,352 330 07 03 | ||
| 164 | A 0003301435 | JOINT |
| LEFT | ||
| TO 352 330 05 03 | ||
| 164 | H 983443300935 | JOINT |
| Repalced by: A 3443307135 | ||
| 164 | A 3443307135 | JOINT |
| TO 98 345 330 02 03,345 330 72 03 | ||
| 168 | A 3443387263 | CLAMPING RING |
| TO 345 330 72 03 | ||
| 168 | A 3443387363 | CLAMPING RING |
| TO 345 330 70 03 | ||
| 172 | A 0003300285 | BOOT |
| Repalced by: H 983443300185 | ||
| 172 | H 983443300185 | BOOT |
| Repalced by: A 3443307085 | ||
| 172 | A 3443307085 | BOOT |
| TO 352 330 07 03,345 330 70 03 | ||
| H 983443380431 | LOCKING CAP | |
| TO 345 330 70 03 | ||
| 172 | H 983443380297 | BOOT |
| Repalced by: A 3443387056 | ||
| 172 | A 3443387056 | DUST CAP |
| TO 98 345 330 02 03 | ||
| 176 | N 000937018004 | NUT |
| JOINT TO TIE ROD | ||
| 180 | N 000094004026 | COTTER PIN |
| JOINT TO TIE ROD | ||
| 184 | A 0003381045 | CLAMP |
| Repalced by: A 0003381545 | ||
| 184 | A 0003381545 | CLAMP |
| Repalced by: A 3453387145 | ||
| 184 | A 3453387145 | CLAMP |
| TO 352 330 05 03 | ||
| 184 | A 3453387145 | CLAMP |
| TO 345 330 70 03 , 352 330 07 03 | ||
| 184 | A 3443387045 | CLAMP |
| Repalced by: A 3443387145 | ||
| 184 | A 3443387145 | CLAMP |
| TO 98 345 330 02 03 , 345 330 72 03 | ||
| 188 | N 000960010032 | SCREW |
| 188 | N 000960010032 | SCREW |
| 192 | N 000935010001 | NUT |
| 192 | N 000935010001 | NUT |
| 196 | N 000094002008 | COTTER PIN |
| 196 | N 000094002008 | COTTER PIN |
| 196 | N 000094004065 | COTTER PIN |
