Transporto priemonė: LS 1316; VIN numerio dalis: 345025
Grupė: 41 PROPELLER SHAFT

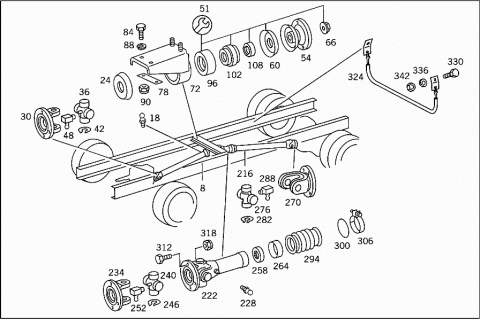

41161

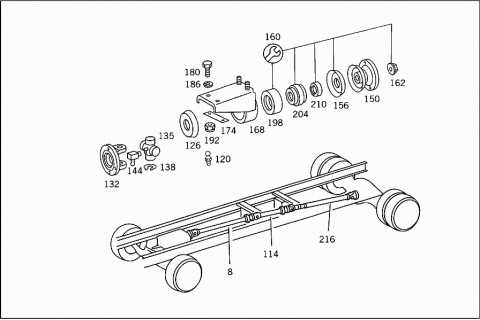

41162
# Kodas Pavadinimas
008 A 3444100601 PROPELLER SHAFT
Repalced by: A 3444100004
008 A 3444100004 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
837 MM
008 A 3444100701 PROPELLER SHAFT
Repalced by: A 3444100104
008 A 3444100104 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1436 MM
008 A 3444100801 PROPELLER SHAFT
Repalced by: A 3444100204
008 A 3444100204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1946 MM
018 N 071412008100 GREASE NIPPLE
024 A 3124131361 PROTECTIVE CAP
024 A 3524130061 PROTECTIVE CAP
030 A 3524110011 DRIVE FLANGE
036 A 0444100031 UNIVERSAL JOINT CROSS
Repalced by: A 3454107031
036 A 3454107031 UNIVERSAL JOINT CROSS
036 A 0004101431 UNIVERSAL JOINT CROSS
042 A 0449940135 SNAP RING
Repalced by: A 3449947135
042 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
042 A 3129941135 SNAP RING
AS REQUIRED
2.5000 MM
042 A 0449940235 SNAP RING
Repalced by: A 3449947235
042 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
042 A 0449940335 SNAP RING
Repalced by: A 3449947335
042 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
042 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
042 A 0449940435 SNAP RING
Repalced by: A 3449947435
042 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
042 A 0449940535 SNAP RING
Repalced by: A 3449947535
042 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
042 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
042 A 0449940635 SNAP RING
Repalced by: A 3449947635
042 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
042 A 0449940735 SNAP RING
Repalced by: A 3449947735
042 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
042 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
042 A 0449940835 SNAP RING
Repalced by: A 3449947835
042 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
042 A 0449940935 SNAP RING
Repalced by: A 3449947935
042 A 3449947935 SNAP RING
AS REQUIRED
2.7000 MM
042 A 3129941535 SNAP RING
AS REQUIRED
2.7000 MM
042 A 0449941035 SNAP RING
Repalced by: A 3449948035
042 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
042 A 0449941135 SNAP RING
Repalced by: A 3449948135
042 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
042 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
048 N 071412008300 GREASE NIPPLE
048 A 3459977288 GREASE NIPPLE
051 A 3084100010 INTERMEDIATE BEARING
REPAIR KIT
054 A 3524100030 CENTERING FLANGE
054 A 3524100130 CENTERING FLANGE
060 A 3124131361 PROTECTIVE CAP
060 A 3524130061 PROTECTIVE CAP
066 A 3224110072 NUT
Repalced by: A 3449907050
066 A 3449907050 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
072 A 0454100040 BRACKET
072 A 3454107540 BRACKET
INTERMEDIATE BEARING
072 A 3454107540 BRACKET
INTERMEDIATE BEARING
072 A 3454100340 BRACKET
Repalced by: A 3764100040
072 A 3764100040 BRACKET
INTERMEDIATE BEARING
072 A 3764100040 BRACKET
INTERMEDIATE BEARING
072 A 3224100540 BRACKET
Repalced by: A 3444107140
072 A 3444107140 BRACKET
072 A 3454107340 BRACKET
INTERMEDIATE BEARING
078 A 3524130011 REINFORCEMENT
TO MOUNT THE PROPELLER SHAFTS
084 N 000933010294 SCREW
TO MOUNT THE PROPELLER SHAFTS
084 N 000961010039 SCREW
TO MOUNT THE PROPELLER SHAFTS
084 N 000961010039 SCREW
TO MOUNT THE PROPELLER SHAFTS
088 N 000127010202 LOCK WASHER
TO MOUNT THE PROPELLER SHAFTS
090 N 000934010000 NUT
TO MOUNT THE PROPELLER SHAFTS
090 N 913002010010 NUT
TO MOUNT THE PROPELLER SHAFTS
096 A 3124131112 RUBBER MOUNTING
096 A 3524130012 RUBBER MOUNTING
102 A 0444100051 BALL BEARING
Repalced by: A 3524100051
102 A 3524100051 BALL BEARING
102 A 3454100051 BALL BEARING
108 A 3124131231 BEARING RING
114 A 3444101201 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
114 A 3444101701 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1531 MM
120 N 071412008100 GREASE NIPPLE
126 A 3124131361 PROTECTIVE CAP
126 A 3524130061 PROTECTIVE CAP
132 A 3524110011 DRIVE FLANGE
135 A 0444100031 UNIVERSAL JOINT CROSS
Repalced by: A 3454107031
135 A 3454107031 UNIVERSAL JOINT CROSS
135 A 0004101431 UNIVERSAL JOINT CROSS
138 A 0449940135 SNAP RING
Repalced by: A 3449947135
138 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
138 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
138 A 0449940235 SNAP RING
Repalced by: A 3449947235
138 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
138 A 0449940335 SNAP RING
Repalced by: A 3449947335
138 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
138 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
138 A 0449940435 SNAP RING
Repalced by: A 3449947435
138 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
138 A 0449940535 SNAP RING
Repalced by: A 3449947535
138 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
138 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
138 A 0449940635 SNAP RING
Repalced by: A 3449947635
138 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
138 A 0449940735 SNAP RING
Repalced by: A 3449947735
138 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
138 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
138 A 0449940835 SNAP RING
Repalced by: A 3449947835
138 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
138 A 0449940935 SNAP RING
Repalced by: A 3449947935
138 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
138 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
138 A 0449941035 SNAP RING
Repalced by: A 3449948035
138 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
138 A 0449941135 SNAP RING
Repalced by: A 3449948135
138 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
138 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
144 N 071412008300 GREASE NIPPLE
144 A 3459977288 GREASE NIPPLE
150 A 3524100030 CENTERING FLANGE
150 A 3524100130 CENTERING FLANGE
156 A 3124131361 PROTECTIVE CAP
156 A 3524130061 PROTECTIVE CAP
160 A 3084100010 INTERMEDIATE BEARING
REPAIR KIT
162 A 3224110072 NUT
Repalced by: A 3449907050
162 A 3449907050 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
168 A 0454100040 BRACKET
168 A 3454107040 BRACKET
Repalced by: A 3454107340
168 A 3454107340 BRACKET
INTERMEDIATE BEARING
174 A 3524130011 REINFORCEMENT
180 N 000933010294 SCREW
180 N 000961010039 SCREW
TO MOUNT THE PROPELLER SHAFTS
186 N 000127010202 LOCK WASHER
TO MOUNT THE PROPELLER SHAFTS
192 N 000934010000 NUT
192 N 913002010010 NUT
TO MOUNT THE PROPELLER SHAFTS
198 A 3124131112 RUBBER MOUNTING
198 A 3524130012 RUBBER MOUNTING
204 A 0444100051 BALL BEARING
Repalced by: A 3524100051
204 A 3524100051 BALL BEARING
204 A 3454100051 BALL BEARING
210 A 3124131231 BEARING RING
216 A 3444101802 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1703 MM
216 A 3444101402 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1652 MM
216 A 3444101602 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1775 MM
216 H 983454100402 PROPELLER SHAFT
Repalced by: A 3454107902
216 A 3454107902 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1725 MM
216 A 3444102502 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1618 MM
216 A 3444102502 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1618 MM
216 A 3444102502 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1618 MM
222 A 3444100008 UNIVERSAL JOINT YOKE
228 N 071412008100 GREASE NIPPLE
234 A 3524110011 DRIVE FLANGE
240 A 0444100031 UNIVERSAL JOINT CROSS
Repalced by: A 3454107031
240 A 3454107031 UNIVERSAL JOINT CROSS
240 A 0004101431 UNIVERSAL JOINT CROSS
246 A 0449940135 SNAP RING
Repalced by: A 3449947135
246 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
246 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
246 A 0449940235 SNAP RING
Repalced by: A 3449947235
246 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
246 A 0449940335 SNAP RING
Repalced by: A 3449947335
246 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
246 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
246 A 0449940435 SNAP RING
Repalced by: A 3449947435
246 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
246 A 0449940535 SNAP RING
Repalced by: A 3449947535
246 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
246 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
246 A 0449940635 SNAP RING
Repalced by: A 3449947635
246 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
246 A 0449940735 SNAP RING
Repalced by: A 3449947735
246 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
246 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
246 A 0449940835 SNAP RING
Repalced by: A 3449947835
246 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
246 A 0449940935 SNAP RING
Repalced by: A 3449947935
246 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
246 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
246 A 0449941035 SNAP RING
Repalced by: A 3449948035
246 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
246 A 0449941135 SNAP RING
Repalced by: A 3449948135
246 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
246 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
252 N 071412008300 GREASE NIPPLE
252 A 3459977288 GREASE NIPPLE
258 A 3374130080 SEAL RING
264 A 3214110158 SEAL HOLDER
270 A 3524110011 DRIVE FLANGE
276 A 0444100031 UNIVERSAL JOINT CROSS
Repalced by: A 3454107031
276 A 3454107031 UNIVERSAL JOINT CROSS
276 A 0004101431 UNIVERSAL JOINT CROSS
282 A 0449940135 SNAP RING
Repalced by: A 3449947135
282 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
282 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
282 A 0449940235 SNAP RING
Repalced by: A 3449947235
282 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
282 A 0449940335 SNAP RING
Repalced by: A 3449947335
282 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
282 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
282 A 0449940435 SNAP RING
Repalced by: A 3449947435
282 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
282 A 0449940535 SNAP RING
Repalced by: A 3449947535
282 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
282 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
282 A 0449940635 SNAP RING
Repalced by: A 3449947635
282 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
282 A 0449940735 SNAP RING
Repalced by: A 3449947735
282 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
282 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
282 A 0449940835 SNAP RING
Repalced by: A 3449947835
282 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
282 A 0449940935 SNAP RING
Repalced by: A 3449947935
282 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
282 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
282 A 0449941035 SNAP RING
Repalced by: A 3449948035
282 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
282 A 0449941135 SNAP RING
Repalced by: A 3449948135
282 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
282 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
288 N 071412008300 GREASE NIPPLE
288 A 3459977288 GREASE NIPPLE
294 A 3524100080 BOOT
294 A 0004110097 BOOT
Repalced by: A 3454107280
294 A 3454107280 BOOT
300 A 3214110053 WIRE RING
306 A 3449979790 CLAMP
306 A 3459979790 CLAMP
312 A 3529900401 SCREW
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
318 N 913004010014 NUT
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
324 A 0444100493 CHAIN
Repalced by: A 3454137244
324 A 3454137244 REBOUND STRAP
330 N 000933010174 SCREW
REBOUND STRAP TO FRAME
336 N 000127010202 LOCK WASHER
REBOUND STRAP TO FRAME
342 N 000934010000 NUT
REBOUND STRAP TO FRAME
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
