Transporto priemonė: LS 1316; VIN numerio dalis: 345025

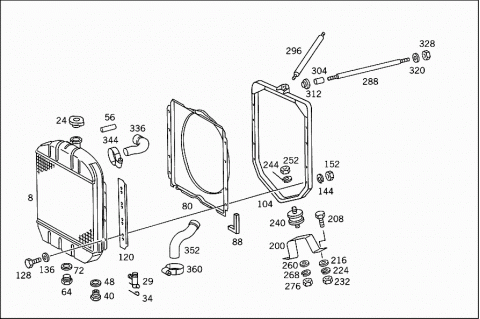

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3455010001 | RADIATOR |
| Repalced by: A 0455000003 | ||
| 008 | A 0455000003 | RADIATOR |
| Repalced by: A 3455017001 | ||
| 008 | A 3445007103 | RADIATOR |
| Repalced by: A 3455017001 | ||
| 008 | A 3455010301 | RADIATOR |
| Repalced by: A 3455017001 | ||
| 008 | A 3455017001 | RADIATOR |
| 008 | A 3455017601 | RADIATOR |
| 008 | A 3455017901 | RADIATOR |
| 008 | A 3455018201 | RADIATOR |
| 008 | A 3455018301 | RADIATOR |
| 024 | H 980005010015 | RADIATOR CAP |
| Repalced by: A 3445010115 | ||
| 024 | A 3445010115 | RADIATOR CAP |
| 024 | A 0455010015 | RADIATOR CAP |
| Repalced by: A 3445010315 | ||
| 024 | A 3445010315 | RADIATOR CAP |
| A 0009970736 | VALVE | |
| Repalced by: A 0009976436 | ||
| 029 | A 0009976436 | VALVE |
| 034 | A 0009930225 | SPRING |
| 040 | N 007604018101 | SCREW PLUG |
| 048 | N 007603018101 | SEAL RING |
| 056 | A 3049972582 | HOSE |
| 064 | A 1369970830 | SCREW PLUG |
| WATER DRAIN | ||
| 072 | N 007603018401 | SEAL RING |
| WATER DRAIN | ||
| 080 | A 3405050055 | FAN SHROUD |
| 080 | A 3445057055 | FAN SHROUD |
| 088 | A 3649870723 | PLASTIC SECTION |
| 104 | A 3225002027 | SUPPORT |
| Repalced by: A 3455007627 | ||
| 104 | A 3455007627 | SUPPORT |
| RADIATOR BLOCK | ||
| 120 | A 3225050024 | COVER PLATE |
| 128 | N 000933008282 | SCREW |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 136 | N 000125008417 | WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 144 | N 912004008100 | LOCK WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 152 | N 000934008000 | NUT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 200 | A 3525040039 | CLAMP |
| Repalced by: A 3455040139 | ||
| 200 | A 3455040139 | ANGLE |
| RADIATOR MOUNTING | ||
| 208 | N 000961012106 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| M 12X35 | ||
| 208 | N 000961012020 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 216 | A 3449907240 | WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 224 | N 000127012201 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 232 | N 000934012004 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 240 | A 3605040012 | RUBBER MOUNTING |
| 244 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 252 | N 000934010000 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 260 | N 000125010517 | WASHER |
| RADIATOR TO BRACKET | ||
| 268 | N 000127010202 | LOCK WASHER |
| RADIATOR TO BRACKET | ||
| 276 | N 000934010000 | NUT |
| RADIATOR TO BRACKET | ||
| 288 | A 3225001345 | RADIATOR STRUT |
| Repalced by: A 3455007345 | ||
| 288 | A 3455007345 | RADIATOR STRUT |
| 296 | A 3445007045 | RADIATOR STRUT |
| 304 | A 3449910040 | SPACER TUBE |
| Repalced by: A 3199910540 | ||
| 304 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 312 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 320 | N 009021010102 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 328 | N 000934010000 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 336 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 344 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 344 | A 0019972590 | LOOM TIE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 344 | A 3459977090 | LOOM TIE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 344 | A 3461400040 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 352 | A 3405010482 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 360 | A 0019972590 | LOOM TIE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 360 | A 3459977090 | LOOM TIE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 360 | A 3461400040 | CLAMP |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
