Transporto priemonė: LS 1316; VIN numerio dalis: 345025
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

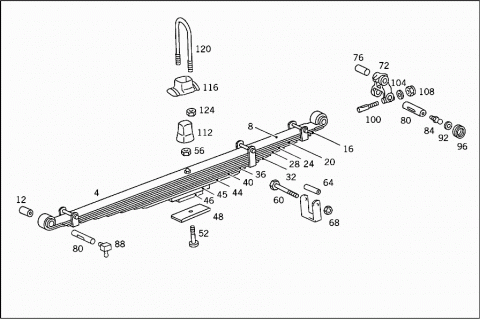

| 004 | A 3523201302 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3603200102 | FRONT SPRING |
| 9-LEAF | ||
| 004 | A 3603200702 | FRONT SPRING |
| 11-LEAF | ||
| 008 | A 3523201294 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3603200394 | SPRING LEAF |
| NO. 1 | ||
| 008 | A 3603201094 | SPRING LEAF |
| NO. 1 | ||
| 012 | A 3523220050 | BUSHING |
| 012 | A 3853220050 | BUSHING |
| 016 | A 3523210912 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3603210112 | SPRING LEAF |
| NO. 2 | ||
| 016 | A 3603210712 | SPRING LEAF |
| NO. 2 | ||
| 020 | A 3523201394 | SPRING LEAF |
| Repalced by: A 3453207994 | ||
| 020 | A 3453207994 | SPRING LEAF |
| NO.3 | ||
| 020 | A 3603200494 | SPRING LEAF |
| NO. 3 | ||
| 020 | A 3603201194 | SPRING LEAF |
| Repalced by: A 3453208194 | ||
| 020 | A 3453208194 | SPRING LEAF |
| NO. 3 | ||
| A 0033213033 | SPRING CLAMP | |
| A 0033212733 | SPRING CLAMP | |
| 024 | A 3523210914 | SPRING LEAF |
| NO.4 | ||
| 024 | A 3603210114 | SPRING LEAF |
| NO. 4 | ||
| 024 | A 3603210714 | SPRING LEAF |
| NO. 4 | ||
| 028 | A 3523210915 | SPRING LEAF |
| NO.5 | ||
| 028 | A 3603210115 | SPRING LEAF |
| NO. 5 | ||
| 028 | A 3603210715 | SPRING LEAF |
| NO. 5 | ||
| 032 | A 0453200294 | SPRING LEAF |
| Repalced by: A 3453207494 | ||
| 032 | A 3453207494 | SPRING LEAF |
| NO.6 | ||
| 032 | A 0453200794 | SPRING LEAF |
| NO. 6 | ||
| A 0033212633 | SPRING CLAMP | |
| A 0033213233 | SPRING CLAMP | |
| 032 | A 3603210716 | SPRING LEAF |
| NO. 6 | ||
| 036 | A 3523210917 | SPRING LEAF |
| NO.7 | ||
| 036 | A 3603210117 | SPRING LEAF |
| NO.7 | ||
| 036 | H 983453200094 | SPRING LEAF |
| Repalced by: A 3453207694 | ||
| 036 | A 3453207694 | SPRING LEAF |
| NO. 7 | ||
| A 0033213233 | SPRING CLAMP | |
| 040 | A 3523210518 | SPRING LEAF |
| NO.8 | ||
| 040 | A 3603210118 | SPRING LEAF |
| NO.8 | ||
| 040 | A 3603210518 | SPRING LEAF |
| NO. 8 | ||
| 044 | A 3603210119 | SPRING LEAF |
| NO.9 | ||
| 044 | A 3603210519 | SPRING LEAF |
| NO. 9 | ||
| 045 | A 3603210120 | SPRING LEAF |
| NO. 10 | ||
| 046 | A 3603210121 | SPRING LEAF |
| NO. 11 | ||
| 048 | A 3423220184 | SHIM |
| 048 | A 3603220184 | SHIM |
| 052 | N 004626012110 | SPRING BOLT |
| M 12X140 | ||
| 056 | N 000934012010 | NUT |
| 060 | N 000931008382 | SCREW |
| 064 | A 0003212353 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 068 | N 000934008000 | NUT |
| 072 | A 3523200063 | SHACKLE |
| FRONT SPRING SUSPENSION,REAR | ||
| 076 | A 3523220050 | BUSHING |
| 076 | A 3853220050 | BUSHING |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 130 | ||
| 080 | A 3523220530 | SHACKLE PIN |
| Repalced by: A 3853220030 | ||
| 080 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3453227030 | ||
| 080 | A 3453227030 | SHACKLE PIN |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 084 | N 071412010100 | GREASE NIPPLE |
| FRONT SPRING SUSPENSION,REAR | ||
| 088 | N 071412010300 | GREASE NIPPLE |
| FRONT SPRING SUSPENSION,FRONT | ||
| 092 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 092 | A 3453230376 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 092 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 092 | A 3453230276 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 096 | A 0029973140 | SEAL RING |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 100 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 104 | N 000125010517 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 108 | N 913004010004 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 112 | A 3523310044 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 116 | A 3523220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 116 | H 983453220224 | PLATE |
| Repalced by: A 3453227224 | ||
| 116 | A 3453227224 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 18X210 MM | ||
| 120 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 18X230 MM | ||
| 124 | N 000934018002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

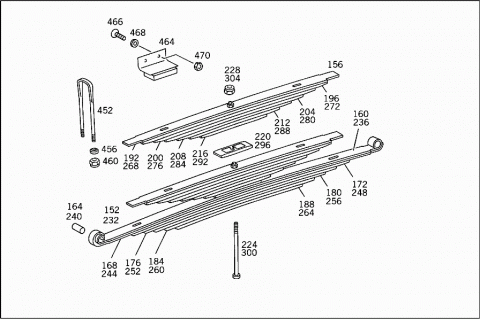

| 152 | A 3523201408 | REAR SPRING |
| 6-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 152 | A 3523201408 | REAR SPRING |
| 6-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 152 | A 3603200408 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 156 | A 3523201506 | REAR SPRING |
| 6-LEAF | ||
| 156 | A 3523201506 | REAR SPRING |
| 6-LEAF | ||
| 156 | A 3603200206 | REAR SPRING |
| 7-LEAF | ||
| 160 | A 3523201693 | SPRING LEAF |
| NO.1 | ||
| 160 | A 3523201693 | SPRING LEAF |
| NO.1 | ||
| 160 | A 3603200193 | SPRING LEAF |
| NO. 1 | ||
| 164 | A 3523250150 | BUSHING |
| 164 | A 3853250050 | BUSHING |
| 168 | A 3523241812 | SPRING LEAF |
| NO.2 | ||
| 168 | A 3523241812 | SPRING LEAF |
| NO.2 | ||
| 168 | A 3603240512 | SPRING LEAF |
| NO. 2 | ||
| 172 | A 3523241813 | SPRING LEAF |
| NO.3 | ||
| 172 | A 3523241813 | SPRING LEAF |
| NO.3 | ||
| 172 | A 3603240513 | SPRING LEAF |
| NO. 3 | ||
| 176 | A 3523241714 | SPRING LEAF |
| NO.4 | ||
| 176 | A 3523241714 | SPRING LEAF |
| NO.4 | ||
| 176 | A 3603240514 | SPRING LEAF |
| NO. 4 | ||
| 180 | A 3523241715 | SPRING LEAF |
| NO.5 | ||
| 180 | A 3523241715 | SPRING LEAF |
| NO.5 | ||
| 180 | A 3603240515 | SPRING LEAF |
| NO. 5 | ||
| 184 | A 3523241716 | SPRING LEAF |
| NO.6 | ||
| 184 | A 3523241716 | SPRING LEAF |
| NO.6 | ||
| 184 | A 3603240516 | SPRING LEAF |
| NO. 6 | ||
| 188 | A 3603240417 | SPRING LEAF |
| NO. 7 | ||
| A 3523200610 | HELPER SPRING | |
| 6-LEAF | ||
| A 3603200110 | HELPER SPRING | |
| 7-LEAF | ||
| 192 | A 3523241140 | SPRING LEAF |
| NO.1 | ||
| 192 | A 3523241140 | SPRING LEAF |
| NO.1 | ||
| 192 | A 3603240440 | SPRING LEAF |
| NO. 1 | ||
| 196 | A 3523241141 | SPRING LEAF |
| NO.2 | ||
| 196 | A 3523241141 | SPRING LEAF |
| NO.2 | ||
| 196 | A 3603240441 | SPRING LEAF |
| NO. 2 | ||
| 200 | A 3523241042 | SPRING LEAF |
| NO.3 | ||
| 200 | A 3523241042 | SPRING LEAF |
| NO.3 | ||
| 200 | A 3603240442 | SPRING LEAF |
| NO. 3 | ||
| 204 | A 3523241043 | SPRING LEAF |
| NO.4 | ||
| 204 | A 3523241043 | SPRING LEAF |
| NO.4 | ||
| 204 | A 3603240443 | SPRING LEAF |
| NO. 4 | ||
| 208 | A 3523241044 | SPRING LEAF |
| NO.5 | ||
| 208 | A 3523241044 | SPRING LEAF |
| NO.5 | ||
| 208 | A 3603240444 | SPRING LEAF |
| NO. 5 | ||
| 212 | A 3523241045 | SPRING LEAF |
| NO.6 | ||
| 212 | A 3523241045 | SPRING LEAF |
| NO.6 | ||
| 212 | A 3603240345 | SPRING LEAF |
| NO. 6 | ||
| 216 | A 3603240246 | SPRING LEAF |
| NO. 7 | ||
| 220 | A 3523240135 | SPACER |
| 224 | N 004626012133 | SPRING BOLT |
| M 12X225 | ||
| 224 | N 004626012115 | SPRING BOLT |
| M 12X260 | ||
| 228 | N 000934012010 | NUT |
| 232 | H 983453200308 | REAR SPRING |
| Repalced by: A 3453207308 | ||
| 232 | A 3453207308 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 232 | A 3453207308 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 236 | A 3453207193 | SPRING LEAF |
| NO.1 | ||
| 236 | A 3453207193 | SPRING LEAF |
| NO.1 | ||
| 240 | A 3523250150 | BUSHING |
| 240 | A 3523250150 | BUSHING |
| 240 | A 3853250050 | BUSHING |
| 240 | A 3853250050 | BUSHING |
| 244 | H 983453240312 | SPRING LEAF |
| Repalced by: A 3453247112 | ||
| 244 | A 3453247112 | SPRING LEAF |
| N0.2 | ||
| 244 | A 3453247112 | SPRING LEAF |
| N0.2 | ||
| 248 | H 983453240213 | SPRING LEAF |
| Repalced by: A 3453247113 | ||
| 248 | A 3453247113 | SPRING LEAF |
| NO.3 | ||
| 248 | A 3453247113 | SPRING LEAF |
| NO.3 | ||
| 252 | H 983453240214 | SPRING LEAF |
| Repalced by: A 3453247114 | ||
| 252 | A 3453247114 | SPRING LEAF |
| NO.4 | ||
| 252 | A 3453247114 | SPRING LEAF |
| NO.4 | ||
| 256 | H 983453240215 | SPRING LEAF |
| Repalced by: A 3453247115 | ||
| 256 | A 3453247115 | SPRING LEAF |
| NO.5 | ||
| 256 | A 3453247115 | SPRING LEAF |
| NO.5 | ||
| 260 | H 983453240216 | SPRING LEAF |
| Repalced by: A 3453247116 | ||
| 260 | A 3453247116 | SPRING LEAF |
| NO.6 | ||
| 260 | A 3453247116 | SPRING LEAF |
| NO.6 | ||
| 264 | H 983453240217 | SPRING LEAF |
| Repalced by: A 3453247117 | ||
| 264 | A 3453247117 | SPRING LEAF |
| NO.7 | ||
| 264 | A 3453247117 | SPRING LEAF |
| NO.7 | ||
| 264 | A 3453247117 | SPRING LEAF |
| HELPER SPRING | ||
| NO.7 | ||
| 268 | H 983453240040 | SPRING LEAF |
| Repalced by: A 3453247040 | ||
| 268 | A 3453247040 | SPRING LEAF |
| NO.1 | ||
| 268 | A 3453247040 | SPRING LEAF |
| NO.1 | ||
| 272 | H 983453240041 | SPRING LEAF |
| Repalced by: A 3453247041 | ||
| 272 | A 3453247041 | SPRING LEAF |
| NO.2 | ||
| 272 | A 3453247041 | SPRING LEAF |
| NO.2 | ||
| 276 | H 983453240042 | SPRING LEAF |
| Repalced by: A 3453247042 | ||
| 276 | A 3453247042 | SPRING LEAF |
| NO.3 | ||
| 276 | A 3453247042 | SPRING LEAF |
| NO.3 | ||
| 280 | H 983453240043 | SPRING LEAF |
| Repalced by: A 3453247043 | ||
| 280 | A 3453247043 | SPRING LEAF |
| NO.4 | ||
| 280 | A 3453247043 | SPRING LEAF |
| NO.4 | ||
| 284 | H 983453240044 | SPRING LEAF |
| Repalced by: A 3453247044 | ||
| 284 | A 3453247043 | SPRING LEAF |
| NO.5 | ||
| 284 | A 3453247043 | SPRING LEAF |
| NO.5 | ||
| 288 | H 983453240045 | SPRING LEAF |
| Repalced by: A 3453247045 | ||
| 288 | A 3453247045 | SPRING LEAF |
| NO.6 | ||
| 288 | A 3453247045 | SPRING LEAF |
| NO.6 | ||
| 292 | H 983453240046 | SPRING LEAF |
| Repalced by: A 3453247046 | ||
| 292 | A 3453247046 | SPRING LEAF |
| NO.7 | ||
| 292 | A 3453247046 | SPRING LEAF |
| NO.7 | ||
| 296 | A 3523240135 | SPACER |
| 300 | N 004626012115 | SPRING BOLT |
| 304 | N 000934012010 | NUT |

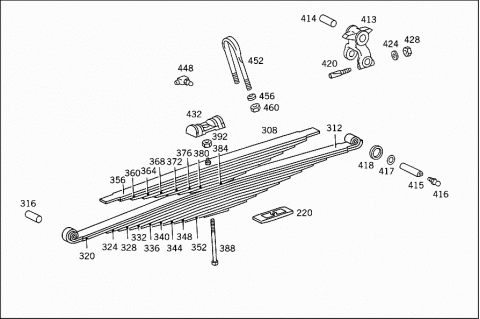

| 308 | A 3453200008 | REAR SPRING |
| 10-LEAF;WITH 8-LEAF HELPER SPRING | ||
| 312 | A 3453207194 | SPRING LEAF |
| NO.1 | ||
| 316 | A 3523250150 | BUSHING |
| 316 | A 3853250050 | BUSHING |
| 320 | A 3453240212 | SPRING LEAF |
| NO.2 | ||
| 324 | A 3453240213 | SPRING LEAF |
| NO.3 | ||
| 328 | A 3453240214 | SPRING LEAF |
| NO.4 | ||
| 332 | A 3453240215 | SPRING LEAF |
| NO.5 | ||
| 336 | A 3453240216 | SPRING LEAF |
| NO.6 | ||
| 340 | A 3453240217 | SPRING LEAF |
| NO.7 | ||
| 344 | A 3453240218 | SPRING LEAF |
| NO.8 | ||
| 348 | A 3453240219 | SPRING LEAF |
| NO.9 | ||
| 352 | A 3453240420 | SPRING LEAF |
| NO.10 | ||
| 352 | A 3453240420 | SPRING LEAF |
| HELPER SPRING | ||
| NO.10 | ||
| 356 | A 3453240040 | SPRING LEAF |
| NO.1 | ||
| 360 | A 3453240041 | SPRING LEAF |
| NO.2 | ||
| 364 | A 3453240042 | SPRING LEAF |
| NO.3 | ||
| 368 | A 3453240043 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3453240044 | SPRING LEAF |
| NO.5 | ||
| 376 | A 3453240045 | SPRING LEAF |
| NO.6 | ||
| 380 | A 3453240046 | SPRING LEAF |
| NO.7 | ||
| 384 | A 3453240047 | SPRING LEAF |
| NO.8 | ||
| 388 | A 0003220271 | SCREW |
| 392 | N 000934012010 | NUT |

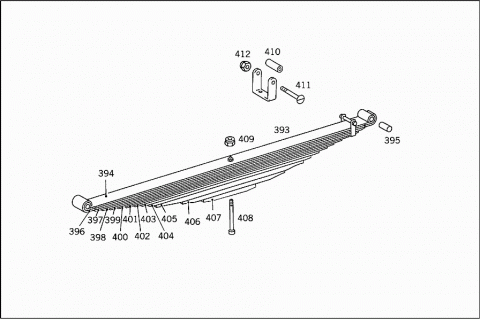

| 393 | A 3523201206 | REAR SPRING |
| Repalced by: A 3453200206 | ||
| 393 | A 3453200206 | REAR SPRING |
| 11-LEAF | ||
| 393 | A 3603200006 | REAR SPRING |
| 12-LEAF | ||
| 394 | A 3523201793 | SPRING LEAF |
| NO.1,TO 352 320 12 06 | ||
| 394 | A 3453200393 | SPRING LEAF |
| NO.1,TO 345 320 02 06 | ||
| 394 | A 3603200293 | SPRING LEAF |
| NO.1 | ||
| 395 | A 3523250150 | BUSHING |
| 395 | A 3853250050 | BUSHING |
| 396 | A 3523242012 | SPRING LEAF |
| NO.2, TO 352 320 12 06 | ||
| 396 | A 3453240312 | SPRING LEAF |
| NO.2, TO 345 320 02 06 | ||
| 397 | A 3523242013 | SPRING LEAF |
| NO.3, TO 352 320 12 06 | ||
| 397 | A 3453240313 | SPRING LEAF |
| NO.3, TO 345 320 02 06 | ||
| 397 | A 3603240313 | SPRING LEAF |
| NO. 3 | ||
| 398 | A 3523200193 | SPRING LEAF |
| Repalced by: A 3523202493 | ||
| 398 | A 3523202493 | SPRING LEAF |
| NO.4,TO 352 320 12 06 | ||
| 398 | A 3453200493 | SPRING LEAF |
| NO.4, TO 345 320 02 06 | ||
| 398 | A 3603200493 | SPRING LEAF |
| Repalced by: A 3453207294 | ||
| 398 | A 3453207294 | SPRING LEAF |
| NO. 4 | ||
| 399 | A 3603210033 | SPRING CLAMP |
| 400 | A 3523241915 | SPRING LEAF |
| NO. 5,TO 352 320 12 06 | ||
| 400 | A 3453240315 | SPRING LEAF |
| NO. 5,TO 345 320 02 06 | ||
| 400 | A 3603240315 | SPRING LEAF |
| NO. 5 | ||
| 401 | A 3523241816 | SPRING LEAF |
| NO. 6,TO 352 320 12 06 | ||
| 401 | A 3453240316 | SPRING LEAF |
| NO. 6,TO 345 320 02 06 | ||
| 401 | A 3603240316 | SPRING LEAF |
| NO. 6 | ||
| 402 | A 3523241617 | SPRING LEAF |
| NO. 7,TO 352 320 12 06 | ||
| 402 | A 3453240317 | SPRING LEAF |
| NO. 7,TO 345 320 02 06 | ||
| 402 | A 3603240317 | SPRING LEAF |
| NO. 7 | ||
| 403 | A 3523241518 | SPRING LEAF |
| NO. 8,TO 352 320 12 06 | ||
| 403 | A 3453240318 | SPRING LEAF |
| NO. 8,TO 345 320 02 06 | ||
| 403 | A 3603240118 | SPRING LEAF |
| NO. 8 | ||
| 404 | A 3523241219 | SPRING LEAF |
| NO. 9,TO 352 320 12 06 | ||
| 404 | A 3453240319 | SPRING LEAF |
| NO. 9,TO 345 320 02 06 | ||
| 404 | A 3603240119 | SPRING LEAF |
| NO. 9 | ||
| 405 | A 3523241120 | SPRING LEAF |
| NO. 10,TO 352 320 12 06 | ||
| 405 | A 3453240220 | SPRING LEAF |
| NO. 10,TO 345 320 02 06 | ||
| 405 | A 3603240120 | SPRING LEAF |
| NO. 10 | ||
| 406 | A 3523240421 | SPRING LEAF |
| NO. 11,TO 352 320 12 06 | ||
| 406 | A 3453240121 | SPRING LEAF |
| NO. 11,TO 345 320 02 06 | ||
| 406 | A 3603240121 | SPRING LEAF |
| NO. 11 | ||
| 407 | A 3603240122 | SPRING LEAF |
| NO. 12 | ||
| 408 | N 004626012113 | SPRING BOLT |
| 409 | N 000934012010 | NUT |
| 410 | A 0003212553 | SPACER TUBE |
| 411 | N 000931012080 | SCREW |
| 412 | N 000934012010 | NUT |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 140 | ||
| 413 | A 3523200163 | SHACKLE |
| REAR-SPRING REAR BRACKET | ||
| 414 | A 3523250150 | BUSHING |
| 414 | A 3853250050 | BUSHING |
| 415 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3453257030 | ||
| 415 | A 3853250030 | SHACKLE PIN |
| Repalced by: A 3453257030 | ||
| 415 | A 3453257030 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 416 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 417 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 417 | A 3453230776 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 417 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 417 | A 3453230676 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 418 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 420 | A 3529900337 | BOLT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 424 | N 000125010517 | WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 428 | N 913004010004 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 432 | A 3543515026 | SPRING CLAMPING PLATE |
| Repalced by: A 3833250031 | ||
| 432 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 448 | N 071412008300 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 448 | A 3459977288 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 452 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X390 MM | ||
| 452 | A 3583510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 452 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X430 MM | ||
| 452 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X430 MM | ||
| 452 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X430 MM | ||
| 452 | A 3403510025 | U-BOLT |
| Repalced by: A 3583510125 | ||
| 452 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X460 MM | ||
| 452 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X460 MM | ||
| 452 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X460 MM | ||
| 452 | A 3583510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X420 MM | ||
| 452 | A 3603510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X440 MM | ||
| 452 | A 3603510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X440 MM | ||
| 452 | A 3603510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X440 MM | ||
| 452 | A 3523510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X350 MM | ||
| 452 | A 3523510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X350 MM | ||
| 452 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X360 MM | ||
| 452 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X380 MM | ||
| 452 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X380 MM | ||
| 452 | A 3383515125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X480 MM | ||
| 452 | A 3603510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 18X500 MM | ||
| 456 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 460 | N 000934018002 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 464 | A 3453207029 | STOP |
| REAR SPRING TO FRAME | ||
| 466 | N 000963010031 | SCREW |
| STOP BUFFER TO FRAME | ||
| 468 | N 000125010517 | WASHER |
| STOP BUFFER TO FRAME | ||
| 470 | N 000934010000 | NUT |
| STOP BUFFER TO FRAME | ||

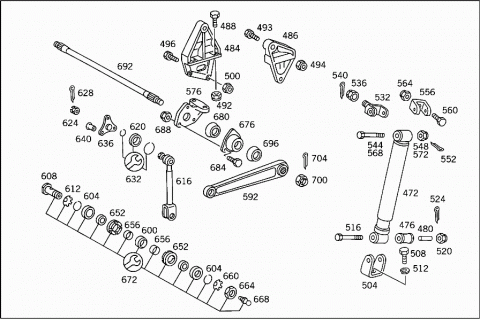

| 472 | A 3453230100 | SHOCK ABSORBER |
| FRONT | ||
| 472 | A 3453237000 | SHOCK ABSORBER |
| FRONT | ||
| 472 | A 3453237500 | SHOCK ABSORBER |
| FRONT | ||
| 476 | A 0083230285 | RUBBER MOUNTING |
| Repalced by: A 0003230585 | ||
| 476 | A 0003230585 | RUBBER MOUNTING |
| 480 | A 0083230150 | BUSHING |
| Repalced by: A 0003230453 | ||
| 480 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50 | ||
| 484 | A 3453230163 | BEARING BRACKET |
| TOP RIGHT | ||
| 484 | A 3453230263 | BEARING BRACKET |
| Repalced by: A 3503237163 | ||
| 484 | A 3503237163 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 484 | A 3503237163 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 486 | A 3413230263 | BEARING BRACKET |
| TOP RIGHT | ||
| 486 | A 3453230363 | BEARING BRACKET |
| TOP RIGHT | ||
| 488 | N 000933010269 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| M 10X35 | ||
| 488 | N 000931010053 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| M 10X40 | ||
| 492 | N 913004010004 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 30,FIG.NO.: | ||
| 172 | ||
| 493 | N 000933010174 | SCREW |
| CONSOLE TO FRAME | ||
| 494 | N 913004010004 | NUT |
| CONSOLE TO FRAME | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 173 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 174 | ||
| 496 | N 000933010129 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 500 | N 913004010004 | NUT |
| REINFORCEMENT TO FRAME | ||
| 504 | A 3523231663 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,LEFT BOTTOM | ||
| 504 | A 3523231763 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,RIGHT BOTTOM | ||
| 508 | N 000961012009 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 512 | N 000127012201 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 516 | A 3529900002 | SCREW |
| Repalced by: A 3449909901 | ||
| 516 | A 3449909901 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 520 | N 000979016006 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| TO 352 990 00 02 | ||
| 520 | N 913004016005 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| TO 344 990 99 01 | ||
| 524 | N 000094004056 | COTTER PIN |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 532 | A 3523230118 | END PIECE |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 536 | N 000937024001 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 540 | N 000094005013 | COTTER PIN |
| BRACKET TO BEARING BRACKET | ||
| 544 | A 3409900002 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 548 | N 000979016006 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 552 | N 000094004056 | COTTER PIN |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 556 | A 3523230340 | BRACKET |
| SHOCK ABSORBER MOUNTING,FRONT | ||
| 560 | A 3529903201 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 564 | N 913004020004 | NUT |
| 568 | N 000960016238 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 572 | N 913004016004 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 576 | A 3523231463 | BEARING BRACKET |
| HOLE SPACING: | ||
| 88 MM | ||
| 592 | A 3603230869 | LEVER |
| FRONT AXLE TORSION BAR | ||
| 600 | A 0009810731 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 600 | A 0009810931 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 600 | A 0009816631 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 604 | N 009045035001 | SNAP RING |
| ROD TO LEVER | ||
| 608 | A 3603230274 | PIN |
| ROD TO LEVER | ||
| 612 | N 006797021201 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 616 | A 3603200189 | ROD |
| Repalced by: A 3453207389 | ||
| 616 | A 3453207389 | ROD |
| FRONT AXLE TORSION BAR | ||
| 620 | A 0003300185 | BOOT |
| TO 360 320 01 89 | ||
| 624 | N 000979014001 | NUT |
| TO 360 320 01 89 | ||
| 624 | N 000935014002 | NUT |
| TO 345 320 73 89 | ||
| 628 | N 000094003030 | COTTER PIN |
| TO 360 320 01 89 | ||
| 628 | N 000094003024 | COTTER PIN |
| TO 345 320 73 89 | ||
| 632 | A 3455867432 | REPAIR KIT |
| TO 345 320 73 89 | ||
| 636 | A 3603230663 | BEARING BRACKET |
| TORSION BAR BEARING | ||
| 640 | N 910005010005 | RIVET |
| BEARING BRACKET TO FRAME | ||
| 652 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 652 | A 3453237260 | SEAL RING |
| ROD TO LEVER | ||
| 656 | A 3603230153 | SPACER TUBE |
| ROD TO LEVER | ||
| 660 | N 006797021101 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 664 | N 000439020203 | NUT |
| ROD TO LEVER | ||
| 668 | N 071412010100 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 672 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| A 3603230083 | HOUSING | |
| TORSION BAR BEARING | ||
| 676 | A 3523230283 | HOUSING |
| TORSION BAR BEARING | ||
| 680 | A 3603230085 | RUBBER MOUNTING |
| Repalced by: A 3453237085 | ||
| 680 | A 3453237085 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 684 | N 000933010258 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| M 10X38 | ||
| 688 | N 913004010004 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 692 | A 3603230065 | TORSION BAR |
| AT FRONT AXLE | ||
| 696 | A 3603230151 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 700 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 704 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||

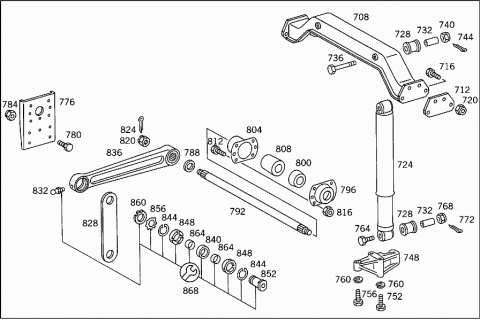

| 708 | A 3523100140 | CROSS MEMBER |
| Repalced by: A 3453107240 | ||
| 708 | H 983453100140 | CROSS MEMBER |
| Repalced by: A 3453107240 | ||
| 708 | A 3453107240 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 708 | A 3453107240 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 708 | A 3523100240 | CROSS MEMBER |
| Repalced by: A 3453107140 | ||
| 708 | A 3453107140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 712 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 716 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 716 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 720 | N 913004010004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 724 | A 0013268500 | SHOCK ABSORBER |
| REAR | ||
| 724 | A 0013266500 | SHOCK ABSORBER |
| REAR | ||
| 724 | A 3453267200 | SHOCK ABSORBER |
| REAR | ||
| 724 | A 3453267700 | SHOCK ABSORBER |
| REAR | ||
| 728 | A 0003230785 | RUBBER MOUNTING |
| 732 | A 0003230553 | SPACER TUBE |
| 736 | A 3529901301 | SCREW |
| Repalced by: A 3459908601 | ||
| 736 | A 3459908601 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 740 | N 000937020000 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 740 | N 913004020004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 744 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 748 | A 3453260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 748 | A 3523261240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 748 | A 3443267340 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 748 | A 3453260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 748 | A 3523261340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 748 | A 3443267440 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 752 | N 000960014180 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 756 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 760 | N 000127014201 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 764 | A 3529901201 | SCREW |
| Repalced by: A 3459908501 | ||
| 764 | A 3459908501 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 768 | N 000979020000 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 768 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 772 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO BRACKET | ||
| 776 | A 3523260125 | PLATE |
| TORSION BAR TO FRAME | ||
| 776 | A 3523260125 | PLATE |
| TORSION BAR TO FRAME | ||
| 776 | A 0453120043 | PAD |
| TORSION BAR TO FRAME | ||
| 776 | A 3403260025 | PLATE |
| TORSION BAR TO FRAME | ||
| 780 | N 000961012154 | SCREW |
| PLATE TO FRAME | ||
| 784 | N 913004012003 | NUT |
| PLATE TO FRAME | ||
| 788 | A 3523230751 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 788 | A 3403230051 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 792 | A 3223260065 | TORSION BAR |
| Repalced by: A 3443260065 | ||
| 792 | A 3443260065 | TORSION BAR |
| REAR AXLE | ||
| 792 | A 3603260165 | TORSION BAR |
| REAR AXLE | ||
| 796 | A 3403260082 | HOUSING |
| OUTSIDE | ||
| 800 | A 3523260181 | RUBBER MOUNTING |
| OUTSIDE | ||
| 800 | A 3403260181 | RUBBER MOUNTING |
| OUTSIDE | ||
| 804 | A 3403260182 | HOUSING |
| INSIDE | ||
| 808 | A 3523260081 | RUBBER MOUNTING |
| INSIDE | ||
| 808 | A 3403260081 | RUBBER MOUNTING |
| INSIDE | ||
| 812 | N 000933010269 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| M 10X35 | ||
| 812 | N 000931010053 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| M 10X40 | ||
| 816 | N 913004010004 | NUT |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 820 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| 820 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 824 | N 000094005016 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 824 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 828 | A 3523260116 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 828 | A 3523260216 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 832 | N 071412008100 | GREASE NIPPLE |
| LEVER | ||
| 836 | A 3523200127 | LEVER |
| Repalced by: A 3523260369 | ||
| 836 | A 3523200227 | LEVER |
| Repalced by: A 3523260469 | ||
| 836 | A 3523260369 | LEVER |
| Repalced by: A 3453260269 | ||
| 836 | A 3453260269 | LEVER |
| STABILIZER | ||
| 836 | A 3523260469 | LEVER |
| Repalced by: A 3453260169 | ||
| 836 | A 3453260169 | LEVER |
| STABILIZER | ||
| 840 | A 0009810831 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 840 | A 0009811231 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 844 | N 000472055000 | LOCK RING |
| BEARING TO LINK | ||
| 848 | A 3603230560 | SEAL RING |
| BEARING TO LINK | ||
| 848 | A 3453237160 | SEAL RING |
| BEARING TO LINK | ||
| 852 | A 3523260274 | PIN |
| LINK TO LEVER | ||
| 856 | N 070952035101 | LOCK PLATE |
| LINK TO LEVER | ||
| 860 | N 070852035000 | NUT |
| LINK TO LEVER | ||
| 864 | A 3523260153 | SPACER TUBE |
| LINK TO LEVER | ||
| 868 | A 3603200341 | REPAIR KIT |
| REAR STABILIZER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
