Transporto priemonė: LS 1316; VIN numerio dalis: 345025
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |

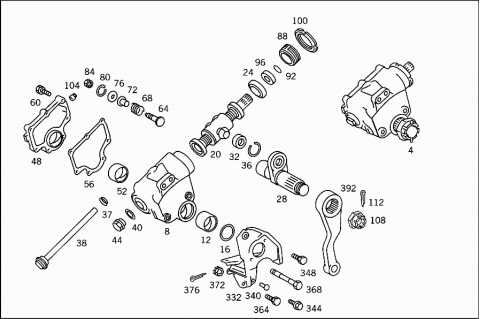

| MECHANICAL STEERING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING, SEE PARTS LIST: | ||
| 762.0 | ||
| 004 | A 0444602901 | STEERING BOX ASSEMBLY |
| 004 | A 0454600101 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601201 | ||
| 004 | A 3444601201 | STEERING BOX ASSEMBLY |
| 008 | A 3214601302 | STEERING BOX |
| Repalced by: A 3444600002 | ||
| 008 | A 3444600002 | STEERING BOX |
| Repalced by: A 3214601402 | ||
| 008 | A 3214601402 | STEERING BOX |
| Repalced by: A 3444607002 | ||
| A 3444607002 | STEERING BOX | |
| 012 | A 3214610350 | BUSHING |
| STEERING SHAFT BEARING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 223 | ||
| 016 | A 0459970145 | SEAL RING |
| Repalced by: A 3459970045 | ||
| 016 | A 3459970045 | SEAL RING |
| Repalced by: A 3449970345 | ||
| 016 | A 3449970345 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| A 4064600218 | STEERING NUT | |
| WITH STEERING WORM | ||
| 020 | A 0444600308 | STEERING WORM |
| Repalced by: A 3444600118 | ||
| 020 | H 983454600008 | STEERING WORM |
| Repalced by: A 3444600118 | ||
| 020 | A 3444600118 | STEERING NUT |
| 024 | A 3219970740 | SEAL RING |
| 024 | A 0009810806 | BARREL-TYPE BEARING |
| Repalced by: A 0009811306 | ||
| 024 | A 0009811306 | BARREL-TYPE BEARING |
| Repalced by: A 3459817006 | ||
| 024 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING WORM | ||
| 028 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 032 | A 3214620537 | BALL CUP |
| STEERING SHAFT BEARING IN COVER | ||
| 036 | N 009045038001 | SNAP RING |
| STEERING SHAFT BEARING IN COVER | ||
| 037 | A 3219970640 | SEAL RING |
| 038 | A 0444600015 | OIL LEVEL CHECK PIPE |
| Repalced by: A 3444603524 | ||
| 038 | A 3444603524 | LINE |
| 040 | N 007603030400 | SEAL RING |
| 044 | N 007603030100 | SEAL RING |
| 048 | A 3274600214 | STEERING BOX COVER |
| Repalced by: A 3214600414 | ||
| 048 | A 3214600414 | STEERING BOX COVER |
| STEERING BOX | ||
| 052 | A 3214620250 | BUSHING |
| STEERING SHAFT BEARING IN COVER | ||
| 056 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 056 | A 3524610180 | GASKET |
| COVER TO STEERING BOX | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| CONTAINING ASBESTOS | ||
| A 3524610180 | GASKET | |
| COVER TO STEERING BOX | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| ASBESTOS-FREE | ||
| 060 | A 0019909101 | SCREW |
| Repalced by: N 000931008049 | ||
| 060 | N 000931008049 | SCREW |
| COVER TO STEERING BOX | ||
| 064 | A 3214620171 | SCREW |
| STEERING SHAFT BEARING IN COVER | ||
| 068 | A 3219932201 | SPRING |
| STEERING SHAFT BEARING IN COVER | ||
| 072 | A 0444620085 | THRUST PIECE |
| Repalced by: A 3444620085 | ||
| 072 | A 3444620085 | THRUST PIECE |
| Repalced by: A 3444620185 | ||
| 072 | A 3444620185 | THRUST PIECE |
| STEERING SHAFT BEARING IN COVER | ||
| 076 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 080 | A 0009946041 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 084 | A 0019976140 | SEAL RING |
| Repalced by: A 0029900251 | ||
| 084 | A 3219900050 | NUT |
| Repalced by: A 0029900251 | ||
| 084 | A 0029900251 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 088 | A 3224620151 | RING |
| 092 | A 0459970045 | SEAL RING |
| Repalced by: A 3449970445 | ||
| 092 | A 3449970445 | SEAL RING |
| OUTSIDE | ||
| 096 | A 0029974346 | SEAL RING |
| INSIDE | ||
| 096 | H 980009970246 | SEAL RING |
| Repalced by: A 3449977146 | ||
| 096 | A 3449977146 | SEAL RING |
| INSIDE | ||
| 096 | A 3459979246 | SEAL RING |
| INSIDE | ||
| 100 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 100 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| A 6889940015 | LOCK | |
| STEERING NUT BEARING | ||
| 104 | A 3029970035 | PLUG |
| Repalced by: N 000906016000 | ||
| 104 | N 000906016000 | SCREW PLUG |
| OIL FILLING | ||
| 108 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 112 | N 000094006013 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

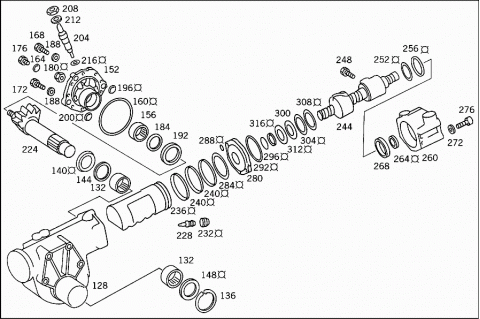

| HYDRAULIC POWER STEERING | ||
| 116 | A 3604602101 | STEERING BOX ASSEMBLY |
| Repalced by: A 3454600501 | ||
| 116 | A 3454600501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3454608101 | ||
| 116 | A 3454608101 | STEERING BOX ASSEMBLY |
| 120 | N 000937035000 | NUT |
| 124 | N 000094006317 | COTTER PIN |
| 128 | A 0004615701 | BOX |
| Repalced by: A 0004617101 | ||
| 128 | A 0004617101 | BOX |
| 132 | A 0019816010 | NEEDLE BEARING |
| 132 | A 0149819310 | NEEDLE BEARING |
| 136 | N 000472060000 | LOCK RING |
| 140 | A 0004621865 | RING |
| 144 | A 0004622475 | WASHER |
| 148 | A 0019970640 | SEAL RING |
| 148 | A 0049976940 | SEAL RING |
| 152 | A 0004612505 | COVER |
| TO 000 461 57 01 | ||
| 152 | A 0004614205 | COVER |
| TO 000 461 71 01 | ||
| 156 | A 0019816110 | NEEDLE BEARING |
| 156 | A 0149819210 | NEEDLE BEARING |
| 160 | A 0089971648 | SEAL RING |
| Repalced by: A 0099978748 | ||
| 160 | A 0099978748 | SEAL RING |
| 164 | N 007603012111 | SEAL RING |
| 168 | N 000961008014 | SCREW |
| 172 | N 000961008012 | SCREW |
| 176 | N 007604012102 | SCREW PLUG |
| 180 | A 0004620372 | NUT |
| 184 | A 0004622975 | WASHER |
| 188 | A 0004629952 | SPACER WASHER |
| 192 | A 0004622765 | RING |
| 196 | A 0089971748 | SEAL RING |
| 200 | A 0079979348 | SEAL RING |
| Repalced by: A 0049978548 | ||
| 200 | A 0049978548 | SEAL RING |
| 204 | A 0004611582 | VALVE |
| Repalced by: A 0004611982 | ||
| 204 | A 0004611982 | VALVE |
| Repalced by: A 0004612182 | ||
| 204 | A 0004612182 | VALVE |
| Repalced by: A 0004612582 | ||
| 204 | A 0004612582 | VALVE |
| 208 | A 0029903751 | NUT |
| Repalced by: A 0029909251 | ||
| 208 | A 0029909251 | NUT |
| 212 | N 000125015012 | WASHER |
| 216 | A 0089970045 | SEAL RING |
| Repalced by: A 0169979148 | ||
| 216 | A 0169979148 | SEAL RING |
| A 0079979945 | SEAL RING | |
| Repalced by: A 0169978948 | ||
| A 0169978948 | SEAL RING | |
| 224 | A 0004624912 | STEERG. WORM SECTOR SHAFT |
| Repalced by: A 0004625212 | ||
| 224 | A 0004625212 | STEERG. WORM SECTOR SHAFT |
| A 0034620452 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.950 MM | ||
| A 0034620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.975 MM | ||
| A 0034620652 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.000 MM | ||
| A 0034620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.025 MM | ||
| A 0034624952 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.050 MM | ||
| A 0034625052 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.075 MM | ||
| A 0034625152 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.100 MM | ||
| A 0034625252 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.125 MM | ||
| A 0034625352 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.150 MM | ||
| A 0034625452 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.175 MM | ||
| A 0034625552 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.200 MM | ||
| A 0034625652 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.225 MM | ||
| A 0034625752 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.250 MM | ||
| A 0034625852 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.275 MM | ||
| A 0004621471 | SCREW | |
| A 0039943041 | LOCK | |
| 228 | A 0009900315 | SCREW |
| 232 | A 0004620196 | BOOT |
| 236 | A 0004621665 | RING |
| 240 | A 0004621565 | RING |
| A 0004620974 | PIN | |
| A 0004620134 | SCREW COLLAR | |
| A 0004622283 | PISTON | |
| 244 | A 0004605608 | STEERING WORM |
| Repalced by: A 0004607308 | ||
| 244 | A 0004607308 | STEERING WORM |
| A 0019816185 | BALL | |
| AS REQUIRED | ||
| 7.990 MM | ||
| A 0019815285 | BALL | |
| AS REQUIRED | ||
| 7.991 MM | ||
| A 0019815385 | BALL | |
| AS REQUIRED | ||
| 7.992 MM | ||
| A 0019816285 | BALL | |
| AS REQUIRED | ||
| 7.993 MM | ||
| A 0019816385 | BALL | |
| AS REQUIRED | ||
| 7.994 MM | ||
| A 0019815485 | BALL | |
| AS REQUIRED | ||
| 7.995 MM | ||
| A 0019816485 | BALL | |
| AS REQUIRED | ||
| 7.996 MM | ||
| A 0019816585 | BALL | |
| AS REQUIRED | ||
| 7.997 MM | ||
| A 0019815585 | BALL | |
| AS REQUIRED | ||
| 7.998 MM | ||
| A 0019816685 | BALL | |
| AS REQUIRED | ||
| 7.999 MM | ||
| A 0019815685 | BALL | |
| AS REQUIRED | ||
| 8.000 MM | ||
| A 0019816785 | BALL | |
| AS REQUIRED | ||
| 8.001 MM | ||
| A 0019815785 | BALL | |
| AS REQUIRED | ||
| 8.002 MM | ||
| A 0019816885 | BALL | |
| AS REQUIRED | ||
| 8.003 MM | ||
| A 0019816985 | BALL | |
| AS REQUIRED | ||
| 8.004 MM | ||
| A 0019815885 | BALL | |
| AS REQUIRED | ||
| 8.005 MM | ||
| A 0019817085 | BALL | |
| AS REQUIRED | ||
| 8.006 MM | ||
| A 0019817185 | BALL | |
| AS REQUIRED | ||
| 8.007 MM | ||
| A 0019815985 | BALL | |
| AS REQUIRED | ||
| 8.008 MM | ||
| A 0019817285 | BALL | |
| AS REQUIRED | ||
| 8.009 MM | ||
| A 0019816085 | BALL | |
| AS REQUIRED | ||
| 8.010 MM | ||
| A 0019817385 | BALL | |
| AS REQUIRED | ||
| 8.011 MM | ||
| A 0019817485 | BALL | |
| AS REQUIRED | ||
| 8.012 MM | ||
| A 0019817585 | BALL | |
| AS REQUIRED | ||
| 8.013 MM | ||
| A 0019817685 | BALL | |
| AS REQUIRED | ||
| 8.014 MM | ||
| A 0019817785 | BALL | |
| AS REQUIRED | ||
| 8.015 MM | ||
| A 0004620106 | STEERING NUT | |
| A 0004622027 | BALL RACE | |
| N 001481004025 | CLAMPING SLEEVE | |
| A 0079979945 | SEAL RING | |
| Repalced by: A 0169978948 | ||
| A 0169978948 | SEAL RING | |
| A 0004621183 | PISTON | |
| A 0004622850 | BUSHING | |
| A 0004621573 | LOCK | |
| A 0004621673 | LOCK | |
| 248 | N 000933005122 | SCREW |
| 252 | A 0019871346 | SEALING CORD |
| 256 | A 0004621265 | RING |
| A 0004620438 | BALL CAGE | |
| A 0004610482 | VALVE | |
| A 0019811610 | NEEDLE BEARING | |
| A 0019811710 | NEEDLE BEARING | |
| A 0019811810 | NEEDLE BEARING | |
| A 0019811910 | NEEDLE BEARING | |
| A 0039814810 | NEEDLE BEARING | |
| A 0009817481 | INNER RING | |
| AS REQUIRED | ||
| 38.000 MM | ||
| A 0009817581 | INNER RING | |
| AS REQUIRED | ||
| 38.015 MM | ||
| A 0004610274 | PIN | |
| AS REQUIRED | ||
| 6.04 MM | ||
| A 0004610374 | PIN | |
| AS REQUIRED | ||
| 6.05 MM | ||
| A 0004610474 | PIN | |
| AS REQUIRED | ||
| 6.06 MM | ||
| 260 | A 0004610204 | BOX |
| 264 | A 0059973747 | SEAL RING |
| Repalced by: A 0089979447 | ||
| 264 | A 0089979447 | SEAL RING |
| 264 | A 0159975147 | SEAL RING |
| 268 | A 0009816180 | OUTER RACE |
| 272 | A 0014622752 | SPACER WASHER |
| 276 | N 000912012065 | SCREW |
| M12X1.5X100 | ||
| 276 | N 000912012066 | SCREW |
| 280 | A 0004613405 | COVER |
| 284 | A 0079972048 | SEAL RING |
| Repalced by: A 0129975948 | ||
| 284 | A 0129975948 | SEAL RING |
| Repalced by: A 0149976948 | ||
| 284 | A 0149976948 | SEAL RING |
| 288 | A 0089971848 | SEAL RING |
| Repalced by: A 0129976048 | ||
| 288 | A 0129976048 | SEAL RING |
| Repalced by: A 0079979748 | ||
| 288 | A 0019871046 | SEALING CORD |
| Repalced by: A 0079979748 | ||
| 288 | A 0079979748 | SEAL RING |
| 292 | A 0079972148 | SEAL RING |
| Repalced by: A 0129976148 | ||
| 292 | A 0129976148 | SEAL RING |
| Repalced by: A 0149976848 | ||
| 292 | A 0149976848 | SEAL RING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 009 997 14 48 | ||
| 296 | A 0089976447 | SEAL RING |
| 300 | A 0019812010 | NEEDLE BEARING |
| 304 | A 0019871246 | SEALING CORD |
| 308 | A 0004620965 | RING |
| 308 | A 0004625965 | RING |
| 308 | A 0004626065 | RING |
| 312 | A 0024625052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.91 MM | ||
| 312 | A 0024625152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.92 MM | ||
| 312 | A 0024625252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.93 MM | ||
| 312 | A 0024625352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.94 MM | ||
| 312 | A 0014620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 312 | A 0024625452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.96 MM | ||
| 312 | A 0024625552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.97 MM | ||
| 312 | A 0024625652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.98 MM | ||
| 312 | A 0024625752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.99 MM | ||
| 312 | A 0014620952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 312 | A 0024625852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.01 MM | ||
| 312 | A 0024625952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.02 MM | ||
| 312 | A 0024626052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.03 MM | ||
| 312 | A 0024626152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.04 MM | ||
| 312 | A 0014621152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 312 | A 0024626252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.06 MM | ||
| 312 | A 0024626352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.07 MM | ||
| 312 | A 0024626452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.08 MM | ||
| 312 | A 0024626552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.09 | ||
| 312 | A 0014621352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 312 | A 0024626652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.11 MM | ||
| 312 | A 0024626752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.12 MM | ||
| 312 | A 0024626852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.13 MM | ||
| 312 | A 0024626952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.14 MM | ||
| 312 | A 0014621552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 312 | A 0024627052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.16 MM | ||
| 312 | A 0024627152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.17 MM | ||
| 312 | A 0024627252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.18 MM | ||
| 312 | A 0024627352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.19 MM | ||
| 312 | A 0014621752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 312 | A 0024627452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.21 MM | ||
| 312 | A 0024627552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.22 MM | ||
| 312 | A 0024627652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.23 MM | ||
| 312 | A 0024627752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.24 MM | ||
| 312 | A 0014621952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 312 | A 0024627852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.26 MM | ||
| 312 | A 0024627952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.27 MM | ||
| 312 | A 0024628052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.28 MM | ||
| 312 | A 0024628152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.29 MM | ||
| 312 | A 0014622152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 312 | A 0024628252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.31 MM | ||
| 312 | A 0024628352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.32 MM | ||
| 312 | A 0024628452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.33 MM | ||
| 312 | A 0024628552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.34 MM | ||
| 312 | A 0014622352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.35 MM | ||
| 312 | A 0024628652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.36 MM | ||
| 312 | A 0024628752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.37 MM | ||
| 312 | A 0024628852 | SPACER WASHER |
| AS REQUIRED | ||
| 3.38 MM | ||
| 312 | A 0024628952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.39 MM | ||
| 312 | A 0014622552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 316 | A 0004610760 | SEAL RING |
| AS REQUIRED | ||
| 2.5 MM | ||
| 316 | A 0004610860 | SEAL RING |
| AS REQUIRED | ||
| 2.6 MM | ||
| 316 | A 0004610960 | SEAL RING |
| AS REQUIRED | ||
| 2.7 MM | ||
| 316 | A 0004611060 | SEAL RING |
| AS REQUIRED | ||
| 2.8 MM | ||
| H 983455860046 | REPAIR KIT | |
| Repalced by: A 3455867046 | ||
| A 3455867046 | REPAIR KIT | |
| Repalced by: A 0004602161 | ||
| A 0004602161 | GASKET KIT | |

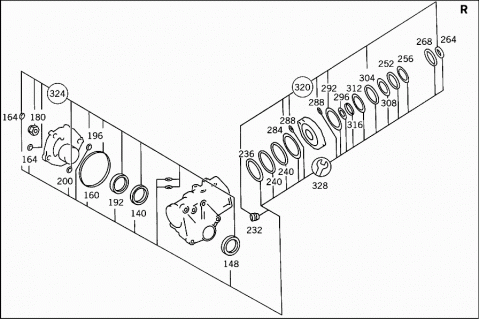

| 320 | H 983455860146 | REPAIR KIT |
| Repalced by: A 3455867146 | ||
| 320 | A 3455867146 | REPAIR KIT |
| Repalced by: A 0004602261 | ||
| 320 | A 0004602261 | GASKET KIT |
| 324 | H 983455860246 | REPAIR KIT |
| Repalced by: A 3455867246 | ||
| 324 | A 3455867246 | REPAIR KIT |
| Repalced by: A 0004602361 | ||
| 324 | A 0004602361 | GASKET KIT |
| 328 | A 0005869446 | REPAIR KIT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 113 | ||
| 332 | A 3224600935 | BRACKET |
| 336 | A 0444610240 | STEERING SUPPORT |
| Repalced by: A 3454617040 | ||
| 336 | A 3454617040 | STEERING SUPPORT |
| 340 | N 910005012017 | RIVET |
| STEERING TO FRAME | ||
| 344 | N 900170012001 | SCREW |
| STEERING TO FRAME | ||
| 348 | A 3029900804 | SCREW |
| STEERING TO FRAME | ||
| 352 | N 000960012385 | SCREW |
| STEERING TO FRAME | ||
| 352 | N 000960012385 | SCREW |
| STEERING TO FRAME | ||
| 352 | N 000960012075 | SCREW |
| STEERING TO FRAME | ||
| 352 | N 000961012192 | SCREW |
| STEERING TO FRAME | ||
| 352 | N 000961012192 | SCREW |
| STEERING TO FRAME | ||
| 356 | N 000935012003 | NUT |
| STEERING TO FRAME | ||
| 360 | N 000094003217 | COTTER PIN |
| STEERING TO FRAME | ||
| 364 | A 3279900114 | SCREW |
| 368 | A 3229900514 | SCREW |
| 372 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| 376 | N 000094003217 | COTTER PIN |
| STEERING TO STEERING BRACKET | ||
| 380 | A 3529900202 | SCREW |
| 380 | A 3529900302 | SCREW |
| 384 | N 000177001021 | WIRE |
| 388 | A 3524631601 | PITMAN ARM |
| Repalced by: A 3454630301 | ||
| 388 | A 3454630301 | PITMAN ARM |
| 388 | A 3454630701 | PITMAN ARM |
| 392 | A 3524631201 | PITMAN ARM |
| 396 | A 3384625101 | STEERING SHAFT |
| BOTTOM | ||
| 396 | H 983454620501 | STEERING SHAFT |
| Repalced by: A 3454620401 | ||
| 396 | A 3454620401 | STEERING SHAFT |
| BOTTOM | ||
| 396 | A 3224620501 | STEERING SHAFT |
| 396 | H 983454620301 | STEERING SHAFT |
| Repalced by: A 3454620201 | ||
| 396 | A 3454620201 | STEERING SHAFT |
| BOTTOM | ||
| 400 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 400 | A 3274600157 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 400 | A 3524600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 400 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 3444607057 | ||
| 400 | A 3444607057 | UNIVERSAL JOINT |
| 400 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 3444607157 | ||
| 400 | A 3444607157 | UNIVERSAL JOINT |
| 400 | A 3444607257 | UNIVERSAL JOINT |
| 401 | A 3274600131 | UNIVERSAL JOINT CROSS |
| 402 | A 1889940034 | SNAP RING |
| AS REQUIRED | ||
| 1.50 MM | ||
| 402 | A 1889940134 | SNAP RING |
| AS REQUIRED | ||
| 1.55 MM | ||
| 402 | A 1889940234 | SNAP RING |
| AS REQUIRED | ||
| 1.60 MM | ||
| 402 | A 1889940334 | SNAP RING |
| AS REQUIRED | ||
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| Repalced by: N 916016020201 | ||
| N 916016020201 | CLAMP | |
| AS REQUIRED | ||
| 1.70 MM | ||
| 402 | A 1889940534 | SNAP RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 404 | A 3524620001 | STEERING SHAFT |
| TOP | ||
| 404 | A 3454627301 | STEERING SHAFT |
| 404 | A 3224620401 | STEERING SHAFT |
| 408 | A 3219900401 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 408 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 410 | N 000463010502 | LOCK PLATE |
| 412 | A 3459900351 | NUT |
| Repalced by: N 913004008005 | ||
| 412 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 416 | A 3524620296 | BOOT |
| Repalced by: A 3604620596 | ||
| 416 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 420 | N 000936022004 | NUT |
| 424 | N 006888005006 | WOODRUFF KEY |

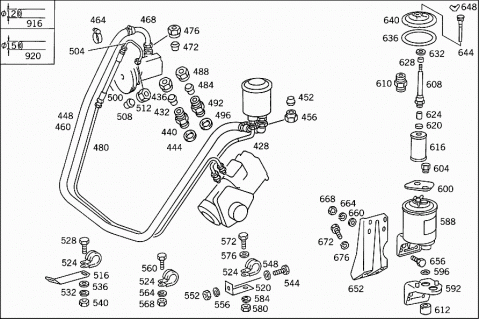

| 428 | A 0454600224 | LINE |
| 15X1.5 MM | ||
| 428 | H 983454601724 | LINE |
| Repalced by: A 3444609024 | ||
| 428 | A 3444609024 | LINE |
| FROM STEERING TO OIL TANK | ||
| 15X1.5 MM | ||
| 432 | N 003861015004 | GLAND |
| 436 | N 915017015100 | UNION NUT |
| 440 | N 003901015000 | SCREW-IN FITTING |
| 444 | N 007603018101 | SEAL RING |
| 448 | A 0454600424 | LINE |
| 448 | H 983454602124 | LINE |
| Repalced by: A 3454607524 | ||
| 448 | A 3454607524 | LINE |
| FROM OIL TANK TO HOSE | ||
| 448 | A 3444608924 | LINE |
| FROM OIL TANK TO HOSE | ||
| 452 | N 003861022004 | GLAND |
| 456 | N 915017022100 | UNION NUT |
| 460 | H 983459970282 | HOSE |
| 460 | A 3609970982 | HOSE |
| 460 | A 3459977982 | HOSE |
| 464 | A 0009976290 | LOOM TIE |
| Repalced by: N 916017025000 | ||
| 464 | N 916017025000 | CLAMP |
| Repalced by: A 3509978990 | ||
| 464 | A 3509978990 | CLAMP |
| HOSE TO OIL LINE | ||
| 464 | A 3509978190 | LOOM TIE |
| HOSE TO OIL LINE | ||
| 468 | H 983454602024 | LINE |
| LOW PRESSURE | ||
| 468 | A 3444608824 | LINE |
| LOW PRESSURE | ||
| 472 | N 003861022004 | GLAND |
| 476 | N 915017022100 | UNION NUT |
| 480 | A 0454600324 | LINE |
| Repalced by: A 3454607424 | ||
| 480 | A 3454607424 | LINE |
| HIGH PRESSURE | ||
| 12X1.5 MM | ||
| 480 | A 3444608724 | LINE |
| HIGH PRESSURE | ||
| 12X1.5 MM | ||
| 484 | N 003861012007 | GLAND |
| 488 | N 915017012100 | UNION NUT |
| 492 | N 003901012005 | SCREW-IN FITTING |
| 496 | N 007603016105 | SEAL RING |
| 500 | H 983459971182 | HOSE |
| Repalced by: A 0109971682 | ||
| 500 | A 0109971682 | HOSE |
| Repalced by: A 0019972652 | ||
| 500 | A 0019972652 | HOSE |
| HIGH PRESSURE | ||
| 500 | A 3459977382 | HOSE |
| HIGH PRESSURE | ||
| 504 | H 983444602524 | LINE |
| Repalced by: A 3444608624 | ||
| 504 | A 3444608624 | LINE |
| HIGH PRESSURE | ||
| 504 | A 0454600524 | LINE |
| HIGH PRESSURE | ||
| 12X1.5 MM | ||
| 504 | A 3444608624 | LINE |
| HIGH PRESSURE | ||
| 12X1.5 MM | ||
| 508 | N 003861012007 | GLAND |
| 512 | N 915017012100 | UNION NUT |
| 516 | A 0454660040 | BRACKET |
| 516 | A 3444667140 | BRACKET |
| 516 | A 3444667140 | BRACKET |
| 520 | A 3454667440 | BRACKET |
| 524 | A 0009952001 | CLAMP |
| Repalced by: N 916016012201 | ||
| 524 | N 916016012201 | CLAMP |
| 524 | A 3459958501 | CLAMP |
| 524 | A 0009954901 | CLAMP |
| Repalced by: N 916016022202 | ||
| 524 | N 916016022202 | CLAMP |
| 524 | A 3459957601 | CLAMP |
| 528 | N 000933008071 | SCREW |
| LINES TO RADIATOR SUPPORT | ||
| 528 | N 000933008288 | SCREW |
| LINES TO RADIATOR SUPPORT | ||
| 528 | N 000933008288 | SCREW |
| LINES TO RADIATOR SUPPORT | ||
| 532 | N 000127008206 | LOCK WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 532 | N 912004008100 | LOCK WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 532 | N 912004008100 | LOCK WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 536 | N 000125008417 | WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 536 | N 000125008417 | WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 540 | N 000934008000 | NUT |
| LINES TO RADIATOR SUPPORT | ||
| 540 | N 000934008000 | NUT |
| LINES TO RADIATOR SUPPORT | ||
| 544 | N 000933012131 | SCREW |
| BRACKET TO FRAME | ||
| 548 | N 000125013012 | WASHER |
| BRACKET TO FRAME | ||
| 552 | N 304032012003 | NUT |
| BRACKET TO FRAME | ||
| 556 | N 000127012201 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 560 | N 000933008282 | SCREW |
| LINES TO BRACKET | ||
| 560 | N 000933008282 | SCREW |
| LINES TO BRACKET | ||
| 564 | N 000127008206 | LOCK WASHER |
| LINES TO BRACKET | ||
| 564 | N 912004008100 | LOCK WASHER |
| LINES TO BRACKET | ||
| 564 | N 912004008100 | LOCK WASHER |
| LINES TO BRACKET | ||
| 568 | N 000934008000 | NUT |
| LINES TO BRACKET | ||
| 568 | N 000934008000 | NUT |
| LINES TO BRACKET | ||
| 572 | N 000933008288 | SCREW |
| LINES TO BRACKET | ||
| 572 | N 000933008282 | SCREW |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 576 | N 000125008417 | WASHER |
| LINES TO BRACKET | ||
| 580 | N 000934008013 | NUT |
| LINES TO BRACKET | ||
| 580 | N 000934008013 | NUT |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 584 | N 912004008100 | LOCK WASHER |
| LINES TO BRACKET | ||
| 584 | N 912004008100 | LOCK WASHER |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 588 | A 0004662002 | TANK |
| 588 | A 0004662402 | TANK |
| Repalced by: A 3454667002 | ||
| 588 | A 3454667002 | TANK |
| OIL TANK | ||
| A 0004660103 | HOUSING | |
| 592 | A 0004660040 | BRACKET |
| Repalced by: A 0004660640 | ||
| 592 | A 0004660640 | BRACKET |
| TO 345 466 70 02 | ||
| N 000127008205 | LOCK WASHER | |
| N 000934008035 | NUT | |
| A 0029973345 | SEAL RING | |
| Repalced by: A 0099970145 | ||
| A 0099970145 | SEAL RING | |
| 596 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 596 | A 0059970848 | SEAL RING |
| 600 | A 0004660037 | REINFORCEMENT |
| Repalced by: A 0004660095 | ||
| 600 | A 0004660095 | STRUT |
| 604 | A 0009976872 | FITTING |
| Repalced by: A 0004660571 | ||
| 604 | A 0004660571 | FITTING |
| 608 | A 0014664465 | FILTER CARRIER |
| Repalced by: A 0004610065 | ||
| 608 | A 0004610065 | FILTER SUPPORT |
| 610 | A 0009977672 | FITTING |
| 612 | A 3454667072 | NUT |
| Repalced by: A 0004660458 | ||
| 612 | H 983454660072 | NUT |
| Repalced by: A 0004660458 | ||
| 612 | A 0004660458 | CONNECTOR |
| 612 | A 0004660272 | CONNECTOR |
| 612 | A 0004660358 | CONNECTOR |
| 616 | A 0004660204 | FILTER |
| Repalced by: A 0001842225 | ||
| 616 | A 0001842225 | FILTER ELEMENT |
| 620 | A 0004660675 | CENTERING RING |
| 624 | A 0009870643 | RUBBER SLEEVE |
| 628 | A 0004660153 | SPACER TUBE |
| 632 | A 0004660275 | WASHER |
| 636 | A 0004660260 | SEAL RING |
| 640 | A 0004661305 | COVER |
| Repalced by: A 0004664405 | ||
| 640 | A 0004664405 | COVER |
| 644 | A 0004660067 | OIL DIPSTICK |
| 648 | N 000315008000 | NUT |
| 652 | A 3524661240 | BRACKET |
| Repalced by: A 3454667040 | ||
| 652 | A 3454667040 | BRACKET |
| 656 | N 000933010294 | SCREW |
| OIL TANK BRACKET TO BRACKET | ||
| 660 | N 000125010517 | WASHER |
| OIL TANK BRACKET TO BRACKET | ||
| 664 | N 000127010202 | LOCK WASHER |
| OIL TANK BRACKET TO BRACKET | ||
| 668 | N 000934010000 | NUT |
| OIL TANK BRACKET TO BRACKET | ||
| 672 | N 000961012009 | SCREW |
| BRACKET TO STEERING | ||
| 676 | N 000127012201 | LOCK WASHER |
| BRACKET TO STEERING | ||

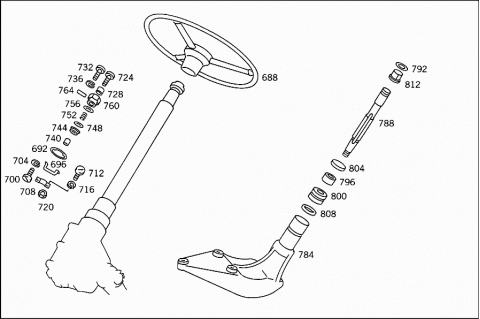

| 680 | A 3454600303 | STEERING WHEEL |
| Repalced by: A 3454607003 | ||
| 680 | A 3454600203 | STEERING WHEEL |
| Repalced by: A 3454607003 | ||
| 680 | A 3454607003 | STEERING WHEEL |
| 680 | A 0004641101 | STEERING WHEEL |
| 684 | A 0004642631 | CAP |
| 684 | A 0004640431 | CAP |
| Repalced by: A 0004641231 | ||
| 684 | A 0004641231 | CAP |
| Repalced by: A 3454647131 | ||
| 684 | A 3454647131 | CAP |
| 688 | A 3224600203 | STEERING WHEEL |
| A 3204640092 | ORNAMENTAL RING | |
| 692 | A 0004640417 | CONTACT PLATE |
| A 0444640071 | SCREW | |
| 696 | A 3224640034 | BRACKET |
| 700 | N 007985004181 | SCREW |
| 704 | N 912004004102 | LOCK WASHER |
| 708 | N 072573001006 | CLAMP |
| 712 | N 007985004182 | SCREW |
| 716 | N 912004004102 | LOCK WASHER |
| 720 | N 000934004014 | NUT |
| 724 | N 007985004198 | SCREW |
| 728 | A 3204640053 | SPACER TUBE |
| 732 | N 007985004193 | SCREW |
| 736 | N 912004004102 | LOCK WASHER |
| 740 | A 3224640050 | BUSHING |
| 744 | A 0444640086 | SPRING WASHER |
| 748 | A 0004640023 | INSULATING PLATE |
| 752 | A 3209930201 | SPRING |
| 756 | A 1814640028 | CONTACT RING |
| 760 | A 3204640072 | NUT |
| 764 | A 3209910055 | PIN |
| 768 | A 3434600037 | BEARING |
| Repalced by: A 3504600037 | ||
| 768 | A 3504600037 | BEARING |
| STEERING SHAFT | ||
| 772 | A 3124621150 | BUSHING |
| 776 | A 3214620165 | RING |
| 780 | A 3224620023 | COVER |
| 784 | A 3454607437 | BEARING |
| STEERING SHAFT | ||
| 784 | A 3454607237 | BEARING |
| STEERING SHAFT | ||
| 784 | A 3454607337 | BEARING |
| STEERING SHAFT | ||
| 788 | A 3454627201 | STEERING SHAFT |
| 792 | A 3764620075 | WASHER |
| 792 | A 3764620075 | WASHER |
| 796 | A 3454627050 | BUSHING |
| 800 | A 3454627065 | RING |
| 804 | A 3454627023 | COVER |
| 808 | A 3454627028 | BEARING RING |
| 812 | A 3524620251 | RING |
| 816 | N 000931010102 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 820 | N 000933010129 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 820 | N 000933010129 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 824 | N 000137010103 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 828 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 832 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 836 | A 3524620196 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54,FIG.NO.: | ||
| 346 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54,FIG.NO.: | ||
| 350 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54,FIG.NO.: | ||
| 354 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54,FIG.NO.: | ||
| 358 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54,FIG.NO.: | ||
| 362 | ||
| 840 | A 3524603305 | DRAG LINK |
| 840 | A 3524603705 | DRAG LINK |
| Repalced by: A 3454607505 | ||
| 840 | H 983454600205 | DRAG LINK |
| Repalced by: A 3454607505 | ||
| 840 | A 3454607505 | DRAG LINK |
| 844 | A 0003303135 | JOINT |
| 848 | A 0003300285 | BOOT |
| Repalced by: H 983443300185 | ||
| 848 | H 983443300185 | BOOT |
| Repalced by: A 3443307085 | ||
| 848 | A 3443307085 | BOOT |
| 848 | A 0003300385 | BOOT |
| Repalced by: A 3643307085 | ||
| 848 | A 3643307085 | BOOT |
| 852 | N 000937018004 | NUT |
| 856 | N 000094004065 | COTTER PIN |
| 860 | A 0003382245 | CLAMP |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 995 49 44 | ||
| 864 | N 000961012079 | SCREW |
| CLAMP TO DRAG LINK | ||
| 868 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 868 | N 000936012005 | NUT |
| CLAMP TO DRAG LINK | ||
| 876 | A 3454608705 | DRAG LINK |
| GEMMER THOMPSON | ||
| 876 | A 3764600105 | DRAG LINK |
| 876 | A 3454608105 | DRAG LINK |
| Repalced by: A 3454609605 | ||
| 876 | A 3454609605 | DRAG LINK |
| "NAKATA" | ||
| 876 | A 3454608805 | DRAG LINK |
| Repalced by: A 3454609505 | ||
| 876 | A 3454609505 | DRAG LINK |
| "TRW" | ||
| 880 | A 0004600148 | DRAG LINK END |
| TO 376 460 01 05 | ||
| 880 | A 3453307135 | JOINT |
| TO 345 460 87 05 | ||
| 880 | A 3453307135 | JOINT |
| TO 345 460 88 05 | ||
| 880 | A 3503307035 | JOINT |
| TO 345 460 81 05 | ||
| 880 | A 3453307335 | JOINT |
| "NAKATA", 345 460 96 05 | ||
| 884 | A 3443307085 | BOOT |
| TO 345 460 87 05 | ||
| 884 | A 3453387156 | DUST CAP |
| "NAKATA", 345 460 96 05 | ||
| 884 | A 3453307485 | BOOT |
| TO 345 460 87 05 | ||
| 884 | A 3503387056 | DUST CAP |
| TO 345 460 81 05,376 460 01 05 | ||
| 884 | A 3643307085 | BOOT |
| TO 345 460 88 05 | ||
| 884 | A 3354600096 | BOOT |
| Repalced by: A 3503387056 | ||
| 888 | A 3443387363 | CLAMPING RING |
| TO 345 460 87 05 | ||
| 888 | A 3643387082 | RUBBER RING |
| Repalced by: A 0003381463 | ||
| 888 | A 0003381463 | CLAMPING RING |
| TO 345 460 87 05 | ||
| 892 | A 3503387063 | CLAMPING RING |
| TO 345 460 81 05,376 460 01 05 | ||
| 896 | A 3453387945 | CLAMP |
| JOINT TO DRAG LINK | ||
| "NAKATA", 345 460 96 05 | ||
| 896 | A 0003381445 | CLAMP |
| JOINT TO DRAG LINK | ||
| TO 345 460 88 05,376 460 01 05 | ||
| 896 | A 3453387745 | CLAMP |
| JOINT TO DRAG LINK | ||
| TO 345 460 87 05 | ||
| 896 | A 3503387045 | CLAMP |
| TO 345 460 81 05 | ||
| 900 | N 000961012079 | SCREW |
| CLAMP TO DRAG LINK | ||
| 900 | N 000960012423 | SCREW |
| JOINT TO DRAG LINK | ||
| M 12X1.5X62, NAKATA 345 460 96 05 | ||
| 904 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 904 | N 000936012005 | NUT |
| CLAMP TO DRAG LINK | ||
| 908 | N 000937018004 | NUT |
| BALL PIVOT TO STEERING ARM | ||
| 908 | N 000937020011 | NUT |
| BALL PIVOT TO STEERING ARM | ||
| TO 345 460 96 05 | ||
| 908 | N 913004012003 | NUT |
| JOINT TO DRAG LINK | ||
| M12X1.5 | ||
| 908 | N 000937020000 | NUT |
| BALL PIVOT TO STEERING ARM | ||
| 912 | N 000094004065 | COTTER PIN |
| BALL PIVOT TO STEERING ARM | ||
| 916 | A 0004294901 | LINE |
| 12 X 1.5 MM | ||
| 920 | A 0004295101 | LINE |
| 15 X 1.5 MM | ||
| 920 | A 0004295201 | LINE |
| 15 X 1.5 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
