Transporto priemonė: LS 1316; VIN numerio dalis: 345025
Grupė: 26 TRANSMISSION

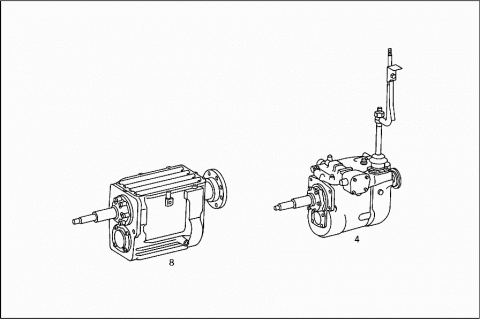

18548

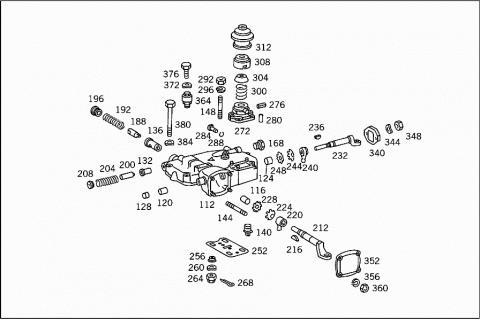

18549

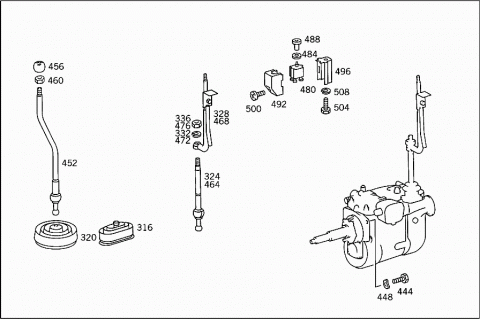

18550

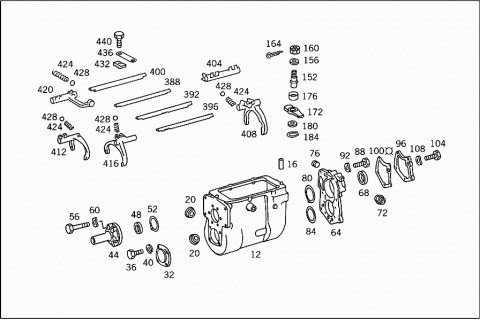

18551

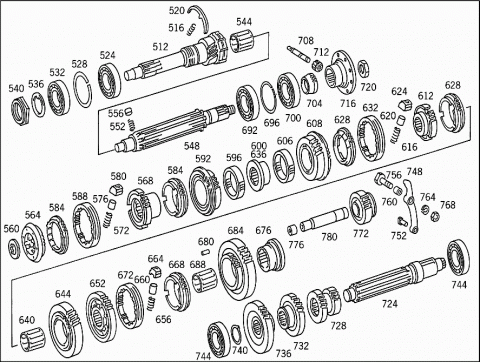

18552
18591

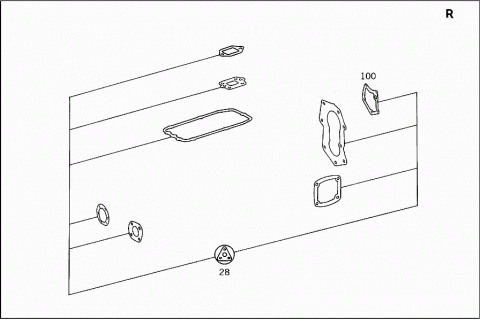

18553
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR TRANSMISSION,SEE PARTS LIST:
817
A 0452600400 TRANSMISSION
Repalced by: A 0452600000
004 A 0452600000 TRANSMISSION
Repalced by: A 3452600000
004 A 3452600000 TRANSMISSION
Repalced by: A 3452601700
004 A 3452601700 TRANSMISSION
G 3/36
004 A 3452601700 TRANSMISSION
G 3/36
004 A 3452601000 TRANSMISSION
G 60/6.1
004 A 3452600600 TRANSMISSION
G 3/40
004 A 3452600600 TRANSMISSION
G 3/40
004 H 983452600200 TRANSMISSION
G 3/40
004 H 983452600100 TRANSMISSION
G 40/7.5
008 A 3442602100 TRANSMISSION
LESS TRANSMISSION CASE TOP COVER
008 A 3442602100 TRANSMISSION
LESS TRANSMISSION CASE TOP COVER
A 0442600011 TRANSMISSION CASE
Repalced by: A 3442600211
012 A 3442600211 TRANSMISSION CASE
Repalced by: A 3442600411
012 A 3442600411 TRANSMISSION CASE
012 A 3442600011 TRANSMISSION CASE
Repalced by: A 3442600311
012 A 3442600311 TRANSMISSION CASE
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
327 260 01 11
016 N 000007010221 CYLINDRICAL PIN
020 A 1869970032 SCREW PLUG
Repalced by: A 0009972632
020 A 0009971332 SCREW PLUG
Repalced by: A 0009972632
020 A 0009972632 SCREW PLUG
OIL FILLING AND OIL DRAIN
M24X1,5 MM
020 A 0009973432 SCREW PLUG
OIL FILLING AND OIL DRAIN
028 A 0445860226 REPAIR KIT
Repalced by: A 3452600268
028 A 3452600268 GASKET KIT
Repalced by: A 3452604200
028 A 3452604200 GASKET KIT
028 A 3455867126 REPAIR KIT
Repalced by: A 3452600668
028 A 3452600668 GASKET KIT
032 A 3212610133 COVER
032 A 3372610133 COVER
036 N 000933008282 SCREW
040 N 000127008206 LOCK WASHER
044 A 3212610318 TRANSMISSION CASE COVER
044 A 3402610118 TRANSMISSION CASE COVER
Repalced by: A 3832610018
044 A 3832610018 TRANSMISSION CASE COVER
048 A 0029971346 SEAL RING
Repalced by: A 0089970146
048 A 0089970146 SEAL RING
052 A 3122625462 THRUST WASHER
AS REQUIRED
2.9 MM
052 A 3122625562 THRUST WASHER
AS REQUIRED
2.95 MM
052 A 3122623462 THRUST WASHER
AS REQUIRED
3.0 MM
052 A 3122624362 THRUST WASHER
AS REQUIRED
3.05 MM
052 A 3122624462 THRUST WASHER
AS REQUIRED
3.1 MM
052 A 3122623562 THRUST WASHER
AS REQUIRED
3.15 MM
052 A 3122623662 THRUST WASHER
AS REQUIRED
3.2 MM
052 A 3122623762 THRUST WASHER
AS REQUIRED
3.25 MM
052 A 3172623962 THRUST WASHER
AS REQUIRED
3.10 MM
052 A 3172625262 THRUST WASHER
AS REQUIRED
3.18 MM
052 A 3172625362 THRUST WASHER
AS REQUIRED
3.26 MM
052 A 3172625462 THRUST WASHER
AS REQUIRED
3.34 MM
052 A 3172625562 THRUST WASHER
AS REQUIRED
3.42 MM
052 A 3172625662 THRUST WASHER
AS REQUIRED
3.50 MM
052 A 3172625762 THRUST WASHER
AS REQUIRED
3.58 MM
052 A 3172625862 THRUST WASHER
AS REQUIRED
3.66 MM
052 A 3172625962 THRUST WASHER
AS REQUIRED
3.74 MM
056 N 000931008082 SCREW
056 N 000931008333 SCREW
060 N 000137008101 SPRING WASHER
064 A 0442610020 TRANSMISSION CASE COVER
Repalced by: A 3372610220
064 A 3372610220 TRANSMISSION CASE COVER
064 A 3442617020 TRANSMISSION CASE COVER
068 A 0089971146 SEAL RING
072 A 3212600086 THREADED BUSHING
A 1202610080 GASKET
A 3212610031 THREADED BUSHING
076 N 915015024000 PLUG
080 A 3212620862 THRUST WASHER
AS REQUIRED
2.9 MM
080 A 3212620962 THRUST WASHER
AS REQUIRED
3.0 MM
080 A 3212621062 THRUST WASHER
AS REQUIRED
3.1 MM
080 A 3212621162 THRUST WASHER
AS REQUIRED
3.2 MM
080 A 3212621262 THRUST WASHER
AS REQUIRED
3.3 MM
080 A 3212621362 THRUST WASHER
AS REQUIRED
3.4 MM
080 A 3212621462 THRUST WASHER
AS REQUIRED
3.5 MM
080 A 3212621562 THRUST WASHER
AS REQUIRED
3.60 MM
084 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
084 A 3122831052 SPACER WASHER
AS REQUIRED
0.1 MM
084 A 3122832452 SPACER WASHER
AS REQUIRED
0.15 MM
084 A 3122831152 SPACER WASHER
AS REQUIRED
0.2 MM
084 A 3122831252 SPACER WASHER
AS REQUIRED
0.4 MM
084 A 3122832152 SPACER WASHER
AS REQUIRED
0.8 MM
088 N 000931008387 SCREW
088 N 000933008273 SCREW
088 N 000931008092 SCREW
092 N 912004008100 LOCK WASHER
096 A 3212610833 COVER
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
321 261 03 33
100 A 3522611180 GASKET
Repalced by: A 3522611680
100 A 3522611680 GASKET
Repalced by: A 3522611980
100 A 3522611980 GASKET
104 N 000933008279 SCREW
108 N 000137008101 SPRING WASHER
112 A 3522601214 TRANSMISSION CASE COVER
Repalced by: A 3522601914
112 A 3522601714 TRANSMISSION CASE COVER
Repalced by: A 3522601914
112 A 3522601914 TRANSMISSION CASE COVER
Repalced by: A 3452602214
112 A 3452602214 TRANSMISSION CASE COVER
TOP
116 A 3212610050 BUSHING
120 A 3212610150 BUSHING
124 A 3212610350 BUSHING
128 N 000443020000 EXPANSION PLUG
20 MM
132 A 3212650150 BUSHING
136 A 3212650250 BUSHING
140 A 1362650247 INTERLOCK PLUG
Repalced by: A 3442657044
140 A 3142650044 GUIDE PIN
Repalced by: A 3442657044
140 A 3442657044 GUIDE PIN
144 N 000835008005 STUD
148 N 000835008008 STUD
152 A 3212650474 PIN
156 N 000125013012 WASHER
160 N 000979012002 NUT
164 N 000094003217 COTTER PIN
168 A 1369970830 SCREW PLUG
172 A 3372650007 LEVER
176 N 005402302104 CYLINDRICAL ROLLER
180 N 000433017000 WASHER
184 N 900055017300 LOCK RING
188 A 3212650416 THRUST PIECE
192 A 3219931701 SPRING
196 A 3219970103 PLUG
200 A 3212650248 INTERLOCK PIN
204 A 3219930601 SPRING
208 N 915015024000 PLUG
212 A 3212681329 SHIFTING ROD
216 N 006888005006 WOODRUFF KEY
220 A 3212680533 SHIFTING FINGER
Repalced by: A 3942687233
220 A 3942687233 SHIFTING FINGER
224 A 3229940112 LOCK
224 N 070952020101 LOCK PLATE
228 A 3219900160 NUT
232 A 3212681229 SHIFTING ROD
236 N 006888005006 WOODRUFF KEY
240 A 3212650430 SELECTOR LEVER
244 A 3229940112 LOCK
244 N 070952020101 LOCK PLATE
248 A 3219900160 NUT
252 A 3212600846 PLATE
256 A 3212650350 BUSHING
260 N 000137008101 SPRING WASHER
264 N 000979008000 NUT
268 N 000094002073 COTTER PIN
272 A 3222603214 TRANSMISSION CASE COVER
276 N 001473005012 GROOVED PIN
280 N 000007008205 CYLINDRICAL PIN
284 A 3212670025 SLIDING BLOCK
284 A 3442677025 SLIDING BLOCK
288 N 009045008002 SNAP RING
292 N 000934008000 NUT
296 N 912004008100 LOCK WASHER
300 A 3179930501 SPRING
304 A 3022670008 SPHERICAL PIECE
308 A 3142680005 COVER
Repalced by: A 3082680005
308 A 3082680005 COVER
312 A 3372670096 BOOT
316 A 3222670096 BOOT
Repalced by: A 3442677096
316 A 3522670096 BOOT
Repalced by: A 3442677096
316 A 3522670396 BOOT
Repalced by: A 3442677096
316 A 3442677096 BOOT
316 A 3522670296 BOOT
320 A 3452677096 BOOT
Repalced by: A 6882677096
320 A 6882677096 BOOT
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
527
324 A 3372601939 SHIFT LEVER
328 H 983452600039 SHIFT LEVER
Repalced by: A 3452608139
328 A 3452608139 SHIFT LEVER
332 N 000127012201 LOCK WASHER
336 N 000934012010 NUT
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
529
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
528
340 A 3212610633 COVER
Repalced by: A 3222610233
340 A 3222610233 COVER
344 N 000137008101 SPRING WASHER
348 N 000934008000 NUT
352 A 3222610133 COVER
356 N 912004008100 LOCK WASHER
360 N 000934008000 NUT
364 A 1112600058 BREATHER
A 1112610082 CAP
372 N 000137006203 SPRING WASHER
376 N 000933006086 SCREW
380 N 000933008279 SCREW
380 N 000931008085 SCREW
384 N 000137008101 SPRING WASHER
388 A 3212650805 SHIFTING ROD
1ST SPEED
392 A 3212651805 SHIFTING ROD
2ND AND 3RD SPEED
392 A 3372650505 SHIFTING ROD
2ND AND 3RD SPEED
396 A 3212651905 SHIFTING ROD
4TH AND 5TH SPEED
396 A 3442607031 SHIFTING ROD
Repalced by: A 3372600131
396 A 3372600131 SHIFTING ROD
4TH AND 5TH SPEED
400 A 3222650305 SHIFTING ROD
REVERSE SPEED
400 A 3372650305 SHIFTING ROD
REVERSE SPEED
404 A 3222650123 SHIFTING DOG
1ST SPEED
408 A 3442600330 SHIFTING FORK
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
322 260 09 30
408 A 3442600830 SHIFTING FORK
1ST SPEED
412 A 3442600130 SHIFTING FORK
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
321 260 26 30
412 A 3442600530 SHIFTING FORK
2ND AND 3RD SPEED
416 A 3212602730 SHIFTING FORK
4TH AND 5TH SPEED
416 A 3442600730 SHIFTING FORK
Repalced by: A 3372650902
416 A 3372650902 SHIFTING FORK
4TH AND 5TH SPEED
420 A 3212650403 SHIFTING FORK
REVERSE SPEED
420 A 3452600030 SHIFTING FORK
REVERSE SPEED
420 A 3372650103 SHIFTING FORK
REVERSE SPEED
424 A 3129931001 SPRING
428 N 005401311000 BALL
432 A 3122651036 BRACKET
432 A 3122651236 BRACKET
432 A 3442657036 BRACKET
436 A 3129940332 LOCK
440 N 000933008288 SCREW
444 N 000933014050 SCREW
TRANSMISSION TO BELL HOUSING
M 14X40
448 N 000127014201 LOCK WASHER
TRANSMISSION TO BELL HOUSING
452 A 3222601139 SHIFT LEVER
452 A 3222601139 SHIFT LEVER
452 A 3762601939 SHIFT LEVER
456 A 3212600140 HANDLE
Repalced by: A 3222600040
456 A 3222600040 HANDLE
456 A 3442600040 HANDLE
456 A 3452607140 HANDLE
460 N 000936010007 NUT
GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
A 3102680050 BUSHING
BETWEEN SHIFT LEVER AND SHIFTING ROD
464 A 3372601939 SHIFT LEVER
BOTTOM
468 H 983452600039 SHIFT LEVER
Repalced by: A 3452608139
468 A 3452608139 SHIFT LEVER
TOP
472 N 000127012201 LOCK WASHER
476 N 000934012010 NUT
480 A 0005457511 SWITCH
Repalced by: A 3445457111
480 A 3445457111 SWITCH
484 A 0005450272 NUT
488 A 0005451837 BUTTON
492 A 0005451245 BOOT
496 A 0005451345 BOOT
500 N 007985004163 SCREW
504 N 000933014004 SCREW
508 N 000127014201 LOCK WASHER
512 A 3222620102 DRIVE SHAFT
512 A 3402620302 DRIVE SHAFT
512 A 3402620402 DRIVE SHAFT
516 A 3219931201 SPRING
516 A 3179931301 SPRING
520 A 3212620073 LOCK
520 A 3172620473 LOCK
524 A 0019813101 CYLINDR. ROLLER BEARING
524 A 3449817101 CYLINDR. ROLLER BEARING
524 A 0019811701 CYLINDR. ROLLER BEARING
528 N 005417085001 SNAP RING
AS REQUIRED
1.7 MM
528 A 0009943435 SNAP RING
AS REQUIRED
1.8 MM
528 A 0009942835 SNAP RING
AS REQUIRED
1.9 MM
532 A 0009812827 ANGULAR CONTACT BEARING
532 A 0009814327 ANGULAR CONTACT BEARING
Repalced by: A 3459817027
532 A 3459817027 ANGULAR CONTACT BEARING
532 A 3459817327 ANGULAR CONTACT BEARING
532 A 0009812727 ANGULAR CONTACT BEARING
532 A 0009814427 ANGULAR CONTACT BEARING
536 A 3122623162 THRUST WASHER
536 A 3172624062 THRUST WASHER
Repalced by: A 3022620162
536 A 3022620162 THRUST WASHER
540 A 3122621172 NUT
540 A 3179900260 NUT
Repalced by: A 3859900351
540 A 3529900151 NUT
Repalced by: A 3859900351
540 A 3859900251 NUT
Repalced by: A 3859900351
540 A 3859900351 NUT
544 A 0009814312 ROLLER ASSEMBLY
544 A 0009814512 ROLLER ASSEMBLY
544 H 980009810012 ROLLER ASSEMBLY
Repalced by: A 3219810012
544 A 3219810012 ROLLER ASSEMBLY
544 A 3459817012 ROLLER ASSEMBLY
544 A 0009814612 ROLLER ASSEMBLY
544 A 0009819512 ROLLER ASSEMBLY
544 A 0009819612 ROLLER ASSEMBLY
544 A 3459810012 ROLLER ASSEMBLY
544 A 0009813012 ROLLER ASSEMBLY
Repalced by: A 0019811612
544 A 0019811612 ROLLER ASSEMBLY
544 A 0019819312 ROLLER ASSEMBLY
548 A 3222620505 MAIN SHAFT
548 A 3372620305 MAIN SHAFT
Repalced by: A 3442627005
548 A 3442627005 MAIN SHAFT
552 A 3129931701 SPRING
556 A 3212620374 PIN
Repalced by: A 3852621074
556 A 3852621074 PIN
560 A 3212622162 THRUST WASHER
Repalced by: A 3212623862
560 A 3212623862 THRUST WASHER
AS REQUIRED
6.9 MM
560 A 3212622062 THRUST WASHER
Repalced by: A 3212623762
560 A 3212623762 THRUST WASHER
AS REQUIRED
7.0 MM
560 A 3212621962 THRUST WASHER
Repalced by: A 3212623662
560 A 3212623662 THRUST WASHER
AS REQUIRED
7.1 MM
560 A 3212621862 THRUST WASHER
Repalced by: A 3212623562
560 A 3212623562 THRUST WASHER
AS REQUIRED
7.2 MM
560 A 3212621762 THRUST WASHER
Repalced by: A 3212623462
560 A 3212623462 THRUST WASHER
AS REQUIRED
7.3 MM
560 A 3212620462 THRUST WASHER
Repalced by: A 3212623962
560 A 3212623962 THRUST WASHER
AS REQUIRED
7.4 MM
560 A 3212622862 THRUST WASHER
Repalced by: A 3212624662
560 A 3212624662 THRUST WASHER
AS REQUIRED
7.45 MM
560 A 3212620562 THRUST WASHER
Repalced by: A 3212624062
560 A 3212624062 THRUST WASHER
AS REQUIRED
7.5 MM
560 A 3212622962 THRUST WASHER
Repalced by: A 3212624762
560 A 3212624762 THRUST WASHER
AS REQUIRED
7.55 MM
560 A 3212620662 THRUST WASHER
Repalced by: A 3212624162
560 A 3212624162 THRUST WASHER
AS REQUIRED
7.6 MM
560 A 3212623062 THRUST WASHER
Repalced by: A 3212624862
560 A 3212624862 THRUST WASHER
AS REQUIRED
7.65 MM
560 A 3212620762 THRUST WASHER
Repalced by: A 3212624262
560 A 3212624262 THRUST WASHER
AS REQUIRED
7.7 MM
560 A 3212622562 THRUST WASHER
Repalced by: A 3212624362
560 A 3212624362 THRUST WASHER
AS REQUIRED
7.8 MM
560 A 3212622662 THRUST WASHER
Repalced by: A 3212624462
560 A 3212624462 THRUST WASHER
AS REQUIRED
7.9 MM
560 A 3212622762 THRUST WASHER
Repalced by: A 3212624562
560 A 3212624562 THRUST WASHER
AS REQUIRED
8.0 MM
560 A 3172624162 THRUST WASHER
AS REQUIRED
6.9 MM
560 A 3172624262 THRUST WASHER
AS REQUIRED
7.0 MM
560 A 3172624362 THRUST WASHER
AS REQUIRED
7.1 MM
560 A 3172624462 THRUST WASHER
AS REQUIRED
7.2 MM
560 A 3172624562 THRUST WASHER
AS REQUIRED
7.3 MM
560 A 3172624662 THRUST WASHER
AS REQUIRED
7.4 MM
560 A 3172624762 THRUST WASHER
AS REQUIRED
7.5 MM
560 A 3172624862 THRUST WASHER
AS REQUIRED
7.6 MM
560 A 3172624962 THRUST WASHER
AS REQUIRED
7.7 MM
560 A 3172625062 THRUST WASHER
AS REQUIRED
7.8 MM
560 A 3172625162 THRUST WASHER
AS REQUIRED
7.9 MM
564 A 3222620034 SYNCHRONIZER RING
4TH AND 5TH SPEED
564 A 3372621034 SYNCHRONIZER RING
4TH AND 5TH SPEED
564 A 3402620034 SYNCHRONIZER RING
4TH AND 5TH SPEED
568 A 3222600645 SYNCHRONIZER BODY
4TH AND 5TH SPEED
568 A 3372600945 SYNCHRONIZER BODY
4TH AND 5TH SPEED
568 A 3212621835 SYNCHRONIZER BODY
4TH AND 5TH SPEED
568 A 3372620335 SYNCHRONIZER BODY
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
337 262 07 35
572 A 3219930701 SPRING
572 A 3379935001 SPRING
576 A 3212620774 PIN
576 A 3372620174 PIN
580 A 3212621040 FOLLOWER
580 A 3372620140 FOLLOWER
584 A 3222620137 SYNCHRONIZER CONE
584 A 3222620237 SYNCHRONIZER CONE
A 3212600469 SPRING
A 3372600069 SPRING
588 A 3212620823 SLIDING COLLAR
588 A 3372620023 SLIDING COLLAR
Repalced by: A 3372620223
588 A 3372620223 SLIDING COLLAR
592 A 3222600244 GEAR
Repalced by: A 3222601744
592 A 3222601744 GEAR
4TH SPEED
592 A 3372602744 GEAR
596 A 3229810612 ROLLER ASSEMBLY
Repalced by: A 3529810012
596 A 3229810812 ROLLER ASSEMBLY
Repalced by: A 3529810012
596 A 3529810012 ROLLER ASSEMBLY
596 A 0009819112 ROLLER ASSEMBLY
Repalced by: A 3459817312
596 A 3459817312 ROLLER ASSEMBLY
596 A 3279810212 ROLLER ASSEMBLY
Repalced by: A 0019812412
596 A 0019812412 ROLLER ASSEMBLY
596 A 0009816712 ROLLER ASSEMBLY
600 A 3222624050 BUSHING
AS REQUIRED
44.5 MM
600 A 3222624150 BUSHING
AS REQUIRED
44.6 MM
600 A 3372621650 BUSHING
AS REQUIRED
43.0 MM
600 A 3372621750 BUSHING
AS REQUIRED
43.1 MM
606 A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
606 A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
606 A 3529810112 ROLLER ASSEMBLY
606 A 0009819012 ROLLER ASSEMBLY
Repalced by: A 3459817212
606 A 3459817212 ROLLER ASSEMBLY
606 A 3279810112 ROLLER ASSEMBLY
Repalced by: A 0019814412
606 A 0019814412 ROLLER ASSEMBLY
A 0009816612 ROLLER ASSEMBLY
608 A 3222600644 GEAR
3RD SPEED
Y YYYYYYYYYYYY PART NAME MISSING
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
322 260 24 44
608 A 3272600144 GEAR
3RD SPEED
612 A 3222600545 SYNCHRONIZER BODY
2ND AND 3RD SPEED
612 A 3372600845 SYNCHRONIZER BODY
2ND AND 3RD SPEED
612 A 3222620435 SYNCHRONIZER BODY
2ND AND 3RD SPEED
612 A 3372620035 SYNCHRONIZER BODY
2ND AND 3RD SPEED
616 A 3219930701 SPRING
620 A 3212620774 PIN
624 A 3212621040 FOLLOWER
628 A 3222620137 SYNCHRONIZER CONE
A 3212600469 SPRING
632 A 3212620823 SLIDING COLLAR
636 A 3372621450 BUSHING
AS REQUIRED
50.5 MM
636 A 3372621550 BUSHING
AS REQUIRED
50.6 MM
640 A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
640 A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
640 A 3529810112 ROLLER ASSEMBLY
640 A 0009819012 ROLLER ASSEMBLY
Repalced by: A 3459817212
640 A 3459817212 ROLLER ASSEMBLY
640 A 3279810012 ROLLER ASSEMBLY
Repalced by: A 0009816512
640 A 0009816512 ROLLER ASSEMBLY
Repalced by: A 0019814612
640 A 0019814612 ROLLER ASSEMBLY
644 A 3222620112 GEAR
2ND SPEED
644 A 3372620312 GEAR
2ND SPEED
A 3222600625 GEAR
MAIN SHAFT
A 3372601325 GEAR
MAIN SHAFT
652 A 3222630333 REVERSE IDLER GEAR
MAIN SHAFT
652 A 3372630133 REVERSE IDLER GEAR
MAIN SHAFT
656 A 3219930701 SPRING
660 A 3212620674 PIN
664 A 3212620940 FOLLOWER
668 A 3222620137 SYNCHRONIZER CONE
A 3142620076 BALL SOCKET
A 3212600469 SPRING
672 A 3212620723 SLIDING COLLAR
676 A 3222621150 BUSHING
AS REQUIRED
44.2 MM
676 A 3222621250 BUSHING
AS REQUIRED
44.3 MM
676 A 3222621350 BUSHING
AS REQUIRED
44.4 MM
676 A 3222621450 BUSHING
AS REQUIRED
44.5 MM
676 A 3222621550 BUSHING
AS REQUIRED
44.6 MM
676 A 3222621650 BUSHING
AS REQUIRED
44.7 MM
676 A 3222621750 BUSHING
AS REQUIRED
44.8 MM
676 A 3222621850 BUSHING
AS REQUIRED
44.9 MM
676 A 3272620450 BUSHING
AS REQUIRED
49.2 MM
676 A 3272620550 BUSHING
AS REQUIRED
49.3 MM
676 A 3272620650 BUSHING
AS REQUIRED
49.4 MM
676 A 3272620750 BUSHING
AS REQUIRED
49.5 MM
676 A 3272620850 BUSHING
AS REQUIRED
49.6 MM
676 A 3272620950 BUSHING
AS REQUIRED
49.7 MM
676 A 3272621050 BUSHING
AS REQUIRED
49.8 MM
676 A 3272621150 BUSHING
AS REQUIRED
49.9 MM
676 A 3272621250 BUSHING
AS REQUIRED
50.0 MM
680 A 3449817086 ROLLER
680 N 005402004203 CYLINDRICAL ROLLER
684 A 3222620211 GEAR
Repalced by: A 3222620511
684 A 3222620511 GEAR
1ST SPEED
684 A 3372620311 GEAR
1ST SPEED
688 A 0009816912 ROLLER ASSEMBLY
Repalced by: A 0019819012
688 A 0009817212 ROLLER ASSEMBLY
Repalced by: A 0019819012
688 A 0019819012 ROLLER ASSEMBLY
688 A 3279810112 ROLLER ASSEMBLY
Repalced by: A 0019814412
688 A 0019814412 ROLLER ASSEMBLY
A 0009816612 ROLLER ASSEMBLY
692 A 0009811201 CYLINDR. ROLLER BEARING
692 A 3459817001 CYLINDR. ROLLER BEARING
692 A 3449817001 CYLINDR. ROLLER BEARING
696 A 3219940040 SNAP RING
AS REQUIRED
2.68 MM
696 A 3219940140 SNAP RING
AS REQUIRED
2.73 MM
696 A 3219940240 SNAP RING
AS REQUIRED
2.78 MM
696 A 3219940340 SNAP RING
AS REQUIRED
2.83 MM
696 A 3219940440 SNAP RING
AS REQUIRED
2.88 MM
696 A 3219940540 SNAP RING
AS REQUIRED
2.93 MM
700 A 0009812927 ANGULAR CONTACT BEARING
700 H 980009810101 CYLINDR. ROLLER BEARING
Repalced by: A 3459817227
700 A 0009814227 ANGULAR CONTACT BEARING
Repalced by: A 3459817127
700 A 3459817127 ANGULAR CONTACT BEARING
700 H 980009810201 CYLINDR. ROLLER BEARING
Repalced by: A 3459817227
700 A 3459817227 ANGULAR CONTACT BEARING
704 A 3522640130 DRIVE GEAR
SPEEDOMETER DRIVE
708 A 3212640532 SHAFT
Repalced by: A 3142640032
708 A 3142640032 SHAFT
SPEEDOMETER DRIVE
712 A 3212640631 DRIVE GEAR
SPEEDOMETER DRIVE
716 A 3522620045 FLANGE
720 H 983452620072 NUT
Repalced by: A 3222620072
720 A 3222620072 NUT
724 A 3222630202 COUNTERSHAFT
724 A 3372630602 COUNTERSHAFT
728 A 3222630313 GEAR
2ND AND 3RD SPEED
728 A 3372630513 GEAR
2ND AND 3RD SPEED
732 A 3222630514 GEAR
4TH SPEED
732 A 3372630314 GEAR
4TH SPEED
736 A 3222630010 GEAR
736 A 3372630610 GEAR
736 A 3402630010 GEAR
740 N 900055052300 LOCK RING
COUNTERSHAFT
740 N 900055058300 LOCK RING
COUNTERSHAFT
744 A 0019813105 TAPERED ROLLER BEARING
COUNTERSHAFT
744 A 0019815005 TAPERED ROLLER BEARING
COUNTERSHAFT
744 A 3459817005 TAPERED ROLLER BEARING
COUNTERSHAFT
748 A 3212650208 LEVER
REVERSE SPEED
752 A 3142650349 SLIDE
756 A 3212650074 PIN
756 A 3022650074 PIN
760 A 3212650050 BUSHING
764 N 000127010202 LOCK WASHER
768 N 000934010000 NUT
772 A 3222600725 GEAR
REVERSE SPEED
772 A 3372601425 GEAR
A 3212630450 BUSHING
776 A 3372630250 BUSHING
780 H 983452630030 REVERSE IDLER SHAFT
Repalced by: A 3212630430
780 A 3212630430 REVERSE IDLER SHAFT
Repalced by: A 3412637030
780 A 3412637030 REVERSE IDLER SHAFT
REVERSE SPEED
780 A 3372630130 REVERSE IDLER SHAFT
784 A 0442600005 P.T.O.
Repalced by: A 3442607005
784 A 3442607005 P.T.O.
788 A 3212640501 HOUSING
792 N 006503016100 SEAL RING
796 A 3212640125 SHIFTING ROD
800 A 0212640040 LOCK-OUT
Repalced by: A 3442647040
800 A 3442647040 LOCK-OUT
804 A 3122641071 SCREW
808 A 1362630023 COLLAR
812 A 3222840148 INTERLOCK PIN
DETENT
816 A 3229931701 SPRING
DETENT
820 N 007603014100 SEAL RING
DETENT
824 A 3229970330 SCREW PLUG
DETENT
828 A 3222640106 DRIVE SHAFT
832 A 3222640023 SLIDING COLLAR
836 N 000625506007 GROOVED BALL BEARING
840 A 0019810010 NEEDLE BEARING
844 N 000472062000 LOCK RING
848 A 0009940034 SNAP RING
852 N 900055035301 LOCK RING
856 A 3222640111 COVER
P.T.O.
860 N 006504035100 RADIAL SEAL RING
864 A 3222640079 GASKET
COVER TO P.T.O. CASE
868 N 000933008288 SCREW
COVER TO P.T.O. CASE
872 N 912004008100 LOCK WASHER
COVER TO P.T.O. CASE
876 N 006885008021 KEY
COUPLING FLANGE TO P.T.O.
880 N 000937024001 NUT
COUPLING FLANGE TO P.T.O.
884 N 000094005013 COTTER PIN
COUPLING FLANGE TO P.T.O.
888 A 0212640119 LEVER
Repalced by: A 3442647019
888 A 3442647019 LEVER
SHIFTING SHAFT
892 N 000931008045 SCREW
LEVER TO SHIFTING SHAFT
896 N 912004008100 LOCK WASHER
LEVER TO SHIFTING SHAFT
900 N 000934008000 NUT
LEVER TO SHIFTING SHAFT
904 N 900331008132 PULL ROD
908 N 000934008000 NUT
912 N 071752008000 YOKE
916 N 001434008020 PIN
PULL ROD TO SHIFTING SHAFT
920 N 000433008403 WASHER
PULL ROD TO SHIFTING SHAFT
924 N 000094002033 COTTER PIN
PULL ROD TO SHIFTING SHAFT
928 A 3212640074 PIN
P.T.O. SHIFT LEVER
932 A 3129900148 WASHER
LEVER TO PIN
936 A 0442600239 SHIFT LEVER
Repalced by: A 3442607039
936 A 3442607039 SHIFT LEVER
P.T.O.
940 N 071412008300 GREASE NIPPLE
940 A 3459977288 GREASE NIPPLE
944 N 000433015000 WASHER
LEVER TO PIN
948 N 000471015000 LOCK RING
LEVER TO PIN
956 N 918001008000 PIN
952 N 001434008020 PIN
PULL ROD TO SHIFT LEVER
956 N 000433008403 WASHER
PULL ROD TO SHIFT LEVER
960 N 000094002033 COTTER PIN
PULL ROD TO SHIFT LEVER
964 A 3222640096 BOOT
Repalced by: A 3442647096
964 A 3442647096 BOOT
SHIFT LEVER
968 N 000933008279 SCREW
P.T.O. TO TRANSMISSION
972 N 912004008100 LOCK WASHER
P.T.O. TO TRANSMISSION
976 N 000936010010 NUT
980 A 0442600040 HANDLE
Repalced by: A 3442607040
980 A 0442600240 HANDLE
Repalced by: A 3442607040
980 A 3442607040 HANDLE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
