Transporto priemonė: LS 1513; VIN numerio dalis: 360014
Grupė: 42 BRAKES

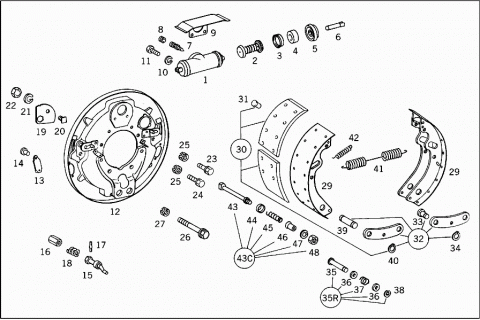

44463
44464

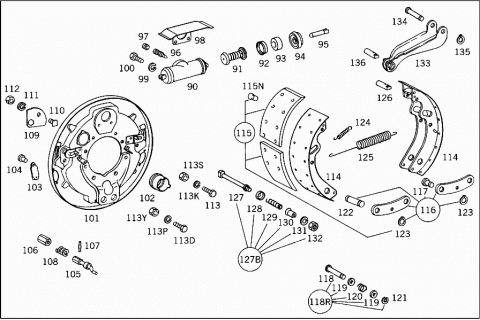

44465
44466
44467
44468

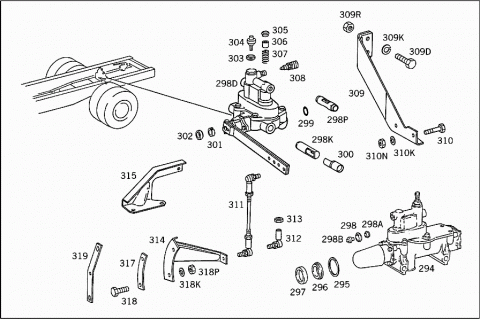

44469
44470
44471

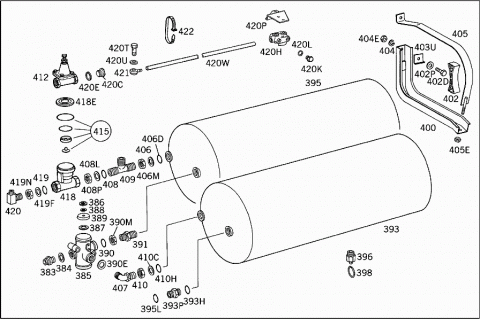

44472
44473
44474

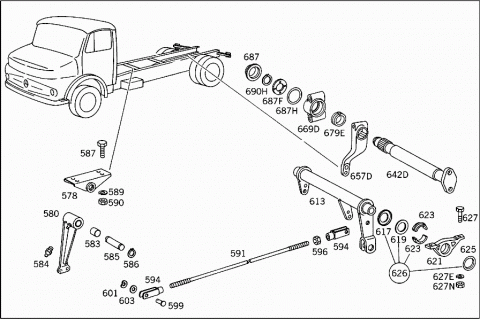

44475

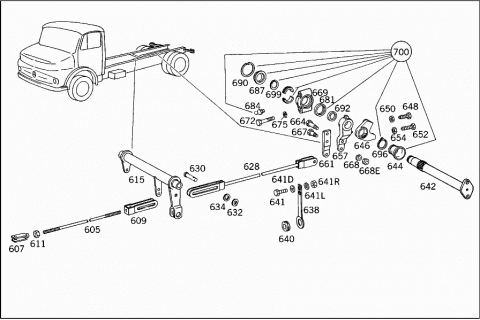

44476

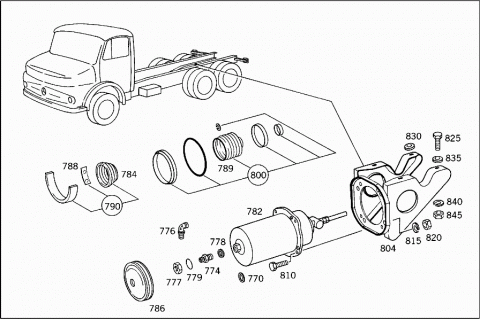

44477
# Kodas Pavadinimas
001 A 0024207018 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
001 A 0024206918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
001 A 0034207918 WHEEL BRAKE CYLINDER
46.83 MM
001 A 0084203018 WHEEL BRAKE CYLINDER
46.83 MM
002 A 0004233193 SPRING
003 A 0004231686 CUP
004 A 0004232183 PISTON
005 A 0004232187 PROTECTIVE CAP
006 A 0004231088 THRUST PIN
TO 002 420 70 18,002 420 69 18
007 A 0004310265 VALVE
Repalced by: A 3075530107
007 A 3075530107 VALVE
008 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
008 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
008 A 0004210887 PROTECTIVE CAP
008 A 0004213087 PROTECTIVE CAP
TO 002 420 69 18,003 420 79 18
A 0005862842 REPAIR KIT
009 A 3024210020 PROTECTIVE PLATE
WHEEL CYLINDER TO BRAKE ANCHOR PLATE
010 N 912004010102 LOCK WASHER
WHEEL CYLINDER TO BRAKE ANCHOR PLATE
011 N 000933010105 SCREW
WHEEL CYLINDER TO BRAKE ANCHOR PLATE
012 A 3024200116 BRAKE ANCHOR PLATE
Repalced by: A 3024201316
012 A 3024201316 BRAKE ANCHOR PLATE
013 A 3124211068 INSPECTION HOLE COVER
014 A 3129900096 RIVET
015 A 3024200638 ADJUSTER
Repalced by: A 3025860442
016 A 3024230175 HEXAGONAL PIECE
017 N 001473006012 GROOVED PIN
018 A 3129934901 SPRING
019 A 3024210173 LOCK
020 A 3024210071 SCREW
021 N 000127012103 LOCK WASHER
A 3025860442 REPAIR KIT
Repalced by: A 3024203138
A 3024203138 REPAIR KIT
BRAKE READJUSTMENT
022 N 000934012022 NUT
023 A 3419900004 SCREW
024 A 3419900104 SCREW
025 N 000935012014 NUT
N 000094003219 COTTER PIN
026 A 3413320071 SCREW
027 N 000935016004 NUT
N 000094004065 COTTER PIN
A 3524200020 BRAKE SHOE
Repalced by: A 3384200219
A 3524200120 BRAKE SHOE
Repalced by: A 3384200219
A 3524200220 BRAKE SHOE
Repalced by: A 3384200219
A 3384200019 BRAKE SHOE
Repalced by: A 3384200219
029 A 3384200219 BRAKE SHOE
030 A 3524230310 BRAKE LINING
(PARTS KIT)
15.30 MM
030 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
030 A 3524230410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 352 423 01 10)
030 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
030 A 3524230510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 352 423 02 10)
030 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
N 007338008305 RIVET
Repalced by: A 3079900197
031 A 3079900197 RIVET
032 A 3024210013 SHACKLE
Repalced by: A 3385860042
032 A 3385860042 REPAIR KIT
Repalced by: A 3384200289
032 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
033 A 3024210174 PIN
034 N 900055025301 LOCK RING
035 A 3124231174 PIN
Repalced by: A 3385860342
035R A 3385860342 REPAIR KIT
Repalced by: A 3384200082
035R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
036 A 3024210052 SPACER WASHER
Repalced by: A 3385860342
037 A 3029930201 SPRING
Repalced by: A 3385860342
038 A 3124211073 LOCK
039 A 3024210118 PIVOT PIN
040 N 900055025301 LOCK RING
041 A 3414210092 SPRING
Repalced by: A 3524210192
041 A 3524210192 SPRING
042 A 3029930310 SPRING
043 A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
043C A 3585860242 REPAIR KIT
Repalced by: A 3584200182
043C A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
044 A 3124231089 FILLER
045 A 3129933801 SPRING
Repalced by: A 3529930501
045 A 3529930501 SPRING
046 A 3124231189 FILLER
047 N 912004008102 LOCK WASHER
048 N 304032008006 NUT

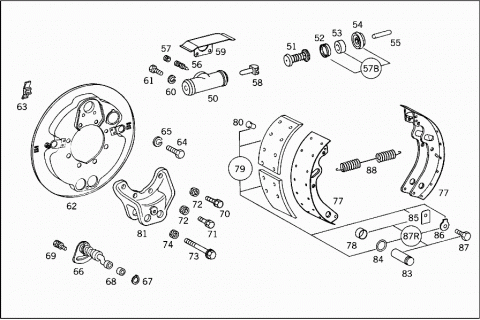

050 A 0024209118 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
050 A 0034207918 WHEEL BRAKE CYLINDER
FRONT AXLE
46.83 MM
050 A 0084203018 WHEEL BRAKE CYLINDER
FRONT AXLE
46.83 MM
050 A 0084203018 WHEEL BRAKE CYLINDER
FRONT AXLE
46.83 MM
051 A 0004233193 SPRING
052 A 0004231686 CUP
053 A 0004232183 PISTON
054 A 0004232187 PROTECTIVE CAP
055 A 0004231388 THRUST PIN
056 A 0004310265 VALVE
Repalced by: A 3075530107
056 A 3075530107 VALVE
057 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
057 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
057 A 0004210887 PROTECTIVE CAP
A 0004213087 PROTECTIVE CAP
057B A 0005862842 REPAIR KIT
058 A 3024210088 THRUST PIN
058 A 3024210088 THRUST PIN
059 A 3024210020 PROTECTIVE PLATE
059 A 3024210020 PROTECTIVE PLATE
060 N 912004010102 LOCK WASHER
060 N 912004010102 LOCK WASHER
061 N 000933010164 SCREW
061 N 000933010164 SCREW
062 A 3024201116 BRAKE ANCHOR PLATE
062 A 3604200516 BRAKE ANCHOR PLATE
Repalced by: A 3604200616
062 A 3604200616 BRAKE ANCHOR PLATE
063 A 3094210211 PLUG
063 A 3094210211 PLUG
064 N 304017010027 SCREW
064 N 304017010027 SCREW
065 N 912004010102 LOCK WASHER
065 N 912004010102 LOCK WASHER
066 A 3604200938 ADJUSTER
Repalced by: A 3024202038
066 A 3024230419 ADJUSTING PIN
Repalced by: A 3024202038
066 A 3024202038 ADJUSTER
066 A 3024202038 ADJUSTER
A 3029930501 SPRING
A 3029930501 SPRING
A 3024210176 WASHER
A 3024210176 WASHER
067 A 3124211073 LOCK
067 A 3124211073 LOCK
A 3024200386 BRACKET
A 3024200386 BRACKET
A 3604210273 LOCK
A 3604210273 LOCK
068 A 3024210329 SLIDE
068 A 3024210329 SLIDE
A 3609900151 NUT
A 3609900151 NUT
N 914001010002 COMBINATION BOLT
Repalced by: N 000933010164
069 N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
069 N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
A 3029900204 SCREW
Repalced by: N 900170012007
070 N 900170012007 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3029900804 SCREW
Repalced by: N 900170012001
071 N 900170012001 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
072 N 000935012003 NUT
FRONT WHEEL BRAKE TO STEERING KNUCKLE
N 000094003219 COTTER PIN
FRONT WHEEL BRAKE TO STEERING KNUCKLE
073 A 3603320171 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
074 N 000935018001 NUT
FRONT WHEEL BRAKE TO STEERING KNUCKLE
N 000094004065 COTTER PIN
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3604204420 BRAKE SHOE
Repalced by: A 3024202019
A 3604204820 BRAKE SHOE
Repalced by: A 3024202019
A 3604204920 BRAKE SHOE
Repalced by: A 3024202019
A 3604206220 BRAKE SHOE
Repalced by: A 3024202019
A 3604206320 BRAKE SHOE
Repalced by: A 3024202019
A 3604206420 BRAKE SHOE
Repalced by: A 3024202019
077 A 3024202019 BRAKE SHOE
077 A 3024202019 BRAKE SHOE
078 A 3024210150 BUSHING
Repalced by: A 3955860142
079 A 3604212410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.70 MM,8X 360 421 06 10)
079 A 3604212410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.70 MM,8X 360 421 06 10)
079 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
079 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
079 A 3604212510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 421 07 10)
079 A 3604212510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 421 07 10)
079 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
079 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
079 A 3604212610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 421 08 10)
079 A 3604212610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 421 08 10)
079 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
079 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
080 A 3079900197 RIVET
BRAKE SHOE
080 A 3079900197 RIVET
BRAKE SHOE
081 A 3024210606 BRAKE ANCHOR
081 A 3604210606 BRAKE ANCHOR
083 A 3024211074 PIN
BRAKE SHOE TO BRAKE ANCHOR
083 A 3024211074 PIN
BRAKE SHOE TO BRAKE ANCHOR
084 A 3029970445 SEAL RING
BRAKE SHOE TO BRAKE ANCHOR
084 A 3029970445 SEAL RING
BRAKE SHOE TO BRAKE ANCHOR
085 A 3029940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
085 A 3029940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
086 A 3029940010 LOCK
Repalced by: N 000093010502
086 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
086 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
086 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
086 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
087 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
087 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
087R A 3955860142 REPAIR KIT
Repalced by: A 3954200041
087R A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
087R A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
088 A 3524210192 SPRING
088 A 3534210092 SPRING
A 0024207118 WHEEL BRAKE CYLINDER
Repalced by: A 0034208018
090 A 0024206818 WHEEL BRAKE CYLINDER
Repalced by: A 0034208018
091 A 0004231993 SPRING
092 A 0004210386 CUP
093 A 0004232583 PISTON
094 A 0004232587 PROTECTIVE CAP
095 A 0004231088 THRUST PIN
096 A 0004310265 VALVE
Repalced by: A 3075530107
096 A 3075530107 VALVE
097 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
097 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
097 A 0004210887 PROTECTIVE CAP
A 0005862342 REPAIR KIT
098 A 3024210020 PROTECTIVE PLATE
099 N 912004010102 LOCK WASHER
100 N 000933010164 SCREW
101 A 3024202017 BRAKE ANCHOR PLATE
Repalced by: A 3024204317
101 A 3024204317 BRAKE ANCHOR PLATE
RIGHT
101 A 3024202117 BRAKE ANCHOR PLATE
Repalced by: A 3024204417
101 A 3024204417 BRAKE ANCHOR PLATE
LEFT
102 A 3024270054 PIPE SOCKET
103 A 3124211068 INSPECTION HOLE COVER
104 A 3129900096 RIVET
105 A 3024200638 ADJUSTER
Repalced by: A 3025860442
106 A 3024230175 HEXAGONAL PIECE
107 N 001473006012 GROOVED PIN
108 A 3129934901 SPRING
109 A 3024210173 LOCK
110 A 3024210071 SCREW
A 3025860442 REPAIR KIT
Repalced by: A 3024203138
A 3024203138 REPAIR KIT
BRAKE READJUSTMENT
111 N 912004012100 LOCK WASHER
112 N 000934012022 NUT
113 N 000960012017 SCREW
113D N 000961016039 SCREW
113K N 912004012100 LOCK WASHER
113P N 912004016101 LOCK WASHER
113S N 000934012023 NUT
Repalced by: N 308673012002
113S N 308673012002 NUT
113Y N 000934016011 NUT
Repalced by: N 308673016001
113Y N 308673016001 NUT
A 3544200020 BRAKE SHOE
Repalced by: A 3024200019
A 3544200120 BRAKE SHOE
Repalced by: A 3024200019
A 3544200220 BRAKE SHOE
Repalced by: A 3024200019
114 A 3024200019 BRAKE SHOE
Repalced by: A 3024203319
114 A 3024203319 BRAKE SHOE
115 A 3604233010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 360 423 00 10)
115 A 3604233610 BRAKE LINING
Repalced by: A 3604233910
115 A 3604233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.70 MM,8X 360 423 33 10)
115 A 3604233110 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 360 423 01 10)
115 A 3604233710 BRAKE LINING
Repalced by: A 3604234010
115 A 3604234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.70 MM,8X 360 423 34 10)
115 A 3604232910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 423 02 10)
115 A 3604233810 BRAKE LINING
Repalced by: A 3604234110
115 A 3604234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.70 MM,8X 360 423 35 10)
115N A 3079900197 RIVET
116 A 3024210013 SHACKLE
Repalced by: A 3385860042
116 A 3385860042 REPAIR KIT
Repalced by: A 3384200289
116 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
117 A 3024210174 PIN
118 A 3124231174 PIN
Repalced by: A 3385860342
118R A 3385860342 REPAIR KIT
Repalced by: A 3384200082
118R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
119 A 3024210052 SPACER WASHER
Repalced by: A 3385860342
120 A 3029930201 SPRING
Repalced by: A 3385860342
121 A 3124211073 LOCK
122 A 3024210118 PIVOT PIN
123 N 900055025301 LOCK RING
124 A 3029930310 SPRING
125 A 3029930610 SPRING
126 A 3024230518 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
N 000094004023 COTTER PIN
127 A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
127B A 3585860242 REPAIR KIT
Repalced by: A 3584200182
127B A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
128 A 3124231089 FILLER
129 A 3529930501 SPRING
130 A 3124231189 FILLER
131 N 912004008102 LOCK WASHER
132 N 304032008006 NUT
133 A 3024200119 THRUST SHACKLE
Repalced by: A 3834200389
133 A 3834200389 SHACKLE
A 3029940109 LOCK
A 3024230874 PIN
Repalced by: A 3024230974
A 3024230974 PIN
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
N 912004008102 LOCK WASHER
134 A 3024230774 PIN
THRUST SHACKLE TO BRAKE SHOE
135 N 000471018000 LOCK RING
THRUST SHACKLE TO BRAKE SHOE
136 A 3024230174 PIN
N 000094004065 COTTER PIN
A 0024209218 WHEEL BRAKE CYLINDER
Repalced by: A 0034208018
A 0024209218 WHEEL BRAKE CYLINDER
138 A 0034208018 WHEEL BRAKE CYLINDER
50.80 MM;TEVES
138 A 0094204118 WHEEL BRAKE CYLINDER
50.80 MM;KUGELFISCHER
139 A 0004231993 SPRING
TO 003 420 80 18,008 420 92 18
139 A 0004231993 SPRING
TO 003 420 80 18,008 420 92 18
140 A 0004210386 CUP
TO 002 420 92 18
140 A 0004210386 CUP
TO 002 420 92 18
141 A 0004232583 PISTON
141 A 0004232583 PISTON
142 A 0004232587 PROTECTIVE CAP
TO 003 420 80 18,002 420 92 18
142 A 0004232587 PROTECTIVE CAP
TO 003 420 80 18,002 420 92 18
142 A 0004216287 PROTECTIVE CAP
TO 009 420 41 18
142 A 0004216187 PROTECTIVE CAP
TO 009 420 41 18
142 A 0004216187 PROTECTIVE CAP
TO 009 420 41 18
143 A 0004231388 THRUST PIN
143 A 0004231388 THRUST PIN
144 A 0004310265 VALVE
Repalced by: A 3075530107
144 A 3075530107 VALVE
TO 003 420 80 18
144 A 3075530107 VALVE
TO 003 420 80 18
145 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
145 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
145 A 0004210887 PROTECTIVE CAP
145 A 0004210887 PROTECTIVE CAP
A 0004232787 PROTECTIVE CAP
TO 003 420 80 18
A 0004232787 PROTECTIVE CAP
TO 003 420 80 18
145 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
145 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
145 A 0004210887 PROTECTIVE CAP
TO 009 420 41 18
145 A 0004210887 PROTECTIVE CAP
TO 009 420 41 18
146 A 0005862342 REPAIR KIT
TO 003 420 80 18,002 420 92 18
146 A 0015869042 REPAIR KIT
TO 009 420 41 18
147 A 3024210088 THRUST PIN
148 A 3024210020 PROTECTIVE PLATE
BRAKE SHOE TO BRAKE ANCHOR PLATE
148 A 3024210020 PROTECTIVE PLATE
BRAKE SHOE TO BRAKE ANCHOR PLATE
149 N 912004010102 LOCK WASHER
BRAKE SHOE TO BRAKE ANCHOR PLATE
149 N 912004010102 LOCK WASHER
BRAKE SHOE TO BRAKE ANCHOR PLATE
150 N 000933010164 SCREW
BRAKE SHOE TO BRAKE ANCHOR PLATE
150 N 000933010164 SCREW
BRAKE SHOE TO BRAKE ANCHOR PLATE
151 A 3024203017 BRAKE ANCHOR PLATE
RIGHT
151 A 3024203017 BRAKE ANCHOR PLATE
RIGHT
A 3024203117 BRAKE ANCHOR PLATE
LEFT
A 3024203117 BRAKE ANCHOR PLATE
LEFT
152 A 3024270054 PIPE SOCKET
152 A 3024270054 PIPE SOCKET
153 A 3094210211 PLUG
153 A 3094210211 PLUG
154 A 3024230319 ADJUSTING PIN
Repalced by: A 3024201938
154 A 3024201938 ADJUSTER
154 A 3024201938 ADJUSTER
155 A 3124211073 LOCK
155 A 3124211073 LOCK
156 A 3024210329 SLIDE
156 A 3024210329 SLIDE
157 A 3029930701 SPRING
157 A 3029930701 SPRING
158 A 3024210176 WASHER
158 A 3024210176 WASHER
159 A 3024200386 BRACKET
159 A 3024200386 BRACKET
160 A 3029900150 NUT
Repalced by: N 074361012201
160 N 074361012201 NUT
160 N 074361012201 NUT
160N N 914001010002 COMBINATION BOLT
Repalced by: N 000933010164
160N N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
160N N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
161 A 3029900504 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
161 A 3029900504 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
162 N 000961012106 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
162 N 000961012106 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
162 N 000961012106 SCREW
BRAKE ANCHOR PLATE TO REAR AXLE
163 N 912004012100 LOCK WASHER
BRAKE ANCHOR PLATE TO REAR AXLE
163 N 912004012100 LOCK WASHER
BRAKE ANCHOR PLATE TO REAR AXLE
164 N 912004016101 LOCK WASHER
BRAKE ANCHOR PLATE TO REAR AXLE
164 N 912004016101 LOCK WASHER
BRAKE ANCHOR PLATE TO REAR AXLE
165 N 000934012023 NUT
Repalced by: N 308673012002
165 N 308673012002 NUT
BRAKE ANCHOR PLATE TO REAR AXLE
165 N 308673012002 NUT
BRAKE ANCHOR PLATE TO REAR AXLE
166 N 000934016011 NUT
Repalced by: N 308673016001
166 N 308673016001 NUT
BRAKE ANCHOR PLATE TO REAR AXLE
166 N 308673016001 NUT
BRAKE ANCHOR PLATE TO REAR AXLE
A 3604202920 BRAKE SHOE
Repalced by: A 3024202119
A 3604203020 BRAKE SHOE
Repalced by: A 3024202119
A 3604203120 BRAKE SHOE
Repalced by: A 3024202119
A 3604204520 BRAKE SHOE
Repalced by: A 3024202119
A 3604204520 BRAKE SHOE
A 3604204620 BRAKE SHOE
Repalced by: A 3024202119
A 3604204620 BRAKE SHOE
A 3604204720 BRAKE SHOE
Repalced by: A 3024202119
A 3604204720 BRAKE SHOE
A 3604205920 BRAKE SHOE
Repalced by: A 3024202119
A 3604206020 BRAKE SHOE
Repalced by: A 3024202119
A 3604206120 BRAKE SHOE
Repalced by: A 3024202119
A 3024201119 BRAKE SHOE
Repalced by: A 3024202119
171 A 3024202119 BRAKE SHOE
A 3024210150 BUSHING
Repalced by: A 3955860142
A 3955860142 REPAIR KIT
Repalced by: A 3954200041
A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
172 A 3024210150 BUSHING
Repalced by: A 3955860142
174 A 3604232610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 360 423 00 10)
174 A 3604232610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 360 423 00 10)
174 A 3604233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.70 MM,8X 360 423 33 10)
174 A 3604233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.70 MM,8X 360 423 33 10)
174 A 3604232710 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 423 01 10)
174 A 3604232710 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 423 01 10)
A 3604234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.70 MM,8X 360 423 34 10)
A 3604234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.70 MM,8X 360 423 34 10)
174 A 3604232810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 423 02 10
174 A 3604232810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 423 02 10
A 3604234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.70 MM,8X 360 423 35 10)
A 3604234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.70 MM,8X 360 423 35 10)
174N A 3079900197 RIVET
174N A 3079900197 RIVET
176 A 3024230706 BRAKE ANCHOR
36 MM
176 A 3024230806 BRAKE ANCHOR
30 MM
176 A 3024230806 BRAKE ANCHOR
30 MM
178 A 3024210974 PIN
BRAKE SHOE TO BRAKE ANCHOR
36 MM
178 A 3024211074 PIN
BRAKE SHOE TO BRAKE ANCHOR
30 MM
178 A 3024211074 PIN
BRAKE SHOE TO BRAKE ANCHOR
30 MM
180 A 3029970145 SEAL RING
BRAKE SHOE TO BRAKE ANCHOR
180 A 3029970445 SEAL RING
BRAKE SHOE TO BRAKE ANCHOR
180 A 3029970445 SEAL RING
BRAKE SHOE TO BRAKE ANCHOR
181 A 3029940009 LOCK
BRAKE SHOE TO BRAKE ANCHOR
181 A 3029940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
181 A 3029940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
182 A 3029940010 LOCK
Repalced by: N 000093010502
182 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
182 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
182 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
182 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
183 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
183 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
183R A 3955860142 REPAIR KIT
Repalced by: A 3954200041
183R A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
184 A 3029930610 SPRING
RELEASE SPRING
184 A 3029930610 SPRING
RELEASE SPRING
185 A 3024230118 PIVOT PIN
Repalced by: A 3024230618
185 A 3024230618 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
185 A 3024230618 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
186 A 3029940035 SNAP RING
BRAKE SHAFT TO BRAKE SHOE
186 A 3029940035 SNAP RING
BRAKE SHAFT TO BRAKE SHOE
A 3604200189 SHACKLE
Repalced by: A 3834200389
187 A 3834200389 SHACKLE
187 A 3834200389 SHACKLE
188 A 3024230074 PIN
Repalced by: A 3024230774
188 A 3024230774 PIN
THRUST SHACKLE TO BRAKE SHOE
188 A 3024230774 PIN
THRUST SHACKLE TO BRAKE SHOE
189 N 000471018000 LOCK RING
THRUST SHACKLE TO BRAKE SHOE
189 N 000471018000 LOCK RING
THRUST SHACKLE TO BRAKE SHOE
190 A 3024230474 PIN
Repalced by: A 3024230874
190 A 3024230874 PIN
Repalced by: A 3024230974
190 A 3024230974 PIN
BRAKE SHAFT TO THRUST SHACKLE
190 A 3024230974 PIN
BRAKE SHAFT TO THRUST SHACKLE
191 A 3029940109 LOCK
BRAKE SHAFT TO THRUST SHACKLE
191 A 3029940109 LOCK
BRAKE SHAFT TO THRUST SHACKLE
193 N 000933008130 SCREW
Repalced by: N 304017008039
193 N 304017008039 SCREW
BRAKE SHAFT TO THRUST SHACKLE
193 N 304017008039 SCREW
BRAKE SHAFT TO THRUST SHACKLE
194 N 912004008102 LOCK WASHER
BRAKE SHAFT TO THRUST SHACKLE
194 N 912004008102 LOCK WASHER
BRAKE SHAFT TO THRUST SHACKLE

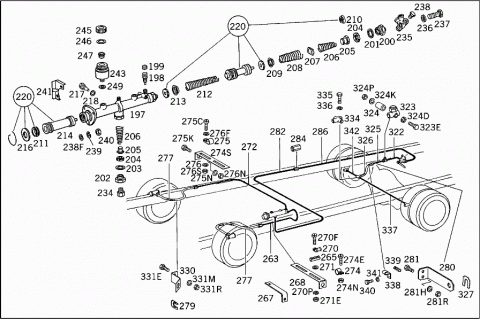

197 A 0014306801 BRAKE MASTER CYLINDER
Repalced by: A 0024301901
197 A 0024301901 BRAKE MASTER CYLINDER
198 A 0004310265 VALVE
Repalced by: A 3075530107
198 A 3075530107 VALVE
199 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
199 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
199 A 0004210887 PROTECTIVE CAP
200 A 0004310522 THREADED UNION
201 N 007603040102 SEAL RING
202 A 0004310475 THREADED UNION
203 N 007603032101 SEAL RING
204 A 0004310760 SEAL RING
Repalced by: A 0004300381
205 A 0004300081 VALVE
Repalced by: A 0004300381
205 A 0004300381 VALVE
206 A 0009930605 SPRING
207 A 0004312676 WASHER
208 A 0004317393 SPRING
209 A 0004312089 SPRING RETAINER
210 A 0004300381 VALVE
211 A 0049972046 SEAL RING
212 A 0004317493 SPRING
213 A 0004312089 SPRING RETAINER
214 A 0004315183 PISTON
A 0004310585 FILLER RING
216 A 0004311176 WASHER
217 A 0004310671 SCREW
218 N 007603008109 SEAL RING
A 0005840910 INSTRUCTION PLATE
220 A 0005864943 REPAIR KIT
TO 001 430 68 01,002 430 19 01
A 0024308801 BRAKE MASTER CYLINDER
Repalced by: A 0024308201
A 0024308201 BRAKE MASTER CYLINDER
A 0004310971 SCREW
A 0004319360 SEAL RING
A 0004319260 SEAL RING
A 0009933705 SPRING
A 0009933805 SPRING
A 0009933905 SPRING
A 0004319160 SEAL RING
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0005869543 REPAIR KIT
Repalced by: A 0004303083
A 0004303083 PISTON
TO 002 430 88 01;002 430 82 01
234 A 0004230184 FITTING
235 A 0004280124 DISTRIBUTOR
236 N 007603014405 SEAL RING
237 A 0004280026 HOLLOW SCREW
238 A 0004280032 SCREW PLUG
238F N 000125010518 WASHER
Repalced by: N 000125010532
238F N 000125010532 WASHER
MASTER CYLINDER TO BRAKE BOOSTER
239 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
240 N 000934010014 NUT
MASTER CYLINDER TO BRAKE BOOSTER
241 A 3524310740 BRACKET
BRAKE MASTER CYLINDER
241 A 3524310940 BRACKET
BRAKE MASTER CYLINDER
N 000931010157 SCREW
BRACKET TO SIDE MEMBER
N 000933010145 SCREW
MASTER CYLINDER BRACKET
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
BRACKET TO SIDE MEMBER
N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
N 000934010014 NUT
BRACKET TO SIDE MEMBER
243 A 0004311602 RESERVOIR
FLUID RESERVOIR
TEVES
244 A 0004314702 RESERVOIR
FLUID RESERVOIR
TEVES
244 A 0014312902 RESERVOIR
FLUID RESERVOIR
SCHAEFER
245 A 0004315433 FILLER CAP
BUTTRESS THREAD
A 0002950237 SCREW PLUG
Repalced by: A 0004315433
246 A 0009972940 SEAL RING
43.7X30 MM
246 A 0039976440 SEAL RING
42X21.5 MM
247 A 0004313734 STRAINER
Repalced by: A 0004314334
247 A 0004314334 STRAINER
248 A 0004311040 CLAMP
249 N 007603022102 SEAL RING
250 A 3524281940 BRACKET
251 A 3524310184 SHIM
252 N 000933006102 SCREW
252D N 000933006103 SCREW
Repalced by: N 304017006018
252D N 304017006018 SCREW
252K N 000137006204 SPRING WASHER
252R N 000934006007 NUT
253 A 0004280126 HOLLOW SCREW
254 A 0009902188 BANJO UNION
255 N 007603022102 SEAL RING
256 A 0009978952 HOSE
105 MM
257 A 3524282440 BRACKET
257F N 900288011002 CLAMP
258 A 3129951232 CLAMP
259 A 3529950120 CLAMP
A 3609951601 CLAMP
Repalced by: A 3604292940
259D A 3604292940 BRACKET
259L N 000933006102 SCREW
259P N 000934006007 NUT
259U A 0019978490 LOOM TIE
260 A 0009973081 GROMMET
260 A 0009972281 GROMMET
263 A 3404202329 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
1300 MM
A 3524200728 LINE
Repalced by: A 3404204029
263 A 3404204029 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
2600 MM
265 A 3129970582 HOSE
HOSE TO BRAKE LINE
A 3859970081 GROMMET
SIDE MEMBER,FRONT
A 3524281640 BRACKET
Repalced by: A 3604280243
267 A 3604280243 ANGLE
BRAKE LINE TO CROSS MEMBER
268 A 3524290740 BRACKET
BRAKE LINE TO CROSS MEMBER
270 A 3604300143 CLAMP
Repalced by: N 916016008200
270 N 916016008200 CLAMP
BRAKE LINE TO CROSS MEMBER
270F N 000084006197 SCREW
BRAKE LINE TO CROSS MEMBER
270P N 912004006102 LOCK WASHER
BRAKE LINE TO CROSS MEMBER
271 N 000125006421 WASHER
BRAKE LINE TO CROSS MEMBER
271E N 000934006007 NUT
BRAKE LINE TO CROSS MEMBER
272 A 3404202329 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
1300 MM
272 A 3404204029 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
2600 MM
A 3129970582 HOSE
HOSE TO BRAKE LINE
A 3859970081 GROMMET
SIDE MEMBER,FRONT
274 A 3129950935 CLAMP
HOSE TO BRAKE LINE
274E N 000084004151 SCREW
HOSE TO BRAKE LINE
274N N 000934004006 NUT
HOSE TO BRAKE LINE
A 3604280243 ANGLE
BRAKE LINE TO CROSS MEMBER
274S A 3524290740 BRACKET
BRAKE LINE TO CROSS MEMBER
275 A 3604300143 CLAMP
Repalced by: N 916016008200
275 N 916016008200 CLAMP
BRAKE LINE TO CROSS MEMBER
275C N 000084006197 SCREW
BRAKE LINE TO CROSS MEMBER
275K N 000933008147 SCREW
Repalced by: N 304017008021
275K N 304017008021 SCREW
BRAKE LINE TO CROSS MEMBER
275N N 912004006102 LOCK WASHER
BRAKE LINE TO CROSS MEMBER
276 N 912004008102 LOCK WASHER
BRAKE LINE TO CROSS MEMBER
276F N 000125006421 WASHER
BRAKE LINE TO CROSS MEMBER
276N N 000934006007 NUT
BRAKE LINE TO CROSS MEMBER
276S N 304032008006 NUT
BRAKE LINE TO CROSS MEMBER
277 A 0004288235 BRAKE HOSE
550 MM
277 A 0004288935 BRAKE HOSE
650 MM
277 A 0014284835 BRAKE HOSE
650 MM
279 A 0004280473 BRACKET
Repalced by: A 6525040038
279 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
280 A 3604280240 BRACKET
281 N 000933008145 SCREW
281H N 912004008102 LOCK WASHER
281R N 304032008006 NUT
282 A 3404202829 LINE
FROM MASTER CYLINDER TO ADAPTER FITTING
282 A 3404201329 LINE
FROM MASTER CYLINDER TO ADAPTER FITTING
284 A 0004292736 CONNECTOR
286 A 3404204129 LINE
FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR
2800 MM
286 A 3404204429 LINE
FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR
3400 MM
286 A 3404204729 LINE
FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR
4000 MM
286 A 3404203929 LINE
FROM INTERMEDIATE PIECE TO BRAKE PRESSURE REGULATOR
2400 MM
294 A 0004314112 BRAKE PRESSURE REGULATOR
294 A 0004314112 BRAKE PRESSURE REGULATOR
294 A 0004314112 BRAKE PRESSURE REGULATOR
295 A 0004314160 SEAL RING
296 A 0004315786 CUP
297 A 0129975448 SEAL RING
298 A 0004318560 SEAL RING
298A A 0004318660 SEAL RING
298B A 0004311068 VALVE PART
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
A 0029906071 FITTING
A 0029906071 FITTING
N 007603012405 SEAL RING
N 007603012405 SEAL RING
N 007603012405 SEAL RING
A 3604311140 BRACKET
BRAKE POWER REGULATOR
A 3604311140 BRACKET
BRAKE POWER REGULATOR
A 3604311140 BRACKET
BRAKE POWER REGULATOR
N 000960012216 SCREW
Repalced by: N 308765012007
N 308765012007 SCREW
N 308765012007 SCREW
N 308765012007 SCREW
N 912004012100 LOCK WASHER
N 912004012100 LOCK WASHER
N 912004012100 LOCK WASHER
N 007603012405 SEAL RING
N 007603012405 SEAL RING
N 007603012405 SEAL RING
N 000961012164 SCREW
N 000961012164 SCREW
N 000961012164 SCREW
N 912004012100 LOCK WASHER
N 912004012100 LOCK WASHER
N 912004012100 LOCK WASHER
N 000934012022 NUT
N 000934012022 NUT
N 000934012022 NUT
A 0004318506 PRESSURE SENDER UNIT
A 0004318506 PRESSURE SENDER UNIT
A 0004318506 PRESSURE SENDER UNIT
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
A 0029906071 FITTING
A 0029906071 FITTING
N 007603012405 SEAL RING
N 007603012405 SEAL RING
N 007603012405 SEAL RING
A 3604311040 BRACKET
A 3604311040 BRACKET
A 3604311040 BRACKET
N 000931010238 SCREW
N 000931010238 SCREW
N 000931010238 SCREW
N 912004010102 LOCK WASHER
N 912004010102 LOCK WASHER
N 912004010102 LOCK WASHER
N 000934010014 NUT
N 000934010014 NUT
N 000934010014 NUT
N 000931008228 SCREW
Repalced by: N 000933008134
N 000933008134 SCREW
N 000933008134 SCREW
N 000933008134 SCREW
N 912004008102 LOCK WASHER
N 912004008102 LOCK WASHER
N 912004008102 LOCK WASHER
N 304032008006 NUT
N 304032008006 NUT
N 304032008006 NUT
A 3609900070 T-FITTING
A 3609900070 T-FITTING
A 3609900070 T-FITTING
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
A 0029906071 FITTING
A 0029906071 FITTING
A 3609950101 CLAMP
A 3609950101 CLAMP
A 3609950101 CLAMP
N 000084006134 SCREW
N 000084006134 SCREW
N 000084006134 SCREW
N 912004006102 LOCK WASHER
N 912004006102 LOCK WASHER
N 912004006102 LOCK WASHER
N 000934006007 NUT
N 000934006007 NUT
N 000934006007 NUT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
N 304017008034 SCREW
N 304017008034 SCREW
N 912004008102 LOCK WASHER
N 912004008102 LOCK WASHER
N 912004008102 LOCK WASHER
N 304032008006 NUT
N 304032008006 NUT
N 304032008006 NUT
A 3524301092 ROD
Repalced by: N 900331008282
298D A 0004314312 BRAKE PRESSURE REGULATOR
298D A 0004314312 BRAKE PRESSURE REGULATOR
298D A 0004314312 BRAKE PRESSURE REGULATOR
A 0004314412 BRAKE PRESSURE REGULATOR
298K A 0004312713 GUIDE BUSHING
TO 000 431 43 12,000 431 44 12
298P A 0004316583 PISTON
TO 000 431 43 12,000 431 44 12
299 A 0109975845 SEAL RING
TO 000 431 43 12,000 431 44 12
300 A 0004310949 GUIDE BUSHING
TO 000 431 43 12,000 431 44 12
301 A 0004318760 FELT STRIP
TO 000 431 43 12,000 431 44 12
302 A 0089975646 SEAL RING
TO 000 431 43 12,000 431 44 12
303 A 0004318560 SEAL RING
TO 000 431 43 12,000 431 44 12
304 A 0004310968 VALVE PART
Repalced by: A 0004311068
304 A 0004311068 VALVE PART
TO 000 431 43 12,000 431 44 12
304 A 0004311068 VALVE PART
TO 000 431 43 12,000 431 44 12
304 A 0004311068 VALVE PART
TO 000 431 43 12,000 431 44 12
A 0014315793 SPRING
TO 000 431 44 12
305 A 0004318660 SEAL RING
TO 000 431 43 12,000 431 44 12
306 A 0004311049 GUIDE BUSHING
TO 000 431 43 12,000 431 44 12
307 A 0029937201 SPRING
TO 000 431 43 12,000 431 44 12
308 A 0004310465 VALVE
Repalced by: A 0004310265
308 A 0004310265 VALVE
Repalced by: A 3075530107
308 A 3075530107 VALVE
TO 000 431 43 12,000 431 44 12
308 A 3075530107 VALVE
TO 000 431 43 12,000 431 44 12
308 A 3075530107 VALVE
TO 000 431 43 12,000 431 44 12
N 007603018101 SEAL RING
TO 000 431 43 12,000 431 44 12
309 A 3604300339 SUPPORT
BRAKE POWER REGULATOR
309 A 3604300339 SUPPORT
BRAKE POWER REGULATOR
309 A 3604300339 SUPPORT
BRAKE POWER REGULATOR
309D N 000961012097 SCREW
Repalced by: N 308676012026
309D N 308676012026 SCREW
SUPPORT TO SIDE MEMBER
309D N 308676012026 SCREW
SUPPORT TO SIDE MEMBER
309D N 308676012026 SCREW
SUPPORT TO SIDE MEMBER
309K N 912004012100 LOCK WASHER
SUPPORT TO SIDE MEMBER
309K N 912004012100 LOCK WASHER
SUPPORT TO SIDE MEMBER
309K N 912004012100 LOCK WASHER
SUPPORT TO SIDE MEMBER
309R N 910113012002 NUT
SUPPORT TO SIDE MEMBER
309R N 910113012002 NUT
SUPPORT TO SIDE MEMBER
309R N 910113012002 NUT
SUPPORT TO SIDE MEMBER
310 N 000931010258 SCREW
BRAKE POWER REGULATOR TO SUPPORT
310 N 000931010258 SCREW
BRAKE POWER REGULATOR TO SUPPORT
310 N 000931010258 SCREW
BRAKE POWER REGULATOR TO SUPPORT
310K N 912004010102 LOCK WASHER
BRAKE POWER REGULATOR TO SUPPORT
310K N 912004010102 LOCK WASHER
BRAKE POWER REGULATOR TO SUPPORT
310K N 912004010102 LOCK WASHER
BRAKE POWER REGULATOR TO SUPPORT
310N N 913004010008 NUT
Repalced by: N 910113010000
310N N 910113010000 NUT
BRAKE POWER REGULATOR TO SUPPORT
310N N 910113010000 NUT
BRAKE POWER REGULATOR TO SUPPORT
310N N 910113010000 NUT
BRAKE POWER REGULATOR TO SUPPORT
A 3604305792 ROD
Repalced by: N 900331008426
A 3604306692 ROD
Repalced by: N 900331008426
N 900331008426 PULL ROD
BRAKE POWER REGULATOR CONTROL
311 A 3534300692 ROD
Repalced by: N 900331008426
A 3604307092 ROD
Repalced by: N 900331008426
N 900331008281 PULL ROD
Repalced by: N 900331008426
N 900331008426 PULL ROD
312 A 0004310667 YOKE
R.H. THREAD
312 A 0004310667 YOKE
R.H. THREAD
312 A 0004310667 YOKE
R.H. THREAD
312 A 0004310867 YOKE
L.H. THREAD
313 N 304032008006 NUT
R.H. THREAD
313 N 304032008006 NUT
R.H. THREAD
313 N 304032008006 NUT
R.H. THREAD
313 N 000934008035 NUT
L.H. THREAD
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE POWER REGULATOR CONTROL
A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
A 0004311718 METAL SPRING BELLOWS
N 000933012058 SCREW
METAL SPRING BELLOWS TO BRACKET
N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
314 A 3604310940 BRACKET
OPERATING ROD
314 A 3604310940 BRACKET
OPERATING ROD
315 A 3524312440 BRACKET
OPERATING ROD
315 A 3604311640 BRACKET
OPERATING ROD
315 A 3604311740 BRACKET
OPERATING ROD
315 A 3604311740 BRACKET
OPERATING ROD
315 A 3604311740 BRACKET
OPERATING ROD
315 A 3604311740 BRACKET
OPERATING ROD
A 3524316740 BRACKET
METAL SPRING BELLOWS
A 3524316640 BRACKET
METAL SPRING BELLOWS
317 A 3554310384 SHIM
BRACKET TO AXLE HOUSING
317 A 3554310384 SHIM
BRACKET TO AXLE HOUSING
317 A 3554310384 SHIM
BRACKET TO AXLE HOUSING
317 A 3554310384 SHIM
BRACKET TO AXLE HOUSING
317 A 3554310384 SHIM
BRACKET TO AXLE HOUSING
318 N 000933010157 SCREW
BRACKET TO AXLE HOUSING
318 N 000933010157 SCREW
BRACKET TO AXLE HOUSING
318 N 000933010157 SCREW
BRACKET TO AXLE HOUSING
318 N 000933010157 SCREW
BRACKET TO AXLE HOUSING
318 N 000933010157 SCREW
BRACKET TO AXLE HOUSING
318K N 912004008102 LOCK WASHER
OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
318K N 912004008102 LOCK WASHER
OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
318K N 912004008102 LOCK WASHER
OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
318P N 304032008006 NUT
OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
318P N 304032008006 NUT
OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
318P N 304032008006 NUT
OPERATING ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
319 A 3604230125 WEB
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
CLAMP TO OPERATING ROD BRACKET
N 912004008102 LOCK WASHER
CLAMP TO OPERATING ROD BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
CLAMP TO OPERATING ROD BRACKET
A 3605840721 GUIDE SIGN
A 3605840721 GUIDE SIGN
A 3605840721 GUIDE SIGN

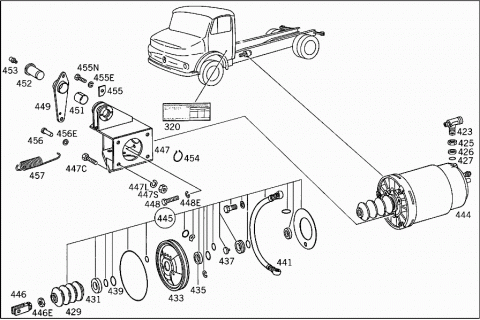

320 A 3605841121 GUIDE SIGN
LOAD-DEPENDING BRAKE
320 A 3605841121 GUIDE SIGN
LOAD-DEPENDING BRAKE
320 A 3605841121 GUIDE SIGN
LOAD-DEPENDING BRAKE
320 A 3605841621 GUIDE SIGN
LOAD-DEPENDING BRAKE
320 A 3605841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
320 A 3605841521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
322 A 3404201229 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
750 MM
323 A 0004311231 TEST CONNECTION
323 A 0004316631 TEST CONNECTION
323E N 000931006118 SCREW
TEST CONNECTION TO BRACKET
324 A 3609910140 SPACER TUBE
TEST CONNECTION TO BRACKET
324D N 000125006421 WASHER
TEST CONNECTION TO BRACKET
324K N 912004006102 LOCK WASHER
TEST CONNECTION TO BRACKET
324P N 000934006007 NUT
TEST CONNECTION TO BRACKET
325 A 3404200529 LINE
FROM TEST CONNECTION TO BRAKE HOSE BRACKET
400 MM
326 A 0024280735 BRAKE HOSE
600 MM
326 A 0004288935 BRAKE HOSE
650 MM
326 A 0014284835 BRAKE HOSE
650 MM
327 A 0004280473 BRACKET
Repalced by: A 6525040038
327 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
330 A 3224280140 BRACKET
BRAKE HOSE,REAR
331E N 000933008147 SCREW
Repalced by: N 304017008021
331E N 304017008021 SCREW
BRACKET TO RIGHT SIDE MEMBER
331M N 912004008102 LOCK WASHER
BRACKET TO RIGHT SIDE MEMBER
331R N 304032008006 NUT
BRACKET TO RIGHT SIDE MEMBER
N 000931006118 SCREW
TEST CONNECTION TO BRACKET
N 000125006421 WASHER
TEST CONNECTION TO BRACKET
N 912004006102 LOCK WASHER
TEST CONNECTION TO BRACKET
N 000934006007 NUT
TEST CONNECTION TO BRACKET
334 A 0004290437 DISTRIBUTOR
REAR AXLE
334 A 0004294337 DISTRIBUTOR
REAR AXLE
335 N 000931008152 SCREW
DISTRIBUTOR TO REAR AXLE
336 N 912004008102 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
337 A 3404202429 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1350 MM
337 A 3404202029 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1150 MM
338 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
339 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
340 N 000933008212 SCREW
Repalced by: N 304017008016
340 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
341 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
342 A 3404201029 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
650 MM
342 A 3404200729 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
500 MM
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
BRAKE LINE TO REAR AXLE
A 3854294040 BRACKET
Repalced by: A 3812711640
A 3812711640 BRACKET
BRAKE LINE TO REAR AXLE
N 000933008290 SCREW
BRACKET TO REAR AXLE
N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE
N 000084006197 SCREW
BRACKET TO REAR AXLE HOUSING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRACKET TO REAR AXLE HOUSING

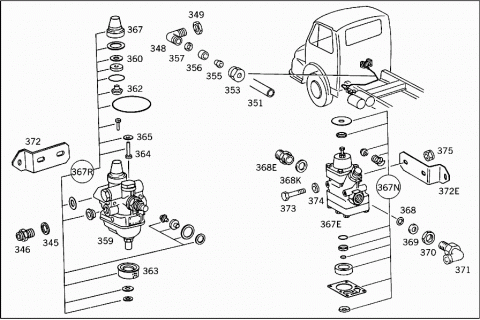

345 N 007603022102 SEAL RING
AT AIR COMPRESSOR
N 074305022202 NUT
AT AIR COMPRESSOR
A 0009870446 SEALING CORD
AT AIR COMPRESSOR
A 0004290227 THRUST RING
AT AIR COMPRESSOR
346 N 074313018201 FITTING
AT AIR COMPRESSOR
N 074301026202 ELBOW FITTING
AT AIR COMPRESSOR
348 A 0009903371 ELBOW FITTING
AT AIR COMPRESSOR
349 N 074305026202 NUT
AT PRESSURE REGULATOR
351 A 0005516456 TUBE
18 MM
353 N 915018018000 UNION NUT
355 N 003861018003 GLAND
Repalced by: A 0019901167
355 A 0019901167 SEAL CONE
356 N 915065018101 THRUST RING
357 N 915045014100 SEAL RING
357 N 007603022102 SEAL RING
359 A 0004314006 VALVE
Repalced by: A 0004319106
359 A 0004314906 VALVE
Repalced by: A 0004319206
359 A 0004319206 PRESSURE REGULATOR
Repalced by: A 0004319106
359 A 0004319106 PRESSURE REGULATOR
360 A 0004318360 SEAL RING
362 A 0007630553 SLEEVE
363 A 0004311434 STRAINER
364 A 0004310681 VALVE DISC
365 A 0004311381 VALVE DISC
A 0004311081 VALVE DISC
A 0009979486 PLUG
367 A 0004315687 PROTECTIVE CAP
367E A 0014314206 PRESSURE REGULATOR
Repalced by: A 0024315906
367E A 0014314306 PRESSURE REGULATOR
Repalced by: A 0024316006
367E A 0014312206 PRESSURE REGULATOR
Repalced by: A 0024316006
367E A 0024316006 PRESSURE REGULATOR
"WESTINGHOUSE"
367E A 0014314106 PRESSURE REGULATOR
Repalced by: A 0024313506
367E A 0024313506 PRESSURE REGULATOR
Repalced by: A 0024315906
367E A 0024315906 PRESSURE REGULATOR
"BOSCH"
A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 35 06,BOSCH 0 481 039 222
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 59 06,BOSCH 0 481 039 202
A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 35 06,BOSCH 0 481 039 222
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 59 06,BOSCH 0 481 039 202
367N A 0015868543 REPAIR KIT
Repalced by: A 0004301407
367N A 0004301407 REPAIR KIT
TO 001 431 41 06,BOSCH 0 481 039 102
A 0025864143 REPAIR KIT
TO 000 431 92 06,40 06,49 06
A 0025864143 REPAIR KIT
BOSCH 0 481 039 012/007/008
367R A 0025865043 REPAIR KIT
TO 000 431 92 06,91 06,40 06,49 06
367R A 0025865043 REPAIR KIT
BOSCH 0 481 039 012(011/007/008
A 0025864243 REPAIR KIT
TO 001 431 91 06,BOSCH 0 481 039 011
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 22 06,WEST. 975 300 111 0
A 0015864343 REPAIR KIT
Repalced by: A 0004301107
A 0004301107 REPAIR KIT
TO 001 431 22 06,WEST. 975 300 111 0
A 0014304960 REPAIR KIT
TO 002 431 60 06,WEST.975 303 440 0
A 0025866043 REPAIR KIT
TO 001 431 42 06,GRAU
368 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
368 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
368E N 074313018201 FITTING
AT PRESSURE REGULATOR
368E N 074313018201 FITTING
AT PRESSURE REGULATOR
368K N 007603022102 SEAL RING
AT PRESSURE REGULATOR
368K N 007603022102 SEAL RING
AT PRESSURE REGULATOR
369 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
369 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
370 N 074305022202 NUT
AT PRESSURE REGULATOR
370 N 074305022202 NUT
AT PRESSURE REGULATOR
371 N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
A 0004293238 ELBOW FITTING
AT PRESSURE REGULATOR
372 A 3524315340 BRACKET
PRESSURE REGULATOR
372E A 3524316340 BRACKET
PRESSURE REGULATOR
373 N 000933008153 SCREW
Repalced by: N 304017008034
373 N 304017008034 SCREW
PRESSURE REGULATOR TO FRAME
374 N 000125008418 WASHER
Repalced by: N 000125008443
374 N 000125008443 WASHER
PRESSURE REGULATOR TO FRAME
375 N 913004008004 NUT
Repalced by: N 913004008001
375 N 913004008001 NUT
PRESSURE REGULATOR TO FRAME
N 000931008228 SCREW
Repalced by: N 000933008134
N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
N 912002008001 LOCK
Repalced by: N 912002008003
N 912002008003 LOCK
PRESSURE REGULATOR TO BRACKET
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
PRESSURE REGULATOR TO BRACKET

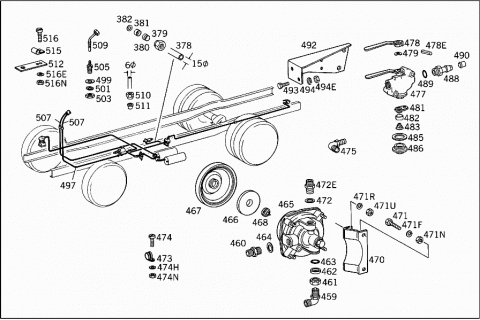

378 A 0005516256 TUBE
15 MM
379 N 915018015000 UNION NUT
380 N 003861015004 GLAND
381 N 915065015101 THRUST RING
382 N 915045012100 SEAL RING
Repalced by: N 007603012121
382 N 007603012121 SEAL RING
383 N 074298022203 DOUBLE FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
384 N 007603022102 SEAL RING
AT TWO-CIRCUIT PROTECTIVE VALVE
385 A 0004317206 VALVE
AT TWO-CIRCUIT PROTECTIVE VALVE
386 A 0004311981 VALVE DISC
TOP
024
387 A 0004312081 VALVE DISC
BOTTOM
024
388 A 0007630454 SEAL
024
389 A 0004315086 CUP
024
A 0014312086 CUP
Repalced by: A 0014312386
A 0014312386 CUP
104
A 0014312186 CUP
104
A 0004350780 GASKET
104
A 0004317987 PROTECTIVE CAP
104
A 0004315323 VALVE
104
A 0009934905 SPRING
104
A 0049977945 SEAL RING
Repalced by: A 0179974148
A 0179974148 SEAL RING
104
390 A 0009870446 SEALING CORD
AT TWO-CIRCUIT PROTECTIVE VALVE
390E A 0004290227 THRUST RING
AT TWO-CIRCUIT PROTECTIVE VALVE
390M N 074305022202 NUT
AT TWO-CIRCUIT PROTECTIVE VALVE
391 A 0019972372 FITTING
INSIDE AIR RESERVOIR
N 007603022102 SEAL RING
INSIDE AIR RESERVOIR
393 A 3214300205 RESERVOIR
Repalced by: A 0034322501
393 A 0034322501 RESERVOIR
40 L
A 0009970934 SCREW
AIR RESERVOIR,CONNECTIONS:
393H N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR
393P N 074298022203 DOUBLE FITTING
OUTSIDE AIR RESERVOIR
A 0009870446 SEALING CORD
OUTSIDE AIR RESERVOIR
A 0004290227 THRUST RING
OUTSIDE AIR RESERVOIR
N 074305022202 NUT
OUTSIDE AIR RESERVOIR
N 074301022203 ELBOW FITTING
OUTSIDE AIR RESERVOIR
N 074301022203 ELBOW FITTING
OUTSIDE AIR RESERVOIR
N 074302022202 T-FITTING
OUTSIDE AIR RESERVOIR
N 074302022202 T-FITTING
OUTSIDE AIR RESERVOIR
N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR
395 A 3214300205 RESERVOIR
Repalced by: A 0034322501
395 A 0034322501 RESERVOIR
OUTSIDE AIR RESERVOIR
40 L
A 3274300005 RESERVOIR
Repalced by: A 0034322701
A 0034322701 RESERVOIR
60 L
A 0009970934 SCREW
AIR RESERVOIR,CONNECTIONS:
395L N 007603022102 SEAL RING
AT VALVE
396 A 0004320607 VALVE
Repalced by: A 0004321107
396 A 0004320407 VALVE
Repalced by: A 0004320807
396 A 0004322407 VALVE
AIR RESERVOIR
398 A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
400 A 3604301311 CONSOLE
RESERVOIR
402 A 3354320218 BASE
RESERVOIR
402D N 000961012097 SCREW
Repalced by: N 308676012026
402D N 308676012026 SCREW
RESERVOIR TO SUPPORT
M 12X1.5X35
402D N 000961014028 SCREW
RESERVOIR TO SUPPORT
M 14X 1.5X40
402D N 000961014054 SCREW
RESERVOIR TO SUPPORT
M 14X1.5X45
402D N 000961012029 SCREW
RESERVOIR TO SUPPORT
M 12X1,5X40
402P N 007349013003 WASHER
Repalced by: N 007349013005
402P N 007349013005 WASHER
RESERVOIR TO SUPPORT
402P N 007349015003 WASHER
RESERVOIR TO SUPPORT
403U A 3434320026 PLATE
A 3529900640 WASHER
RESERVOIR TO SUPPORT
A 3609901740 WASHER
Repalced by: A 3859900440
A 3859900440 WASHER
Repalced by: A 3379900440
A 3379900440 WASHER
RESERVOIR TO SUPPORT
404 N 912004012100 LOCK WASHER
404E N 000934012022 NUT
404E N 913004014002 NUT
Repalced by: N 910113014001
404E N 910113014001 NUT
405 A 3604300040 STRAP
RESERVOIR
405E N 000934010014 NUT
AIR RESERVOIR TO CONSOLE
406 A 0004290227 THRUST RING
406D A 0009870446 SEALING CORD
406M N 074305022202 NUT
407 N 074301022203 ELBOW FITTING
407 N 074301022203 ELBOW FITTING
408 A 0009870446 SEALING CORD
408L A 0004290227 THRUST RING
408P N 074305022202 NUT
A 0009902470 T-FITTING
OUTSIDE AIR RESERVOIR,FRONT CONNECTION
409 N 074302022202 T-FITTING
INSIDE
409 N 074302022202 T-FITTING
INSIDE
410 N 074305022202 NUT
INSIDE
410C A 0004290227 THRUST RING
INSIDE
410H A 0009870446 SEALING CORD
INSIDE
412 A 0004296344 VALVE
Repalced by: A 0014295244
A 0005863642 REPAIR KIT
Repalced by: A 0005865842
A 0005865842 REPAIR KIT
TO 000 429 63 44
415 A 0015862642 REPAIR KIT
418 A 0014295244 VALVE
(OVERFLOW VALVE)
WESTINGHOUSE
418 A 0014295244 VALVE
(OVERFLOW VALVE)
WESTINGHOUSE
418 A 0014299844 VALVE
(OVERFLOW VALVE)
BOSCH
418 A 0014299844 VALVE
(OVERFLOW VALVE)
BOSCH
418 A 0014297944 VALVE
(OVERFLOW VALVE)
GRAU
418 A 0014297944 VALVE
(OVERFLOW VALVE)
GRAU
A 0034290244 VALVE
(OVERFLOW VALVE)
KNORR
A 0034290244 VALVE
(OVERFLOW VALVE)
KNORR
418E A 0004290145 DIAPHRAGM
TO 000 431 54 06
A 0024298844 VALVE
TO 001 429 79 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 001 429 79 44
A 0015862042 REPAIR KIT
TO 001 429 52 44
419 A 0009870446 SEALING CORD
AT OVERFLOW VALVE
419 A 0009870446 SEALING CORD
AT OVERFLOW VALVE
419F A 0004290227 THRUST RING
AT OVERFLOW VALVE
419F A 0004290227 THRUST RING
AT OVERFLOW VALVE
419N N 074305022202 NUT
AT OVERFLOW VALVE
419N N 074305022202 NUT
AT OVERFLOW VALVE
420 A 3609900071 ELBOW FITTING
AT OVERFLOW VALVE
420 A 3609900071 ELBOW FITTING
AT OVERFLOW VALVE
420C A 0009904468 FITTING
AT OVERFLOW VALVE
420C A 0009904468 FITTING
AT OVERFLOW VALVE
420C A 0009904468 FITTING
AT OVERFLOW VALVE
420E N 007603022102 SEAL RING
AT OVERFLOW VALVE
420E N 007603022102 SEAL RING
AT OVERFLOW VALVE
420E N 007603022102 SEAL RING
AT OVERFLOW VALVE
420H A 0004294137 DISTRIBUTOR
420H A 0004294137 DISTRIBUTOR
420H A 0004294137 DISTRIBUTOR
A 0039977572 FITTING
AT DISTRIBUTOR
A 0039977572 FITTING
AT DISTRIBUTOR
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
420K N 000908012003 SCREW PLUG
Repalced by: N 000908012009
420K N 000908012009 SCREW PLUG
AT DISTRIBUTOR
420K N 000908012009 SCREW PLUG
AT DISTRIBUTOR
420K N 000908012009 SCREW PLUG
AT DISTRIBUTOR
420L N 007603012405 SEAL RING
AT DISTRIBUTOR
420L N 007603012405 SEAL RING
AT DISTRIBUTOR
420L N 007603012405 SEAL RING
AT DISTRIBUTOR
A 0039977572 FITTING
AT DISTRIBUTOR
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
AT DISTRIBUTOR
N 915036008202 HOLLOW SCREW
AT DISTRIBUTOR
N 915036008202 HOLLOW SCREW
AT DISTRIBUTOR
N 000931006084 SCREW
Repalced by: N 304017006027
N 304017006027 SCREW
DISTRIBUTOR TO BRACKET
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
DISTRIBUTOR TO BRACKET
N 080705014002 NUT
DISTRIBUTOR TO FRAME
N 080705014002 NUT
DISTRIBUTOR TO FRAME
420P A 3604291440 BRACKET
DISTRIBUTOR
420P A 3604291540 BRACKET
DISTRIBUTOR
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
420T N 915036008202 HOLLOW SCREW
COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE
420T N 915036008202 HOLLOW SCREW
COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE
420T N 915036008202 HOLLOW SCREW
COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE
420U N 007603012405 SEAL RING
COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE
420U N 007603012405 SEAL RING
COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE
420U N 007603012405 SEAL RING
COMPRESSED AIR LINE TO DISTRIBUTOR AND TO OVERFLOW VALVE
420W A 0089979082 HOSE
FROM DISTRIBUTOR TO OVERFLOW VALVE
800 MM
420W A 0089979082 HOSE
FROM DISTRIBUTOR TO OVERFLOW VALVE
800 MM
420W A 0089979082 HOSE
FROM DISTRIBUTOR TO OVERFLOW VALVE
800 MM
N 915017008100 UNION NUT
N 915017008100 UNION NUT
421 N 915052006013 BANJO UNION
421 N 915052006013 BANJO UNION
421 N 915052006013 BANJO UNION
N 003861008005 GLAND
N 003861008005 GLAND
N 915062006000 SLEEVE
N 915062006000 SLEEVE
422 A 0019978390 LOOM TIE
422 A 0019978390 LOOM TIE
422 A 0019978390 LOOM TIE
423 A 0004311675 THREADED UNION
AT BRAKE CYLINDER
423 A 0004311675 THREADED UNION
AT BRAKE CYLINDER
A 3529900071 ELBOW FITTING
AT BRAKE CYLINDER
425 N 080705016003 NUT
AT BRAKE CYLINDER
426 A 0004310051 SPACER RING
AT BRAKE CYLINDER
427 A 0009971548 SEAL RING
AT BRAKE CYLINDER
A 0004311514 BRAKE BOOSTER
Repalced by: A 0004316214
A 0004316214 BRAKE BOOSTER
Repalced by: A 0004318914
429 A 0004317186 CUP
431 A 0004312886 SEAL RING
433 A 0004315783 PISTON
Repalced by: A 0004316983
433 A 0004316983 PISTON
435 A 0004317060 SEAL RING
435 A 0004319460 SEAL RING
TO 000 431 62 14
437 A 0003270032 VALVE PART
TO 000 431 15 14
A 0004311881 VALVE DISC
TO 000 431 62 14
439 A 0004319460 SEAL RING
TO 000 431 15 14
439 A 0004319560 SEAL RING
TO 000 431 62 14
441 A 0004289535 BRAKE HOSE
505 MM
N 007603014405 SEAL RING
444 A 0004318914 BRAKE CYLINDER
AIR BRAKE BOOSTER
445 A 0025860043 REPAIR KIT
Repalced by: A 0004309160
445 A 0004309160 REPAIR KIT
TO 000 431 89 14
446 A 3604310267 YOKE
AT BRAKE CYLINDER
446E N 000936010010 NUT
AT BRAKE CYLINDER
447 A 3524300811 CONSOLE
Repalced by: A 3604302011
447 A 3604302011 CONSOLE
BRAKE BOOSTER
A 3604302111 CONSOLE
BRAKE BOOSTER
447C N 000933010105 SCREW
CONSOLE TO FRAME
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
CONSOLE TO FRAME SIDE MEMBER
447L N 912004010102 LOCK WASHER
CONSOLE TO FRAME
447S N 000934010014 NUT
CONSOLE TO FRAME
448 N 000933010129 SCREW
Repalced by: N 304017010002
448 N 304017010002 SCREW
BRAKE CYLINDER TO CONSOLE
448E N 912004010102 LOCK WASHER
BRAKE CYLINDER TO CONSOLE
449 A 3524301323 LEVER
BRAKE BOOSTER
451 A 3529920801 BUSHING
452 A 3524310074 PIN
DOUBLE LEVER TO CONSOLE
452 A 3604310074 PIN
DOUBLE LEVER TO CONSOLE
453 N 071412010200 GREASE NIPPLE
DOUBLE LEVER TO CONSOLE
454 N 000471030000 LOCK RING
DOUBLE LEVER TO CONSOLE
455 A 3149940101 LOCK
DOUBLE LEVER TO CONSOLE
455E N 912004008102 LOCK WASHER
DOUBLE LEVER TO CONSOLE
455N N 000933008130 SCREW
Repalced by: N 304017008039
455N N 304017008039 SCREW
DOUBLE LEVER TO CONSOLE
456 A 3149910207 PIN
LEVER TO ROD
456E N 000433010505 WASHER
Repalced by: N 000433010510
456E N 000433010510 WASHER
LEVER TO ROD
N 000094003219 COTTER PIN
LEVER TO ROD
457 A 3609930210 SPRING
RELEASE SPRING
459 N 074301022203 ELBOW FITTING
459 N 074301022203 ELBOW FITTING
460 N 074298022203 DOUBLE FITTING
460 N 074298022203 DOUBLE FITTING
461 N 074305022202 NUT
461 N 074305022202 NUT
462 A 0004290227 THRUST RING
462 A 0004290227 THRUST RING
463 A 0009870446 SEALING CORD
463 A 0009870446 SEALING CORD
464 N 007603022102 SEAL RING
464 N 007603022102 SEAL RING
465 A 0004318705 BRAKE VALVE
466 A 0004313086 CUP
A 0004317286 CUP
467 A 0004313186 CUP
468 A 0004350390 VALVE DISC
470 A 3524311540 BRACKET
470 A 3524311640 BRACKET
471 N 000961012052 SCREW
Repalced by: N 308676012012
471 N 308676012012 SCREW
471F N 912004012100 LOCK WASHER
471N N 000934012022 NUT
471R N 912004010102 LOCK WASHER
471U N 000934010014 NUT
N 074298022203 DOUBLE FITTING
472 N 007603022102 SEAL RING
472E N 074298022203 DOUBLE FITTING
473 A 3609952001 CLAMP
Repalced by: A 6739950001
473 A 6739950001 CLAMP
474 N 000084006197 SCREW
474H N 912004006102 LOCK WASHER
474N N 000934006007 NUT
475 N 074301022203 ELBOW FITTING
N 074305022202 NUT
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 007603022102 SEAL RING
N 074298022203 DOUBLE FITTING
477 A 0004290631 SHUT-OFF COCK
Repalced by: A 0004291431
477 A 0004291431 SHUT-OFF COCK
477 A 0004291631 SHUT-OFF COCK
478 A 0004290278 HANDLE
TO 000 429 06 31
A 0009974077 HANDLE
TO 000 429 16 31
478E N 001473004003 GROOVED PIN
TO 000 429 06 31
479 A 0004290162 THRUST WASHER
TO 000 429 06 31
481 A 0004290284 SEAL RING
TO 000 429 06 31
A 0004292684 SEAL RING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
482 A 0004290085 SEAL HOLDER
TO 000 429 06 31
483 A 0004290393 SPRING
TO 000 429 06 31
A 0004292293 SPRING
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
485 N 007603038300 SEAL RING
TO 000 429 06 31
486 A 0005910156 SCREW PLUG
TO 000 429 06 31
A 0005866342 REPAIR KIT
TO 000 429 14 31
488 A 0004290141 FITTING
Repalced by: N 074304022201
488 N 074304022201 FITTING
489 N 007603022102 SEAL RING
490 A 0004290181 GROMMET
N 000963008045 SCREW
N 912004008102 LOCK WASHER
N 304032008006 NUT
492 A 3224290640 BRACKET
A 3224290740 BRACKET
A 3524291140 BRACKET
493 N 000933010164 SCREW
494 N 912004010102 LOCK WASHER
494E N 000934010014 NUT
497 A 0004290701 LINE
Repalced by: A 0004296201
497 A 0004296201 LINE
6 MM
499 N 000125013008 WASHER
501 N 006797012153 TOOTHED WASHER
503 N 000936012009 NUT
505 A 0019973772 FITTING
A 3525407461 ELECTRIC CABLE
Repalced by: A 0089976082
507 A 0089976082 HOSE
Repalced by: A 0009872627
507 A 0009872627 PLASTIC PIPE
A 0019975072 FITTING
BRAKE PRESSURE CONTROL
A 0019973472 FITTING
Repalced by: N 915059004001
N 915059004001 FITTING
BRAKE PRESSURE CONTROL
N 915017006200 UNION NUT
BRAKE PRESSURE CONTROL
N 040621010200 INSULATING HOSE
BRAKE PRESSURE CONTROL
509 A 0004760624 CONNECTOR
510 N 915017006100 UNION NUT
511 N 003861006007 GLAND
Repalced by: A 0019901667
511 A 0019901667 SEAL CONE
512 A 3124292440 BRACKET
Repalced by: A 3124761535
512 A 3124761535 BRACKET
N 007985006155 SCREW
515 A 3609950101 CLAMP
N 007971004227 SHEET METAL SCREW
516 N 000084006134 SCREW
516E N 912004006102 LOCK WASHER
516N N 000934006007 NUT
518 A 3124271220 HANDLE
HAND BRAKE VALVE
521 N 000964006028 SCREW
HANDLE TO RATCHET ROD
521E N 006797006146 TOOTHED WASHER
HANDLE TO RATCHET ROD
522 N 912004006102 LOCK WASHER
HANDLE TO RATCHET ROD
523 N 001587006001 CAP NUT
HANDLE TO RATCHET ROD
524 A 3124271086 DAMPING RING
526 A 3214201274 ROD
526 A 3214201374 ROD
527 A 3534270095 PROTECTIVE CAP
A 3124271151 SPACER RING
N 001473004021 GROOVED PIN
528 A 3124201178 BEARING BRACKET
PISTOL-GRIP HAND BRAKE
528S N 000472015000 LOCK RING
529 N 001473004023 GROOVED PIN
529B A 3145860142 REPAIR KIT
Repalced by: A 3144200092
529B A 3144200092 REPAIR KIT
PAWL
529E N 000933008145 SCREW
BEARING BRACKET TO FIRE WALL
529N N 912004008102 LOCK WASHER
BEARING BRACKET TO FIRE WALL
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
529 B
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
529 B
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
529 B
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
529 B
534 A 3529910407 PIN
535 N 000433008406 WASHER
N 000094002059 COTTER PIN
537 A 3604201012 BRAKE LEVER
HAND BRAKE
537 A 3604200812 BRAKE LEVER
HAND BRAKE
539 A 3529921201 BUSHING
540 N 071412010300 GREASE NIPPLE
541 A 3214200778 BEARING BRACKET
542 N 000933010129 SCREW
Repalced by: N 304017010002
542 N 304017010002 SCREW
BEARING BRACKET TO FRAME
543 N 000934010014 NUT
BEARING BRACKET TO FRAME
544 N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
545 A 3129901540 WASHER
BRAKE LEVER TO BEARING BRACKET
546 N 000471022000 LOCK RING
BRAKE LEVER TO BEARING BRACKET
547 A 3604200286 BRACKET
HAND BRAKE LINKAGE
547D N 000933008145 SCREW
BRACKET TO ENGINE CROSS MEMBER
547L N 912004008102 LOCK WASHER
BRACKET TO ENGINE CROSS MEMBER
547S N 304032008006 NUT
BRACKET TO ENGINE CROSS MEMBER
548 A 3214200176 END PIECE
549 A 3529910007 PIN
550 N 000125010518 WASHER
Repalced by: N 000125010532
550 N 000125010532 WASHER
N 000094003219 COTTER PIN
551 N 000934010014 NUT
552 N 900331010660 PULL ROD
554 A 3604300110 BRACKET
HAND BRAKE VALVE
554 A 3604300310 BRACKET
HAND BRAKE VALVE
554E N 000933010164 SCREW
VALVE TO CROSS MEMBER
554E N 000931010331 SCREW
VALVE TO CROSS MEMBER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
VALVE TO CROSS MEMBER
555 A 3604270253 SPACER TUBE
VALVE TO CROSS MEMBER
556 N 912004010102 LOCK WASHER
VALVE TO CROSS MEMBER
556E N 000934010014 NUT
VALVE TO CROSS MEMBER
557 A 3604200681 LEVER
TOP
559 A 3229920101 BUSHING
561 N 071412010100 GREASE NIPPLE
563 N 001434014046 PIN
UPPER LEVER TO BRACKET
563 N 001434014052 PIN
UPPER LEVER TO BRACKET
565 N 000125015000 WASHER
UPPER LEVER TO BRACKET
N 000094004065 COTTER PIN
UPPER LEVER TO BRACKET
567 A 3604200781 LEVER
BOTTOM
567 A 3604200881 LEVER
BOTTOM
569 A 3229920101 BUSHING
N 071412010100 GREASE NIPPLE
571 A 3604200089 SHACKLE
573 N 001434012078 PIN
SHACKLE TO HAND BRAKE VALVE
N 000433013005 WASHER
Repalced by: N 000433013010
N 000433013010 WASHER
SHACKLE TO HAND BRAKE VALVE
N 000094004024 COTTER PIN
SHACKLE TO HAND BRAKE VALVE
575 N 001434014045 PIN
576 N 000125015013 WASHER
Repalced by: N 000125015019
576 N 000125015019 WASHER
N 000094004065 COTTER PIN
578 A 3404200278 BEARING BRACKET
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
580 A 3524202381 LEVER
580 A 3524203081 LEVER
583 A 3529921201 BUSHING
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
584 N 071412010300 GREASE NIPPLE
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
585 A 3124261574 PIN
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
586 N 000471022000 LOCK RING
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
587 N 000933010129 SCREW
Repalced by: N 304017010002
587 N 304017010002 SCREW
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
A 3609901240 WASHER
Repalced by: A 1159903140
A 1159903140 WASHER
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
589 N 912004010102 LOCK WASHER
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
590 N 000934010014 NUT
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
591 N 900331010654 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
591 N 900331010657 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
591 N 900331010658 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
591 N 900331010660 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
591 N 900331010662 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
591 N 900331010656 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
594 A 0009961501 YOKE
PULL ROD TO INTERMEDIATE LEVER
594 A 3224200247 YOKE
PULL ROD TO INTERMEDIATE LEVER
596 N 000934010014 NUT
PULL ROD TO INTERMEDIATE LEVER
599 A 3149910207 PIN
PULL ROD TO INTERMEDIATE LEVER
601 N 900055010002 SPRING WASHER
Repalced by: N 000137010205
601 N 000137010205 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
603 N 000433010505 WASHER
Repalced by: N 000433010510
603 N 000433010510 WASHER
PULL ROD TO INTERMEDIATE LEVER
N 000094003219 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
605 N 900331010465 PULL ROD
Repalced by: N 900331010657
605 N 900331010657 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
605 N 900331010655 PULL ROD
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
607 A 0009961501 YOKE
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
609 A 3224200247 YOKE
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
611 N 000934010014 NUT
FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER
A 3529910007 PIN
N 900055010003 SPRING WASHER
N 000433010505 WASHER
Repalced by: N 000433010510
N 000433010510 WASHER
N 000094003219 COTTER PIN
613 A 3604200080 BRAKE INTERMEDIATE SHAFT
613 A 3604200880 BRAKE INTERMEDIATE SHAFT
613 A 3524200580 BRAKE INTERMEDIATE SHAFT
613 A 3604200980 BRAKE INTERMEDIATE SHAFT
613 A 3604200380 BRAKE INTERMEDIATE SHAFT
613 A 3604200480 BRAKE INTERMEDIATE SHAFT
613 A 3604201180 BRAKE INTERMEDIATE SHAFT
613 A 3604201280 BRAKE INTERMEDIATE SHAFT
613 A 3604200880 BRAKE INTERMEDIATE SHAFT
613 A 3604200980 BRAKE INTERMEDIATE SHAFT
615 A 3604200080 BRAKE INTERMEDIATE SHAFT
615 A 3524200580 BRAKE INTERMEDIATE SHAFT
617 A 3274270058 SEAL HOLDER
BRAKE INTERMEDIATE SHAFT
619 A 3279970040 SEAL RING
BRAKE INTERMEDIATE SHAFT
621 A 3584201078 BEARING BRACKET
621 A 3584200278 BEARING BRACKET
623 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
625 N 000470052000 EXPANSION PLUG
626 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
626 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
626 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
627 N 000961012151 SCREW
BEARING BRACKET TO FRONT CROSS MEMBER
627E N 912004012100 LOCK WASHER
BEARING BRACKET TO FRONT CROSS MEMBER
627N N 000934012022 NUT
BEARING BRACKET TO FRONT CROSS MEMBER
628 A 3524201474 ROD
Repalced by: A 3604200474
A 3604200474 ROD
FRONT
A 3604200774 ROD
REAR
N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
A 3859960034 NUT
FROM BRAKE SHAFT TO BRAKE LEVER
N 000934012020 NUT
FROM BRAKE SHAFT TO BRAKE LEVER
N 000934012021 NUT
FROM BRAKE SHAFT TO BRAKE LEVER
630 A 3529910207 PIN
PULL ROD TO INTERMEDIATE LEVER
632 N 900055012001 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
634 N 000433013005 WASHER
Repalced by: N 000433013010
634 N 000433013010 WASHER
PULL ROD TO INTERMEDIATE LEVER
N 000094003210 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
A 3529910107 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
N 000433013005 WASHER
Repalced by: N 000433013010
N 000433013010 WASHER
PULL ROD TO BRAKE LEVER,REAR AXLE
N 000094003210 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
638 A 3524200086 BRACKET
HAND BRAKE LINKAGE
640 A 0009973481 GROMMET
641 N 000933008147 SCREW
Repalced by: N 304017008021
641 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
641D N 000125008418 WASHER
Repalced by: N 000125008443
641D N 000125008443 WASHER
BRACKET TO CROSS MEMBER
641L N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
641R N 304032008006 NUT
BRACKET TO CROSS MEMBER
642 A 3024230636 BRAKE CAMSHAFT
642D A 3604231136 BRAKE CAMSHAFT
Repalced by: A 3604232536
642D A 3604232536 BRAKE CAMSHAFT
644 A 3414230186 CUP
646 A 3024230037 ADJUSTING LEVER
LEFT
646 A 3024230137 ADJUSTING LEVER
RIGHT
648 A 3024230170 STUD
650 N 000936018006 NUT
652 A 3544230171 SCREW
654 N 000936012005 NUT
Repalced by: N 308675012000
654 N 308675012000 NUT
A 3604260011 LEVER
Repalced by: A 3604260611
A 3604260011 LEVER
Repalced by: A 3604260611
657 A 3604260611 LEVER
LEFT
657 A 3604260611 LEVER
LEFT
657D A 3604261411 LEVER
LEFT
657D A 3604261411 LEVER
LEFT
657D A 3604261811 LEVER
LEFT
A 3604260111 LEVER
Repalced by: A 3604260711
A 3604260111 LEVER
Repalced by: A 3604260711
A 3604260711 LEVER
RIGHT
A 3604260711 LEVER
RIGHT
A 3604261511 LEVER
RIGHT
A 3604261511 LEVER
RIGHT
A 3604261911 LEVER
RIGHT
N 000931010271 SCREW
BRAKE LEVER ON BRAKE SHAFT
661 A 3604270025 LEVER
661 A 3604270225 LEVER
661 A 3604270225 LEVER
661 A 3604270125 LEVER
661 A 3604270325 LEVER
661 A 3604270325 LEVER
664 N 000610012003 FITTED SCREW
667 N 000610012003 FITTED SCREW
668 N 912004012100 LOCK WASHER
668E N 000934012021 NUT
669 A 3024260105 BEARING
669D A 3024260405 BEARING
672 N 000960016052 SCREW
BEARING BRACKET TO REAR AXLE
672 N 000960016140 SCREW
Repalced by: N 000960016206
672 N 000960016206 SCREW
BEARING BRACKET TO REAR AXLE
675 N 912004016101 LOCK WASHER
BEARING BRACKET TO REAR AXLE
679E A 0009814331 JOINT BEARING
Repalced by: A 3605860242
681 N 003760045300 RADIAL SEAL RING
681 A 0119975546 SEAL RING
N 071412010100 GREASE NIPPLE
684 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
684 N 071412008102 GREASE NIPPLE
687 A 3029970020 EXPANSION PLUG
Repalced by: A 3609970020
687F A 3604230057 STOP WASHER
AT BEARING BRACKET
687H A 0019972848 SEAL RING
AT BEARING BRACKET
690 N 000472062000 LOCK RING
Repalced by: A 0039945241
690 A 0039945241 LOCK
AT BEARING BRACKET
690H N 000471032000 LOCK RING
AT BEARING BRACKET
692 A 3024230153 SPACER TUBE
AS REQUIRED
11.00 MM
692 A 3024230253 SPACER TUBE
AS REQUIRED
11.50 MM
692 A 3024230353 SPACER TUBE
AS REQUIRED
12.00 MM
692 A 3024230453 SPACER TUBE
AS REQUIRED
12.50 MM
692 A 3024230553 SPACER TUBE
AS REQUIRED
13.00 MM
692 A 3024230653 SPACER TUBE
AS REQUIRED
13.50 MM
692 A 3024230753 SPACER TUBE
AS REQUIRED
10.50 MM
696 N 000471045000 LOCK RING
699 N 000471035000 LOCK RING
A 3605860242 REPAIR KIT
Repalced by: A 3604200241
A 3604200241 REPAIR KIT
BRAKE CAMSHAFT BEARING
700 A 3025860142 REPAIR KIT
Repalced by: A 3024200067
700 A 3024200067 REPAIR KIT
BRAKE CAMSHAFT BEARING
703 N 007603022102 SEAL RING
AT HAND BRAKE VALVE
705 N 074298022203 DOUBLE FITTING
AT HAND BRAKE VALVE
708 N 074301022203 ELBOW FITTING
AT HAND BRAKE VALVE
711 N 074305022202 NUT
AT HAND BRAKE VALVE
714 A 0004290227 THRUST RING
AT HAND BRAKE VALVE
716 A 0009870446 SEALING CORD
AT HAND BRAKE VALVE
720 A 0004310616 VALVE
HAND BRAKE VALVE
722 A 0004317386 CUP
726 A 0004290695 AIR CLEANER
727 A 0004317087 PROTECTIVE CAP
728 A 0004350390 VALVE DISC
730 N 001433012015 PIN
N 000094004065 COTTER PIN
745 N 007603022102 SEAL RING
AT HAND BRAKE VALVE
747 N 007604022201 SCREW PLUG
AT HAND BRAKE VALVE
747 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
747 N 000908022011 SCREW PLUG
AT HAND BRAKE VALVE
749 A 0009870446 SEALING CORD
AT HAND BRAKE VALVE
751 A 0004290227 THRUST RING
AT HAND BRAKE VALVE
752 N 074305022202 NUT
AT HAND BRAKE VALVE
753 N 074302022304 T-FITTING
AT HAND BRAKE VALVE
753 A 0004295032 T-FITTING
Repalced by: A 0009902970
753 A 0009902970 T-FITTING
AT HAND BRAKE VALVE
755 A 0019979572 FITTING
AT HAND BRAKE VALVE
757 A 0005455414 SWITCH
AT HAND BRAKE VALVE
758 N 000931010272 SCREW
HAND BRAKE VALVE TO BRACKET
759 N 912004010102 LOCK WASHER
HAND BRAKE VALVE TO BRACKET
760 N 000934010014 NUT
HAND BRAKE VALVE TO BRACKET
761 A 0109975982 HOSE
Repalced by: A 0009872827
761 A 0009872827 PLASTIC PIPE
ORDER BY THE METER
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
763 A 0009921505 BUSHING
Repalced by: N 915062009000
763 N 915062009000 SLEEVE
765 N 915017012100 UNION NUT
767 N 003861012007 GLAND
Repalced by: A 0019901967
767 A 0019901967 SEAL CONE
770 N 007603016401 SEAL RING
774 A 0009970572 FITTING
Repalced by: N 074313010100
774 N 074313010100 FITTING
776 N 074315012100 FITTING
Repalced by: A 0019903371
776 A 0019903371 ELBOW FITTING
AT BRAKE CYLINDER
777 N 080705016003 NUT
AT BRAKE CYLINDER
778 A 0004290927 THRUST RING
AT BRAKE CYLINDER
779 A 0009971548 SEAL RING
AT BRAKE CYLINDER
782 A 0004312114 BRAKE CYLINDER
BOSCH
782 A 0014311314 BRAKE CYLINDER
WESTINGHOUSE
782 A 0004317714 BRAKE CYLINDER
KNORR
784 A 0004318186 CUP
Repalced by: A 0015864342
A 0004310736 FILTER BOTTOM
TO 000 431 21 14
A 0014311160 SEAL RING
TO 000 431 77 14
786 A 0004317486 CUP
Repalced by: A 0004319186
786 A 0004319186 CUP
Repalced by: A 0004312786
786 A 0004319686 CUP
TO 000 431 77 14
A 0059971148 SEAL RING
TO 000 431 77 14
788 A 0004310649 SLIDE
TO 000 431 21 14
A 0004319586 CUP
TO 000 431 77 14
789 A 0004318587 PROTECTIVE CAP
TO 001 431 13 14
A 0004312786 CUP
TO 000 431 21 14
A 0004318583 PISTON
TO 000 431 21 14
A 0089977548 SEAL RING
TO 000 431 21 14
A 0049971740 SEAL RING
TO 000 431 21 14
A 0004311880 GASKET
TO 000 431 77 14
790 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
790 A 0034201724 REPAIR KIT
TO 000 431 21 14
A 0015864243 REPAIR KIT
Repalced by: A 0025861443
800 A 0025861443 REPAIR KIT
TO 001 431 13 14
A 3164300111 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
804 A 3604302311 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
A 3604300911 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
804 A 3604302411 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
810 N 000933010105 SCREW
BRAKE CYLINDER TO CONSOLE
815 N 912004010102 LOCK WASHER
BRAKE CYLINDER TO CONSOLE
820 N 000934010014 NUT
BRAKE CYLINDER TO CONSOLE
825 N 000933010129 SCREW
Repalced by: N 304017010002
825 N 304017010002 SCREW
CONSOLE TO CROSS MEMBER
830 A 3609900040 WASHER
Repalced by: A 4219905440
830 A 4219905440 WASHER
CONSOLE TO CROSS MEMBER
835 N 000125010518 WASHER
Repalced by: N 000125010532
835 N 000125010532 WASHER
CONSOLE TO CROSS MEMBER
840 N 912004010102 LOCK WASHER
CONSOLE TO CROSS MEMBER
845 N 000934010014 NUT
CONSOLE TO CROSS MEMBER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
