Transporto priemonė: LS 1513; VIN numerio dalis: 360014

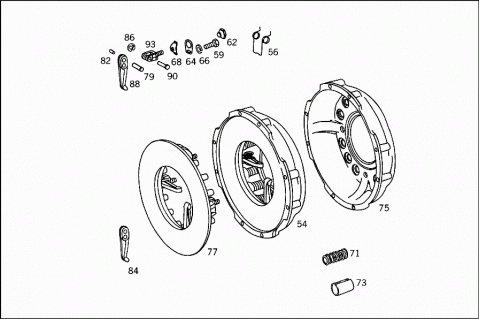

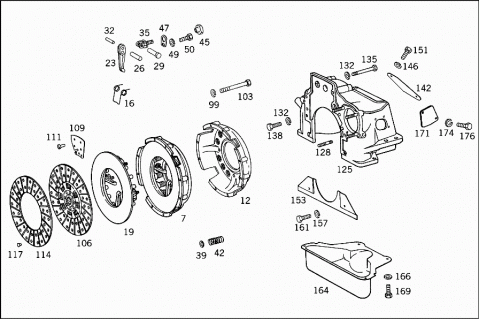

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 0012500304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509404 | ||
| 007 | A 0022509404 | CLUTCH PRESSURE PLATE |
| 012 | A 0002522332 | HOUSING |
| Repalced by: A 0002524332 | ||
| 012 | A 0002524332 | HOUSING |
| 016 | A 0002520827 | SPRING |
| RELEASE LEVER,BRACKET | ||
| A 0012505104 | CLUTCH PRESSURE PLATE | |
| A 0002523912 | PRESSURE PLATE | |
| 019 | A 0002524312 | PRESSURE PLATE |
| 023 | A 0002523713 | RELEASE LEVER |
| PRESSURE PLATE | ||
| 026 | A 0002521616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 029 | A 0002521716 | SPINDLE |
| FOR BRACKETS | ||
| N 006799007007 | LOCK PLATE | |
| PRESSURE PLATE | ||
| 032 | A 0002520318 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 035 | A 0002521514 | BRACKET |
| Repalced by: A 0002522314 | ||
| 035 | A 0002522314 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 039 | A 0002520024 | INSULATING WASHER |
| PRESSURE PLATE | ||
| TO 001 250 03 04 | ||
| 042 | A 0002525020 | PRESSURE SPRING |
| PRESSURE PLATE | ||
| A 0002520253 | SPACER TUBE | |
| PRESSURE PLATE | ||
| A 0002520619 | LEAF SPRING | |
| PRESSURE PLATE | ||
| A 0002522472 | NUT | |
| Repalced by: A 0002523372 | ||
| 045 | A 0002523372 | NUT |
| PRESSURE PLATE | ||
| 047 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 047 | A 0002521173 | LOCK |
| PRESSURE PLATE | ||
| 049 | N 912004005103 | LOCK WASHER |
| PRESSURE PLATE | ||
| 050 | A 0009902721 | SCREW |
| Repalced by: N 007985005157 | ||
| 050 | N 007985005157 | SCREW |
| PRESSURE PLATE | ||
| 054 | A 0022506104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509604 | ||
| 054 | A 0022509604 | CLUTCH PRESSURE PLATE |
| 056 | A 0002520827 | SPRING |
| RELEASE LEVER,BRACKET | ||
| 059 | N 007985005157 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 059 | A 0002522971 | SCREW |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 062 | A 0002522472 | NUT |
| Repalced by: A 0002523372 | ||
| 062 | A 0002523372 | NUT |
| CLUTCH PRESSURE PLATE | ||
| 064 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 064 | A 0002521173 | LOCK |
| CLUTCH PRESSURE PLATE | ||
| 066 | N 912004005103 | LOCK WASHER |
| CLUTCH PRESSURE PLATE | ||
| 068 | A 0002520619 | LEAF SPRING |
| PRESSURE PLATE | ||
| 071 | A 0002525020 | PRESSURE SPRING |
| PRESSURE PLATE | ||
| 073 | A 0002520253 | SPACER TUBE |
| PRESSURE PLATE | ||
| 075 | A 0002523832 | HOUSING |
| Repalced by: A 0002524432 | ||
| 075 | A 0002524432 | HOUSING |
| A 0002523912 | PRESSURE PLATE | |
| 077 | A 0002524312 | PRESSURE PLATE |
| 079 | A 0002521616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 082 | A 0002520318 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 084 | A 0002525013 | RELEASE LEVER |
| 086 | N 006799007007 | LOCK PLATE |
| PRESSURE PLATE | ||
| 088 | A 0002523713 | RELEASE LEVER |
| PRESSURE PLATE | ||
| 090 | A 0002521716 | SPINDLE |
| FOR BRACKETS | ||
| 093 | A 0002522314 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 099 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 103 | A 3522520071 | SCREW |
| Repalced by: N 304017008036 | ||
| 103 | N 304017008036 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 103 | N 000931008229 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 106 | A 0092501203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 106 | A 0092501303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 106 | A 0032508203 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 106 | A 0022500403 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 106 | A 0052500603 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 106 | A 0052500703 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 106 | A 0032508603 | CLUTCH DISC |
| 109 | A 0002522019 | LEAF SPRING |
| 111 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 114 | A 0012525010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 114 | A 0002525210 | CLUTCH LINING |
| Repalced by: A 0002529010 | ||
| 114 | A 0002529010 | CLUTCH LINING |
| 117 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 117 | A 0002523875 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 125 | A 3522500305 | HOUSING |
| Repalced by: A 3522512001 | ||
| 125 | A 3522502005 | HOUSING |
| Repalced by: A 3522512001 | ||
| 125 | A 3522501605 | HOUSING |
| Repalced by: A 3522512001 | ||
| 125 | A 3522511501 | BELL HOUSING |
| Repalced by: A 3522512001 | ||
| 125 | A 3522512001 | BELL HOUSING |
| 125 | A 3522512101 | BELL HOUSING |
| N 000908016008 | SCREW PLUG | |
| BELL HOUSING | ||
| N 007603016401 | SEAL RING | |
| BELL HOUSING | ||
| 128 | N 000939010027 | STUD BOLT |
| STARTING MOTOR TO BELL HOUSING | ||
| 128 | A 0009902605 | STUD |
| STARTING MOTOR TO BELL HOUSING | ||
| 132 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO ENGINE | ||
| 135 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12 X 135 | ||
| N 900170012004 | SCREW | |
| Repalced by: N 914141012800 | ||
| N 914141012800 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12 X 40 | ||
| 138 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 138 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12 X 35 | ||
| 138 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12 X 35 | ||
| 142 | A 3602510004 | END COVER |
| TOP | ||
| 146 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 151 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 151 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 153 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 153 | A 3522510106 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 153 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 153 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 157 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 161 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 161 | N 304017006034 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 164 | A 3522510002 | BELL HOUSING |
| Repalced by: A 3522510202 | ||
| 164 | A 3522510102 | BELL HOUSING |
| Repalced by: A 3522510202 | ||
| 164 | A 3812510102 | BELL HOUSING |
| Repalced by: A 3522510202 | ||
| 164 | A 3522510202 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 164 | A 3522503105 | HOUSING |
| Repalced by: A 3522510202 | ||
| 164 | A 3522510202 | BELL HOUSING |
| 166 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 169 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 169 | N 304017006034 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 171 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 174 | N 912004008102 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 176 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 176 | N 304017008016 | SCREW |
| END COVER TO BELL HOUSING | ||
