Transporto priemonė: LS 1513; VIN numerio dalis: 360014
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

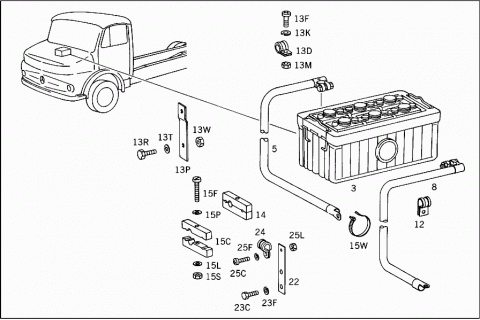

| A 0005417801 | BATTERY | |
| Repalced by: A 3875400901 | ||
| 003 | A 3875400901 | BATTERY |
| Repalced by: A 0035410201 | ||
| 003 | A 0035410201 | BATTERY |
| Repalced by: A 0015419701 | ||
| 003 | A 0015419701 | BATTERY |
| Repalced by: A 0025411701 | ||
| 003 | A 0025411701 | BATTERY |
| 12V/143 AH | ||
| 005 | A 3275400130 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | A 3225403130 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | A 3605400330 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | A 3225400430 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | A 3185400030 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | A 3605400430 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | A 3605403730 | POS.CABLE |
| Repalced by: N 072551095880 | ||
| 005 | N 072551095880 | ELECTRIC CABLE |
| Repalced by: N 922002095000 | ||
| 005 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| N 072332015100 | SOLDERING TERMINAL | |
| POS. POLE | ||
| N 046234010006 | CABLE SHOE | |
| STARTING MOTOR | ||
| N 912004010102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 913021010001 | NUT | |
| Repalced by: N 304035010001 | ||
| N 304035010001 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 008 | A 3525400531 | NEG. CABLE |
| FROM BATTERY TO CAB CROSS MEMBER | ||
| 008 | A 3525401931 | NEG. CABLE |
| Repalced by: N 072551095880 | ||
| 008 | A 3525403031 | NEG. CABLE |
| Repalced by: N 072551095880 | ||
| 008 | A 3185400131 | NEG. CABLE |
| Repalced by: N 072551095880 | ||
| 008 | A 3215402631 | NEG. CABLE |
| Repalced by: N 072551095880 | ||
| 008 | N 072551095880 | ELECTRIC CABLE |
| Repalced by: N 922002095000 | ||
| 008 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO CAB CROSS MEMBER | ||
| N 072332015200 | SOLDERING TERMINAL | |
| NEG.POLE | ||
| N 046234010006 | CABLE SHOE | |
| NEG. CABLE | ||

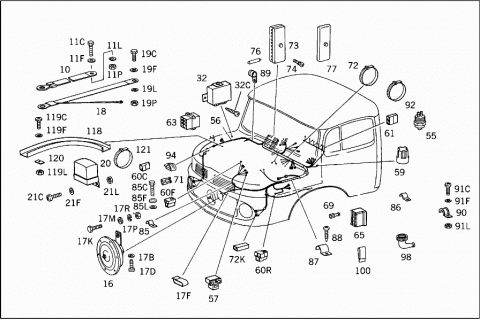

| 010 | A 3095400041 | GROUND STRAP |
| Repalced by: A 3145400041 | ||
| 010 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 010 | A 3525400041 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 010 | A 3525400041 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 011C | N 000933010128 | SCREW |
| GROUND STRAP MOUNTING | ||
| M 10X20 | ||
| 011F | N 009021010100 | WASHER |
| GROUND STRAP MOUNTING | ||
| 011L | N 912004010102 | LOCK WASHER |
| GROUND STRAP MOUNTING | ||
| 011P | N 000934010014 | NUT |
| GROUND STRAP MOUNTING | ||
| 012 | N 916016022206 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| CLAMP MOUNTING | ||
| M 6X20 | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 000934006007 | NUT | |
| CLAMP MOUNTING | ||
| 013D | N 916016019200 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 013F | N 007985008119 | SCREW |
| CLAMP MOUNTING | ||
| M 8X20 | ||
| N 007985008142 | SCREW | |
| CLAMP MOUNTING | ||
| M 8X16 | ||
| 013K | N 912004008102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 013M | N 304032008006 | NUT |
| CLAMP MOUNTING | ||
| 013P | A 3605460043 | BRACKET |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 013R | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 013R | N 304017008016 | SCREW |
| BRACKET MOUNTING | ||
| M 8X16 | ||
| 013T | N 912004008102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 013W | N 304032008006 | NUT |
| BRACKET MOUNTING | ||
| 014 | A 3525460044 | CLAMPING PIECE |
| BATTERY CABLE THRU CAB FLOOR | ||
| N 000931006115 | SCREW | |
| Repalced by: N 000933006151 | ||
| N 000933006151 | SCREW | |
| BATTERY CABLE THRU CAB FLOOR | ||
| M 6X50 | ||
| N 912004006102 | LOCK WASHER | |
| BATTERY CABLE THRU CAB FLOOR | ||
| N 000934006007 | NUT | |
| BATTERY CABLE THRU CAB FLOOR | ||
| 015C | A 3525460744 | CLAMPING PIECE |
| Repalced by: A 3185460044 | ||
| 015C | A 3185460044 | CLAMPING PIECE |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 015F | N 000084006198 | SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| M 6X40 | ||
| 015L | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 015L | N 009021006208 | WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 015P | N 912004006102 | LOCK WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 015S | N 000934006007 | NUT |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| M 8X30 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 015W | A 0019974390 | LOOM TIE |
| BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING | ||
| 140 MM | ||
| A 0015428020 | HORN | |
| Repalced by: A 0035423220 | ||
| A 0015427920 | HORN | |
| Repalced by: A 0035423220 | ||
| 016 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 016 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 016 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 016 | A 0035422720 | HORN |
| 016 | A 0015428320 | HORN |
| Repalced by: A 0025426420 | ||
| 016 | A 0025425320 | HORN |
| Repalced by: A 0025426420 | ||
| 016 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 016 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 016 | A 0035422720 | HORN |
| 017B | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 017D | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| M 4X6 | ||
| 017F | A 3219950040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 017F | A 0005460875 | CLAMP |
| BRANCH-OFF TO SIGNAL HORN TO RADIATOR STIFFENING STRUT | ||
| 017K | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 017K | N 304017010002 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| M 10X30 | ||
| 017M | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 017M | N 000125010532 | WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 017P | N 912004010102 | LOCK WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 017R | N 000934010014 | NUT |
| HORN TO ENGINE CROSS MEMBER | ||
| 018 | A 3521500032 | GROUND CABLE |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 019C | N 000933010105 | SCREW |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| M 10X25 | ||
| 019F | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 019F | N 009021010209 | WASHER |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 019L | N 912004010102 | LOCK WASHER |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 019P | N 000934010014 | NUT |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 020 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021543606 | ||
| 020 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 020 | A 0021547406 | REGULATOR AND CUT-OUT |
| 021C | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 021C | N 000000001145 | SCREW |
| REGULATOR MOUNTING | ||
| M 6X12 | ||
| 021F | N 912004006102 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 021L | N 000934006007 | NUT |
| REGULATOR MOUNTING | ||
| A 0015452518 | RESISTOR | |
| CHARGE CONTROL | ||
| N 000933005030 | SCREW | |
| RESISTOR TO WINDSHIELD WIPER MOUNTING PLATE | ||
| M 5X10 | ||
| N 913004005001 | NUT | |
| RESISTOR TO WINDSHIELD WIPER MOUNTING PLATE | ||
| 022 | A 3525462243 | BRACKET |
| Repalced by: A 3184923441 | ||
| 022 | A 3184923441 | BRACKET |
| BATTERY CABLE ABOVE STARTING MOTOR INTERMEDIATE FLANGE | ||
| 023C | N 304017010027 | SCREW |
| BATTERY CABLE ABOVE STARTING MOTOR INTERMEDIATE FLANGE | ||
| M 10X16 | ||
| 023F | N 912004010102 | LOCK WASHER |
| BATTERY CABLE ABOVE STARTING MOTOR INTERMEDIATE FLANGE | ||
| 024 | N 916016018201 | CLAMP |
| LINE TO BRACKET | ||
| 025C | N 007985005149 | SCREW |
| CLAMP MOUNTING | ||
| M 5X20 | ||
| 025F | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 025L | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 025L | N 304032005005 | NUT |
| CLAMP MOUNTING | ||

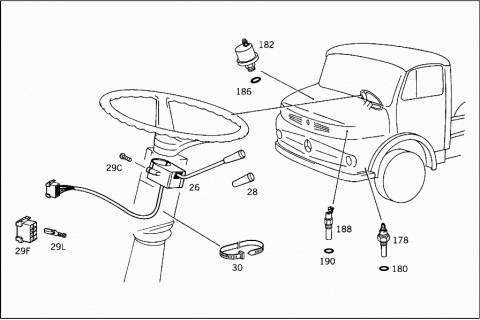

| A 0025453524 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458124 | ||
| A 0035458124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458324 | ||
| 026 | A 0035458324 | SWITCH,AUTOMATIC |
| WITH BRIGHT LIGHT/DIMMED LIGHT AND HORN CONTACT | ||
| 028 | A 0005452637 | BUTTON |
| 029C | N 000966005027 | SCREW |
| M 5X20 | ||
| 029F | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| A 0015457928 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| TO 003 545 83 24 | ||
| 029L | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 029L | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 030 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| N 007985005175 | SCREW | |
| CABLE HARNESS MOUNTING | ||
| M 5X16 | ||
| N 912004005103 | LOCK WASHER | |
| CABLE HARNESS MOUNTING | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| CABLE HARNESS MOUNTING | ||
| A 0015445032 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| A 0025440732 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| A 0025447732 | SENDER UNIT | |
| HAZARD WARNING LIGHT | ||
| A 0015448032 | SENDER UNIT | |
| HAZARD WARNING LIGHT | ||
| 032 | A 0025440932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 032 | A 0015447932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 032 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0025448532 | SENDER UNIT | |
| HAZARD WARNING LIGHT | ||
| A 0035440032 | SENDER UNIT | |
| HAZARD WARNING LIGHT | ||
| 032C | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 032C | N 000000000460 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||

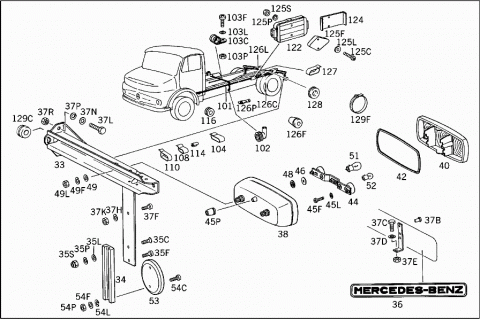

| A 3525405373 | BRACKET | |
| Repalced by: A 3525405773 | ||
| A 3525405773 | BRACKET | |
| LEFT | ||
| 033 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3525405473 | BRACKET | |
| Repalced by: A 3525405873 | ||
| A 3525405873 | BRACKET | |
| RIGHT | ||
| A 3525405273 | BRACKET | |
| RIGHT TAIL LAMP | ||
| 034 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 035C | N 000963006005 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| M 6X20 | ||
| 035F | N 000084006137 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| M 6X20 | ||
| 035L | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 035P | N 912004006102 | LOCK WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 035S | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 035S | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 036 | A 3605840025 | NAME PLATE |
| A 3605840051 | SUPPORT | |
| Repalced by: A 3875840051 | ||
| A 3875840051 | SUPPORT | |
| 037B | N 000660004018 | RIVET |
| 037C | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| M 8X18 | ||
| 037D | N 912004008102 | LOCK WASHER |
| NAME PLATE TO BRACKET | ||
| 037E | N 304032008006 | NUT |
| NAME PLATE TO BRACKET | ||
| 037F | N 000084006426 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| M 6X18 | ||
| 037H | N 912004006102 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 037K | N 000934006007 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 037L | N 000933010105 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| M 10X25 | ||
| N 000933010157 | SCREW | |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| M 10X28 | ||
| 037N | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 037N | N 000125010532 | WASHER |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 037P | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 037R | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 037R | N 910113010000 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 038 | A 0005447803 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 038 | A 0015440003 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 038 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 038 | A 0005447003 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 038 | A 0015440403 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 038 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 038 | A 0015449603 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 038 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| ZIZALA | ||
| 038 | A 0005447703 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 038 | A 0005449903 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 038 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 038 | A 0005447103 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 038 | A 0015440503 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 038 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R &S | ||
| 038 | A 0015449703 | TAIL LAMP |
| RIGHT | ||
| ZIZALA | ||
| 038 | A 0015444203 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 038 | A 0005447303 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 038 | A 0015441803 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 038 | A 0015444803 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 038 | A 0015449903 | TAIL LAMP |
| RIGHT | ||
| ZIZALA | ||
| 038 | A 0015444303 | TAIL LAMP |
| Repalced by: A 0015445903 | ||
| 038 | A 0015445903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 038 | A 0015441703 | TAIL LAMP |
| Repalced by: A 0015444903 | ||
| 038 | A 0015444903 | TAIL LAMP |
| Repalced by: A 0005447403 | ||
| 038 | A 0005447403 | TAIL LAMP |
| Repalced by: A 0015446103 | ||
| 038 | A 0015446103 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 038 | A 0025440003 | TAIL LAMP |
| LEFT | ||
| ZIZALA | ||
| 040 | A 0015444890 | LENS |
| Repalced by: A 0015445590 | ||
| 040 | A 0015445590 | LENS |
| HELLA | ||
| 040 | A 0015444590 | LENS |
| Repalced by: A 0015445990 | ||
| 040 | A 0015446290 | LENS |
| Repalced by: A 0015445990 | ||
| 040 | A 0015445990 | LENS |
| R & S | ||
| 040 | A 0015447190 | LENS |
| R & S | ||
| 040 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 040 | A 0015445990 | LENS |
| R & S | ||
| 040 | A 0015449890 | LENS |
| LEFT | ||
| ZIZALA | ||
| 040 | A 0015449990 | LENS |
| RIGHT | ||
| ZIZALA | ||
| 042 | A 0005447880 | GASKET |
| Repalced by: A 0005448480 | ||
| 042 | A 0005448080 | GASKET |
| Repalced by: A 0005448480 | ||
| 042 | A 0005448480 | GASKET |
| HELLA | ||
| 042 | A 0005447580 | GASKET |
| R & S,750 MM | ||
| N 007985006238 | SCREW | |
| M6X58, R & S | ||
| 044 | A 0005444393 | LAMP SOCKET |
| HELLA | ||
| 044 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 044 | A 0005444293 | LAMP SOCKET |
| 044 | A 0005444893 | LAMP SOCKET |
| 044 | A 0005445193 | LAMP SOCKET |
| 045F | N 007985004107 | SCREW |
| M 4X10, HELLA | ||
| 045F | N 000084004137 | SCREW |
| Repalced by: N 007985004149 | ||
| 045F | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 045F | N 000000001933 | SCREW |
| M 4X8,R & S | ||
| 045L | N 006797004132 | TOOTHED WASHER |
| R & S | ||
| A 0009978081 | GROMMET | |
| HELLA | ||
| 045P | A 0019971581 | GROMMET |
| R & S | ||
| A 0019904040 | WASHER | |
| HELLA | ||
| 046 | A 0005440476 | WASHER |
| R & S | ||
| 048 | A 0005440376 | WASHER |
| Repalced by: A 0005440476 | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| HELLA | ||
| 049 | A 0019901940 | WASHER |
| R & S | ||
| 049F | N 912004008102 | LOCK WASHER |
| 049L | N 304032008006 | NUT |
| N 072601012160 | BULB | |
| 12V/18 W | ||
| 051 | N 072601012190 | BULB |
| 12V/21 W | ||
| 052 | N 072601012702 | BULB |
| CABLE HARNESS MOUNTING | ||
| 12V/10 W | ||
| 053 | A 0005441605 | REFLECTOR |
| Repalced by: A 0005443305 | ||
| 053 | A 0005443305 | REFLECTOR |
| 054C | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| M 5X25 | ||
| 054F | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 054F | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 054L | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 054P | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 055 | A 0005454709 | SWITCH |
| Repalced by: A 0005455909 | ||
| 055 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 055 | A 0005455909 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 055 | A 0005455909 | SWITCH |
| IN DUMPER VALVE | ||
| 056 | A 3525407205 | CABLE HARNESS |
| Repalced by: A 3525409805 | ||
| 056 | A 3525409805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525400506 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525401806 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525401706 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525407305 | CABLE HARNESS |
| Repalced by: A 3525409705 | ||
| 056 | A 3525409705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525400606 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525401906 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 056 | A 3525402206 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 057 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 059 | A 0045451428 | PLUG |
| HAZARD WARNING LIGHT SWITCH | ||
| 060C | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 060F | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0015457928 | PIN BUSHING HOUSING | |
| BIPOLAR; COOLING WATER TEMPERATURE SWITCH & TEMPERATURE GAUGE SENDER UNIT | ||
| A 0015458528 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| 060R | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 061 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 0015454128 | PIN BUSHING HOUSING | |
| 4-POLE; BUZZER | ||
| 063 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 065 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| A 0065451428 | PIN BUSHING HOUSING | |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| A 0005453726 | PIN BUSHING | |
| Repalced by: A 0075458426 | ||
| A 0075458426 | PIN BUSHING | |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 069 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 069 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 069 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 069 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005454026 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0005454626 | PIN BUSHING | |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0025454026 | FLAT PIN BUSHING | |
| Repalced by: A 0035455326 | ||
| A 0035455326 | PIN BUSHING | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 071 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 071 | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 4 MM2 | ||
| A 0015458628 | PLUG | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 072 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 072K | A 0005451745 | BOOT |
| PIN BUSHING | ||
| A 3229970581 | GROMMET | |
| A 1109970481 | GROMMET | |
| A 3149970181 | GROMMET | |
| A 3529970681 | GROMMET | |
| 073 | A 3355450001 | FUSE BOX |
| TERMINALS 1-2,3-4,5-6,AND 8-12 BRIGED OVER | ||
| 074 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| M 4X12 | ||
| N 006797004333 | TOOTHED WASHER | |
| CABLE TO FUSE BOX | ||

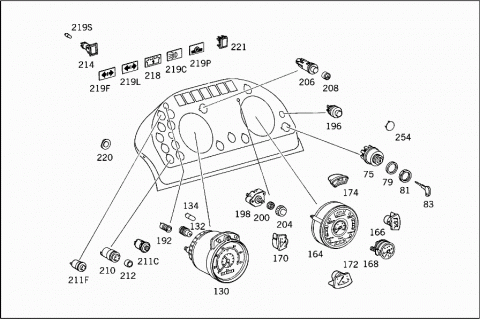

| 075 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 076 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 076 | N 072581008101 | FUSE |
| FUSE BOX | ||
| 077 | A 0005451203 | CAP |
| FUSE BOX | ||
| N 007981004258 | SHEET METAL SCREW | |
| FUSE BOX | ||
| 079 | A 0005450176 | WASHER |
| Repalced by: A 0005450376 | ||
| 079 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 081 | A 0005450672 | NUT |
| Repalced by: A 0005451072 | ||
| 081 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 083 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| A 0005830296 | RING | |
| IGNITION AND LIGHT SWITCH | ||
| 085 | N 916016012201 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 15 MM | ||
| 085C | N 000933005059 | SCREW |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| M 5X12 | ||
| 085F | N 000137005103 | SPRING WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 085L | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 085L | N 009021005205 | WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| N 912004005103 | LOCK WASHER | |
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| N 916016012200 | CLAMP | |
| N 000934004105 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 000934006007 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 304032008006 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 000934004105 | NUT | |
| CABLE TO ALTERNATOR | ||
| N 000137006204 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| N 000137008107 | SPRING WASHER | |
| Repalced by: N 000137008204 | ||
| N 000137008204 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| N 000933006102 | SCREW | |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| M 6X15 | ||
| N 912004006102 | LOCK WASHER | |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| N 000934006007 | NUT | |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| N 007985006157 | SCREW | |
| Repalced by: N 000000001145 | ||
| N 000000001145 | SCREW | |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| M 6X12 | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 086 | A 1869950037 | CLAMP |
| 15 MM | ||
| 087 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 26 MM | ||
| 087 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 31 MM | ||
| 088 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 088 | N 000000000460 | SCREW |
| CLAMP MOUNTING | ||
| A 0009941845 | LOCK | |
| CABLE HARNESS MOUNTING | ||
| A 1869950037 | CLAMP | |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| N 007985005504 | SCREW | |
| CLAMP MOUNTING | ||
| M 5X12 | ||
| N 912004005103 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| 089 | N 916016025201 | CLAMP |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 090 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 091C | N 007985005174 | SCREW |
| CLAMP MOUNTING | ||
| M 5X30 | ||
| 091F | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 091L | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 091L | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| N 007981004279 | SHEET METAL SCREW | |
| CLAMP MOUNTING | ||
| A 1869950037 | CLAMP | |
| MAIN CABLE HARNESS TO WIPER MOTOR FLAP | ||
| A 1369950137 | CLAMP | |
| MAIN CABLE HARNESS TO WIPER MOTOR FLAP | ||
| 092 | A 0019978390 | LOOM TIE |
| TO MOUNT MAIN CABLE HARNESS | ||
| 280 MM | ||
| A 1369950137 | CLAMP | |
| MAIN CABLE HARNESS BEHIND INSTRUMENT PANEL,LEFT | ||
| 31 MM | ||
| N 007985005174 | SCREW | |
| CLAMP MOUNTING | ||
| M 5X30 | ||
| N 912004005103 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| CLAMP MOUNTING | ||
| 094 | A 0009883478 | CLIP |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| A 3605402237 | ELECTRIC CABLE | |
| FROM PLUG CONNECT.TO COOLG.-WATER TEMPER. SWITCH & TEMPER.GAUGE SENDER UNIT | ||
| A 3605408437 | ELECTRIC CABLE | |
| FROM PLUG CONNECT.TO COOLG.-WATER TEMPER. SWITCH & TEMPER.GAUGE SENDER UNIT | ||
| A 0015458728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0005453726 | PIN BUSHING | |
| Repalced by: A 0075458426 | ||
| A 0075458426 | PIN BUSHING | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005453826 | PIN BUSHING | |
| Repalced by: A 0075458226 | ||
| A 0075458226 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0009951159 | SHACKLE | |
| Repalced by: A 0019978390 | ||
| A 0019978390 | LOOM TIE | |
| TO MOUNT MAIN CABLE HARNESS | ||
| A 0019978490 | LOOM TIE | |
| TO MOUNT MAIN CABLE HARNESS | ||
| 376 MM | ||
| N 000084006132 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| A 0015458228 | PLUG HOUSING | |
| 8-POLE | ||
| A 3605403927 | ELECTRIC CABLE | |
| TO SPRING-LOAD-ACCUMULAT.-BRAKE SWITCH | ||
| A 3605404927 | ELECTRIC CABLE | |
| TO SPRING-LOAD-ACCUMULAT.-BRAKE SWITCH | ||
| A 0005400181 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| 098 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 098 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805460335 | BOOT | |
| SPRING-LOADED BRAKE SWITCH | ||
| TO M 24X1 | ||
| A 6015460335 | BOOT | |
| SPRING-LOADED BRAKE SWITCH | ||
| TO M 24X1 | ||
| A 0009902054 | NUT | |
| SPRING-LOADED BRAKE SWITCH | ||
| M 24X1 | ||
| A 0009906840 | WASHER | |
| SPRING-LOADED BRAKE SWITCH | ||
| TO M 24X1 | ||
| A 3805450026 | PLUG SOCKET | |
| SPRING-LOADED BRAKE SWITCH | ||
| TO M 24X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| SPRING-LOADED BRAKE SWITCH | ||
| TO M 24X1 | ||
| A 3605400337 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO OIL PRESSURE SWITCH | ||
| A 0005400281 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| A 3805402281 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 6015460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3805450226 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3525402132 | ELECTRIC CABLE | |
| Repalced by: A 3805402281 | ||
| A 3805402281 | PLUG SOCKET | |
| FROM FRONT PLUG CONNECTION TO FRONT AXLE CONTROL SWITCH | ||
| A 0005453826 | PIN BUSHING | |
| Repalced by: A 0075458226 | ||
| A 0075458226 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| A 3805402281 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 6015460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3805450226 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3605400137 | ELECTRIC CABLE | |
| FROM EXHAUST BRAKE TO EXHAUST BRAKE SWITCH | ||
| A 0015457928 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0015458628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| A 3805402281 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3525401137 | ELECTRIC CABLE | |
| TWO-SPEED REAR AXLE CONTROL | ||
| A 0015457028 | PLUG HOUSING | |
| BIPOLAR | ||
| A 3525403537 | ELECTRIC CABLE | |
| Repalced by: A 3585401837 | ||
| A 3585401837 | ELECTRIC CABLE | |
| DIFFERENTIAL LOCK | ||
| A 3585401837 | ELECTRIC CABLE | |
| DIFFERENTIAL LOCK | ||
| A 3585401837 | ELECTRIC CABLE | |
| DIFFERENTIAL LOCK | ||
| A 3535403037 | ELECTRIC CABLE | |
| DIFFERENTIAL LOCK | ||
| A 0015458628 | PLUG | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| A 3805402181 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 6015460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 3805450026 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 3605402837 | ELECTRIC CABLE | |
| Repalced by: A 3605403237 | ||
| A 3605402937 | ELECTRIC CABLE | |
| Repalced by: A 3605403237 | ||
| A 3605403237 | ELECTRIC CABLE | |
| FROM FRONT PLUG CONNECTION TO THREE-WAY VALVE SWITCH | ||
| A 0015458728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0005453726 | PIN BUSHING | |
| Repalced by: A 0075458426 | ||
| A 0075458426 | PIN BUSHING | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005453826 | PIN BUSHING | |
| Repalced by: A 0075458226 | ||
| A 0075458226 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005454026 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4.6 MM2 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| A 3805402181 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 6015460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 3805450026 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 100 | A 3219950040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 100 | A 0005460875 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| N 900262009100 | LOOM TIE | |
| CABLE HARNESS MOUNTING | ||
| N 900263009017 | STRAP | |
| CABLE HARNESS MOUNTING | ||
| A 0019978490 | LOOM TIE | |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| A 3605402927 | ELECTRIC CABLE | |
| FROM FUSE TO SWITCH AND TO TELL-TALE LAMP | ||
| A 3605403027 | ELECTRIC CABLE | |
| Repalced by: A 3605402927 | ||
| A 3605402927 | ELECTRIC CABLE | |
| FROM FUSE TO SWITCH AND TO TELL-TALE LAMP | ||
| 101 | A 3605403227 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 101 | A 3605403327 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 101 | A 3605403427 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 101 | A 3605404227 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 101 | A 3605404327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 101 | A 3605403627 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 101 | A 3605403727 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 101 | A 3605403827 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 101 | A 3605404127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 101 | A 3535407027 | ELECTRIC CABLE |
| Repalced by: A 3535407127 | ||
| 101 | A 3535407127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 101 | A 3535407327 | ELECTRIC CABLE |
| Repalced by: A 3535407427 | ||
| 101 | A 3535407427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 101 | A 3605408827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 101 | A 3605409027 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 0015458228 | PLUG HOUSING | |
| 8-POLE | ||
| A 0015458628 | PLUG | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005400281 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 102 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 102 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 6015460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3805450226 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 103C | N 916016018201 | CLAMP |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 18 MM | ||
| 103F | N 007985006139 | SCREW |
| CLAMP MOUNTING | ||
| M 6X30 | ||
| 103L | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 103P | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 104 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 104 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 108 | A 3219950040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 108 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 110 | A 3219950140 | CLAMP |
| Repalced by: A 3099950240 | ||
| 110 | A 3099950240 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 114 | A 0009881678 | CLIP |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| N 000934006007 | NUT | |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| 116 | A 3129970481 | GROMMET |
| CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| N 072571001012 | CLAMP | |
| CABLE TO REAR CABLE CONNECTOR AND TO STARTING MOTOR TO BRACKET ON CAB | ||
| N 007985005175 | SCREW | |
| CLAMP MOUNTING | ||
| M 5X16 | ||
| N 912004005103 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| CLAMP MOUNTING | ||
| 118 | A 3605460080 | CABLE GUIDE |
| 119C | N 007985005504 | SCREW |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| M 5X12 | ||
| N 007985005151 | SCREW | |
| Repalced by: N 007985005532 | ||
| N 007985005532 | SCREW | |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| M 5X35 | ||
| 119F | N 912004005103 | LOCK WASHER |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 119L | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 119L | N 304032005005 | NUT |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 120 | A 3605460243 | BRACKET |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 121 | A 0019974390 | LOOM TIE |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 140 MM | ||
| A 0005460781 | COVERING | |
| WITH GASKET | ||
| 122 | A 0005466141 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 122 | A 0005466141 | CABLE CONNECTOR |
| BEHIND CAB | ||
| 124 | A 3145460043 | BRACKET |
| CABLE CONNECTOR | ||
| N 007985004168 | SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| M 4X30 | ||
| A 3525462643 | BRACKET | |
| CABLE CONNECTOR | ||
| N 000933010164 | SCREW | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO LEFT SIDE MEMBER | ||
| A 0009973481 | GROMMET | |
| ELECTRIC CABLES THRU REAR CROSS MEMBER | ||
| 125C | N 007985004160 | SCREW |
| CABLE CONNECTOR | ||
| M 4X40 | ||
| N 007985004159 | SCREW | |
| CABLE CONNECTOR | ||
| M 4X22 | ||
| N 007985004120 | SCREW | |
| CABLE CONNECTOR | ||
| 125F | A 3275425038 | SHIM |
| CABLE CONNECTOR | ||
| 125L | N 009021004100 | WASHER |
| CABLE CONNECTOR | ||
| 125P | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 125S | N 000934004006 | NUT |
| CABLE CONNECTOR | ||
| A 3525400007 | CABLE HARNESS | |
| Repalced by: A 3145400007 | ||
| A 3145400007 | CABLE HARNESS | |
| Repalced by: A 3525400507 | ||
| A 3525400507 | CABLE HARNESS | |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 126C | A 3605400307 | CABLE HARNESS |
| Repalced by: A 3145400607 | ||
| 126C | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 126F | A 0019971581 | GROMMET |
| A 3525400107 | CABLE HARNESS | |
| Repalced by: A 3145400007 | ||
| A 3145400007 | CABLE HARNESS | |
| Repalced by: A 3525400507 | ||
| A 3525400507 | CABLE HARNESS | |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 126L | A 3605400807 | CABLE HARNESS |
| Repalced by: A 3145400607 | ||
| 126L | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| A 0019971581 | GROMMET | |
| 126P | N 046225010101 | CABLE SHOE |
| 127 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 127 | A 3099950140 | CLAMP |
| RIGHT TAIL LAMP CABLE TO REAR CROSS MEMBER | ||
| 128 | A 3559970081 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| A 3529970281 | GROMMET | |
| ELECTRIC CABLE THRU REAR CROSS MEMBER | ||
| 129C | A 8339970281 | GROMMET |
| Repalced by: A 0009973381 | ||
| 129C | A 0009973381 | GROMMET |
| ELECTRIC CABLE THRU TAIL LAMP BRACKET | ||
| 129F | A 0019978490 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 376 MM | ||
| 130 | A 0035427410 | TACHOGRAPH |
| Repalced by: A 0055424410 | ||
| 130 | A 0055424410 | TACHOGRAPH |
| ONE-DAY REGISTRATION; READING IN KILOMETERS; MEASURING RANGE,100KM/H | ||
| 130 | A 0075429410 | TACHOGRAPH |
| Repalced by: A 0085422710 | ||
| 130 | A 0085422710 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 130 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 132 | A 0005421347 | COUPLER |
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 007 542 94 10,008 542 27 10 | ||
| A 0005421994 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 005 542 44 10 | ||
| 134 | N 072601012800 | BULB |
| 2 W | ||
| 134 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 134 | A 0005453419 | SOCKET LAMP |
| 12 V/1.2 W | ||
| A 3285840840 | DECALCOMANIA | |
| A 3525844140 | DECALCOMANIA | |
| A 3405840240 | DECALCOMANIA | |
| A 3525843840 | DECALCOMANIA | |
| A 3405840340 | DECALCOMANIA | |
| A 3525843740 | DECALCOMANIA | |
| 138 | A 0015421830 | ANGLE DRIVE |
| A 0005420630 | ANGLE DRIVE | |
| 138 | A 0015422230 | ANGLE DRIVE |
| Repalced by: A 0035423530 | ||
| 138 | A 0035423530 | ANGLE DRIVE |
| A 0005422930 | ANGLE DRIVE | |
| A 0005422930 | ANGLE DRIVE | |
| 140 | A 0015425630 | REDUCTION GEARING |
| 142 | A 3375425140 | BRACKET |
| A 3405420240 | BRACKET | |
| N 000933005049 | SCREW | |
| BRACKET MOUNTING | ||
| M 5X18 | ||
| N 000125005303 | WASHER | |
| BRACKET MOUNTING | ||
| N 912004005103 | LOCK WASHER | |
| BRACKET MOUNTING | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| BRACKET MOUNTING | ||
| 146 | A 3525420740 | BRACKET |
| Repalced by: A 3124761535 | ||
| 146 | A 3124761535 | BRACKET |
| 148 | A 3525420840 | BRACKET |
| A 3535400040 | BRACKET | |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BRACKET MOUNTING | ||
| M 8X15 | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET MOUNTING | ||
| N 304032008006 | NUT | |
| BRACKET MOUNTING | ||
| 150 | A 3525420940 | BRACKET |
| A 3049950220 | CLAMP | |
| Repalced by: A 3129952420 | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| CLAMP TO BRACKET | ||
| N 916016012201 | CLAMP | |
| CLAMP TO BRACKET | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| CLAMP MOUNTING | ||
| M 6X16 | ||
| N 000125006421 | WASHER | |
| CLAMP MOUNTING | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 000934006007 | NUT | |
| CLAMP MOUNTING | ||
| 152 | A 0015427507 | FLEXIBLE SHAFT |
| Repalced by: A 0055425007 | ||
| 152 | A 0055425007 | FLEXIBLE SHAFT |
| 152 | A 0015428707 | FLEXIBLE SHAFT |
| Repalced by: A 0045420507 | ||
| 152 | A 0045420507 | FLEXIBLE SHAFT |
| 152 | A 0025426007 | FLEXIBLE SHAFT |
| Repalced by: A 0045427207 | ||
| 152 | A 0045427207 | FLEXIBLE SHAFT |
| 3050 MM | ||
| 152 | A 0025426207 | FLEXIBLE SHAFT |
| Repalced by: A 0055422707 | ||
| 152 | A 0055422707 | FLEXIBLE SHAFT |
| Repalced by: A 0045424307 | ||
| 152 | A 0045424307 | FLEXIBLE SHAFT |
| 154 | A 3124292440 | BRACKET |
| Repalced by: A 3124761535 | ||
| 154 | A 3124761535 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 156 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 156 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| FLEXIBLE SHAFT MOUNTING | ||
| 158 | N 916016012201 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 12 MM | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SCREW | |
| CLAMP MOUNTING | ||
| 159C | N 007985005175 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| M 5X16 | ||
| 159F | N 912004005103 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 159L | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 159L | N 304032005005 | NUT |
| FLEXIBLE SHAFT MOUNTING | ||
| A 0019974290 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| A 0019974390 | LOOM TIE | |
| FLEXIBLE SHAFT MOUNTING | ||
| 140 MM | ||
| 160 | A 0005460443 | STRAP |
| Repalced by: A 0019974390 | ||
| 160 | A 0019974390 | LOOM TIE |
| FLEXIBLE SHAFT TO CAB | ||
| 160 | A 0019974390 | LOOM TIE |
| FLEXIBLE SHAFT TO CAB | ||
| A 3635460175 | CLAMP | |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| A 3219970081 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 162 | A 3229971681 | GROMMET |
| Repalced by: A 3359970081 | ||
| 162 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 162 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| A 3529971381 | GROMMET | |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 163 | A 3529970881 | GROMMET |
| Repalced by: A 3529970681 | ||
| 163 | A 3529970681 | GROMMET |
| FLEXIBLE SHAFT AND HOSE FOR STARTER PILOT THRU WINDOW LEVEL GIRDER | ||
| 164 | A 0025402047 | INSTRUMENT CLUSTER |
| WITH INSCRIPTION IN GERMAN | ||
| 166 | A 0035421005 | TEMPERATURE GAUGE |
| 168 | A 0005429108 | AIR PRESSURE GAUGE |
| 170 | A 0015424102 | OIL PRESSURE GAUGE |
| 172 | A 0005428503 | FUEL GAUGE DASH UNIT |
| 174 | A 0005420332 | TELL-TALE LAMP |
| BRAKE PRESSURE | ||
| A 0015422317 | SENDER UNIT | |
| TEMPERATURE GAUGE | ||
| 178 | A 0075420917 | SENDER UNIT |
| Repalced by: A 0025427317 | ||
| 178 | A 0025427317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 180 | N 007603014400 | SEAL RING |
| TEMPERATURE GAUGE | ||
| A 0015424917 | SENDER UNIT | |
| Repalced by: A 0045428917 | ||
| 182 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 186 | N 007603014104 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| A 0025457824 | SWITCH,AUTOMATIC | |
| Repalced by: A 0045455524 | ||
| 188 | A 0045455524 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE CONTROL | ||
| 190 | N 007603014403 | SEAL RING |
| COOLING WATER TEMPERATURE CONTROL | ||
| 192 | A 0005453526 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 192 | A 0005453926 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 192 | A 0005454426 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 192 | A 0015458526 | PLUG SOCKET |
| A 0005456314 | SWITCH | |
| Repalced by: A 0015450214 | ||
| 196 | A 0015450214 | SWITCH |
| Repalced by: A 0015454914 | ||
| 196 | A 0015454914 | SWITCH |
| STARTING AT INSTRUMENT PANEL | ||
| 198 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 3015420025 | ||
| 198 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 198 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005421325 | POTENTIOMETER | |
| HOT AIR BLOWER | ||
| 200 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 200 | A 0005450372 | NUT |
| HOT AIR BLOWER | ||
| A 0029906251 | NUT | |
| INSTRUMENT LIGHTING SWITCH | ||
| 204 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 204 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005421289 | KNOB | |
| Repalced by: A 3095420189 | ||
| A 3095420189 | KNOB | |
| HOT AIR BLOWER | ||
| 206 | A 0035453924 | SWITCH,AUTOMATIC |
| Repalced by: A 0025457124 | ||
| 206 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| A 0055459324 | HAZARD WARNG.LIGHT SWITCH | |
| 208 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| N 072601012110 | BULB | |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| A 6115400066 | ADAPTER FRAME | |
| HAZARD WARNING LIGHT SWITCH | ||
| 208B | A 0005457511 | SWITCH |
| Repalced by: A 0015452411 | ||
| 208B | A 0015452411 | SWITCH |
| TWO-SPEED REAR AXLE CONTROL | ||
| A 0005450272 | NUT | |
| TWO-SPEED REAR AXLE CONTROL | ||
| 208C | A 0005451472 | NUT |
| Repalced by: A 0029906251 | ||
| 208C | A 0029906251 | NUT |
| TWO-SPEED REAR AXLE CONTROL | ||
| A 0005451837 | BUTTON | |
| TWO-SPEED REAR AXLE CONTROL | ||
| 208D | A 0005453837 | BUTTON |
| TWO-SPEED REAR AXLE CONTROL | ||
| 208E | A 0005451245 | BOOT |
| TWO-SPEED REAR AXLE CONTROL | ||
| A 0005450730 | SHELL | |
| TWO-SPEED REAR AXLE CONTROL | ||
| 208F | A 0005451345 | BOOT |
| TWO-SPEED REAR AXLE CONTROL | ||
| A 0005450830 | SHELL | |
| TWO-SPEED REAR AXLE CONTROL | ||
| 208H | N 007985004163 | SCREW |
| TWO-SPEED REAR AXLE CONTROL | ||
| N 000137004203 | SPRING WASHER | |
| TWO-SPEED REAR AXLE CONTROL | ||
| A 3535400437 | ELECTRIC CABLE | |
| TWO-SPEED REAR AXLE CONTROL | ||
| 208K | A 0015457928 | PIN BUSHING HOUSING |
| 208L | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 210 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 211C | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 211F | A 0005458111 | SWITCH |
| Repalced by: A 0005459111 | ||
| 211F | A 0005459111 | SWITCH |
| CAB LAMP | ||
| 211F | A 0005459111 | SWITCH |
| HOT AIR BLOWER | ||
| 211F | A 0005459111 | SWITCH |
| DIFFERENTIAL LOCK | ||
| 212 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| A 0005451583 | CAP | |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| A 0005451883 | CAP | |
| CAB LAMP | ||
| A 0005450883 | CAP | |
| DIFFERENTIAL LOCK | ||
| A 0005451783 | CAP | |
| HOT AIR BLOWER | ||
| 214 | A 0005459115 | TELL-TALE LAMP |
| 214 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 0005451630 | ||
| A 0005451630 | SHELL | |
| A 0005452319 | SOCKET | |
| A 0005452319 | SOCKET | |
| A 0005452319 | SOCKET | |
| A 0005452319 | SOCKET | |
| 218 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 219C | A 0005451190 | LENS |
| HIGH BEAM | ||
| 219F | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 219L | A 0005451390 | LENS |
| TRAILER | ||
| 219P | A 0005451790 | LENS |
| PARKING BRAKE | ||
| A 0025454090 | LENS | |
| LONGITUDINAL LOCK | ||
| A 0005450490 | LENS | |
| DIFFERENTIAL LOCK | ||
| A 0005450790 | LENS | |
| DUMPER PLATFORM SUBSTRUCTURE | ||
| 219S | N 072601012800 | BULB |
| TO TELL-TALE LAMPS | ||
| A 3099870144 | EXPANSION PLUG | |
| SWITCH | ||
| 220 | A 0009970425 | EXPANSION PLUG |
| PUSHBUTTON SWITCH | ||
| A 0009970525 | EXPANSION PLUG | |
| PUSH BUTTON SWITCH | ||
| 221 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 222 | A 0005500083 | PUMP |
| Repalced by: A 0005500883 | ||
| 226 | A 0009815685 | BALL |
| 228 | A 0029930201 | SPRING |
| Repalced by: A 0005500955 | ||
| A 0049979145 | SEAL RING | |
| Repalced by: A 0005500955 | ||
| A 0005500955 | VALVE | |
| REPAIR KIT | ||
| N 007603008112 | SEAL RING | |
| 230 | A 0009977972 | FITTING |
| 232 | A 0009903767 | SEAL CONE |
| Repalced by: A 0009909454 | ||
| 234 | A 0009903454 | NUT |
| Repalced by: A 0009909454 | ||
| 234 | A 0009909454 | NUT |
| REPAIR KIT | ||
| 236 | A 0049979245 | SEAL RING |
| 240 | A 0005550076 | WASHER |
| 242 | A 0005550018 | STRAINER |
| 244 | A 0009944335 | SNAP RING |
| 246 | A 0005500883 | PUMP |
| Repalced by: A 0005501083 | ||
| 246 | A 0005501083 | PUMP |
| Repalced by: A 0005502383 | ||
| 246 | A 0005502383 | PUMP |
| 248 | A 0005550240 | HANDLE |
| Repalced by: A 0005550440 | ||
| 248 | A 0005550440 | HANDLE |
| 250 | A 0005550072 | NUT |
| Repalced by: A 0005550372 | ||
| 250 | A 0005550372 | NUT |
| A 0009908867 | SEAL CONE | |
| Repalced by: A 0005550618 | ||
| A 0005550618 | SEAL CONE | |
| REPAIR KIT | ||
| A 0019970578 | SCREW CONNECTION | |
| 252 | A 0019900040 | WASHER |
| Repalced by: A 3359900240 | ||
| 252 | A 3359900240 | WASHER |
| 253 | A 3359972282 | HOSE |
| 4X1 MM | ||
| 253 | A 3359972282 | HOSE |
| FROM PUMP TO PRIMER CAPSULE | ||
| 1200 MM | ||
| 253 | A 3359972282 | HOSE |
| FROM PRIMER CAPSULE TO SPRAY NOZZLE | ||
| 700 MM | ||
| 254 | A 3226890030 | CAP |
| A 0005500604 | CAPSULE BORER | |
| Repalced by: A 0005501104 | ||
| 258 | A 0079976445 | SEAL RING |
| 260 | A 0009931120 | SPRING |
| 262 | A 0009911561 | DOWEL PIN |
| 264 | A 0005550093 | SPRING |
| 266 | A 0009900332 | SCREW |
| 268 | A 0005550080 | GASKET |
| Repalced by: A 0005500180 | ||
| 270 | A 0005550008 | PRIMER CAPSULE |
| Repalced by: A 0005500180 | ||
| 272 | A 0009902330 | SCREW |
| Repalced by: A 0005500180 | ||
| A 0005550212 | NOZZLE | |
| Repalced by: A 0005500180 | ||
| A 0005500180 | OIL TANK | |
| Repalced by: A 0005500280 | ||
| A 0005500280 | OIL TANK | |
| REPAIR KIT | ||
| 274 | A 0005550105 | CAPSULE BORER |
| 276 | A 0009903620 | SCREW |
| 280 | A 0005550118 | STRAINER |
| 282 | A 0009941537 | SNAP RING |
| 286 | A 0005550059 | PIPE |
| A 0029976240 | SEAL RING | |
| A 0009815685 | BALL | |
| 290 | A 0029930201 | SPRING |
| Repalced by: A 0005500955 | ||
| 290 | A 0005500955 | VALVE |
| REPAIR KIT | ||
| 294 | A 0005550030 | CONNECTOR |
| A 0005550130 | CONNECTOR | |
| 298 | N 006798008101 | SERRATED WASHER |
| 302 | N 000934008021 | NUT |
| 306 | A 0009903767 | SEAL CONE |
| Repalced by: A 0009909454 | ||
| 310 | A 0009903454 | NUT |
| Repalced by: A 0009909454 | ||
| 310 | A 0009909454 | NUT |
| REPAIR KIT | ||
| 312 | A 0005501104 | CAPSULE BORER |
| Repalced by: A 0005501404 | ||
| 312 | A 0005501404 | PRIMER CAPSULE |
| N 006798008101 | SERRATED WASHER | |
| N 000934008021 | NUT | |
| A 0009903767 | SEAL CONE | |
| Repalced by: A 0009909454 | ||
| A 0009903454 | NUT | |
| Repalced by: A 0009909454 | ||
| A 0009909454 | NUT | |
| REPAIR KIT | ||
| 314 | A 3365450340 | BRACKET |
| A 0005550004 | CAPSULE | |
| CONTAINING 5 PIECES | ||
| 316 | A 0005550010 | FILLING CYLINDER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
