Transporto priemonė: LS 1513; VIN numerio dalis: 360014

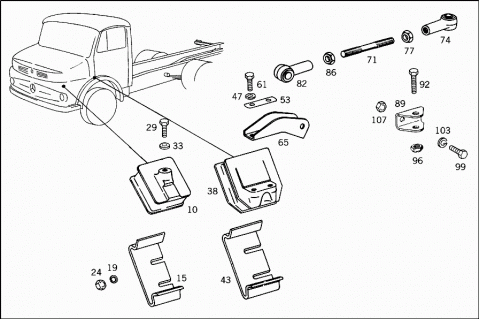

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 015 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 019 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 024 | N 000934012022 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 029 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 029 | N 308676016007 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X50 | ||
| 029 | N 000960016237 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X60 | ||
| 033 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 038 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 043 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 047 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| N 000934012022 | NUT | |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 053 | A 3529940032 | LOCK |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 061 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 061 | N 308676014008 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M 14X35 | ||
| 061 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 061 | A 9429901304 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M 14X40 | ||
| 065 | A 3522420907 | BEARING BRACKET |
| Repalced by: A 3522420207 | ||
| 065 | A 3522420207 | BEARING BRACKET |
| FRONT | ||
| 065 | A 3522421007 | BEARING BRACKET |
| FRONT | ||
| 065 | A 3522420307 | BEARING BRACKET |
| FRONT | ||
| 071 | A 3522420237 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 074 | A 0009961540 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 077 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 077 | N 308673016001 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 082 | A 0009961740 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 086 | N 000934016014 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 089 | A 3522420407 | BEARING BRACKET |
| REAR | ||
| 092 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 096 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 096 | N 000979016007 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| N 000094004065 | COTTER PIN | |
| PULL ROD TO BEARING BRACKET | ||
| 099 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 099 | N 000961012051 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 103 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 107 | N 000934012022 | NUT |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
