Transporto priemonė: LS 1513; VIN numerio dalis: 360014

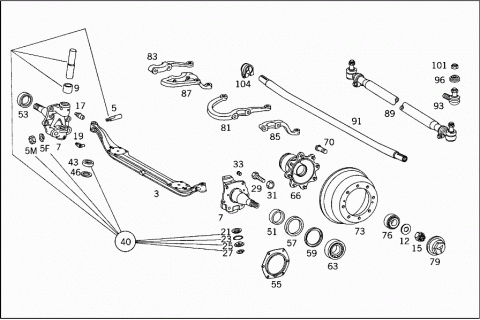

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3603306500 | FRONT AXLE | |
| A 3603306600 | FRONT AXLE | |
| 003 | A 3603311201 | FRONT AXLE BEAM |
| Repalced by: A 3603310101 | ||
| 003 | A 3603310101 | FRONT AXLE BEAM |
| 005 | A 3279900137 | BOLT |
| 005F | N 912004008102 | LOCK WASHER |
| 005M | N 304032008006 | NUT |
| 007 | A 3403300020 | STEERING KNUCKLE |
| Repalced by: A 3403320001 | ||
| 007 | A 3403320001 | STEERING KNUCKLE |
| 007 | A 3023300320 | STEERING KNUCKLE |
| Repalced by: A 3023320501 | ||
| 007 | A 3023320501 | STEERING KNUCKLE |
| 007 | A 3023320601 | STEERING KNUCKLE |
| 009 | A 3403320049 | BUSHING |
| Repalced by: A 3403320048 | ||
| 009 | A 3403320048 | BUSHING |
| A 0029979945 | SEAL RING | |
| Repalced by: A 0089977646 | ||
| A 0089977646 | SEAL RING | |
| 012 | A 3273321662 | THRUST WASHER |
| 015 | N 000937032000 | NUT |
| N 000094006013 | COTTER PIN | |
| 017 | N 071412010100 | GREASE NIPPLE |
| 019 | N 071412010200 | GREASE NIPPLE |
| 021 | A 3603320029 | SEALING CAP |
| OUTSIDE | ||
| 023 | A 3409970145 | SEAL RING |
| 025 | A 3603320129 | SEALING CAP |
| INSIDE | ||
| 027 | N 000472045000 | LOCK RING |
| 029 | A 3409900601 | SCREW |
| Repalced by: N 000960012197 | ||
| 029 | N 000960012197 | SCREW |
| STEERING KNUCKLE STOP | ||
| 031 | A 3403370072 | NUT |
| STEERING KNUCKLE STOP | ||
| 033 | N 915042011000 | PLUG |
| A 3873320071 | SCREW | |
| Repalced by: A 3873320171 | ||
| A 3873320171 | SCREW | |
| Repalced by: A 3873320271 | ||
| A 3873320271 | SCREW | |
| AS REQUIRED | ||
| M 16X40 | ||
| N 000934016011 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| A 3025860033 | REPAIR KIT | |
| Repalced by: A 3023300619 | ||
| 040 | A 3023300619 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| 040 | A 3605860233 | REPAIR KIT |
| Repalced by: A 3603300719 | ||
| 040 | A 3603300719 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| A 3025860133 | REPAIR KIT | |
| Repalced by: A 3023300719 | ||
| 040 | A 3023300719 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| A 3605860333 | REPAIR KIT | |
| Repalced by: A 3603300819 | ||
| 040 | A 3603300819 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| A 3025860233 | REPAIR KIT | |
| Repalced by: A 3023300819 | ||
| 040 | A 3023300819 | KING PIN |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| A 3605860433 | REPAIR KIT | |
| Repalced by: A 3603300919 | ||
| 040 | A 3603300919 | KING PIN |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| A 3023320306 | KINGPIN | |
| Repalced by: A 3025860333 | ||
| 040 | A 3025860333 | REPAIR KIT |
| REPAIR SIZE II | ||
| 37.55 MM | ||
| 040 | A 3603320606 | KINGPIN |
| REPAIR SIZE II | ||
| 37.55 MM | ||
| 043 | A 0009815418 | ROLLER BEARING |
| STANDARD | ||
| 36.652 MM | ||
| 043 | A 0009818618 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 36,95 MM | ||
| 043 | A 0009818718 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 37.25 MM | ||
| 046 | A 3403320352 | SPACER WASHER |
| Repalced by: A 3403320452 | ||
| 046 | A 3403320452 | SPACER WASHER |
| 1.30 MM | ||
| 046 | A 3403320552 | SPACER WASHER |
| 1.40 MM | ||
| 046 | A 3403320652 | SPACER WASHER |
| 1.50 MM | ||
| 046 | A 3403320752 | SPACER WASHER |
| 1.60 MM | ||
| 046 | A 3403320852 | SPACER WASHER |
| 1.70 MM | ||
| 046 | A 3403320952 | SPACER WASHER |
| 1.80 MM | ||
| 046 | A 3403321052 | SPACER WASHER |
| 1.90 MM | ||
| 046 | A 3403321252 | SPACER WASHER |
| 2.10 MM | ||
| 051 | A 3403340015 | RING |
| LEFT | ||
| 051 | A 3603340115 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 053 | A 3403340115 | RING |
| RIGHT | ||
| 053 | A 3603340215 | RING |
| FRONT WHEEL HUB,INSIDE,RIGHT | ||
| 055 | A 3023340082 | OIL COLLECTOR |
| Repalced by: A 3553340082 | ||
| 055 | A 3553340082 | OIL COLLECTOR |
| 055 | A 3533340282 | OIL COLLECTOR |
| 057 | A 0039974546 | SEAL RING |
| 057 | A 0079973646 | SEAL RING |
| 057 | A 0119977147 | SEAL RING |
| 059 | A 3403340151 | SPACER RING |
| 063 | A 0019815505 | TAPERED ROLLER BEARING |
| 063 | A 0019816605 | TAPERED ROLLER BEARING |
| 063 | A 0019816705 | TAPERED ROLLER BEARING |
| 063 | A 0039817105 | TAPERED ROLLER BEARING |
| 063 | A 0039817305 | TAPERED ROLLER BEARING |
| 063 | A 0019801002 | TAPERED ROLLER BEARING |
| 066 | A 3383340001 | WHEEL HUB |
| 066 | A 3603340901 | WHEEL HUB |
| STEEL | ||
| 066 | A 3603341101 | WHEEL HUB |
| CASTING | ||
| 070 | A 3894010071 | WHEEL MOUNTING BOLT |
| 073 | A 3544210101 | BRAKE DRUM |
| Repalced by: A 3544210301 | ||
| 073 | A 3544210301 | BRAKE DRUM |
| 076 | A 0049813405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 076 | A 0049813805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 079 | A 3213340225 | HUB CAP |
| A 3523380007 | STEERING ARM | |
| Repalced by: A 3603380507 | ||
| 081 | A 3603380007 | STEERING ARM |
| Repalced by: A 3603380507 | ||
| 081 | A 3603380507 | STEERING ARM |
| LEFT | ||
| A 3523380108 | STEERING ARM | |
| Repalced by: A 3603380706 | ||
| A 3603380006 | STEERING ARM | |
| Repalced by: A 3603380706 | ||
| 083 | A 3603380706 | STEERING ARM |
| RIGHT | ||
| A 3223380605 | STEERING ARM | |
| Repalced by: A 3603380805 | ||
| 085 | A 3603380505 | STEERING ARM |
| Repalced by: A 3603380805 | ||
| 085 | A 3603380805 | STEERING ARM |
| LEFT | ||
| A 3523380008 | STEERING ARM | |
| Repalced by: A 3603380508 | ||
| 087 | A 3603380008 | STEERING ARM |
| Repalced by: A 3603380508 | ||
| 087 | A 3603380508 | STEERING ARM |
| RIGHT | ||
| 089 | A 3523301703 | TIE ROD |
| Repalced by: A 3523302503 | ||
| 089 | A 3523302503 | TIE ROD |
| LEMFOERDER | ||
| 089 | A 3523301803 | TIE ROD |
| Repalced by: A 3523302603 | ||
| 089 | A 3523302603 | TIE ROD |
| LEMFOERDER | ||
| 091 | A 0003384615 | TIE ROD |
| 093 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 096 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 096 | A 0003300885 | BOOT |
| 101 | N 000937018003 | NUT |
| N 000094004065 | COTTER PIN | |
| 104 | A 0003381545 | CLAMP |
| 104 | A 0003381845 | CLAMP |
| 104 | A 0003381445 | CLAMP |
| Repalced by: A 0003380645 | ||
| 104 | A 0003380645 | CLAMP |
| 104 | A 0003382445 | CLAMP |
| A 3603302200 | FRONT AXLE | |
| A 3603302300 | FRONT AXLE | |

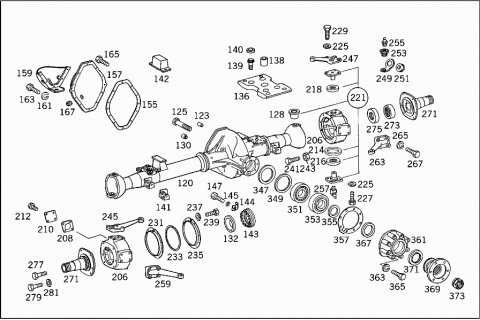

| 120 | A 3603301305 | FRONT AXLE HOUSING |
| Repalced by: A 3603302805 | ||
| 120 | A 3603302805 | FRONT AXLE HOUSING |
| 123 | N 000007006205 | CYLINDRICAL PIN |
| 125 | A 3129902201 | SCREW |
| Repalced by: N 914126016000 | ||
| 125 | N 914126016000 | SCREW |
| Repalced by: A 0009905704 | ||
| 125 | A 0009905704 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| M16X80 | ||
| 128 | A 3603310050 | BUSHING |
| 130 | A 3523510174 | PIN |
| 132 | A 3123571082 | OIL COLLECTOR |
| Repalced by: A 3853570082 | ||
| 132 | A 3853570082 | OIL COLLECTOR |
| 136 | A 3523220412 | SPRING SADDLE |
| Repalced by: A 3603220512 | ||
| 136 | A 3603220512 | SPRING SADDLE |
| 138 | A 3529910064 | BUSHING |
| 139 | A 3529900304 | SCREW |
| 140 | A 3389945043 | LOCK |
| 141 | A 3523230240 | BRACKET |
| Repalced by: A 3603230040 | ||
| 141 | A 3603230040 | BRACKET |
| SHOCK ABSORBER | ||
| 142 | A 3523300175 | RUBBER MOUNTING |
| Repalced by: A 3853300075 | ||
| 142 | A 3853300075 | RUBBER MOUNTING |
| 143 | A 3403350025 | ADJUSTING NUT |
| Repalced by: A 3853350025 | ||
| 143 | A 3853350025 | ADJUSTING NUT |
| Repalced by: A 6743530025 | ||
| 143 | A 6743530025 | SCREW COLLAR |
| 144 | A 3123531173 | LOCK |
| 145 | N 006797008120 | TOOTHED WASHER |
| LOCK TO DIFFERENTIAL CASE BEARING COVER | ||
| 147 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 147 | N 304017008016 | SCREW |
| LOCK TO DIFFERENTIAL CASE BEARING COVER | ||
| 149 | A 3143530076 | SET SCREW |
| Repalced by: A 3143530176 | ||
| 149 | A 3143530176 | SET SCREW |
| 151 | A 3123531049 | SLIDE |
| 153 | N 000936022002 | NUT |
| 155 | A 3123511080 | GASKET |
| Repalced by: A 3123511480 | ||
| 155 | A 3123511480 | GASKET |
| COVER TO AXLE HOUSING | ||
| 157 | A 3123501621 | COVER |
| Repalced by: A 3813300121 | ||
| 157 | A 3813300021 | COVER |
| Repalced by: A 3813300121 | ||
| 157 | A 3813300121 | COVER |
| 159 | A 3603300083 | PROTECTIVE PLATE |
| 161 | N 912004010102 | LOCK WASHER |
| COVER TO AXLE HOUSING | ||
| 163 | N 000933010164 | SCREW |
| COVER TO AXLE HOUSING | ||
| 165 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 165 | N 304017010028 | SCREW |
| COVER TO AXLE HOUSING | ||
| 167 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 167 | A 3529970032 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||

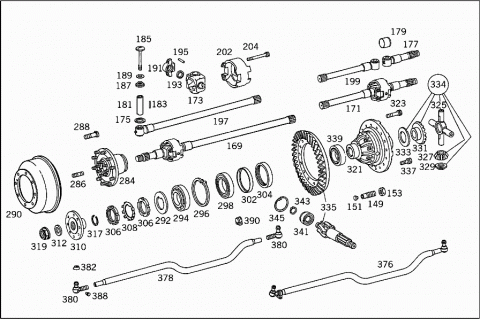

| 169 | A 3603301001 | DRIVE SHAFT |
| Repalced by: A 3833300301 | ||
| 169 | A 3833300301 | DRIVE SHAFT |
| LEFT | ||
| 171 | A 3603301101 | DRIVE SHAFT |
| Repalced by: A 3833300401 | ||
| 171 | A 3833300401 | DRIVE SHAFT |
| RIGHT | ||
| 173 | A 3813370311 | JOINT CROSS |
| Repalced by: A 3803300035 | ||
| 173 | A 3803300035 | REPAIR KIT |
| DRIVE SHAFT INNER JOURNAL CROSS | ||
| 173 | A 3813370311 | JOINT CROSS |
| Repalced by: A 3803300135 | ||
| 173 | A 3803300135 | REPAIR KIT |
| DRIVE SHAFT,OUTER JOURNAL CROSS | ||
| 175 | A 3603300060 | SEAL RING |
| A 3603300901 | DRIVE SHAFT | |
| Repalced by: A 3833300201 | ||
| 177 | A 3833300201 | DRIVE SHAFT |
| 179 | A 3609810181 | INNER RING |
| Repalced by: A 3609810381 | ||
| 179 | A 3609810381 | INNER RING |
| 179 | A 3859810281 | INNER RING |
| 181 | A 3603370174 | PIN |
| Repalced by: A 3603370274 | ||
| 181 | A 3603370274 | PIN |
| 31.00 MM | ||
| A 3609900077 | SCREW | |
| A 0009812687 | NEEDLE | |
| Repalced by: A 3529810087 | ||
| 183 | A 3529810087 | NEEDLE |
| SET = 140 PIECES | ||
| 185 | A 3609900201 | SCREW |
| 187 | A 3603370030 | COVER |
| 189 | A 3603370462 | THRUST WASHER |
| Repalced by: A 3603300360 | ||
| 189 | A 3603370562 | THRUST WASHER |
| Repalced by: A 3603300360 | ||
| 189 | A 3603300360 | SEAL RING |
| 191 | A 3603370118 | HOUSING |
| Repalced by: A 3603371818 | ||
| 191 | A 3603371818 | BEARING BRACKET |
| Repalced by: A 3603300033 | ||
| 191 | A 3603300033 | BEARING HOUSING |
| OUTSIDE | ||
| A 3603370418 | HOUSING | |
| Repalced by: A 3603371918 | ||
| A 3603371918 | BEARING BRACKET | |
| Repalced by: A 3603300133 | ||
| 191 | A 3603300133 | BEARING HOUSING |
| INSIDE | ||
| A 3603370380 | GASKET | |
| Repalced by: A 3603300360 | ||
| 193 | A 3603300360 | SEAL RING |
| 195 | A 0009812587 | NEEDLE |
| Repalced by: A 3529810287 | ||
| 195 | A 3529810287 | NEEDLE |
| SET = 128 PIECES | ||
| A 3603300701 | DRIVE SHAFT | |
| Repalced by: A 3833300101 | ||
| 197 | A 3833300101 | DRIVE SHAFT |
| A 3609810381 | INNER RING | |
| A 3859810281 | INNER RING | |
| A 3603300801 | DRIVE SHAFT | |
| Repalced by: A 3833300001 | ||
| 199 | A 3833300001 | DRIVE SHAFT |
| A 3609810181 | INNER RING | |
| Repalced by: A 3609810381 | ||
| A 3609810381 | INNER RING | |
| A 3859810281 | INNER RING | |
| 202 | A 3603370217 | FOLLOWER |
| 204 | A 3609900804 | SCREW |
| N 000094003034 | COTTER PIN | |
| 206 | A 3603370006 | HOUSING |
| 208 | A 3603370079 | GASKET |
| 210 | A 3603370130 | COVER |
| N 912004012100 | LOCK WASHER | |
| 212 | N 000961012115 | SCREW |
| 214 | A 3603320159 | SEAL RING |
| 216 | A 0009812118 | ROLLER BEARING |
| 218 | A 3603320362 | THRUST WASHER |
| AS REQUIRED | ||
| 221 | A 3605860533 | REPAIR KIT |
| Repalced by: A 3603301019 | ||
| 221 | A 3603301019 | KING PIN |
| KINGPIN | ||
| A 3603320251 | SPACER RING | |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 3603320451 | SPACER RING | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 3603320651 | SPACER RING | |
| AS REQUIRED | ||
| 4.20 MM | ||
| A 3603320751 | SPACER RING | |
| AS REQUIRED | ||
| 4.30 MM | ||
| A 3603320851 | SPACER RING | |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 3603322251 | SPACER RING | |
| AS REQUIRED | ||
| 4.60 MM | ||
| A 3603322051 | SPACER RING | |
| AS REQUIRED | ||
| 4.80 MM | ||
| 225 | N 912004014100 | LOCK WASHER |
| STEERING ARM TO STEERING KNUCKLE | ||
| 227 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 227 | N 308676014020 | SCREW |
| STEERING ARM TO STEERING KNUCKLE | ||
| 229 | A 3609901101 | SCREW |
| STEERING ARM TO STEERING KNUCKLE | ||
| TO 360 338 02 01,360 338 01 02 | ||
| A 3609900501 | SCREW | |
| STEERING ARM TO STEERING KNUCKLE | ||
| TO 360 338 02 01,360 338 01 02 | ||
| N 914112014302 | SCREW | |
| Repalced by: A 6529901104 | ||
| A 6529901104 | SCREW | |
| Repalced by: A 0009907204 | ||
| A 0009907204 | SCREW | |
| STEERING ARM TO STEERING KNUCKLE | ||
| TO 381 338 05 01,381 338 03 02 | ||
| N 914112014303 | SCREW | |
| Repalced by: A 6529901304 | ||
| A 6529901304 | SCREW | |
| STEERING ARM TO STEERING KNUCKLE | ||
| TO 381 338 05 01,381 338 03 02 | ||
| 231 | A 3603310058 | CONSOLE |
| INSIDE | ||
| 233 | A 3603310080 | GASKET |
| 235 | A 3603310158 | CONSOLE |
| OUTSIDE | ||
| 237 | N 912004008102 | LOCK WASHER |
| 239 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 239 | N 304017008016 | SCREW |
| 241 | A 3603370171 | SCREW |
| 243 | N 000936010008 | NUT |
| 245 | A 3603380201 | STEERING ARM |
| Repalced by: A 3813380501 | ||
| 245 | A 3813380501 | STEERING ARM |
| 247 | A 3603380102 | STEERING ARM |
| Repalced by: A 3813380302 | ||
| 247 | A 3813380302 | STEERING ARM |
| 249 | A 3404280240 | BRACKET |
| BRAKE HOSE | ||
| 251 | A 3129970581 | GROMMET |
| BRAKE HOSE | ||
| 253 | A 3124281026 | HOLLOW SCREW |
| 255 | N 071412010100 | GREASE NIPPLE |
| TOP | ||
| 257 | N 071412010200 | GREASE NIPPLE |
| BOTTOM | ||
| 259 | A 3453380205 | STEERING ARM |
| 263 | A 3453380306 | STEERING ARM |
| 265 | N 912004012100 | LOCK WASHER |
| TIE ROD TO STEERING ARM | ||
| 267 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 267 | N 308676012026 | SCREW |
| TIE ROD TO STEERING ARM | ||
| M 12X1.5X35 | ||
| 271 | A 3603320716 | SUPPORTING SLEEVE |
| 273 | A 0029817410 | NEEDLE BEARING |
| SUPPORTING SLEEVE | ||
| 273 | A 0039815610 | NEEDLE BEARING |
| SUPPORTING SLEEVE | ||
| 273 | A 0039816010 | NEEDLE BEARING |
| SUPPORTING SLEEVE | ||
| 273 | A 0039815910 | NEEDLE BEARING |
| SUPPORTING SLEEVE | ||
| 275 | A 0069971246 | SEAL RING |
| SUPPORTING SLEEVE | ||
| 277 | A 3609900901 | SCREW |
| A 3609900304 | SCREW | |
| 279 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 279 | A 9429901304 | SCREW |
| 279 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 279 | N 308676014012 | SCREW |
| 281 | N 912004014100 | LOCK WASHER |
| A 3603300225 | FRONT WHEEL HUB | |
| Repalced by: A 3603301825 | ||
| A 3603301825 | FRONT WHEEL HUB | |
| Repalced by: A 3603340101 | ||
| 284 | A 3603340101 | WHEEL HUB |
| 286 | A 3129901705 | STUD |
| 288 | A 3894010071 | WHEEL MOUNTING BOLT |
| 290 | A 3604210101 | BRAKE DRUM |
| 292 | A 3603310052 | SPACER WASHER |
| FRONT WHEEL HUB | ||
| 294 | A 0029819505 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 294 | A 0039810005 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 296 | A 3603340273 | LOCK |
| FRONT WHEEL HUB | ||
| 298 | A 0039810105 | TAPERED ROLLER BEARING |
| Repalced by: A 0049815805 | ||
| 298 | A 0049815805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 298 | A 0029819605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 302 | A 3603340051 | SPACER RING |
| Repalced by: A 3213560051 | ||
| 302 | A 3213560051 | SPACER RING |
| 304 | A 0069971346 | SEAL RING |
| Repalced by: A 0039972347 | ||
| 304 | A 0039972347 | SEAL RING |
| 306 | A 3603340026 | NUT |
| 308 | A 3603340173 | LOCK |
| 310 | A 3603370117 | FOLLOWER |
| 312 | A 3603370015 | THRUST RING |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| 317 | N 900055050310 | LOCK RING |
| 319 | A 3273530272 | NUT |
| Repalced by: A 3853510272 | ||
| 319 | A 3853510272 | NUT |
| 321 | A 3603306823 | DIFFERENTIAL GEAR |
| 321 | A 3603306823 | DIFFERENTIAL GEAR |
| 323 | A 3609900501 | SCREW |
| 323 | N 914112014307 | SCREW |
| Repalced by: A 6529901404 | ||
| 323 | A 6529901404 | SCREW |
| 325 | A 3833530120 | DIFFERENTIAL SPIDER |
| 327 | A 3023530014 | DIFFERENTIAL PINION |
| 329 | A 3523530024 | SPHERICAL WASHER |
| 331 | A 3583530015 | SIDE GEAR |
| 333 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 333 | A 6743530362 | THRUST WASHER |
| 334 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 335 | A 3833300439 | RING GEAR AND PINION |
| Repalced by: A 3833301539 | ||
| 335 | A 3833301539 | RING GEAR AND PINION |
| RATIO: | ||
| 6:41 | ||
| 335 | A 3833301539 | RING GEAR AND PINION |
| RATIO: | ||
| 6:41 | ||
| 337 | A 3529900701 | SCREW |
| A 3189900001 | SCREW | |
| RING GEAR TO DIFFERENTIAL CASE | ||
| A 3189900001 | SCREW | |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 339 | A 0019814905 | TAPERED ROLLER BEARING |
| 339 | A 0039815005 | TAPERED ROLLER BEARING |
| 339 | A 0059815505 | TAPERED ROLLER BEARING |
| 339 | A 0059816905 | TAPERED ROLLER BEARING |
| 339 | A 0069817605 | TAPERED ROLLER BEARING |
| 341 | A 3129810601 | CYLINDR. ROLLER BEARING |
| 343 | N 000471025002 | LOCK RING |
| 345 | A 3129940141 | LOCK |
| 347 | A 3603350052 | SPACER WASHER |
| 1.00 MM | ||
| 349 | A 3123531352 | SPACER WASHER |
| 0.10 MM | ||
| 349 | A 3123531452 | SPACER WASHER |
| 0.25 MM | ||
| 349 | A 3123533252 | SPACER WASHER |
| 0.50 MM | ||
| 351 | N 005412100309 | CYLINDR. ROLLER BEARING |
| DRIVE PINION | ||
| 353 | A 0009810027 | ANGULAR CONTACT BEARING |
| DRIVE PINION | ||
| 355 | A 3123531951 | SPACER RING |
| DRIVE PINION | ||
| 357 | A 3123532852 | SPACER WASHER |
| 0.10 MM | ||
| 357 | A 3123532952 | SPACER WASHER |
| 0.25 MM | ||
| 357 | A 3123533152 | SPACER WASHER |
| 0.50 MM | ||
| 361 | A 3123511915 | FLANGE |
| 363 | N 912004010102 | LOCK WASHER |
| 365 | N 304017010030 | SCREW |
| 367 | A 0019973247 | SEAL RING |
| Repalced by: A 0119977447 | ||
| 367 | A 0119977447 | SEAL RING |
| 367 | A 0099976347 | SEAL RING |
| 367 | A 0129972947 | SEAL RING |
| 369 | A 3523300044 | COUPLING FLANGE |
| Repalced by: A 3523300144 | ||
| 369 | A 3523300144 | COUPLING FLANGE |
| 369 | A 3523300144 | COUPLING FLANGE |
| 371 | A 3122621063 | PROTECTIVE PLATE |
| 373 | A 3243530072 | NUT |
| Repalced by: A 3853510372 | ||
| 373 | A 3853510372 | NUT |
| 376 | A 3523302303 | TIE ROD |
| LEMFOERDER | ||
| 376 | A 3523302403 | TIE ROD |
| EHRENREICH | ||
| 378 | A 0003385315 | TIE ROD |
| 380 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 380 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 380 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 382 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 382 | A 0003300885 | BOOT |
| 388 | A 3529970006 | PLUG |
| Repalced by: N 900087008000 | ||
| 388 | N 900087008000 | PLUG |
| A 0003381445 | CLAMP | |
| Repalced by: A 0003380645 | ||
| 390 | A 0003380645 | CLAMP |
| 390 | A 0003380645 | CLAMP |
| 390 | A 0003382445 | CLAMP |
| A 3855847024 | UNIT IDENTIFICATION PLATE | |
| A 3859900096 | RIVET | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
