Transporto priemonė: LS 1513; VIN numerio dalis: 360014
Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|

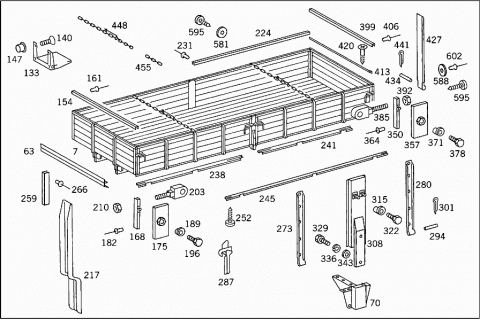

| 007 | A 3606002203 | PLATFORM |
| 4500X2385X500 MM | ||
| 007 | A 3606002303 | PLATFORM |
| 5300X2385X500 MM | ||

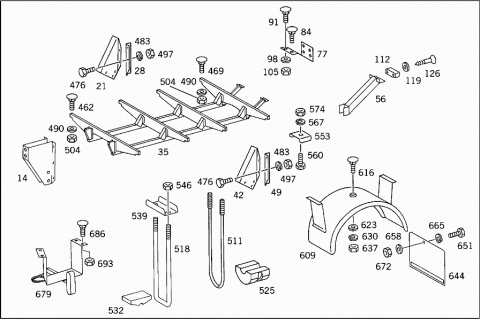

| A 3606102401 | SUBSTRUCTURE | |
| A 3606102501 | SUBSTRUCTURE | |
| A 3606103001 | SUBSTRUCTURE | |
| FRONT | ||
| 014 | A 3606100130 | CONSOLE |
| FRONT | ||
| 021 | A 3406110016 | REINFORCEMENT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 028 | A 3406140012 | ANGLE |
| LEFT | ||
| 028 | A 3406140112 | ANGLE |
| RIGHT | ||
| A 3606103201 | SUBSTRUCTURE | |
| AUXILIARY FRAME | ||
| 035 | A 3606103301 | SUBSTRUCTURE |
| AUXILIARY FRAME | ||
| 042 | A 3406110016 | REINFORCEMENT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 049 | A 3406140012 | ANGLE |
| LEFT | ||
| 049 | A 3406140112 | ANGLE |
| RIGHT | ||
| 056 | A 3606100134 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 056 | A 3606100034 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 063 | A 3606102885 | EDGING |
| FRONT | ||
| A 3606101685 | EDGING | |
| Repalced by: A 0009855647 | ||
| A 3606101885 | EDGING | |
| Repalced by: A 0009855647 | ||
| A 3606101785 | EDGING | |
| Repalced by: A 0009855647 | ||
| A 3606101985 | EDGING | |
| Repalced by: A 0009855647 | ||
| A 3606102985 | EDGING | |
| Repalced by: A 0009855647 | ||
| A 0009855647 | METAL SECTION | |
| LEFT AND RIGHT | ||
| 3000 MM | ||
| A 0009855647 | METAL SECTION | |
| REAR | ||
| 3000 MM | ||
| A 3128510145 | PANELLING | |
| (CONNECTING RAIL) | ||
| 070 | A 3606100052 | TAKE-UP DEVICE |
| CENTRAL INSERT POCKET | ||
| 077 | A 3526160686 | STOP |
| REAR PANEL | ||
| 084 | N 000603008050 | SCREW |
| STOP TO FLOOR | ||
| M 8X45 | ||
| 091 | N 000603008051 | SCREW |
| STOP TO FLOOR | ||
| M 8X55 | ||
| 098 | N 000440009103 | WASHER |
| STOP TO FLOOR | ||
| 105 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 105 | N 913004008001 | NUT |
| STOP TO FLOOR | ||
| 112 | A 3129870040 | RUBBER BUFFER |
| 119 | N 000125005308 | WASHER |
| RUBBER BUFFER TO PLATFORM | ||
| 126 | N 000096005027 | WOOD SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| 126 | N 000096005027 | WOOD SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| 133 | A 0008700008 | FOLDING STEP |
| FOR REAR PANEL | ||
| 140 | N 000966008020 | SCREW |
| Repalced by: N 000965008007 | ||
| 140 | N 000965008007 | SCREW |
| FOLDING STEP TO REAR PANEL | ||
| M 8 X 30 | ||
| 147 | A 0009842425 | THREADED CHUCK |
| FOLDING STEP TO REAR PANEL | ||
| A 3606160086 | STOP | |
| A 3606200002 | FRONT PANEL | |
| 154 | A 3606270070 | BINDING RAIL |
| TOP | ||
| 161 | A 3529900196 | RIVET |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 168 | A 3526200043 | RAIL |
| LEFT | ||
| 168 | A 3526200143 | RAIL |
| RIGHT | ||
| 175 | A 3526370011 | PLATE |
| THREADED | ||
| 182 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 189 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 196 | A 3609902101 | SCREW |
| 203 | A 3526250015 | RING |
| FRONT PANEL | ||
| 210 | N 000934010014 | NUT |
| FRONT PANEL | ||
| 217 | A 3526200028 | BRACING |
| FRONT PANEL TO SUBSTRUCTURE | ||
| A 3606301701 | SIDE PANEL | |
| A 3606301801 | SIDE PANEL | |
| A 3526370070 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3526371170 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 224 | A 3146371470 | BINDING RAIL |
| TOP | ||
| 231 | A 3529900196 | RIVET |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 238 | A 3526370370 | BINDING RAIL |
| BOTTOM | ||
| 241 | A 3526370470 | BINDING RAIL |
| BOTTOM | ||
| A 3526371270 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| 245 | A 3146371970 | BINDING RAIL |
| BOTTOM | ||
| 252 | N 000097005025 | WOOD SCREW |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 259 | A 3526370970 | BINDING RAIL |
| LEFT | ||
| 259 | A 3526371070 | BINDING RAIL |
| RIGHT | ||
| 266 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 273 | A 3606370054 | HINGE |
| 280 | A 3606300082 | HINGE |
| WITH CHAIN FASTENER | ||
| 287 | A 3526370063 | HOOK |
| LEFT FRONT AND RIGHT REAR | ||
| 287 | A 3526370163 | HOOK |
| RIGHT FRONT,LEFT REAR | ||
| 294 | N 001434012052 | PIN |
| SIDE PANEL TO SUBSTRUCTURE | ||
| 301 | N 000094004021 | COTTER PIN |
| SIDE PANEL TO SUBSTRUCTURE | ||
| A 3526600075 | INSERT RAIL | |
| Repalced by: A 3606600075 | ||
| 308 | A 3606600075 | INSERT RAIL |
| 315 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 322 | A 3609902101 | SCREW |
| FASTENER DETENT | ||
| 329 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 329 | N 304017008021 | SCREW |
| M 8X20 | ||
| 336 | N 912004008102 | LOCK WASHER |
| 343 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 343 | N 000125008443 | WASHER |
| A 3606400202 | REAR PANEL | |
| 350 | A 3526400054 | BINDING RAIL |
| LEFT | ||
| 350 | A 3526400154 | BINDING RAIL |
| RIGHT | ||
| 357 | A 3526370011 | PLATE |
| THREADED | ||
| 364 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 371 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 378 | A 3609902101 | SCREW |
| FASTENER DETENT | ||
| 385 | A 3526250015 | RING |
| REAR PANEL | ||
| 392 | N 000934010014 | NUT |
| REAR PANEL | ||
| A 3606470070 | RAIL | |
| Repalced by: A 3146371470 | ||
| 399 | A 3146371470 | BINDING RAIL |
| TOP | ||
| 406 | A 3529900196 | RIVET |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| A 3606470170 | RAIL | |
| Repalced by: A 3146371970 | ||
| 413 | A 3146371970 | BINDING RAIL |
| LESS BORE AND LESS CUT-OUT | ||
| 420 | N 000097005025 | WOOD SCREW |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 427 | A 3606370054 | HINGE |
| 434 | N 001434012052 | PIN |
| REAR PANEL TO SUBSTRUCTURE | ||
| 441 | N 000094004021 | COTTER PIN |
| REAR PANEL TO SUBSTRUCTURE | ||
| A 3406600094 | FASTENER | |
| Repalced by: A 3406600093 | ||
| 448 | A 3406600093 | CHAIN |
| WITH CHAIN LOCK | ||
| 455 | N 000763006004 | CHAIN |
| 462 | N 000603008027 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X35 | ||
| 462 | N 000603008049 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X40 | ||
| 462 | N 000603008050 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X45 | ||
| 462 | N 000603008048 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X65 | ||
| 469 | N 000603008057 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X120 | ||
| 469 | N 000603008087 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X130 | ||
| 476 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 476 | N 304017008034 | SCREW |
| PLATFORM MOUNTING | ||
| M 8X25 | ||
| 483 | N 912004008102 | LOCK WASHER |
| PLATFORM MOUNTING | ||
| 490 | N 000440009103 | WASHER |
| PLATFORM MOUNTING | ||
| 497 | N 304032008006 | NUT |
| PLATFORM MOUNTING | ||
| 504 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 504 | N 913004008001 | NUT |
| PLATFORM MOUNTING | ||
| 511 | A 3228910630 | CLAMP |
| PLATFORM TO FRAME | ||
| 395 MM | ||
| A 3128582030 | CLAMP | |
| Repalced by: A 3608910630 | ||
| 511 | A 3608910630 | CLAMP |
| PLATFORM TO FRAME | ||
| 420 MM | ||
| 511 | A 3128581930 | CLAMP |
| PLATFORM TO FRAME | ||
| 440 MM | ||
| 511 | A 3408910130 | CLAMP |
| PLATFORM TO FRAME | ||
| 460 MM | ||
| 518 | A 3608910030 | CLAMP |
| PLATFORM TO FRAME | ||
| 430 MM | ||
| A 3528910196 | BASE | |
| Repalced by: A 3528910296 | ||
| 525 | A 3528910296 | BASE |
| PLATFORM MOUNTING | ||
| 532 | A 3218580042 | PAD |
| PLATFORM MOUNTING | ||
| 539 | A 3528910011 | PLATE |
| PLATFORM MOUNTING | ||
| 546 | N 000934012021 | NUT |
| PLATFORM MOUNTING | ||
| 553 | A 3608910013 | PLATE |
| PLATFORM MOUNTING | ||
| 560 | N 000960012249 | SCREW |
| PLATFORM MOUNTING | ||
| M 12X170 | ||
| 567 | N 912004012100 | LOCK WASHER |
| PLATFORM MOUNTING | ||
| 574 | N 000934012022 | NUT |
| PLATFORM MOUNTING | ||
| 581 | A 0008261741 | SIDE REFLECTOR |
| Repalced by: A 0008262440 | ||
| 581 | A 0008262440 | REFLECTOR |
| AMBER | ||
| 588 | A 0005443505 | REFLECTOR |
| AMBER | ||
| 588 | A 0005443605 | REFLECTOR |
| AMBER | ||
| 588 | A 0005443905 | REFLECTOR |
| AMBER | ||
| 595 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 595 | N 000000000453 | SHEET METAL SCREW |
| REFLECTOR TO PLATFORM | ||
| 4.2X13 MM | ||
| 602 | N 910001004104 | RIVET |
| REFLECTOR TO PLATFORM | ||
| 4X13.01 MM | ||
| 609 | A 3408800221 | REAR FENDER |
| 616 | N 000603008051 | SCREW |
| REAR FENDER TO PLATFORM | ||
| M 8X55 | ||
| 616 | N 000603008048 | SCREW |
| REAR FENDER TO PLATFORM | ||
| M 8X65 | ||
| 623 | N 000440009103 | WASHER |
| REAR FENDER TO PLATFORM | ||
| 630 | N 912004008102 | LOCK WASHER |
| REAR FENDER TO PLATFORM | ||
| 637 | N 304032008006 | NUT |
| REAR FENDER TO PLATFORM | ||
| 644 | A 3408800122 | SPLASH GUARD |
| REAR | ||
| 651 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 651 | N 304017008021 | SCREW |
| MUD APRON TO FENDER | ||
| M 8X20 | ||
| 658 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 658 | N 009021008213 | WASHER |
| MUD APRON TO FENDER | ||
| 665 | N 912004008102 | LOCK WASHER |
| MUD APRON TO FENDER | ||
| 672 | N 304032008006 | NUT |
| MUD APRON TO FENDER | ||
| A 3528900010 | FIXTURE | |
| Repalced by: A 3528900110 | ||
| 679 | A 3528900110 | FIXTURE |
| FOR CHOCK | ||
| 686 | N 000603008049 | SCREW |
| BRACKET TO BODY | ||
| M 8X40 | ||
| 693 | N 304032008006 | NUT |
| BRACKET TO BODY | ||
| 693 | N 304032008006 | NUT |
| PLATFORM USED FOR MEILLER THREE-SIDE DUMP TRUCK | ||

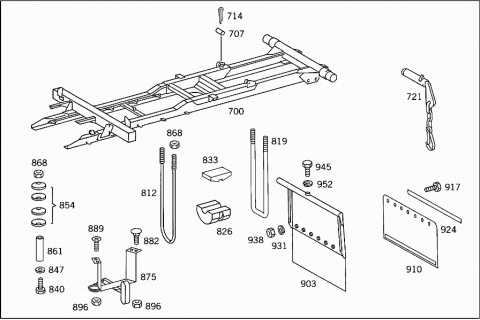

| 700 | A 3606102201 | SUBSTRUCTURE |
| (AUXILIARY FRAME) | ||
| 700 | A 3606102301 | SUBSTRUCTURE |
| (AUXILIARY FRAME) | ||
| 707 | N 001433025002 | PIN |
| RETAINING ROPE TO PLATFORM | ||
| 714 | N 000094006317 | COTTER PIN |
| RETAINING ROPE TO PLATFORM | ||
| 721 | A 0003150606 | COUPLING PIN |
| FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME | ||

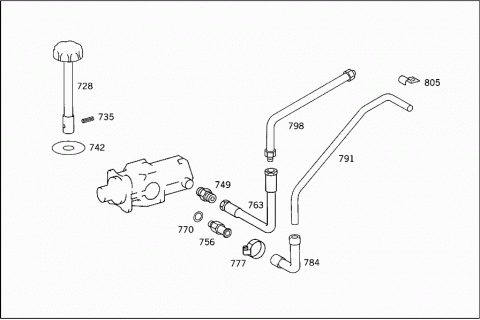

| 728 | A 3606190015 | SHAFT |
| DUMPER VALVE OPERATION | ||
| 735 | N 001481005026 | CLAMPING SLEEVE |
| DUMPER VALVE SHAFT TO DUMPER VALVE | ||
| 742 | A 3296160476 | WASHER |
| (SEAL) | ||
| 749 | A 0019971672 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 756 | A 0019971872 | FITTING |
| SUCTION LINE TO PUMP | ||
| 756 | A 0029973972 | FITTING |
| SUCTION LINE TO PUMP | ||
| 763 | A 0089971882 | HOSE |
| FROM PUMP TO T-FITTING | ||
| 770 | N 007603030107 | SEAL RING |
| SUCTION LINE TO PUMP | ||
| 770 | N 007603036101 | SEAL RING |
| SUCTION LINE TO PUMP | ||
| 777 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 777 | N 000000000668 | CLAMP |
| SUCTION LINE | ||
| 784 | A 3606190165 | LINE |
| OIL-TANK-TO-PUMP SUCTION LINE | ||
| 791 | A 3606190265 | LINE |
| SUCTION | ||
| 798 | A 3606190565 | LINE |
| DELIVERY | ||
| 805 | A 3436190085 | PIPE CLAMP |
| OIL LINE MOUNTING | ||
| 805 | A 3526190085 | PIPE CLAMP |
| OIL LINE MOUNTING | ||
| 812 | A 3608910130 | CLAMP |
| AUXILIARY FRAME TO CHASSIS | ||
| 340 MM | ||
| 812 | A 3288910730 | CLAMP |
| AUXILIARY FRAME TO CHASSIS | ||
| 320 MM | ||
| A 3408910630 | CLAMP | |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| 819 | A 3528910330 | CLAMP |
| AUXILIARY FRAME TO CHASSIS | ||
| 320 MM | ||
| A 3528910196 | BASE | |
| Repalced by: A 3528910296 | ||
| 826 | A 3528910296 | BASE |
| AUXILIARY FRAME TO CHASSIS | ||
| 833 | A 3218580042 | PAD |
| AUXILIARY FRAME TO CHASSIS | ||
| 840 | N 000931012148 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X100 | ||
| 847 | A 0019904540 | WASHER |
| AUXILIARY FRAME TO CHASSIS | ||
| 854 | N 002093035101 | DISC SPRING |
| AUXILIARY FRAME TO CHASSIS | ||
| A 3523160253 | SPACER TUBE | |
| Repalced by: A 3833160053 | ||
| 861 | A 3833160053 | SPACER TUBE |
| AUXILIARY FRAME TO CHASSIS | ||
| 868 | N 000934012021 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| A 3528900010 | FIXTURE | |
| Repalced by: A 3528900110 | ||
| 875 | A 3528900110 | FIXTURE |
| CHOCK | ||
| 882 | N 000603008047 | SCREW |
| BRACKET TO BODY | ||
| M 8X50 | ||
| 889 | N 007988008105 | SCREW |
| BRACKET TO BODY | ||
| 896 | N 304032008006 | NUT |
| BRACKET TO BODY | ||
| 903 | A 3608800008 | MUD APRON |
| LEFT | ||
| 903 | A 3608800108 | MUD APRON |
| RIGHT | ||
| 910 | A 0008820304 | SPLASH GUARD |
| 600X300 MM | ||
| 917 | N 000085005128 | SCREW |
| M 5X15 | ||
| 924 | A 0008820214 | BRACKET |
| MUD APRON | ||
| 931 | N 912004005103 | LOCK WASHER |
| 938 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 938 | N 304032005005 | NUT |
| 945 | N 000933012001 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| M 12X15 | ||
| 952 | N 912004005103 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
