Transporto priemonė: LS 1513; VIN numerio dalis: 360014

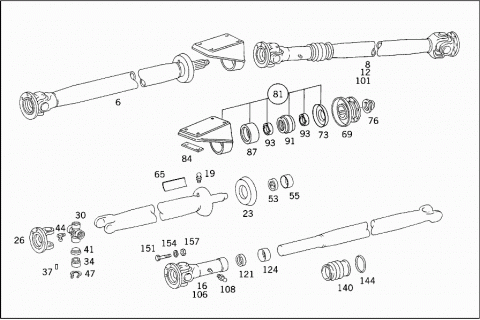

Grupė: 41 PROPELLER SHAFT
41318
# Kodas Pavadinimas
006 A 3604101501 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
854 MM
006 A 3524101301 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
837 MM
006 A 3604101601 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1453 MM
006 A 3524101401 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1436 MM
006 A 3604101701 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1962 MM
006 A 3524101501 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING
1946 MM
008 A 3604100602 PROPELLER SHAFT
Repalced by: A 3604101102
008 A 3604101102 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
1274 MM
008 A 3604100202 PROPELLER SHAFT
FROM TRANSMISSION TO TRANSFER CASE
681 MM
012 A 3604101502 PROPELLER SHAFT
Repalced by: A 6744102602
012 A 6744102602 PROPELLER SHAFT
FROM TRANSFER CASE TO REAR AXLE
1365 MM
012 A 3604102602 PROPELLER SHAFT
Repalced by: A 6744100002
012 A 6744100002 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1660
012 A 3604102702 PROPELLER SHAFT
FROM TRANSFER CASE TO FRONT AXLE
1061 MM
016 A 3544100008 UNIVERSAL JOINT YOKE
019 N 071412010100 GREASE NIPPLE
019 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
019 N 071412008102 GREASE NIPPLE
023 A 3374130061 PROTECTIVE CAP
023 A 3124131361 PROTECTIVE CAP
026 A 3544110011 DRIVE FLANGE
026 A 3814110811 DRIVE FLANGE
026 A 3524110011 DRIVE FLANGE
030 A 3174100131 UNIVERSAL JOINT CROSS
Repalced by: A 3854100131
030 A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
030 A 6174100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
030 A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
030 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
034 A 3374100042 BEARING BUSHING
Repalced by: A 3834100042
034 A 3834100042 BEARING BUSHING
034 A 3224100542 BEARING BUSHING
037 A 0009811587 NEEDLE
037 A 0009815087 NEEDLE
Repalced by: A 3189810287
037 A 3189810287 NEEDLE
SET = 132 PIECES
041 A 3374110033 EXPANSION PLUG
041 A 3124111233 EXPANSION PLUG
044 N 071412008302 GREASE NIPPLE
047 A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
047 A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
047 A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
047 A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
047 A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
047 A 0039944541 LOCK
Repalced by: A 0039944441
047 A 0039944441 LOCK
Repalced by: A 0059949441
047 A 0059949441 LOCK
Repalced by: N 000472042001
047 N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
047 A 0039945041 LOCK
Repalced by: A 0059949941
047 A 0059949941 LOCK
AS REQUIRED
1.875 MM
047 A 0059941041 LOCK
Repalced by: A 0069940441
047 A 0069940441 LOCK
AS REQUIRED
2.000 MM
047 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
047 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
047 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
047 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
047 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
047 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
053 A 3374130080 SEAL RING
055 A 3374130258 SEAL HOLDER
A 3384100180 BOOT
065 A 3214110053 WIRE RING
N 916002080100 CLAMP
N 916002078100 CLAMP
069 A 3544100030 CENTERING FLANGE
069 A 3524100030 CENTERING FLANGE
073 A 3374130061 PROTECTIVE CAP
073 A 3124131361 PROTECTIVE CAP
076 A 3273530172 NUT
Repalced by: A 3853510072
076 A 3853510072 NUT
Repalced by: A 3853510172
076 A 3853510172 NUT
076 A 3224110072 NUT
A 3604100140 BRACKET
Repalced by: A 3525860141
A 3525860141 REPAIR KIT
Repalced by: A 3524100110
A 3524100110 REPAIR KIT
INTERMEDIATE SHAFT BEARING
081 A 3224100540 BRACKET
Repalced by: A 3525860041
081 A 3525860041 REPAIR KIT
Repalced by: A 3524100010
081 A 3524100010 REPAIR KIT
INTERMEDIATE SHAFT BEARING
N 000961010010 SCREW
BRACKET TO CROSS MEMBER
084 A 3524130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
N 913002010010 NUT
BRACKET TO CROSS MEMBER
N 007349010003 WASHER
Repalced by: N 007349010007
N 007349010007 WASHER
087 A 3384130012 RUBBER MOUNTING
087 A 3124131112 RUBBER MOUNTING
A 3544100051 BALL BEARING
Repalced by: A 3634100051
091 A 3634100051 BALL BEARING
091 A 3524100051 BALL BEARING
093 A 3374130131 BEARING RING
093 A 3124131231 BEARING RING
101 A 3604101202 PROPELLER SHAFT
Repalced by: A 3604102602
101 A 3604102602 PROPELLER SHAFT
Repalced by: A 6744100002
101 A 6744100002 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1623 MM
101 A 3524100202 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1667 MM
101 A 3174100802 PROPELLER SHAFT
Repalced by: A 6744100202
101 A 6744100202 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1575 MM
101 A 3524101602 PROPELLER SHAFT
Repalced by: A 6744100202
101 A 6744100202 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1575 MM
101 A 3604101302 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1747 MM
101 A 3524100302 PROPELLER SHAFT
Repalced by: A 3184100702
101 A 3184100702 PROPELLER SHAFT
Repalced by: A 6744101802
101 A 6744101802 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1720 MM
101 A 3604101102 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1254 MM
101 A 3524103402 PROPELLER SHAFT
FROM INTERMED.SHAFT BEARING TO REAR AXLE
1272 MM
106 A 3544100008 UNIVERSAL JOINT YOKE
106 A 3524100008 UNIVERSAL JOINT YOKE
108 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
108 N 071412008102 GREASE NIPPLE
A 3544110011 DRIVE FLANGE
A 3524110011 DRIVE FLANGE
A 3174100131 UNIVERSAL JOINT CROSS
Repalced by: A 3854100131
A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3374100042 BEARING BUSHING
Repalced by: A 3834100042
A 3834100042 BEARING BUSHING
A 3224100542 BEARING BUSHING
A 0009811587 NEEDLE
A 0009815087 NEEDLE
Repalced by: A 3189810287
A 3189810287 NEEDLE
SET = 132 PIECES
A 3374110033 EXPANSION PLUG
A 3124111233 EXPANSION PLUG
N 071412008302 GREASE NIPPLE
A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
A 3379945435 SNAP RING
AS REQUIRED
2.85 M
A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
121 A 3374130080 SEAL RING
124 A 3374130258 SEAL HOLDER
124 A 3214110158 SEAL HOLDER
A 3544110011 DRIVE FLANGE
A 3524110011 DRIVE FLANGE
A 3814110811 DRIVE FLANGE
A 3174100131 UNIVERSAL JOINT CROSS
Repalced by: A 3854100131
A 3854100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 6174100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3374100042 BEARING BUSHING
Repalced by: A 3834100042
A 3834100042 BEARING BUSHING
A 3224100542 BEARING BUSHING
A 0009811587 NEEDLE
SET = 124 PIECES
A 0009815087 NEEDLE
Repalced by: A 3189810287
A 3189810287 NEEDLE
SET = 132 PIECES
A 3374110033 EXPANSION PLUG
A 3124111233 EXPANSION PLUG
N 071412008302 GREASE NIPPLE
A 3379945035 SNAP RING
AS REQUIRED
2.80 MM
A 3379945435 SNAP RING
AS REQUIRED
2.85 MM
A 3379945135 SNAP RING
AS REQUIRED
2.90 MM
A 3379945235 SNAP RING
AS REQUIRED
2.95 MM
A 3379945335 SNAP RING
AS REQUIRED
3.00 MM
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 0039944541 LOCK
Repalced by: A 0039944441
A 0039944441 LOCK
Repalced by: A 0059949441
A 0059949441 LOCK
Repalced by: N 000472042001
N 000472042001 LOCK RING
AS REQUIRED
1.750 MM
A 0039945041 LOCK
Repalced by: A 0059949941
A 0059949941 LOCK
AS REQUIRED
1.875 MM
A 0059941041 LOCK
Repalced by: A 0069940441
A 0069940441 LOCK
AS REQUIRED
2.000 MM
A 3384100180 BOOT
140 A 3524100080 BOOT
144 A 3214110053 WIRE RING
N 916002080100 CLAMP
BOOT TO PROPELLER SHAFT
N 916002078100 CLAMP
BOOT TO PROPELLER SHAFT
151 A 3529900401 SCREW
Repalced by: A 3529904701
151 A 3529904701 SCREW
Repalced by: A 0079901001
151 A 0079901001 SCREW
TO MOUNT THE PROPELLER SHAFTS
154 N 912004010102 LOCK WASHER
TO MOUNT THE PROPELLER SHAFTS
157 N 000934010010 NUT
TO MOUNT THE PROPELLER SHAFTS
