Transporto priemonė: LS 1513; VIN numerio dalis: 360014

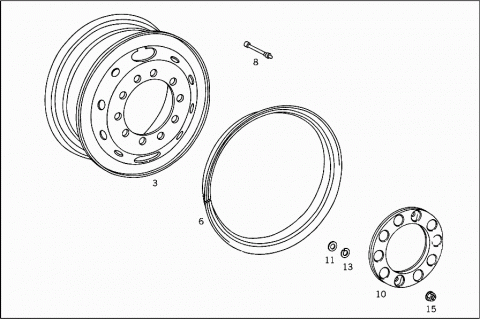

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3354000102 | DISC WHEEL |
| Repalced by: A 0014015901 | ||
| A 0014015901 | DISC WHEEL | |
| (10-HOLE RIM) | ||
| 7.50-20 | ||
| A 3354001502 | DISC WHEEL | |
| Repalced by: A 0024013701 | ||
| A 0024013701 | DISC WHEEL | |
| Repalced by: A 0034016301 | ||
| A 0034016301 | DISC WHEEL | |
| (10-HOLE RIM) | ||
| 7.50-20 | ||
| A 3354000902 | DISC WHEEL | |
| Repalced by: A 0014017401 | ||
| A 0014017401 | DISC WHEEL | |
| (10-HOLE RIM) | ||
| 7.5-20 | ||
| 006 | A 0004015606 | SIDE RING |
| 008 | A 0004010513 | VALVE |
| Repalced by: A 3854010013 | ||
| 008 | A 3854010013 | VALVE |
| 008 | A 3854010113 | VALVE |
| 010 | A 3604000325 | HUB CAP |
| N 074361022352 | LOCK WASHER | |
| FRONT AXLE | ||
| N 074361022205 | NUT | |
| FRONT AXLE | ||
| 011 | A 3174020175 | SPHERICAL RING |
| REAR AXLE | ||
| 013 | N 074361022351 | LOCK WASHER |
| REAR AXLE | ||
| 015 | N 074361022205 | NUT |
| REAR AXLE | ||

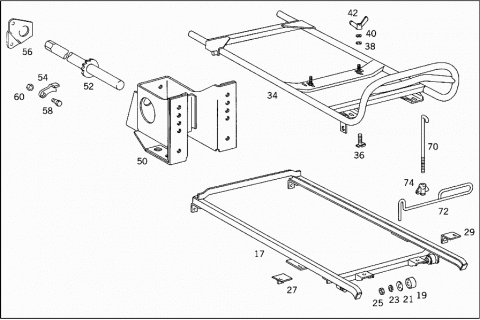

| 017 | A 3524000739 | BRACKET |
| 019 | A 3154030076 | ROLLER |
| 021 | N 009021013200 | WASHER |
| 023 | N 912004012100 | LOCK WASHER |
| 025 | N 000934012022 | NUT |
| 027 | A 3524030248 | ANGLE |
| FRONT LEFT | ||
| 029 | A 3524030348 | ANGLE |
| REAR LEFT | ||
| N 000933010260 | SCREW | |
| ANGLE TO FRAME | ||
| N 000933010157 | SCREW | |
| ANGLE TO FRAME | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| ANGLE TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| ANGLE TO FRAME | ||
| N 000934010014 | NUT | |
| ANGLE TO FRAME | ||
| 034 | A 3524000839 | BRACKET |
| 036 | A 3524000020 | CLAMPING SCREW |
| 038 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 038 | N 000433013010 | WASHER |
| 040 | N 006799010001 | LOCK PLATE |
| 042 | A 3524030030 | NUT |
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| N 000934012021 | NUT | |
| 050 | A 3524001739 | BRACKET |
| Repalced by: A 3854000039 | ||
| 050 | A 3854000039 | BRACKET |
| Repalced by: A 3854000539 | ||
| 050 | A 3854000539 | SPARE WHEEL CARRIER |
| 052 | A 3524000117 | SHAFT |
| 054 | A 3524030084 | PAWL |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 056 | A 3524030294 | PLATE |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 058 | A 3524030071 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 060 | N 000935010004 | NUT |
| SHAFT TO SPARE WHEEL CARRIER | ||
| N 000094002034 | COTTER PIN | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| N 000933010105 | SCREW | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10X25 | ||
| N 912004010102 | LOCK WASHER | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| N 000934010014 | NUT | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| N 000933010260 | SCREW | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10X32 | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| A 3524030150 | BUSHING | |
| Repalced by: A 3633220051 | ||
| A 3633220051 | SPACER RING | |
| SHAFT TO SPARE WHEEL CARRIER | ||
| N 083331008500 | WIRE CABLE | |
| Repalced by: N 083334008000 | ||
| N 083334008000 | WIRE CABLE | |
| 1500 MM | ||
| A 3524001939 | BRACKET | |
| A 3359900340 | WASHER | |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| N 074361020352 | LOCK WASHER | |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| N 074361020205 | NUT | |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| A 3524030408 | REINFORCEMENT | |
| A 3524030019 | BASE BLOCK | |
| N 000961012122 | SCREW | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M12X40 | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X35 | ||
| N 912004012100 | LOCK WASHER | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| N 000933010157 | SCREW | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 10X28 | ||
| N 912004010102 | LOCK WASHER | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| A 3529900802 | SCREW | |
| SPARE WHEEL TO CROSS MEMBER | ||
| A 3529900802 | SCREW | |
| SPARE WHEEL TO CROSS MEMBER | ||
| A 3524030067 | SHIM | |
| SPARE WHEEL TO CROSS MEMBER | ||
| A 3524030067 | SHIM | |
| SPARE WHEEL TO CROSS MEMBER | ||
| N 000934012022 | NUT | |
| SPARE WHEEL TO CROSS MEMBER | ||
| N 000934012022 | NUT | |
| SPARE WHEEL TO CROSS MEMBER | ||
| 070 | A 3524030729 | HOOK BOLT |
| 072 | A 3524030073 | LOCK |
| 074 | A 3529900462 | NUT |
| A 3524002439 | BRACKET | |
| Repalced by: A 3524003439 | ||
| A 3524003439 | SPARE WHEEL HOIST | |
| Repalced by: A 3524003339 | ||
| A 3524003339 | SPARE WHEEL HOIST | |
| A 0004030090 | CHAIN | |
| A 0004030036 | CABLE | |
| A 0004030012 | COVERING | |
| A 3525850003 | PROTECTIVE WRAPPER | |
| SPARE WHEEL HOIST | ||
| A 3464005339 | BRACKET | |
| Repalced by: A 6554000049 | ||
| A 6554000049 | PLATE | |
| SPARE WHEEL HOIST | ||
| A 3524000039 | BRACKET | |
| SPARE WHEEL CARRIER | ||
| N 000933010105 | SCREW | |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| N 000934010014 | NUT | |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| A 3529900462 | NUT | |
| A 3524030073 | LOCK | |
| A 3524030829 | HOOK BOLT | |
| SPARE WHEEL TO SUPPORT | ||
| A 3529900462 | NUT | |
| SPARE WHEEL TO SUPPORT | ||
