Transporto priemonė: LS 1518; VIN numerio dalis: 351335
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 732.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR WHEEL BRAKE, SEE PARTS LIST: | ||
| 745.3 | ||

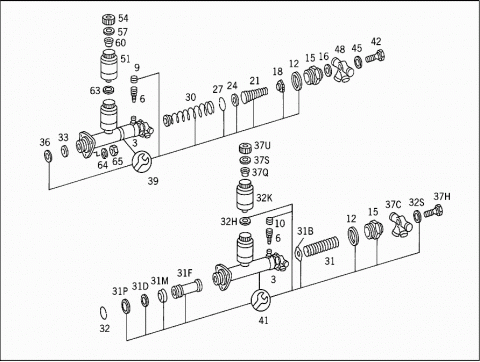

| A 0014308001 | BRAKE MASTER CYLINDER | |
| Repalced by: A 3454307501 | ||
| A 0024304101 | BRAKE MASTER CYLINDER | |
| Repalced by: A 3454307501 | ||
| 003 | A 3454307501 | BRAKE MASTER CYLINDER |
| REAR AXLE BRAKE CIRCUIT | ||
| A 0454300001 | BRAKE MASTER CYLINDER | |
| Repalced by: A 3454307401 | ||
| A 0024302701 | BRAKE MASTER CYLINDER | |
| Repalced by: A 3454307401 | ||
| 003 | A 3454307401 | BRAKE MASTER CYLINDER |
| FRONT AXLE BRAKE CIRCUIT | ||
| 006 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 006 | A 3454317165 | VALVE |
| AS REQUIRED | ||
| TO 002 430 41 01,27 01,045 430 00 01 | ||
| 006 | A 3454317165 | VALVE |
| AS REQUIRED | ||
| TO 345 430 74 01,345 430 75 01 | ||
| 009 | A 0004310887 | PROTECTIVE CAP |
| Repalced by: A 0004311587 | ||
| 009 | A 0004311587 | PROTECTIVE CAP |
| TO 002 430 41 01,27 01,045 430 00 01 | ||
| 010 | A 3454317287 | PROTECTIVE CAP |
| TO 345 430 74 01 | ||
| 012 | N 007603040102 | SEAL RING |
| TO 002 430 41 01,002 430 27 01 | ||
| 012 | N 007603040102 | SEAL RING |
| TO 345 430 74 01 | ||
| 012 | N 007603042300 | SEAL RING |
| TO 002 430 41 01,27 01,045 430 00 01 | ||
| 015 | A 0004311075 | THREADED UNION |
| TO 002 430 41 01,002 430 27 01 | ||
| 015 | A 0084310675 | THREADED UNION |
| TO 045 430 00 01 | ||
| 015 | A 0084310675 | THREADED UNION |
| TO 345 430 74 01 | ||
| 016 | A 0004310760 | SEAL RING |
| TO 002 430 27 01 | ||
| 018 | A 0004300381 | VALVE |
| TO 002 430 41 01 | ||
| 018 | A 0004300081 | VALVE |
| TO 002 430 27 01 | ||
| 021 | A 0009930605 | SPRING |
| TO 002 430 41 01,002 430 27 01 | ||
| 024 | A 0004311776 | WASHER |
| TO 002 430 41 01,002 430 27 01 | ||
| 027 | A 0009941835 | SNAP RING |
| TO 002 430 41 01,27 01,045 430 00 01 | ||

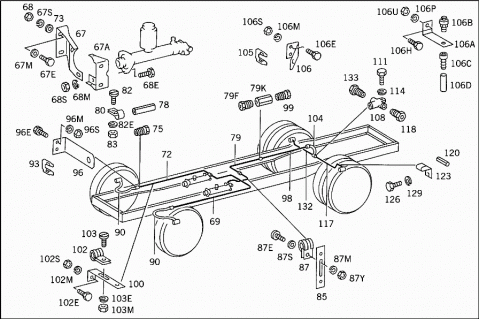

| 030 | A 0004314293 | SPRING |
| TO 002 430 41 01,002 430 27 01 | ||
| 031 | A 0084311793 | SPRING |
| TO 045 430 00 01 | ||
| 031 | A 3454317393 | SPRING |
| TO 345 430 74 01 | ||
| 031B | A 0084310886 | CUP |
| TO 045 430 00 01 | ||
| 031D | A 0084310576 | WASHER |
| TO 045 430 00 01 | ||
| 031F | A 0084311083 | PISTON |
| TO 045 430 00 01 | ||
| 031M | A 0004310786 | CUP |
| TO 045 430 00 01 | ||
| 031P | A 0084310476 | WASHER |
| TO 045 430 00 01 | ||
| A 0084310394 | LOCK | |
| Repalced by: A 3454317194 | ||
| 032 | A 3454317194 | LOCK |
| TO 045 430 00 01 | ||
| 032 | A 3454317194 | LOCK |
| TO 345 430 74 01 | ||
| 032H | N 007603022102 | SEAL RING |
| TO 045 430 00 01,345 430 74 01 | ||
| 032K | A 0084310602 | RESERVOIR |
| TO 045 430 00 01,345 430 74 01 | ||
| 032S | N 007603014102 | SEAL RING |
| TO 045 430 00 01,345 430 74 01 | ||
| 033 | A 0004311785 | FILLER RING |
| TO 002 430 41 01,002 430 27 01 | ||
| 036 | A 0004310376 | WASHER |
| TO 002 430 41 01,002 430 27 01 | ||
| 037C | A 3454317030 | BANJO UNION |
| TO 345 430 74 01 | ||
| 037H | A 3454287226 | HOLLOW SCREW |
| TO 345 430 74 01 | ||
| 037Q | A 3084317034 | STRAINER |
| TO 345 430 74 01 | ||
| 037S | A 0089970240 | SEAL RING |
| TO 345 430 74 01 | ||
| 037U | A 0094310233 | FILLER CAP |
| TO 345 430 74 01 | ||
| 039 | A 0005861743 | REPAIR KIT |
| TO 002 430 41 01 | ||
| 039 | A 3515867043 | REPAIR KIT |
| TO 002 430 27 01 | ||
| 041 | A 0455860542 | REPAIR KIT |
| MINOR | ||
| TO 045 430 00 01,345 430 74 01 | ||
| 041 | A 0455860442 | REPAIR KIT |
| MAJOR | ||
| TO 045 430 00 01,345 430 74 01 | ||
| 042 | A 0004280026 | HOLLOW SCREW |
| 045 | N 007603014102 | SEAL RING |
| 048 | A 0004280124 | DISTRIBUTOR |
| 051 | A 0004312102 | RESERVOIR |
| TO 002 430 41 01,002 430 27 01 | ||
| 054 | A 0004312033 | FILLER CAP |
| TO 002 430 41 01,002 430 27 01 | ||
| 057 | A 0009972940 | SEAL RING |
| TO 002 430 41 01,002 430 27 01 | ||
| 060 | A 0004310034 | STRAINER |
| TO 002 430 41 01,002 430 27 01 | ||
| 063 | N 007603022102 | SEAL RING |
| TO 002 430 41 01,002 430 27 01 | ||
| A 0004230184 | FITTING | |
| Repalced by: A 0004230284 | ||
| A 0004230284 | FITTING | |
| Repalced by: A 0084230084 | ||
| 064 | N 000127010205 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 065 | N 000934010000 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 067 | A 3454310140 | BRACKET |
| 067A | A 3524310940 | BRACKET |
| 067E | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 067M | N 000125010518 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 067S | N 000127010205 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 068 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 068E | N 000933010092 | SCREW |
| MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER | ||
| 068M | N 000127010202 | LOCK WASHER |
| MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER | ||
| 068S | N 000934010005 | NUT |
| MASTER CYLINDER AND BRACKET TO COMPRESSED AIR CYLINDER | ||
| 069 | A 3514207028 | LINE |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| 072 | A 3514207128 | LINE |
| FROM INTERMEDIATE PIECE TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 073 | N 009021010102 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 075 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 075 | A 0004280072 | UNION SCREW |
| 078 | A 3129970582 | HOSE |
| 078 | A 3449978082 | HOSE |
| 079 | A 3514207228 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE AT REAR AXLE | ||
| 079F | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 079F | A 0004280072 | UNION SCREW |
| 079K | A 0004292736 | CONNECTOR |
| REAR AXLE BRAKE CIRCUIT | ||
| 080 | A 3129950935 | CLAMP |
| HOSE TO BRAKE LINE | ||
| 082 | N 000084004136 | SCREW |
| HOSE TO BRAKE LINE | ||
| 082E | N 912004004102 | LOCK WASHER |
| HOSE TO BRAKE LINE | ||
| 083 | N 000934004004 | NUT |
| HOSE TO BRAKE LINE | ||
| 085 | A 3524281640 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 087 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 087 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 087E | N 000084006110 | SCREW |
| BRAKE LINE MOUNTING | ||
| 087M | N 000127006206 | LOCK WASHER |
| BRAKE LINE MOUNTING | ||
| 087S | N 000125006421 | WASHER |
| BRAKE LINE MOUNTING | ||
| 087Y | N 000934006007 | NUT |
| BRAKE LINE MOUNTING | ||
| 090 | A 0004289135 | BRAKE HOSE |
| FRONT | ||
| 090 | A 0014283235 | BRAKE HOSE |
| FRONT | ||
| 090 | A 3414287335 | BRAKE HOSE |
| FRONT | ||
| 093 | A 0004280073 | LOCK |
| Repalced by: A 0004280473 | ||
| 093 | A 0004280473 | BRACKET |
| 096 | A 3524282040 | BRACKET |
| BRAKE HOSE,FRONT | ||
| 096E | N 000933008028 | SCREW |
| BRACKET TO CONSOLE | ||
| 096M | N 912004008102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 096S | N 000934008010 | NUT |
| BRACKET TO CONSOLE | ||
| 098 | A 3514207328 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 098 | A 3514207428 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 098 | A 3514207528 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| N 074233012001 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| 099 | A 0004280072 | UNION SCREW |
| 100 | A 3524281740 | BRACKET |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 102 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 102 | N 916016008200 | CLAMP |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 102E | N 000933008036 | SCREW |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 102M | N 912004008104 | LOCK WASHER |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 102S | N 000934008000 | NUT |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 103 | N 000084006110 | SCREW |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 103 | N 000084006114 | SCREW |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 103E | N 000127006206 | LOCK WASHER |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 103M | N 000934006007 | NUT |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| 104 | A 0004284335 | BRAKE HOSE |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| 104 | A 3414287935 | BRAKE HOSE |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| 104 | A 0014283135 | BRAKE HOSE |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| 105 | A 0004280073 | LOCK |
| Repalced by: A 0004280473 | ||
| 105 | A 0004280473 | BRACKET |
| 106 | A 3124281040 | BRACKET |
| BRAKE HOSE,REAR | ||
| 106A | A 3513517040 | BRACKET |
| 106B | A 1112600058 | BREATHER |
| 106C | A 3513517065 | FITTING |
| 106D | A 3449977582 | HOSE |
| 106E | N 000933008115 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 106H | N 000933008114 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 106H | N 000933008114 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 106H | N 000933010034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 106M | N 912004008104 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 106M | N 912004008104 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 106P | N 000127010205 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 106P | N 000127010205 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 106S | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 106S | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 106U | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 106UC | A 3514297138 | ELBOW FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| 106UE | N 080705018002 | NUT |
| COMPRESSED AIR LINE THRU FRAME | ||
| 106UH | N 003910012001 | BULKHEAD FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| 106UM | A 3514297138 | ELBOW FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| 106W | A 3414299806 | LINE |
| Repalced by: A 3414309864 | ||
| 106W | A 3414207033 | LINE |
| LEFT FRONT WHEEL | ||
| 106WF | A 3414297608 | LINE |
| Repalced by: A 3414308466 | ||
| 106WF | A 3414308466 | LINE |
| FRONT AXLE,LEFT AND RIGHT | ||
| 106WF | A 3414308566 | LINE |
| 106X | A 3414299906 | LINE |
| Repalced by: A 3414309964 | ||
| 106X | A 3414207133 | LINE |
| FRONT AXLE,LEFT AND RIGHT | ||
| 106XD | N 915017012100 | UNION NUT |
| 106XH | N 003861012007 | GLAND |
| 106Y | N 916027011004 | HOSE |
| BRAKE HOSE | ||
| 500 MM | ||
| 106Y | N 916027011018 | HOSE |
| BRAKE HOSE | ||
| 430 MM | ||
| 106YH | A 3514207732 | LINE |
| FROM ELBOW FITTING TO COMBINATION CYLINDER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 106Z | A 3414297708 | LINE |
| Repalced by: A 3414308566 | ||
| 106Z | A 3414308566 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "11",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "11" | ||
| 106Z | A 3414308566 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12" | ||
| 106Z | A 3414308566 | LINE |
| FROM ELBOW FITTING TO COMBINATION CYLINDER | ||
| "11" | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 107 | A 3414297608 | LINE |
| Repalced by: A 3414308466 | ||
| 107 | A 3414308466 | LINE |
| FROM ELBOW FITTING TO COMBINATION CYLINDER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 107AC | N 916027011003 | HOSE |
| BETWEEN THE LINES | ||
| 480 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 107AC | N 916027011002 | HOSE |
| FROM COMBINATION CYLINDER TO COMBINATION CYLINDER | ||
| 107B | N 915017012100 | UNION NUT |
| COMPRESSED AIR LINES | ||
| 107D | N 003861012007 | GLAND |
| COMPRESSED AIR LINES | ||
| 107F | N 916018016000 | CLAMP |
| LINE TO HOSE | ||
| 107H | A 3159955010 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 107H | A 3149957420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 107K | N 000084006423 | SCREW |
| CLAMP TO BRACKET | ||
| 107KD | N 000933006183 | SCREW |
| CLAMP TO BRACKET | ||
| 107KH | N 000125006421 | WASHER |
| 107KN | N 000127006203 | LOCK WASHER |
| 107M | N 913004006002 | NUT |
| CLAMP TO BRACKET | ||
| 107P | N 003901012005 | SCREW-IN FITTING |
| DIAPHRAGM CYLINDER | ||
| 107S | N 007603016105 | SEAL RING |
| DIAPHRAGM CYLINDER | ||
| 107U | A 3089907171 | ELBOW FITTING |
| 107U | A 3514297038 | ELBOW FITTING |
| 107U | N 074315012100 | FITTING |
| 107W | A 3084297027 | THRUST RING |
| 107X | A 0009971548 | SEAL RING |
| 107Y | N 080705016003 | NUT |
| 108 | A 0004290437 | DISTRIBUTOR |
| Repalced by: A 3414297037 | ||
| 108 | A 3414297037 | DISTRIBUTOR |
| REAR AXLE | ||
| 108 | A 3454297037 | DISTRIBUTOR |
| REAR AXLE | ||
| 111 | N 000933008071 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 114 | N 912004008104 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 117 | A 3514207628 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| N 074233012001 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| 118 | A 0004280072 | UNION SCREW |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 120 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 123 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 126 | N 000933008014 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 129 | N 912004008104 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 132 | A 3514207728 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| N 074233012001 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| 133 | A 0004280072 | UNION SCREW |
| 135 | N 074313018200 | FITTING |
| AT AIR COMPRESSOR | ||
| 138 | N 007603022102 | SEAL RING |
| 141 | A 3514297001 | LINE |
| Repalced by: A 3514207036 | ||
| 141 | A 3514207036 | LINE |
| FROM AIR COMPRESSOR TO ELBOW FITTING | ||
| 144 | N 915018018000 | UNION NUT |
| 147 | N 003861018003 | GLAND |
| 150 | N 074297018302 | THRUST RING |
| 153 | N 915045015100 | SEAL RING |
| 153C | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 153E | A 3414297036 | CONNECTOR |
| AT AIR COMPRESSOR | ||

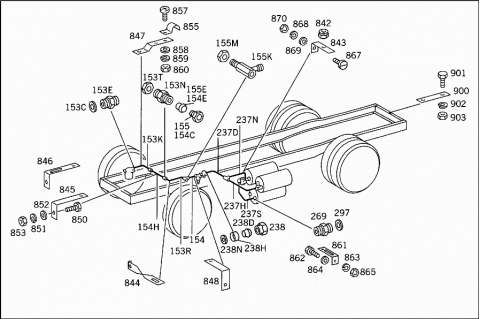

| 153K | A 3514307064 | LINE |
| FITTING TO AIR COMPRESSOR | ||
| 153N | N 003902015001 | CONNECTION FITTING |
| 153R | A 3514307164 | LINE |
| FROM FITTING TO BULKHEAD FITTING | ||
| 153T | N 080705022001 | NUT |
| LINE THRU FRAME | ||
| 154 | A 3514307264 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 154C | N 915017015100 | UNION NUT |
| 154E | N 003861015004 | GLAND |
| 154H | A 3514308264 | LINE |
| FROM FITTING TO BULKHEAD FITTING | ||
| 155 | N 915017012100 | UNION NUT |
| FROM FITTING TO BULKHEAD FITTING | ||
| 155E | N 003861012007 | GLAND |
| FROM FITTING TO BULKHEAD FITTING | ||
| 155K | A 3519907883 | FITTING |
| COMPRESSED AIR LINE TO FRAME | ||
| 155M | N 080705022003 | NUT |
| COMPRESSED AIR LINE TO FRAME | ||
| 156 | A 0009903371 | ELBOW FITTING |
| 156 | A 3459907271 | ELBOW FITTING |
| 159 | N 074305026202 | NUT |
| AT PRESSURE REGULATOR | ||
| 162 | A 3514297101 | LINE |
| FROM ELBOW FITTING TO PRESSURE REGULATOR | ||
| 162 | A 3514298501 | LINE |
| FROM ELBOW FITTING TO PRESSURE REGULATOR | ||
| 162M | N 915018018000 | UNION NUT |
| 162N | N 003861018003 | GLAND |
| 162P | N 074297018302 | THRUST RING |
| 162Q | N 915045015100 | SEAL RING |
| 163 | N 000931008207 | SCREW |
| 164 | N 912004008104 | LOCK WASHER |
| 164H | N 000934008000 | NUT |

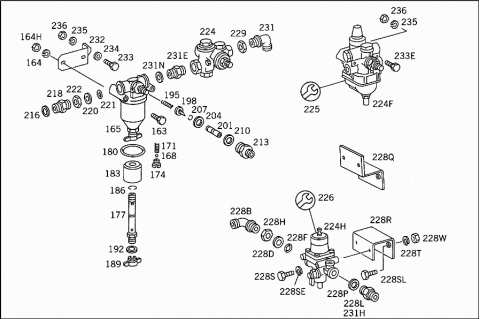

| 165 | A 0005910202 | TIRE INFLATOR CYLINDER |
| 168 | N 005401308000 | BALL |
| 171 | A 0009938601 | SPRING |
| 174 | A 0005910256 | SCREW PLUG |
| 177 | A 0005910168 | GUIDE SLEEVE |
| 180 | A 0005910060 | SEAL RING |
| 183 | A 0005910220 | FILTER ELEMENT |
| 186 | N 009045016000 | SNAP RING |
| 189 | A 0005910356 | SCREW PLUG |
| 192 | A 0005910360 | SEAL RING |
| 195 | A 0009931601 | SPRING |
| 198 | A 0005910190 | VALVE DISC |
| 201 | A 0005910074 | PIN |
| 204 | A 0005910260 | SEAL RING |
| 207 | N 009045010000 | SNAP RING |
| 210 | N 007603026300 | SEAL RING |
| 213 | A 0005910456 | SCREW PLUG |
| 216 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 218 | N 074299022301 | DOUBLE FITTING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 220 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 220 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 221 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 222 | N 074305022202 | NUT |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 224 | A 0004312706 | PRESSURE REGULATOR |
| 224F | A 0004319106 | PRESSURE REGULATOR |
| Repalced by: A 0014310606 | ||
| 224F | A 0014310606 | PRESSURE REGULATOR |
| 224H | A 0014310006 | PRESSURE REGULATOR |
| "WABCO" | ||
| 224H | A 0014319806 | PRESSURE REGULATOR |
| "KNORR" | ||
| 224H | A 0014311206 | PRESSURE REGULATOR |
| "KNORR" | ||
| 225 | A 0025864143 | REPAIR KIT |
| 225 | A 0025865043 | REPAIR KIT |
| 225 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 225 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06 | ||
| 226 | A 0015864343 | REPAIR KIT |
| TO 001 431 00 06 | ||
| 226 | A 0025866743 | REPAIR KIT |
| Repalced by: A 0004201371 | ||
| 226 | A 0004201371 | REPAIR KIT |
| TO 001 431 12 06,001 431 98 06 | ||
| 226 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06 | ||
| 228B | A 3414297838 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 228B | A 3414297938 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 228D | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 228D | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 228F | A 3419977245 | SEAL RING |
| Repalced by: A 0009870446 | ||
| 228F | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| 228H | N 080705022001 | NUT |
| AT PRESSURE REGULATOR | ||
| 228L | N 074313016402 | FITTING |
| AT PROTECTIVE VALVE | ||
| 228P | N 007603022102 | SEAL RING |
| AT PROTECTIVE VALVE | ||
| 228Q | A 3414207586 | BRACKET |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 228R | A 3414207486 | BRACKET |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 228S | N 000933008370 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 228SE | N 912004008102 | LOCK WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 228SL | N 000933008271 | SCREW |
| BRACKET TO PRESSURE REGULATOR | ||
| 228T | N 912004008102 | LOCK WASHER |
| BRACKET TO PRESSURE REGULATOR | ||
| 228W | N 000934008045 | NUT |
| BRACKET TO PRESSURE REGULATOR | ||
| 229 | N 074305022202 | NUT |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 231 | N 074301022202 | ELBOW FITTING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 231E | N 074313018200 | FITTING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 231H | N 074298022201 | DOUBLE FITTING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 231N | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 232 | A 3514367040 | BRACKET |
| PRESSURE REGULATOR AND TIRE INFLATOR CYLINDER | ||
| 233 | N 000933008048 | SCREW |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 233E | N 000931008207 | SCREW |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 234 | N 000125008413 | WASHER |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 235 | N 912004008104 | LOCK WASHER |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 235 | N 912004008102 | LOCK WASHER |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 236 | N 000934008000 | NUT |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 236 | N 000934008010 | NUT |
| PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE | ||
| 237 | A 3514297201 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 237D | A 3514290501 | LINE |
| FROM PRESSURE REGULATOR TO T-FITTING | ||
| 237H | A 3514290601 | LINE |
| FROM T-FITTING TO AIR RESERVOIR I OVERFLOW VALVE | ||
| 237N | A 3514290701 | LINE |
| FROM T-FITTING TO AIR RESERVOIR II TWO-CIRCUIT PROTECTIVE VALVE | ||
| 237S | A 3514290801 | LINE |
| Repalced by: A 3514200826 | ||
| 237S | A 3514200826 | LINE |
| FROM AIR RESERVOIR II TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR III | ||
| 238 | N 915018015000 | UNION NUT |
| 238D | N 003861015004 | GLAND |
| 238H | N 915065015101 | THRUST RING |
| 238H | A 0004291027 | THRUST RING |
| 238N | N 915045015100 | SEAL RING |
| A 0014318906 | VALVE | |
| Repalced by: A 0024314006 | ||
| 239AN | A 0024314006 | VALVE |

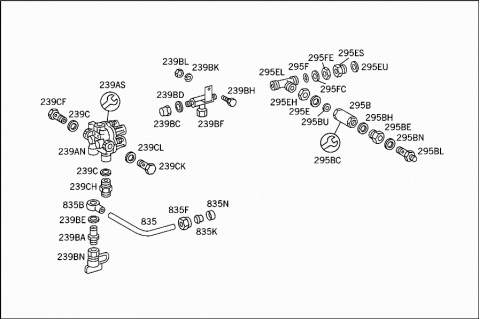

| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| "WESTINGHOUSE" | ||
| 239AN | A 0014318706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| "KNORR" | ||
| 239AN | A 0024310106 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| "KNORR" | ||
| 239AS | A 0035861043 | REPAIR KIT |
| TO 001 431 87 06 | ||
| 239AS | A 0004301068 | REPAIR KIT |
| Repalced by: A 0004201571 | ||
| 239AS | A 0004201571 | REPAIR KIT |
| TO 002 431 01 06 | ||
| 239AS | A 0035860943 | REPAIR KIT |
| TO 001 431 89 06,002 431 40 06 | ||
| 239BA | N 915039012100 | HOLLOW SCREW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 239BC | N 007605014004 | LOCK NUT |
| AT T-FITTING | ||
| 239BD | N 007603014100 | SEAL RING |
| AT T-FITTING | ||
| 239BE | N 007603016103 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 239BF | A 3519907470 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 239BH | N 000933008108 | SCREW |
| T-FITTING TO SIDE MEMBER | ||
| 239BK | N 912004008102 | LOCK WASHER |
| T-FITTING TO SIDE MEMBER | ||
| 239BL | N 000934008010 | NUT |
| T-FITTING TO SIDE MEMBER | ||
| 239BN | A 0004312031 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 239BN | A 0004314531 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 239C | N 007603016103 | SEAL RING |
| PROTECTIVE VALVE,CONNECTION: | ||
| "21"24" | ||
| 239C | N 007603016103 | SEAL RING |
| AIR RESERVOIR I | ||
| "21"24" | ||
| 239CF | N 915036012101 | HOLLOW SCREW |
| PROTECTIVE VALVE,CONNECTION: | ||
| "21" | ||
| 239CF | N 915036012101 | HOLLOW SCREW |
| PROTECTIVE VALVE,CONNECTION: | ||
| "21" | ||
| 239CF | N 915047012100 | HOLLOW SCREW |

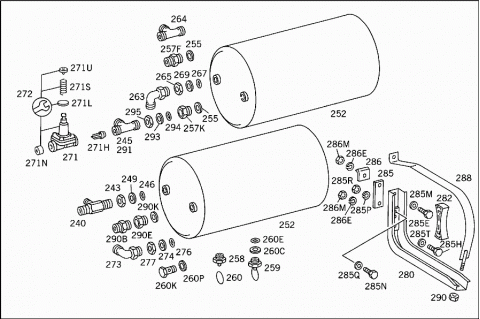

| AIR RESERVOIR I | ||
| 239CH | A 3519907083 | FITTING |
| PROTECTIVE VALVE,CONNECTION: | ||
| "24" | ||
| 239CK | N 915036012101 | HOLLOW SCREW |
| PROTECTIVE VALVE,CONNECTION: | ||
| "22" | ||
| 239CL | N 007603016103 | SEAL RING |
| PROTECTIVE VALVE,CONNECTION: | ||
| "22" | ||
| 240 | A 3514290132 | T-FITTING |
| 240 | H 993414290536 | CONNECTOR |
| 243 | N 074305022202 | NUT |
| 245 | N 074302022202 | T-FITTING |
| AT INSIDE AIR RESERVOIR | ||
| 246 | A 0009870446 | SEALING CORD |
| 249 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 249 | A 0009940203 | THRUST RING |
| 252 | A 3414307205 | RESERVOIR |
| 252 | A 3214300205 | RESERVOIR |
| 255 | N 007603022102 | SEAL RING |
| 257F | A 3514297036 | CONNECTOR |
| 257K | A 0009905168 | FITTING |
| 258 | A 0004321107 | VALVE |
| Repalced by: A 3514307581 | ||
| 258 | A 3514307581 | VALVE |
| Repalced by: A 0004322507 | ||
| 258 | A 0004322507 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 259 | A 3454307281 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 259 | A 3454300081 | VALVE |
| Repalced by: A 0004322407 | ||
| 259 | A 0004322407 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 259 | A 3454300181 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 259 | A 3514307781 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 259 | A 3454300281 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 259 | A 0004320607 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 260 | N 900397000201 | RING |
| AIR RESERVOIR DRAIN | ||
| TO 000 432 11 07 | ||
| 260C | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 260C | A 0009940203 | THRUST RING |
| AIR RESERVOIR DRAIN | ||
| 260E | A 0009870446 | SEALING CORD |
| AIR RESERVOIR DRAIN | ||
| 260K | N 915036012101 | HOLLOW SCREW |
| AT AIR RESERVOIR | ||
| 260P | N 007603016103 | SEAL RING |
| AT AIR RESERVOIR | ||
| A 3514297301 | LINE | |
| Repalced by: A 3514298901 | ||
| 261 | A 3514298901 | LINE |
| 262D | N 915018015000 | UNION NUT |
| 262H | N 003861015004 | GLAND |
| 262M | N 915065015101 | THRUST RING |
| 262M | A 0004291027 | THRUST RING |
| 262Q | N 915045015100 | SEAL RING |
| 263 | N 074301022202 | ELBOW FITTING |
| 264 | N 074302022202 | T-FITTING |
| 265 | N 074305022202 | NUT |
| 267 | A 0009870446 | SEALING CORD |
| 269 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 269 | A 0009940203 | THRUST RING |
| 271 | A 0004296344 | VALVE |
| A 0004315406 | VALVE | |
| Repalced by: A 0014295244 | ||
| 271 | A 0014295244 | VALVE |
| A 0004296044 | VALVE | |
| Repalced by: A 0014299844 | ||
| 271 | A 0014299844 | VALVE |
| 271 | A 0014297944 | VALVE |
| 271H | A 0024298844 | VALVE |
| TO 001 429 79 44 | ||
| A 0004290645 | DIAPHRAGM | |
| Repalced by: A 0004290745 | ||
| 271L | A 0004290745 | DIAPHRAGM |
| TO 001 429 79 44 | ||
| 271L | A 0004290145 | DIAPHRAGM |
| TO 000 431 54 06 | ||
| 271N | A 0004290088 | VALVE SEAT RING |
| TO 000 429 63 44 | ||
| 271Q | A 0004310328 | DIAPHRAGM |
| TO 000 429 63 44 | ||
| 271S | A 0019932301 | SPRING |
| TO 000 429 60 44,000 429 63 44 | ||
| 271U | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44,000 429 63 44 | ||
| 272 | A 0015862042 | REPAIR KIT |
| TO 001 429 52 44 | ||
| 272 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 272 | A 0015862642 | REPAIR KIT |
| TO 001 429 98 44 | ||
| 272 | A 0005863642 | REPAIR KIT |
| TO 000 429 63 44 | ||
| 273 | N 074301022202 | ELBOW FITTING |
| 274 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 274 | A 0009940203 | THRUST RING |
| 276 | A 0009870446 | SEALING CORD |
| 277 | N 074305022202 | NUT |
| 280 | A 3604301311 | CONSOLE |
| AIR RESERVOIRS I AND II | ||
| 282 | A 3354320218 | BASE |
| Repalced by: A 3904327018 | ||
| 282 | A 3904327018 | BASE |
| AIR RESERVOIRS I AND II | ||
| 285 | A 3214750084 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 285E | N 000960012041 | SCREW |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 285E | N 000961012029 | SCREW |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 285M | N 000125013008 | WASHER |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 285M | A 3529900640 | WASHER |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 285M | A 3529900640 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 285M | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| A 3379900440 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| 285N | N 000961014098 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 285N | N 000961014098 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 285N | N 000961014099 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 285P | N 000127014203 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 285P | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 285Q | N 000125015012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 285R | N 000934014019 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 286 | A 3354320126 | PLATE |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 286 | A 3454320026 | PLATE |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 286E | N 000127012203 | LOCK WASHER |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 286M | N 000934012004 | NUT |
| STRAP TO CONSOLE,AND CONSOLE TO SIDE MEMBER | ||
| 288 | A 3604300040 | STRAP |
| 290 | N 000934010000 | NUT |
| STRAP AND AIR RESERVOIR TO CONSOLE | ||
| 290 | N 000934010040 | NUT |
| STRAP AND AIR RESERVOIR TO CONSOLE | ||
| 290B | A 3514297036 | CONNECTOR |
| AIR RESERVOIR,CONNECTION: | ||
| "2" | ||
| 290E | A 0009905168 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "1,2" | ||
| 290K | N 007603022102 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "1,2" | ||
| 291 | N 074302022202 | T-FITTING |
| 291 | H 993414290536 | CONNECTOR |
| 293 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 293 | A 0009940203 | THRUST RING |
| 294 | A 0009870446 | SEALING CORD |
| 295 | N 074305022202 | NUT |
| 295B | A 0004290444 | VALVE |
| (CHECK VALVE) | ||
| 295B | A 0034292944 | VALVE |
| (CHECK VALVE) | ||
| 295BC | A 0005865942 | REPAIR KIT |
| CHECK VALVE | ||
| TO 003 429 29 44 | ||
| 295BE | A 0009905168 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 295BH | N 007603022102 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 295BL | N 915039012100 | HOLLOW SCREW FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 295BN | N 007603016103 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| A 3419977245 | SEAL RING | |
| Repalced by: A 0009870446 | ||
| 295BU | A 0009870446 | SEALING CORD |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 295E | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 295E | A 0009940203 | THRUST RING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 295EH | N 080705022001 | NUT |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 295EL | N 074302022202 | T-FITTING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 295EL | A 3514290132 | T-FITTING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 295ES | A 3229970071 | FITTING |
| AT T-FITTING | ||
| 295EU | N 915045012100 | SEAL RING |
| AT T-FITTING | ||
| 295F | A 3419977245 | SEAL RING |
| Repalced by: A 0009870446 | ||
| 295F | A 0009870446 | SEALING CORD |
| FROM T-FITTING TO RELAY VALVE | ||
| 295FC | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 295FC | A 0009940203 | THRUST RING |
| FROM T-FITTING TO RELAY VALVE | ||
| 295FE | N 080705022001 | NUT |
| FROM T-FITTING TO RELAY VALVE | ||
| 296 | N 074298022202 | DOUBLE FITTING |
| AIR RESERVOIR III | ||
| 297 | N 007603022102 | SEAL RING |
| AIR RESERVOIR III | ||
| 299 | A 3514297401 | LINE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 299 | A 3514297705 | LINE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 299H | N 915018015000 | UNION NUT |
| 299L | N 003861015004 | GLAND |
| 299N | N 915065015101 | THRUST RING |
| 299N | A 0004291027 | THRUST RING |
| 299Q | N 915045015100 | SEAL RING |
| 300 | A 3125421139 | PLATE |
| AT BRAKE BOOSTER | ||
| 300E | A 3129950033 | CLAMP |
| AT BRAKE BOOSTER | ||
| 301 | A 0004295032 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 303 | A 0009870446 | SEALING CORD |
| AT BRAKE BOOSTER | ||
| 303 | A 0009870446 | SEALING CORD |
| AT BRAKE BOOSTER | ||
| 305 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 305 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 305 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 307 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 307 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 309 | A 3454310040 | BRACKET |
| Repalced by: A 3454317340 | ||
| 309 | A 3454317340 | BRACKET |
| BRAKE BOOSTER | ||
| 310 | N 000933010034 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 310 | N 000933010129 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 311 | N 000127010205 | LOCK WASHER |
| 311 | N 000127010205 | LOCK WASHER |
| AT BRAKE BOOSTER | ||
| 311 | N 000127010205 | LOCK WASHER |
| AT BRAKE BOOSTER | ||

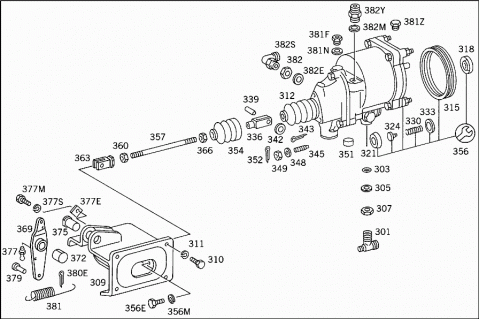

| 312 | A 0004312405 | BRAKE BOOSTER |
| 312 | A 3444317014 | BRAKE BOOSTER |
| 315 | A 0004312786 | CUP |
| 318 | A 0004312886 | CUP |
| 321 | A 0004312986 | CUP |
| 324 | A 0004350390 | VALVE DISC |
| A 0004350391 | VALVE GUIDE | |
| 330 | A 0009933201 | SPRING |
| 333 | N 007603030100 | SEAL RING |
| 336 | N 071752012000 | YOKE |
| 339 | N 001433012015 | PIN |
| 342 | A 0004290176 | WASHER |
| 343 | N 000094004040 | COTTER PIN |
| 345 | N 000417008002 | HEADLESS SETSCREW |
| 348 | A 0004310594 | WASHER |
| 349 | N 000934008000 | NUT |
| 351 | A 0004290695 | AIR CLEANER |
| 352 | N 000094003234 | COTTER PIN |
| 354 | A 0004311087 | PROTECTIVE CAP |
| 356 | A 3415867043 | REPAIR KIT |
| TO 000 431 24 05 | ||
| 356E | N 000933010034 | SCREW |
| 356M | N 000127010205 | LOCK WASHER |
| 357 | A 3124312092 | ROD |
| BRAKE BOOSTER | ||
| 360 | N 000936012005 | NUT |
| BRAKE BOOSTER | ||
| 363 | A 3124311097 | YOKE |
| BRAKE BOOSTER | ||
| 366 | N 000936012007 | NUT |
| BRAKE BOOSTER | ||
| A 3454300023 | LEVER | |
| Repalced by: A 3444300023 | ||
| 369 | A 3444300023 | LEVER |
| A 3529920801 | BUSHING | |
| Repalced by: A 3449920201 | ||
| 372 | A 3449920201 | BUSHING |
| 375 | A 3454310074 | PIN |
| 377 | N 071412010100 | GREASE NIPPLE |
| 377E | A 3459940005 | LOCK |
| 377M | N 000933008106 | SCREW |
| 377S | N 912004008102 | LOCK WASHER |
| 379 | A 3529910007 | PIN |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 380E | N 000094003201 | COTTER PIN |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 381 | A 3609930210 | SPRING |
| 381F | A 0084230084 | FITTING |
| BRAKE BOOSTER | ||
| 381N | N 007603014102 | SEAL RING |
| BRAKE BOOSTER | ||
| 381Z | N 007604012102 | SCREW PLUG |
| AT BRAKE BOOSTER | ||
| 382 | N 074305022102 | HOLLOW SCREW |
| AT BRAKE BOOSTER | ||
| 382 | N 074305022202 | NUT |
| 382E | N 007603022102 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 382M | N 007603012112 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 382S | N 074301022202 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 382Y | A 3454298136 | CONNECTOR |
| AT BRAKE BOOSTER | ||
| A 3514297501 | LINE | |
| Repalced by: A 3514207536 | ||
| 384 | A 3514207536 | LINE |
| FROM BRAKE BOOSTER TO BRAKE CYLINDER | ||
| 384 | A 3514299001 | LINE |
| Repalced by: A 3514207426 | ||
| 384 | A 3514207426 | LINE |
| FROM BRAKE BOOSTER TO BRAKE CYLINDER | ||
| 384 | A 3514209136 | LINE |
| FROM BRAKE BOOSTER TO BRAKE CYLINDER | ||
| 385 | N 915018015000 | UNION NUT |
| 385H | N 003861015004 | GLAND |
| 385M | N 915065015101 | THRUST RING |
| 385M | A 0004291027 | THRUST RING |
| 386 | N 915045015100 | SEAL RING |

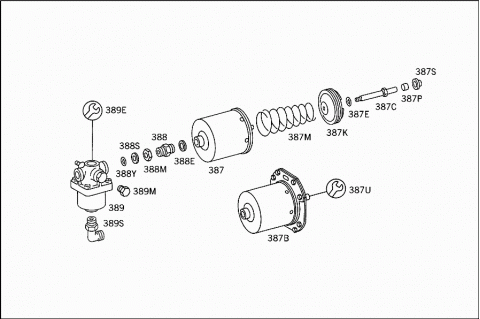

| 387 | A 0014309901 | BRAKE MASTER CYLINDER |
| 387B | A 0004313414 | BRAKE CYLINDER |
| Repalced by: A 3644317014 | ||
| 387B | A 3644317014 | BRAKE CYLINDER |
| 387C | A 0004312892 | ROD |
| 387E | A 0049978045 | SEAL RING |
| 387K | A 0004318083 | PISTON |
| 387M | A 0014314093 | SPRING |
| 387P | A 0004313934 | STRAINER |
| 387S | A 0009882735 | CAP |
| 387U | H 983455860643 | REPAIR KIT |
| Repalced by: A 0015869143 | ||
| 387U | A 0015869143 | REPAIR KIT |
| Repalced by: A 0004301608 | ||
| 387U | A 0004301608 | REPAIR KIT |
| TO 000 431 34 14 | ||
| 388 | N 074299022302 | DOUBLE FITTING |
| 388E | N 007603022102 | SEAL RING |
| 388M | N 074305022202 | NUT |
| 388S | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 388S | A 0009940203 | THRUST RING |
| 388Y | A 0009870446 | SEALING CORD |
| 389 | A 0004304881 | VALVE |
| 389E | A 0005867343 | REPAIR KIT |
| Repalced by: A 0034304381 | ||
| 389E | A 0034304381 | REPAIR KIT |
| 389M | N 007604022201 | SCREW PLUG |
| 389S | N 074301022202 | ELBOW FITTING |
| 390 | A 3525421243 | PIPE LINE |
| FROM BRAKE VALVE,CONNECTION "V1",TO PRESSURE GAUGE | ||
| 390 | A 3515420343 | PIPE LINE |
| FROM BRAKE VALVE,CONNECTION "V1",TO PRESSURE GAUGE | ||
| 393 | A 3525421643 | PIPE LINE |
| FROM BRAKE VALVE,CONNECTION "V2",TO PRESSURE GAUGE | ||
| 393 | A 3515420243 | PIPE LINE |
| FROM BRAKE VALVE,CONNECTION "V2",TO PRESSURE GAUGE | ||
| 396 | N 915017006100 | UNION NUT |
| 399 | N 003861006007 | GLAND |
| 402 | A 0009977172 | FITTING |
| 404 | N 000125013008 | WASHER |
| HOSE TO FRONT PANEL | ||
| 405 | N 006797012153 | TOOTHED WASHER |
| HOSE TO FRONT PANEL | ||
| 406 | N 000936012016 | NUT |
| HOSE TO FRONT PANEL | ||
| A 3525407461 | ELECTRIC CABLE | |
| Repalced by: A 0089976082 | ||
| A 0089975982 | HOSE | |
| Repalced by: A 0089976082 | ||
| 407 | A 0089976082 | HOSE |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 560 MM | ||
| 407 | A 0089976082 | HOSE |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 560 MM | ||
| 407 | A 0089976082 | HOSE |
| FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER | ||
| 2100 MM | ||
| 408 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 409 | N 040621010200 | INSULATING HOSE |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 410 | A 0019975072 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 410 | A 0019975072 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 410 | A 0019975072 | FITTING |
| FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER | ||
| I, | ||
| 410 | A 3514297241 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 410 | A 3514297241 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 410 | A 3514297241 | FITTING |
| FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER | ||
| 411 | N 915017006200 | UNION NUT |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 411 | N 915017006200 | UNION NUT |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 411 | N 915017006200 | UNION NUT |
| FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER | ||
| A 3514297029 | UNION NUT | |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| A 3514297029 | UNION NUT | |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| A 3514297029 | UNION NUT | |
| FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER | ||
| 412 | A 0019973772 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 412 | A 0019973772 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 412 | A 3514297141 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 412 | A 3514297141 | FITTING |
| FROM FIRE WALL TO INSTRUMENT CLUSTER | ||
| 413 | N 009021013200 | WASHER |
| 414 | N 006797012151 | TOOTHED WASHER |
| FITTING TO FIRE WALL | ||
| 415 | N 080705012003 | NUT |
| FITTING TO FIRE WALL | ||
| 416 | A 3609950101 | CLAMP |
| COMPRESSED AIR LINE | ||
| 416 | A 3609950101 | CLAMP |
| 417 | N 007981004244 | SHEET METAL SCREW |
| COMPRESSED AIR LINE | ||
| 418 | A 3129950332 | CLAMP |
| PRESSURE GAUGE LINES | ||
| 419 | A 3125421039 | PLATE |
| PRESSURE GAUGE LINES | ||
| 420 | N 000084005131 | SCREW |
| 421 | N 000125005317 | WASHER |
| 422 | N 912004005100 | LOCK WASHER |
| 423 | N 000934005004 | NUT |
| 424 | A 3609950101 | CLAMP |
| 425 | N 007981004244 | SHEET METAL SCREW |
| 426 | A 3229970071 | FITTING |
| 426E | N 915045012100 | SEAL RING |
| A 0004311613 | VALVE | |
| Repalced by: A 0014315605 | ||
| 427 | A 0014315605 | BRAKE VALVE |
| 427C | A 0005866743 | REPAIR KIT |
| TO 000 431 16 13 | ||
| 427C | A 0025863843 | REPAIR KIT |
| TO 001 431 56 05 | ||
| 427E | N 074313008101 | FITTING |
| CONTROL VALVE | ||
| 427M | N 007603022102 | SEAL RING |
| 427S | N 074301022202 | ELBOW FITTING |
| 428 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 428 | A 0009940203 | THRUST RING |
| 428E | N 007603022102 | SEAL RING |
| 428K | N 074305022202 | NUT |
| 428N | N 074302022202 | T-FITTING |
| 429 | A 3454310240 | BRACKET |
| CONTROL VALVE | ||
| 429E | N 000933010092 | SCREW |
| VALVE TO BRACKET | ||
| 429M | N 000127010202 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 429S | N 000934010005 | NUT |
| VALVE TO BRACKET | ||
| 430 | N 000933010093 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 430E | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 430M | N 000934010005 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 431D | A 3514290001 | LINE |
| FROM BRAKE BOOSTER,"A" CONNECTION,TO CONTROL VALVE,"ZM" CONNECTION | ||
| 431R | A 3454290801 | LINE |
| FROM CONTROL VALVE,"M" CONNECTION,TO BRAKE VALVE,"A" CONNECTION | ||
| 431R | A 3514290101 | LINE |
| FROM CONTROL VALVE,"M" CONNECTION,TO BRAKE VALVE,"A" CONNECTION | ||
| 432 | N 915017008100 | UNION NUT |
| FOR LINE CONNECTION | ||
| 432E | N 003861008005 | GLAND |
| FOR LINE CONNECTION | ||
| 434 | N 074313008101 | FITTING |
| AT BRAKE VALVE | ||
| 434B | N 007603022102 | SEAL RING |
| AT BRAKE VALVE | ||
| 434F | A 3454290901 | LINE |
| FROM AIR RESERVOIR TO CONTROL VALVE | ||
| 434F | A 3514290201 | LINE |
| FROM AIR RESERVOIR TO CONTROL VALVE | ||
| 434K | N 915017015100 | UNION NUT |
| FOR LINE CONNECTION | ||
| 435 | N 003861015004 | GLAND |
| FOR LINE CONNECTION | ||
| 435E | N 915065015101 | THRUST RING |
| FOR LINE CONNECTION | ||
| 435E | A 0004291027 | THRUST RING |
| 435M | N 915045012100 | SEAL RING |
| COMPRESSED AIR LINE TO PRESSURE RELIEF VALVE | ||
| 438 | A 3454291101 | LINE |
| FROM CONTROL-VALVE T-FITTING TO SHUT-OFF COCK | ||
| 438D | N 915017015100 | UNION NUT |
| FOR LINE CONNECTION | ||
| 438F | N 003861015004 | GLAND |
| FOR LINE CONNECTION | ||
| 438H | N 915065015101 | THRUST RING |
| FOR LINE CONNECTION | ||
| 438H | A 0004291027 | THRUST RING |
| 438L | N 915045012100 | SEAL RING |
| FOR LINE CONNECTION | ||
| 441 | A 3454291201 | LINE |
| FROM CONTROL VALVE,"Z" CONNECTION,TO SHUT-OFF COCK | ||
| 444 | N 915017015100 | UNION NUT |
| FROM CONTROL VALVE,"Z" CONNECTION,TO SHUT-OFF COCK | ||
| 447 | N 003861015004 | GLAND |
| FOR LINE CONNECTION | ||
| 448 | N 915065015101 | THRUST RING |
| FOR LINE CONNECTION | ||
| 448 | A 0004291027 | THRUST RING |
| 449 | N 915045015100 | SEAL RING |
| FOR LINE CONNECTION | ||
| 450 | A 0004303481 | VALVE |
| HAND BRAKE | ||
| 450E | A 0004305581 | VALVE |
| PARKING BRAKE VALVE | ||
| WABCO | ||
| 450E | A 0004304781 | VALVE |
| PARKING BRAKE VALVE | ||
| WABCO | ||
| 450K | A 0004305760 | REPAIR KIT |
| TO 000 430 55 81,NR.1050 | ||
| 450K | A 0005868043 | REPAIR KIT |
| TO 000 430 55 81,NR.1020 | ||
| 450K | A 0005867843 | REPAIR KIT |
| TO 000 430 47 81 | ||

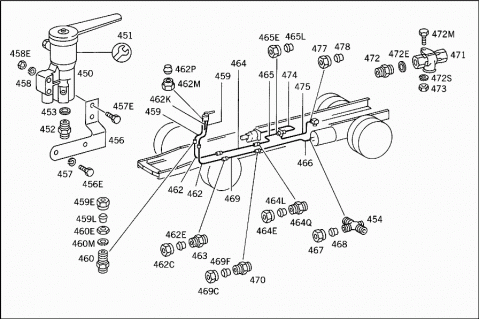

| 451 | H 980005860043 | REPAIR KIT |
| Repalced by: A 0034301081 | ||
| 451 | A 0034301081 | REPAIR KIT |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 586 23 43 | ||

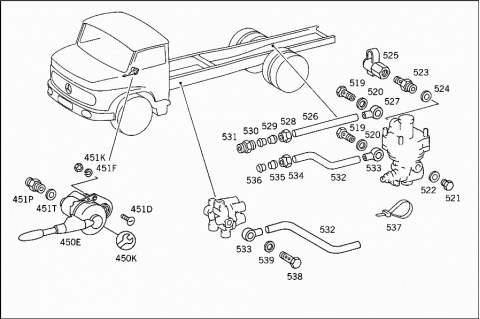

| 451D | N 000964006010 | SCREW |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 451F | N 000127006206 | LOCK WASHER |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 451K | N 000934006000 | NUT |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 451P | A 3519907383 | FITTING |
| PARKING BRAKE VALVE | ||
| 451T | N 007603014106 | SEAL RING |
| PARKING BRAKE VALVE | ||
| 452 | A 0009971572 | FITTING |
| Repalced by: N 003901008001 | ||
| 452 | N 003901008001 | SCREW-IN FITTING |
| HAND BRAKE | ||
| 453 | N 007603012112 | SEAL RING |
| HAND BRAKE | ||
| 454 | A 3459900087 | CROSS FITTING |
| INSIDE AIR RESERVOIR | ||
| 456 | A 3364311040 | BRACKET |
| AT STEERING COLUMN BRACKET | ||
| 456E | N 000933008036 | SCREW |
| AT STEERING COLUMN BRACKET | ||
| 457 | N 912004008104 | LOCK WASHER |
| AT STEERING COLUMN BRACKET | ||
| 457E | N 000933008071 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 458 | N 912004008104 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 458E | N 000934008000 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 459 | A 3534292901 | LINE |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 459 | A 3514297602 | LINE |
| Repalced by: A 3514209026 | ||
| 459 | A 3514209026 | LINE |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 459E | N 915017008100 | UNION NUT |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 459L | N 003861008005 | GLAND |
| FROM HAND BRAKE VALVE TO FITTING | ||
| 460 | N 003910008001 | BULKHEAD FITTING |
| Repalced by: A 3514297041 | ||
| 460 | A 3514297041 | FITTING |
| 460E | N 080705014001 | NUT |
| 460M | N 000127014203 | LOCK WASHER |
| 462 | A 3534293301 | LINE |
| FROM FITTING TO DOUBLE FITTING | ||
| 462 | A 3514297802 | LINE |
| FROM FITTING TO DOUBLE FITTING | ||
| 462C | N 915017008100 | UNION NUT |
| FROM FITTING TO DOUBLE FITTING | ||
| 462E | N 003861008005 | GLAND |
| FROM FITTING TO DOUBLE FITTING | ||
| 462K | A 3514297702 | LINE |
| FROM BULKHEAD FITTING TO THE OPEN AIR | ||
| 462M | N 915017008100 | UNION NUT |
| 462P | N 003861008005 | GLAND |
| 463 | N 003902008001 | CONNECTION FITTING |
| 464 | A 3514298602 | LINE |
| FROM DOUBLE FITTING TO DOUBLE FITTING | ||
| 464E | N 915017008100 | UNION NUT |
| FROM FITTING TO DOUBLE FITTING | ||
| 464L | N 003861008005 | GLAND |
| FROM FITTING TO DOUBLE FITTING | ||
| 464Q | N 003902008001 | CONNECTION FITTING |
| 465 | A 3534293101 | LINE |
| FROM DOUBLE FITTING TO TWO-WAY VALVE | ||
| 465 | A 3514297902 | LINE |
| FROM DOUBLE FITTING TO TWO-WAY VALVE | ||
| 465E | N 915017008100 | UNION NUT |
| FROM DOUBLE FITTING TO TWO-WAY VALVE | ||
| 465L | N 003861008005 | GLAND |
| FROM DOUBLE FITTING TO TWO-WAY VALVE | ||
| 466 | A 3454291301 | LINE |
| FROM DOUBLE FITTING TO AIR RESERVOIR | ||
| 466 | A 3514298002 | LINE |
| FROM CROSS FITTING TO DOUBLE FITTING | ||
| 467 | N 915017008100 | UNION NUT |
| FROM DOUBLE FITTING TO AIR RESERVOIR | ||
| 468 | N 003861008005 | GLAND |
| FROM DOUBLE FITTING TO AIR RESERVOIR | ||
| 469 | A 3514298702 | LINE |
| FROM FITTING TO DOUBLE FITTING | ||
| 469C | N 915017008100 | UNION NUT |
| FROM FITTING TO DOUBLE FITTING | ||
| 469F | N 003861008005 | GLAND |
| FROM FITTING TO DOUBLE FITTING | ||
| 470 | N 003902008001 | CONNECTION FITTING |
| 471 | A 0004290047 | TWO-WAY VALVE |
| 471 | A 0014292944 | VALVE |
| 472 | A 0004291234 | ADAPTER FITTING |
| 472E | N 007603022102 | SEAL RING |
| 472M | N 000933010056 | SCREW |
| TWO-WAY VALVE TO FRAME | ||
| 472S | N 000127010205 | LOCK WASHER |
| TWO-WAY VALVE TO FRAME | ||
| 473 | N 000934010000 | NUT |
| TWO-WAY VALVE TO FRAME | ||
| 474 | A 3584298501 | LINE |
| FROM BRAKE BOOSTER TO TWO-WAY VALVE | ||
| 474 | A 3514298102 | LINE |
| FROM TRUCK-TRACTOR BRAKE VALVE,"A" CONNECTION,TO TWO-WAY VALVE | ||
| 475 | A 3534291301 | LINE |
| FROM TWO-WAY VALVE TO CONTROL VALVE | ||
| 475 | A 3514290301 | LINE |
| FROM TWO-WAY VALVE TO CONTROL VALVE | ||
| 475 | A 3514290301 | LINE |
| FROM TWO-WAY VALVE TO CONTROL VALVE | ||
| 477 | N 915017008100 | UNION NUT |
| 478 | N 003861008005 | GLAND |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LOAD-DEPENDING BRAKE | ||
| 480 | A 0004314412 | BRAKE PRESSURE REGULATOR |
| 480E | A 0004310968 | VALVE PART |
| 480M | A 0014315793 | SPRING |
| 480S | N 007603018101 | SEAL RING |
| 480Y | A 0004310465 | VALVE |
| 481 | A 0014313212 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| 481 | A 0014313212 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| 481E | A 0004307560 | REPAIR KIT |
| BRAKE POWER REGULATOR | ||
| 482 | A 3464315139 | LEVER |
| Repalced by: A 3514310039 | ||
| 482 | A 3514310039 | LEVER |
| BRAKE POWER REGULATOR | ||
| 482 | A 3514310039 | LEVER |
| BRAKE POWER REGULATOR | ||
| 483 | A 3604311540 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 484 | A 3514300010 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 484 | A 3514300010 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 486 | A 3224280140 | BRACKET |
| BRAKE HOSE | ||
| 487 | N 000961012027 | SCREW |
| BRACKET TO FRAME | ||
| 487B | N 000933010129 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 487B | N 000933010129 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 487B | N 000933010145 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 487E | N 000127012203 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 487M | N 000934012004 | NUT |
| BRACKET TO FRAME | ||
| 487P | N 913004008010 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 487P | N 913004008010 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 488 | N 000931010093 | SCREW |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 488E | N 000127010205 | LOCK WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 488M | N 000934010000 | NUT |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 488S | N 913004008004 | NUT |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 488S | N 913004008004 | NUT |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 489 | A 3454200328 | LINE |
| FROM BRAKE MASTER CYLINDER TO BRAKE BOOSTER | ||
| 489 | A 3514200028 | LINE |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| 490 | A 0004280072 | UNION SCREW |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| 492 | A 0004311231 | TEST CONNECTION |
| 495 | A 3609910140 | SPACER TUBE |
| 496 | N 000931008085 | SCREW |
| 496E | N 912004008104 | LOCK WASHER |
| 496M | N 000934008000 | NUT |
| 498 | A 3604207929 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 499 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 499 | A 0004280072 | UNION SCREW |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 501 | A 3604207829 | LINE |
| FROM TEST CONNECTION TO BRAKE HOSE BRACKET | ||
| N 074233012001 | UNION SCREW | |
| Repalced by: A 0004280072 | ||
| 502 | A 0004280072 | UNION SCREW |
| FROM TEST CONNECTION TO BRAKE HOSE BRACKET | ||
| 504 | A 3534300592 | ROD |
| 504 | A 3604305892 | ROD |
| 505 | A 3414317192 | ROD |
| 505 | A 3854310592 | ROD |
| 505B | A 3434310035 | CONNECTOR |
| PULL ROD | ||
| 505B | A 3434310035 | CONNECTOR |
| PULL ROD | ||
| 505E | N 916002016100 | CLAMP |
| PULL ROD | ||
| 505E | N 916002016100 | CLAMP |
| PULL ROD | ||
| 505H | N 000125008417 | WASHER |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505H | N 000125008417 | WASHER |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505M | N 000094002064 | COTTER PIN |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505M | N 000094002064 | COTTER PIN |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505P | N 000934008010 | NUT |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505P | N 000934008010 | NUT |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505S | A 0004311018 | METAL SPRING BELLOWS |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 505S | A 0004311018 | METAL SPRING BELLOWS |
| LINK TO BRAKE PRESSURE REGULATOR | ||
| 506 | N 912004008104 | LOCK WASHER |
| 506E | N 000934008000 | NUT |
| A 3604311740 | BRACKET | |
| Repalced by: A 3604311640 | ||
| 507 | A 3604311640 | BRACKET |
| METAL SPRING BELLOWS | ||
| 507 | A 3604311640 | BRACKET |
| METAL SPRING BELLOWS | ||
| 507 | A 3604311640 | BRACKET |
| METAL SPRING BELLOWS | ||
| A 3554310384 | SHIM | |
| Repalced by: A 3554310484 | ||
| 510 | A 3554310484 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| 510 | A 3554310484 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| 510 | A 3554310484 | SHIM |
| BRACKET TO AXLE HOUSING | ||
| 511 | N 000933010044 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 511 | N 000933010056 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 511 | N 000933010267 | SCREW |
| BRACKET TO AXLE HOUSING | ||
| 511 | N 000933010267 | SCREW |
| BRACKET TO AXLE HOUSING | ||
| A 3604230125 | WEB | |
| Repalced by: A 3604230025 | ||
| 512 | A 3604230025 | WEB |
| 513 | A 3514230025 | WEB |
| METAL SPRING BELLOWS | ||
| 513 | A 3514230025 | WEB |
| METAL SPRING BELLOWS | ||
| 513B | N 000933012123 | SCREW |
| METAL SPRING BELLOWS TO WEB | ||
| 513B | N 000933012123 | SCREW |
| METAL SPRING BELLOWS TO WEB | ||
| 513E | N 000127012201 | LOCK WASHER |
| METAL SPRING BELLOWS TO WEB | ||
| 513E | N 000127012201 | LOCK WASHER |
| METAL SPRING BELLOWS TO WEB | ||
| 514 | N 000933008036 | SCREW |
| 514 | N 000933006271 | SCREW |
| BRACKET TO WEB | ||
| 514 | N 000933006271 | SCREW |
| BRACKET TO WEB | ||
| 514E | N 000125008413 | WASHER |
| 514E | N 000125008417 | WASHER |
| BRACKET TO WEB | ||
| 514E | N 000125008417 | WASHER |
| BRACKET TO WEB | ||
| 514M | N 912004008104 | LOCK WASHER |
| 514M | N 912004008102 | LOCK WASHER |
| BRACKET TO WEB | ||
| 514M | N 912004008102 | LOCK WASHER |
| BRACKET TO WEB | ||
| 514S | N 000934008000 | NUT |
| 514S | N 000934008010 | NUT |
| BRACKET TO WEB | ||
| 514S | N 000934008010 | NUT |
| BRACKET TO WEB | ||
| A 0004312513 | VALVE | |
| Repalced by: A 0004315713 | ||
| 516 | A 0004315713 | VALVE |
| 517 | A 0025868143 | REPAIR KIT |
| TRAILER BRAKE VALVE | ||
| TO 000 431 57 13 | ||
| 518 | A 0025868243 | REPAIR KIT |
| BRAKE BOOSTER | ||
| TO 000 431 57 13 | ||
| 519 | N 915036012101 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "1","2" | ||
| 519 | N 915036012101 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "1","2" | ||
| 520 | N 007603016103 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "1","2" | ||
| 520 | N 007603016103 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "1","2" | ||
| 521 | N 007604016102 | SCREW PLUG |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "2" | ||
| 521 | N 007604016102 | SCREW PLUG |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "2" | ||
| 522 | N 007603016105 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "2" | ||
| 522 | N 007603016105 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "2" | ||
| 523 | N 915039012100 | HOLLOW SCREW FITTING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 523 | N 915039012100 | HOLLOW SCREW FITTING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 524 | N 007603016103 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 524 | N 007603016103 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 525 | A 0004312031 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 525 | A 0004312031 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 525 | A 0004314531 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 525 | A 0004314531 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "4" | ||
| 526 | A 0089979082 | HOSE |
| FROM BRAKE POWER REGULATOR TO WATER SEPARATOR | ||
| 2230 MM | ||
| 526 | A 0089979082 | HOSE |
| FROM BRAKE POWER REGULATOR TO WATER SEPARATOR | ||
| 2230 MM | ||
| 526 | A 0089979082 | HOSE |
| FROM SERVICE BRAKE VALVE TO WATER SEPARATOR | ||
| 3390 MM | ||
| 526 | A 0089979082 | HOSE |
| FROM SERVICE BRAKE VALVE TO WATER SEPARATOR | ||
| 2790 MM | ||
| 527 | N 915052006002 | BANJO UNION |
| 527 | N 915052006002 | BANJO UNION |
| 528 | N 915017008100 | UNION NUT |
| 528 | N 915017008100 | UNION NUT |
| 529 | N 003861008005 | GLAND |
| 529 | N 003861008005 | GLAND |
| 530 | N 915062006000 | SLEEVE |
| 530 | N 915062006000 | SLEEVE |
| 531 | N 003902008001 | CONNECTION FITTING |
| 531 | N 003902008001 | CONNECTION FITTING |
| 532 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 532 | A 0009872827 | PLASTIC PIPE |
| FROM BRAKE POWER REGULATOR TO ANTIFREEZE DEVICE | ||
| 1770 MM | ||
| 532 | A 0009872827 | PLASTIC PIPE |
| FROM BRAKE POWER REGULATOR TO ANTIFREEZE DEVICE | ||
| 1770 MM | ||
| 532 | A 0009872827 | PLASTIC PIPE |
| FROM BRAKE POWER REGULATORTOR TO FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 4130 MM | ||
| 532 | A 0009872827 | PLASTIC PIPE |
| FROM BRAKE POWER REGULATOR TO ANTIFREEZE DEVICE | ||
| 3510 MM | ||
| 533 | N 915052009000 | BANJO UNION |
| 533 | N 915052009000 | BANJO UNION |
| 534 | N 915017012100 | UNION NUT |
| 534 | N 915017012100 | UNION NUT |
| 535 | N 003861012007 | GLAND |
| 535 | N 003861012007 | GLAND |
| 536 | N 915062009000 | SLEEVE |
| 536 | N 915062009000 | SLEEVE |
| 537 | A 0029972290 | LOOM TIE |
| 537 | A 0029972290 | LOOM TIE |
| 538 | N 915047012100 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 538 | N 915047012100 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 538 | N 915047012100 | HOLLOW SCREW |
| FROM BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| 539 | N 007603016103 | SEAL RING |
| 539 | N 007603016103 | SEAL RING |
| 540 | A 3514207088 | RATCHET ROD |
| 540 | A 3514200088 | RATCHET ROD |
| 541 | A 3534270095 | PROTECTIVE CAP |
| 542 | A 3124271151 | SPACER RING |
| 543 | N 001473004021 | GROOVED PIN |
| 544 | A 3124201178 | BEARING BRACKET |
| 545 | N 001473004023 | GROOVED PIN |
| A 3124271215 | PAWL | |
| Repalced by: A 3145860142 | ||
| A 1539930701 | SPRING | |
| Repalced by: A 3145860142 | ||
| A 3129900043 | PLATE | |
| Repalced by: A 3144200092 | ||
| A 3145860142 | REPAIR KIT | |
| Repalced by: A 3144200092 | ||
| 546 | A 3144200092 | REPAIR KIT |
| 547 | N 000472015000 | LOCK RING |
| 548 | A 3124271086 | DAMPING RING |
| 549 | A 3124271220 | HANDLE |
| 549 | A 3094270020 | HANDLE |
| 550 | N 000964006022 | SCREW |
| 552 | N 000127006206 | LOCK WASHER |
| 555 | N 001587006001 | CAP NUT |
| 558 | N 000933008025 | SCREW |
| 561 | N 912004008104 | LOCK WASHER |
| 564 | A 3529910407 | PIN |
| 567 | N 000433008040 | WASHER |
| 568 | N 000094002058 | COTTER PIN |
| 573 | A 3514207012 | BRAKE LEVER |
| 576 | A 3529921201 | BUSHING |
| 579 | N 071412010300 | GREASE NIPPLE |
| 582 | A 3214200778 | BEARING BRACKET |
| 585 | A 3129901540 | WASHER |
| 588 | N 000471022000 | LOCK RING |
| 591 | N 000933010129 | SCREW |
| 594 | N 000934010000 | NUT |
| 597 | A 3214200176 | END PIECE |
| 600 | A 3124261644 | CONNECTOR |
| 603 | A 3529910007 | PIN |
| 604 | N 000094003201 | COTTER PIN |
| 606 | N 000934010000 | NUT |
| 607 | N 000125010518 | WASHER |
| 609 | N 900331010383 | PULL ROD |
| 610 | A 3604200286 | BRACKET |
| 610E | N 000933008025 | SCREW |
| 610M | N 912004008104 | LOCK WASHER |
| 611 | N 000934008000 | NUT |
| 612 | A 3604300310 | BRACKET |
| 613 | N 000931010135 | SCREW |
| 613E | N 000127010205 | LOCK WASHER |
| 614 | N 000934010000 | NUT |
| 615 | A 3604200681 | LEVER |
| Repalced by: A 3514207181 | ||
| 615 | A 3514207181 | LEVER |
| 618 | A 3229920101 | BUSHING |
| 618 | A 3459927101 | BUSHING |
| 621 | N 071412010100 | GREASE NIPPLE |
| 624 | N 001444014219 | PIN |
| 627 | N 000125015009 | WASHER |
| 628 | N 000094004049 | COTTER PIN |
| 630 | A 3604200781 | LEVER |
| Repalced by: A 3514207081 | ||
| 630 | A 3514207081 | LEVER |
| 633 | A 3229920101 | BUSHING |
| 633 | A 3459927101 | BUSHING |
| 634 | N 071412010300 | GREASE NIPPLE |
| 636 | A 3604200089 | SHACKLE |
| 639 | N 001434012078 | PIN |
| 642 | N 000433013000 | WASHER |
| 643 | N 000094004041 | COTTER PIN |
| 648 | N 001444014211 | PIN |
| 651 | N 000125015009 | WASHER |
| 652 | N 000094004049 | COTTER PIN |
| 654 | A 3512900239 | ROD |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 654 | A 3512900339 | ROD |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 654 | A 3512900439 | ROD |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 657 | N 900331010034 | PULL ROD |
| 657 | N 900331010045 | PULL ROD |
| 657 | N 900331010049 | PULL ROD |
| 660 | A 3124261644 | CONNECTOR |
| 663 | N 000934010000 | NUT |
| 666 | A 3529910007 | PIN |
| 669 | N 000125010518 | WASHER |
| 670 | N 000094003201 | COTTER PIN |
| 675 | H 983454200380 | BRAKE INTERMEDIATE SHAFT |
| 675 | A 3604200880 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3514207280 | ||
| 675 | A 3514207280 | BRAKE INTERMEDIATE SHAFT |
| 675 | A 3454207180 | BRAKE INTERMEDIATE SHAFT |
| 675 | A 3454200080 | BRAKE INTERMEDIATE SHAFT |
| 678 | A 3274270058 | SEAL HOLDER |
| 681 | A 3279970040 | SEAL RING |
| 684 | A 3584201078 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 684 | A 3454207178 | BEARING BRACKET |
| 687 | A 3024260083 | SPHERICAL PIECE |
| 690 | N 000470052000 | EXPANSION PLUG |
| 691 | N 000961012020 | SCREW |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 691E | N 000127012203 | LOCK WASHER |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 692 | N 000934012004 | NUT |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 693 | A 3604200974 | ROD |
| 693K | A 3604200474 | ROD |
| FRONT | ||
| 694 | A 3859960034 | NUT |
| 694K | N 000934012020 | NUT |
| L.H. THREAD | ||
| 695 | N 000934012021 | NUT |
| 695K | A 3604200774 | ROD |
| REAR | ||
| 696 | A 3529910207 | PIN |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| 699 | N 000433013000 | WASHER |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| 702 | N 900055012000 | SPRING WASHER |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| 702H | N 000094004041 | COTTER PIN |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| 703 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 704 | N 000433013000 | WASHER |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 704H | N 000094004041 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 705 | A 3274205386 | BRACKET |
| 708 | A 0009973481 | GROMMET |
| 709 | N 000933008036 | SCREW |
| 709E | N 000125008413 | WASHER |
| 709M | N 912004008104 | LOCK WASHER |
| 709S | N 000934008000 | NUT |
| 711 | A 3514297601 | LINE |
| FROM AIR RESERVOIR II TO HAND BRAKE VALVE | ||
| 714 | N 915018015000 | UNION NUT |
| 717 | N 003861015004 | GLAND |
| 720 | N 915065015101 | THRUST RING |
| 720 | A 0004291027 | THRUST RING |
| 723 | N 915045012100 | SEAL RING |
| 726 | N 007603022102 | SEAL RING |
| 726 | N 007603022102 | SEAL RING |
| 729 | N 074298022202 | DOUBLE FITTING |
| 732 | A 0004310616 | VALVE |
| 732 | A 3454317016 | VALVE |
| 735 | A 0004317386 | CUP |
| TO 000 431 06 16 | ||
| 738 | A 0004290695 | AIR CLEANER |
| TO 000 431 06 16 | ||
| 741 | A 0004350390 | VALVE DISC |
| TO 000 431 06 16 | ||
| 744 | A 0084310356 | SCREW PLUG |
| TO 000 431 06 16 | ||
| 747 | N 007603030100 | SEAL RING |
| TO 000 431 06 16 | ||
| 750 | A 0084310287 | PROTECTIVE CAP |
| Repalced by: A 0004317087 | ||
| 750 | A 0004317087 | PROTECTIVE CAP |
| TO 000 431 06 16 | ||
| 753 | N 001433012015 | PIN |
| TO 000 431 06 16 | ||
| 754 | N 000094004049 | COTTER PIN |
| TO 000 431 06 16 | ||
| 756 | N 000933008071 | SCREW |
| TO 000 431 06 16 | ||
| 759 | N 912004008104 | LOCK WASHER |
| TO 000 431 06 16 | ||
| 761 | N 074298022202 | DOUBLE FITTING |
| AT HAND BRAKE VALVE | ||
| 762 | A 0009870446 | SEALING CORD |
| AT HAND BRAKE VALVE | ||
| 763 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 763 | A 0009940203 | THRUST RING |
| AT HAND BRAKE VALVE | ||
| 764 | N 007603022100 | SEAL RING |
| AT HAND BRAKE VALVE | ||
| 765 | N 074305022202 | NUT |
| AT HAND BRAKE VALVE | ||
| 768 | A 3514297032 | T-FITTING |
| AT HAND BRAKE VALVE | ||
| 769 | N 007604022201 | SCREW PLUG |
| AT HAND BRAKE VALVE | ||
| 771 | A 0005455414 | SWITCH |
| HAND BRAKE CONTROL | ||
| 771 | A 3445457214 | SWITCH |
| HAND BRAKE CONTROL | ||
| 771 | A 3445457214 | SWITCH |
| PARKING BRAKE | ||
| 771 | A 3445457214 | SWITCH |
| CHECK VALVE,CONNECTION "1" | ||
| 771 | A 3445457214 | SWITCH |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 772 | N 000931010135 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 772E | N 912004010102 | LOCK WASHER |
| HAND BRAKE VALVE TO BRACKET | ||
| 772M | N 000934010000 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 774 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| "WABCO" | ||
| 774 | A 0034295344 | VALVE |
| (RELAY VALVE) | ||
| KNORR | ||
| 774 | A 0034293044 | VALVE |
| (RELAY VALVE) | ||
| KNORR | ||
| A 0004205555 | REPAIR KIT | |
| SMALL SCOPE | ||
| TO 001 429 68 44,"WABCO" | ||
| 775 | A 0005865742 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 001 429 68 44,"WABCO" | ||
| A 0004201471 | REPAIR KIT | |
| TO 003 429 30 44 | ||
| 778 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 778 | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "V" | ||
| 778 | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "1","2","4" | ||
| 779 | N 007604016102 | SCREW PLUG |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 779 | N 007604016102 | SCREW PLUG |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 780 | N 080705022001 | NUT |
| FROM FITTING TO RELAY VALVE | ||
| 781 | A 3149977245 | SEAL RING |
| FROM FITTING TO RELAY VALVE | ||
| 782 | N 007603016105 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 782 | N 007603016105 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 783 | N 915036012101 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "2,4" | ||
| 783 | N 915036012101 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "2,4" | ||
| 784 | N 007603016103 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "2,4" | ||
| 784 | N 007603016103 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "2,4" | ||
| 786 | A 3414317540 | BRACKET |
| RELAY VALVE | ||
| 787 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO BRACKET | ||
| 788 | N 009021008102 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 789 | N 000934008045 | NUT |
| RELAY VALVE TO BRACKET | ||
| 790 | N 000933008278 | SCREW |
| BRACKET TO FRAME | ||
| 791 | N 009021008102 | WASHER |
| BRACKET TO FRAME | ||
| 792 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 793 | N 000934008045 | NUT |
| BRACKET TO FRAME | ||
| 794 | N 003902008001 | CONNECTION FITTING |
| FRONT, WITH 10.00-MM-THICK LINING, STANDARD | ||
| 795 | A 3514297701 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 795 | A 3514297801 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 795 | A 3514297901 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 796 | N 915018015000 | UNION NUT |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 797 | N 003861015004 | GLAND |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 798 | N 915065015101 | THRUST RING |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 798 | A 0004291027 | THRUST RING |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 798 | A 0004291027 | THRUST RING |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 799 | N 074297012400 | SLIP RING |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 799 | N 074297012400 | SLIP RING |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 800 | A 0029971640 | SEAL RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| A 0004290727 | THRUST RING | |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 801 | A 3084297027 | THRUST RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 801 | A 3084297027 | THRUST RING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 801 | A 3084297027 | THRUST RING |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| A 0004290927 | THRUST RING | |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| A 0004290927 | THRUST RING | |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 802 | A 0019901170 | T-FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 802 | A 0019901170 | T-FITTING |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 802 | A 0009904770 | T-FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 802 | A 3414297532 | T-FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 802 | A 3419907670 | T-FITTING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 803 | A 3519907183 | FITTING |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 803 | N 074315012100 | FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 803 | A 3514297038 | ELBOW FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 804 | N 080705016003 | NUT |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 804 | N 080705016003 | NUT |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 805 | A 0009971548 | SEAL RING |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 805 | A 0009971548 | SEAL RING |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 806 | A 0004312031 | TEST CONNECTION |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 806 | A 0004312031 | TEST CONNECTION |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 806 | A 0004314531 | TEST CONNECTION |
| LEFT SPRING-LOAD ACCUMULATOR | ||
| 806 | A 0004314531 | TEST CONNECTION |
| RIGHT SPRING-LOAD ACCUMULATOR | ||
| 807 | N 074298022202 | DOUBLE FITTING |
| REAR AXLE BRAKE CIRCUIT | ||
| A 0014318305 | BRAKE VALVE | |
| Repalced by: A 3454317105 | ||
| 808 | A 3454317105 | BRAKE VALVE |
| WABCO | ||
| A 0014319105 | BRAKE VALVE | |
| Repalced by: A 3454317005 | ||
| A 0024312705 | BRAKE VALVE | |
| Repalced by: A 3454317005 | ||
| 808 | A 3454317005 | BRAKE VALVE |
| KNORR | ||
| 808B | A 0049949541 | LOCK |
| TO 001 431 83 05 | ||
| 808B | A 0049949641 | LOCK |
| TO 001 431 83 05 | ||
| 808B | A 0049949741 | LOCK |
| TO 001 431 83 05 | ||
| 808B | A 0049949841 | LOCK |
| TO 001 431 83 05 | ||
| 808B | A 0049949941 | LOCK |
| TO 345 431 70 05 | ||
| 808B | N 000472045000 | LOCK RING |
| TO 345 431 71 05 | ||
| 808B | N 000472047001 | LOCK RING |
| TO 345 431 71 05 | ||
| 808B | N 000472060000 | LOCK RING |
| TO 345 431 71 05 | ||
| 808E | A 0014317193 | SPRING |
| TO 002 431 27 05,345 431 70 05 | ||
| 808E | A 0014317293 | SPRING |
| TO 002 431 27 05,345 431 70 05 | ||
| A 0014317393 | SPRING | |
| TO 001 431 83 05 | ||
| 808E | A 0014317493 | SPRING |
| TO 001 431 83 05,345 431 71 05 | ||
| 808K | A 0004312185 | FILLER RING |
| TO 001 431 83 05 | ||
| 808N | A 0004310273 | BREATHER PIPE |
| TO 001 431 83 05 | ||
| 808F | A 0004319483 | PISTON |
| TO 002 431 27 05, 345 431 70 05 | ||
| 808F | A 0004318783 | PISTON |
| 808F | A 0004318883 | PISTON |
| 808F | A 0004318383 | PISTON |
| TO 001 431 83 05 | ||
| 808F | A 0004318683 | PISTON |
| TO 345 431 71 05 | ||
| 808S | N 000984038000 | LOCK RING |
| TO 345 431 71 05 | ||
| 809 | A 0014301260 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 002 431 27 05,345 431 70 05 | ||
| 809 | A 0014301160 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 001 431 83 05,345 431 71 05 | ||
| 809 | A 0004307160 | REPAIR KIT |
| Repalced by: A 0004304206 | ||
| 809 | A 0004304206 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 002 431 27 05, 345 431 70 05 | ||
| 809 | A 0004306260 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 001 431 83 05,345 431 71 05 | ||
| 809 | A 0035861243 | REPAIR KIT |
| TO 001 431 91 05 | ||
| 810 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 810 | A 0009940203 | THRUST RING |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 811 | A 0009870446 | SEALING CORD |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 812 | N 074305022202 | NUT |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 813 | N 074302022304 | T-FITTING |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 814 | N 000908022001 | SCREW PLUG |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 814B | N 007603022102 | SEAL RING |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 815 | A 0005456409 | SWITCH |
| Repalced by: A 0007631410 | ||
| 815 | A 0007631410 | SWITCH |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 816 | A 3514310040 | BRACKET |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 817 | N 000933010034 | SCREW |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET AND TO SIDE MEMBER | ||
| 818 | N 000127010205 | LOCK WASHER |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET AND TO SIDE MEMBER | ||
| 819 | N 000934010000 | NUT |
| TRUCK-TRACTOR BRAKE VALVE TO BRACKET AND TO SIDE MEMBER | ||
| 820 | N 915039012100 | HOLLOW SCREW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 820 | N 915039012100 | HOLLOW SCREW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| INSIDE AND OUTSIDE | ||
| 820E | N 007603016103 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 820E | N 007603016103 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| INSIDE AND OUTSIDE | ||
| 820F | N 915036012101 | HOLLOW SCREW |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 820H | N 007603016103 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 820K | N 007604016102 | SCREW PLUG |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| 820L | N 007603016105 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| 820P | N 913004008004 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 821 | A 0004312031 | TEST CONNECTION |
| FROM OPERATING VALVE TO SEPARATION POINT AT CAB | ||
| "22" | ||
| 821 | A 0004314531 | TEST CONNECTION |
| FROM OPERATING VALVE TO SEPARATION POINT AT CAB | ||
| "22" | ||
| 822 | A 3529900071 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 822 | A 3419907871 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 822B | A 0009971548 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| 822E | A 3084297027 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| 822H | N 080705016003 | NUT |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| 822L | N 007603016103 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 822N | N 915036012101 | HOLLOW SCREW |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 822N | N 915036012101 | HOLLOW SCREW |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 823 | A 0089975882 | HOSE |
| COMPRESSED AIR LINE TO BRAKE VALVE | ||
| 823B | N 915017006100 | UNION NUT |
| COMPRESSED AIR LINE TO BRAKE VALVE | ||
| 823D | N 003861006005 | GLAND |
| COMPRESSED AIR LINE TO BRAKE VALVE | ||
| 823F | N 915062004000 | SLEEVE |
| COMPRESSED AIR LINE TO BRAKE VALVE | ||
| 823K | N 915052004002 | BANJO UNION |
| COMPRESSED AIR LINE TO BRAKE VALVE | ||
| 823M | A 0049971772 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 824 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 824 | A 0009872827 | PLASTIC PIPE |
| 12 MM | ||
| 824B | N 915052009000 | BANJO UNION |
| 824F | N 915062009000 | SLEEVE |
| 824K | N 915017012100 | UNION NUT |
| 824N | N 003861012007 | GLAND |
| 824P | A 0049971772 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 825 | A 3519907170 | T-FITTING |
| BETWEEN THE LINES | ||
| 826 | N 915036012101 | HOLLOW SCREW |
| T-FITTING,CONNECTIONS: | ||
| "1","2","3" | ||
| 826 | N 915036012101 | HOLLOW SCREW |
| T-FITTING,CONNECTIONS: | ||
| "2","3" | ||
| 827 | N 007603016103 | SEAL RING |
| T-FITTING,CONNECTIONS: | ||
| "1","2","3" | ||
| 827 | N 007603016103 | SEAL RING |
| T-FITTING,CONNECTIONS: | ||
| "2","3" | ||
| 828 | N 915039012100 | HOLLOW SCREW FITTING |
| T-FITTING,CONNECTION: | ||
| "1" | ||
| 828B | N 007603016103 | SEAL RING |
| T-FITTING,CONNECTION: | ||
| "1" | ||
| 829 | A 0004312031 | TEST CONNECTION |
| T-FITTING,CONNECTION: | ||
| "1" | ||
| 829 | A 0004314531 | TEST CONNECTION |
| T-FITTING,CONNECTION: | ||
| "1" | ||
| 830 | N 003902012001 | CONNECTION FITTING |
| Repalced by: A 0049971772 | ||
| 830 | A 0049971772 | FITTING |
| BETWEEN THE LINES | ||
| 831 | A 0089979082 | HOSE |
| 8 MM | ||
| 832 | N 915052006002 | BANJO UNION |
| 832B | N 915017008100 | UNION NUT |
| 832E | N 003861008005 | GLAND |
| 832K | N 915062006000 | SLEEVE |
| 832M | A 0089978972 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 833 | A 0029972290 | LOOM TIE |
| 834 | N 003902008001 | CONNECTION FITTING |
| 835 | A 0089976082 | HOSE |
| 835B | N 915052004002 | BANJO UNION |
| 835F | N 915017006100 | UNION NUT |
| 835K | N 003861006007 | GLAND |
| 835N | N 915062004000 | SLEEVE |
| 837 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| A 0004315614 | BRAKE CYLINDER | |
| Repalced by: A 0014311314 | ||
| A 3454310014 | BRAKE CYLINDER | |
| Repalced by: A 0014311314 | ||
| 837 | A 0014311314 | BRAKE CYLINDER |
| WESTINGHOUSE | ||
| 837B | A 0004317486 | CUP |
| A 0004319186 | CUP | |
| Repalced by: A 0004312786 | ||
| A 0014310786 | CUP | |
| Repalced by: A 0004312786 | ||
| 837C | A 0004312786 | CUP |
| TO 000 431 21 14 | ||
| 837C | A 0004318583 | PISTON |
| TO 000 431 21 14 | ||
| 837D | A 0089977548 | SEAL RING |
| 837E | A 0049971740 | SEAL RING |
| TO 000 431 21 14 | ||
| 837H | A 0084310993 | SPRING |
| TO 345 431 00 14 | ||
| 837L | A 0084310192 | ROD |
| TO 345 431 00 14 | ||
| 837N | A 0084310683 | PISTON |
| TO 345 431 00 14 | ||
| 837P | A 0084310036 | FILTER BOTTOM |
| TO 345 431 00 14 | ||
| 837R | N 000127014203 | LOCK WASHER |
| TO 345 431 00 14 | ||
| 837T | N 000934014003 | NUT |
| TO 345 431 00 14 | ||
| 837W | A 0084311093 | SPRING |
| TO 345 431 00 14 | ||
| A 0084310072 | NUT | |
| TO 345 431 00 14 | ||
| 838 | N 001481003007 | CLAMPING SLEEVE |
| TO 345 431 00 14 | ||
| A 0084310181 | VALVE DISC | |
| TO 345 431 00 14 | ||
| 838B | A 0084310187 | PROTECTIVE CAP |
| TO 345 431 00 14 | ||
| 838D | A 0004318186 | CUP |
| Repalced by: A 0015864342 | ||
| 838D | A 0004318587 | PROTECTIVE CAP |
| TO 000 431 56 14,001 431 13 14 | ||
| A 0004310649 | GUIDE BUSHING | |
| TO 000 431 21 14 | ||
| 838F | A 0004310736 | FILTER BOTTOM |
| TO 000 431 21 14 | ||
| 838K | N 000933006024 | SCREW |
| 838N | N 000934006007 | NUT |
| 839 | H 983454310087 | PROTECTIVE CAP |
| 839 | A 0004301808 | REPAIR KIT |
| TO 345 431 00 14 | ||
| 839 | A 0015864342 | REPAIR KIT |
| TO 000 431 21 14 | ||
| 839 | A 0025861443 | REPAIR KIT |
| TO 000 431 56 14 | ||
| 839 | A 0025861443 | REPAIR KIT |
| TO 001 431 13 14 | ||
| 839 | H 983455860543 | REPAIR KIT |
| Repalced by: A 0004301708 | ||
| 839 | A 0004301708 | REPAIR KIT |
| TO 345 431 00 14 | ||
| 840 | A 3604302311 | CONSOLE |
| SPRING LOAD ACCUMULATOR | ||
| 840 | A 3604302411 | CONSOLE |
| 840C | N 000933010034 | SCREW |
| SPRING LOAD ACCUMULATOR CYLINDER TO BEARING BRACKET | ||
| 840C | N 000933010180 | SCREW |
| 840E | N 000127010205 | LOCK WASHER |
| SPRING LOAD ACCUMULATOR CYLINDER TO BEARING BRACKET | ||
| 840E | N 000127010202 | LOCK WASHER |
| 840K | N 000934010000 | NUT |
| SPRING LOAD ACCUMULATOR CYLINDER TO BEARING BRACKET | ||
| 840K | N 000934010005 | NUT |
| 840M | N 000933010129 | SCREW |
| BEARING BRACKET TO BRACKETS ON CROSS MEMBER & ON REAR SPRING | ||
| 840R | A 3609900040 | WASHER |
| BEARING BRACKET TO BRACKETS ON CROSS MEMBER & ON REAR SPRING | ||
| 840R | N 000125010518 | WASHER |
| BEARING BRACKET TO BRACKETS ON CROSS MEMBER & ON REAR SPRING | ||
| 840T | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO BRACKETS ON CROSS MEMBER & ON REAR SPRING | ||
| 840W | N 000934010000 | NUT |
| BEARING BRACKET TO BRACKETS ON CROSS MEMBER & ON REAR SPRING | ||
| 841 | A 3514237023 | BRACKET |
| 841B | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 841E | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 841K | N 000934008045 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 841N | N 003911012100 | FITTING |
| AT BRACKET | ||
| 841Q | N 000125019009 | WASHER |
| AT BRACKET | ||
| 841S | N 080705018002 | NUT |
| AT BRACKET | ||
| 842 | N 000934006007 | NUT |
| AT BRACKET | ||
| TO 341 429 76 40 | ||
| 843 | A 3414297640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 844 | A 3414297740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 845 | A 3094760036 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 846 | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 847 | A 3094760636 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 848 | A 3514297340 | BRACKET |
| 850 | N 000933008278 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 851 | N 912004081002 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 852 | N 000125008417 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 853 | N 000934008045 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 855 | A 3129952420 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 855 | A 3419957420 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3129952440 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 857 | N 000084006197 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 857 | N 000084006422 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 858 | N 000125006421 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 858 | N 000125008417 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 858 | N 000125006421 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 859 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 859 | N 912006008001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 859 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 860 | N 000934006007 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 860 | N 000934006029 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 861 | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 861 | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 862 | N 000933008153 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 862 | N 000933008145 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 863 | N 912006008001 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 863 | N 912004008102 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 863 | N 912004008102 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 864 | N 000125008417 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 865 | N 000934008045 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 867 | N 000085010113 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 868 | N 000127010202 | LOCK WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 869 | N 000125010518 | WASHER |
| 870 | N 000934010005 | NUT |
| 871 | A 3609900070 | T-FITTING |
| 871 | A 3414297232 | T-FITTING |
| 872 | A 0009870446 | SEALING CORD |
| 873 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 873 | A 0009940203 | THRUST RING |
| 874 | N 074305022202 | NUT |
| 875 | A 3514298001 | LINE |
| FROM T-FITTING TO DOUBLE FITTING | ||
| 875 | A 3514299101 | LINE |
| FROM T-FITTING TO DOUBLE FITTING | ||
| 876 | N 915017006100 | UNION NUT |
| 877 | N 003861006007 | GLAND |
| 878 | A 3454298136 | CONNECTOR |
| 879 | A 3514298101 | LINE |
| FROM DOUBLE FITTING TO DOUBLE FITTING | ||
| 879 | A 3514298201 | LINE |
| FROM DOUBLE FITTING TO DOUBLE FITTING | ||
| 879 | A 3514298301 | LINE |
| FROM DOUBLE FITTING TO DOUBLE FITTING | ||
| 880 | N 003861006007 | GLAND |
| 881 | N 915017006100 | UNION NUT |
| 882 | A 3454298136 | CONNECTOR |
| 883 | A 3514298401 | LINE |
| FROM DOUBLE FITTING TO THREE-WAY VALVE | ||
| 884 | A 0089976082 | HOSE |
| (3/2-WAY SOLENOID VALVE) | ||
| 885 | N 915052004000 | BANJO UNION |
| (3/2-WAY SOLENOID VALVE) | ||
| 885 | N 915052004002 | BANJO UNION |
| (3/2-WAY SOLENOID VALVE) | ||
| 886 | N 915036012101 | HOLLOW SCREW |
| (3/2-WAY SOLENOID VALVE) | ||
| 887 | N 007603012111 | SEAL RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 888 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 888 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 888 | A 0029972290 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 889 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 889 | N 916016008200 | CLAMP |
| 890 | A 3124761236 | BRACKET |
| 891 | N 000084006110 | SCREW |
| 891 | N 000084006112 | SCREW |
| 892 | N 009021006100 | WASHER |
| 893 | N 000127006206 | LOCK WASHER |
| 894 | N 000934006007 | NUT |
| 895 | A 3603530140 | BRACKET |
| THREE-WAY VALVE | ||
| 896 | N 000931008085 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 896 | N 000931008368 | SCREW |
| 897 | N 000933008036 | SCREW |
| 897 | N 000933008371 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 897 | N 000933008271 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 898 | N 912004008104 | LOCK WASHER |
| 898 | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 899 | N 000934008000 | NUT |
| 899 | N 000934008045 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 900 | A 3514297440 | BRACKET |
| AT REAR CROSS MENBER | ||
| 901 | N 000933010256 | SCREW |
| AT REAR CROSS MENBER | ||
| 902 | N 000127010202 | LOCK WASHER |
| AT REAR CROSS MENBER | ||
| 903 | N 000934010005 | NUT |
| AT REAR CROSS MENBER | ||
| 904 | A 0019971836 | VALVE |
| Repalced by: A 0039971736 | ||
| 904 | A 0039971736 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 905 | A 0015863843 | REPAIR KIT |
| TO 001 997 18 36 | ||
| 905 | A 0004305660 | REPAIR KIT |
| TO 003 997 17 36,WABCO 472 123 11 10 | ||
| 906 | N 007603012112 | SEAL RING |
| THREE-WAY VALVE | ||
| 907 | N 003901008001 | SCREW-IN FITTING |
| THREE-WAY VALVE | ||
| 907 | A 0019972572 | FITTING |
| THREE-WAY VALVE | ||
| 908 | A 3454298136 | CONNECTOR |
| THREE-WAY VALVE | ||
| 909 | A 3529971082 | HOSE |
| THREE-WAY VALVE | ||
| 910 | N 915017008100 | UNION NUT |
| 910 | N 915017008100 | UNION NUT |
| 911 | N 003861008005 | GLAND |
| 912 | N 003901008001 | SCREW-IN FITTING |
| 913 | N 007603012112 | SEAL RING |
| 914 | A 3603530340 | BRACKET |
| 915 | N 000933008036 | SCREW |
| 916 | N 912004008104 | LOCK WASHER |
| 917 | N 000934008000 | NUT |
| 918 | A 3609950210 | CLAMP |
| HOSE TO BRACKET | ||
| 919 | N 000933006015 | SCREW |
| HOSE TO BRACKET | ||
| 919 | N 000933006223 | SCREW |
| HOSE TO BRACKET | ||
| 919 | N 000933006221 | SCREW |
| HOSE TO BRACKET | ||
| 920 | N 000127006206 | LOCK WASHER |
| HOSE TO BRACKET | ||
| 920 | N 000127006203 | LOCK WASHER |
| HOSE TO BRACKET | ||
| 921 | N 000934006007 | NUT |
| HOSE TO BRACKET | ||
| 921 | N 000934006029 | NUT |
| HOSE TO BRACKET | ||
| 922 | A 6209970181 | GROMMET |
| 42/36 MM | ||
| 923 | N 000933008108 | SCREW |
| T-FITTING TO SIDE MEMBER | ||
| 924 | N 912004008102 | LOCK WASHER |
| T-FITTING TO SIDE MEMBER | ||
| 925 | N 000934008010 | NUT |
| T-FITTING TO SIDE MEMBER | ||
| 926 | A 3609902340 | WASHER |
| BRAKE HOSE | ||
| 926 | A 3609902440 | WASHER |
| BRAKE HOSE | ||
| 927 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 927 | A 0019978490 | LOOM TIE |
| BRAKE HOSE | ||
| 930 | A 0014313705 | BRAKE VALVE |
| (TRAILER CONTROL VALVE) | ||
| WESTINGHOUSE | ||
| 930 | A 0024311605 | BRAKE VALVE |
| (TRAILER CONTROL VALVE) | ||
| KNORR | ||
| 931 | A 0024306581 | REPAIR KIT |
| GASKETS | ||
| TO 001 431 37 05 | ||
| 931 | A 0024304781 | REPAIR KIT |
| VALVE | ||
| TO 001 431 37 05 | ||
| 931 | A 0004302960 | REPAIR KIT |
| TO 002 431 16 05 | ||
| 932 | N 915047012100 | HOLLOW SCREW |
| TRAILER CONTROL VALVE,CONNECTION: | ||
| "1" | ||
| 933 | N 915036012101 | HOLLOW SCREW |
| TRAILER CONTROL VALVE,CONNECTION: | ||
| "2" | ||
| 934 | N 007603016103 | SEAL RING |
| TRAILER CONTROL VALVE,CONNECTIONS: | ||
| 935 | A 3519907483 | FITTING |
| TRAILER CONTROL VALVE,CONNECTION: | ||
| "43" | ||
| 936 | N 007604016102 | SCREW PLUG |
| TRAILER CONTROL VALVE,CONNECTIONS: | ||
| "42" | ||
| 937 | N 007603016105 | SEAL RING |
| TRAILER CONTROL VALVE,CONNECTIONS: | ||
| "42","43" | ||
| 938 | A 3414317540 | BRACKET |
| TRAILER CONTROL VALVE | ||
| 940 | N 009021008102 | WASHER |
| TRAILER CONTROL VALVE TO BRACKET | ||
| 941 | N 912004008102 | LOCK WASHER |
| TRAILER CONTROL VALVE TO BRACKET | ||
| 942 | N 000934008045 | NUT |
| TRAILER CONTROL VALVE TO BRACKET | ||
| 943 | N 000933008278 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 943 | N 000933010267 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 944 | N 009021008102 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 944 | N 009021010102 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 945 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 945 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 946 | N 000934008045 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 946 | N 000934010040 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 947 | A 0004292701 | LINE |
| TRAILER BRAKE | ||
| 947 | A 0004292901 | LINE |
| TRAILER BRAKE | ||
| 947 | A 0004293101 | LINE |
| TRAILER BRAKE | ||
| 948 | A 3519907683 | FITTING |
| TRAILER BRAKE LINE | ||
| 949 | N 007603016103 | SEAL RING |
| TRAILER BRAKE LINE | ||
| 950 | A 0004298130 | BRAKE LINE COUPLING |
| LEFT BRAKE LINE | ||
| 950 | A 0004298730 | BRAKE LINE COUPLING |
| LEFT BRAKE LINE | ||
| 950 | A 0004298030 | BRAKE LINE COUPLING |
| RIGHT BRAKE LINE | ||
| 950 | A 0004298630 | BRAKE LINE COUPLING |
| RIGHT BRAKE LINE | ||
| 952 | A 0004291290 | COVER |
| TO 000 429 80 30 | ||
| 952 | A 0004291690 | COVER |
| TO 000 429 81 30 | ||
| 954 | A 0025863842 | REPAIR KIT |
| TO 000 429 80 30,000 429 81 30 | ||
| 954 | A 0004309660 | REPAIR KIT |
| TO 000 429 86 30,000 429 87 30 | ||
| N 003911012100 | FITTING | |
| LINE TO CROSS MEMBER | ||
| N 080705018002 | NUT | |
| LINE TO CROSS MEMBER | ||
| A 3514297027 | THRUST RING | |
| LINE TO CROSS MEMBER | ||
| A 3419977345 | SEAL RING | |
| LINE TO CROSS MEMBER | ||
| A 3514287131 | CONNECTOR | |
| LINE TO CROSS MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
