Transporto priemonė: LS 1518; VIN numerio dalis: 351335

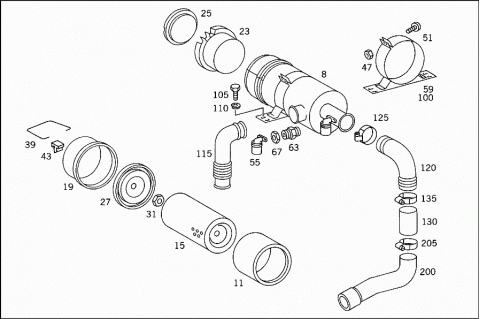

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
008	A 0070946702	AIR CLEANER
008	A 3410947002	AIR CLEANER
008	A 3410947401	AIR CLEANER
		LESS BRACKET
008	A 3410947401	AIR CLEANER
		LESS BRACKET
008	A 3450947102	AIR CLEANER
011	A 3410947016	CARTRIDGE
		TO 341 094 70 02,341 094 74 01
015	A 3410947004	FILTER ELEMENT
	H 990000940003	FILTER BOWL
019	A 0000943317	DUST COLLECTOR BOWL
		TO 341 094 70 02,341 094 74 01
023	A 3440947003	FILTER BOWL
		TO 345 094 71 02,341 094 74 01
027	A 0000940605	SEPARATOR
		TO 341 094 70 02,341 094 74 01
031	A 3089907051	NUT
		TO 345 094 71 02
031	A 0000940272	NUT
		TO 341 094 70 02,341 094 74 01
035	H 983440940010	BOTTOM PARTITION
		TO 345 094 71 02
039	A 0000940425	SPRING CLIP
		TO 341 094 70 02,341 094 74 01
043	A 0000942055	FASTENER
		TO 341 094 70 02,341 094 74 01
047	A 1109900052	NUT
051	N 000084008108	SCREW
055	A 3450947068	VACUUM BOX
		TO 341 094 70 02,341 094 74 01
059	A 0000944741	BRACKET
063	A 3410947069	FITTING
		TO 341 094 70 02,341 094 74 01
067	A 3410947072	NUT
		TO 341 094 70 02,341 094 74 01

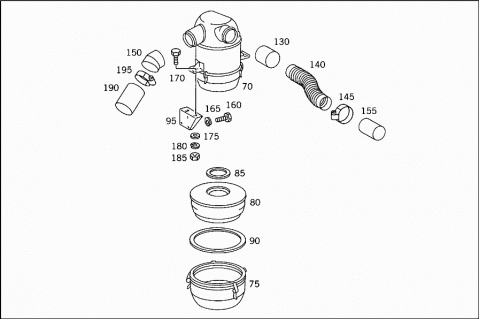

070	A 0060944702	AIR CLEANER
070	A 0050944102	AIR CLEANER
075	A 0000944306	FILTER BOWL
		TO 006 094 47 02,005 094 41 02
080	A 0000944206	ELEMENT
		TO 006 094 47 02,005 094 41 02
085	A 0000944180	GASKET
		INSIDE
		TO 006 094 47 02,005 094 41 02
090	A 0000944080	GASKET
		OUTSIDE
		TO 006 094 47 02,005 094 41 02
095	A 3525282440	BRACKET
		AIR CLEANER
100	A 3450947041	BRACKET
		AIR CLEANER
		TO 345 094 71 02
105	N 000931008045	SCREW
		BRACKET TO FIRE WALL
110	N 912004008104	LOCK WASHER
		BRACKET TO FIRE WALL
115	A 0000941709	INTAKE PIPE
		FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER
115	A 0000941709	INTAKE PIPE
		FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER
120	A 0000941809	INTAKE PIPE
120	A 0000941809	INTAKE PIPE
125	N 916018090000	CLAMP
		FROM AIR CLEANER TO AIR INTAKE PIPE
		90 - 110 MM
130	N 900271100005	HOSE
		80 MM
135	N 916018110000	CLAMP
140	A 3419977282	HOSE
		FROM OIL BATH AIR CLEANER TO EXHAUST GAS TURBINE
145	N 916018110000	CLAMP
145	N 916018080000	CLAMP
145	N 916018080000	CLAMP
145	A 3419978190	LOOM TIE
		AS REQUIRED
145	N 916018090000	CLAMP
		AS REQUIRED
150	A 3410907029	AIR INTAKE PIPE
155	A 3419977182	HOSE
	H 983450940182	HOSE
	Repalced by: A 3450947182
155	A 3450947182	HOSE
160	N 000933008080	SCREW
		BRACKET TO FIRE WALL
165	N 912004008104	LOCK WASHER
		BRACKET TO FIRE WALL
170	N 000933010011	SCREW
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
175	N 000125010518	WASHER
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
180	N 000127010205	LOCK WASHER
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
185	N 000934010000	NUT
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
190	A 0009976352	HOSE
		FROM AIR CLEANER TO AIR COMPRESSOR
195	A 3509970490	LOOM TIE
	Repalced by: N 916017020000
195	N 916017020000	CLAMP
	Repalced by: N 000000000667
195	N 000000000667	CLAMP
		HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
200	A 3455287182	HOSE
		PNEUMATIC VALVE
205	A 3509970590	LOOM TIE
		HOSE TO VALVE
205	N 916017020000	CLAMP
	Repalced by: N 000000000667
205	N 000000000667	CLAMP
		HOSE TO VALVE
