Transporto priemonė: LS 1518; VIN numerio dalis: 351335

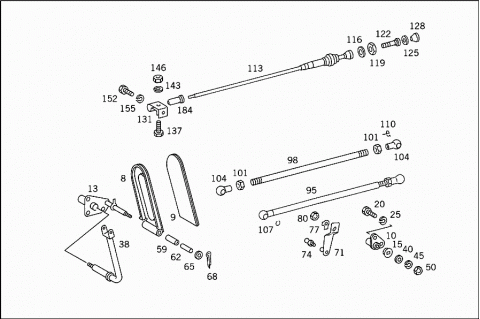

Grupė: 30 CONTROL

#	Kodas	Pavadinimas
008	A 3453007104	ACCELERATOR PEDAL
009	A 3453017082	PAD
010	A 3223000021	BEARING TUBE
		ACCELERATOR PEDAL CONTROL
010	A 3453000021	BEARING TUBE
		ACCELERATOR PEDAL CONTROL
013	A 3453007121	BEARING TUBE
015	A 3223010054	GUARD PLATE
020	N 000933008145	SCREW
		BEARING TUBE TO FIRE WALL
025	N 912004008102	LOCK WASHER
		BEARING TUBE TO FIRE WALL
038	A 3453007425	LEVER
040	N 000433008403	WASHER
		PLATE TO SHAFT
045	N 912004008102	LOCK WASHER
		PLATE TO SHAFT
050	N 000934008010	NUT
		PLATE TO SHAFT
059	A 3443000006	ROLLER
062	N 001433006004	PIN
		ROLLER TO LEVER
065	N 000125006421	WASHER
		ROLLER TO LEVER
068	N 000094001609	COTTER PIN
		ROLLER TO LEVER
071	A 3453000225	LEVER
074	N 071803010209	BALL PIVOT
077	A 3603010073	LOCK
		LEVER TO SHAFT
080	N 000936008011	NUT
		LEVER TO SHAFT
095	A 3604301892	ROD
		FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
098	A 3604303092	ROD
		FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
101	N 000934006000	NUT
		FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
104	A 0009912422	BALL SOCKET
		FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
107	N 071805010302	SNAP RING
110	N 071805010403	SECURING CLIP
		FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
	A 3523000407	KNOB
	Repalced by: A 3413007207
	A 3413007007	KNOB
	Repalced by: A 3413007207
113	A 3413007207	KNOB
		WITH SPINDLE
116	A 0019900040	WASHER
		TO 352 300 04 07,341 300 70 07, 360 300 02 07
119	A 3129901151	NUT
		TO 352 300 04 07,341 300 70 07,360 300 02 07
	A 3413007407	KNOB
122	A 3523020308	GUIDE
		TO 352 300 04 07,341 300 70 07, 360 300 02 07
125	A 3129902140	WASHER
		TO 352 300 04 07,341 300 70 07, 360 300 02 07
128	A 3523020201	KNOB
		TO 352 300 04 07,341 300 70 07, 360 300 02 07
131	A 3523020020	CLAMP
	A 3523020091	GROMMET
	Repalced by: A 3413027091
134	A 3413027091	GROMMET
		WIRE CABLE TO MOUNTING CLAMP
137	N 000933006010	SCREW
		WIRE CABLE TO MOUNTING CLAMP
137	N 000933006228	SCREW
		WIRE CABLE TO MOUNTING CLAMP
143	N 000127006206	LOCK WASHER
		WIRE CABLE TO MOUNTING CLAMP
143	N 000127006203	LOCK WASHER
		WIRE CABLE TO MOUNTING CLAMP
146	N 000934006000	NUT
		WIRE CABLE TO MOUNTING CLAMP
146	N 000934006029	NUT
		WIRE CABLE TO MOUNTING CLAMP
152	N 000933006223	SCREW
		MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR
155	N 000127006206	LOCK WASHER
		MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR
155	N 000127006203	LOCK WASHER
		MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR
