Transporto priemonė: LS 1518; VIN numerio dalis: 351335
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

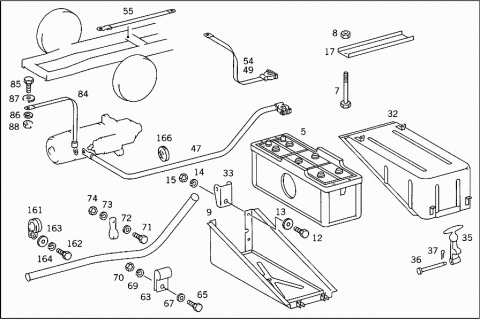

| 005 | A 0005419501 | BATTERY |
| Repalced by: A 3415417001 | ||
| 005 | A 3415417001 | BATTERY |
| 12 V 135 AH | ||
| 007 | N 000601008020 | SCREW |
| BATTERY | ||
| 008 | N 000934008000 | NUT |
| 009 | A 3515400014 | BATTERY CASE |
| 012 | N 000961012027 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 012 | N 000961012029 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 013 | A 3209906040 | WASHER |
| BATTERY CASE TO SIDE MEMBER | ||
| 014 | N 000127012203 | LOCK WASHER |
| BATTERY CASE TO SIDE MEMBER | ||
| 015 | N 000934012004 | NUT |
| BATTERY CASE TO SIDE MEMBER | ||
| 017 | A 3515410013 | MOUNTING RAIL |
| BATTERY | ||
| 012 | A 3605400023 | MOUNTING FRAME |
| BATTERY | ||
| 032 | A 3515400082 | COVER |
| BATTERY CASE | ||
| 032 | A 3415407182 | COVER |
| BATTERY CASE | ||
| 033 | A 3455410040 | BRACKET |
| 035 | A 3125271717 | HOOD FASTENER |
| 036 | A 3125271174 | PIN |
| BRACKET TO BATTERY CASE | ||
| 037 | N 000094001617 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 037 | N 000094005041 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 047 | A 3415407030 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 047 | A 3415407330 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 049 | A 3415407031 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 055 | A 3415407041 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 060 | A 3415467185 | PROTECTIVE TUBE |
| 063 | A 3419957001 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| 065 | N 000933006024 | SCREW |
| CABLE CONDUIT TO BRACKET | ||
| 067 | N 009021006100 | WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 069 | N 000127006206 | LOCK WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 070 | N 000934006000 | NUT |
| CABLE CONDUIT TO BRACKET | ||
| 071 | N 000933010034 | SCREW |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 072 | N 009021010100 | WASHER |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 073 | N 000127010205 | LOCK WASHER |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 074 | N 000934010000 | NUT |
| BATTERY POS. CABLE TO SIDE MEMBER | ||

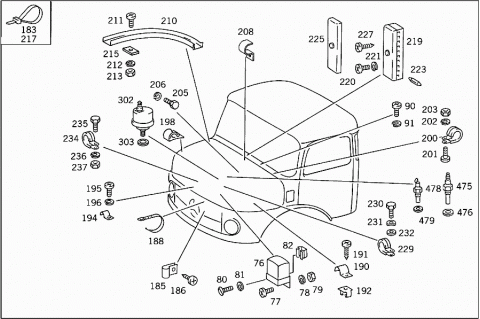

| 076 | A 0011548406 | REGULATOR AND CUT-OUT |
| TO 003 154 39 02 | ||
| 076 | A 3411547306 | REGULATOR AND CUT-OUT |
| TO 341 154 00 02 | ||
| 076 | A 3411547106 | REGULATOR AND CUT-OUT |
| TO 341 150 71 50 | ||
| 076 | A 3411540106 | REGULATOR AND CUT-OUT |
| TO 351 150 02 50 | ||
| 077 | N 007985006157 | SCREW |
| REGULATOR MOUNTING | ||
| 077 | N 007985006157 | SCREW |
| REGULATOR MOUNTING | ||
| 078 | N 000127006206 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 078 | N 000127006203 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 079 | N 000934006000 | NUT |
| REGULATOR MOUNTING | ||
| 079 | N 000934006029 | NUT |
| REGULATOR MOUNTING | ||
| 080 | N 000084006112 | SCREW |
| ACTUATOR TO BRACKET | ||
| 080 | N 000084006426 | SCREW |
| ACTUATOR TO BRACKET | ||
| 081 | N 000127006206 | LOCK WASHER |
| ACTUATOR TO BRACKET | ||
| 081 | N 000127006203 | LOCK WASHER |
| ACTUATOR TO BRACKET | ||
| 082 | A 0009902291 | NUT RETAINER |
| TO 341 150 01 06 | ||
| 084 | A 3515407041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 084 | A 3515407041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 084 | A 3415407041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 085 | N 000933010034 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 085 | N 000933010129 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 085 | N 000933010129 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 086 | N 000127010205 | LOCK WASHER |
| GROUND STRAP | ||
| 086 | N 000127010202 | LOCK WASHER |
| GROUND STRAP | ||
| 087 | N 009021010100 | WASHER |
| GROUND STRAP | ||
| 087 | N 009021010102 | WASHER |
| GROUND STRAP | ||
| 088 | N 000934010000 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 088 | N 000934010040 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 090 | N 007985006157 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 091 | N 000127006206 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||

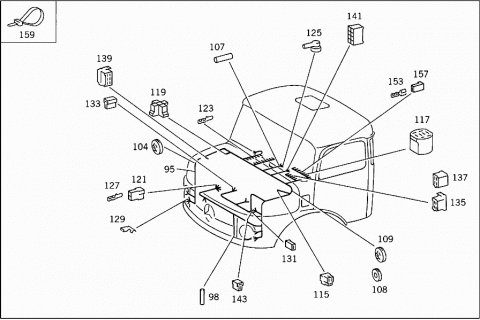

| 095 | A 3415407005 | CABLE HARNESS |
| Repalced by: A 3515407005 | ||
| 095 | A 3515407105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 095 | A 3515407405 | CABLE HARNESS |
| Repalced by: A 3515407505 | ||
| 095 | A 3515407505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 095 | A 3415409005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 095 | A 3515408905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 095 | A 3515409305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 095 | A 3515408206 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 098 | A 0009970381 | GROMMET |
| 098 | A 0009970681 | GROMMET |
| 104 | A 1869970481 | GROMMET |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 540 75 05 | ||
| 104 | A 3519977381 | GROMMET |
| TO 351 540 74 05,91 05,93 05 | ||
| 107 | A 0009970581 | GROMMET |
| 108 | A 3419977081 | GROMMET |
| 109 | A 3519977081 | GROMMET |
| TO 351 540 74 05 | ||
| 109 | A 3519977081 | GROMMET |
| TO 351 540 74 05 | ||
| 109 | A 3519977481 | GROMMET |
| TO 51 540 74 05,92 05,93 05 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 540 91 05 | ||
| 115 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 115 | A 0385452528 | PLUG |
| 117 | A 0065455528 | PIN BUSHING HOUSING |
| Repalced by: A 3455457028 | ||
| 117 | A 3455457028 | PIN BUSHING HOUSING |
| 119 | A 3445457628 | PLUG |
| 4-POLE | ||
| 121 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| TO 351 540 71 05 | ||
| 123 | A 0045451428 | PLUG |
| 123 | A 0065455528 | PIN BUSHING HOUSING |
| Repalced by: A 3455457028 | ||
| 123 | A 3455457028 | PIN BUSHING HOUSING |
| 125 | A 0005400781 | PLUG SOCKET |
| 127 | A 0015458628 | PLUG |
| TO 351 540 71 05 | ||
| 129 | A 0005440156 | CONTACT PIECE |
| TO 351 540 71 05 | ||
| 129 | A 0005453626 | PIN BUSHING |
| OFFSET | ||
| 131 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| TO 351 540 71 05 | ||
| 133 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 133 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 135 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 135 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 137 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 137 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 139 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 141 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 143 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 153 | A 0005453826 | PIN BUSHING |
| 153 | A 0005454626 | PIN BUSHING |
| 153 | A 0005454626 | PIN BUSHING |
| 153 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 153 | A 0005453726 | PIN BUSHING |
| 153 | A 0005453726 | PIN BUSHING |
| 153 | A 0005454026 | PIN BUSHING |
| 153 | A 0005454026 | PIN BUSHING |
| 157 | A 0005451745 | BOOT |
| 157 | A 0005453545 | BOOT |
| 159 | A 3789977190 | LOOM TIE |
| 161 | N 916016022203 | CLAMP |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 162 | N 000933006046 | SCREW |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 162 | N 000933006221 | SCREW |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 163 | N 009021006100 | WASHER |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 163 | N 009021006103 | WASHER |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 164 | N 000127006206 | LOCK WASHER |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 164 | N 000127006203 | LOCK WASHER |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 166 | A 3529970281 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| A 3455410033 | COVERING | |
| 183 | A 0009951159 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 183 | A 0019978390 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 183 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO WATER PIPE | ||
| 185 | N 072571001023 | CLAMP |
| ELECTRIC CABLE TO WATER PIPE | ||
| 185 | N 072571001024 | CLAMP |
| TEMPERATURE SWITCH CABLE TO COVER PLATE,LEFT | ||
| 186 | N 007981004233 | SHEET METAL SCREW |
| ELECTRIC CABLE TO WATER PIPE | ||
| 186 | N 007981004407 | SHEET METAL SCREW |
| TEMPERATURE SWITCH CABLE TO COVER PLATE,LEFT | ||
| 188 | A 3789977190 | LOOM TIE |
| ELECTRIC CABLE TO WATER PIPE | ||
| 190 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 190 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 190 | A 3199950320 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 191 | N 007981004279 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 191 | N 007981004407 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 192 | A 0009941845 | LOCK |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 192 | A 3449947045 | LOCK |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| A 3509978490 | LOOM TIE | |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 194 | A 3199950320 | CLAMP |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 195 | N 007985005109 | SCREW |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 195 | N 007985005183 | SCREW |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 196 | N 912004005101 | LOCK WASHER |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 196 | N 912004005100 | LOCK WASHER |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 198 | A 0009883478 | CLIP |
| Repalced by: A 3089880078 | ||
| 198 | A 3089880078 | CLIP |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| 198 | A 3089880078 | CLIP |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| A 3509978490 | LOOM TIE | |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| A 3449887078 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| 200 | N 916016028202 | CLAMP |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 201 | N 007985005120 | SCREW |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 202 | N 912004005101 | LOCK WASHER |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 203 | N 000934005000 | NUT |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 205 | N 007985006193 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 206 | N 000127006203 | LOCK WASHER |
| 208 | A 1869950037 | CLAMP |
| MAIN CABLE HARNESS TO WIPER MOTOR FLAP | ||
| 210 | A 3605460080 | CABLE GUIDE |
| 211 | N 007985005109 | SCREW |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 211 | N 007985005183 | SCREW |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 212 | N 912004005101 | LOCK WASHER |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 212 | N 912004005100 | LOCK WASHER |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 213 | N 000934005000 | NUT |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 213 | N 000934005021 | NUT |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 215 | A 3605460243 | BRACKET |
| 217 | A 0019978490 | LOOM TIE |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 219 | A 3355450001 | FUSE BOX |
| 220 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 221 | N 000127004205 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 223 | N 072581008101 | FUSE |
| FUSE BOX | ||
| 225 | A 0005451203 | CAP |
| FUSE BOX | ||
| 227 | N 007981004322 | SHEET METAL SCREW |
| FUSE BOX | ||
| 229 | N 916016012200 | CLAMP |
| CLAMP TO ALTERNATOR | ||
| 230 | N 000933005011 | SCREW |
| CLAMP TO ALTERNATOR | ||
| 230 | N 000933005059 | SCREW |
| CLAMP TO ALTERNATOR | ||
| 231 | N 000137005102 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| 231 | N 000137005201 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| 232 | N 009021005100 | WASHER |
| CLAMP TO ALTERNATOR | ||
| 232 | N 009021005102 | WASHER |
| CLAMP TO ALTERNATOR | ||
| 234 | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 235 | N 000933006024 | SCREW |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 235 | N 000933006220 | SCREW |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 236 | N 000127006206 | LOCK WASHER |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 236 | N 000127006203 | LOCK WASHER |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 237 | N 000934006000 | NUT |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 237 | N 000934006029 | NUT |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 240 | A 3515407327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3605403327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515407427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3605403427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515407227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3605403227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515407108 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515409027 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515409127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515409727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 240 | A 3515407507 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 242 | A 0015403128 | PRINTED CIRCUIT PLATE |
| 8-POLE | ||
| 242 | A 0015453128 | PLUG HOUSING |
| 8-POLE | ||
| 242 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 244 | A 0009970381 | GROMMET |
| 246 | A 0005450781 | KNOB |
| 247 | A 0025450628 | PLUG |
| 248 | A 0005400681 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 248 | A 3805400181 | PLUG SOCKET |
| 248 | A 0005400781 | PLUG SOCKET |
| 255 | A 3515407436 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO BRAKE VALVE | ||
| 257 | A 0009970381 | GROMMET |
| 259 | A 0005400681 | PLUG SOCKET |
| 260 | A 3419979190 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 260 | A 0019978390 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 260 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO FRAME | ||
| 262 | A 3529950040 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 262 | A 3219950040 | CLAMP |
| ELECTRIC CABLE TO FRAME | ||
| 264 | N 007985006192 | SCREW |
| ELECTRIC CABLE TO FRAME | ||
| 264 | N 007985006193 | SCREW |
| ELECTRIC CABLE TO FRAME | ||
| 265 | N 000127006206 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME | ||
| 265 | N 000127006203 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME | ||
| 266 | N 000934006000 | NUT |
| ELECTRIC CABLE TO FRAME | ||
| 266 | N 000934006029 | NUT |
| ELECTRIC CABLE TO FRAME | ||
| 268 | A 3529950040 | CLAMP |
| TANK CABLE BRANCH-OFF TO FRAME SIDE MEMBER | ||
| 268 | A 3219950040 | CLAMP |
| FUEL TANK | ||
| 270 | A 3359970081 | GROMMET |
| 272 | A 3129970481 | GROMMET |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 274 | A 3605403927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO SPRINGLOAD ACCUMULATOR BRAKE SWITCH | ||
| 276 | A 0005400681 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 276 | A 3805400181 | PLUG SOCKET |
| 278 | A 0025450628 | PLUG |
| 282 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 284 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 286 | N 007985004101 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 287 | N 000127004206 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| 289 | A 3525400007 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 289 | A 3515407307 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 289 | A 3515407307 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 291 | A 3525400107 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 291 | A 3515407407 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 291 | A 3515407407 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 293 | A 3519977181 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 295 | A 3529950040 | CLAMP |
| ELECTRIC CABLES THRU REAR CROSS MEMBER | ||
| 297 | A 3559970081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 299 | A 8339970281 | GROMMET |
| ELECTRIC CABLES THRU TAIL LAMP BRACKETS | ||
| 300 | A 0019978490 | LOOM TIE |
| 300 | A 3789977190 | LOOM TIE |
| 302 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 302 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 303 | N 007603014400 | SEAL RING |
| 305 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 305 | A 0005455909 | SWITCH |
| STOP LIGHT SWITCH | ||
| 305 | A 0005456009 | SWITCH |
| STOP LIGHT SWITCH | ||
| BOSCH | ||
| 305 | A 3645457409 | SWITCH |
| STOP LIGHT SWITCH | ||
| PREMA | ||
| 307 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 307 | A 0035423220 | HORN |
| BOSCH | ||
| 307 | A 0025426420 | HORN |
| HELLA | ||
| 307 | A 0415420420 | HORN |
| Repalced by: A 3415420020 | ||
| 307 | A 3415420020 | HORN |
| Repalced by: A 3415427120 | ||
| 307 | A 3415427120 | HORN |
| BARIFFI | ||
| 307 | A 3415427020 | HORN |
| Repalced by: A 3415427220 | ||
| 307 | A 3415427220 | HORN |
| KOVAL | ||
| 307 | A 3415420120 | HORN |
| 309 | N 000933010034 | SCREW |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 309 | N 000933010254 | SCREW |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 310 | N 000934010040 | NUT |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 310 | N 000934010000 | NUT |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 311 | N 000127010205 | LOCK WASHER |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 311 | N 000127010202 | LOCK WASHER |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 312 | N 000125010518 | WASHER |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 312 | N 000125010518 | WASHER |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 314 | A 3219950040 | CLAMP |
| HORN BRANCH-OFF TO RADIATOR | ||
| 316 | A 0005466141 | CABLE CONNECTOR |
| Repalced by: A 0005461741 | ||
| 316 | A 0005461741 | CABLE CONNECTOR |
| 318 | A 0005460781 | COVERING |
| WITH GASKET | ||
| TO 000 546 61 41 | ||
| 320 | N 007985004160 | SCREW |
| JUNCTION BOX | ||
| 320 | N 007985004500 | SCREW |
| JUNCTION BOX | ||
| 322 | N 000127004206 | LOCK WASHER |
| JUNCTION BOX | ||
| 322 | N 912004004102 | LOCK WASHER |
| JUNCTION BOX | ||
| 324 | N 009021004100 | WASHER |
| JUNCTION BOX | ||
| 324 | N 009021004108 | WASHER |
| JUNCTION BOX | ||
| 326 | A 3275425038 | SHIM |
| JUNCTION BOX | ||
| 328 | N 000934004006 | NUT |
| JUNCTION BOX | ||
| 328 | N 000934004014 | NUT |
| JUNCTION BOX | ||

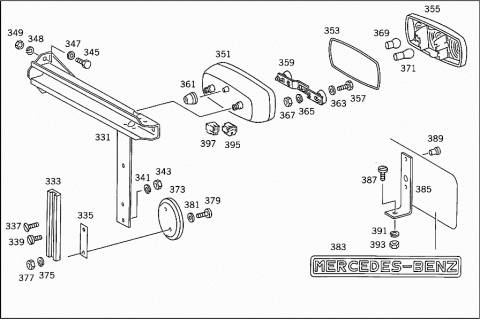

| 331 | A 3525405773 | BRACKET |
| Repalced by: A 3525405173 | ||
| 331 | A 3525405173 | BRACKET |
| LICENSE PLATE LAMP,LEFT | ||
| 331 | A 3455400673 | BRACKET |
| LICENSE PLATE LAMP,LEFT | ||
| 331 | A 3525405873 | BRACKET |
| Repalced by: A 3525405273 | ||
| 331 | A 3525405273 | BRACKET |
| LICENSE PLATE LAMP,RIGHT | ||
| 331 | A 3455400773 | BRACKET |
| LICENSE PLATE LAMP,RIGHT | ||
| 333 | A 3525440538 | BRACKET |
| 335 | A 3525440084 | SHIM |
| 337 | N 000963006012 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 339 | N 000084006114 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 341 | N 000127006206 | LOCK WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 343 | N 000934006007 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 345 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 345 | N 000933010044 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 345 | N 000933010260 | SCREW |
| BRACKET TO FRAME | ||
| M 10X32 | ||
| 347 | N 000125010518 | WASHER |
| BRACKET TO FRAME | ||
| 348 | N 000127010205 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 349 | N 000934010000 | NUT |
| BRACKET TO FRAME | ||
| 351 | A 0005447003 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 351 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 351 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 351 | A 3515447103 | TAIL LAMP |
| LEFT | ||
| MAGDALUX | ||
| 351 | A 0005447803 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 351 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 351 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 351 | A 0005447103 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 351 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 351 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 351 | A 3515447203 | TAIL LAMP |
| RIGHT | ||
| MAGDALUX | ||
| 351 | A 0005447703 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 351 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 351 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 353 | A 0005447580 | GASKET |
| 750 MM,MAGDALUX | ||
| A 0005447880 | GASKET | |
| Repalced by: A 0005448480 | ||
| A 0005448480 | GASKET | |
| 355 | A 3515447090 | LENS |
| WITH SCREWS | ||
| TO 351 544 71 03,72 03 | ||
| 355 | A 0015444590 | LENS |
| TO 001 544 45 03,46 03 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03,72 03 | ||
| 355 | A 0015444890 | LENS |
| Repalced by: A 0015445590 | ||
| 355 | A 0015445590 | LENS |
| WITH SCREWS | ||
| TO 001 544 40 03,41 03 | ||
| 357 | A 3515447070 | STUD |
| TO 351 544 71 03,72 03 | ||
| 357 | N 007985006238 | SCREW |
| TO 001 544 45 03,46 03 | ||
| 357 | N 000085004101 | SCREW |
| TO 000 544 77 03,78 03 | ||
| 359 | A 0005444293 | LAMP SOCKET |
| TO 000 544 70 03,000 544 71 03 | ||
| 359 | A 0005445193 | LAMP SOCKET |
| TO 001 544 45 03,001 544 46 03 | ||
| 359 | A 3515447038 | BRACKET |
| TO 351 544 71 03,351 544 72 03 | ||
| 359 | A 0005444393 | LAMP SOCKET |
| TO 000 544 77 03,78 03 | ||
| 359 | A 0005445293 | LAMP SOCKET |
| TO 001 544 40 03,001 544 41 03 | ||
| 361 | A 0019971581 | GROMMET |
| 261 | A 0009978081 | GROMMET |
| TO 000 544 77 03,78 03 | ||
| 363 | A 0005440376 | WASHER |
| Repalced by: A 0005440476 | ||
| 363 | A 0005440476 | WASHER |
| 363 | A 0019901940 | WASHER |
| 363 | A 0019904040 | WASHER |
| TAIL LAMP TO BRACKET | ||
| TO 000 544 77 03,78 03 | ||
| 363 | N 009021008204 | WASHER |
| TAIL LAMP TO BRACKET | ||
| TO 000 544 77 03,78 03 | ||
| 365 | N 000127008203 | LOCK WASHER |
| 365 | N 912004008104 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| TO 000 544 77 03,78 03 | ||
| 367 | N 000934008010 | NUT |
| 367 | N 000934008000 | NUT |
| TAIL LAMP TO BRACKET | ||
| TO 000 544 77 03,78 03 | ||
| 369 | N 072601012190 | BULB |
| STOP LIGHT | ||
| 12V 21W | ||
| 371 | N 072601012702 | BULB |
| 12 V 10 W | ||
| 371 | A 3515447094 | BULB |
| 373 | A 0005441605 | REFLECTOR |
| Repalced by: A 0005443305 | ||
| 373 | A 0005443305 | REFLECTOR |
| 375 | N 000127005206 | LOCK WASHER |
| TO 000 544 16 05 | ||
| 377 | N 000934005000 | NUT |
| TO 000 544 16 05 | ||
| 379 | N 007985005156 | SCREW |
| TO 000 544 33 05 | ||
| 381 | N 000125006421 | WASHER |
| 383 | A 3605840025 | NAME PLATE |
| 385 | A 3605840051 | SUPPORT |
| 387 | N 000084006112 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 389 | N 910006008028 | RIVET |
| LICENSE PLATE TO BRACKET | ||
| 391 | N 000127006206 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 393 | N 000934006007 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 395 | A 0005440560 | PLUG SOCKET HOUSING |
| Repalced by: A 3445447060 | ||
| 395 | A 3445447060 | PLUG SOCKET HOUSING |
| 397 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||

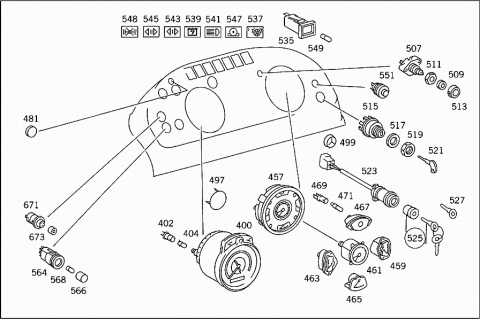

| 400 | A 0075421906 | SPEEDOMETER |
| 400 | A 3415420006 | SPEEDOMETER |
| 402 | A 0005450019 | SOCKET |
| 404 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 404 | A 3785440094 | BULB |

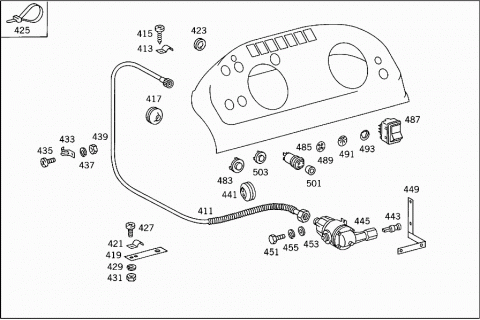

| 411 | A 0015427507 | FLEXIBLE SHAFT |
| Repalced by: A 3415420207 | ||
| 411 | A 3415420207 | FLEXIBLE SHAFT |
| 411 | A 3445427707 | FLEXIBLE SHAFT |
| 413 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT TO FRESH AIR DUCT | ||
| 415 | N 007981004279 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO FRESH AIR DUCT | ||
| 415 | N 007981004233 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO FRESH AIR DUCT | ||
| 417 | A 3529970881 | GROMMET |
| Repalced by: A 3529970681 | ||
| 417 | A 3219970081 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 419 | A 3124292440 | BRACKET |
| FLEXIBLE SHAFT | ||
| 421 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT TO BRACKET | ||
| 423 | A 0009870244 | EXPANSION PLUG |
| TO PLUG THE HOLE IN FIRE WALL | ||
| 425 | A 3419979190 | LOOM TIE |
| ELEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 425 | A 0019979390 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 425 | A 0019978390 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 425 | A 0019978490 | LOOM TIE |
| ELEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 427 | N 007985005170 | SCREW |
| FLEXIBLE SHAFT TO BRACKET | ||
| 427 | N 007985005181 | SCREW |
| FLEXIBLE SHAFT TO BRACKET | ||
| 429 | N 912004005101 | LOCK WASHER |
| FLEXIBLE SHAFT TO BRACKET | ||
| 429 | N 912004005100 | LOCK WASHER |
| FLEXIBLE SHAFT TO BRACKET | ||
| 431 | N 000934005000 | NUT |
| FLEXIBLE SHAFT TO BRACKET | ||
| 431 | N 000934005021 | NUT |
| FLEXIBLE SHAFT TO BRACKET | ||
| 433 | A 3129952420 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 433 | A 3129952020 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 435 | N 007985005170 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 435 | N 007985005181 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 437 | N 912004005101 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 437 | N 912004005100 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 439 | N 000934005000 | NUT |
| CABLE HARNESS MOUNTING | ||
| 439 | N 000934005021 | NUT |
| CABLE HARNESS MOUNTING | ||
| 441 | A 3229971681 | GROMMET |
| FLEXIBLE SHAFT AND WINDSHIELD WASHER HOSE THRU TOEBOARD | ||
| 443 | A 0005420447 | COUPLER |
| 445 | A 0015424330 | REDUCTION GEARING |
| 445 | A 0025423630 | REDUCTION GEARING |
| 445 | A 0025428230 | REDUCTION GEARING |
| 445 | A 0015425630 | REDUCTION GEARING |
| A 0005422930 | ANGLE DRIVE | |
| 449 | A 3515407373 | BRACKET |
| REDUCTION GEARING | ||
| 449 | A 3515407673 | BRACKET |
| REDUCTION GEARING | ||
| 451 | N 000933005066 | SCREW |
| BRACKET TO REDUCTION GEARING | ||
| 451 | N 000933005035 | SCREW |
| BRACKET TO REDUCTION GEARING | ||
| 453 | N 000125005317 | WASHER |
| BRACKET TO REDUCTION GEARING | ||
| 453 | N 000125005317 | WASHER |
| BRACKET TO REDUCTION GEARING | ||
| 455 | N 912004005102 | LOCK WASHER |
| BRACKET TO REDUCTION GEARING | ||
| 455 | N 912004005102 | LOCK WASHER |
| BRACKET TO REDUCTION GEARING | ||
| N 000934005004 | NUT | |
| BRACKET TO REDUCTION GEARING | ||
| 457 | A 0025404447 | INSTRUMENT CLUSTER |
| 459 | A 0035421005 | TEMPERATURE GAUGE |
| 461 | A 0005429108 | AIR PRESSURE GAUGE |
| 463 | A 0015424102 | OIL PRESSURE GAUGE |
| 465 | A 0005428503 | FUEL GAUGE DASH UNIT |
| 467 | A 0005420332 | TELL-TALE LAMP |
| 469 | A 0005450019 | SOCKET |
| 469 | A 0005450119 | SOCKET |
| 471 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 471 | A 3785440094 | BULB |
| 475 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 475 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 476 | N 007603014400 | SEAL RING |
| 478 | A 0025457824 | SWITCH,AUTOMATIC |
| Repalced by: A 0045455524 | ||
| 478 | A 0045455524 | SWITCH,AUTOMATIC |
| 478 | A 0025456324 | SWITCH,AUTOMATIC |
| 478 | A 3455457824 | SWITCH,AUTOMATIC |
| 478 | A 3455458224 | SWITCH,AUTOMATIC |
| 479 | N 007603014402 | SEAL RING |
| 481 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 481 | A 3089970035 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 483 | A 0009970425 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 483 | A 0009970525 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 485 | A 0005459111 | SWITCH |
| PANE WIPER | ||
| 485 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 487 | A 3415457011 | SWITCH |
| Repalced by: A 3415457211 | ||
| 487 | A 3415457211 | SWITCH |
| PANE WIPER | ||
| 487 | A 3415457311 | SWITCH |
| BLOWER | ||
| 487 | A 3415457311 | SWITCH |
| BLOWER | ||
| 487 | A 3415457411 | SWITCH |
| 487 | A 3415457411 | SWITCH |
| CAB LIGHTING | ||
| 487 | A 3415457711 | SWITCH |
| WIPE/WASH SYSTEM | ||
| A 3415457811 | SWITCH | |
| WIPE/WASH SYSTEM | ||
| A 3415409336 | ELECTRIC CABLE | |
| WIPE/WASH SYSTEM | ||
| A 0005453726 | PIN BUSHING | |
| A 0005453545 | BOOT | |
| 487 | A 3415457611 | SWITCH |
| MAIN LIGHT | ||
| 489 | A 0005451783 | CAP |
| Repalced by: A 3445451183 | ||
| 489 | A 3445451183 | CAP |
| BLOWER | ||
| 491 | A 0005451883 | CAP |
| Repalced by: A 3445451283 | ||
| 491 | A 3445451283 | CAP |
| CAB LIGHTING | ||
| 493 | A 0005451483 | CAP |
| Repalced by: A 3445450883 | ||
| 493 | A 3445450883 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 497 | A 3226890030 | CAP |
| TO PLUG THE FREE HOLE FOR STARTER PILOT PUMP | ||
| 499 | H 513126890208 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 501 | N 040621030204 | INSULATING HOSE |
| 503 | A 0009970425 | EXPANSION PLUG |
| TO PLUG PRESSURE SWITCH CONNECTION | ||
| 505 | A 3515407027 | ELECTRIC CABLE |
| 505 | A 3515407027 | ELECTRIC CABLE |
| 507 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 507 | A 0005422125 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 507 | A 6155420125 | POTENTIOMETER |
| INTERIOR LIGHTING | ||
| 507 | A 3415427025 | POTENTIOMETER |
| INTERIOR LIGHTING | ||
| "SCRAM" | ||
| 509 | A 0005450372 | NUT |
| POTENTIOMETER | ||
| TO 000 542 14 25,000 542 21 25 | ||
| 511 | A 0029906251 | NUT |
| POTENTIOMETER | ||
| TO 615 542 01 25,341 542 70 25 | ||
| 513 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 513 | A 0005421889 | KNOB |
| INTERIOR LIGHTING | ||
| 515 | A 0005453013 | SWITCH |
| 515 | A 0005453013 | SWITCH |
| 517 | A 0005450176 | WASHER |
| Repalced by: A 0005450376 | ||
| 517 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 517 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 519 | A 0005450672 | NUT |
| Repalced by: A 0005451072 | ||
| 519 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 519 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 521 | A 0005451235 | KEY |
| 521 | A 0005451235 | KEY |
| 523 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| "KOSTAL" | ||
| 523 | A 3455457313 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| "INSTRON" | ||
| 525 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| 527 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| A 3419877241 | RUBBER RING | |
| IGNITION/STARTING SWITCH | ||
| 529 | A 3415457005 | RELAY |
| 531 | A 3445427119 | RELAY |
| Repalced by: A 3455427019 | ||
| 531 | A 3455427019 | RELAY |
| 531 | A 3925457105 | RELAY |
| 533 | N 007981004233 | SHEET METAL SCREW |
| 535 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 535 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 537 | A 0005450890 | LENS |
| SUPPLY PRESSURE | ||
| 539 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 541 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 543 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 545 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 547 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 548 | A 0005450390 | LENS |
| DIFFERENTIAL LOCK | ||
| 549 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 549 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 549 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 551 | A 0005456314 | SWITCH |
| Repalced by: A 3215450114 | ||
| 551 | A 3215450114 | SWITCH |
| STARTING MOTOR | ||
| 551 | A 3785457014 | SWITCH |
| STARTING MOTOR | ||
| 551 | A 3415457014 | SWITCH |
| STARTING MOTOR | ||
| 551 | A 0015450214 | SWITCH |
| STARTING MOTOR | ||
| 551 | A 0005453914 | SWITCH |
| STARTING MOTOR | ||
| 551 | A 3455457314 | SWITCH |
| STARTING MOTOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| A 001 545 49 14 | ||

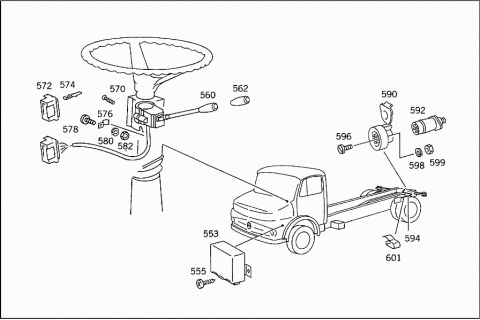

| 553 | A 0025440732 | SENDER UNIT |
| Repalced by: A 0025447732 | ||
| 553 | A 0025447732 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 553 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 553 | A 3515447032 | SENDER UNIT |
| Repalced by: A 0015448032 | ||
| 553 | A 0015448032 | SENDER UNIT |
| Repalced by: A 0015447932 | ||
| 553 | A 0015447932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 555 | N 007981004279 | SHEET METAL SCREW |
| HAZARD WARNING LIGHT | ||
| 555 | N 007981004233 | SHEET METAL SCREW |
| HAZARD WARNING LIGHT | ||
| 560 | A 0035458124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 562 | A 0005452637 | BUTTON |
| 564 | A 0025457124 | SWITCH,AUTOMATIC |
| Repalced by: A 0045450224 | ||
| 564 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT SWITCH | ||
| 566 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT; RED | ||
| 568 | N 072601012110 | BULB |
| TO 002 545 71 24 | ||
| 568 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 568 | A 3785440094 | BULB |
| TO 004 545 02 24 | ||
| 570 | N 007988005215 | SCREW |
| 572 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 574 | A 0015458628 | PLUG |
| 576 | A 3129952020 | CLAMP |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 578 | N 007985005168 | SCREW |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 578 | N 007985005181 | SCREW |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 580 | N 912004005101 | LOCK WASHER |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 580 | N 912004005100 | LOCK WASHER |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 582 | N 000934005000 | NUT |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 582 | N 000934005021 | NUT |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 590 | A 0015455826 | PLUG SOCKET |
| 590 | A 3415457126 | PLUG SOCKET |
| 7-POLE | ||
| 590 | A 0005454726 | PLUG SOCKET |
| A 0025450726 | PLUG SOCKET | |
| 7-POLE | ||
| 592 | A 3415457128 | PLUG |
| 7-POLE | ||
| TO 341 545 71 26 | ||
| 592 | N 072577007200 | PLUG |
| 7-POLE | ||
| TO 000 545 47 26,002 545 07 26 | ||
| 596 | N 000084005172 | SCREW |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 598 | N 912004005101 | LOCK WASHER |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 599 | N 000934005000 | NUT |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 601 | A 3219950040 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TWO-SPEED REAR AXLE CONTROL | ||
| 605 | A 0005457511 | SWITCH |
| Repalced by: A 0015452411 | ||
| 605 | A 0015452411 | SWITCH |
| (PUSH-PULL SWITCH) | ||
| 605 | A 3415457511 | SWITCH |
| (PUSH-PULL SWITCH) | ||
| 607 | A 0005450272 | NUT |
| Repalced by: A 0005451472 | ||
| 607 | A 0005451472 | NUT |
| PUSH-PULL SWITCH TO TRANSMISSION SHIFT LEVER BRACKET | ||
| 609 | A 0005451837 | BUTTON |
| Repalced by: A 0005453837 | ||
| 609 | A 0005453837 | BUTTON |
| PUSH-PULL SWITCH | ||
| 611 | A 0005451245 | BOOT |
| Repalced by: A 0005450730 | ||
| 611 | A 0005450730 | SHELL |
| PUSH-PULL SWITCH TO TRANSMISSION SHIFT LEVER BRACKET | ||
| 613 | A 0005451345 | BOOT |
| Repalced by: A 0005450830 | ||
| 613 | A 0005450830 | SHELL |
| PUSH-PULL SWITCH TO TRANSMISSION SHIFT LEVER BRACKET | ||
| 615 | N 007985004163 | SCREW |
| CASE TO SHIFT LEVER BRACKET | ||
| 617 | A 3415407673 | BRACKET |
| 619 | N 007985004125 | SCREW |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| 621 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO CABLE CONNECTOR | ||
| 623 | N 000084004422 | SCREW |
| FRONT CABLE CONNECTOR | ||
| 625 | N 912004004102 | LOCK WASHER |
| FRONT CABLE CONNECTOR | ||
| 627 | A 0009902891 | NUT RETAINER |
| FRONT CABLE CONNECTOR | ||
| 629 | A 0005461741 | CABLE CONNECTOR |
| 6-POLE;FRONT CABLE CONNECTOR | ||
| 631 | A 3515407737 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO 3-WAY VALVE, REDUCTION GEARING,REAR AXLE SWITCH | ||
| 631 | A 3515407837 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO 3-WAY VALVE, REDUCTION GEARING,REAR AXLE SWITCH | ||
| 631 | A 3605402837 | ELECTRIC CABLE |
| Repalced by: A 3515407637 | ||
| 631 | A 3515407637 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO 3-WAY VALVE, REDUCTION GEARING,REAR AXLE SWITCH | ||
| 633 | A 0005400681 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 633 | A 3805400181 | PLUG SOCKET |
| 635 | A 0009970381 | GROMMET |
| 637 | A 0015458728 | PIN BUSHING HOUSING |
| 639 | A 0015458628 | PLUG |
| 641 | A 0005453826 | PIN BUSHING |
| 641 | A 0005454026 | PIN BUSHING |
| 643 | A 3525401137 | ELECTRIC CABLE |
| FROM BIPOLAR PLUG CONNECTION TO TWOSPEED REAR AXLE CONTROL SWITCH | ||
| 643 | A 3515407237 | ELECTRIC CABLE |
| FROM BIPOLAR PLUG CONNECTION TO TWOSPEED REAR AXLE CONTROL SWITCH | ||
| 645 | A 3515467053 | SPACER TUBE |
| 647 | A 0015457028 | PLUG HOUSING |
| 649 | A 0025450628 | PLUG |
| 651 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 651 | A 0005453726 | PIN BUSHING |
| 653 | A 0005453545 | BOOT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DIFFERENTIAL LOCK CONTROL | ||
| 657 | A 3515408108 | CABLE HARNESS |
| FROM FUSE BOX TO PLUG CONNECTION | ||
| 659 | A 3515407708 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO THREEWAY SOLENOID VALVE | ||
| 671 | A 0005459111 | SWITCH |
| (PUSH BUTTON SWITCH) | ||
| 673 | A 3445450483 | CAP |
| DIFFERENTIAL LOCK SWITCH | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
