Transporto priemonė: LS 1518; VIN numerio dalis: 351335

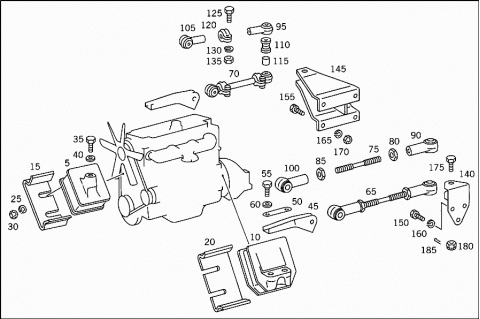

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 005 | A 3452400317 | RUBBER MOUNTING |
| FRONT | ||
| 010 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 010 | A 3452400018 | RUBBER MOUNTING |
| REAR | ||
| 015 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 020 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 025 | N 000127012203 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 030 | N 000934012004 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 035 | N 000960016030 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 040 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 045 | A 3522420707 | BEARING BRACKET |
| Repalced by: A 3442410035 | ||
| 045 | A 3442410035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 050 | A 3529940032 | LOCK |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 055 | N 000961014019 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 055 | N 000961014063 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 055 | N 000961014101 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 060 | A 3609901840 | WASHER |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 065 | A 3522400225 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 070 | A 3452407125 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 075 | A 3522420237 | ROD |
| TO 352 240 02 25 | ||
| 080 | N 000934016007 | NUT |
| TO 352 240 02 25 | ||
| 085 | N 000934016014 | NUT |
| TO 352 240 02 25 | ||
| 090 | A 0009961540 | ROD END |
| TO 352 240 02 25 | ||
| 095 | A 3459967140 | ROD END |
| TO 345 240 71 25 | ||
| 100 | A 0009961740 | ROD END |
| TO 352 240 02 25 | ||
| 105 | A 3459967040 | ROD END |
| TO 345 240 71 25 | ||
| 110 | A 3452427013 | RUBBER MOUNTING |
| TO 345 240 71 25 | ||
| 115 | A 3452527050 | BUSHING |
| TO 345 240 71 25 | ||
| 120 | A 3459957044 | CLAMP |
| TO 345 240 71 25 | ||
| 125 | N 000960008002 | SCREW |
| TO 345 240 71 25 | ||
| 130 | N 000127008203 | LOCK WASHER |
| TO 345 240 71 25 | ||
| 135 | N 000934008020 | NUT |
| TO 345 240 71 25 | ||
| 140 | A 3452400035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 145 | A 3762400035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 150 | N 000933012008 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 155 | N 000933010267 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 160 | N 000127012203 | LOCK WASHER |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 165 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 170 | N 000934010005 | NUT |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 175 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 180 | N 000979016006 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| 185 | N 000094004055 | COTTER PIN |
| PULL ROD TO BEARING BRACKET | ||
