Transporto priemonė: LS 1518; VIN numerio dalis: 351335

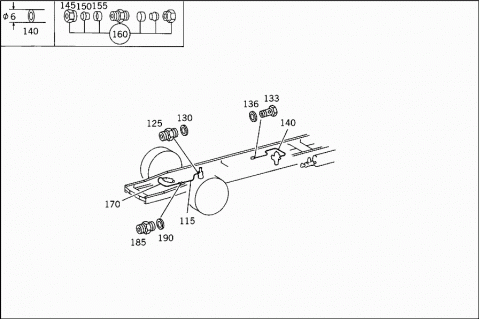

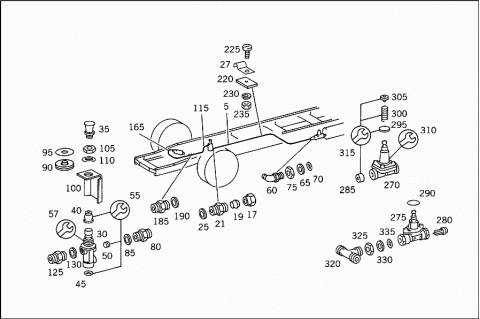

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3534204526 | LINE |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| 005 | A 3514207026 | LINE |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| 005 | A 3514207126 | LINE |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| 017 | N 915017006100 | UNION NUT |
| 017 | N 915017006100 | UNION NUT |
| 019 | N 003861006007 | GLAND |
| 019 | N 003861006007 | GLAND |
| 021 | A 3454298136 | CONNECTOR |
| 021 | A 3454298136 | CONNECTOR |
| 025 | N 007603012111 | SEAL RING |
| 027 | A 3129951320 | CLAMP |
| 030 | A 0004340801 | VALVE |
| Repalced by: A 0004342401 | ||
| 030 | A 0004342401 | VALVE |
| WABCO | ||
| 030 | A 3454347101 | VALVE |
| "WABCO DO BRASIL" | ||
| 035 | A 0009972077 | HANDLE |
| TO 000 434 24 01 | ||
| 040 | A 0004340586 | CUP |
| 040 | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 08 01,345 434 71 01 | ||
| 045 | A 0079972548 | SEAL RING |
| TO 000 434 24 01 | ||
| 050 | A 0003280191 | CLEANER |
| TO 000 434 24 01 | ||
| H 983455860943 | REPAIR KIT | |
| Repalced by: A 0034301281 | ||
| 055 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 434 71 01 | ||
| 055 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 08 01, 345 434 71 01 | ||
| 057 | A 0025869843 | REPAIR KIT |
| TO 000 434 24 01 | ||
| 060 | A 0004292738 | ELBOW FITTING |
| AT OPERATING VALVE | ||
| 060 | A 3454297438 | ELBOW FITTING |
| AT OPERATING VALVE | ||
| 065 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 065 | A 0009940103 | THRUST RING |
| AT OPERATING VALVE | ||
| 070 | A 0019875046 | SEALING CORD |
| AT OPERATING VALVE | ||
| 075 | N 080705012003 | NUT |
| AT OPERATING VALVE | ||
| 080 | A 3454298136 | CONNECTOR |
| (3/2-WAY SOLENOID VALVE) | ||
| 085 | N 007603012111 | SEAL RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 090 | A 3529970681 | GROMMET |
| AT FLOOR | ||
| 095 | A 3226880024 | WASHER |
| AT FLOOR | ||
| 100 | A 3604340044 | PROTECTIVE PLATE |
| OPERATING VALVE TO SIDE MEMBER SHELL | ||
| 105 | N 080705026000 | NUT |
| OPERATING VALVE TO SIDE MEMBER SHELL | ||
| 110 | N 000137026200 | SPRING WASHER |
| OPERATING VALVE TO SIDE MEMBER SHELL | ||
| 110 | N 000137027202 | SPRING WASHER |
| OPERATING VALVE TO SIDE MEMBER SHELL | ||
| 115 | A 3604204037 | LINE |
| FROM OPERATING VALVE TO T-FITTING | ||
| 115 | A 3514207849 | LINE |
| FROM OPERATING VALVE TO T-FITTING | ||
| 115 | A 3514207226 | LINE |
| 125 | A 3454298136 | CONNECTOR |
| 130 | N 007603012111 | SEAL RING |
| 133 | N 915036006101 | HOLLOW SCREW |
| (3/2-WAY SOLENOID VALVE) | ||
| 136 | N 007603010103 | SEAL RING |
| (3/2-WAY SOLENOID VALVE) | ||
| 140 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO SINGLE CIRCUIT PISTON CYLINDER | ||
| 145 | N 915017006100 | UNION NUT |
| 150 | N 003861006007 | GLAND |
| 155 | N 915062004000 | SLEEVE |
| 160 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 165 | A 3604205037 | LINE |
| FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE | ||
| 165 | A 3514207749 | LINE |
| FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| 170 | A 3215420035 | HOSE |
| 185 | A 3454298136 | CONNECTOR |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| A 3454297438 | ELBOW FITTING | |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 190 | N 007603012111 | SEAL RING |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| A 0019875046 | SEALING CORD | |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| A 0004290827 | THRUST RING | |
| Repalced by: A 0009940103 | ||
| A 0009940103 | THRUST RING | |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| N 080705012000 | NUT | |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| A 3129950332 | CLAMP | |
| 220 | A 3125421039 | PLATE |
| 225 | N 000084005106 | SCREW |
| 230 | N 912004005001 | LOCK WASHER |
| 235 | N 000934005000 | NUT |
| 270 | A 0014299844 | VALVE |
| BOSCH | ||
| 270 | A 0014295244 | VALVE |
| WESTINGHOUSE | ||
| 270 | A 0004296344 | VALVE |
| WESTINGHOUSE | ||
| 275 | A 0014297944 | VALVE |
| GRAU | ||
| 280 | A 0024298844 | VALVE |
| TO 001 429 79 44 | ||
| 285 | A 0004290088 | VALVE SEAT RING |
| TO 000 429 63 44 | ||
| A 0004290645 | DIAPHRAGM | |
| Repalced by: A 0004290745 | ||
| 290 | A 0004290745 | DIAPHRAGM |
| TO 001 429 79 44 | ||
| 295 | A 0004310328 | DIAPHRAGM |
| TO 000 429 63 44 | ||
| 300 | A 0019932301 | SPRING |
| TO 000 429 63 44 | ||
| 305 | A 0004290389 | SPRING RETAINER |
| TO 000 429 63 44 | ||
| 310 | A 0015862642 | REPAIR KIT |
| TO 001 429 98 44 | ||
| 310 | A 0015862042 | REPAIR KIT |
| TO 001 429 52 44 | ||
| 315 | A 0005863642 | REPAIR KIT |
| TO 000 429 63 44 | ||
| 320 | A 3609900070 | T-FITTING |
| OVERFLOW VALVE & T-FITTING TO SPRINGLOAD ACCUMULATOR AIR RESERVOIR | ||
| 320 | A 3414297232 | T-FITTING |
| OVERFLOW VALVE & T-FITTING TO SPRINGLOAD ACCUMULATOR AIR RESERVOIR | ||
| 325 | N 074305022202 | NUT |
| OVERFLOW VALVE & T-FITTING TO SPRINGLOAD ACCUMULATOR AIR RESERVOIR | ||
| 330 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 330 | A 0009940203 | THRUST RING |
| OVERFLOW VALVE & T-FITTING TO SPRINGLOAD ACCUMULATOR AIR RESERVOIR | ||
| 335 | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE & T-FITTING TO SPRINGLOAD ACCUMULATOR AIR RESERVOIR | ||
