Transporto priemonė: LS 1518; VIN numerio dalis: 351335

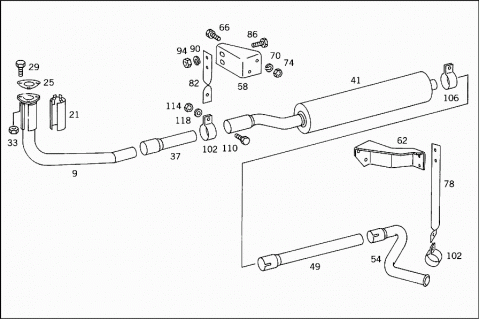

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 3514907019 | EXHAUST PIPE |
| FRONT | ||
| 009 | A 3514900119 | EXHAUST PIPE |
| FRONT | ||
| 013 | A 3434900519 | EXHAUST PIPE |
| FRONT | ||
| 021 | A 3834900330 | PROTECTIVE PLATE |
| 021 | A 3514900030 | PROTECTIVE PLATE |
| 025 | A 3024900080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | A 3414927080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 000931010102 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 000931012041 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 033 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 033 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 037 | A 3414920207 | CONNECTOR |
| FRONT | ||
| 037 | A 3414928507 | CONNECTOR |
| FRONT | ||
| 041 | A 3414907115 | EXHAUST MUFFLER WITH PIPE |
| FRONT AND REAR | ||
| 041 | A 3414900015 | EXHAUST MUFFLER WITH PIPE |
| FRONT AND REAR | ||
| A 3414908015 | EXHAUST MUFFLER WITH PIPE | |
| Repalced by: A 3414909515 | ||
| 045 | A 3414909515 | EXHAUST MUFFLER WITH PIPE |
| FRONT AND REAR | ||
| 049 | A 3414920307 | CONNECTOR |
| REAR | ||
| 049 | A 3414920407 | CONNECTOR |
| REAR | ||
| 049 | A 3414920507 | CONNECTOR |
| REAR | ||
| 054 | A 3414920204 | REAR EXHAUST PIPE |
| 054 | A 3414920104 | REAR EXHAUST PIPE |
| A 3604910016 | SUPPORT | |
| Repalced by: A 3454920016 | ||
| 058 | A 3454920016 | SUPPORT |
| EXHAUST PIPE | ||
| 058 | A 3454920016 | SUPPORT |
| EXHAUST PIPE | ||
| A 3604910316 | SUPPORT | |
| Repalced by: A 3454920116 | ||
| 062 | A 3454920116 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 066 | N 000933008153 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 070 | N 912004008104 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 074 | N 000934008000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 078 | A 3604922119 | BRACKET |
| 082 | A 3224921819 | BRACKET |
| EXHAUST PIPE | ||
| 082 | A 3224921819 | BRACKET |
| EXHAUST PIPE | ||
| 086 | N 000933008025 | SCREW |
| BRACKET TO SUPPORT | ||
| 090 | N 912004008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 094 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 098 | N 071555065502 | CLAMP |
| 65,5MM | ||
| 098 | N 071555065502 | CLAMP |
| 65,5MM | ||
| 102 | N 071555063500 | CLAMP |
| 63.5 MM | ||
| A 3414927440 | CLAMP | |
| 62.5 MM | ||
| 102 | N 071555060502 | CLAMP |
| 60.5 MM | ||
| 106 | N 071555078500 | CLAMP |
| 78.5 MM | ||
| 106 | N 071555075503 | CLAMP |
| 75.5 MM | ||
| 106 | A 3414927140 | CLAMP |
| 76.7 MM | ||
| 106 | A 3414927140 | CLAMP |
| 76.7 MM | ||
| 106 | A 3414927240 | CLAMP |
| 80.5 MM | ||
| 106 | A 3414927240 | CLAMP |
| 80.5 MM | ||
| 110 | N 000933008153 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 114 | N 000934008000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 118 | N 009021008100 | WASHER |
| 166 | A 3514927030 | PROTECTIVE PLATE |
| Repalced by: A 3514927330 | ||
| 166 | A 3514927330 | PROTECTIVE PLATE |
| AT LEFT SIDE MEMBER | ||
| 170 | N 000933010129 | SCREW |
| AT LEFT SIDE MEMBER | ||
| 174 | N 000934010040 | NUT |
| AT LEFT SIDE MEMBER | ||
| 178 | N 000127010202 | LOCK WASHER |
| AT LEFT SIDE MEMBER | ||
| A 3419900440 | WASHER | |
| AT LEFT SIDE MEMBER | ||
