Transporto priemonė: LS 1518; VIN numerio dalis: 351335
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

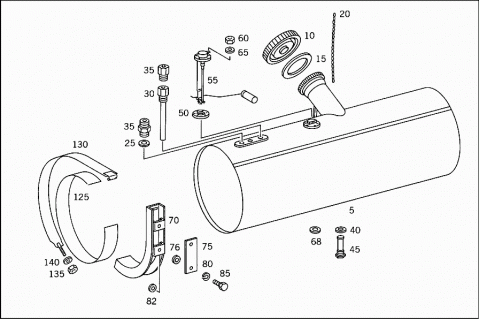

| 005 | A 3414700001 | FUEL TANK |
| Repalced by: A 3414707401 | ||
| 005 | A 3414707401 | FUEL TANK |
| Repalced by: A 3414707501 | ||
| 005 | A 3374700201 | FUEL TANK |
| Repalced by: A 3414707501 | ||
| 005 | A 3414707501 | FUEL TANK |
| 140 L | ||
| 010 | A 3124701205 | FILLER CAP |
| 010 | A 3444700205 | FILLER CAP |
| 015 | A 3444710679 | SEAL RING |
| TO 344 470 02 05 | ||
| 015 | A 1369970640 | SEAL RING |
| TO 312 470 12 05 | ||
| 020 | A 3034700031 | CHAIN |
| 025 | N 007603016300 | SEAL RING |
| FUEL LINE TO TANK | ||
| 030 | A 3374700126 | RISING PIPE |
| FUEL LINE TO TANK | ||
| 030 | A 3414707126 | RISING PIPE |
| FUEL LINE TO TANK | ||
| 035 | A 3214710220 | FITTING |
| FUEL LINE TO TANK | ||
| 037 | A 3414717120 | FITTING |
| FUEL LINE TO TANK | ||
| 040 | N 007603035300 | SEAL RING |
| FUEL LINE TO TANK | ||
| 045 | A 3214700006 | FUEL STRAINER |
| AT TANK | ||
| 045 | A 3414707106 | FUEL STRAINER |
| AT TANK | ||
| 050 | A 4044710080 | GASKET |
| Repalced by: A 3524710080 | ||
| 050 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 055 | A 0005426317 | SENDER UNIT |
| ELECTRIC | ||
| 060 | N 000934005000 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 060 | N 000934005000 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 065 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 0009977245 | SEAL RING | |
| FUEL DISCHARGE | ||
| 068 | A 0029977245 | SEAL RING |
| FUEL DISCHARGE | ||
| 070 | A 3514700042 | SUPPORT |
| FUEL TANK | ||
| 070 | A 3414707042 | SUPPORT |
| 075 | A 3214750084 | SHIM |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 075 | A 3514757084 | SHIM |
| CONSOLE | ||
| 076 | A 3224750184 | SHIM |
| Repalced by: A 3514757219 | ||
| 076 | A 3514757219 | BASE |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 080 | N 000127014201 | LOCK WASHER |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 080 | N 000127012203 | LOCK WASHER |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 082 | A 3529900640 | WASHER |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 082 | A 3529900640 | WASHER |
| FUEL TANK CONSOLE | ||
| 082 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| A 3379900440 | WASHER | |
| FUEL TANK CONSOLE | ||
| 085 | N 000961014097 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X35 | ||
| 085 | N 000961012027 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 12X35 | ||
| 085 | N 000961012097 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 12X35 | ||
| 085 | N 000961012029 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 085 | N 000961012122 | SCREW |
| FUEL TANK CONSOLE | ||
| 085 | N 000961014098 | SCREW |
| FUEL TANK CONSOLE | ||
| 095 | A 3514297240 | BRACKET |
| RIGHT SIDE MEMBER | ||
| 095 | A 3124292440 | BRACKET |
| RIGHT SIDE MEMBER | ||
| 100 | N 000961010040 | SCREW |
| RIGHT SIDE MEMBER | ||
| 100 | N 000961010039 | SCREW |
| SIDE MEMBERS TO NO.3 CROSS MEMBER | ||
| 105 | N 000127010202 | LOCK WASHER |
| RIGHT SIDE MEMBER | ||
| 105 | N 000127010202 | LOCK WASHER |
| SIDE MEMBERS TO NO.3 CROSS MEMBER | ||
| 110 | N 000934010035 | NUT |
| RIGHT SIDE MEMBER | ||
| 110 | N 000934010035 | NUT |
| SIDE MEMBERS TO NO.3 CROSS MEMBER | ||
| 120 | A 6209970181 | GROMMET |
| 42/36 MM | ||
| 125 | A 3379870014 | RUBBER STRIP |
| FUEL TANK TO CONSOLE | ||
| A 3224700340 | STRAP | |
| Repalced by: A 3414707240 | ||
| 130 | A 3414707240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 135 | N 000934012004 | NUT |
| FUEL TANK TO CONSOLE | ||
| 135 | N 000934012039 | NUT |
| FUEL TANK TO CONSOLE | ||
| 140 | N 000125013008 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 140 | N 000125013008 | WASHER |
| FUEL TANK TO CONSOLE | ||

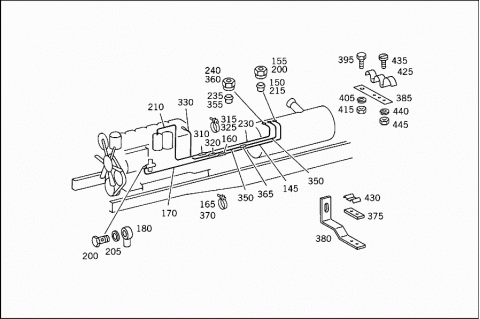

| 145 | A 3514700064 | LINE |
| FROM TANK TO HOSE | ||
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| 150 | A 0009909167 | SEAL CONE |
| 155 | N 915017010200 | UNION NUT |
| 160 | A 3124760026 | HOSE |
| FUEL LINE TO FUEL LINE | ||
| 165 | N 916002016100 | CLAMP |
| FUEL LINE TO FUEL LINE | ||
| 170 | A 3514700164 | LINE |
| FROM HOSE TO FEED PUMP | ||
| 175 | A 0089975482 | HOSE |
| FROM FUEL TANK TO FUEL PUMP | ||
| 175 | A 0089975482 | HOSE |
| FROM FUEL FILTER TO FUEL TANK | ||
| 180 | N 915010008202 | BANJO UNION |
| 185 | N 915052008000 | BANJO UNION |
| 185 | N 915052008000 | BANJO UNION |
| 190 | A 0019974972 | FITTING |
| 195 | N 915017010200 | UNION NUT |
| 200 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 205 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 210 | A 3514700264 | LINE |
| FROM FILTER TO HOSE | ||
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| 215 | A 0009909167 | SEAL CONE |
| 220 | N 915017010200 | UNION NUT |
| 230 | A 3514700364 | LINE |
| FROM RUBBER HOSE TO TANK | ||
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| 235 | A 0009909167 | SEAL CONE |
| 240 | N 915017010200 | UNION NUT |

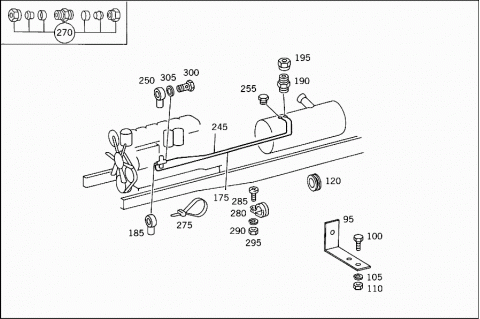

| 245 | A 0089976082 | HOSE |
| RETURN LINE TO FUEL TANK | ||
| 250 | N 915052004004 | BANJO UNION |
| 255 | N 007604014106 | SCREW PLUG |
| 270 | A 0039974172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 275 | A 0029972290 | LOOM TIE |
| RETURN LINE TO FUEL TANK | ||
| 275 | A 0029972290 | LOOM TIE |
| FUEL LINE TO ENGINE | ||
| A 0019978590 | LOOM TIE | |
| Repalced by: A 0019978490 | ||
| 275 | A 0019978490 | LOOM TIE |
| FUEL LINE TO SIDE MEMBER | ||
| 280 | N 916016006201 | CLAMP |
| FUEL LINE TO FUEL LINE | ||
| 285 | N 000084006422 | SCREW |
| FUEL LINE TO FUEL LINE | ||
| 290 | N 000127006203 | LOCK WASHER |
| FUEL LINE TO FUEL LINE | ||
| 295 | N 000934006029 | NUT |
| FUEL LINE TO FUEL LINE | ||
| 300 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 305 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 310 | A 3124760026 | HOSE |
| FUEL LINE TO FUEL LINE | ||
| 315 | N 916002016100 | CLAMP |
| FUEL LINE TO FUEL LINE | ||
| 320 | A 3125421083 | HOSE |
| LEAK LINE TO CYLINDER HEAD | ||
| 325 | N 916002010100 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 325 | N 916002010100 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 330 | A 3524702564 | LINE |
| FROM CYLINDER HEAD TO HOSE | ||
| 350 | A 3514700464 | LINE |
| FROM HOSE TO TANK | ||
| N 915003008201 | SEAL CONE | |
| Repalced by: A 0009909167 | ||
| 355 | A 0009909167 | SEAL CONE |
| 360 | N 915017010200 | UNION NUT |
| 365 | A 3124760026 | HOSE |
| FUEL LINE TO FUEL LINE | ||
| 370 | N 916002016100 | CLAMP |
| FUEL LINE TO FUEL LINE | ||
| 375 | A 3124761236 | BRACKET |
| FUEL LINES | ||
| A 3124761036 | BRACKET | |
| Repalced by: A 3124761236 | ||
| 380 | A 3514767036 | BRACKET |
| FUEL LINES | ||
| 385 | A 3125420038 | SHIM |
| Repalced by: A 3184924841 | ||
| 385 | A 3184924841 | BRACKET |
| CLAMP | ||
| 395 | N 000933010034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 405 | N 000127010205 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 415 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 425 | A 3129950232 | CLAMP |
| FEED LINE AND RETURN LINE | ||
| 430 | A 3179950832 | CLAMP |
| FEED LINE AND RETURN LINE | ||
| 435 | N 000084006110 | SCREW |
| LINES TO BRACKET | ||
| 440 | N 000127006206 | LOCK WASHER |
| LINES TO BRACKET | ||
| 445 | N 000934006000 | NUT |
| LINES TO BRACKET | ||
