Transporto priemonė: LS 1518; VIN numerio dalis: 351335

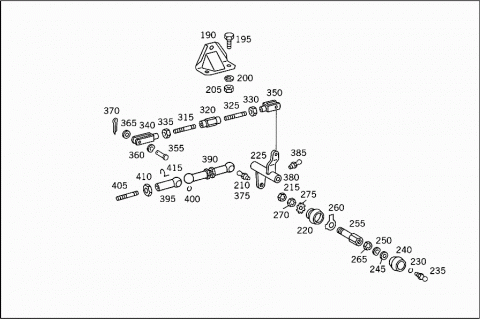

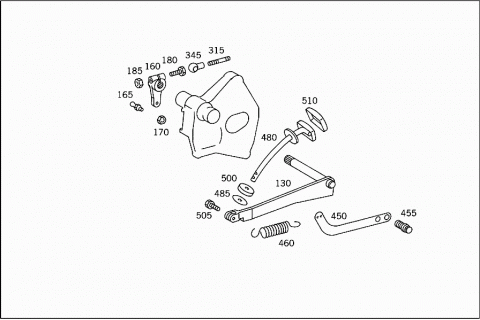

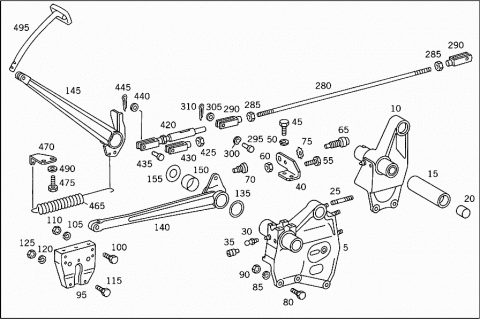

Grupė: 29 PEDAL ASSEMBLE - 001 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3452900119 | BEARING BRACKET |
| FRONT | ||
| 005 | A 3522901819 | BEARING BRACKET |
| Repalced by: A 3412907119 | ||
| 005 | A 3412907119 | BEARING BRACKET |
| FRONT | ||
| 005 | A 3512907019 | BEARING BRACKET |
| Repalced by: A 3452907419 | ||
| 005 | A 3452907419 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| A 3522900919 | BEARING BRACKET | |
| Repalced by: A 3512900019 | ||
| 010 | A 3512900019 | BEARING BRACKET |
| A 3522900336 | BEARING TUBE | |
| Repalced by: A 3442907036 | ||
| 015 | A 3442907036 | BEARING TUBE |
| A 3529920901 | BUSHING | |
| Repalced by: A 3442940150 | ||
| A 3529922001 | BUSHING | |
| Repalced by: A 3442940150 | ||
| 020 | A 3442940150 | BUSHING |
| 025 | N 000835008061 | STUD |
| 030 | N 071412010100 | GREASE NIPPLE |
| N 000417012000 | HEADLESS SETSCREW | |
| Repalced by: A 3529900080 | ||
| 035 | A 3529900080 | SCREW |
| 040 | A 3452920130 | STOP |
| BRAKE PEDAL STOP | ||
| 045 | N 000933010128 | SCREW |
| STOP TO BEARING BRACKET | ||
| 050 | N 000127010202 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 055 | N 000933010254 | SCREW |
| STOP | ||
| 060 | N 000934010025 | NUT |
| STOP | ||
| 065 | A 0005457009 | SWITCH |
| STOP LIGHT SWITCH | ||
| 070 | A 3465450045 | BOOT |
| STOP LIGHT SWITCH | ||
| 075 | N 006797016152 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 080 | N 000933010056 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 080 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 085 | N 000127010205 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 090 | N 000934010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 095 | A 3453230095 | REINFORCEMENT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 095 | A 3513230095 | REINFORCEMENT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 100 | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 105 | N 000127010205 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 110 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 115 | N 000963012027 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 115 | A 3419907130 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 120 | N 000127012203 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 125 | N 000934012040 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 130 | A 3522902216 | PEDAL |
| CLUTCH | ||
| 135 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3 MM | ||
| 135 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 135 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 140 | A 3522900518 | PEDAL |
| BRAKE PEDAL | ||
| 145 | A 3452900318 | PEDAL |
| BRAKE PEDAL | ||
| 150 | A 3529920501 | BUSHING |
| 155 | A 3039910345 | RING |
| PEDAL TO BEARING BRACKET | ||
| A 3442907034 | LEVER | |
| Repalced by: A 3512907834 | ||
| 160 | A 3512907834 | LEVER |
| A 3522930310 | LEVER | |
| Repalced by: A 3452931310 | ||
| 160 | A 3452931310 | LEVER |
| CLUTCH | ||
| 165 | A 3449917020 | BALL PIVOT |
| TO 344 290 70 34 | ||
| 165 | A 3419917215 | BALL PIVOT |
| 170 | N 000934012040 | NUT |
| 175 | N 000931010080 | SCREW |
| LEVER TO CLUTCH SHAFT | ||
| 180 | N 000931010395 | SCREW |
| LEVER TO CLUTCH SHAFT | ||
| 185 | N 913004010008 | NUT |
| LEVER TO CLUTCH SHAFT | ||
| 185 | N 913004010008 | NUT |
| LEVER TO CLUTCH SHAFT | ||
| A 3522931936 | BEARING BRACKET | |
| Repalced by: A 3512930036 | ||
| A 3522932536 | BEARING BRACKET | |
| Repalced by: A 3512930036 | ||
| 190 | A 3512930036 | BEARING BRACKET |
| OUTSIDE | ||
| 195 | N 000933010034 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 200 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 205 | N 000934010000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 210 | A 3529910415 | BALL PIVOT |
| 215 | N 000936012000 | NUT |
| 220 | A 3522930060 | SEAL RING |
| A 3522901428 | LEVER | |
| Repalced by: A 3522901728 | ||
| 225 | A 3522901728 | LEVER |
| 230 | N 071805016300 | SNAP RING |
| 235 | A 3529910815 | BALL PIVOT |
| 240 | A 3522930160 | SEAL RING |
| 245 | N 000433013000 | WASHER |
| 250 | N 000127012203 | LOCK WASHER |
| 255 | A 3529910915 | SPACER |
| 260 | N 000463017001 | LOCK PLATE |
| 265 | N 000934016002 | NUT |
| 270 | N 000936012000 | NUT |
| 275 | N 006797012151 | TOOTHED WASHER |
| 280 | N 900331010203 | PULL ROD |
| 10X400X60/60 | ||
| 285 | N 000934010000 | NUT |
| PULL ROD | ||
| 285 | N 000934010003 | NUT |
| PULL ROD | ||
| 290 | A 0009961501 | YOKE |
| PULL ROD | ||
| 295 | A 3529910007 | PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 300 | N 900055010003 | SPRING WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 305 | N 000433010500 | WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 310 | N 000094003206 | COTTER PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 315 | N 900331010202 | PULL ROD |
| FRONT | ||
| 10X65X30/30 | ||
| 315 | A 3219961425 | ROD |
| FRONT | ||
| 320 | N 001479010000 | TURNBUCKLE |
| 325 | N 900331010194 | PULL ROD |
| REAR | ||
| 10X80X30/30 | ||
| 325 | A 3219961525 | ROD |
| REAR | ||
| 330 | N 000934010035 | NUT |
| 335 | N 000934010000 | NUT |
| 340 | A 0009961501 | YOKE |
| 345 | N 071805016101 | BALL SOCKET |
| N 071752010000 | YOKE | |
| Repalced by: A 0009961501 | ||
| 350 | A 0009961401 | YOKE |
| 355 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 360 | N 900055010003 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 365 | N 000433010500 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 370 | N 000094003206 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 375 | A 3529910415 | BALL PIVOT |
| 380 | N 000439012200 | NUT |
| 385 | N 071412010100 | GREASE NIPPLE |
| 390 | A 3522901039 | ROD |
| BOTTOM | ||
| 395 | N 071805016202 | BALL SOCKET |
| 400 | N 071805016300 | SNAP RING |
| 405 | N 900331010201 | PULL ROD |
| 410 | N 000936010006 | NUT |
| 415 | N 071805016402 | SECURING CLIP |
| A 3452957033 | ROD | |
| Repalced by: A 3762950033 | ||
| 420 | A 3762950033 | ROD |
| (PISTON ROD) | ||
| 425 | N 000934012022 | NUT |
| PISTON ROD | ||
| A 3459967001 | YOKE | |
| Repalced by: A 3769960001 | ||
| 430 | A 3769960001 | YOKE |
| PISTON ROD | ||
| 435 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 440 | N 000433010504 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 445 | N 000094003212 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| A 3522910732 | LEVER | |
| Repalced by: A 3412917032 | ||
| 450 | A 3412917032 | LEVER |
| A 3522910474 | PIN | |
| Repalced by: A 3412917074 | ||
| 455 | A 3412917074 | PIN |
| 460 | A 3529931310 | SPRING |
| 465 | A 3609930210 | SPRING |
| TWO-CIRCUIT BRAKE VALVE | ||
| 470 | A 3452920040 | BRACKET |
| RELEASE SPRING | ||
| 475 | N 000933008268 | SCREW |
| BRACKET TO CAB | ||
| 480 | A 3522900624 | PEDAL PLATE |
| CLUTCH | ||
| 485 | A 3529902740 | WASHER |
| CLUTCH PEDAL | ||
| 485 | N 009021015100 | WASHER |
| CLUTCH PEDAL | ||
| 490 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB | ||
| A 3512907024 | PEDAL PLATE | |
| Repalced by: A 3522900624 | ||
| A 3222900824 | PEDAL PLATE | |
| Repalced by: A 3222901324 | ||
| 495 | A 3222901324 | PEDAL PLATE |
| BRAKE | ||
| 500 | A 3122911197 | SEAL WASHER |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 505 | N 000933010034 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 505 | N 000933010254 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 510 | A 3202925082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
