Transporto priemonė: LS 1518; VIN numerio dalis: 351335

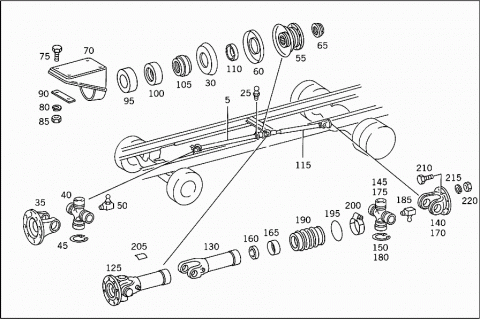

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 3444100601	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		837 MM
005	A 3444100701	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1436 MM
005	A 3444100801	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1346 MM
025	N 071412008100	GREASE NIPPLE
030	A 3124131361	PROTECTIVE CAP
035	A 3524110011	DRIVE FLANGE
	A 3854100231	UNIVERSAL JOINT CROSS
040	A 3024100031	UNIVERSAL JOINT CROSS
045	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
045	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
045	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
045	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
045	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
045	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
050	N 071412008300	GREASE NIPPLE
050	A 3459977288	GREASE NIPPLE
055	A 3524100030	CENTERING FLANGE
060	A 3124131361	PROTECTIVE CAP
065	A 3224110072	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
070	A 3224100540	BRACKET
		INTERMEDIATE SHAFT BEARING
070	A 3214130014	SUPPORT
		INTERMEDIATE SHAFT BEARING
075	N 000933010129	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
075	N 000933010056	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
080	N 000127010205	LOCK WASHER
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
085	N 000934010000	NUT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
090	A 3524130011	REINFORCEMENT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
095	A 3449978346	SEAL RING
100	A 3124131112	RUBBER MOUNTING
105	A 3524100051	BALL BEARING
105	A 3454100051	BALL BEARING
110	A 3124131231	BEARING RING
	A 3444101802	PROPELLER SHAFT
	Repalced by: A 3514107202
	A 3514107202	PROPELLER SHAFT
	Repalced by: A 3514107602
115	A 3514107602	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1703 MM
	A 3444102502	PROPELLER SHAFT
	Repalced by: A 3514107302
115	A 3514107302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1618 MM
	A 3514107008	UNIVERSAL JOINT YOKE
	Repalced by: A 3524100008
	A 3524100008	UNIVERSAL JOINT YOKE
	Repalced by: A 3444100008
125	A 3444100008	UNIVERSAL JOINT YOKE
	Repalced by: A 3414100908
125	A 3414100908	UNIVERSAL JOINT YOKE
130	A 3444110005	UNIVERSAL JOINT YOKE
	Repalced by: A 3024110405
130	A 3024110405	UNIVERSAL JOINT YOKE
135	N 071412008100	GREASE NIPPLE
140	A 3524110011	DRIVE FLANGE
	A 3854100231	UNIVERSAL JOINT CROSS
145	A 3024100031	UNIVERSAL JOINT CROSS
150	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
150	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
150	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
150	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
150	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
150	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
155	N 071412008300	GREASE NIPPLE
155	A 3459977288	GREASE NIPPLE
160	A 3374130080	SEAL RING
165	A 3214110158	SEAL HOLDER
170	A 3524110011	DRIVE FLANGE
	A 3854100231	UNIVERSAL JOINT CROSS
175	A 3024100031	UNIVERSAL JOINT CROSS
180	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
180	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
180	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
180	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
180	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
180	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
185	N 071412008300	GREASE NIPPLE
185	A 3459977288	GREASE NIPPLE
	A 3524100080	BOOT
	Repalced by: A 3414100080
190	A 3414100080	BOOT
195	A 3214110053	WIRE RING
200	N 916002078100	CLAMP
205	A 3224110094	BALANCING PLATE
		AS REQUIRED
		20 MM
205	A 3224110194	BALANCING PLATE
		AS REQUIRED
		30 MM
205	A 3124111894	BALANCING PLATE
		AS REQUIRED
		60 MM
205	A 3124112194	BALANCING PLATE
		AS REQUIRED
		80 MM
205	A 3124111094	BALANCING PLATE
		AS REQUIRED
		95 MM
205	A 3224110294	BALANCING PLATE
		AS REQUIRED
		100 MM
205	A 3124111794	BALANCING PLATE
		AS REQUIRED
		120 MM
205	A 3124111194	BALANCING PLATE
		AS REQUIRED
		160 MM
205	A 3124111294	BALANCING PLATE
		AS REQUIRED
		190 MM
205	A 3224110394	BALANCING PLATE
		AS REQUIRED
		200 MM
210	A 3529900401	SCREW
	Repalced by: A 3529904701
210	A 3529904701	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
215	N 000127010205	LOCK WASHER
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
		TO 352 990 04 01
220	N 000934010042	NUT
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
