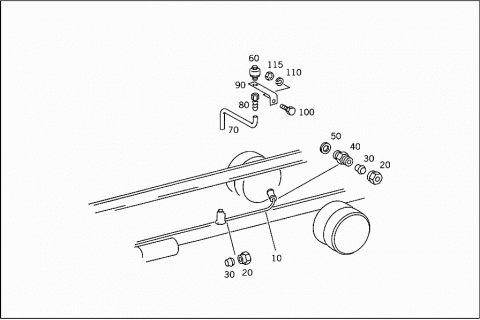

Transporto priemonė: LS 1518; VIN numerio dalis: 351335
Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE, SEE PARTS LIST: | ||
| 745 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE, SEE PARTS LIST: | ||
| 745.3 | ||
| 010 | A 3523500479 | HOSE |
| FROM THREE-WAY VALVE TO REAR AXLE | ||
| 020 | N 915017008100 | UNION NUT |
| 030 | N 003861008005 | GLAND |
| 040 | N 003901008001 | SCREW-IN FITTING |
| ONE-CHAMBER COMPRESSED AIR CYLINDER | ||
| 050 | N 007603012112 | SEAL RING |
| ONE-CHAMBER COMPRESSED AIR CYLINDER | ||
| 060 | A 1112600058 | BREATHER |
| AXLE HOUSING BREATHING | ||
| 070 | A 3449977582 | HOSE |
| BLEEDING | ||
| 080 | A 3513517065 | FITTING |
| BREATHER LINE | ||
| 090 | A 3513517040 | BRACKET |
| BREATHER LINE | ||
| 100 | N 000933008274 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 110 | N 912004008102 | LOCK WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 120 | N 000934008045 | NUT |
| BRACKET TO RIGHT SIDE MEMBER |
