Transporto priemonė: LS 1518; VIN numerio dalis: 351335
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |

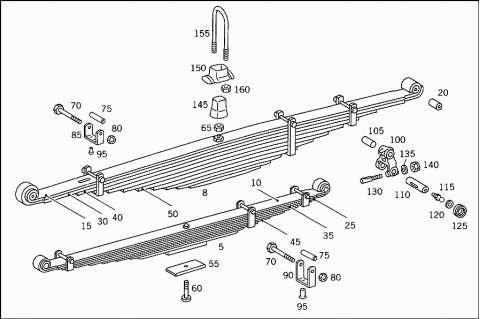

| FRONT SPRING | ||
| 005 | A 3603200102 | FRONT SPRING |
| 9-LEAF | ||
| 008 | A 3603200702 | FRONT SPRING |
| 11-LEAF | ||
| 010 | A 3603200394 | SPRING LEAF |
| NO.1 | ||
| 015 | A 3603201094 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3523220050 | BUSHING |
| 020 | A 3853220050 | BUSHING |
| 025 | A 3603210112 | SPRING LEAF |
| NO.2; TO 360 320 01 02 | ||
| 030 | A 3603210712 | SPRING LEAF |
| NO.2; TO 360 320 07 02 | ||
| 035 | A 3603200494 | SPRING LEAF |
| NO.3; TO 360 320 01 02 | ||
| 040 | A 3603201194 | SPRING LEAF |
| NO.3; TO 360 320 07 02 | ||
| H 993513200094 | SPRING LEAF | |
| Repalced by: A 3603200594 | ||
| 045 | A 3603200594 | SPRING LEAF |
| NO.6; TO 360 320 01 02 | ||
| 050 | H 983453200094 | SPRING LEAF |
| NO.7; TO 360 320 07 02 | ||
| 055 | A 3603220184 | SHIM |
| 060 | N 004626012110 | SPRING BOLT |
| 065 | N 000934012040 | NUT |
| 070 | N 000601008037 | SCREW |
| 075 | A 0003212353 | SPACER TUBE |
| 080 | N 000934008000 | NUT |
| 085 | A 0033212733 | SPRING CLAMP |
| 085 | A 0033213033 | SPRING CLAMP |
| 090 | A 0033212633 | SPRING CLAMP |
| 090 | A 0033213233 | SPRING CLAMP |
| 095 | N 910006008022 | RIVET |
| 8X20 MM | ||
| 100 | A 3523200063 | SHACKLE |
| 105 | A 3523220050 | BUSHING |
| 105 | A 3853220050 | BUSHING |
| A 3523220530 | SHACKLE PIN | |
| Repalced by: A 3413227230 | ||
| 110 | A 3413227230 | SHACKLE PIN |
| Repalced by: A 3923227030 | ||
| 110 | A 3923227030 | SHACKLE PIN |
| 115 | N 071412010300 | GREASE NIPPLE |
| 120 | A 3523230376 | WASHER |
| 120 | A 3523230476 | WASHER |
| 125 | A 0029973140 | SEAL RING |
| 130 | A 3529900337 | BOLT |
| 135 | N 000125010518 | WASHER |
| 135 | N 000125010518 | WASHER |
| 140 | N 913002010000 | NUT |
| 140 | N 913004010008 | NUT |
| 145 | A 3523310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 | A 3523220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 | A 3453227224 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

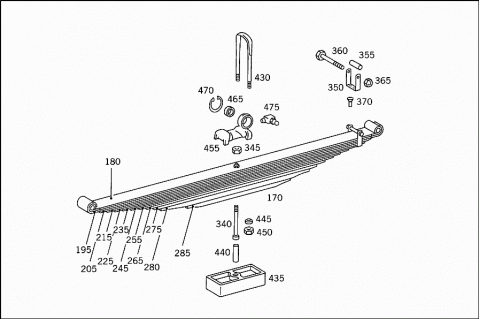

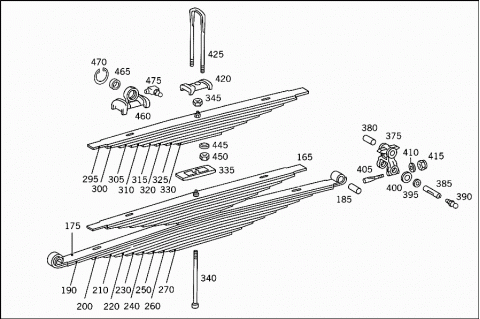

| REAR SPRING | ||
| A 3603200408 | REAR SPRING | |
| Repalced by: A 3453200008 | ||
| 165 | A 3453200008 | REAR SPRING |
| WITH HELPER SPRING | ||
| 170 | A 3603200006 | REAR SPRING |
| 12-LEAF | ||
| 175 | A 3603200193 | SPRING LEAF |
| NO.1, TO 360 320 04 08 | ||
| 175 | A 3453207194 | SPRING LEAF |
| NO.1;TO 345 320 00 08 | ||
| 180 | A 3603200293 | SPRING LEAF |
| NO.1; TO 360 320 00 06 | ||
| 185 | A 3523250150 | BUSHING |
| 185 | A 3853250050 | BUSHING |
| 190 | A 3603240512 | SPRING LEAF |
| NO.2,TO 360 320 04 08 | ||
| 190 | A 3453240212 | SPRING LEAF |
| NO.2,TO 345 320 00 08 | ||
| 195 | A 3603240312 | SPRING LEAF |
| NO.2; TO 360 320 00 06 | ||
| 200 | A 3603240513 | SPRING LEAF |
| NO.3,TO 360 320 04 08 | ||
| 200 | A 3453240213 | SPRING LEAF |
| NO.3,TO 345 320 00 08 | ||
| 205 | A 3603240313 | SPRING LEAF |
| NO.3; TO 360 320 00 06 | ||
| 210 | A 3603240514 | SPRING LEAF |
| NO.4,TO 360 320 04 08 | ||
| 210 | A 3453240214 | SPRING LEAF |
| NO.4,TO 345 320 00 08 | ||
| 215 | A 3603240314 | SPRING LEAF |
| NO.4; TO 360 320 00 06 | ||
| 220 | A 3603240515 | SPRING LEAF |
| NO.5,TO 360 320 04 08 | ||
| 220 | A 3453240215 | SPRING LEAF |
| NO.5,TO 345 320 00 08 | ||
| 225 | A 3603240315 | SPRING LEAF |
| NO.5; TO 360 320 00 06 | ||
| 230 | A 3603240516 | SPRING LEAF |
| NO.6,TO 360 320 04 08 | ||
| 230 | A 3453240216 | SPRING LEAF |
| NO.6,TO 345 320 00 08 | ||
| 235 | A 3603240316 | SPRING LEAF |
| NO.6; TO 360 320 00 06 | ||
| 240 | A 3603240417 | SPRING LEAF |
| NO.7,TO 360 320 04 08 | ||
| 240 | A 3453240217 | SPRING LEAF |
| NO.7,TO 345 320 00 08 | ||
| 245 | A 3603240317 | SPRING LEAF |
| NO.7; TO 360 320 00 06 | ||
| A 3513247008 | HELPER SPRING | |
| NO.8,TO 345 320 00 08 | ||
| 250 | A 3453240218 | SPRING LEAF |
| NO.8,TO 345 320 00 08 | ||
| 255 | A 3603240118 | SPRING LEAF |
| NO.8; TO 360 320 00 06 | ||
| 260 | A 3453240219 | SPRING LEAF |
| NO.9,TO 345 320 00 08 | ||
| 265 | A 3603240119 | SPRING LEAF |
| NO.9; TO 360 320 00 06 | ||
| 270 | A 3453240420 | SPRING LEAF |
| NO.10,TO 345 320 00 08 | ||
| 275 | A 3603240120 | SPRING LEAF |
| NO.10; TO 360 320 00 06 | ||
| 280 | A 3603240121 | SPRING LEAF |
| NO.11; TO 360 320 00 06 | ||
| 285 | A 3603240122 | SPRING LEAF |
| NO.12; TO 360 320 00 06 | ||
| 290 | A 3603200110 | HELPER SPRING |
| TO 360 320 04 08 | ||
| 295 | A 3603240440 | SPRING LEAF |
| NO.1,TO 360 320 01 10 | ||
| 295 | A 3453240040 | SPRING LEAF |
| NO.1,TO 345 320 00 08 | ||
| 300 | A 3603240441 | SPRING LEAF |
| NO.2,TO 360 320 01 10 | ||
| 300 | A 3453240041 | SPRING LEAF |
| NO.2,TO 345 320 00 08 | ||
| 305 | A 3603240442 | SPRING LEAF |
| NO.3,TO 360 320 01 10 | ||
| 305 | A 3453240042 | SPRING LEAF |
| NO.3,TO 345 320 00 08 | ||
| 310 | A 3603240443 | SPRING LEAF |
| NO.4,TO 360 320 01 10 | ||
| 310 | A 3453240043 | SPRING LEAF |
| NO.4,TO 345 320 00 08 | ||
| 315 | A 3603240444 | SPRING LEAF |
| NO.5,TO 360 320 01 10 | ||
| 315 | A 3453240044 | SPRING LEAF |
| NO.5,TO 345 320 00 08 | ||
| 320 | A 3603240345 | SPRING LEAF |
| NO.6,TO 360 320 01 10 | ||
| 320 | A 3453240045 | SPRING LEAF |
| NO.6,TO 345 320 00 08 | ||
| 325 | A 3603240246 | SPRING LEAF |
| NO.7,TO 360 320 01 10 | ||
| 325 | A 3453240046 | SPRING LEAF |
| NO.7,TO 345 320 00 08 | ||
| 330 | A 3453240047 | SPRING LEAF |
| NO.8,TO 345 320 00 08 | ||
| 335 | A 3523240135 | SPACER |
| TO 360 320 04 08 | ||
| 340 | N 004626012115 | SPRING BOLT |
| TO 360 320 04 08 | ||
| 340 | A 0003220271 | SCREW |
| TO 345 320 00 08 | ||
| 340 | N 004626012137 | SPRING BOLT |
| 345 | N 000934012043 | NUT |
| 350 | A 3603210033 | SPRING CLAMP |
| 355 | A 0003212553 | SPACER TUBE |
| 360 | N 000601012006 | SCREW |
| 365 | N 000934012021 | NUT |
| 370 | N 910006008024 | RIVET |
| 8X25 MM | ||
| 375 | A 3523200163 | SHACKLE |
| 380 | A 3523250150 | BUSHING |
| 380 | A 3853250050 | BUSHING |
| A 3523250530 | SHACKLE PIN | |
| Repalced by: A 3413257030 | ||
| 385 | A 3413257030 | SHACKLE PIN |
| Repalced by: A 3923257230 | ||
| 385 | A 3923257230 | SHACKLE PIN |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 385 | A 3413257030 | SHACKLE PIN |
| Repalced by: A 3923257130 | ||
| 385 | A 3923257130 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE | ||
| 385 | A 3923257130 | SHACKLE PIN |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 390 | N 071412010100 | GREASE NIPPLE |
| 395 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 395 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 400 | A 0029973040 | SEAL RING |
| 405 | A 3529900337 | BOLT |
| 410 | N 000125010518 | WASHER |
| 410 | N 000125010518 | WASHER |
| 415 | N 913002010000 | NUT |
| 415 | N 913004010008 | NUT |
| A 3543515026 | SPRING CLAMPING PLATE | |
| Repalced by: A 3833250031 | ||
| 420 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| A 3273515425 | U-BOLT | |
| Repalced by: A 3403510025 | ||
| 425 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| TO 360 320 04 08 | ||
| 425 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| TO 345 320 00 08 | ||
| 425 | A 3273510425 | U-BOLT |
| 425 | A 3213512225 | U-BOLT |
| 430 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 435 | A 3513517028 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 440 | A 3513517074 | PIN |
| REAR SPRING TO REAR AXLE | ||
| 445 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 450 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 455 | A 3523200035 | PLATE |
| 455 | A 3523250331 | PLATE |
| 460 | A 3523200135 | PLATE |
| 460 | A 3523250431 | PLATE |
| 465 | A 0009810831 | JOINT BEARING |
| 465 | A 0009811231 | JOINT BEARING |
| 470 | N 000472055000 | LOCK RING |
| T YYYYYYYYYYYY | PART NAME MISSING | |

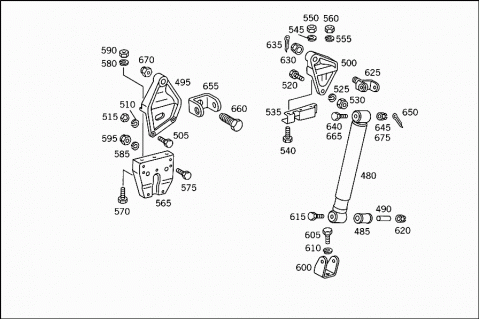

| SHOCK ABSORBERS AND MOUNTING | ||
| 475 | N 071412008300 | GREASE NIPPLE |
| 480 | A 3453230100 | SHOCK ABSORBER |
| 480 | A 3513207030 | SHOCK ABSORBER |
| Repalced by: A 3513237100 | ||
| 480 | A 3513237100 | SHOCK ABSORBER |
| "FRIC-ROT" | ||
| 485 | A 0003230585 | RUBBER MOUNTING |
| TO 345 323 01 00 | ||
| 485 | A 3513237085 | RUBBER MOUNTING |
| TO 351 320 70 30 | ||
| 485 | A 0003170412 | RUBBER BUFFER |
| TO 351 323 71 00 | ||
| 490 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 323 01 00 | ||
| 490 | A 3513237050 | BUSHING |
| TO 351 320 70 30 | ||
| 490 | A 0003170450 | BUSHING |
| TO 351 323 71 00 | ||
| 495 | A 3453230163 | BEARING BRACKET |
| 495 | A 3523232463 | BEARING BRACKET |
| 500 | A 3413230463 | BEARING BRACKET |
| 505 | N 000933010056 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 510 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 515 | N 000934010000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 520 | N 000931010282 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 525 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 530 | N 000934010000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 535 | A 3523110063 | CONSOLE |
| LEFT | ||
| 535 | A 3523110163 | CONSOLE |
| RIGHT | ||
| 540 | N 000933010034 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 545 | N 000127010205 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 550 | N 000934010000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 555 | N 000127014203 | LOCK WASHER |
| 560 | N 000934014003 | NUT |
| 565 | A 3453230095 | REINFORCEMENT |
| 565 | A 3513230095 | REINFORCEMENT |
| 570 | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO FRAME | ||
| 575 | N 000963012027 | SCREW |
| REINFORCEMENT ANGLE TO FRAME | ||
| 575 | A 3419907130 | SCREW |
| REINFORCEMENT ANGLE TO FRAME | ||
| 580 | N 000127010202 | LOCK WASHER |
| REINFORCEMENT ANGLE TO FRAME | ||
| 585 | N 000127012201 | LOCK WASHER |
| REINFORCEMENT ANGLE TO FRAME | ||
| 590 | N 000934010040 | NUT |
| REINFORCEMENT ANGLE TO FRAME | ||
| 595 | N 000934012040 | NUT |
| REINFORCEMENT ANGLE TO FRAME | ||
| A 3413237163 | BEARING BRACKET | |
| Repalced by: A 3523231663 | ||
| 600 | A 3523231663 | BEARING BRACKET |
| A 3413237263 | BEARING BRACKET | |
| Repalced by: A 3523231763 | ||
| 600 | A 3523231763 | BEARING BRACKET |
| 605 | N 000961012165 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 610 | N 000127012203 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 610 | N 000127012201 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| A 3529900002 | SCREW | |
| Repalced by: N 000960016059 | ||
| 615 | N 000960016238 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 620 | N 913004016004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 625 | A 3523230118 | END PIECE |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 630 | N 000937024001 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 635 | N 000094005036 | COTTER PIN |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 640 | A 3409900002 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 645 | N 000979016006 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 650 | N 000094004055 | COTTER PIN |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 655 | A 3523230340 | BRACKET |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 660 | A 3529903201 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 665 | N 000960016059 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 670 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 670 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 675 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 680 | A 3523231463 | BEARING BRACKET |
| STABILIZER | ||
| 685 | A 3603230869 | LEVER |
| STABILIZER | ||
| 690 | A 0009810731 | JOINT BEARING |
| 690 | A 0009810931 | JOINT BEARING |
| 690 | A 0009816631 | JOINT BEARING |
| 695 | N 009045035001 | SNAP RING |
| 700 | A 3603230274 | PIN |
| ARTICULATED ROD TO LEVER | ||
| 705 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 705 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 710 | A 3603200189 | ROD |
| 710 | A 3603200789 | ROD |
| A 3603201089 | ROD | |
| Repalced by: A 3453207389 | ||
| 710 | A 3453207389 | ROD |
| 715 | A 3083387051 | SPACER RING |
| TO 345 320 73 89 | ||
| 720 | A 0003300185 | BOOT |
| TO 360 320 01 89 | ||
| 725 | A 3083387056 | DUST CAP |
| TO 345 320 73 89 | ||
| 730 | N 000937014001 | NUT |
| TO 360 320 01 89 | ||
| 735 | N 000094003029 | COTTER PIN |
| TO 360 320 01 89 | ||
| 740 | A 3603230663 | BEARING BRACKET |
| 745 | N 000933010044 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 750 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 755 | N 000934010000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 760 | N 910005010019 | RIVET |
| 765 | N 913004014000 | NUT |
| ARTICULATED ROD | ||
| TO 360 320 07 89,360 320 01 89 | ||
| 765 | N 913004014004 | NUT |
| ARTICULATED ROD | ||
| 770 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 775 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 780 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 780 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 785 | N 000936020000 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 790 | N 071412010100 | GREASE NIPPLE |
| 795 | A 3523230283 | HOUSING |
| 800 | A 3603230085 | RUBBER MOUNTING |
| 805 | N 000933010056 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 805 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 810 | N 000127010205 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 810 | N 000127010202 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 815 | N 000934010000 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 815 | N 000934010004 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 820 | A 3603230065 | TORSION BAR |
| STABILIZER | ||
| 825 | A 3603230151 | SPACER RING |
| 830 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 835 | N 000094006311 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 838 | N 000940006312 | STUD |
| LEVER TO TORSION BAR | ||

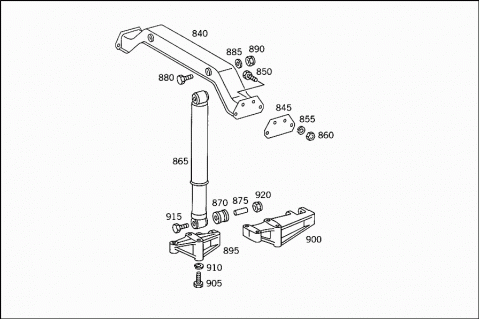

| 840 | A 3523100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 840 | A 3453107240 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 840 | A 3513107340 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 840 | A 3523100240 | CROSS MEMBER |
| 845 | A 3523120084 | SHIM |
| 850 | N 000933010044 | SCREW |
| 850 | N 000933010267 | SCREW |
| 855 | N 000127010205 | LOCK WASHER |
| 855 | N 000127010202 | LOCK WASHER |
| 860 | N 000934010000 | NUT |
| 860 | N 000934010040 | NUT |
| 865 | A 0013268500 | SHOCK ABSORBER |
| F.U.S. | ||
| 865 | A 0013266500 | SHOCK ABSORBER |
| BOGE | ||
| 865 | A 3453267200 | SHOCK ABSORBER |
| 865 | A 3453267700 | SHOCK ABSORBER |
| AMORTEX | ||
| 865 | A 3513267500 | SHOCK ABSORBER |
| FRIC-ROT | ||
| 865 | A 0013264600 | SHOCK ABSORBER |
| 865 | A 0023261000 | SHOCK ABSORBER |
| 865 | A 3453267100 | SHOCK ABSORBER |
| 870 | A 0003230785 | RUBBER MOUNTING |
| 875 | A 0003230553 | SPACER TUBE |
| A 3529901301 | SCREW | |
| Repalced by: A 3979900001 | ||
| 880 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 885 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 890 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 895 | A 3523261240 | BRACKET |
| LEFT | ||
| 895 | A 3523261240 | BRACKET |
| LEFT | ||
| 895 | A 3453260040 | BRACKET |
| LEFT | ||
| 895 | A 3453260040 | BRACKET |
| LEFT | ||
| 895 | A 3523261340 | BRACKET |
| RIGHT | ||
| 895 | A 3523261340 | BRACKET |
| RIGHT | ||
| 895 | A 3453260140 | BRACKET |
| RIGHT | ||
| 895 | A 3453260140 | BRACKET |
| RIGHT | ||
| A 3513260040 | BRACKET | |
| Repalced by: A 3513260240 | ||
| 900 | A 3513260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| A 3513260140 | BRACKET | |
| Repalced by: A 3513260340 | ||
| 900 | A 3513260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 905 | N 000960014073 | SCREW |
| BRACKET TO SHIM | ||
| 905 | N 000960014073 | SCREW |
| BRACKET TO SHIM | ||
| 905 | N 000960014048 | SCREW |
| BRACKET TO SHIM | ||
| 905 | N 000960014048 | SCREW |
| BRACKET TO SHIM | ||
| 905 | N 000960014085 | SCREW |
| BRACKET TO SHIM | ||
| 905 | N 000960014100 | SCREW |
| BRACKET TO SHIM | ||
| 910 | N 000127014203 | LOCK WASHER |
| A 3529901201 | SCREW | |
| Repalced by: A 3859900101 | ||
| 915 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 920 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||

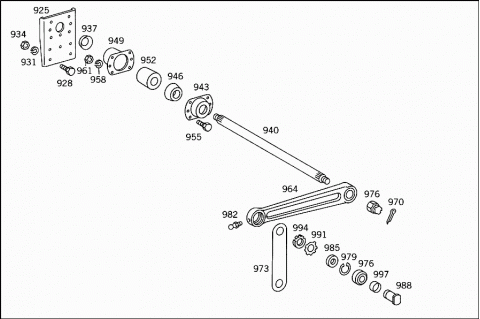

| A 3403260025 | PLATE | |
| Repalced by: A 3523260125 | ||
| 925 | A 3523260125 | PLATE |
| REAR AXLE STABILIZER | ||
| 928 | N 000961012164 | SCREW |
| PLATE TO FRAME | ||
| 931 | N 000127012203 | LOCK WASHER |
| PLATE TO FRAME | ||
| 934 | N 000934012004 | NUT |
| PLATE TO FRAME | ||
| 937 | A 3403230051 | SPACER RING |
| 937 | A 3403260051 | SPACER RING |
| 937 | A 3523230751 | SPACER RING |
| 937 | A 3403260051 | SPACER RING |
| 940 | A 3223260065 | TORSION BAR |
| 940 | A 3443260065 | TORSION BAR |
| 940 | A 3603260165 | TORSION BAR |
| 943 | A 3403260082 | HOUSING |
| 946 | A 3523260181 | RUBBER MOUNTING |
| 946 | A 3403260181 | RUBBER MOUNTING |
| 949 | A 3403260182 | HOUSING |
| 952 | A 3523260081 | RUBBER MOUNTING |
| 952 | A 3403260081 | RUBBER MOUNTING |
| 955 | N 000933010056 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 955 | N 000933010129 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 958 | N 000127010205 | LOCK WASHER |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 961 | N 000934010000 | NUT |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| A 3523260369 | LEVER | |
| Repalced by: A 3453260269 | ||
| 964 | A 3453260269 | LEVER |
| A 3523260469 | LEVER | |
| Repalced by: A 3453260169 | ||
| 964 | A 3453260169 | LEVER |
| 967 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 970 | N 000094005040 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 973 | A 3523260116 | LINK |
| LEVER TO GUIDE PLATE | ||
| 973 | A 3523260216 | LINK |
| LEVER TO GUIDE PLATE | ||
| 976 | A 0009810831 | JOINT BEARING |
| 976 | A 0009811231 | JOINT BEARING |
| 979 | N 000472055000 | LOCK RING |
| 982 | N 071412008100 | GREASE NIPPLE |
| 985 | A 3603230560 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 988 | A 3523260274 | PIN |
| LEVER TO GUIDE PLATE | ||
| 991 | N 070952035101 | LOCK PLATE |
| LEVER TO GUIDE PLATE | ||
| 994 | N 070852035000 | NUT |
| LEVER TO GUIDE PLATE | ||
| 997 | A 3523260153 | SPACER TUBE |
| LEVER TO GUIDE PLATE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
